RDS Using the RDS (Radio Data System) function on FMRadio Data System allows you to continue listening to the same station, whatever frequency it is using for the region you are going through. Briefly press the " RDS" button to switch the function on or off;
the display will show:
-"RDS" if the function is selected.
-"(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the "TA" button to switch the function on or off.
The display will show:
-" TA " if the function is selected,
-"(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD changer). If you wish to interrupt a message, press the " TA" button; this switches the function off.
Note: the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages arebroadcast.
YOUR 406 IN DETAIL
80

Regional following modeWhen they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS" button for more than two seconds to switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.).With FM selected, press the " TA" button for two seconds to switch this function on or off.
To search for a PTYprogramme:
-select the PTYfunction,
-briefly press button Kor Lto scroll down the list of the various types of pro-
grammes offered.
-when the programme of your choice is displayed, keep button Kor Lpressed for two seconds to carry out an automatic
search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the
memory. To do this, press the preselection buttons " 1" to " 6" for more
than two seconds.
To recall the type of programme stored in the memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It enables the broadcast of traffic information by a station, which is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 IN DETAIL 81

CASSETTE Selecting cassette modeWhen a cassette is inserted, the cassette player will start automatically. If a cassette is already inserted, press button C.
Ejecting the cassette Press button Eto eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a
side. To manually reverse the direction of play, press button C.
Selecting a track on a cassette (blank search)
Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Fast forward/rewind Fully press button K or Lto fast forward or rewind the cassette. At the end of the fast forward/rewind, the set plays the cur-
rent side. Noise reduction (Dolby B NR system) Press button Cfor more than two seconds to switch the function on or off.
Dolby noise reduction manufactured under licence from Dolby Laboratories Licensing Corporation. Dolby and the double D symbol are trademarks of Dolby Laboratories Licensing Corporation. Recommendations concerning the use of cassettes
-Use good quality cassettes.
-Avoid using cassettes which play for longer than 90 minutes.
-Never expose the cassettes to heat or direct sunlight.
-Re-tension the tape if necessary before inseting it into the player.
-Clean the playing heads regularly with a humid type cleaning tape.
YOUR 406 IN DETAIL
82

YOUR 406 IN DETAIL83
CD CHANGER Selecting CD changer mode Press button D.
Selecting a disc Press buttons "1" to " 6" to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated play Press and hold button Kor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle
When the CD changer is selected, keep button " D" pressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button " D" again for two seconds returns you to normal play.

YOUR 406 IN DETAIL
84
This is located inside the boot on the left hand side. It holds up to 6 discs.
To insert a disc into the changer:
-open sliding panel A,
-press button Bto eject the cartridge C,
-open one of the six compartments of the cartridge by pulling tab D,
-insert the disc with the printed face upwards and close the compartment,
-insert the cartridge into the changer,
-close the sliding panel A.
RM2 CD CHANGER
The use of blank compact discs can cause malfunctions.

406 Saloon AUDIO SYSTEM (RM2) Presentation
Your 406 saloon is fitted with a JBL Audio Hi-Fi system, designed specifically for the passenger compartment. At the heart of the system, a 240 watt multifunction amplifier (1) (located in the boot) independently controls 10 high acoustic definition speakers. These speakers provide optimal reproduction and distribution of the sound in the vehicle, both in the front and the
rear. The speakers are situated:– in the fascia: two Micro Tweeters (3) set into two Mediums (4) for reproduction of the sound in the front.
– in the front doors: two Woofers (2) for reproduction of bass frequencies in the front.
– on the rear parcel shelf: two Tweeters (5) for reproduction of treble (high frequencies) in the rear are set into two ellipti-
cal speakers (6), which are adjusted to reproduce a very wide range of bass and ultra-bass frequencies throughout the
whole of the passenger compartment. You will appreciate the clarity and depth and notice that the sound fills the
whole of the vehicle perfectly.
Adjusting in CD modeThe basic functions remain those of the audio set.
There is no need for any further adjustment. However, in order to take
full advantage of your JBL audio system, you are advised to set theAUDIO functions (BASS, TREB, FAD, BAL) to position "0"(zero) and
the Loudness (LOUD)to the "ON" position.
YOUR 406 IN DETAIL 85

YOUR 406 IN DETAIL
86
406 Estate AUDIO SYSTEM (RM2) Presentation
Your 406 estate is fitted with a JBL Audio Hi-Fi system, designed specifically for the passenger compartment.. At the heart of the system, a 180 watt multifunction amplifier (1) (located in the boot) independently controls 10 high acoustic definition speakers. These speakers provide optimal reproduction and distribution of the sound in the vehicle, both in the front and the
rear. The speakers are situated:– in the fascia: two Micro Tweeters (3) set into two Mediums (4) for reproduction of the sound in the front.
– in the front doors: two Woofers (2) for reproduction of bass frequencies in the front.
– on the boot pillar: two Micro Tweeters (5) for reproduction of treble (high frequencies), set into two Mediums (6)giving
uniform sound reproduction throughout the whole of the vehicle.
Adjusting in CD modeThe basic functions remain those of the audio set.
There is no need for any further adjustment. However, in order to take
full advantage of your JBL audio system, you are advised to set theAUDIO functions (BASS, TREB, FAD, BAL) to position "0"(zero) and
the Loudness (LOUD)to the "ON"position.

YOUR 406 IN DETAIL
88
Angle your aerial, following the line of the windscreen. Recommended angle for
the aerial (saloon)

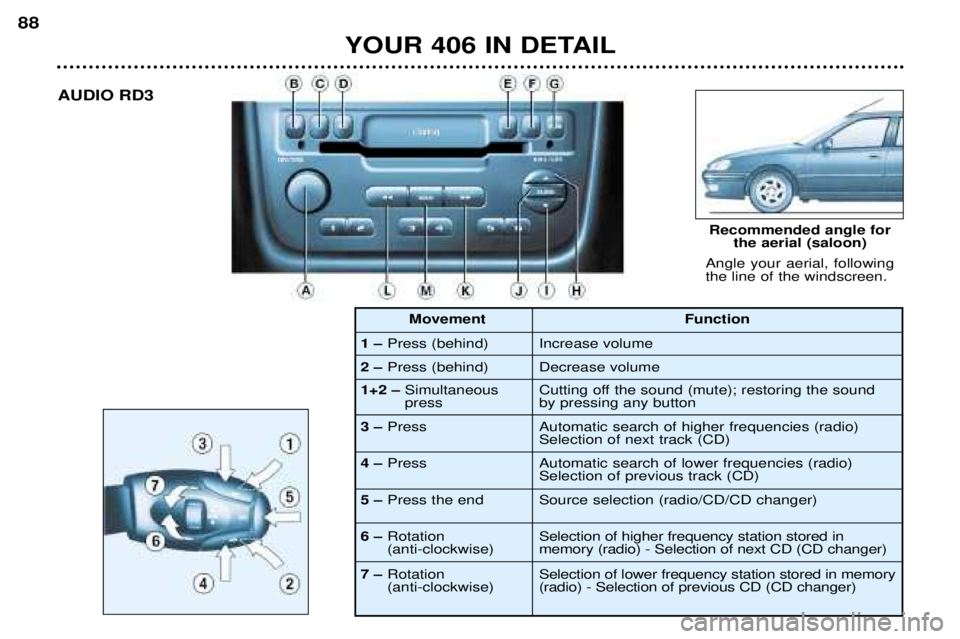

AUDIO RD3
1
– Press (behind)
2
– Press (behind) Function
Increase volume Decrease volume
1+2
–Simultaneous press
3
– Press Cutting off the sound (mute); restoring the sound by pressing any button Automatic search of higher frequencies (radio) Selection of next track (CD)
4
– Press Automatic search of lower frequencies (radio) Selection of previous track (CD)
5
– Press the end Source selection (radio/CD/CD changer)
6
–Rotation (anti-clockwise) Selection of higher frequency station stored in memory (radio) - Selection of next CD (CD changer)
7
–Rotation (anti-clockwise) Selection of lower frequency station stored in memory(radio) - Selection of previous CD (CD changer)
Movement

ButtonFunction
A ON/VOL Radio on/off.Adjustment of volume
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C Source selection: CD.
Press for more than 2 seconds: shuffle.
D Source selection: CD changer.
Press for more than 2 seconds: shuffle.
EEjection of the CD.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
HIncrease bass/treble setting.
I Decrease bass/treble setting.
J AUDIO Setting of bass, treble, loudness, sound distribution and automatic volume correction.
K
AAAutomatic search of higher frequency.
Selection of next CD track.
L
BBAutomatic search of lower frequency.
Selection of previous CD track.
M MAN Manual/automatic operation of buttons K and L.
1 to 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a CD in the CD changer.
YOUR 406 IN DETAIL 89

GENERAL FUNCTIONS On/offWith the ignition key in the ACCESSORIES or IGNITION position, press button Ato switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
ANTI-THEFT SYSTEMThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another ve hicle.
The anti-theft system is automatic and requires no action on your part. VOLUME SETTING Adjusting the volume
Turn button Ato increase or decrease the volume of the set.
Note:If you have a telephone fitted with a "mute"signal output connected to the set, the set will automatically
change to " mute" when the telephone is used.
AUDIO SETTINGS Press the "AUDIO"button several times to access the bass ( BASS),treble(TREB), loudness (LOUD), fader
(FAD) , balance ( BAL)and the automatic volume correction (CAV).
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing the " AUDIO " button after configuration of the automatic volume correction.
Note: the bass and treble settings are specific to each source. It is possible to set them differently for radio,
CD, or CD changer.
