Peugeot 508 RXH 2014 Manual Online

79
508RXH_en_Chap02_ouvertures_ed01-2014

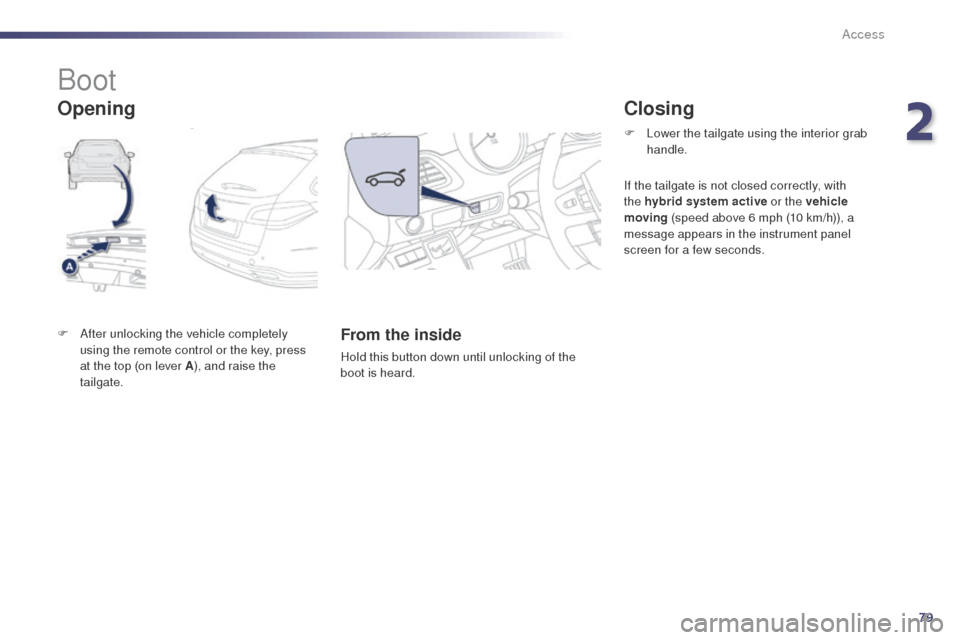

Boot
F After unlocking the vehicle completely using the remote control or the key, press
at the top (on lever A ), and raise the
tailgate.From the inside
Hold this button down until unlocking of the
boot is heard. F

L
ower the tailgate using the interior grab
handle.
Opening
If the tailgate is not closed correctly, with
the hybrid system active or the vehicle
moving


(speed above 6 mph (10 km/h)), a
message appears in the instrument panel
screen for a few seconds.
Closing
2
Access

80
508RXH_en_Chap02_ouvertures_ed01-2014

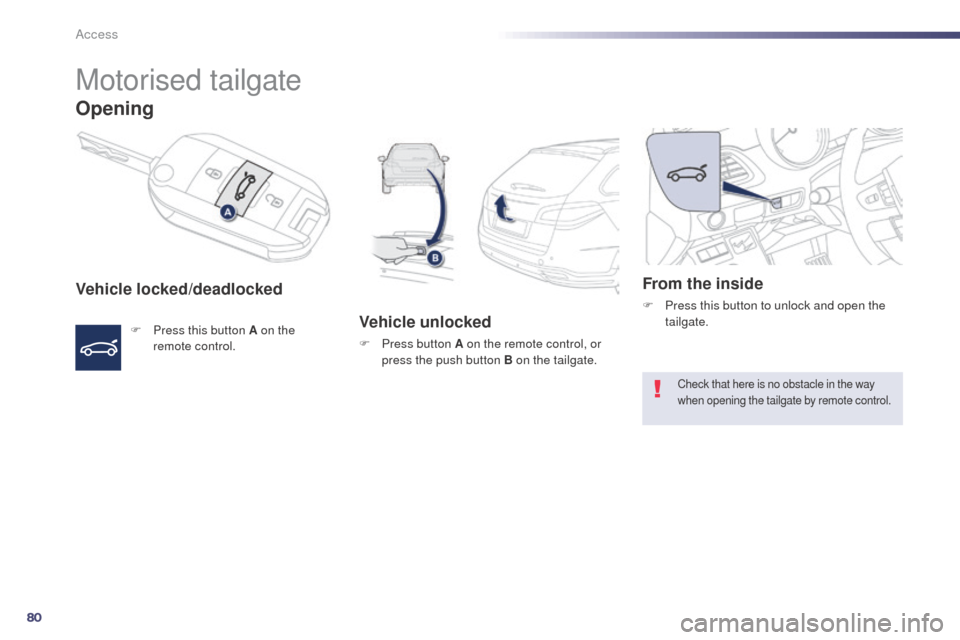

Motorised tailgate
Opening
Vehicle locked/deadlocked
F Press this button A on the remote control.Vehicle unlocked
F Press button A on the remote control, or press the push button B on the tailgate.
From the inside
F Press this button to unlock and open the tailgate.
Check that here is no obstacle in the way
when opening the tailgate by remote control.
Access

81
508RXH_en_Chap02_ouvertures_ed01-2014

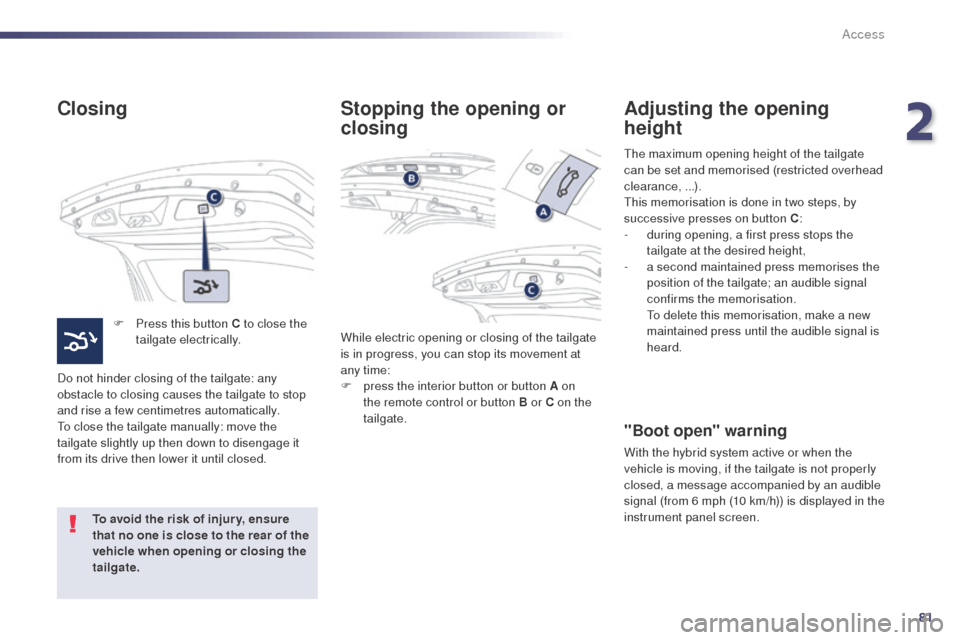

Closing
F Press this button C to close the tailgate electrically.
Do not hinder closing of the tailgate: any
obstacle to closing causes the tailgate to stop
and rise a few centimetres automatically.
to c

lose the tailgate manually: move the
tailgate slightly up then down to disengage it
from its drive then lower it until closed.
To avoid the risk of injur y, ensure
that no one is close to the rear of the
vehicle when opening or closing the
tailgate. While electric opening or closing of the tailgate
is in progress, you can stop its movement at
any time:
F

p
ress the interior button or button A on
the remote control or button B or C on the
tailgate.
Stopping the opening or
closing Adjusting the opening
height
"Boot open" warning
With the hybrid system active or when the
vehicle is moving, if the tailgate is not properly
closed, a message accompanied by an audible
signal (from 6 mph (10 km/h)) is displayed in the
instrument panel screen.
the
maximum opening height of the tailgate
can be set and memorised (restricted overhead
clearance, ...).
th
is memorisation is done in two steps, by
successive presses on button C :
-
d
uring opening, a first press stops the
tailgate at the desired height,
-
a s
econd maintained press memorises the
position of the tailgate; an audible signal
confirms the memorisation.

t
o d
elete this memorisation, make a new
maintained press until the audible signal is
heard.
2
Access

82
508RXH_en_Chap02_ouvertures_ed01-2014

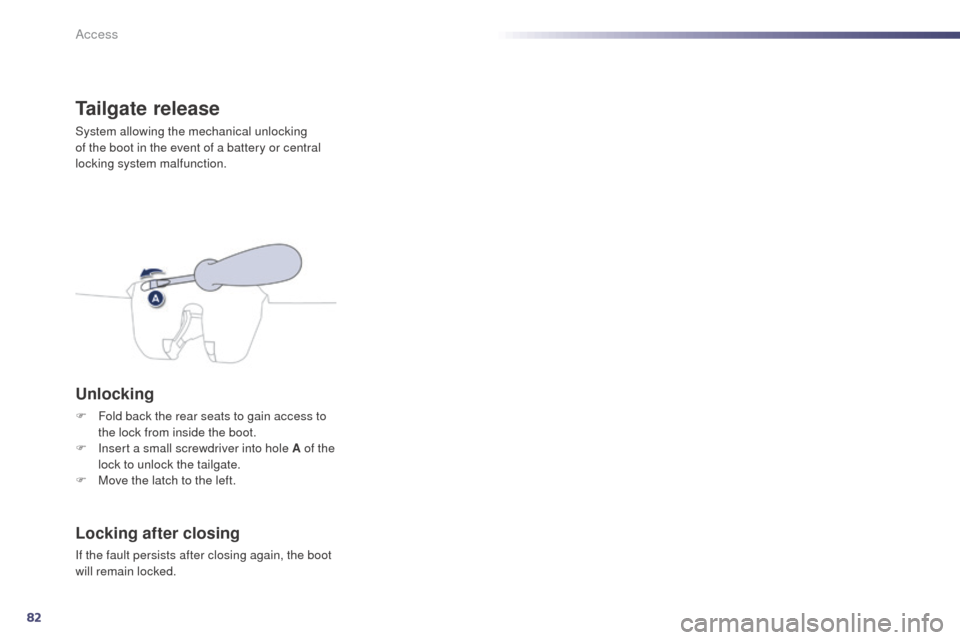

Tailgate release
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the left.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
Access

83
508RXH_en_Chap02_ouvertures_ed01-2014

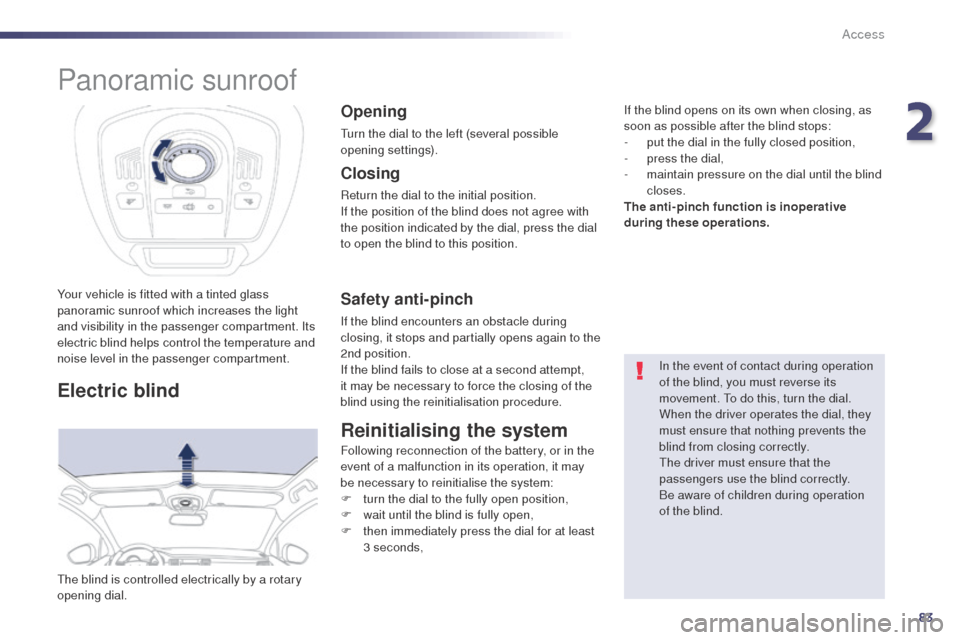

Panoramic sunroof
Your vehicle is fitted with a tinted glass
panoramic sunroof which increases the light
and visibility in the passenger compartment. Its
electric blind helps control the temperature and
noise level in the passenger compartment.
Electric blind
the blind is controlled electrically by a rotary
opening dial.
Opening
turn the dial to the left (several possible
opening settings).In the event of contact during operation
of the blind, you must reverse its
movement.
t
o d
o this, turn the dial.
When the driver operates the dial, they
must ensure that nothing prevents the
blind from closing correctly.
th

e driver must ensure that the
passengers use the blind correctly.
Be aware of children during operation
of the blind.
Closing
Return the dial to the initial position.
If the position of the blind does not agree with
the position indicated by the dial, press the dial
to open the blind to this position.
Safety anti-pinch
If the blind encounters an obstacle during
closing, it stops and partially opens again to the
2nd position.
If the blind fails to close at a second attempt,
it may be necessary to force the closing of the
blind using the reinitialisation procedure.
Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may
be necessary to reinitialise the system:
F

t
urn the dial to the fully open position,
F

w
ait until the blind is fully open,
F

t
hen immediately press the dial for at least
3 seconds, If the blind opens on its own when closing, as
soon as possible after the blind stops:
-

p
ut the dial in the fully closed position,
-
p
ress the dial,
-
m
aintain pressure on the dial until the blind
closes.
The anti-pinch function is inoperative
during these operations.
2
Access

84
508RXH_en_Chap02_ouvertures_ed01-2014

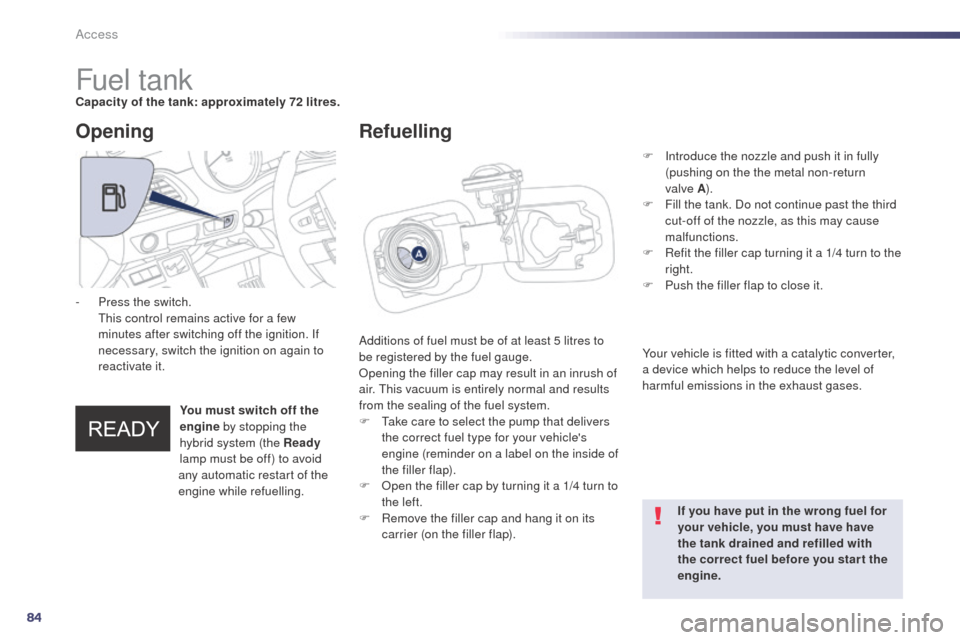

Fuel tankCapacity of the tank: approximately 72 litres.Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air.
t
h
is vacuum is entirely normal and results
from the sealing of the fuel system.
F
t
a
ke care to select the pump that delivers
the correct fuel type for your vehicle's
engine (reminder on a label on the inside of
the filler flap).
F

O
pen the filler cap by turning it a 1/4 turn to
the left.
F

R
emove the filler cap and hang it on its
carrier (on the filler flap).
Opening
If you have put in the wrong fuel for
your vehicle, you must have have
the tank drained and refilled with
the correct fuel before you star t the
engine.
-

P

ress the switch.


t
h

is control remains active for a few
minutes after switching off the ignition. If
necessary, switch the ignition on again to
reactivate it.
Refuelling
F Introduce the nozzle and push it in fully (pushing on the the metal non-return
valve A ).
F

F
ill the tank. Do not continue past the third
cut-off of the nozzle, as this may cause
malfunctions.
F

R
efit the filler cap turning it a 1/4 turn to the
right.
F

P
ush the filler flap to close it.
Your vehicle is fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
You must switch off the
engine


by stopping the
hybrid system (the Ready
lamp must be off) to avoid
any automatic restart of the
engine while refuelling.
Access

85
508RXH_en_Chap02_ouvertures_ed01-2014

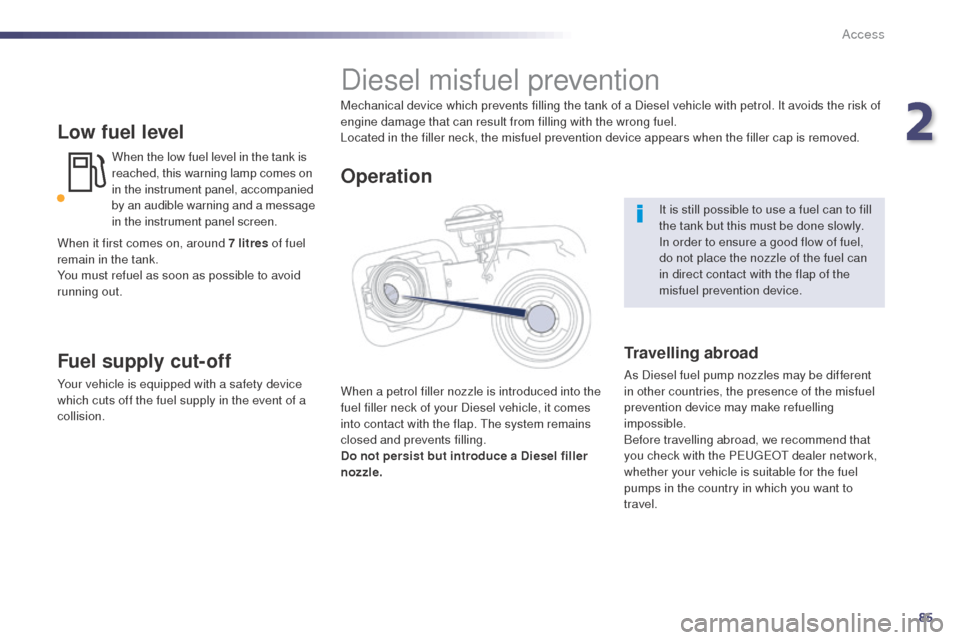

Low fuel level
When the low fuel level in the tank is
reached, this warning lamp comes on
in the instrument panel, accompanied
by an audible warning and a message
in the instrument panel screen.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision.It is still possible to use a fuel can to fill
the tank but this must be done slowly.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device.
Diesel misfuel prevention
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap.
t
h
e system remains
closed and prevents filling.
Do not persist but introduce a Diesel filler
nozzle.
Operation
Travelling abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuelling
impossible.
Before travelling abroad, we recommend that
you check with the P
e

uge
Ot
dealer network,
whether your vehicle is suitable for the fuel
pumps in the country in which you want to
travel.
When it first comes on, around 7 litres of fuel
remain in the tank.
You must refuel as soon as possible to avoid
running out.
2
Access

86
DIESEL
508RXH_en_Chap02_ouvertures_ed01-2014

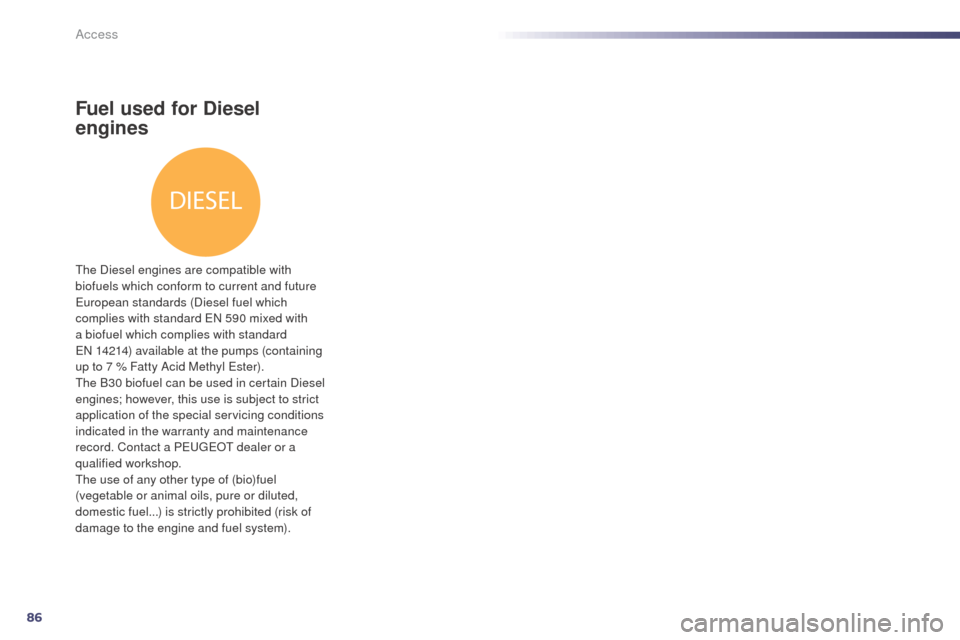

Fuel used for Diesel
engines
the Diesel engines are compatible with
biofuels which conform to current and future
eu
ropean standards (Diesel fuel which
complies with standard
e
N 5
90 mixed with
a biofuel which complies with standard
eN

14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl
e
s
ter).
th

e B30 biofuel can be used in certain Diesel
engines; however, this use is subject to strict
application of the special servicing conditions
indicated in the warranty and maintenance
record. Contact a P
e

uge
Ot
dealer or a
qualified workshop.
th

e use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
Access

87
508RXH_en_Chap03_confort_ed01-2014

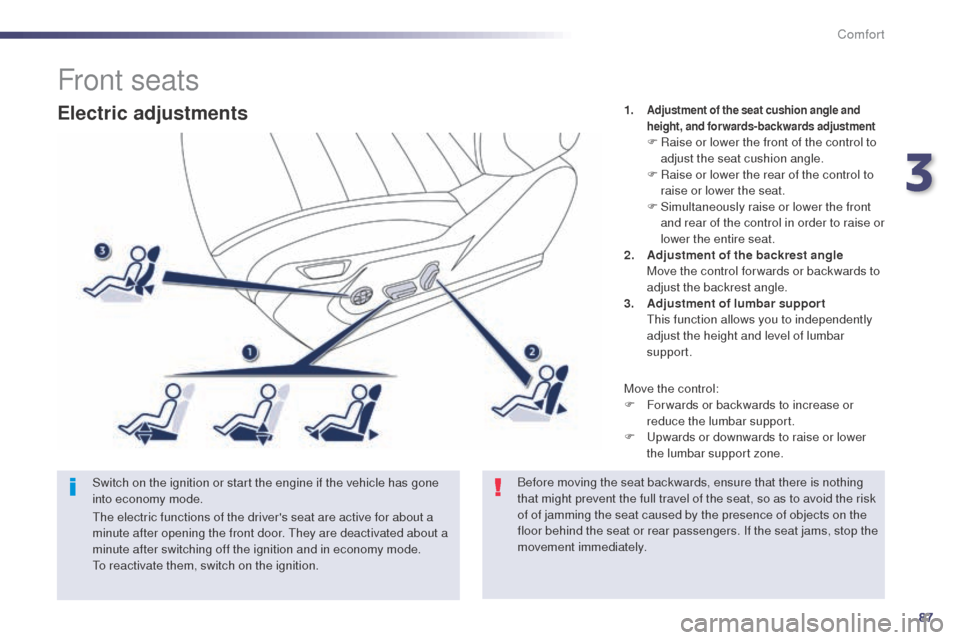

Electric adjustments
Switch on the ignition or start the engine if the vehicle has gone
into economy mode.1.
Adjustment of the seat cushion angle and
height, and forwards-backwards adjustment
F Raise or lower the front of the control to
adjust the seat cushion angle.
F

R
aise or lower the rear of the control to
raise or lower the seat.
F

S
imultaneously raise or lower the front
and rear of the control in order to raise or
lower the entire seat.
2.
A

djustment of the backrest angle
M

ove the control for wards or backwards to
adjust the backrest angle.
3.
A

djustment of lumbar support


t
h
is function allows you to independently
adjust the height and level of lumbar
support.
th

e electric functions of the driver's seat are active for about a
minute after opening the front door.
t
h

ey are deactivated about a
minute after switching off the ignition and in economy mode.
to r

eactivate them, switch on the ignition. Move the control:
F

F
or wards or backwards to increase or
reduce the lumbar support.
F
u
p
wards or downwards to raise or lower
the lumbar support zone.
Front seats
Before moving the seat backwards, ensure that there is nothing
that might prevent the full travel of the seat, so as to avoid the risk
of of jamming the seat caused by the presence of objects on the
floor behind the seat or rear passengers. If the seat jams, stop the
movement immediately.
3
Comfort

88
508RXH_en_Chap03_confort_ed01-2014

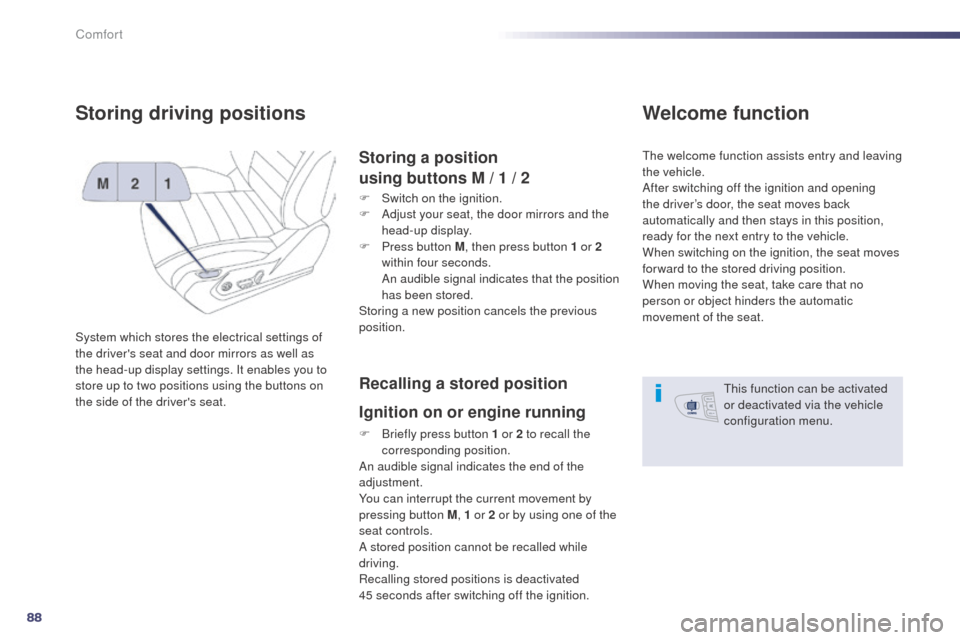

Storing driving positions
System which stores the electrical settings of
the driver's seat and door mirrors as well as
the head-up display settings. It enables you to
store up to two positions using the buttons on
the side of the driver's seat.
Storing a position
using buttons M / 1 / 2
F Switch on the ignition.
F
A djust your seat, the door mirrors and the
head-up display.
F

P
ress button M , then press button 1 or 2
within four seconds.
A

n audible signal indicates that the position
has been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
Ignition on or engine running
F Briefly press button 1 or 2 to recall the corresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movement by
pressing button M , 1 or 2 or by using one of the
seat controls.
A stored position cannot be recalled while
driving.
Recalling stored positions is deactivated
45
seconds after switching off the ignition.
Welcome function
the welcome function assists entry and leaving
the vehicle.
After switching off the ignition and opening
the driver’s door, the seat moves back
automatically and then stays in this position,
ready for the next entry to the vehicle.
When switching on the ignition, the seat moves
for ward to the stored driving position.
When moving the seat, take care that no
person or object hinders the automatic
movement of the seat.
th

is function can be activated
or deactivated via the vehicle
configuration menu.
Comfort
