YOUR BOXER IN DETAIL97

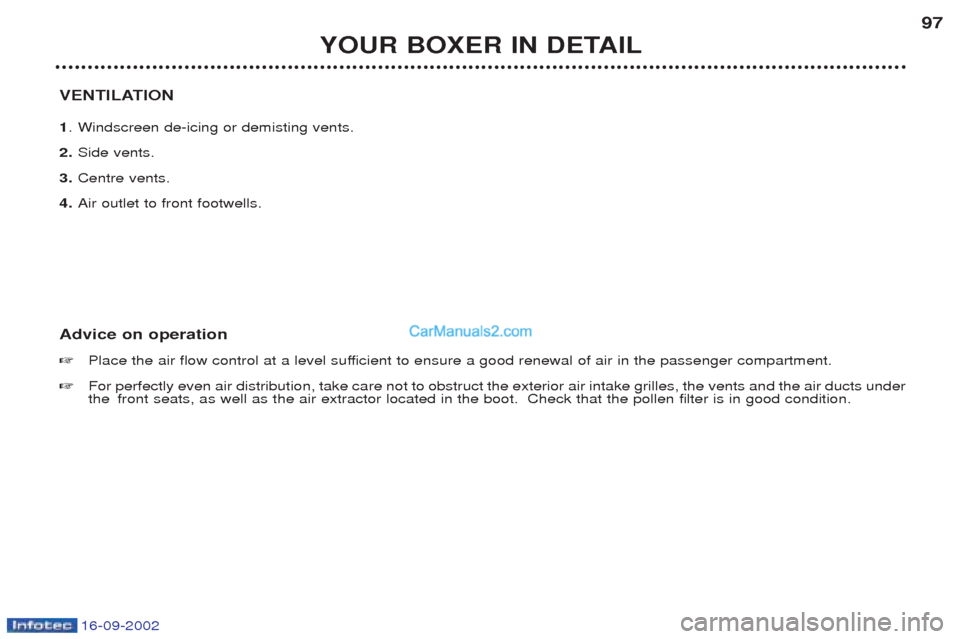

VENTILATION 1 .W indscreen de-icing or demisting vents.
2. Side vents.
3. Centre vents.
4. Air outlet to front footwells.
Advice on operation ☞ Place the air flow control at a level sufficient to ensure a good renewal of air in the passenger compartment.
☞ For perfectly even air distribution, take care not to obstruct the exterior air intake grilles, the vents and the air ducts und er
the front seats, as well as the air extractor located in the boot. Check that the pollen filter is in good condition.

16-09-2002
YOUR BOXER IN DETAIL
98

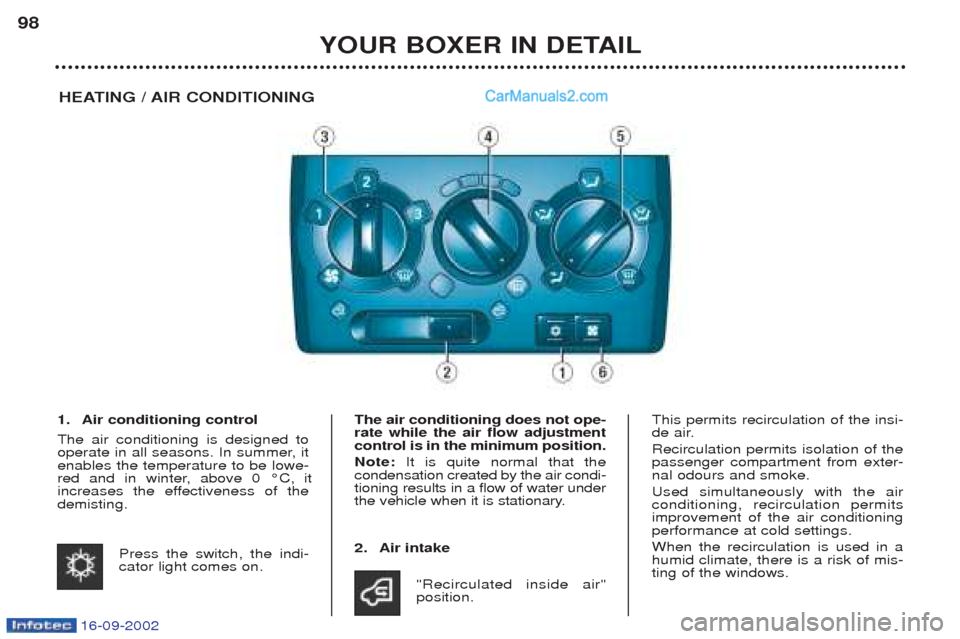

HEATING / AIR CONDITIONING
1. Air conditioning control The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be lowe-
red and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch, the indi-cator light comes on. The air conditioning does not ope-rate while the air flow adjustmentcontrol is in the minimum position. Note:
It is quite normal that the
condensation created by the air condi- tioning results in a flow of water under
the vehicle when it is stationary. This permits recirculation of the insi-
de air. Recirculation permits isolation of the passenger compartment from exter-nal odours and smoke. Used simultaneously with the air conditioning, recirculation permitsimprovement of the air conditioningperformance at cold settings. When the recirculation is used in a humid climate, there is a risk of mis-ting of the windows.
2. Air intake
"Recirculated inside air"position.

16-09-2002
YOUR BOXER IN DETAIL99
Windscreen, side windows and footwells. Footwells. Footwells and central vents. Centre and side vents.
6. Additional heating system rear air blower control
This is linked with the airflow adjustment 3.
"Outside air intake" posi- tion.
As soon as possible, place control 2
in this position to avoid the risks ofmisting of the windows and deterio-
ration of the air quality.
3. Air flow adjustment
Turn the control from the
Off position to the Max
position to obtain an air
flow sufficient to ensure
your comfort.
4. Temperature adjustment To be adjusted to your requirements.
5. Air distribution adjustment Windscreen and side win-dows (demisting - de-icing).
To quickly de-ice or demist the wind-
screen and side windows: Demisting the rear hinged door win-dows and the mirrors With the engine running, pressing the button once demists the rear hin-ged door windows and the mirrors.
This switches off automatically after a few minutes. It is possible to stop demisting by pressing the button. Pressing the button again resumes demisting. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer. Note:
to optimise the operation of
the air conditioning, leave the vents open. Ð set the temperature and air flow controls to maximum,
Ð close the centre vents,
Ð place the exterior air intake control2 in the "Outside air intake" posi-
tion,
Ð switch on the air conditioning bypressing button 1.

16-09-2002
YOUR BOXER IN DETAIL
100
PROGRAMMABLE HEATING
(WEBASTO)* The programmable heating is provi-
ded to operate with the engine off. Itpermits heating of the passengercompartment, de-icing of the win-dows and pre-heating of the coolantcircuit to provide an optimum opera-ting temperature when the engine isswitched on.
* According to destination. Control panel / digital programmer The programmable heating system's control panel is located to the right of the instrument panel. 1.
Heating cycle warning light.
2. Screen lighting.
3. Display of the number of the selected programme.
4. Time display button.
5. Time setting buttons.
6. Selection of the stored prgramme.
7. Heating immediate start-up button.
8. Time setting and display warning light.

16-09-2002
YOUR BOXER IN DETAIL101
TIME DISPLAY Press button
4.
The time display warning light 8
comes on and the time is displayed for approximately ten seconds. SETTING THE CLOCK Press button
4. The screen and the
setting warning light 8come on.
Within ten seconds, press one of the buttons 5until the correct time is dis-
played:
- press button ">"to move the clock
on,
- press button "<"to move the clock
back.
Note: continuous pressing of buttons
">" or "<" scrolls through the digits
more quickly.

16-09-2002
YOUR BOXER IN DETAIL
102

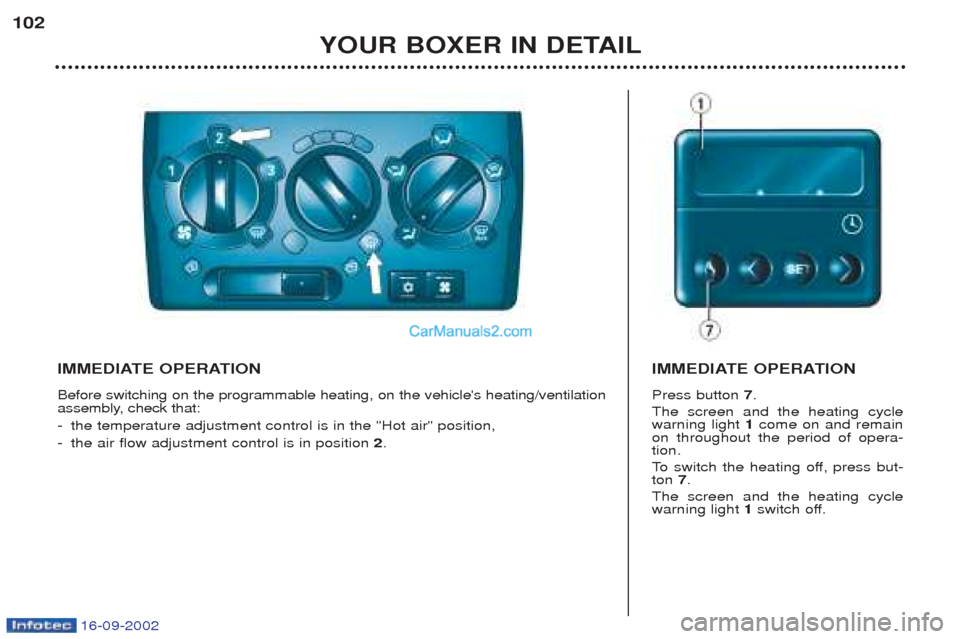

IMMEDIATE OPERATION Before switching on the programmable heating, on the vehicle's heating/ventilation
assembly, check that: -
the temperature adjustment control is in the "Hot air" position,
- the air flow adjustment control is in position 2. IMMEDIATE OPERATION Press button
7.
The screen and the heating cycle warning light 1come on and remain
on throughout the period of opera-tion.
To switch the heating off, press but-
ton 7.
The screen and the heating cycle warning light 1switch off.

16-09-2002
YOUR BOXER IN DETAIL103
PROGRAMMED OPERATION Note:
before setting the program-
mable heating, ensure that the clock
is set correctly. Operation of the heating can be pro- grammed between one minute and24 hours in advance. Note: you can store three different
start-up time settings and program- me one deferred start-up. Note: if you wish to switch on the
heating at a set time every day, you must reprogramme the stored time
each day.
Press button 6. The screen comes
on. The segments "A"or the previous
stored time and the preselection number "B"are displayed for ten
seconds. Note: to display the other preselec-
ted times, press button 6several
times within ten seconds until the required preselection number "B"
appears. To set the start-up time, press one of
the buttons 5within ten seconds. The prgramming is stored when: -
the start-up time and the preselec- tion number "B" disappear,
- the screen lighting switches off.

16-09-2002
YOUR BOXER IN DETAIL
104

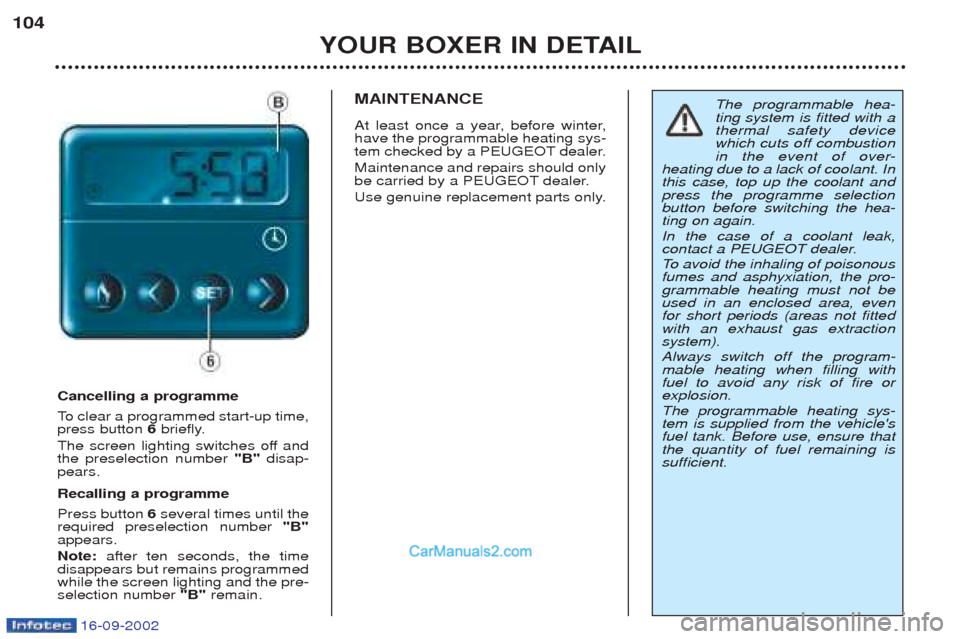

Cancelling a programme
To
clear a programmed start-up time,
press button 6briefly.
The screen lighting switches off and the preselection number "B" disap-
pears. Recalling a programme Press button 6several times until the
required preselection number "B"
appears. Note: after ten seconds, the time
disappears but remains programmed while the screen lighting and the pre-selection number "B" remain. MAINTENANCE
At least once a year, before winter, have the programmable heating sys-
tem checked by a PEUGEOT dealer. Maintenance and repairs should only
be carried by a PEUGEOT dealer.
Use genuine replacement parts only.
The programmable hea- ting system is fitted with athermal safety devicewhich cuts off combustion
in the event of over-
heating due to a lack of coolant. Inthis case, top up the coolant andpress the programme selectionbutton before switching the hea-ting on again. In the case of a coolant leak,
contact a PEUGEOT dealer. To avoid the inhaling of poisonous
fumes and asphyxiation, the pro- grammable heating must not beused in an enclosed area, evenfor short periods (areas not fittedwith an exhaust gas extractionsystem). Always switch off the program- mable heating when filling withfuel to avoid any risk of fire orexplosion. The programmable heating sys- tem is supplied from the vehicle'sfuel tank. Before use, ensure thatthe quantity of fuel remaining issufficient.

16-09-2002

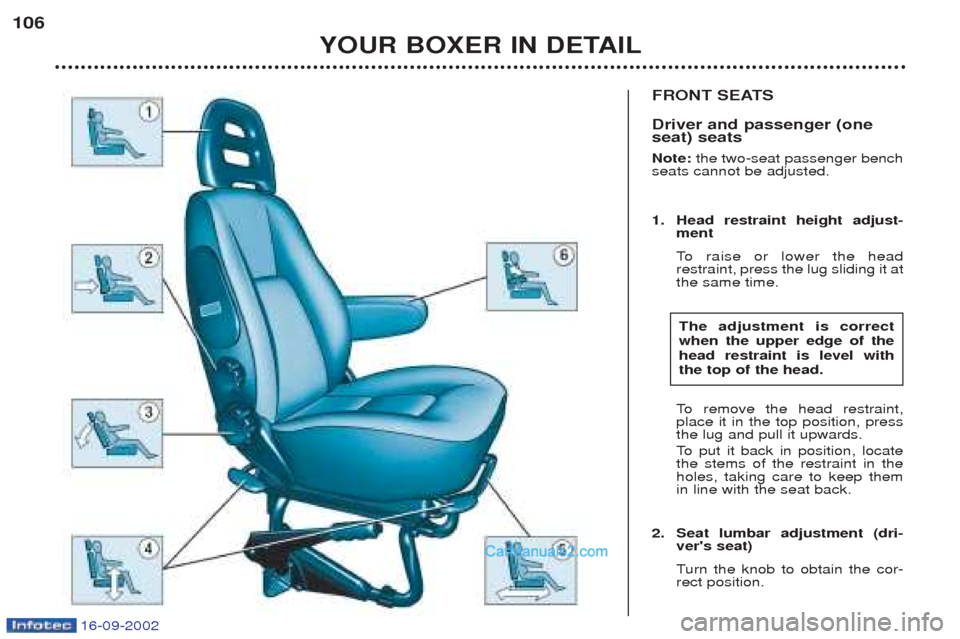

FRONT SEATS Driver and passenger (one seat) seats Note: the two-seat passenger bench
seats cannot be adjusted.
1. Head restraint height adjust- ment
To raise or lower the head
restraint, press the lug sliding it at the same time.
To remove the head restraint,
place it in the top position, press the lug and pull it upwards.
To put it back in position, locate
the stems of the restraint in the holes, taking care to keep themin line with the seat back.
2. Seat lumbar adjustment (dri- ver's seat) Turn the knob to obtain the cor-
rect position.
YOUR BOXER IN DETAIL
106
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

16-09-2002

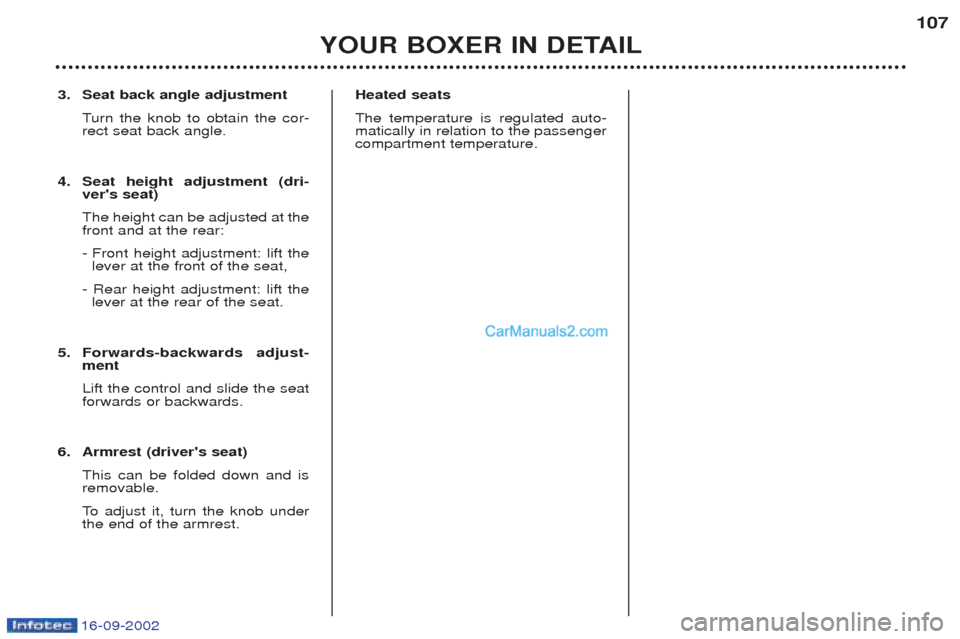

3. Seat back angle adjustmentTurn the knob to obtain the cor-
rect seat back angle.
4. Seat height adjustment (dri- ver's seat) The height can be adjusted at the front and at the rear:
- Front height adjustment: lift the
lever at the front of the seat,
- Rear height adjustment: lift the lever at the rear of the seat.
5. Forwards-backwards adjust- ment Lift the control and slide the seat forwards or backwards.
6. Armrest (driver's seat) This can be folded down and isremovable.
To adjust it, turn the knob under
the end of the armrest. Heated seatsThe temperature is regulated auto- matically in relation to the passengercompartment temperature.
YOUR BOXER IN DETAIL
107
