Peugeot Boxer 2002.5 Owner's Manual

16-09-2002
YOUR BOXER IN DETAIL
116

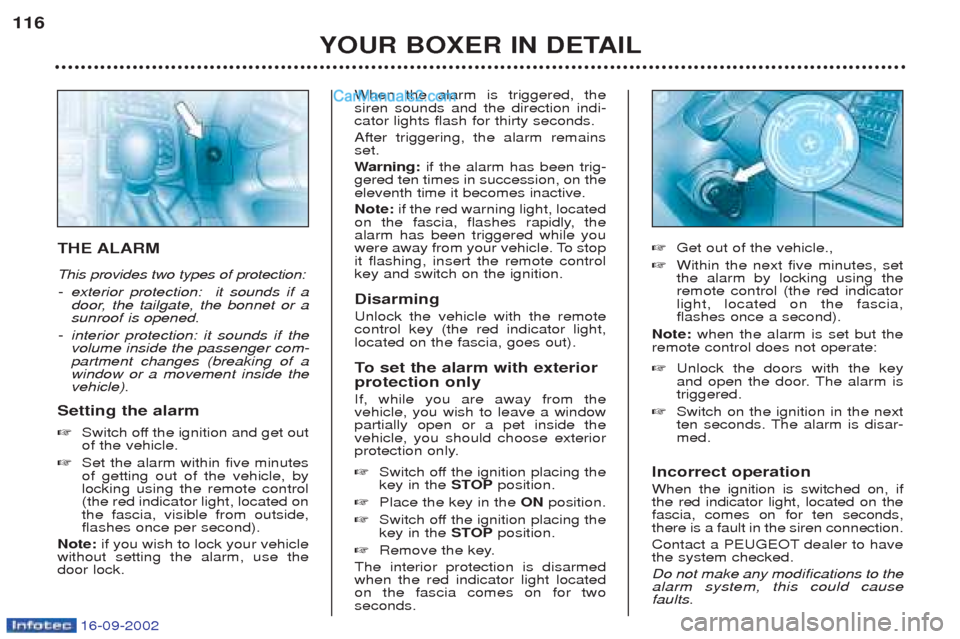

THE ALARM This provides two types of protection: -
exterior protection: it sounds if a
door, the tailgate, the bonnet or asunroof is opened.
- interior protection: it sounds if thevolume inside the passenger com-partment changes (breaking of awindow or a movement inside thevehicle).
Setting the alarm ☞ Switch off the ignition and get out of the vehicle.
☞ Set the alarm within five minutesof getting out of the vehicle, bylocking using the remote control(the red indicator light, located onthe fascia, visible from outside,flashes once per second).
Note: if you wish to lock your vehicle
without setting the alarm, use thedoor lock. When the alarm is triggered, thesiren sounds and the direction indi-cator lights flash for thirty seconds. After triggering, the alarm remains set. W
arning: if the alarm has been trig-
gered ten times in succession, on the eleventh time it becomes inactive. Note: if the red warning light, located
on the fascia, flashes rapidly, the alarm has been triggered while you
were away from your vehicle. To stopit flashing, insert the remote controlkey and switch on the ignition. Disarming Unlock the vehicle with the remote control key (the red indicator light,located on the fascia, goes out).
To set the alarm with exterior
protection only
If, while you are away from the vehicle, you wish to leave a windowpartially open or a pet inside thevehicle, you should choose exterior
protection only. ☞ Switch off the ignition placing the key in the STOPposition.
☞ Place the key in the ONposition.
☞ Switch off the ignition placing thekey in the STOPposition.
☞ Remove the key.
The interior protection is disarmedwhen the red indicator light locatedon the fascia comes on for twoseconds. ☞
Get out of the vehicle.,
☞ Within the next five minutes, setthe alarm by locking using theremote control (the red indicatorlight, located on the fascia,flashes once a second).
Note: when the alarm is set but the
remote control does not operate: ☞ Unlock the doors with the key
and open the door. The alarm istriggered.
☞ Switch on the ignition in the next
ten seconds. The alarm is disar-med.
Incorrect operation When the ignition is switched on, if the red indicator light, located on thefascia, comes on for ten seconds,there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked. Do not make any modifications to the alarm system, this could causefaults.

16-09-2002
YOUR BOXER IN DETAIL117

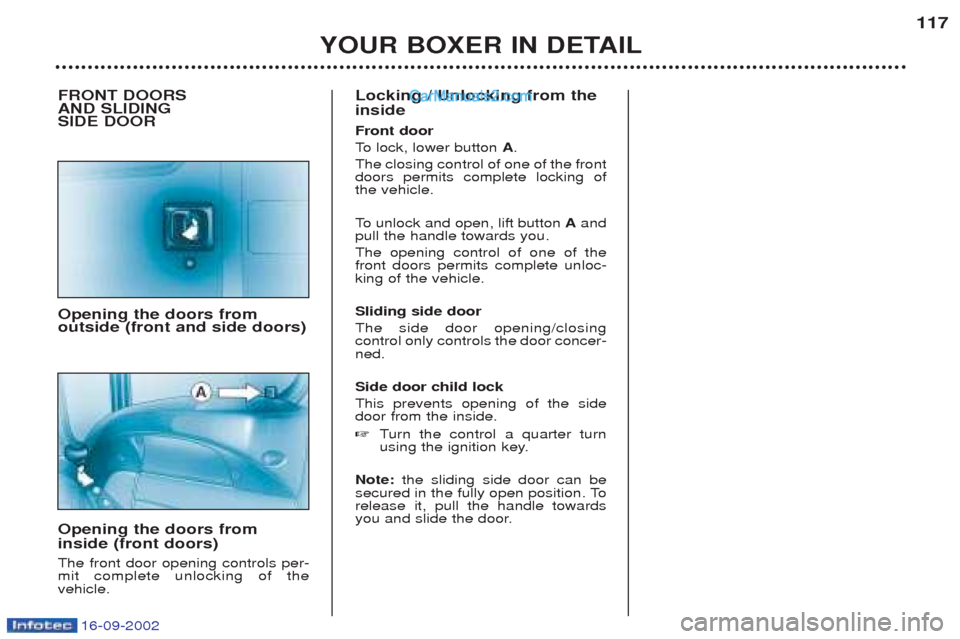

FRONT DOORS AND SLIDING SIDE DOOR Opening the doors from outside (front and side doors) Opening the doors from inside (front doors) The front door opening controls per- mit complete unlocking of thevehicle.Locking / Unlocking from the inside Front door
To
lock, lower button A.
The closing control of one of the front doors permits complete locking ofthe vehicle. To unlock and open, lift button Aand
pull the handle towards you. The opening control of one of the front doors permits complete unloc-king of the vehicle. Sliding side door The side door opening/closing control only controls the door concer-ned. Side door child lock This prevents opening of the side door from the inside. ☞ Turn the control a quarter turn
using the ignition key.
Note: the sliding side door can be
secured in the fully open position. To release it, pull the handle towards
you and slide the door.

16-09-2002
YOUR BOXER IN DETAIL
118

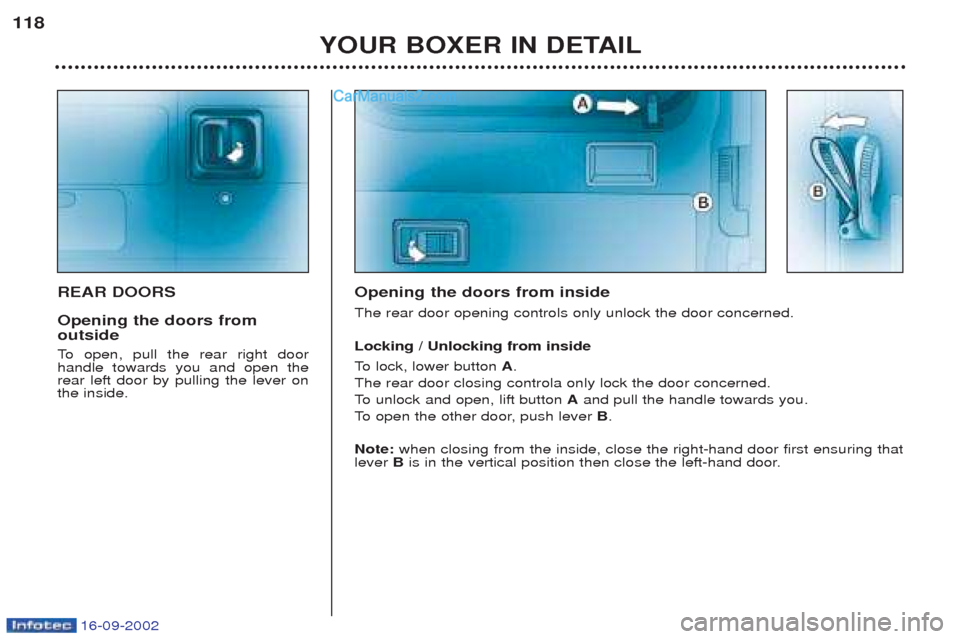

REAR DOORS Opening the doors from outside
To
open, pull the rear right door
handle towards you and open the rear left door by pulling the lever onthe inside. Opening the doors from inside The rear door opening controls only unlock the door concerned. Locking / Unlocking from inside
To
lock, lower button A.
The rear door closing controla only lock the door concerned.
To unlock and open, lift button Aand pull the handle towards you.
To open the other door, push lever B.
Note: when closing from the inside, close the right-hand door first ensuring that
lever Bis in the vertical position then close the left-hand door.

16-09-2002
YOUR BOXER IN DETAIL119

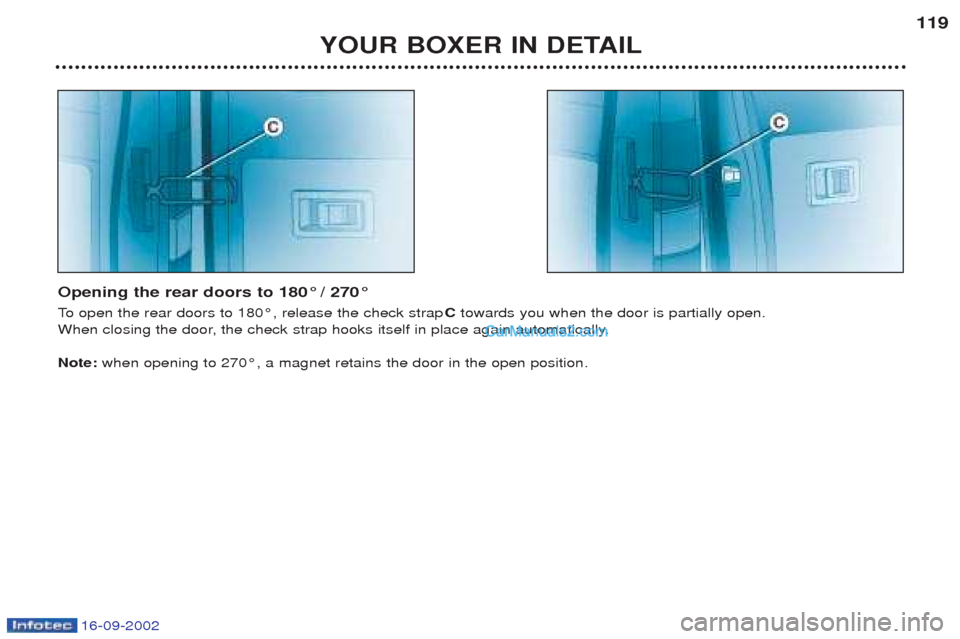

Opening the rear doors to 180° / 270°
To open the rear doors to 180¡, release the check strap Ctowards you when the door is partially open.
When closing the door, the check strap hooks itself in place again automatically. Note: when opening to 270¡, a magnet retains the door in the open position.

16-09-2002
OPENING THE BONNET From inside: pull the handle on the
right-hand side under the fascia. From outside: lift the catch Aand
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To
close
Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank is reached, thiswarning light comes on. You can have approxima-
tely 8 litres of fuel left.
The engine must be switched off when filling with fuel. ☞
Open the fuel filler flap by pres-sing the front of it.
☞ Insert the key then turn it to theleft.
☞ Remove the cap and hang it onthe hook located on the inside ofthe flap.
An indication on the cap reminds youwhich type of fuel to use. When you fill your tank, do not conti-
nue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approximately 70 litres. ☞ After filling the tank, lock the cap and close the fuel filler flap.
The key cannot be removed from thelock until the cap has been replacedon the fuel tank.
YOUR BOXER IN DETAIL
120

16-09-2002
YOUR BOXER IN DETAIL121
THE LIGHTS STALK Front and rear lights Selection is by turning the ring.
Lights off Side lights Dipped headlamps
Main beam head- lamps Dipped / Main beam change Push the stalk forwards to switch on the main beam headlamps. Pull the stalk towards you to switch
them off. Note:
with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The front fog lamps operate with the dipped and main beam headlamps. Direction indicators (flashers)
Left: downwards.
Right: upwards.
Rear fog lamps Press the button in the centre of the
instrument panel. The warning lighton the button comes on. The rear fog lamps operate with the dipped and main beam headlamps.
In good or rainy weather, both day and night, therear fog lamps are dazz-ling and are prohibited. Do not forget to switch the
fog lamps off when they are no lon- ger needed.

16-09-2002
YOUR BOXER IN DETAIL
122
WINDSCREEN WIPERS
STALK W
indscreen wipers
4 Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp
wash Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for afixed period. The windscreen wash and headlamp wash operate simultaneously for afew seconds, only if the dipped
beam or main beam headlampsare on.
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

16-09-2002
YOUR BOXER IN DETAIL
122
WINDSCREEN WIPERS
STALK W
indscreen wipers
4 Single wipe.
0 Park.
1 Intermittent wipe.
2 Normal wipe.
3 Fast wipe.
Windscreen and headlamp
wash Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for afixed period. The windscreen wash and headlamp wash operate simultaneously for afew seconds, only if the dipped
beam or main beam headlampsare on.
Parking lights This system enables you to leave the side lights on when parked, with the
ignition off and the key removed. Press the safety control Aand turn the
key one notch in the opposite direction to starting at the same time.

YOUR BOXER IN DETAIL123

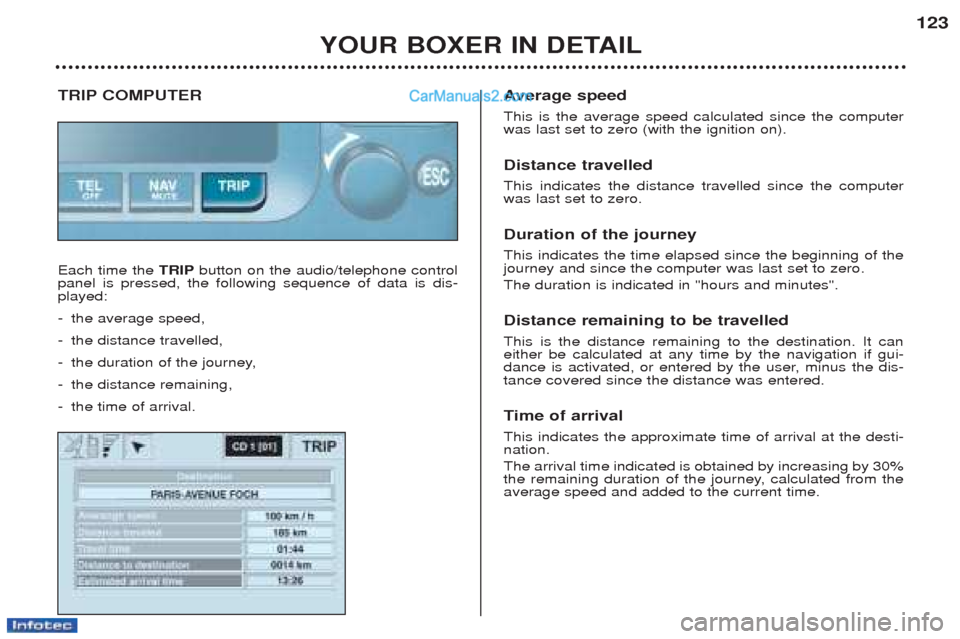

TRIP COMPUTER Each time the
TRIPbutton on the audio/telephone control
panel is pressed, the following sequence of data is dis- played: - the average speed,
- the distance travelled,
- the duration of the journey,
- the distance remaining,
- the time of arrival. A
verage speed
This is the average speed calculated since the computer was last set to zero (with the ignition on). Distance travelled This indicates the distance travelled since the computer was last set to zero. Duration of the journey This indicates the time elapsed since the beginning of the journey and since the computer was last set to zero. The duration is indicated in "hours and minutes". Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculated at any time by the navigation if gui-
dance is activated, or entered by the user, minus the dis-tance covered since the distance was entered.
Time of arrival
This indicates the approximate time of arrival at the desti- nation. The arrival time indicated is obtained by increasing by 30%
the remaining duration of the journey, calculated from theaverage speed and added to the current time.

16-09-2002
YOUR BOXER IN DETAIL
124

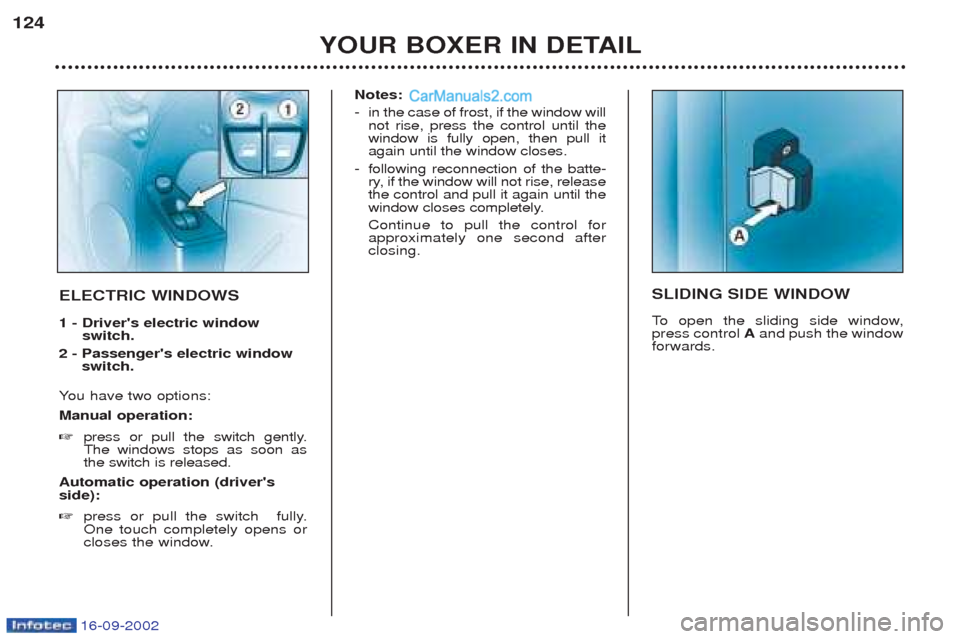

SLIDING SIDE WINDOW
To
open the sliding side window,
press control Aand push the window
forwards.ELECTRIC WINDOWS 1 - Driver's electric window switch.
2 - Passenger's electric window switch.
Y ou have two options:
Manual operation: ☞ press or pull the switch gently. The windows stops as soon asthe switch is released.
Automatic operation (driver'sside): ☞ press or pull the switch fully. One touch completely opens or
closes the window.
Notes: -in the case of frost, if the window will not rise, press the control until thewindow is fully open, then pull itagain until the window closes.
- following reconnection of the batte- ry, if the window will not rise, releasethe control and pull it again until the
window closes completely. Continue to pull the control for approximately one second afterclosing.
