Peugeot Boxer 2002.5 Owner's Manual

16-09-2002

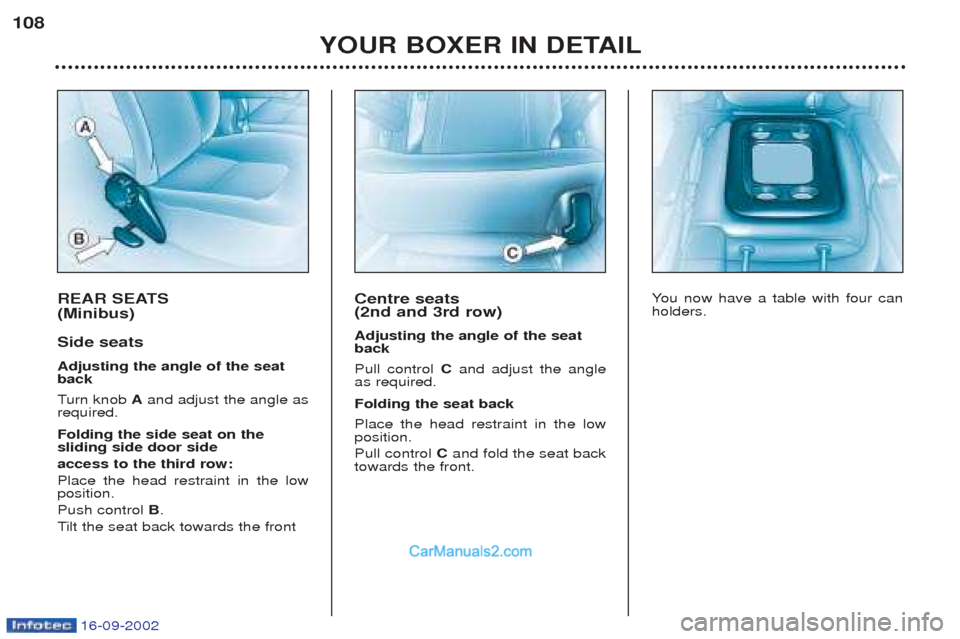

REAR SEATS (Minibus) Side seats Adjusting the angle of the seat back Turn knob Aand adjust the angle as
required. Folding the side seat on the sliding side door side access to the third row:Place the head restraint in the low position. Push control B.
T ilt the seat back towards the front Centre seats (2nd and 3rd row) Adjusting the angle of the seat back Pull control
Cand adjust the angle
as required. Folding the seat back Place the head restraint in the low position. Pull control Cand fold the seat back
towards the front.
YOUR BOXER IN DETAIL
108
You now have a table with four can
holders.

16-09-2002
YOUR BOXER IN DETAIL109

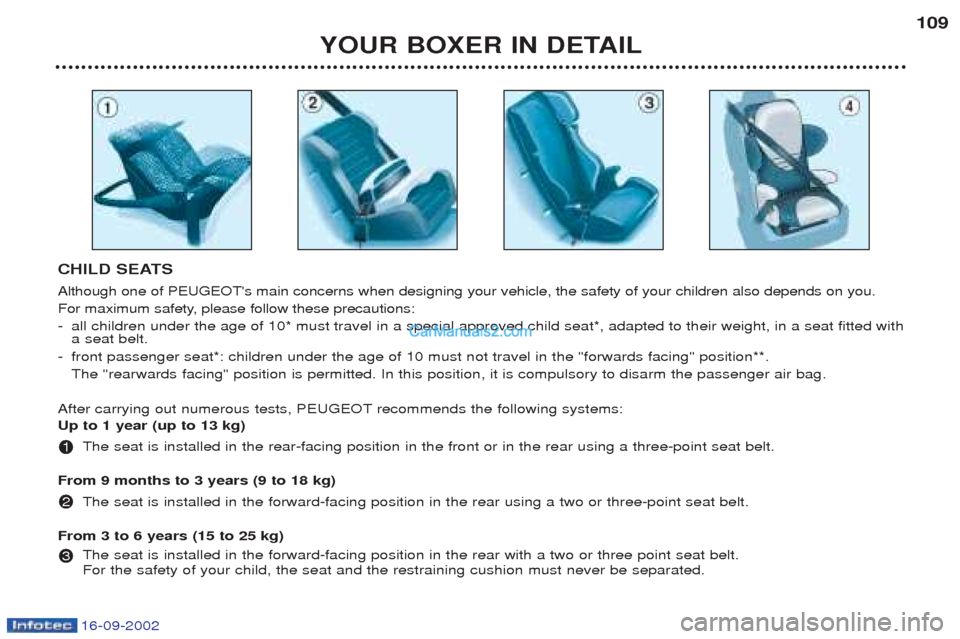

CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:- all children under the age of 10* must travel in a special approved child seat*, adapted to their weight, in a seat fitted wit h
a seat belt.
- front passenger seat*: children under the age of 10 must not travel in the "forwards facing" position**. The "rearwards facing" position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 1 year (up to 13 kg) The seat is installed in the rear-facing position in the front or in the rear using a three-point seat belt.
From 9 months to 3 years (9 to 18 kg) The seat is installed in the forward-facing position in the rear using a two or three-point seat belt.
From 3 to 6 years (15 to 25 kg) The seat is installed in the forward-facing position in the rear with a two or three point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
1
2
3

16-09-2002
YOUR BOXER IN DETAIL
110
Never leave a child or an animal in a vehicle whichis exposed to the sun andhas the windows closed.
Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a 'rearwardsfacing' child seat on the front pas-senger seat. The child would risk being killed or seriously injured were the air bagto inflate. Observe strictly the recommenda- tions for assembling the child seatas shown in the child seat instruc-tions.From 6 to 10 years (22 to 36 kg)
The seat is installed in the forward-facing position in the rear with a three- point seat belt. The height and width of the seat back must be adjusted according to the age and build of your child. From 22 kg, the booster may be used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or the child seat straps, keeping the slack in relation to the child's body to a minimum.
To prevent the doors from opening accidentally, use the child-lock.
Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case leave the air bag active.
4
5

16-09-2002
YOUR BOXER IN DETAIL111

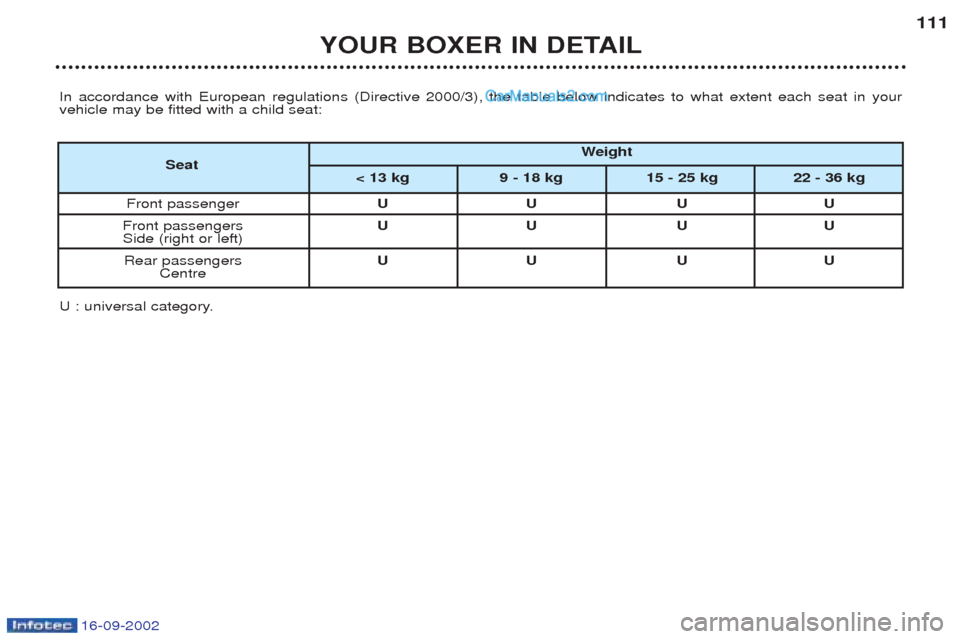

In accordance with European regulations (Directive 2000/3), the table below indicates to what extent each seat in your vehicle may be fitted with a child seat:
U : universal category.
W eight
Seat < 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger UU UU
Front passengers UU UU
Side (right or left)
Rear passengers UU UU
Centre

16-09-2002
YOUR BOXER IN DETAIL
112

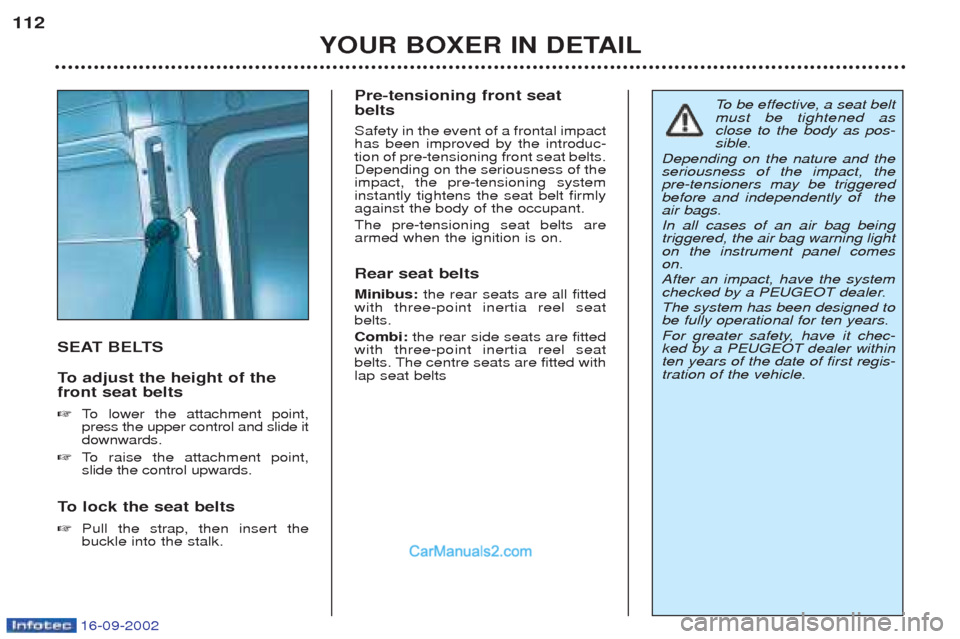

SEAT BELTS
To
adjust the height of the
front seat belts ☞ To lower the attachment point,
press the upper control and slide it downwards.
☞ To raise the attachment point,
slide the control upwards.
To lock the seat belts
☞ Pull the strap, then insert thebuckle into the stalk. Pre-tensioning front seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning front seat belts.Depending on the seriousness of theimpact, the pre-tensioning systeminstantly tightens the seat belt firmlyagainst the body of the occupant. The pre-tensioning seat belts are armed when the ignition is on. Rear seat belts Minibus:
the rear seats are all fitted
with three-point inertia reel seat belts. Combi: the rear side seats are fitted
with three-point inertia reel seat
belts. The centre seats are fitted withlap seat belts
To be effective, a seat belt
must be tightened as close to the body as pos-sible.
Depending on the nature and theseriousness of the impact, thepre-tensioners may be triggeredbefore and independently of theair bags. In all cases of an air bag being triggered, the air bag warning lighton the instrument panel comeson. After an impact, have the system
checked by a PEUGEOT dealer. The system has been designed to be fully operational for ten years.
For greater safety, have it chec- ked by a PEUGEOT dealer withinten years of the date of first regis-tration of the vehicle.

16-09-2002
YOUR BOXER IN DETAIL113

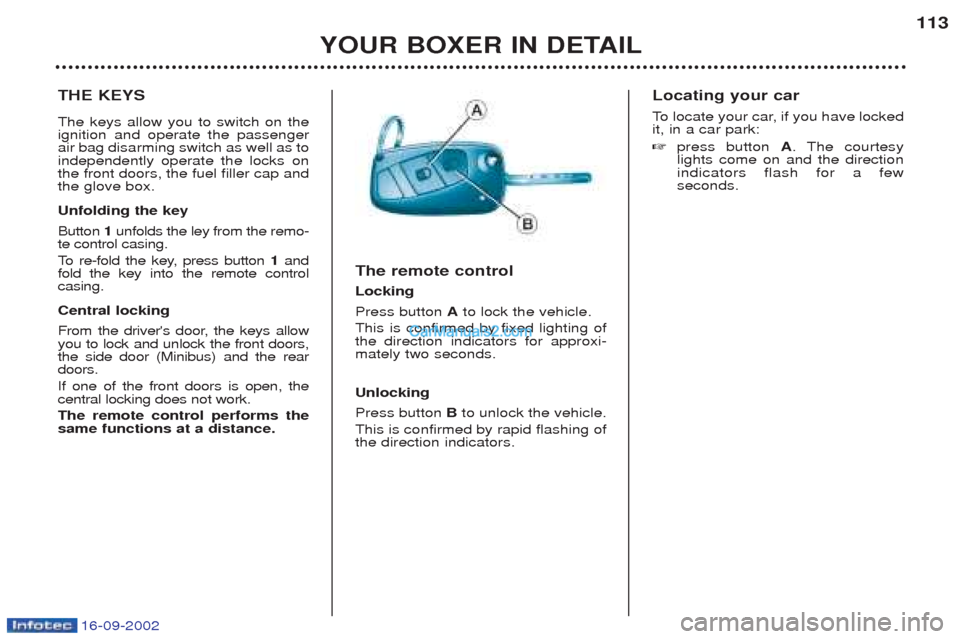

THE KEYS The keys allow you to switch on the ignition and operate the passengerair bag disarming switch as well as toindependently operate the locks onthe front doors, the fuel filler cap andthe glove box. Unfolding the key Button
1unfolds the ley from the remo-
te control casing.
To re-fold the key, press button 1and
fold the key into the remote control casing. Central locking
From the driver's door, the keys allow you to lock and unlock the front doors,the side door (Minibus) and the reardoors. If one of the front doors is open, the central locking does not work. The remote control performs the same functions at a distance. The remote control Locking Press button
Ato lock the vehicle.
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button Bto unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Locating your car
To
locate your car, if you have locked
it, in a car park: ☞ press button A. The courtesy
lights come on and the direction indicators flash for a fewseconds.

16-09-2002
YOUR BOXER IN DETAIL
114
Programming the remote control ☞Switch off the ignition.
☞ Switch the ignition on again.
☞ Immediately press button A.
☞ Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
Confidential Card The confidential card is necessary for any work carried out by a
PEUGEOT dealer on the system. It contains:
-a five digit identification code 1
necessary for the emergency star- ting procedure,
- a code 2for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a film,which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.
Key in ignition A buzzer sounds on opening the dri-
ver's door, if the key has been left in the ignition. Changing the battery of the remote control If the indicator light on the key lights only once, or does not light at allwhen the button is pressed, change
the battery.
To
do this, unclip the casing using a
coin at the ring (CR2032/3 volt battery).If the remote control does not work after the battery has been changed,reinitialise the remote control.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function
correctly, the electronic immobiliser
key indicator light, situated on theinstrument panel, flashes rapidlywhen the ignition is switched on(2nd notch). In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible. If the electronic immobiliser key indi- cator light comes on continuously
when the ignition is switched on(2nd notch), check the identificationof your key or this indicates an ope-
rating anomaly.
Contact a PEUGEOT dealer as soon as possible.

16-09-2002
YOUR BOXER IN DETAIL115
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for ashort time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.

16-09-2002
YOUR BOXER IN DETAIL
114
Programming the remote control ☞Switch off the ignition.
☞ Switch the ignition on again.
☞ Immediately press button A.
☞ Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
Confidential Card The confidential card is necessary for any work carried out by a
PEUGEOT dealer on the system. It contains:
-a five digit identification code 1
necessary for the emergency star- ting procedure,
- a code 2for reproduction of your
keys by a PEUGEOT dealer.
These codes are hidden by a film,which should be removed only if
necessary. Keep your card in a safe place, never inside the vehicle.
Key in ignition A buzzer sounds on opening the dri-
ver's door, if the key has been left in the ignition. Changing the battery of the remote control If the indicator light on the key lights only once, or does not light at allwhen the button is pressed, change
the battery.
To
do this, unclip the casing using a
coin at the ring (CR2032/3 volt battery).If the remote control does not work after the battery has been changed,reinitialise the remote control.
ELECTRONIC ENGINE IMMOBILISER This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function
correctly, the electronic immobiliser
key indicator light, situated on theinstrument panel, flashes rapidlywhen the ignition is switched on(2nd notch). In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible. If the electronic immobiliser key indi- cator light comes on continuously
when the ignition is switched on(2nd notch), check the identificationof your key or this indicates an ope-
rating anomaly.
Contact a PEUGEOT dealer as soon as possible.

16-09-2002
YOUR BOXER IN DETAIL115
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for ashort time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
