PEUGEOT PARTNER TEPEE ELECTRIC 2017 Owner's Guide

29

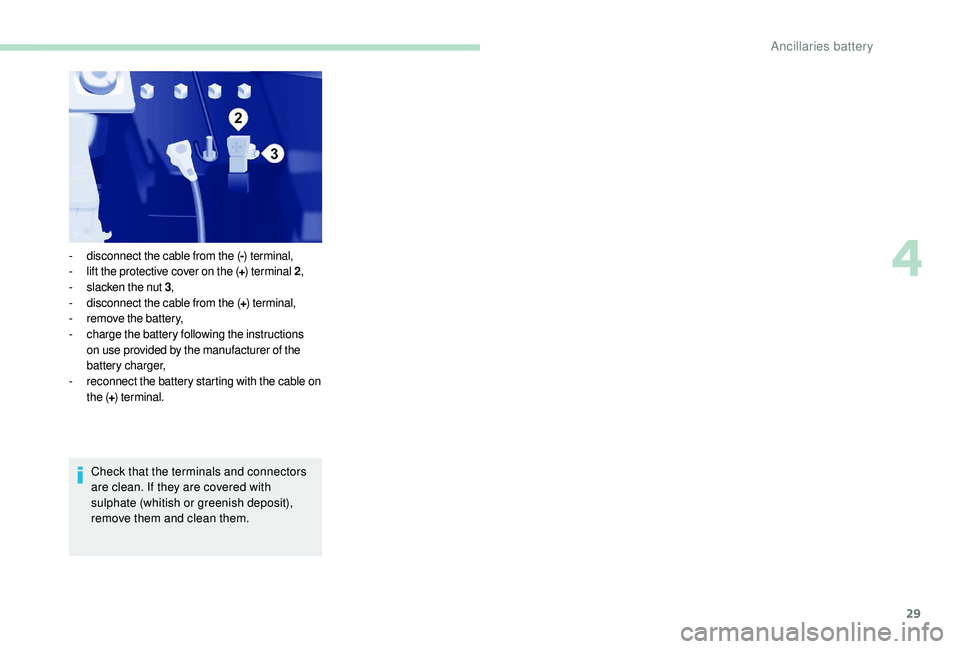

Check that the terminals and connectors
are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
-

d
isconnect the cable from the (
-) terminal,
-

l

ift the protective cover on the (
+) terminal 2 ,
-

s
lacken the nut 3
,
-

d
isconnect the cable from the (
+) terminal,
-

r

emove the battery,
-
c
harge the battery following the instructions
on use provided by the manufacturer of the
battery charger,
-

r

econnect the battery starting with the cable on
the ( +) terminal.
4
Ancillaries battery

30
Fuses

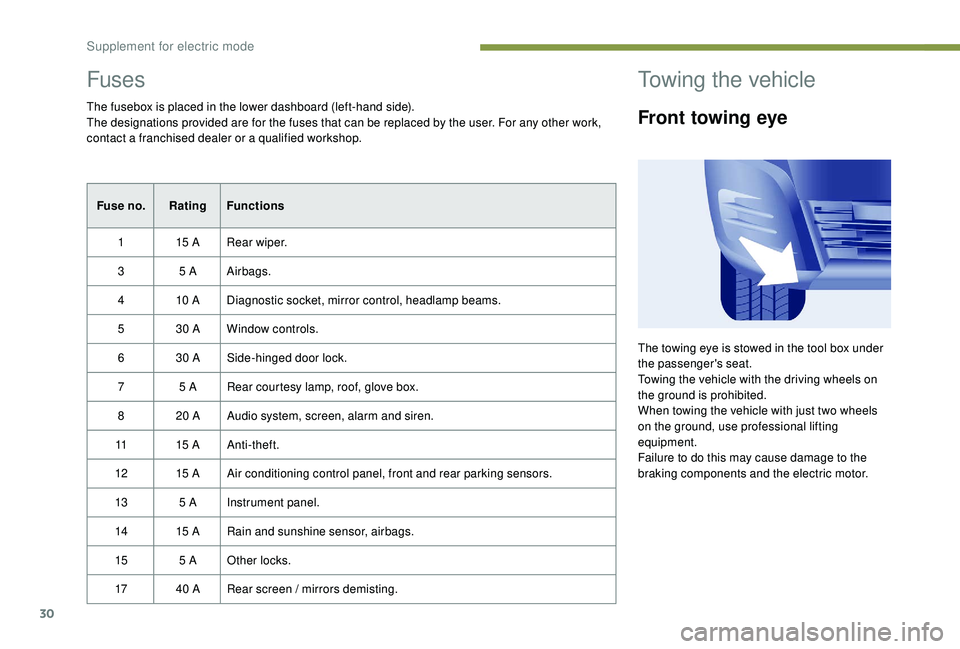

The fusebox is placed in the lower dashboard (left-hand side).
The designations provided are for the fuses that can be replaced by the user. For any other work,
contact a franchised dealer or a qualified workshop.Fuse no. Rating Functions
1 15


ARear wiper.
3 5
AAirbags.
4 10


ADiagnostic socket, mirror control, headlamp beams.
5 30
AWindow controls.
6 30
ASide-hinged door lock.
7 5
A Rear courtesy lamp, roof, glove box.
8 20
A Audio system, screen, alarm and siren.
11 15


AAnti-theft.
12 15


AAir conditioning control panel, front and rear parking sensors.
13 5
AInstrument panel.
14 15


ARain and sunshine sensor, airbags.
15 5
AOther locks.
17 40
ARear screen / mirrors demisting.
Towing the vehicle
Front towing eye
The towing eye is stowed in the tool box under
the passenger's seat.
Towing the vehicle with the driving wheels on
the ground is prohibited.
When towing the vehicle with just two wheels
on the ground, use professional lifting
equipment.
Failure to do this may cause damage to the
braking components and the electric motor.
Supplement for electric mode

31
Rear towing eye
To w i n g
Your vehicle cannot in any circumstances
be used to tow.

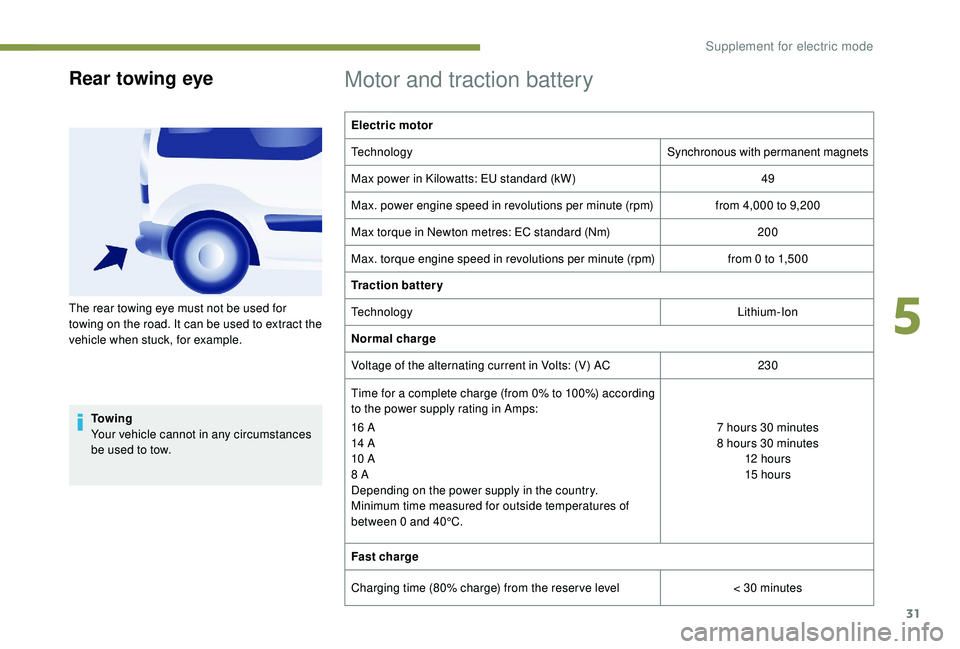

Motor and traction battery
Electric motor
TechnologySynchronous with permanent magnets
Max power in Kilowatts: EU standard (kW) 49
Max. power engine speed in revolutions per minute (rpm) from 4,000
to 9,200
Max torque in Newton metres: EC standard (Nm) 200
Max. torque engine speed in revolutions per minute (rpm) from 0
to 1,500
Traction battery
Technology Lithium-Ion
Normal charge
Voltage of the alternating current in Volts: (V) AC 230
Time for a complete charge (from 0% to 100%) according
to the power supply rating in Amps:
16


A
14


A
10


A
8
A
Depending on the power supply in the country.
Minimum time measured for outside temperatures of
between 0
and 40°C. 7
hours 30 minutes
8
hours 30 minutes
12


hour s
15


hours
Fast charge
Charging time (80% charge) from the reser ve level < 30
minutes
The rear towing eye must not be used for
towing on the road. It can be used to extract the
vehicle when stuck, for example.
5
Supplement for electric mode

32
The range of the vehicle, approved on
the NEDC cycle, is 105 miles (170 km).
This range may vary according to various
factors, the main ones being the use of
the heating and air conditioning, the style
of driving, the type of route taken and the
ageing of the traction battery.
Ageing of the traction battery also depends
on various factors, such as the ambient
temperature, the mileage of the vehicle, the

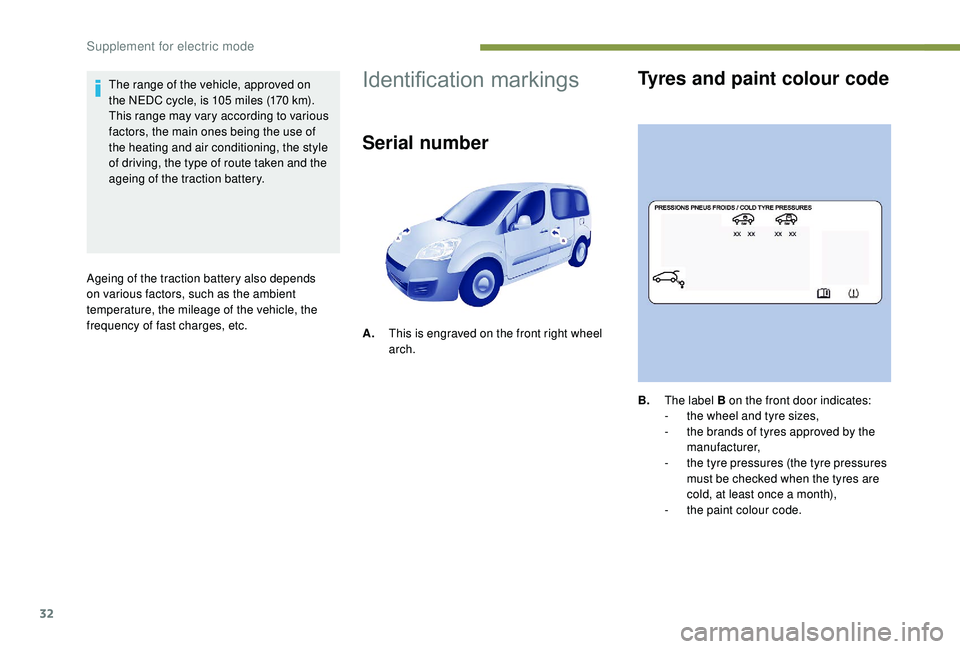

frequency of fast charges, etc.Identification markings
Serial number
A. This is engraved on the front right wheel
arch.
Tyres and paint colour code
B.The label B on the front door indicates:
-
t he wheel and tyre sizes,
-

t
he brands of tyres approved by the
manufacturer,
-

t
he tyre pressures (the tyre pressures
must be checked when the tyres are
cold, at least once a month),
-

t
he paint colour code.
Supplement for electric mode

3-17
Automobiles PEUGEOT declares, by application
of the provisions of the European legislation
(Directive 2000/53) relating to End of Life
Vehicles, that it achieves the objectives set by
this legislation and that recycled materials are
used in the manufacture of the products that it
sells.Reproduction or translation of all or part of
this document is prohibited without written
authorisation from Automobiles PEUGEOT.
Printed in the EUAnglais
