Warning!
TheAllenkeycanrotateoryoutandtherebycauseseriouspersonalinjuryiftheconverti-bletopisactuated.
AlwaysremovetheAllenkeyBfromthedriveaxleofthesideflapbeforeoperatingtheconvertibletop.
Whenyouhaveopenedthesideflaps,trytoclosetheconvertibletopusingtherockerswitch.Iftheconvertibletopcannotbeclosed,continuewithemergencyoperation.
Closingconvertibletop
1.InsertAllenkeyBthroughholeGandintothehydraulicvalve.TurnAllenkeyBcounterclock-wisebyapprox.1revolution.AlwaysremoveAllenkeyB.
2.Getbehindthefrontseatsandgrasptheconvertibletopinthemiddle.
MobileRoofs209

3.Closetheconvertibletopuntilitreachesitshighestposition.Theconvertibletoplockwiththelockinghookisfittedontheconvertibletop.Performtheworkontheconvertibletoplockwhenstandingontheright-handsideofthevehicle.
210MobileRoofs

Extendingthelockinghook“H”
1.PulltheplasticlidJdownonthefrontcorners.Pushthelidcarefullytotherearandtakeitoff.
2.TaketheAllenkeyKoutoftheoddmentstraybetweenthefrontseats.
3.InserttheAllenkeyKintotheopeningLandturninthedirectionofarrow“open”untilmarkedresistancecanbefelt.ThelockinghookHisnowextended.
4.PullouttheAllenkeyK.
5.Pulltheconvertibletopallthewayforwardtothewindshield.
Lockingthelockinghook“H”inthe
windscreenframe
Whenlockingtheconvertibletop,makesurethatthelockinghookengagesinthewindshieldframe.Pulltheconvertibletoptothewindshieldframeifnecessary.ThecenteringjournalsMmustberetractedintothemountinginthewindshieldframe.
MobileRoofs211

1.InserttheAllenkeyagain.Turninthedirectionofarrow“close”untilyoucanfeelmarkedresistanceandtheconvertibletopiscomplete-lylocked.
2.RemovetheAllenkey.
Mountingtheplasticlid
Pushtheplasticlidovertheconvertibletoplockingmechanismfrombehind.ThelidmustengagecentredintheguideN.Pushthelidupwardsatitsfrontedgeandengage.
Warning!
Riskofinjuryinanaccident.
Donotdrivewithouttheplasticlidmounted.
Closingtheconvertible-topcompartmentlid
Warning!
Riskofpinchingwhenclosingtheconvertible-topcompartmentlid.
Placeyourhandsontheconvertible-topcompartmentlidwhenpushing.
1.Standbehindthevehicle.
2.Grasptheconvertible-topcompartmentlidabovethebrakelightandpushforwardagainstresistancewhichcanbefeltuntilitiscompletelyclosed.
212MobileRoofs

Caution!
Riskofdamagetotheconvertibletop.
Afteremergencyoperation,donotoperatetheconvertibletopusingtherockerswitch.
DriveslowlytoanauthorizedPorschedealerinordertohavethefaultremedied.
MobileRoofs213

Example:Mountfor911Carrera,911CarreraS
Windstop
Generalinformation
Thewindstopisstowedinaprotectivebagintheluggagecompartment.
TheprotectivebagisfastenedwithaVelcrostripintheluggagecompartment.
Caution!
Riskofdamagetothewindstop
Makesurethatthewindstopisnotdamagedbyitemsofluggageorobjectsintheluggagecompartment.
Donotplaceanyobjectsonthewindstop.
Donotstoreanysharp-edgedobjectsundertheinstalledwindstop.
Donotdamagethewindstopduringseatadjustmentandwhenfoldingbackthefront-seatbackrests.Adjustseatsothattheseatbackrestdoesnottouchthewindstop.
Donotfolduptherearseatbackrestswiththewindstopinstalled.
Removewindstopbeforefittingahardtop.
Installingthewindstop
1.Openzipperoftheprotectivebag.Takethewindstopoutoftheluggagecompartment.
2.Foldtherearseatbackrestsforward.
Pleaseobservethechapter”REARSEATBACKRESTS”onpage44.
3.Unfoldthewindstopuntilitcanbefelttoengageinthehingesatthetopandbottom.
214MobileRoofs

4.Checkwhetherthelockofthewindstoplowersectionisengaged.Presslocktogetherifnecessary(arrows).
A-LockopenB-Lockclosed
5.CheckwhetherthetworedlockinghandlesareinpositionA(open).Openthelockifnecessary.Todothis,pushthelockinghandlesinwardasfarastheywillgoandswiveltotheside(arrow).
MobileRoofs215

6.InsertfasteningtabsCofthewindstopintotheguidesofthesafetybelts.MakesurethattheplasticpegEengagesinthecenterguideofthewindstop.
7.Pushredlockinghandlesinwardandswiveldownward.SpringforcepushesthesquarepinsofthelocksintothereceiversDinthesidetrimpanels.Checkwhetherthesquarepinsarecorrectlyengaged.
216MobileRoofs

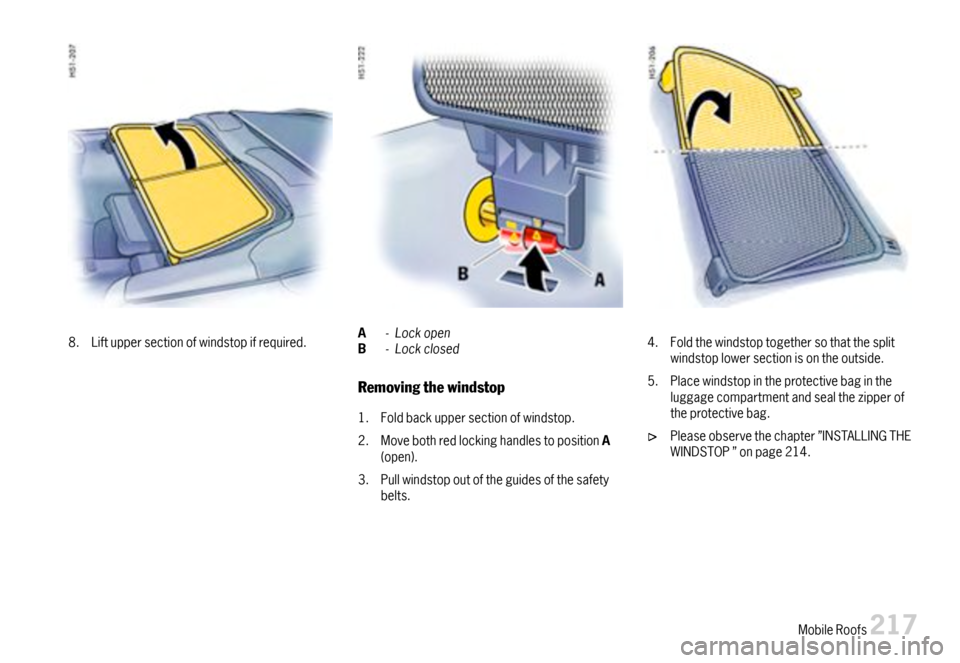

8.Liftuppersectionofwindstopifrequired.A-LockopenB-Lockclosed
Removingthewindstop
1.Foldbackuppersectionofwindstop.
2.MovebothredlockinghandlestopositionA(open).
3.Pullwindstopoutoftheguidesofthesafetybelts.
4.Foldthewindstoptogethersothatthesplitwindstoplowersectionisontheoutside.
5.Placewindstopintheprotectivebagintheluggagecompartmentandsealthezipperoftheprotectivebag.
Pleaseobservethechapter”INSTALLINGTHEWINDSTOP”onpage214.
MobileRoofs217

Hardtop
Hardtopstorage
YourauthorizedPorschedealerwillbegladtogiveadviceaboutcorrecthardtopstorage.
Sincetheconvertibletopstaysopenforalongtime,itmustbeabsolutelydryandcleanbeforebeingopenedtoinstallthehardtop.Thispreventsdampstainsandabrasiondamage.
Makesurethatthehardtopisplacedonaclean,softsurface.
Removingthehardtop
1.Openallfoursidewindows.

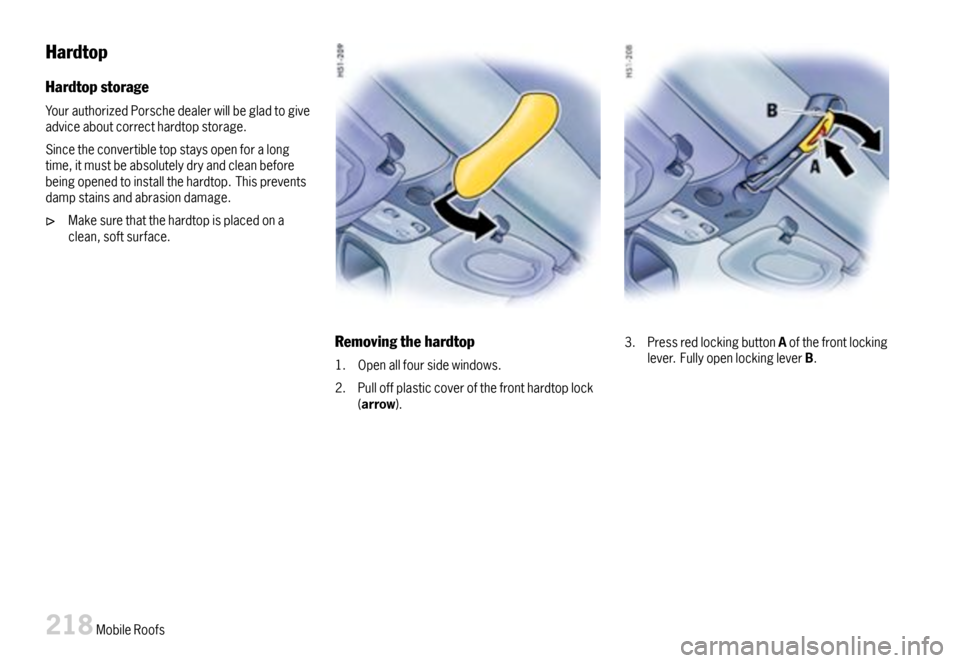

2.Pulloffplasticcoverofthefronthardtoplock(arrow).
3.PressredlockingbuttonAofthefrontlockinglever.FullyopenlockingleverB.
