83A-11
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$020.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – System operation83A
Warning light Command Tested Signal transmitter
1 Opening elementsEarth NOUnité Centrale Habitacle
(Passenger Compartment
Central Unit)
2 Dipped headlights+ 12 V NOLighting stalk
3 Main beam headlights+ 12 V NOLighting stalk
4 Rear fog lights+ 12 V NOLighting stalk
5 Front fog lights+ 12 V NOLighting stalk
6Left-hand and right-hand
direction indicator lights+ 12 V NOUnité Centrale Habitacle
(Passenger Compartment
Central Unit)
7 Battery charge faultEarthNO (but illuminated when
engine stopped)Alternator
8Level 2 injection fault Coolant
temperatureEarth 3 seconds by injection Injection computer
9 Oil pressure alertEarthNO (but illuminated when
engine stopped)Oil pressure sensor

83A-12
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$020.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – System operation83A
Warning light Command Tested Signal transmitter
10Handbrake applied + low brake
fluid (without ABS)
EarthNOHandbrake switch + Low
brake fluid switch
Handbrake applied + low brake
fluid + electronic braking
distribution (with ABS)3 seconds via ABSHandbrake switch + Low
brake fluid switch + ABS
computer
12 ABS system (active)Earth 3 seconds via ABS ABS computer
13 AirbagEarth 3 seconds by Airbag Airbag computer
Airbag OffEarth 3 seconds by Airbag Airbag computer
14 Heated rear screenEarthNO (but illuminated when
engine stopped)Relay plate
14 Minimum fuel level alertEarth3 seconds Instrument
panelInstrument panel
management - sender unit
signal
15 OBDEarth 3 seconds by injection Injection computer
16 Seat belt reminderEarthNO (but illuminated when
engine stopped)Seat belt switch

83A-13
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$030.mif
83A
CONNECTOR (24-track grey)
The 24-track grey connector is fitted only on the MG and HG versions.
*CPE: Electric central door lockingTracks Description
1Not used
2Not used
3Not used
4Not used
5Fuel level signal
6Not used
7 Not used
8Not used
9Not used
10Not used
11Oil pressure warning light
12Door open warning light (with electric central door locking*)
Rabbet switch signal (without electric central door locking*)
13Brake fault warning light
14Not used
15Not used
16Anti-lock braking system indicator light
17Not used
18Not used
19Fuel consumption info signal
20Not used
21Not used
22Not used
23Not used
24Not used
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Allocation of computer tracks

83A-14
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$030.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Allocation of computer tracks83A
CONNECTOR (24-track black)
Tracks Description
1Control - software lock indicator light
2Coolant temperature warning light - control
3Right turn signal indicator light
4Emission control fault warning light
5Rear fog lights indicator light
6Front fog lights indicator light
7 Earth
8Earth
9+ Battery supply
10After ignition supply
11+ Side lights supply
12Coolant temperature + signal
13Alternator charge warning light - control
14Left turn signal indicator light
15Preheating/electronic fault warning light
16Handbrake + fluid level warning light - control
17Heated rear screen indicator light
18Not used
19Not used
20Airbag fault warning light
21Rev counter signal
22Vehicle speed signal
23Trip computer scroll - control
24Fuel sending unit + signal

83A-15
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$040.mif
83A
Replacement operation
– Carry out fault finding before replacing the instrument panel.
– Instrument panel removal - refitting operation: see Mechanical MR.
– The instrument panel may be replaced when the Techline has given its approval.
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Replacement of components

83A-16
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
83A
ENGINE SPEED
DISPLAY AT ZERO OR INCONSISTENT SIGNAL ALP1
COOLANT TEMPERATURE
NO SIGNAL OR INCONSISTENT SIGNAL ALP2
Fuel level
THE FUEL LEVEL INDICATOR DOES NOT DISPLAY FULL ALP3
ADDITION OF FUEL NOT REGISTERED (NOT FULL) ALP4
DISPLAY JAMMED WHEN DRIVING (NOT MECHANICAL) ALP5
FAULT WITH NO WARNING GIVEN BY WARNING LIGHT (NO
ADDITION OF FUEL SINCE THE FAULT)ALP6
FAULT WITH NO WARNING GIVEN BY WARNING LIGHT (ADDITION
OF FUEL SINCE THE FAULT)ALP7
FAULT WITH DELAYED WARNING ALP8
SEVERITY LEVEL 2 INJECTION FAULT / COOLANT TEMPERATURE
THE WARNING LIGHT REMAINS LIT ALP9
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints

83A-17
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints83A
LEVEL 1 INJECTION FAULT
THE WARNING LIGHT REMAINS LIT ALP10
VEHICLE SPEED
DISPLAY AT ZERO OR INCONSISTENT SIGNAL ALP11
AIRBAG FAULT
THE WARNING LIGHT REMAINS LIT ALP12
OIL PRESSURE WARNING
THE WARNING LIGHT REMAINS LIT ALP 13
DIRECTION INDICATOR LIGHTS
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP14
REAR FOG LIGHTS
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP15

83A-18
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints83A
FRONT FOG LIGHTS
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP16
ABS FAULT
THE WARNING LIGHT OPERATES INCONSISTENTLY ALP17
ENGINE IMMOBILISER
THE ENGINE IMMOBILISER WARNING LIGHT REMAINS LIT OR
FLASHES WHEN DRIVINGALP18
WARNING LIGHT REMAINS NOT LIT WHEN NOT UNDER AFTER
IGNITION FEEDALP19
BATTERY CHARGE FAULT
WARNING LIGHT REMAINS LIT (engine running) ALP20
HANDBRAKE APPLIED AND FAULT DETECTED ON BRAKING CIRCUIT
THE WARNING LIGHT OPERATES INCONSISTENTLY (WITHOUT
ABS)ALP21
THE WARNING LIGHT OPERATES INCONSISTENTLY (WITH ABS) ALP22

83A-19
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$050.mif
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Customer complaints83A
*CPE: Electric central door lockingHEATED REAR SCREEN
THE WARNING LIGHT DOES NOT LIGHT UP ALP23
INSTRUMENT PANEL
NO DISPLAY WHEN IGNITION IS SWITCHED ON ALP24
TRIP COMPUTER OR TRIP METER OR CLOCK
RESET WHENEVER THE IGNITION IS SWITCHED OFF ALP25
DOOR OPEN WARNING LIGHT
THE WARNING LIGHT DOES NOT ILLUMINATE (WITHOUT ELECTRIC
CENTRAL DOOR LOCKING*)ALP26
THE WARNING LIGHT DOES NOT ILLUMINATE (WITH ELECTRIC
CENTRAL DOOR LOCKING*)ALP27

83A-20
AFTER REPAIRCheck for correct operation.
V1 MR-376-X76-83A000$060.mif
83A

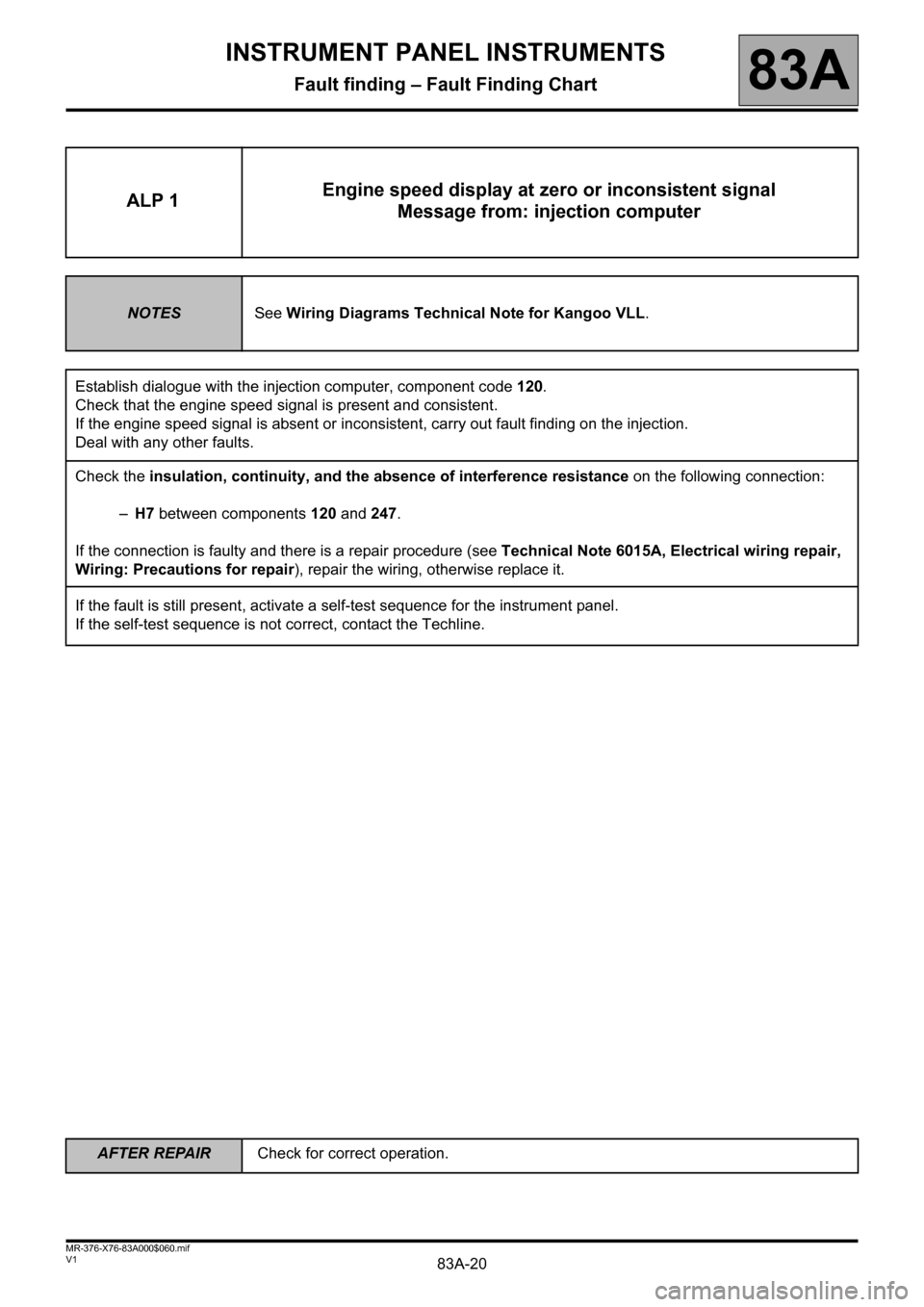

ALP 1Engine speed display at zero or inconsistent signal
Message from: injection computer
NOTESSee Wiring Diagrams Technical Note for Kangoo VLL.
Establish dialogue with the injection computer, component code 120.
Check that the engine speed signal is present and consistent.
If the engine speed signal is absent or inconsistent, carry out fault finding on the injection.
Deal with any other faults.
Check the insulation, continuity, and the absence of interference resistance on the following connection:
–H7 between components 120 and 247.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, activate a self-test sequence for the instrument panel.
If the self-test sequence is not correct, contact the Techline.
INSTRUMENT PANEL INSTRUMENTS
Fault finding – Fault Finding Chart
