AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 81V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: LEVER LOCK
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Gear lever
positionET012:Gear lever
positionP if selector is in
position P.
N if selector is in
position N.
R if selector is in
position R.
D if selector is in
position D.
M if selector is in
position M.
M+ if selector is in
position M+.
M- if selector is in
position M-.In the event of a
fault, refer to the
interpretation of this
status.
2Brake pedalET003:Brake light
switch (opening)OPEN, if brake pedal is not
depressed.
CLOSED, if brake pedal is
depressed.In the event of a
fault, refer to the
interpretation of this
status.
3Brake pedalET004:Brake light
switch (closure)OPEN, if brake pedal is
depressed.
CLOSED, if brake pedal is
not depressed.In the event of a
fault, refer to the
interpretation of this
status.
4Sequential
actuator controlAC024:Sequential
actuator controlCommand used to actuate
all the solenoid valves.In the event of a
fault, refer to the
interpretation of this
command.
Page 82 of 139

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 82V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: LOCKUP/UNLOCKING
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Engine speedPR006:Engine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
2Calculated
engine torquePR123:Calculated
engine torque0 NmIn the event of a
fault, consult the
interpretation of this
parameter.
3Engine speedPR007:Turbine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
4Engine/turbine
speed
differencePR128:Engine/turbine
speed
difference0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
5Current turbine
speedPR126:Current turbine
speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
6Reference
pressurePR138:Reference
pressure21 barIn the event of a
fault, consult the
interpretation of this
parameter.
7Oil pressurePR003:Oil pressureX < 0.2 barIn the event of a
fault, consult the
interpretation of this
parameter.
Page 83 of 139

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 83V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: LOCKUP/UNLOCKING (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
8Gearbox oil
pressure sensor
voltagePR118:Gearbox oil
pressure sensor
voltageX = 5 VIn the event of a
fault, consult the
interpretation of this
parameter.
9Exchanger
actuator
solenoid valve
control ET020:Exchanger
actuator
solenoid valve
controlACTIVE
INACTIVEIn the event of a
fault, refer to the
interpretation of this
status.
10Oil temperaturePR004:Gearbox oil
temperature- 40 ˚C < X < 140 ˚CIn the event of a
fault, consult the
interpretation of this
parameter.
11Difference
between
reference
pressure and oil
pressurePR146:Difference
between
reference and oil
pressureX = PR138 - PR003 None.
12Oil too hot signalET010:Oil too hot signalYES, if oil temperature:
X > 140 ˚CIn the event of a
fault, refer to the
interpretation of this
status.
13Sequential
actuator controlAC024:Sequential
actuator controlCommand used to actuate
all the solenoid valves.In the event of a
fault, refer to the
interpretation of this
command.
Page 84 of 139

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 84V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: STATIONARY DECLUTCHING
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Engine speedPR006:Engine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
2Gear lever
positionET012:Gear lever
positionP if selector is in
position P.
N if selector is in
position N.
R if selector is in
position R.
D if selector is in
position D.
M if selector is in
position M.
M+ if selector is in
position M+.
M- if selector is in
position M-.In the event of a
fault, refer to the
interpretation of this
status.
3Gear engagedET013:Gear engagedR for reverse.
1P for 1
st locked.
2P for 2nd locked.
3P for 3rd locked.
4P for 4
th locked.
1G for 1st slipping.
2G for 2nd slipping.
3G for 3rd slipping.
4G for 4th slipping.
1 for 1st unlocked.
2 for 2nd unlocked.
3 for 3rd unlocked.
4 for 4th unlocked.In the event of a
fault, refer to the
interpretation of this
status.

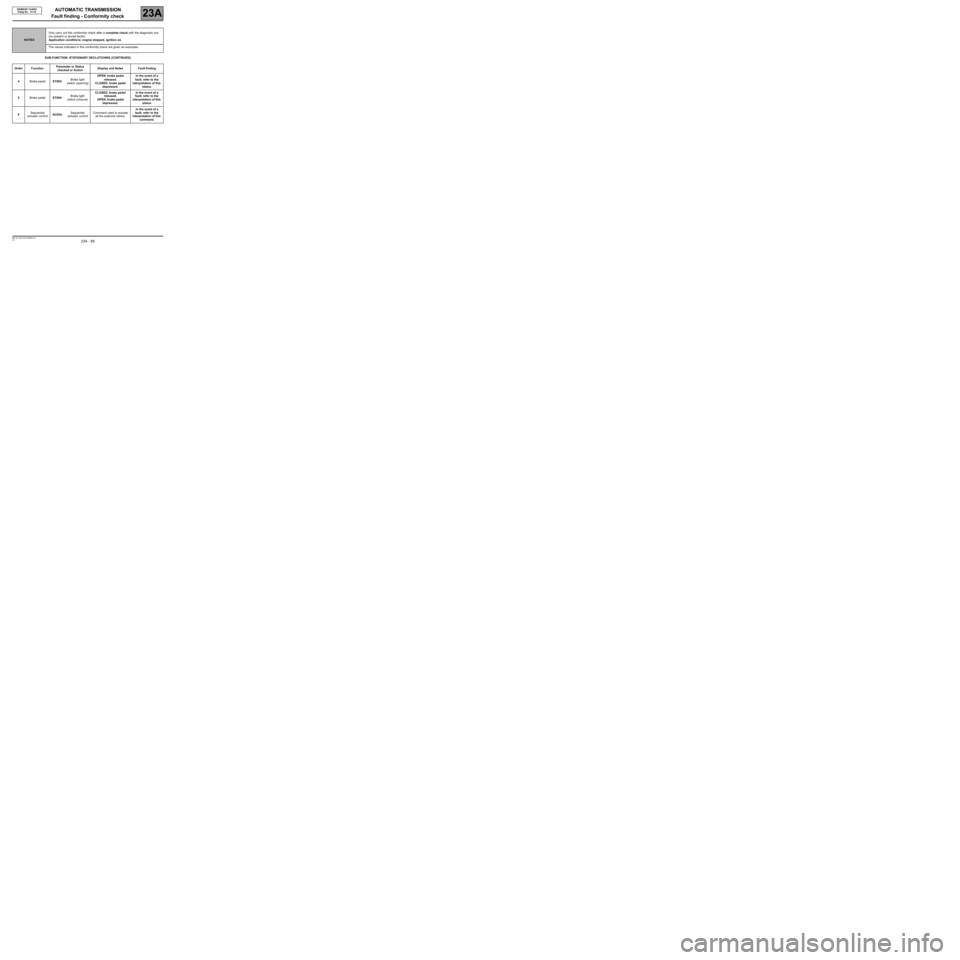

Page 85 of 139

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 85V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: STATIONARY DECLUTCHING (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
4Brake pedalET003:Brake light
switch (opening)OPEN, brake pedal
released.
CLOSED, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.
5Brake pedalET004:Brake light
switch (closure)CLOSED, brake pedal
released.
OPEN, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.
6Sequential
actuator controlAC024:Sequential
actuator controlCommand used to actuate
all the solenoid valves.In the event of a
fault, refer to the
interpretation of this
command.
Page 86 of 139

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 86V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: CREEPING AT IDLE SPEED
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Oil pressurePR003:Oil pressureX < 0.2 barIn the event of a
fault, consult the
interpretation of this
parameter.
2Oil temperature PR004:Gearbox oil
temperature- 40 ˚C < X < 140 ˚CIn the event of a
fault, consult the
interpretation of this
parameter.
3Vehicle speedPR105:Vehicle speed0 mphIn the event of a
fault, consult the
interpretation of this
parameter.
4Engine speedPR006:Engine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
5Engine speedPR007:Turbine speed0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
6Engine/turbine
speed
differencePR128:Engine/turbine
speed
difference0 rpmIn the event of a
fault, consult the
interpretation of this
parameter.
Page 87 of 139

AUTOMATIC TRANSMISSION
Fault finding - Conformity check
23A
23A - 87V5 MR-372-J84-23A100$464.mif
SIEMENS TA2005
Vdiag No.: 14-18
SUB-FUNCTION: CREEPING AT IDLE SPEED (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(no present or stored faults).
Application conditions: engine stopped, ignition on.
The values indicated in this conformity check are given as examples.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
7Standard pedal
positionPR135:Standard pedal
position%In the event of a
fault, consult the
interpretation of this
parameter.
8Brake pedalET003:Brake light
switch (opening)OPEN, brake pedal
released.
CLOSED, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.
9Brake pedalET004:Brake light
switch (closure)CLOSED, brake pedal
released.
OPEN, brake pedal
depressed.In the event of a
fault, refer to the
interpretation of this
status.
10Gear engagedET013:Gear engagedR for reverse.
1P for 1
st locked.
2P for 2nd locked.
3P for 3rd locked.
4P for 4th locked.
1G for 1st slipping.
2G for 2nd slipping.
3G for 3rd slipping.
4G for 4th slipping.
1 for 1st unlocked.
2 for 2nd unlocked.
3 for 3rd unlocked.
4 for 4th unlocked.In the event of a
fault, refer to the
interpretation of this
status.
Page 88 of 139

Fault finding - Status summary table23A
23A - 88V5 MR-372-J84-23A100$522.mif
SIEMENS TA2005
Vdiag No.: 14-18AUTOMATIC TRANSMISSION
Fault finding - Status summary table
Tool status Diagnostic tool title
ET001Solenoid valve supply
ET003Brake light switch (opening)
ET004Brake light switch (closure)
ET010Oil too hot signal
ET011Engine speed signal
ET012Gear lever position
ET013Gear engaged
ET020Exchanger flow control solenoid valve control
ET021Sequence solenoid valve 1 control
ET022Sequence solenoid valve 2 control
ET023Sequence solenoid valve 3 control
ET024Sequence solenoid valve 4 control
ET025Sequence solenoid valve 5 control
ET026Sequence solenoid valve 6 control
ET081Snow mode
ET083Old oil
ET097Manual mode
ET108Torque reduction
ET123Multifunction switch S2
ET124Multifunction switch S3
ET125Multifunction switch S4
ET126Multifunction switch P/N
ET127Lower sequential lever switch
ET128Upper sequential lever switch
ET157Gear lever unlocking
AFTER REPAIRRepeat the conformity check from the start.
MR-372-J84-23A100$522.mif
Page 89 of 139

Fault finding - Interpretation of statuses23A
23A-89V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
ET001
SOLENOID VALVE SUPPLY
NOTESThere must be no present or stored faults.
Force the solenoid valves supply by running command AC024 Sequential actuator control; see Interpretation
of commands.
Disconnect the electric/hydraulic interface connector and check:
●Check for earth on connection 5AU of component 757.
●Check for earth on connection 5DN of component 1019.
●Check for earth on connection 5AZ of component 754.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
The solenoid valves feed status is "PRESENT" at a voltage of + 12 V.
If the status is not correct, apply the interpretation of fault DF012 Solenoid valves supply.
AFTER REPAIRRepeat the conformity check from the start.
DP0TA2005_V14_ET001/DP0TA2005_V18_ET001
MR-372-J84-23A100$580.mif
Page 90 of 139

AUTOMATIC TRANSMISSION
Fault finding - Interpretation of statuses
23A
23A-90V5 MR-372-J84-23A100$580.mif
SIEMENS TA2005
Vdiag No.: 14-18
ET003
BRAKE LIGHT SWITCH (OPENING)
NOTESThere must be no present or stored faults.
The status displays "OPEN" with the pedal released and changes to "CLOSED" with the brake pedal depressed.
Check the cleanliness and the condition of the brake light switch connections.
Check the position, setting and correct operation of the brake light switch. (Watch out for the floor carpet which can
jam the switch.)
Disconnect the battery.
Disconnect the computer. Check the cleanliness and condition of the connections.
Use the Universal bornier Elé. 1681 to check the insulation, continuity and the absence of interference resistance
on the following connection:
●connection code 5A, between components 119 and 160.
If the connection is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the correct status is not displayed, replace the switch.
AFTER REPAIRRepeat the conformity check from the start.
DP0TA2005_V14_ET003/DP0TA2005_V18_ET003
