RENAULT SCENIC 2008 J84 / 2.G Electrical Equipment - Instrument Panel Service Manual

83A-41
MR-372-J84-83A000$819.mif
V8
83A
INSTRUMENT PANEL
Fault finding - Interpretation of commands
AC006
BUZZER
NOTESThere must be no present or stored faults.
Sound the buzzer using command AC006 Buzzer.
The buzzer should be heard.
If there is a fault with the buzzer, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
MR-372-J84-83A000$819.mif

83A-42
MR-372-J84-83A000$819.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of commands83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
AC007
DISPLAY
NOTESThere must be no present or stored faults.
Activate the display using command AC007 Display.
The display lights so you can check all the indicators and displays trip computer information.
If there is a display fault, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.

83A-43
MR-372-J84-83A000$819.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of commands83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
AC008
INSTRUMENT PANEL NEEDLE GAUGES
NOTESThere must be no present or stored faults.
Activate the instrument panel needles using command AC008 Instrument panel needles.
During the test the needles should cover their entire operating range.
If there is a fault with the needle movement, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.

83A-44
MR-372-J84-83A000$819.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of commands83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
AC009
INSTRUMENT PANEL WARNING LIGHTS
NOTESThere must be no present or stored faults.
Activate the instrument panel warning lights using command AC009 Instrument panel warning lights.
The indicator lights are all on, check that the lights are correct.
Check the condition and connection of the instrument panel 24-track grey connector.
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
Check the condition and connection of the 4-track seat belt warning module black connector.
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
Check the insulation, continuity and the absence of interference resistance on the following connections:
Instrument panel grey connector, track 16 Track 3 of the seat belt warning module
connector
Instrument panel grey connector, track 23 Track 4 of the seat belt warning module
connector
Instrument panel grey connector, track 12 Track 1 of the seat belt warning module
connector
Instrument panel grey connector, track 11 Track 2 of the seat belt warning module
connector
If there is a repair method (see Technical note 6015A, Repairing electrical wiring, Wiring: Precautions for
repair) repair the wiring, otherwise replace it.
If the fault is still present, contact Techline.
AFTER REPAIRRepeat the conformity check from the start.

83A-45
MR-372-J84-83A000$819.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of commands83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
AC010
LIGHTING
NOTESThere must be no present or stored faults.
Activate the instrument panel lighting using command AC010 Lighting.
The instrument panel lights up; change the lighting brightness.
If there is a lighting fault, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.

83A-46
MR-372-J84-83A000$819.mif
V8
INSTRUMENT PANEL
Fault finding - Interpretation of commands83A
TDB ph2 (EG/MG)
Prog Version: 04xx
Vdiag No.: 08, 0C
AC011
DOT MATRIX DISPLAY
NOTESIMPORTANT
–Affects the opening elements indicator lights (on mid-range instrument panels).
–Affects tyre pressure monitor system warning lights (on mid-range instrument panel
if fitted to the vehicle).
–Affects automatic and sequential gearbox warning lights.
There must be no present or stored faults.
Activate the dot matrix display using command AC011 Dot matrix display.
The dot matrix display lights up.
If there is a lighting fault, contact the Techline.
AFTER REPAIRRepeat the conformity check from the start.

83A-47
MR-372-J84-83A000$882.mif
V8
83A
INSTRUMENT PANEL
Fault finding - Customer complaints
NOTESOnly refer to the customer complaints after a complete check using the diagnostic
tool
Carry out fault finding on the multiplex network.
Carry out fault finding on the instrument panel.
NO COMMUNICATION WITH THE INSTRUMENT PANEL
THE INSTRUMENT PANEL DOES NOT LIGHT UPALP 1
THE FUEL LEVEL INDICATOR DOES NOT DISPLAY FULL
ALP 2
ADDITION OF FUEL NOT REGISTERED (NOT FULL)
ALP 3
DISPLAY JAMMED WHEN DRIVING (NOT MECHANICAL)
ALP 4
FAULT WITH NO WARNING GIVEN BY WARNING LIGHT (NO ADDITION OF FUEL
SINCE THE FAULT)ALP 5
FAULT WITH NO WARNING GIVEN BY WARNING LIGHT (ADDITION OF FUEL SINCE
THE FAULT)ALP 6
FAULT WITH DELAYED WARNING
ALP 7
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C
MR-372-J84-83A000$882.mif

83A-48
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V8 MR-372-J84-83A000$945.mif
83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C
ALP 1No communication with the instrument panel.
The instrument panel does not light up.
NOTESOnly consult this customer complaint after a complete check with the diagnostic tool.
See Wiring Diagram Technical Note for Scénic II.
Look for possible damage to the wiring harness.
Check the connection and condition of the instrument panel connector, component code 247.
If the connector is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check the insulation, continuity and the absence of interference resistance of the following connections:
•BP79 between components 247 and 260,
•MAM (if left-hand drive) or MAN (if right-hand drive) between component 247 and the earth,
•153A between components 247 and 1232,
•153B between components 247 and 1232.
If the connection or connections are faulty and if there is a repair method (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace the wiring.
If the fault is still present, contact Techline.
TDB_V08_ALP1/TDB_V0C_ALP1
INSTRUMENT PANEL
Fault finding - Fault finding chart

83A-49
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V8 MR-372-J84-83A000$945.mif
INSTRUMENT PANEL
Fault finding - Fault finding chart83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C

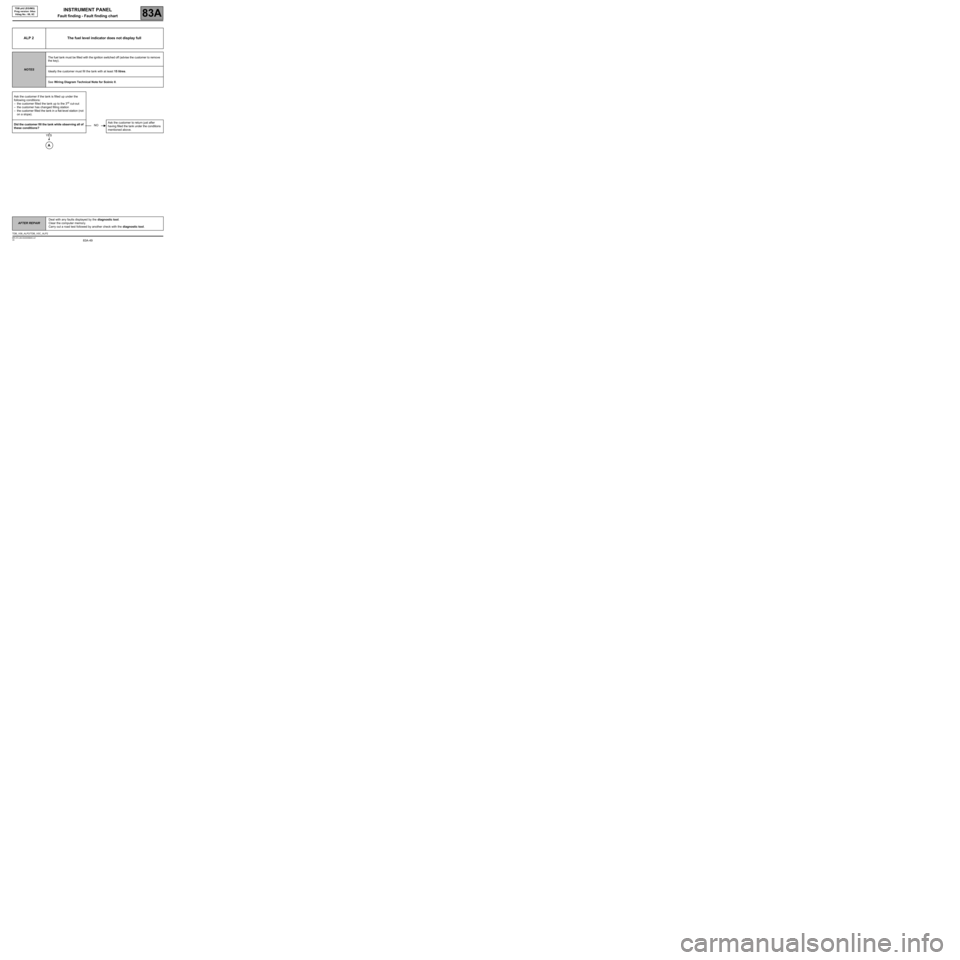

ALP 2 The fuel level indicator does not display full
NOTESThe fuel tank must be filled with the ignition switched off (advise the customer to remove
the key).
Ideally the customer must fill the tank with at least 15 litres.
See Wiring Diagram Technical Note for Scénic II.
Ask the customer if the tank is filled up under the
following conditions:
–the customer filled the tank up to the 3
rd cut-out
–the customer has changed filling station
–the customer filled the tank in a flat-level station (not
on a slope).
Did the customer fill the tank while observing all of
these conditions?Ask the customer to return just after
having filled the tank under the conditions
mentioned above.
NO
YES
A
TDB_V08_ALP2/TDB_V0C_ALP2

83A-50
AFTER REPAIRDeal with any faults displayed by the diagnostic tool.
Clear the computer memory.
Carry out a road test followed by another check with the diagnostic tool.
V8 MR-372-J84-83A000$945.mif
INSTRUMENT PANEL
Fault finding - Fault finding chart83A
TDB ph2 (EG/MG)
Prog version: 04xx
Vdiag No.: 08, 0C
ALP 2
CONTINUED 1
With the ignition off, disconnect the fuel sender
connector, component code 199 and then check
the resistance using a multimeter.
The value should be: 54 ΩΩ Ω Ω
.
Is the value measured less than 54 ΩΩ Ω Ω
?Replace the fuel sender, component code
199 (see MR 370, Mechanical, 19C, Fuel
tank, Sender: Removal - Refitting).
If the fault is still present, contact Techline.
Compare the value measured to the value supplied
by the CLIP tool.
Is the value measured and the value provided
by the CLIP tool the same as or approximately
± 5 ΩΩ Ω Ω
?
A
YES
NO
YES
NOC
YES
B
