Seat Alhambra 2011 Owner's Manual

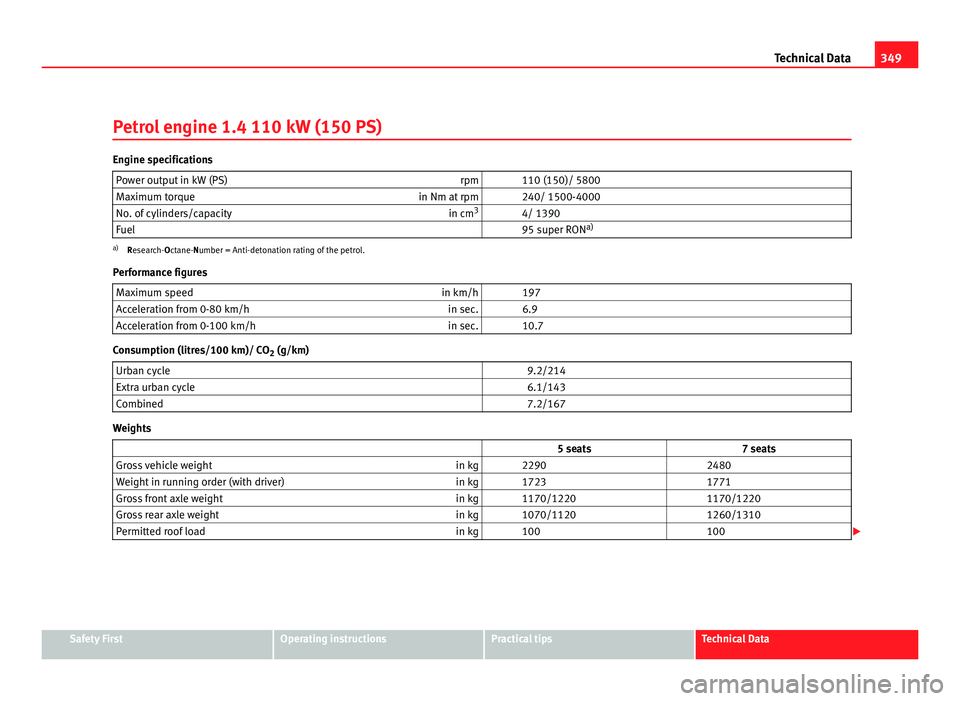

349
Technical Data
Petrol engine 1.4 110 kW (150 PS) Engine specifications
Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 240/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1390
Fuel 95 super RON a)a)
Research-Octane-Number = Anti-detonation rating of the petrol.
P er
formance figures
Maximum speed in km/h 197
Acceleration from 0-80 km/h in sec. 6.9
Acceleration from 0-100 km/h in sec. 10.7Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 9.2/214
Extra urban cycle 6.1/143
Combined 7.2/167Weights
5 seats 7 seats
Gross vehicle weight in kg 2290 2480
Weight in running order (with driver) in kg 1723 1771
Gross front axle weight in kg 1170/1220 1170/1220
Gross rear axle weight in kg 1070/1120 1260/1310
Permitted roof load in kg 100 100Safety First Operating instructions Practical tips Technical Data

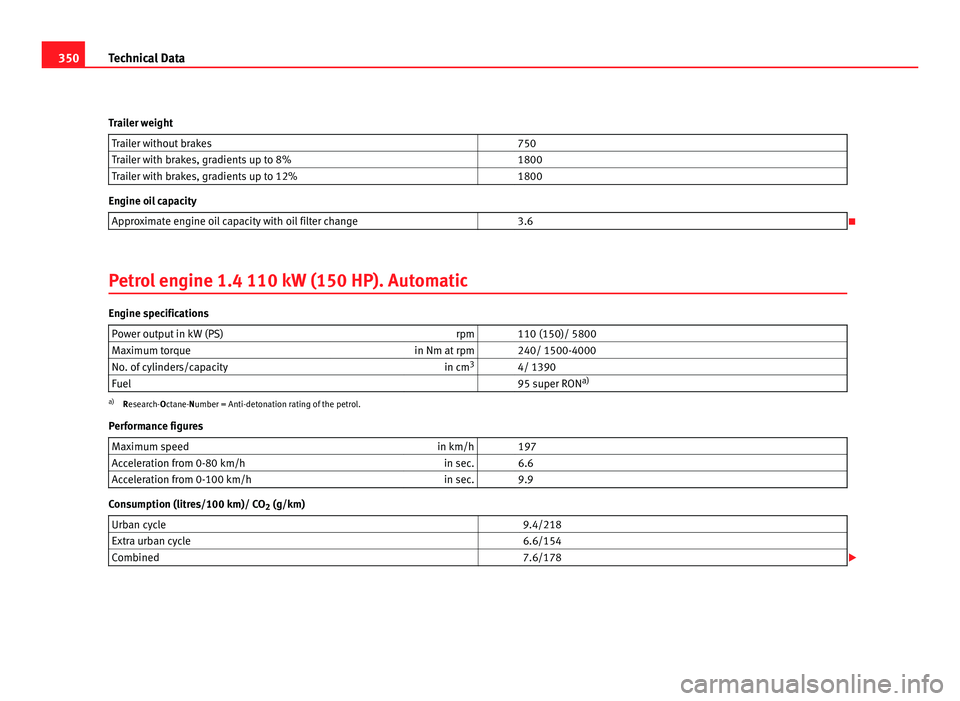

350
Technical Data
Trailer weight Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1800Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 
Petrol engine 1.4 110 kW (150 HP). Automatic Engine specifications
Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 240/ 1500-4000
No. of cylinders/capacity in cm3
4/ 1390
Fuel 95 super RON a)a)
Research-Octane-Number = Anti-detonation rating of the petrol.
P er
formance figures
Maximum speed in km/h 197
Acceleration from 0-80 km/h in sec. 6.6
Acceleration from 0-100 km/h in sec. 9.9Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 9.4/218
Extra urban cycle 6.6/154
Combined 7.6/178

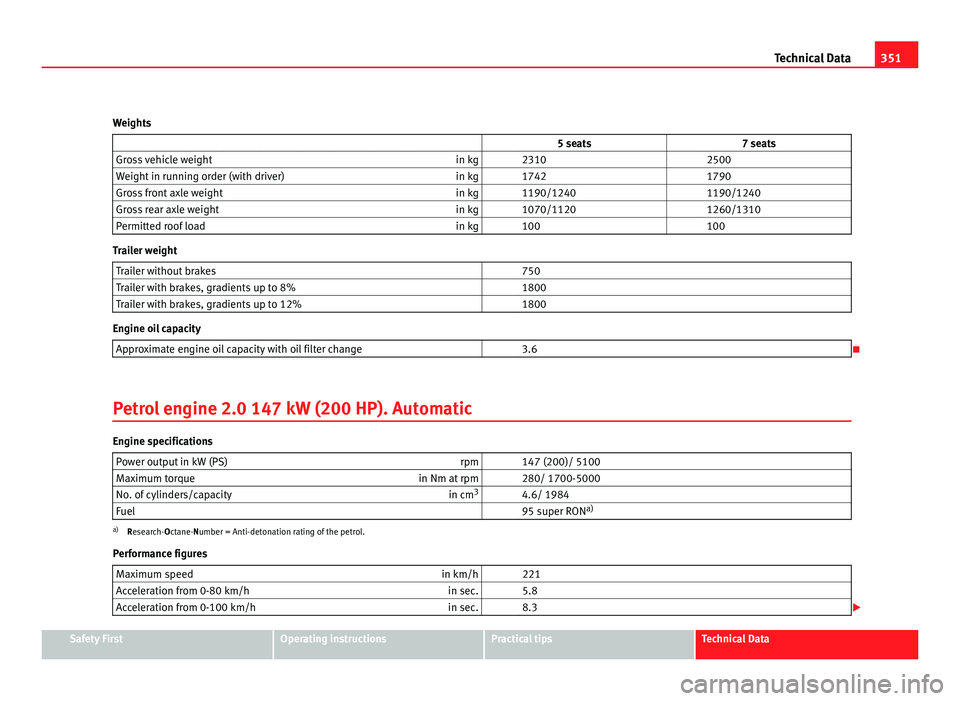

351
Technical Data
Weights 5 seats 7 seats
Gross vehicle weight in kg 2310 2500
Weight in running order (with driver) in kg 1742 1790
Gross front axle weight in kg 1190/1240 1190/1240
Gross rear axle weight in kg 1070/1120 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 1800
Trailer with brakes, gradients up to 12% 1800Engine oil capacity
Approximate engine oil capacity with oil filter change 3.6 
Petrol engine 2.0 147 kW (200 HP). Automatic Engine specifications
Power output in kW (PS) rpm 147 (200)/ 5100
Maximum torque in Nm at rpm 280/ 1700-5000
No. of cylinders/capacity in cm3
4.6/ 1984
Fuel 95 super RON a)a)
Research-Octane-Number = Anti-detonation rating of the petrol.
P er
formance figures
Maximum speed in km/h 221
Acceleration from 0-80 km/h in sec. 5.8
Acceleration from 0-100 km/h in sec. 8.3 Safety First Operating instructions Practical tips Technical Data

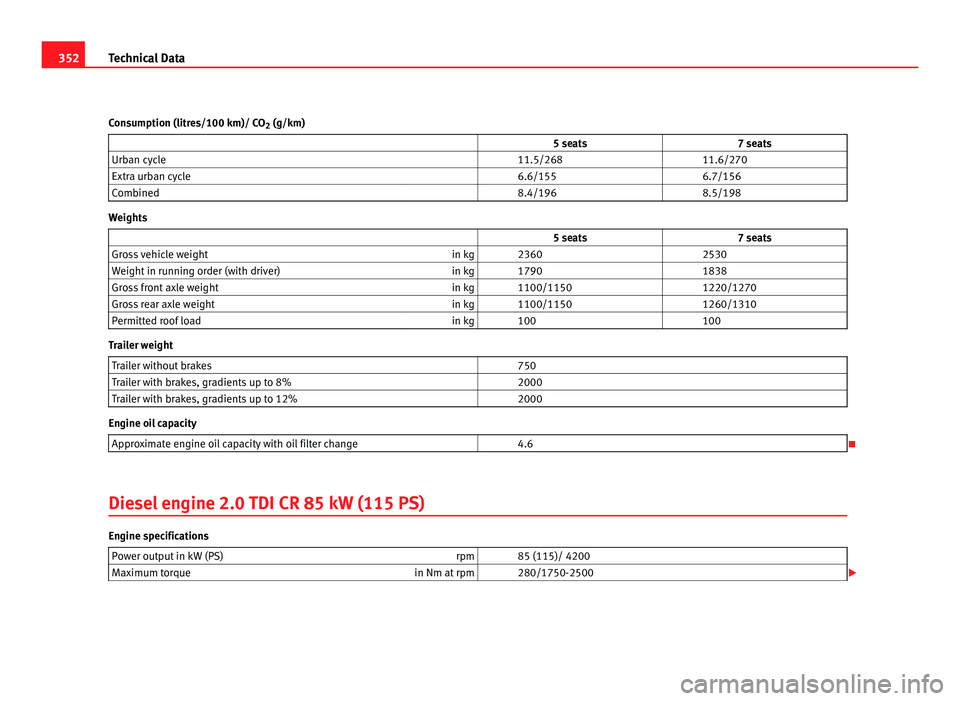

352
Technical Data
Consumption (litres/100 km)/ CO 2 (g/km)
5 seats 7 seats
Urban cycle 11.5/268 11.6/270
Extra urban cycle 6.6/155 6.7/156
Combined 8.4/196 8.5/198Weights
5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1790 1838
Gross front axle weight in kg 1100/1150 1220/1270
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2000
Trailer with brakes, gradients up to 12% 2000Engine oil capacity
Approximate engine oil capacity with oil filter change 4.6 
Diesel engine 2.0 TDI CR 85 kW (115 PS) Engine specifications
Power output in kW (PS) rpm 85 (115)/ 4200
Maximum torque in Nm at rpm 280/1750-2500 

353
Technical Data
No. of cylinders/capacity in cm3
4.6/1984
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 183
Acceleration from 0-80 km/h in sec. 12.6
Acceleration from 0-100 km/h in sec. 14Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 6.8/179 6.9/182
Extra urban cycle 4.8/127 4.9/130
Combined 5.5/143 5.6/146Weights
5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1772 1823
Gross front axle weight in kg 1210/1260 1210/1260
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2000
Trailer with brakes, gradients up to 12% 2000Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Safety First Operating instructions Practical tips Technical Data

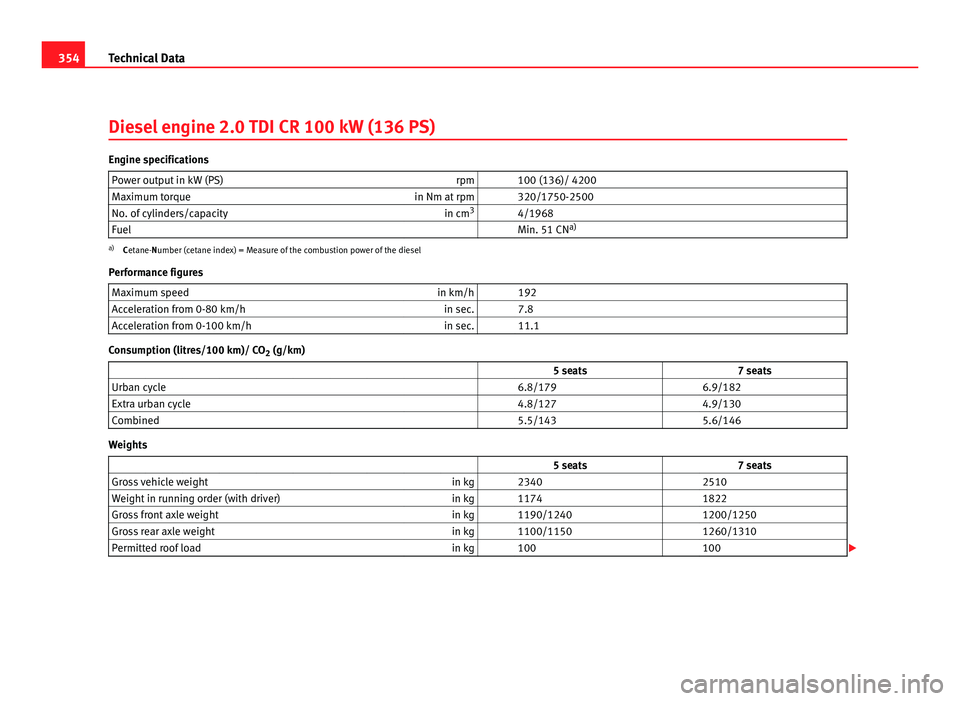

354
Technical Data
Diesel engine 2.0 TDI CR 100 kW (136 PS) Engine specifications
Power output in kW (PS) rpm 100 (136)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 192
Acceleration from 0-80 km/h in sec. 7.8
Acceleration from 0-100 km/h in sec. 11.1Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 6.8/179 6.9/182
Extra urban cycle 4.8/127 4.9/130
Combined 5.5/143 5.6/146Weights
5 seats 7 seats
Gross vehicle weight in kg 2340 2510
Weight in running order (with driver) in kg 1174 1822
Gross front axle weight in kg 1190/1240 1200/1250
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100

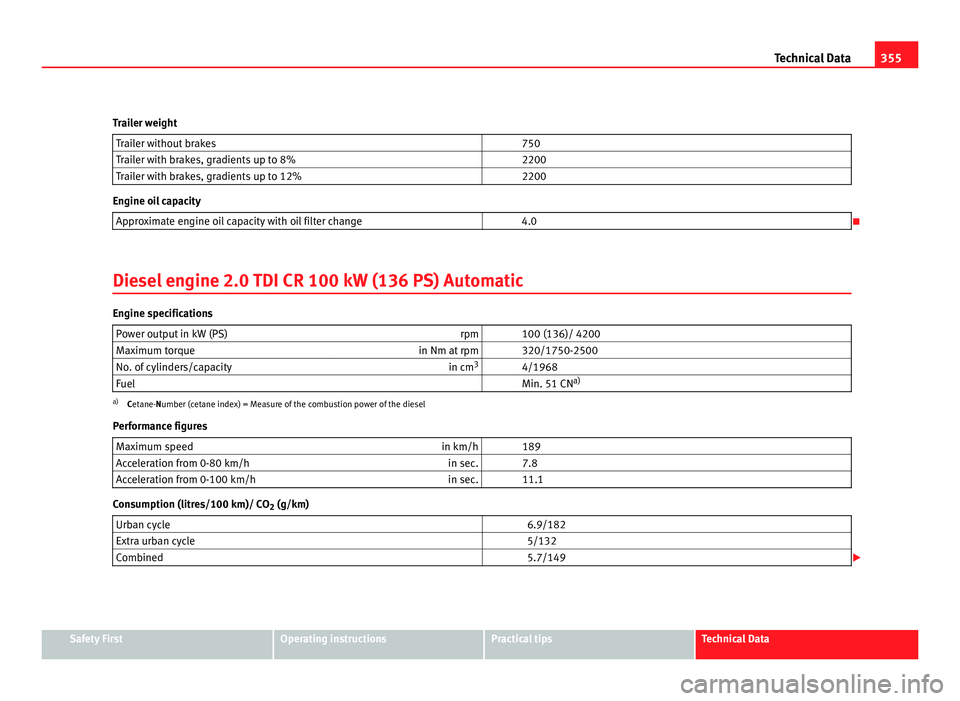

355
Technical Data
Trailer weight Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Diesel engine 2.0 TDI CR 100 kW (136 PS) Automatic Engine specifications
Power output in kW (PS) rpm 100 (136)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 189
Acceleration from 0-80 km/h in sec. 7.8
Acceleration from 0-100 km/h in sec. 11.1Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 6.9/182
Extra urban cycle 5/132
Combined 5.7/149Safety First Operating instructions Practical tips Technical Data

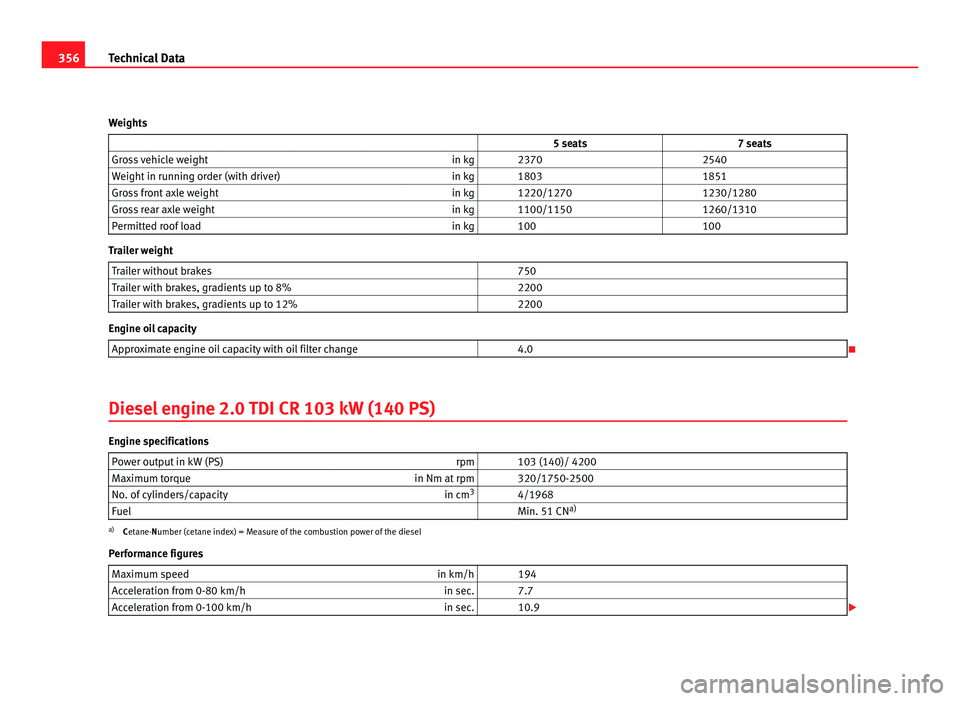

356
Technical Data
Weights 5 seats 7 seats
Gross vehicle weight in kg 2370 2540
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Diesel engine 2.0 TDI CR 103 kW (140 PS) Engine specifications
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 194
Acceleration from 0-80 km/h in sec. 7.7
Acceleration from 0-100 km/h in sec. 10.9 

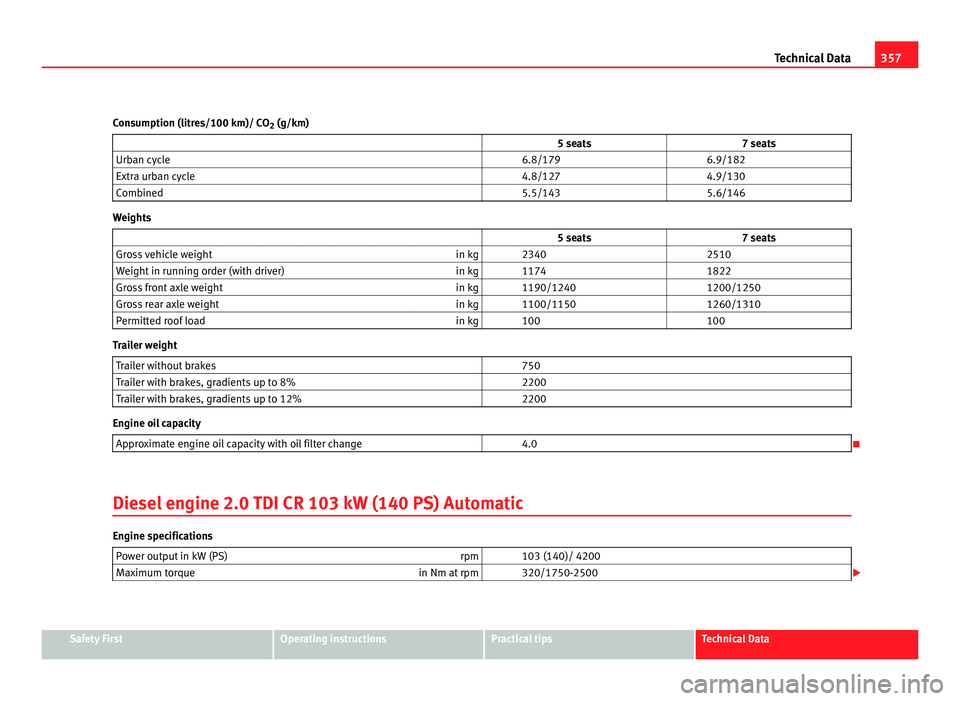

357
Technical Data
Consumption (litres/100 km)/ CO 2 (g/km)
5 seats 7 seats
Urban cycle 6.8/179 6.9/182
Extra urban cycle 4.8/127 4.9/130
Combined 5.5/143 5.6/146Weights
5 seats 7 seats
Gross vehicle weight in kg 2340 2510
Weight in running order (with driver) in kg 1174 1822
Gross front axle weight in kg 1190/1240 1200/1250
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Diesel engine 2.0 TDI CR 103 kW (140 PS) Automatic Engine specifications
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500 Safety First Operating instructions Practical tips Technical Data

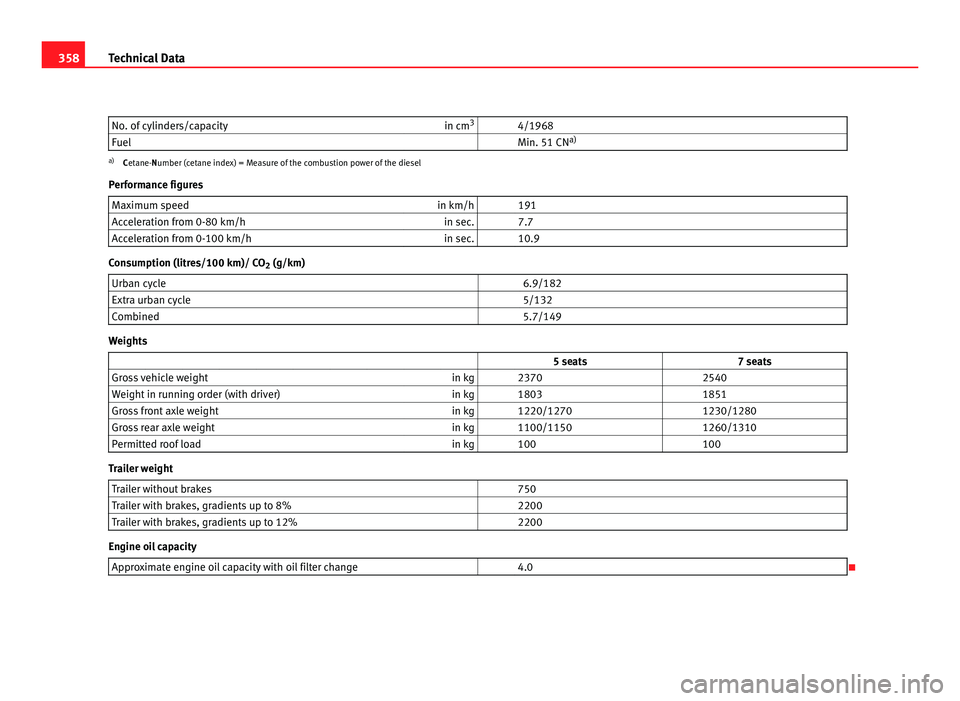

358
Technical Data
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 191
Acceleration from 0-80 km/h in sec. 7.7
Acceleration from 0-100 km/h in sec. 10.9Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 6.9/182
Extra urban cycle 5/132
Combined 5.7/149Weights
5 seats 7 seats
Gross vehicle weight in kg 2370 2540
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
