Seat Alhambra 2011 Owner's Manual

359
Technical Data

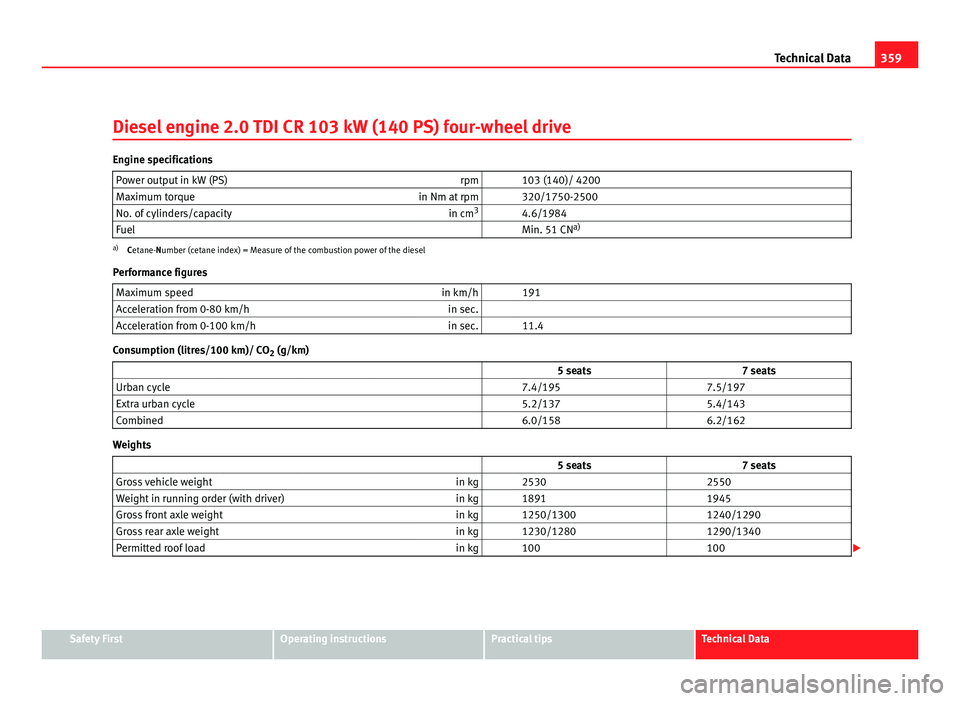

Diesel engine 2.0 TDI CR 103 kW (140 PS) four-wheel drive Engine specifications
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/1750-2500
No. of cylinders/capacity in cm3
4.6/1984
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 191
Acceleration from 0-80 km/h in sec.
Acceleration from 0-100 km/h in sec. 11.4Consumption (litres/100 km)/ CO
2 (g/km)
5 seats 7 seats
Urban cycle 7.4/195 7.5/197
Extra urban cycle 5.2/137 5.4/143
Combined 6.0/158 6.2/162Weights
5 seats 7 seats
Gross vehicle weight in kg 2530 2550
Weight in running order (with driver) in kg 1891 1945
Gross front axle weight in kg 1250/1300 1240/1290
Gross rear axle weight in kg 1230/1280 1290/1340
Permitted roof load in kg 100 100Safety First Operating instructions Practical tips Technical Data

360
Technical Data

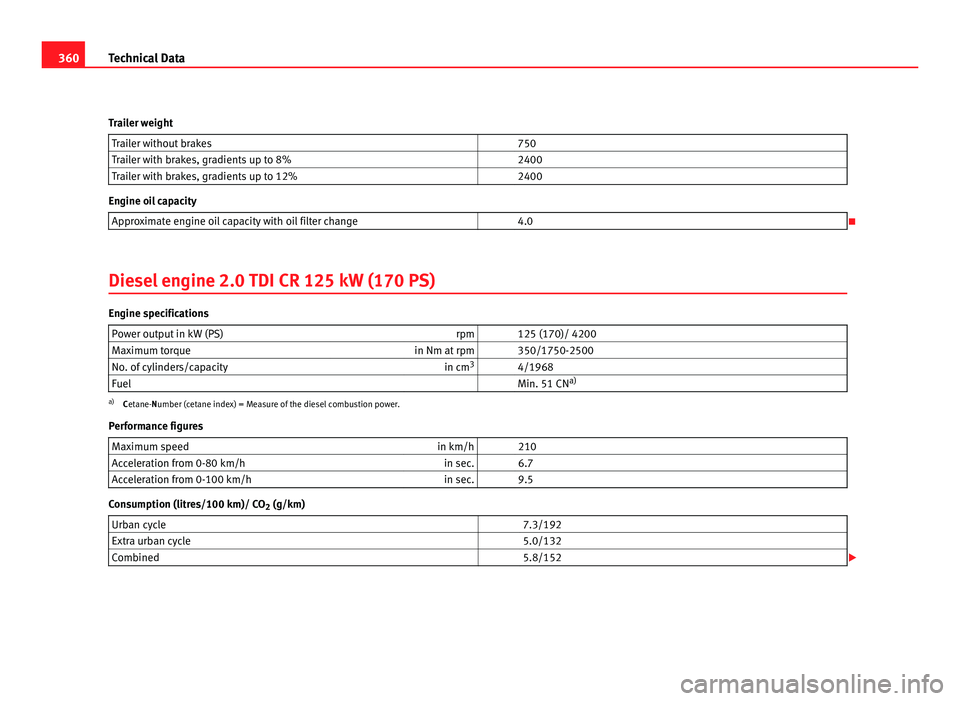

Trailer weight Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2400
Trailer with brakes, gradients up to 12% 2400Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Diesel engine 2.0 TDI CR 125 kW (170 PS) Engine specifications
Power output in kW (PS) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the diesel combustion power.
P er
formance figures
Maximum speed in km/h 210
Acceleration from 0-80 km/h in sec. 6.7
Acceleration from 0-100 km/h in sec. 9.5Consumption (litres/100 km)/ CO
2 (g/km)
Urban cycle 7.3/192
Extra urban cycle 5.0/132
Combined 5.8/152

361
Technical Data

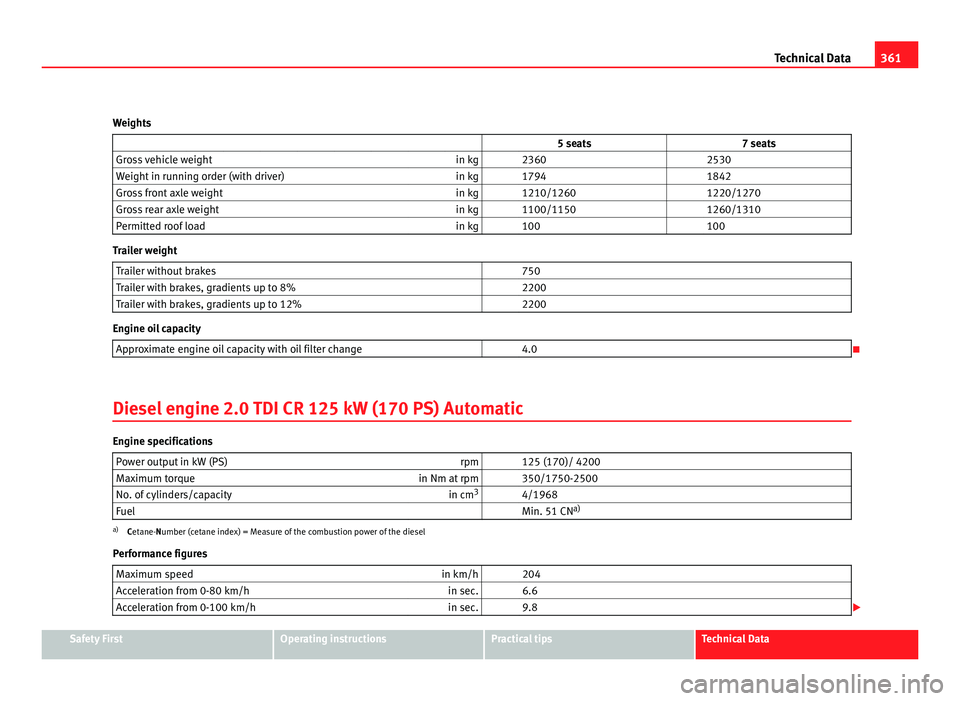

Weights 5 seats 7 seats
Gross vehicle weight in kg 2360 2530
Weight in running order (with driver) in kg 1794 1842
Gross front axle weight in kg 1210/1260 1220/1270
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 
Diesel engine 2.0 TDI CR 125 kW (170 PS) Automatic Engine specifications
Power output in kW (PS) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/1750-2500
No. of cylinders/capacity in cm3
4/1968
Fuel Min. 51 CN a)a)
Cetane-Number (cetane index) = Measure of the combustion power of the diesel
P er
formance figures
Maximum speed in km/h 204
Acceleration from 0-80 km/h in sec. 6.6
Acceleration from 0-100 km/h in sec. 9.8 Safety First Operating instructions Practical tips Technical Data

362
Technical Data

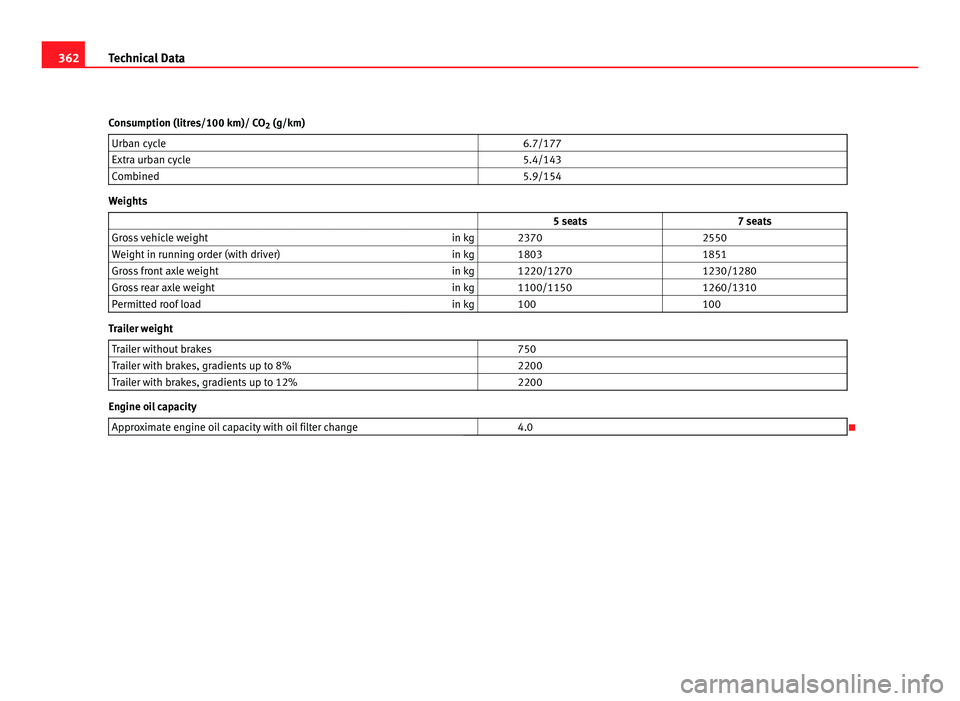

Consumption (litres/100 km)/ CO 2 (g/km)
Urban cycle 6.7/177
Extra urban cycle 5.4/143
Combined 5.9/154Weights
5 seats 7 seats
Gross vehicle weight in kg 2370 2550
Weight in running order (with driver) in kg 1803 1851
Gross front axle weight in kg 1220/1270 1230/1280
Gross rear axle weight in kg 1100/1150 1260/1310
Permitted roof load in kg 100 100Trailer weight
Trailer without brakes 750
Trailer with brakes, gradients up to 8% 2200
Trailer with brakes, gradients up to 12% 2200Engine oil capacity
Approximate engine oil capacity with oil filter change 4.0 

363
Technical Data

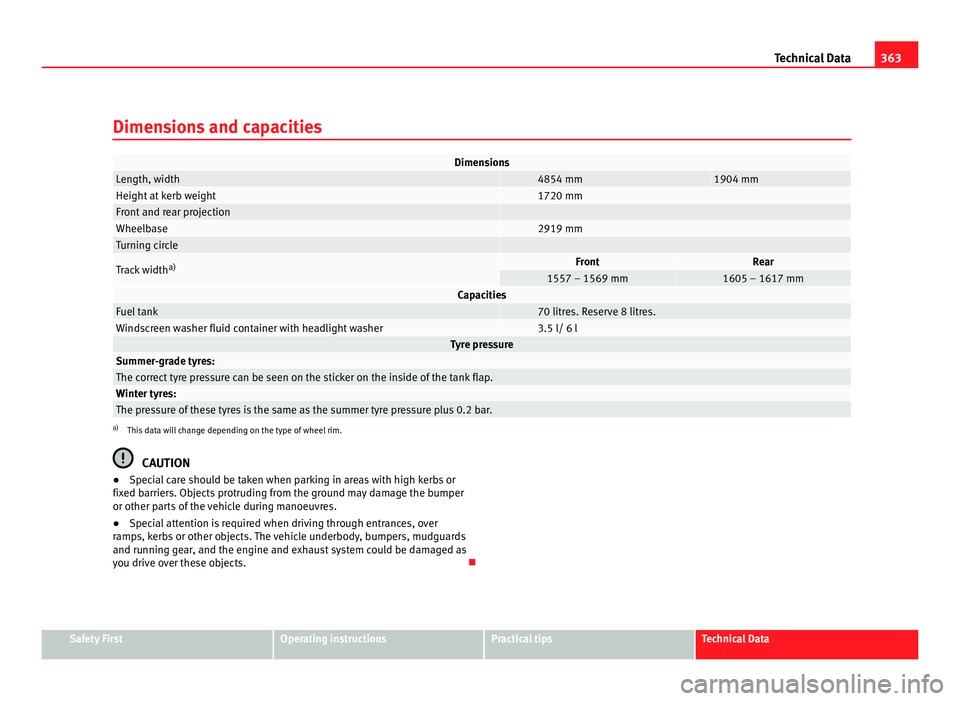

Dimensions and capacities Dimensions
Length, width 4854 mm 1904 mm
Height at kerb weight 1720 mm
Front and rear projection
Wheelbase 2919 mm
Turning circle
Track width
a) Front Rear
1557 – 1569 mm 1605 – 1617 mm
Capacities
Fuel tank 70 litres. Reserve 8 litres.
Windscreen washer fluid container with headlight washer 3.5 l/ 6 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a)
This data will change depending on the type of wheel rim. CAUTION
● Special care should be taken when parking in areas with high kerbs or
fi x
ed barriers. Objects protruding from the ground may damage the bumper
or other parts of the vehicle during manoeuvres.
● Special attention is required when driving through entrances, over
ramps, k
erbs or other objects. The vehicle underbody, bumpers, mudguards
and running gear, and the engine and exhaust system could be damaged as
you drive over these objects. Safety First Operating instructions Practical tips Technical Data
