SSANGYONG MUSSO 2003 Service Manual

SECTION 9C
HORNS
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9C-2 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9C-2

9C-2 HORN
HORN
SCHEMATIC AND ROUTING DIAGRAMS

SECTION 9D
WIPERS/WASHER SYSTEM
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9D-2 Rear Wiper and Washer . . . . . . . . . . . . . . . . . 9D-2
Maintenance and Repair . . . . . . . . . . . . . . . 9D-3 On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . . 9D-3
Front Wiper and Washer . . . . . . . . . . . . . . . . 9D-3
Rear Wiper and Washer . . . . . . . . . . . . . . . . . 9D-5

9D-2 WIPERS/WASHER SYSTEMSCHEMATIC AND ROUTING DIAGRAMS
REAR WIPER AND WASHER

WIPERS/WASHER SYATEM 9D-3
FRONT WIPER AND WASHER
1 Windshield Linkage
2 Wiper Arm
3 Wiper Blade (Left)
4 Wiper Blade (Right)
5 Washer Nozzle
6 Reservoir Tank Guide
7 Reservoir Tank8 Washer Hose
9 Cap
10 Washer Motor
11 Hose Connector (Y- type)
12 Washer Hose (Left)
1 3 Nozzle Pipe
14 Washer Hose
MAINTENANCE AND REPAIR
ON VEHICLE SERVICE

9D-4 WIPERS/WASHER SYSTEM
Removal & Installation Procedure
1. Remove the wiper arm and blade.
2. Remove the linkage connected to the wiper motor.
3. Disconnect the connector from the wiper motor.
4. Unscrew the locking bolts from wiper motor.
5. Installation is reverse order of removal
Connector Appearance and Connecting Circuit
Connector Terminal
H PBL HI(high speed)
IntermittentGround
Low(low speed)

WIPERS/WASHER SYSTEM 9D-5
REAR WIPER AND WASHER
1 Wiper Arm
2 Wiper Cap
3 Wiper Blade
4 Washer Nozzle
5 Reservoir Tank6 Wiper Hose
7 Cap
8 Washer Motor
9 Wiper Hose Socket
10 Outer Joint
Notice Removal and installation is as shown in upper drawings.

9D-6 WIPERS/WASHER SYSTEM
Removal & Installation Procedure
1. Remove the spare tire.
2. Unscrew the locking nut and remove the wiper.
3. Unscrew the locking nut of wiper motor.
4. Remove the tailgate trim panel.
5. Dieconnect the connector from the wiper motor.
6. Unscrew four screws(arrows) and remove the wiper motor.

WIPERS/WASHER SYSTEM 9D-7
Connector Appearance and Connecting Circuit
Connector Terminal
B+E
WP Battery Power Source
Ground
From Switch
Diagram for Connecting Circuit

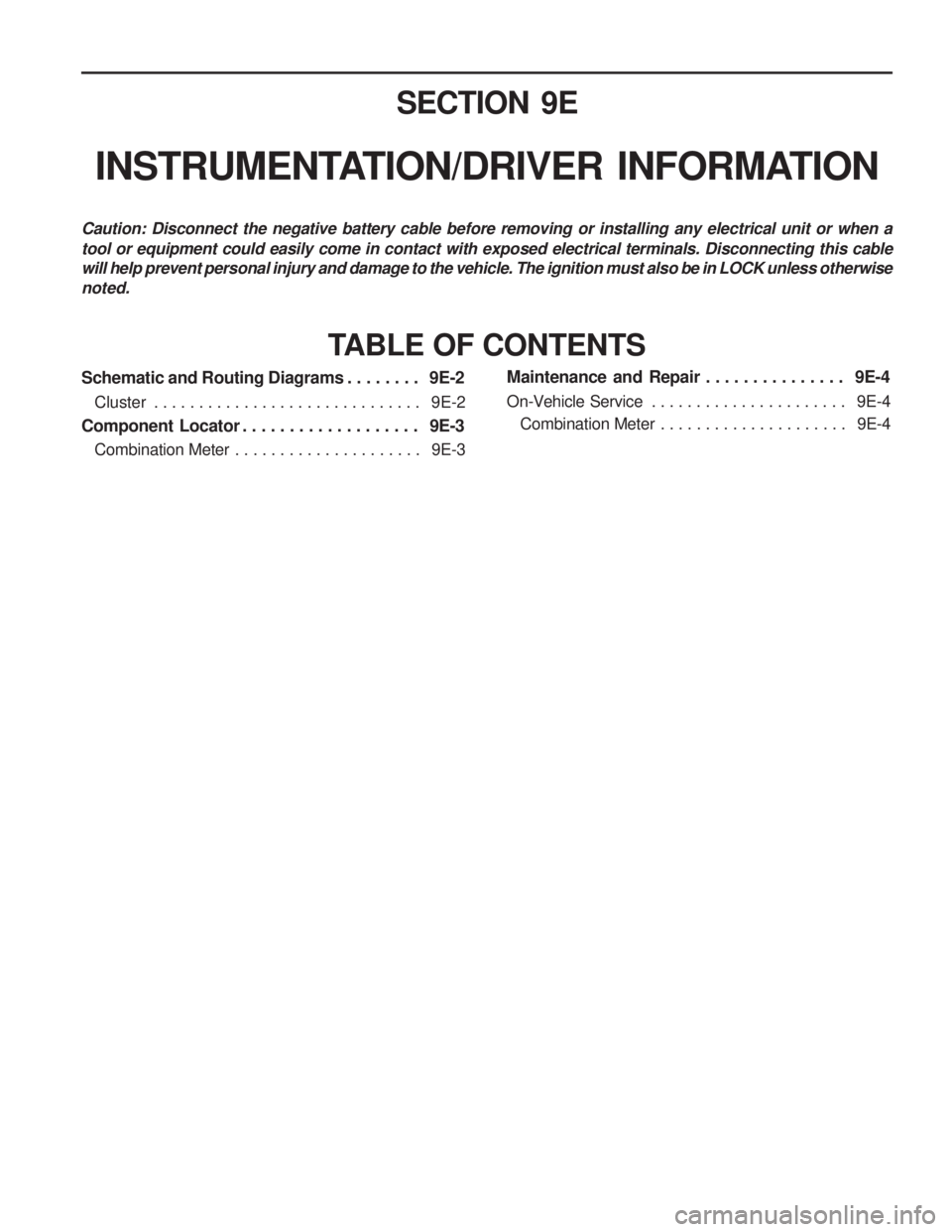

SECTION 9E
INSTRUMENTATION/DRIVER INFORMATION
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9E-2 Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9E-2
Component Locator . . . . . . . . . . . . . . . . . . . 9E-3 Combination Meter . . . . . . . . . . . . . . . . . . . . . 9E-3 Maintenance and Repair . . . . . . . . . . . . . . . 9E-4
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . .
9E-4
Combination Meter . . . . . . . . . . . . . . . . . . . . . 9E-4
