SUBARU LEGACY 1999 Service Repair Manual

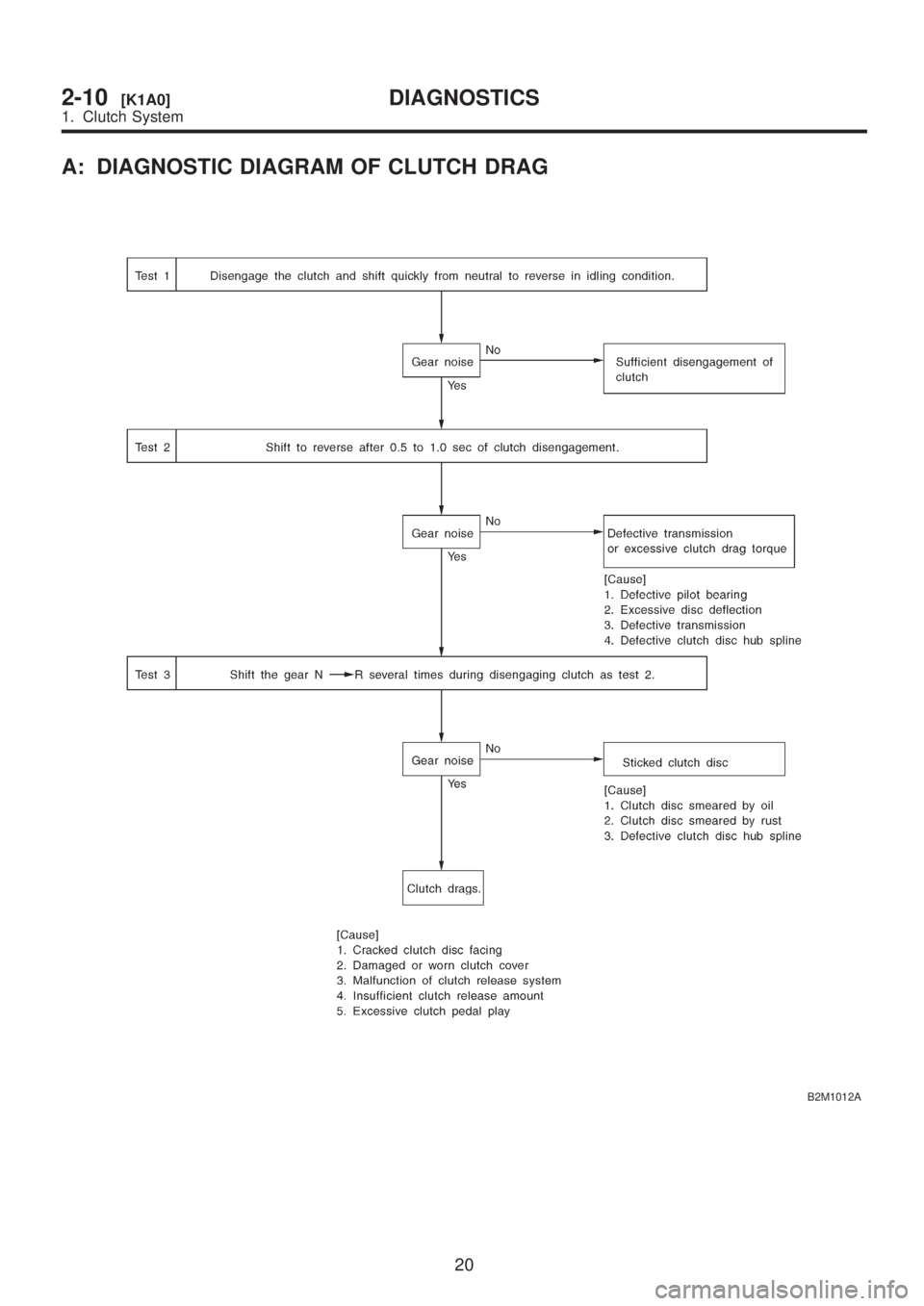

A: DIAGNOSTIC DIAGRAM OF CLUTCH DRAG
B2M1012A
20
2-10[K1A0]DIAGNOSTICS
1. Clutch System

MEMO:
21
2-10DIAGNOSTICS

MEMO:
22
2-10DIAGNOSTICS

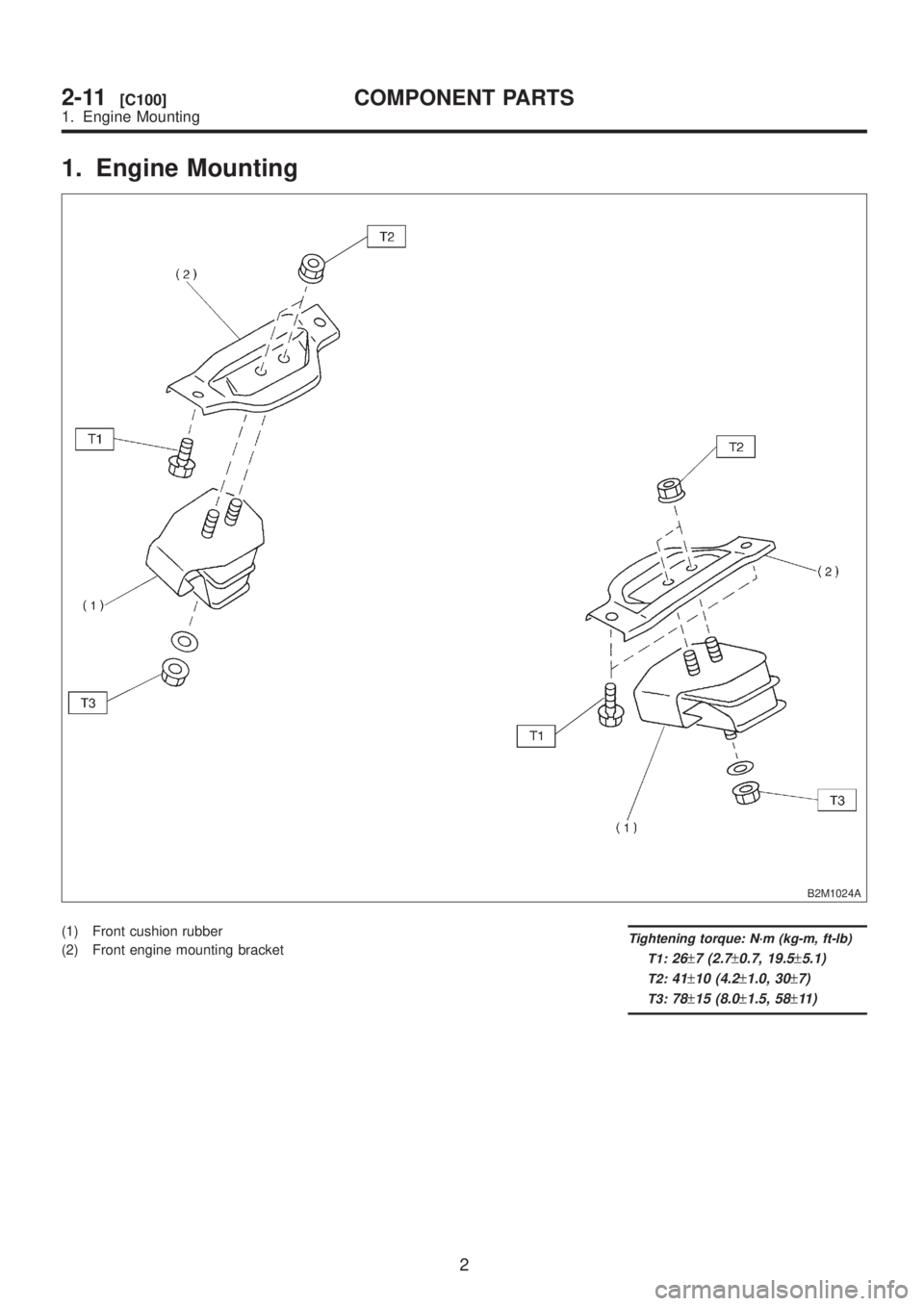

1. Engine Mounting
B2M1024A
(1) Front cushion rubber
(2) Front engine mounting bracketTightening torque: N´m (kg-m, ft-lb)
T1:
26±7 (2.7±0.7, 19.5±5.1)
T2:41±10 (4.2±1.0, 30±7)
T3:78±15 (8.0±1.5, 58±11 )
2
2-11[C100]COMPONENT PARTS
1. Engine Mounting

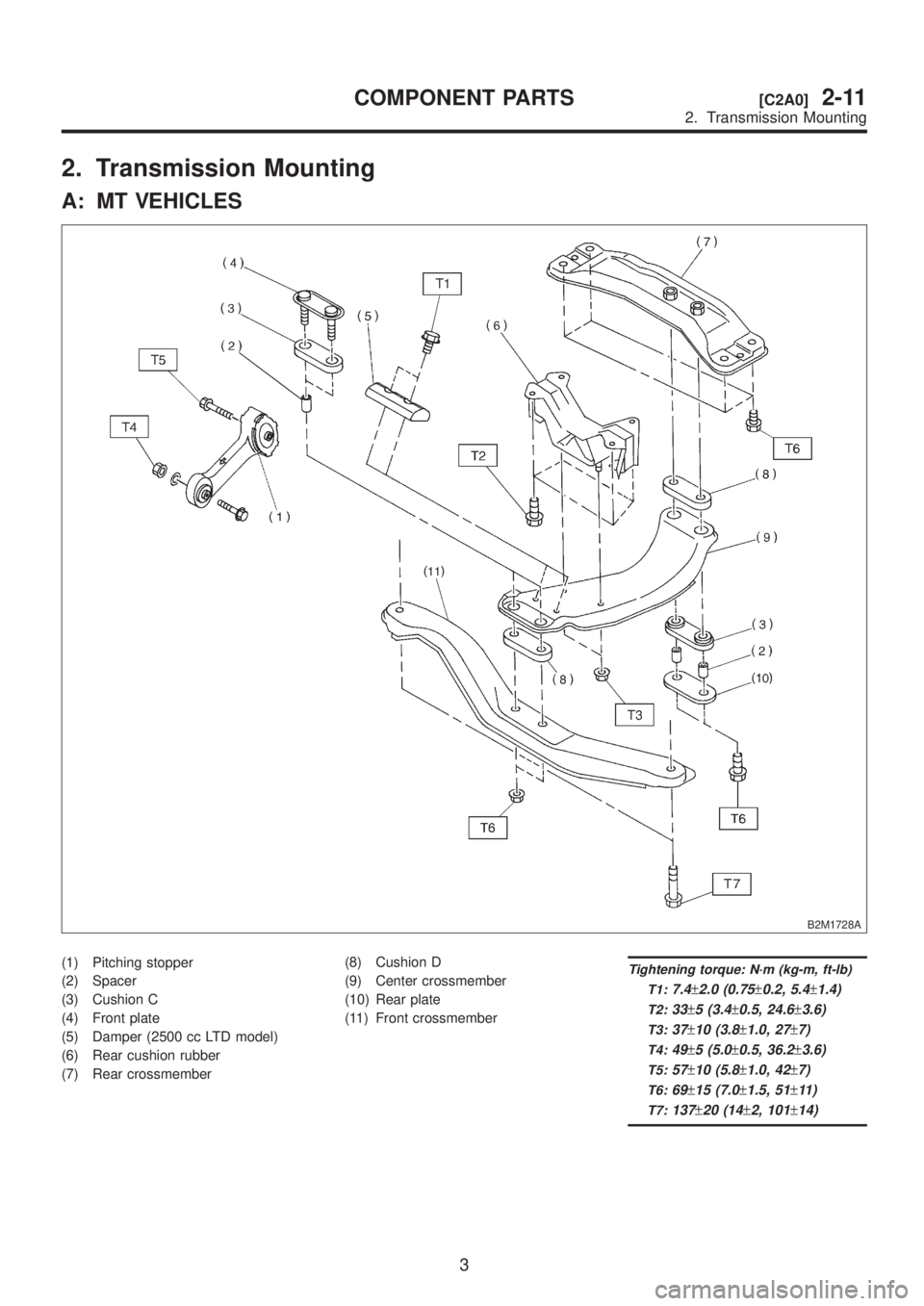

2. Transmission Mounting
A: MT VEHICLES
B2M1728A
(1) Pitching stopper
(2) Spacer
(3) Cushion C
(4) Front plate
(5) Damper (2500 cc LTD model)
(6) Rear cushion rubber
(7) Rear crossmember(8) Cushion D
(9) Center crossmember
(10) Rear plate
(11) Front crossmemberTightening torque: N´m (kg-m, ft-lb)
T1:
7.4±2.0 (0.75±0.2, 5.4±1.4)
T2:33±5 (3.4±0.5, 24.6±3.6)
T3:37±10 (3.8±1.0, 27±7)
T4:49±5 (5.0±0.5, 36.2±3.6)
T5:57±10 (5.8±1.0, 42±7)
T6:69±15 (7.0±1.5, 51±11 )
T7:137±20 (14±2, 101±14)
3
[C2A0]2-11COMPONENT PARTS
2. Transmission Mounting

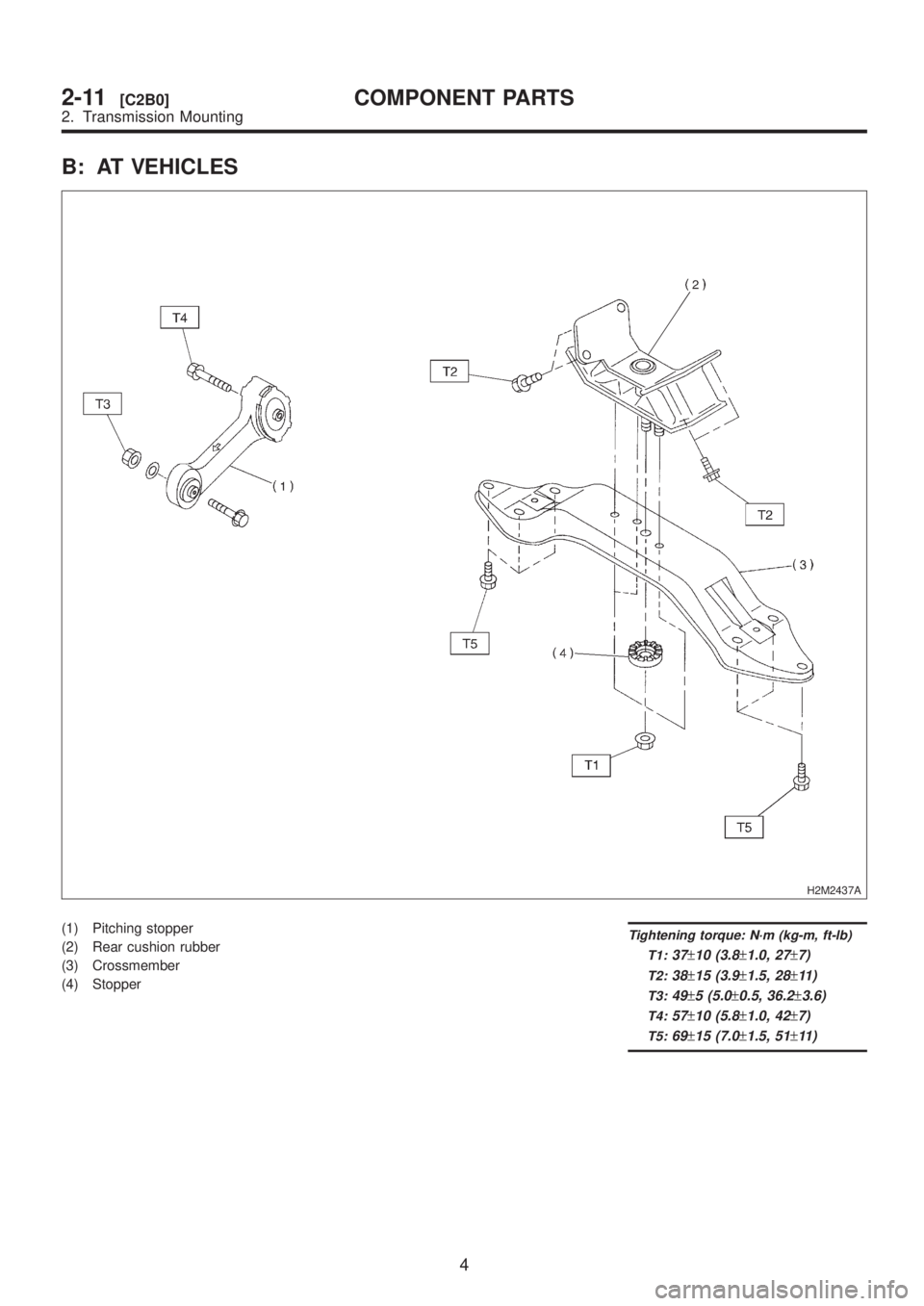

B: AT VEHICLES
H2M2437A
(1) Pitching stopper
(2) Rear cushion rubber
(3) Crossmember
(4) StopperTightening torque: N´m (kg-m, ft-lb)
T1:
37±10 (3.8±1.0, 27±7)
T2:38±15 (3.9±1.5, 28±11 )
T3:49±5 (5.0±0.5, 36.2±3.6)
T4:57±10 (5.8±1.0, 42±7)
T5:69±15 (7.0±1.5, 51±11 )
4
2-11[C2B0]COMPONENT PARTS
2. Transmission Mounting

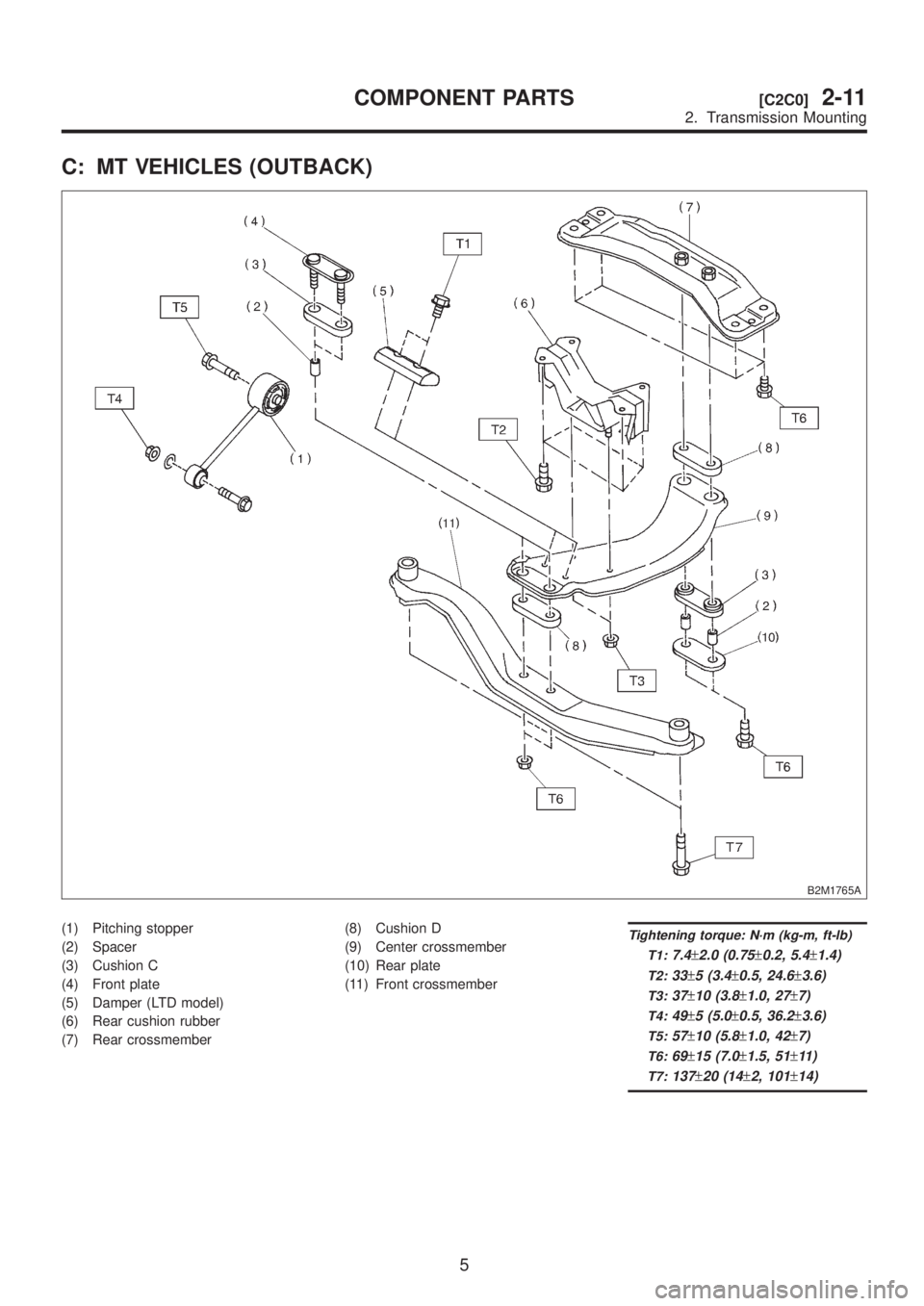

C: MT VEHICLES (OUTBACK)
B2M1765A
(1) Pitching stopper
(2) Spacer
(3) Cushion C
(4) Front plate
(5) Damper (LTD model)
(6) Rear cushion rubber
(7) Rear crossmember(8) Cushion D
(9) Center crossmember
(10) Rear plate
(11) Front crossmemberTightening torque: N´m (kg-m, ft-lb)
T1:
7.4±2.0 (0.75±0.2, 5.4±1.4)
T2:33±5 (3.4±0.5, 24.6±3.6)
T3:37±10 (3.8±1.0, 27±7)
T4:49±5 (5.0±0.5, 36.2±3.6)
T5:57±10 (5.8±1.0, 42±7)
T6:69±15 (7.0±1.5, 51±11 )
T7:137±20 (14±2, 101±14)
5
[C2C0]2-11COMPONENT PARTS
2. Transmission Mounting

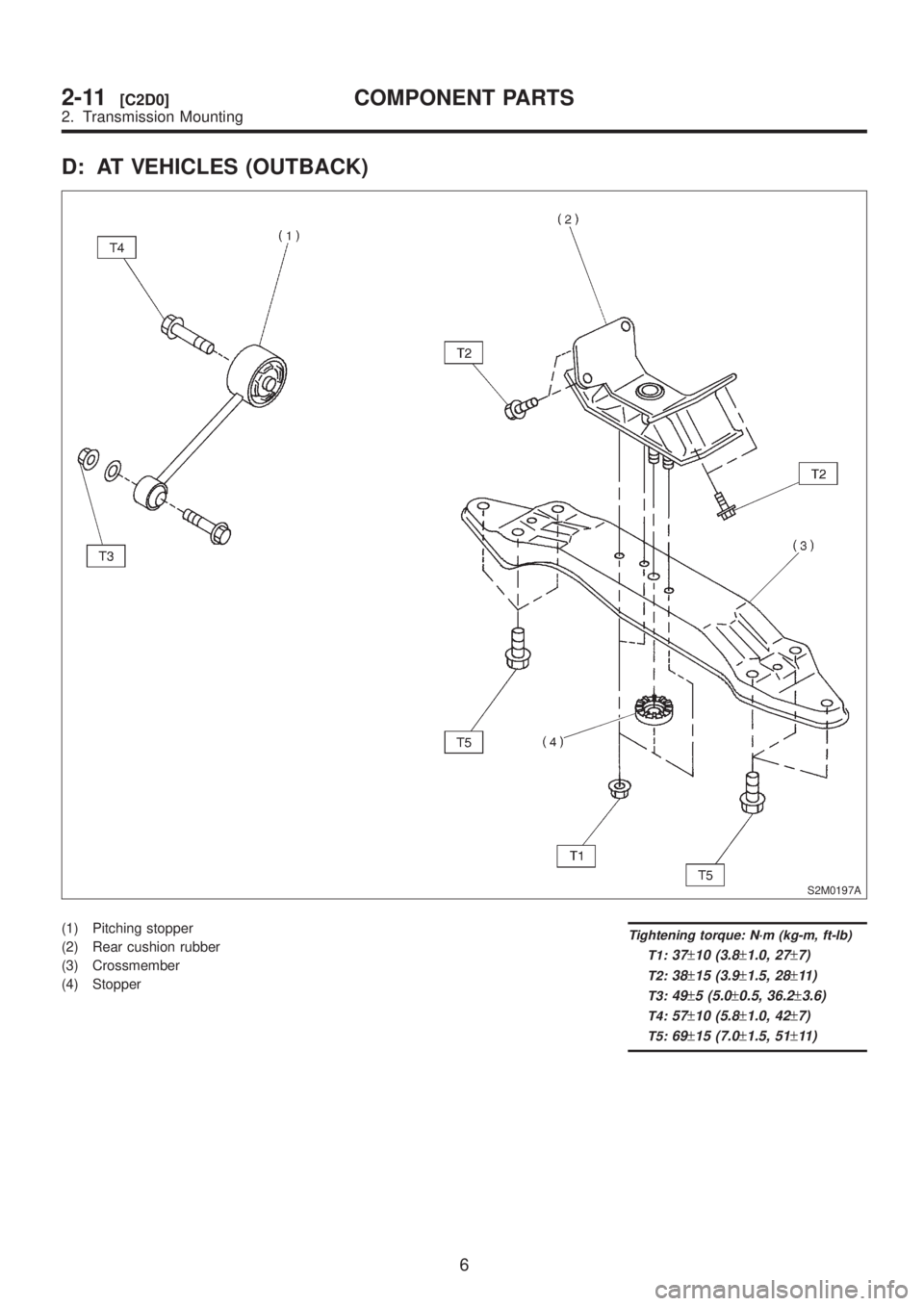

D: AT VEHICLES (OUTBACK)
S2M0197A
(1) Pitching stopper
(2) Rear cushion rubber
(3) Crossmember
(4) StopperTightening torque: N´m (kg-m, ft-lb)
T1:
37±10 (3.8±1.0, 27±7)
T2:38±15 (3.9±1.5, 28±11 )
T3:49±5 (5.0±0.5, 36.2±3.6)
T4:57±10 (5.8±1.0, 42±7)
T5:69±15 (7.0±1.5, 51±11 )
6
2-11[C2D0]COMPONENT PARTS
2. Transmission Mounting

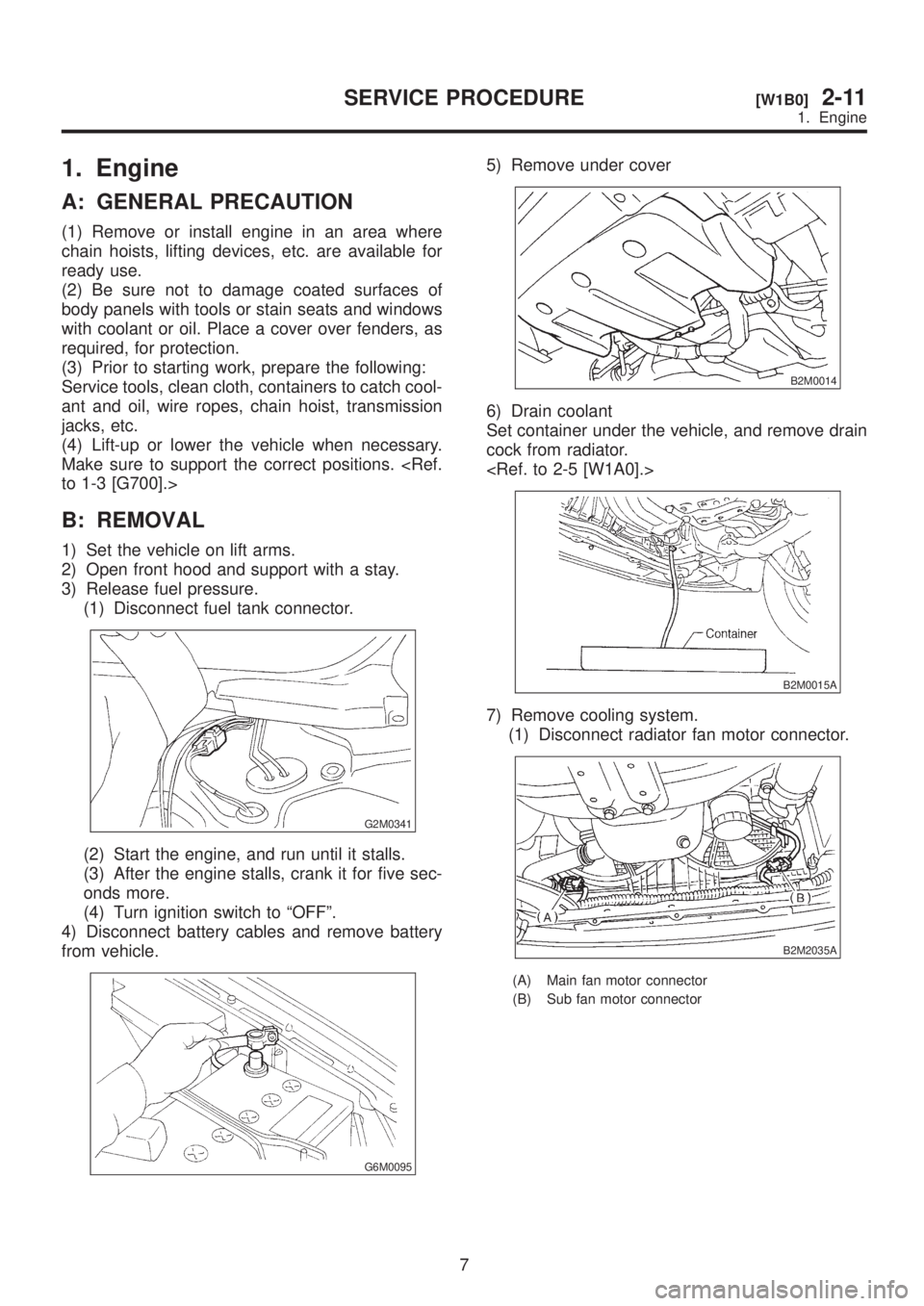

1. Engine
A: GENERAL PRECAUTION
(1) Remove or install engine in an area where
chain hoists, lifting devices, etc. are available for
ready use.
(2) Be sure not to damage coated surfaces of
body panels with tools or stain seats and windows
with coolant or oil. Place a cover over fenders, as
required, for protection.
(3) Prior to starting work, prepare the following:
Service tools, clean cloth, containers to catch cool-
ant and oil, wire ropes, chain hoist, transmission
jacks, etc.
(4) Lift-up or lower the vehicle when necessary.
Make sure to support the correct positions. to 1-3 [G700].>
B: REMOVAL
1) Set the vehicle on lift arms.
2) Open front hood and support with a stay.
3) Release fuel pressure.
(1) Disconnect fuel tank connector.
G2M0341
(2) Start the engine, and run until it stalls.
(3) After the engine stalls, crank it for five sec-
onds more.
(4) Turn ignition switch to ªOFFº.
4) Disconnect battery cables and remove battery
from vehicle.
G6M0095
5) Remove under cover
B2M0014
6) Drain coolant
Set container under the vehicle, and remove drain
cock from radiator.

B2M0015A
7) Remove cooling system.
(1) Disconnect radiator fan motor connector.
B2M2035A
(A) Main fan motor connector
(B) Sub fan motor connector
7
[W1B0]2-11SERVICE PROCEDURE
1. Engine

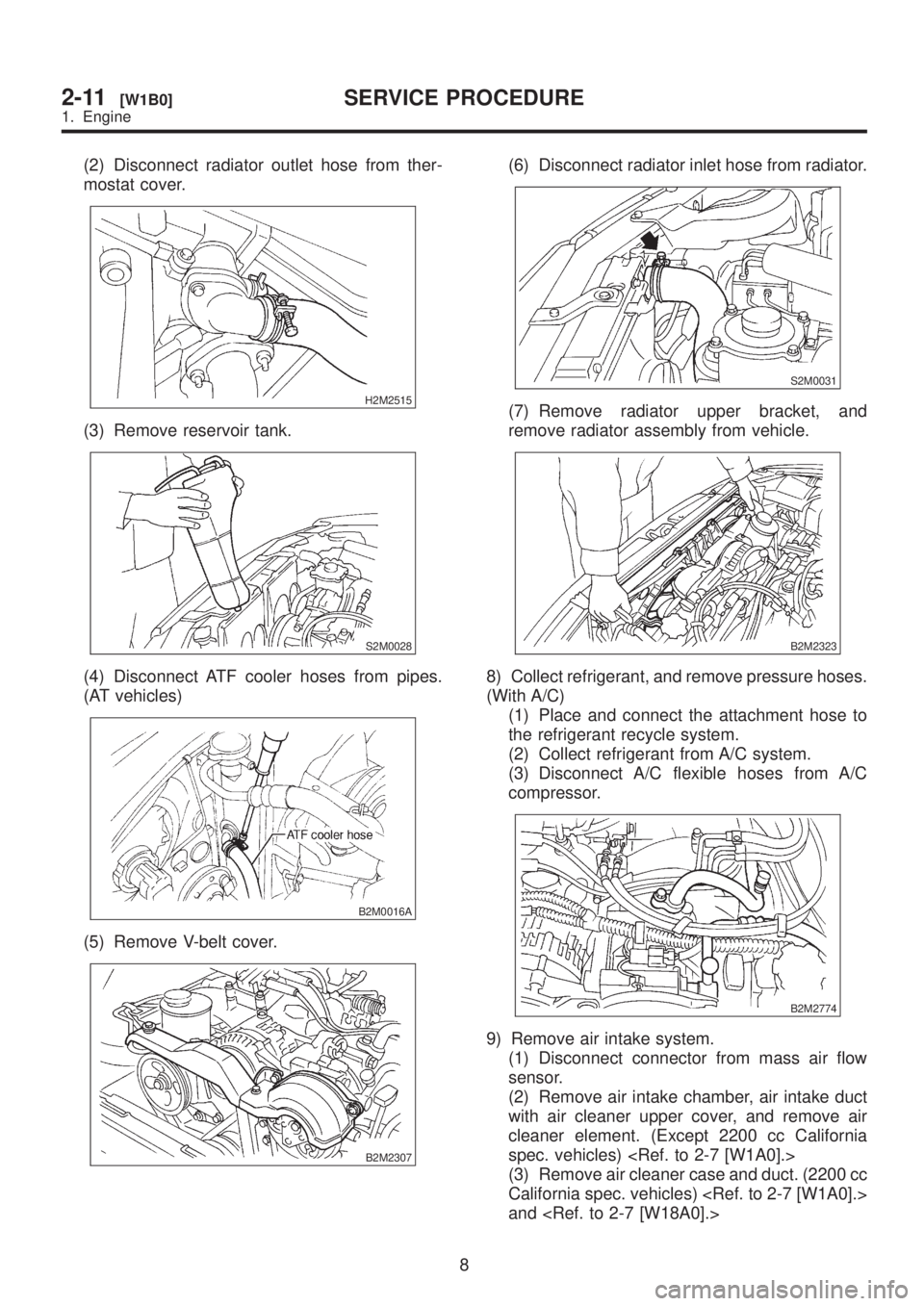

(2) Disconnect radiator outlet hose from ther-
mostat cover.
H2M2515
(3) Remove reservoir tank.
S2M0028
(4) Disconnect ATF cooler hoses from pipes.
(AT vehicles)
B2M0016A
(5) Remove V-belt cover.
B2M2307
(6) Disconnect radiator inlet hose from radiator.
S2M0031
(7) Remove radiator upper bracket, and
remove radiator assembly from vehicle.
B2M2323
8) Collect refrigerant, and remove pressure hoses.
(With A/C)
(1) Place and connect the attachment hose to
the refrigerant recycle system.
(2) Collect refrigerant from A/C system.
(3) Disconnect A/C flexible hoses from A/C
compressor.
B2M2774
9) Remove air intake system.
(1) Disconnect connector from mass air flow
sensor.
(2) Remove air intake chamber, air intake duct
with air cleaner upper cover, and remove air
cleaner element. (Except 2200 cc California
spec. vehicles)
(3) Remove air cleaner case and duct. (2200 cc
California spec. vehicles)
and
8
2-11[W1B0]SERVICE PROCEDURE
1. Engine
