Interior Light System
LIGHTING SYSTEM
7. Interior Light System
A: WIRING DIAGRAM
1. ROOM LIGHT
System.>
B: INSPECTION
1. DOOR SWITCH
Measure the resistance between door switch termi-
nals.
2. REAR GATE LATCH SWITCH
Measure the resistance between rear gate latch
switch terminals.
3. REAR GATE LIGHT SWITCH
Measure the resistance between rear gate light
switch terminals.
Switch position Terminal No. Standard
When door is
opened1 and 3
Less than 1 Ω
When door is
closed1 MΩ or more
Switch position Terminal No. Standard
When rear gate is
opened1 and 2
Less than 1 Ω
When rear gate is
closed1 MΩ or more
123
LI-00007
LI-00276
1
2
Switch position Terminal No. Standard
When rear gate is
opened1 and 3
Less than 1 Ω
When rear gate is
closed1 MΩ or more
LI-00277
123

LI-9
Combination Switch (Light)
LIGHTING SYSTEM

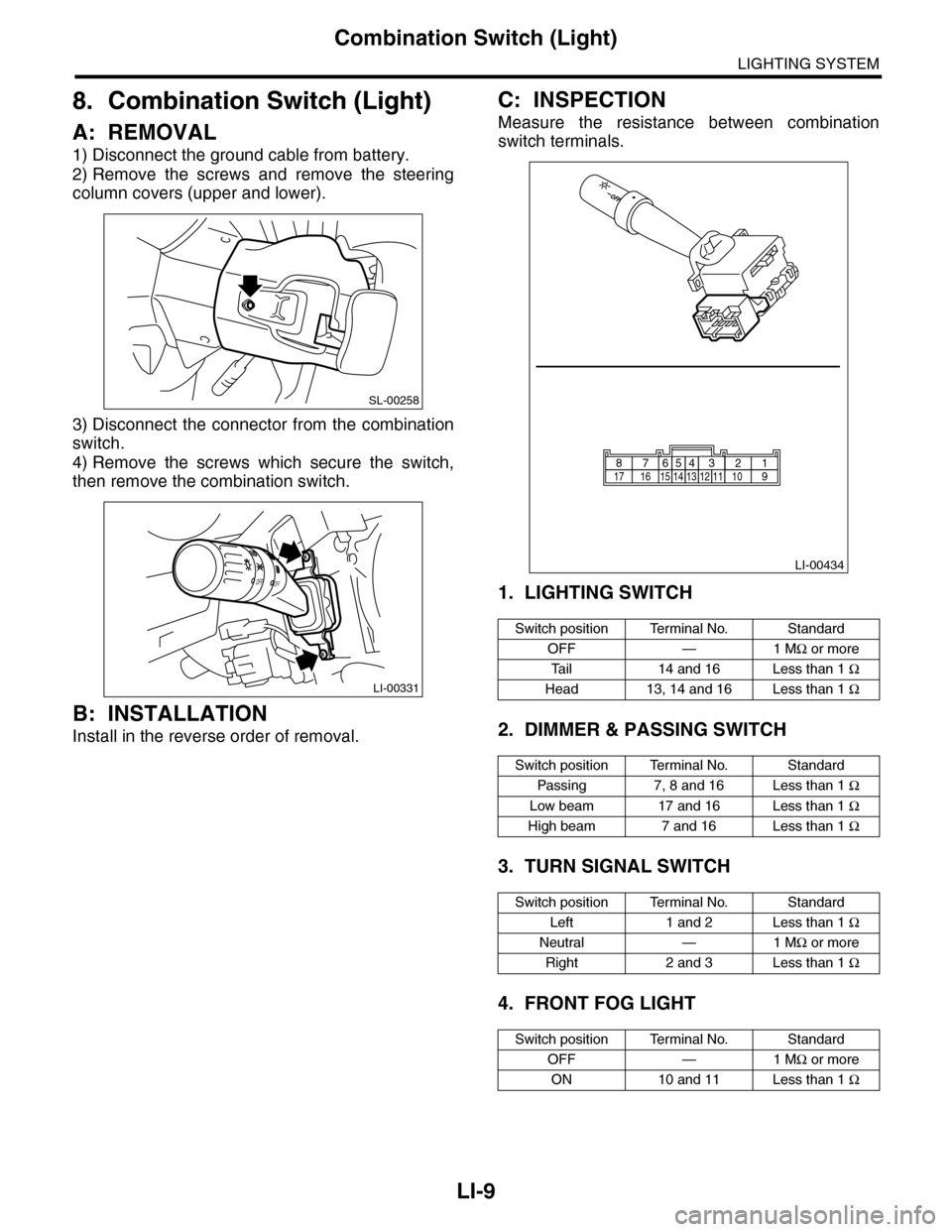

8. Combination Switch (Light)
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the screws and remove the steering
column covers (upper and lower).
3) Disconnect the connector from the combination
switch.
4) Remove the screws which secure the switch,
then remove the combination switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the resistance between combination
switch terminals.
1. LIGHTING SWITCH
2. DIMMER & PASSING SWITCH
3. TURN SIGNAL SWITCH
4. FRONT FOG LIGHT
SL-00258
LI-00331
OFFOFF
Switch position Terminal No. Standard
OFF — 1 MΩ or more
Ta i l 1 4 a n d 1 6 L e s s t h a n 1 Ω
Head 13, 14 and 16 Less than 1 Ω
Switch position Terminal No. Standard
Passing 7, 8 and 16 Less than 1 Ω
Low beam 17 and 16 Less than 1 Ω
High beam 7 and 16 Less than 1 Ω
Switch position Terminal No. Standard
Left 1 and 2 Less than 1 Ω
Neutral — 1 MΩ or more
Right 2 and 3 Less than 1 Ω
Switch position Terminal No. Standard
OFF — 1 MΩ or more
ON 10 and 11 Less than 1 Ω
LI-00434
1514131211109171665432187

LI-10
Combination Base Switch Assembly
LIGHTING SYSTEM
9. Combination Base Switch
Assembly
A: REMOVAL
1) Remove the driver’s airbag module. 15, REMOVAL, Driver’s Airbag Module.>
2) Remove the steering wheel. MOVAL, Steering Wheel.>
3) Remove the screws and remove the steering
column lower cover.
4) Remove the combination switch. REMOVAL, Combination Switch (Light).> WW-6, REMOVAL, Combination Switch (Wiper).>
5) Remove the four screws and remove the roll
connector.
6) Remove the three screws.
7) Disconnect the connector and remove the com-
bination base switch assembly.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Before installing steering wheel, be sure to ad-
just the direction of roll connector with steering.

C: INSPECTION
1. COMBINATION BASE SWITCH ASSEM-
BLY
Inspect the combination base switch assembly and
roll connector for cracks or deformation. If any
damage is found, replace with a new part.
2. PARKING SWITCH
Measure the resistance between parking switch
terminals.
SL-00258
LI-00271
Switch position Terminal No. Standard
OFF 2 and 4 Less than 1 Ω
ON 1 and 4 Less than 1 Ω
LI-00183
1234

LI-11
Headlight Assembly
LIGHTING SYSTEM
10.Headlight Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the air intake duct.
3) Remove the engine front cover.
4) Disengage the three clips, and then turn over the
mud guard.
5) Remove the three bolts securing the headlight
assembly from the lower side of vehicle.
6) Remove the two bolts and then remove the
headlight assembly.
7) Disconnect the connector and then detach the
rear headlight assembly.
B: INSTALLATION
Install in the reverse order of removal.
C: ADJUSTMENT
1. HEADLIGHT AIMING
NOTE:
Aiming of this headlight can be adjusted only in the
vertical direction. It cannot be adjusted in the hori-
zontal direction.
CAUTION:
Turn off the light before adjusting the headlight
beam level. If it is necessary to inspect the
beam level, do not turn on the lamp for more
than two minutes.
NOTE:
Before checking the headlight beam level, be sure
of the following:
•Check the area around the headlight for any
scratches, damage or other type of deformation.
•Make sure that the vehicle is parked on a level
surface.
•Make sure that the inflation pressure of tires are
correct.
•Check that the vehicle fuel tank is full.
1) Bounce the vehicle several times to normalize
the suspension.
2) Make certain that someone is seated in the driv-
er's seat.
IN-02134
CO-02176
LI-00503
LI-00504

LI-12
Headlight Assembly
LIGHTING SYSTEM
3) Turn the headlights on and then adjust the low
beam pattern.
NOTE:
Adjust the headlight beam level by turning the ad-
justing screw. The adjusting screw can be access-
ed from two directions described in the figure.
LI-00505
(A) Bulb center marking (B) 3 m (10 ft)
LI-00453
Hh
H
h
(B)
(A)
H mm (in) h mm (in) at 3 m (10 ft)
707 (27.83) 21 (0.83)

LI-13
Headlight Bulb
LIGHTING SYSTEM
11.Headlight Bulb
A: REMOVAL
1. HIGH BEAM AND LOW BEAM
CAUTION:
•Because the halogen bulb operates at a high
temperature, dirt and oil on the bulb surface re-
duces the bulb's service life. Hold the flange
portion when replacing the bulb. Never touch
the glass portion.
•Do not leave the headlight without a bulb for
a long time. Dust, moisture, etc. entering the
headlight may affect its performance.
1) Disconnect the ground cable from battery.
2) Remove the air intake duct. (When removing the
headlight bulb RH)
3) Remove the battery. (When removing the head-
light bulb LH)
4) Disconnect the harness connector.
5) Remove the bulb assembly (A) then remove the
high beam. To remove the low beam, remove the
back cover (B), and then go to the next step.
6) Remove the light bulb retaining spring (A) to re-
move bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification.
tion.>
3) If NG, replace the bulb with a new one.
IN-02134
LI-00506(B)
(A)
LI-00507
(A)

LI-14
Front Turn Signal Light Bulb
LIGHTING SYSTEM

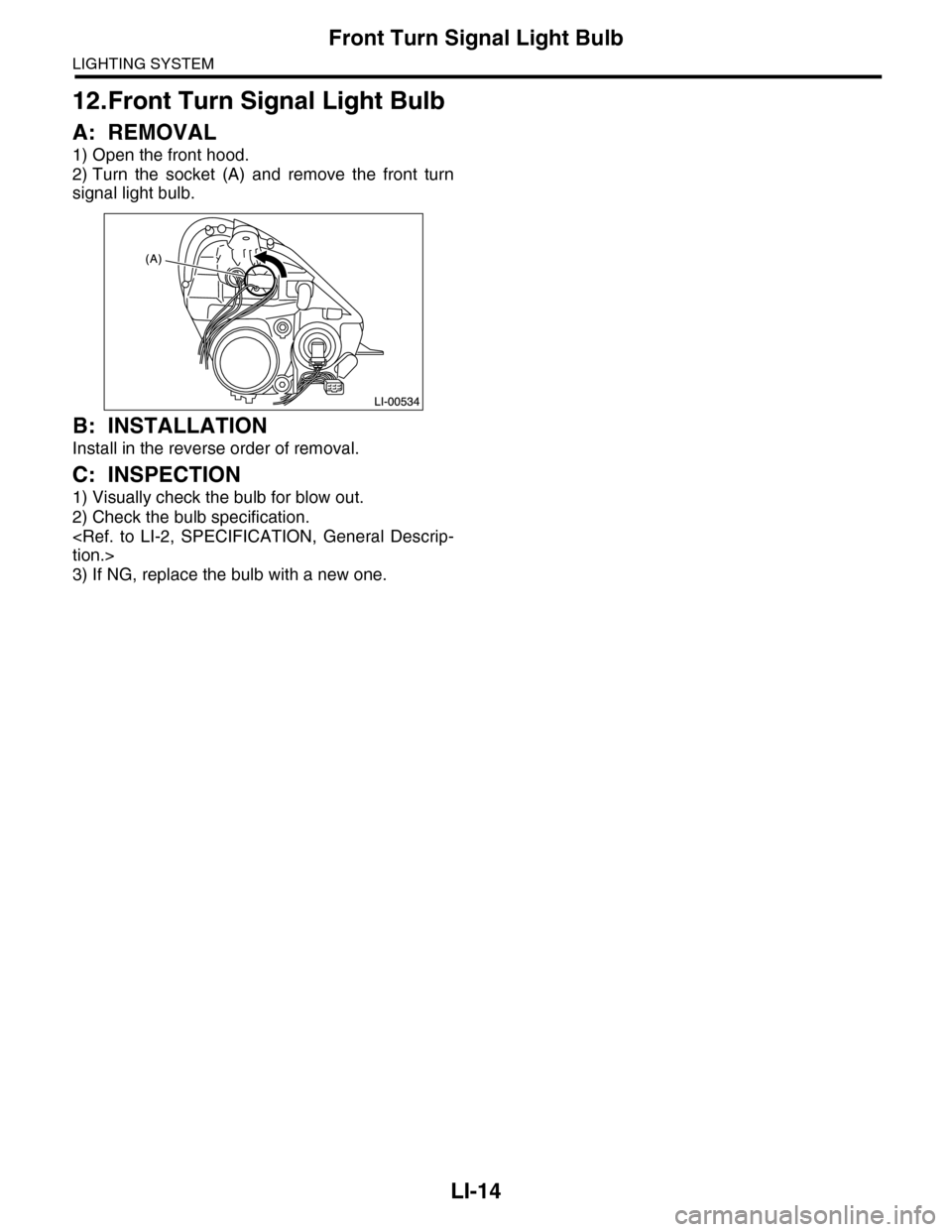

12.Front Turn Signal Light Bulb
A: REMOVAL
1) Open the front hood.
2) Turn the socket (A) and remove the front turn
signal light bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification.
tion.>
3) If NG, replace the bulb with a new one.

LI-15
Parking Light Bulb
LIGHTING SYSTEM

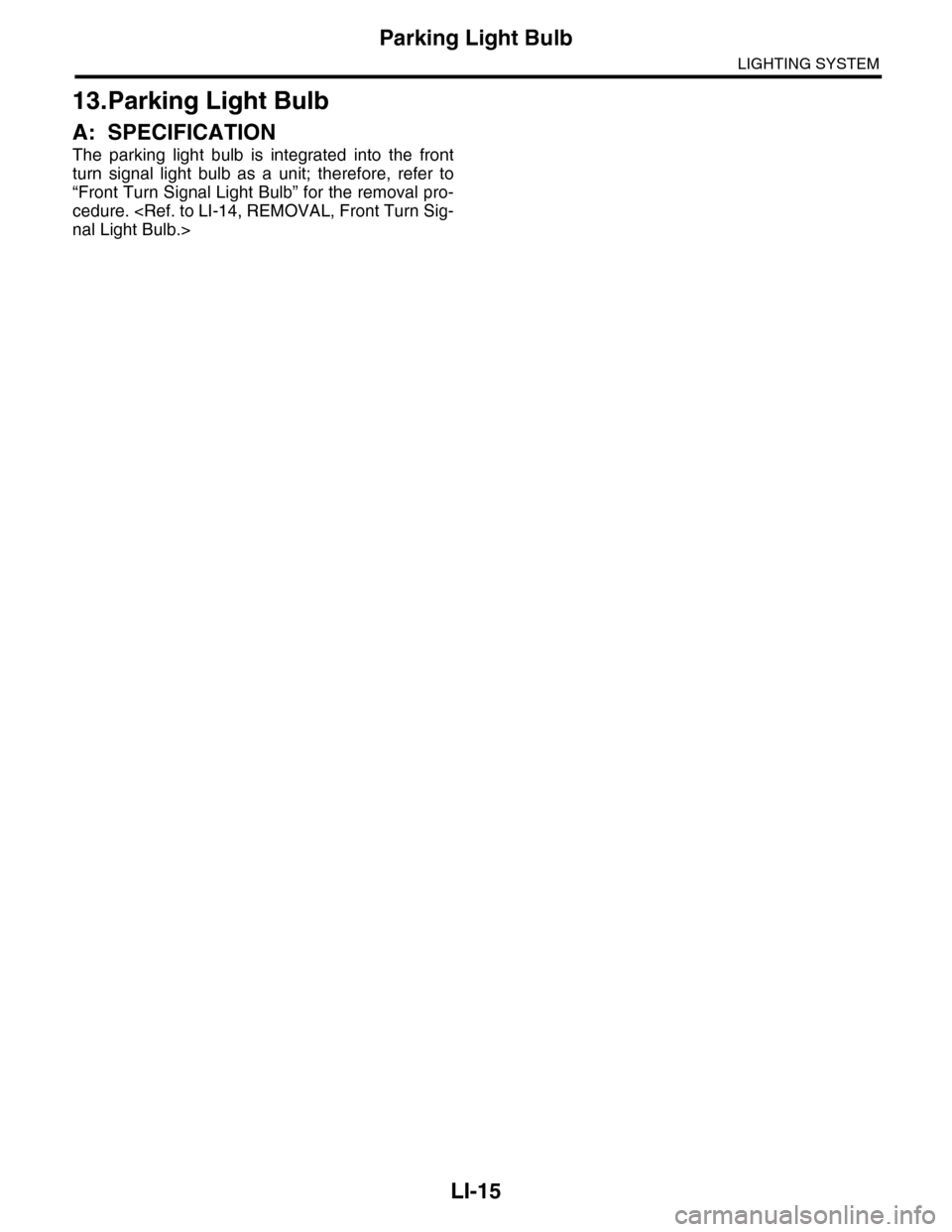

13.Parking Light Bulb
A: SPECIFICATION
The parking light bulb is integrated into the front
turn signal light bulb as a unit; therefore, refer to
“Front Turn Signal Light Bulb” for the removal pro-
cedure. nal Light Bulb.>

LI-16
Front Side Marker Light Bulb
LIGHTING SYSTEM

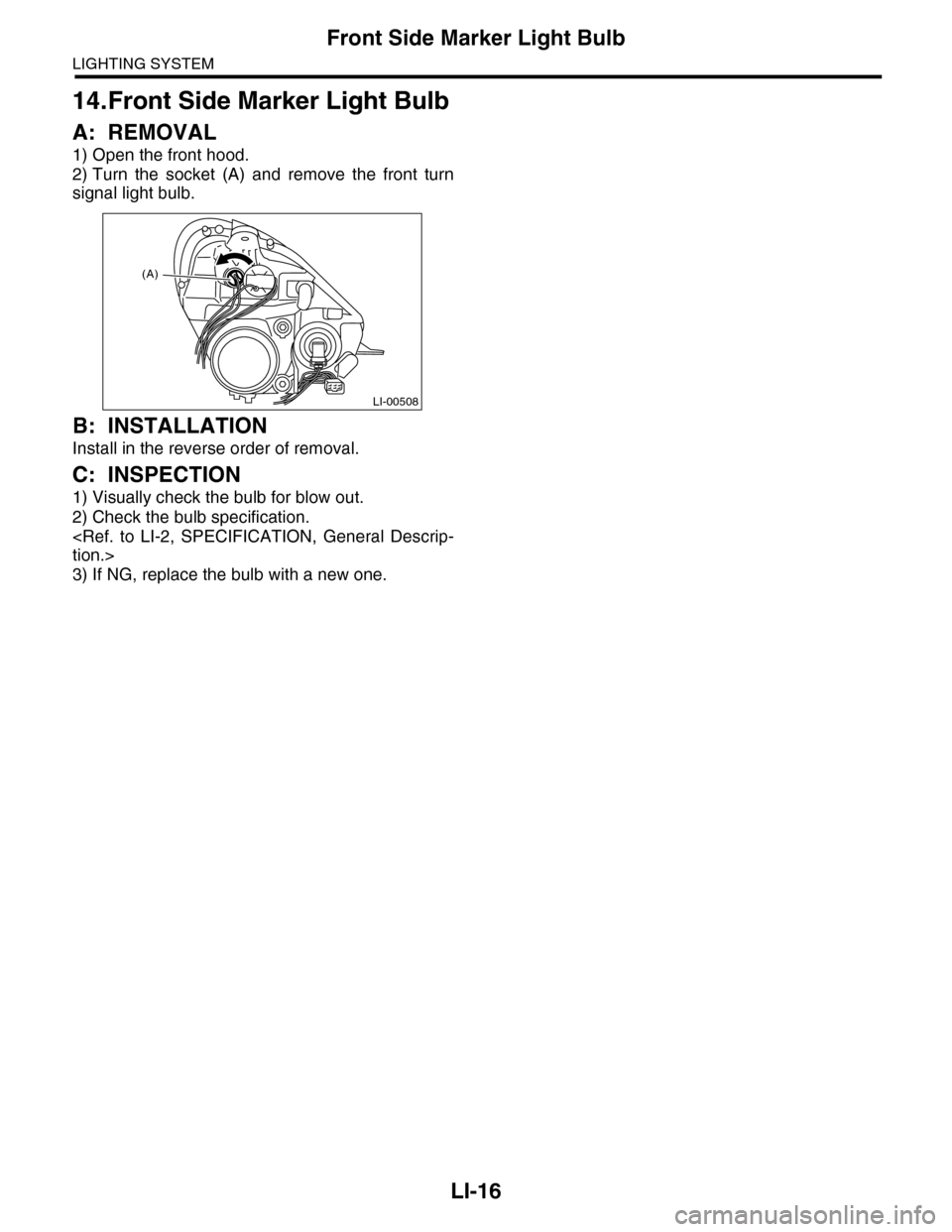

14.Front Side Marker Light Bulb
A: REMOVAL
1) Open the front hood.
2) Turn the socket (A) and remove the front turn
signal light bulb.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Visually check the bulb for blow out.
2) Check the bulb specification.
tion.>
3) If NG, replace the bulb with a new one.
LI-00508
(A)

LI-17
Front Fog Light Assembly
LIGHTING SYSTEM

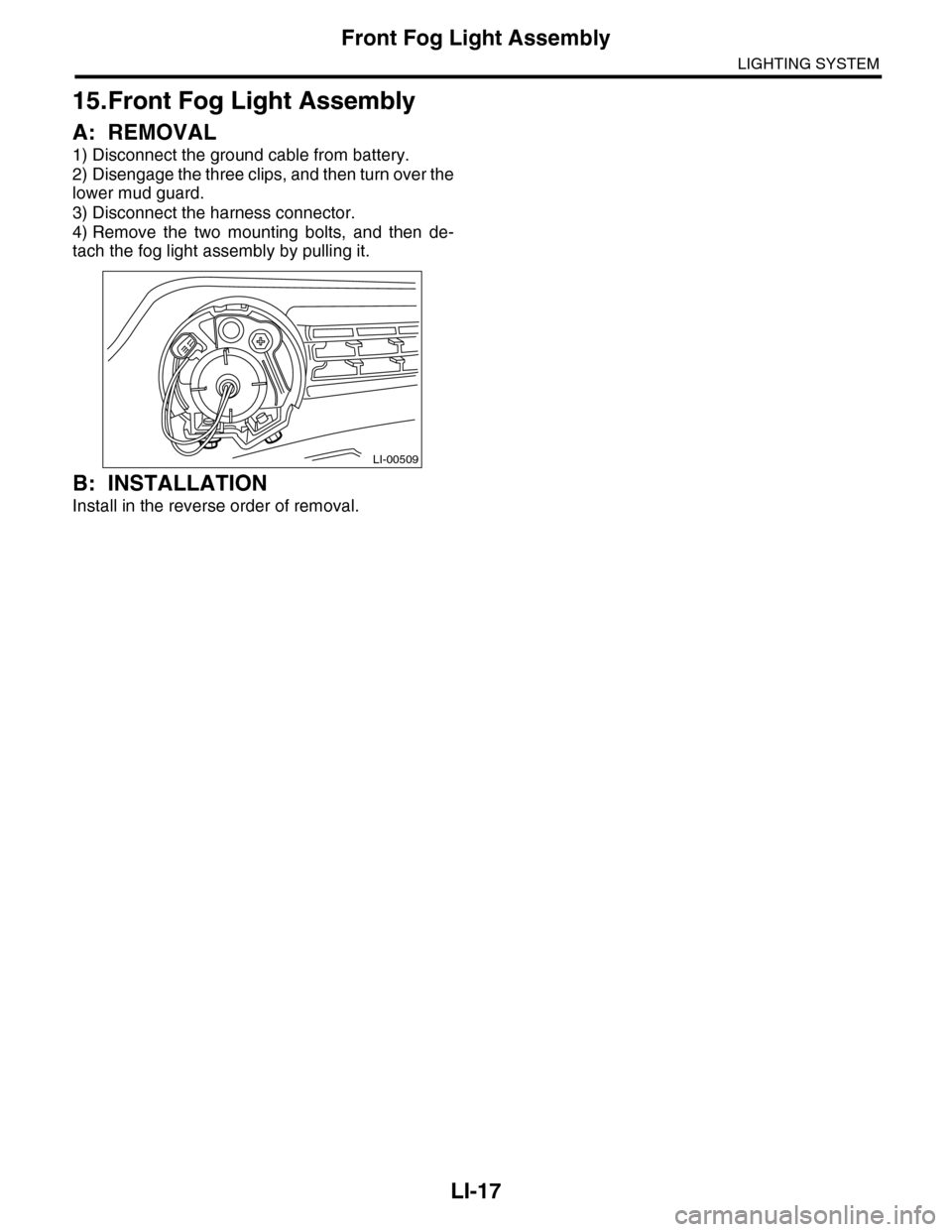

15.Front Fog Light Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Disengage the three clips, and then turn over the
lower mud guard.
3) Disconnect the harness connector.
4) Remove the two mounting bolts, and then de-
tach the fog light assembly by pulling it.
B: INSTALLATION
Install in the reverse order of removal.
LI-00509
