TOYOTA C-HR 2019 Accessories, Audio & Navigation (in English)

131
1. VOICE COMMAND SYSTEM OPERATION
VOICE COMMAND SYSTEM
4
C-HR_Navi_USA_OM10581U_17CY

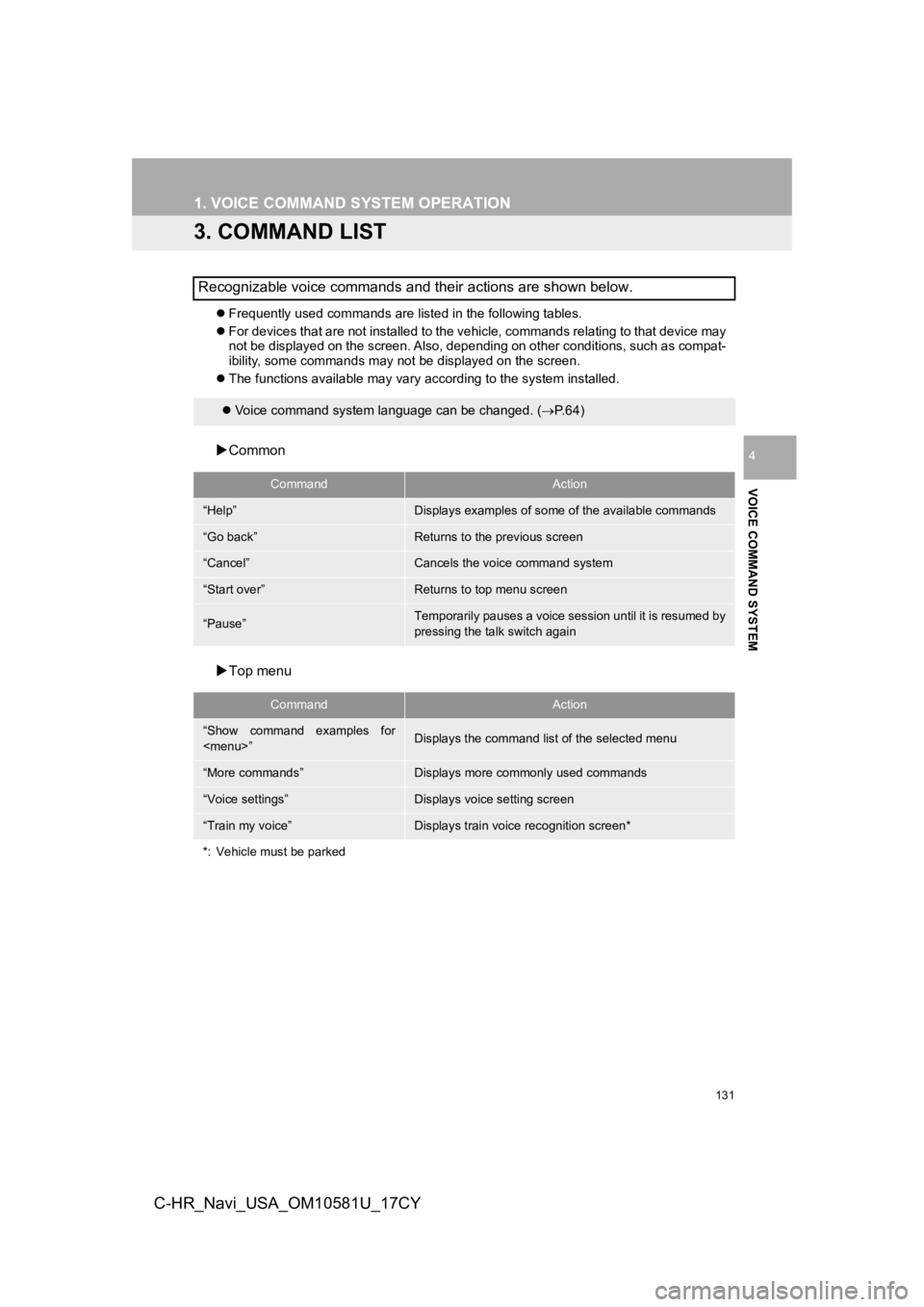

3. COMMAND LIST
Frequently used commands are listed in the following tables.
 For devices that are not installed to the vehicle, commands rel ating to that device may
not be displayed on the screen. Also, depending on other condit ions, such as compat-
ibility, some commands may not be displayed on the screen.
 The functions available may vary according to the system installed.
Common
 Top menu
Recognizable voice commands and their actions are shown below.
 Voice command system language can be changed. ( P.64)
CommandAction
“Help”Displays examples of some of the available commands
“Go back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed by
pressing the talk switch again
CommandAction
“Show command examples for

132
1. VOICE COMMAND SYSTEM OPERATION
C-HR_Navi_USA_OM10581U_17CY

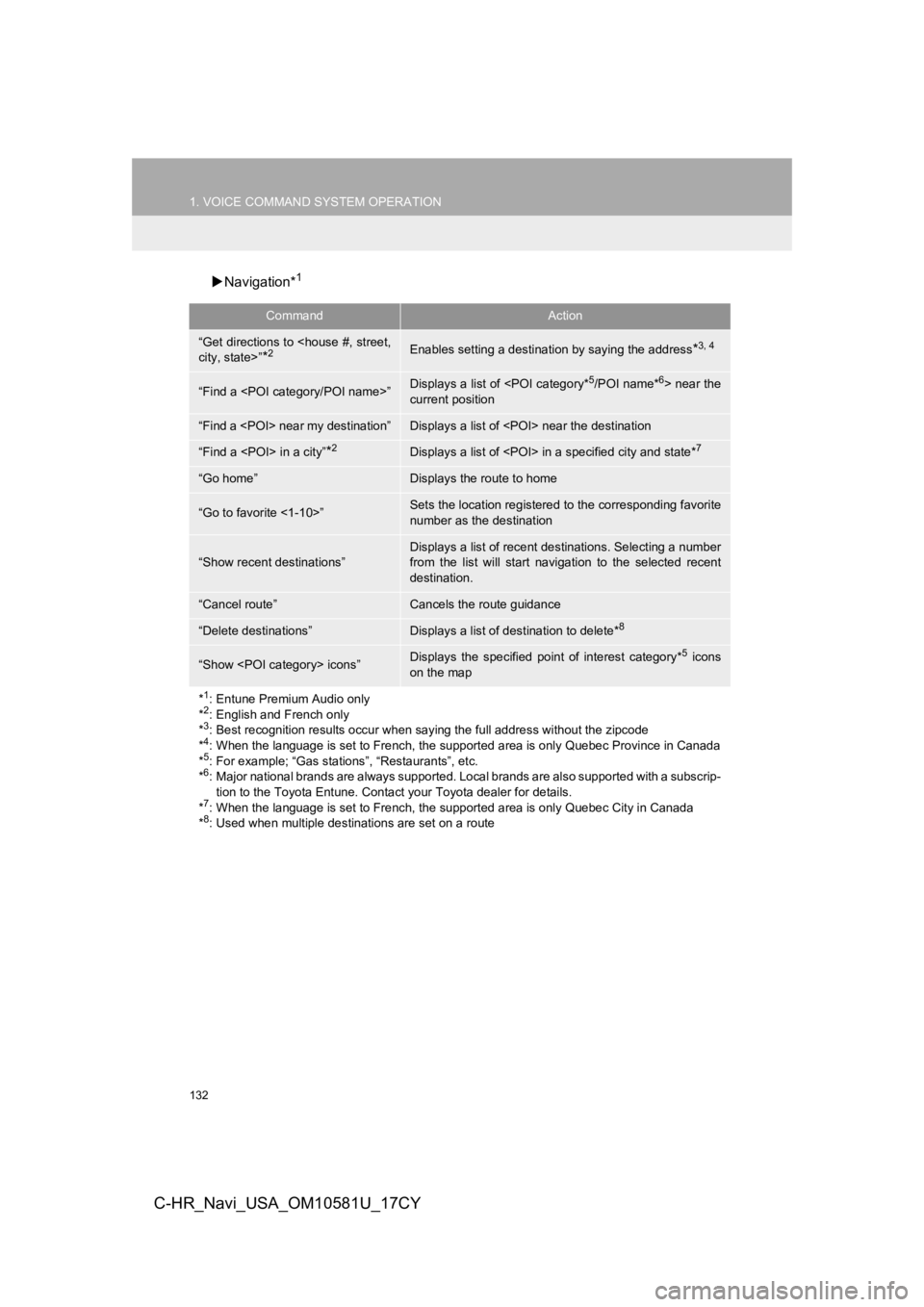

Navigation*1
CommandAction
“Get directions to city, state>”
*2Enables setting a destina tion by saying the address*3, 4
“Find a ”Displays a list of near the
current position
“Find a near my destination”Displays a list of near the destination
“Find a in a city”*2Displays a list of in a specified city and state*7
“Go home”Displays the route to home
“Go to favorite <1-10>”Sets the location registered to the corresponding favorite
number as the destination
“Show recent destinations”
Displays a list of recent des tinations. Selecting a number
from the list will start navigation to the selected recent
destination.
“Cancel route”Cancels the route guidance
“Delete destinations”Displays a list of des tination to delete*8
“Show icons”Displays the specified point of interest category*5 icons
on the map
*
1: Entune Premium Audio only
*2: English and French only
*3: Best recognition results occur when saying the full address without the zipcode
*4: When the language is set to French, the supported area is only Quebec Province in Canada
*5: For example; “Gas stations”, “Restaurants”, etc.
*6: Major national brands are always supported. Local brands are also supported with a subscrip- tion to the Toyota Entune. Contact your Toyota dealer for detai ls.
*
7: When the language is set to French, the supported area is only Quebec City in Canada
*8: Used when multiple destinations are set on a route

133
1. VOICE COMMAND SYSTEM OPERATION
VOICE COMMAND SYSTEM
4
C-HR_Navi_USA_OM10581U_17CY
Phone
 While in a phone call
 While incoming message not ification is displayed*
CommandAction
“Call ”*Places a call to the specified contact from the phone book
“Call ”*Places a call to the specified phone type of the contact
from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgoing
call
“Call back”Places a call to the phone num ber of latest incoming call
“Show recent calls”Displays the call history screen
“Send a message to ”Sends a text message to specified contact from the
phone book
*: If the system does not recognize the name of a contact, creat e a voice tag. (P.184) The
name of a contact can also be rec ognized by adding a voice tag.
CommandAction
“Send ”Sends DTMF tones has specified
“Mute”Mutes the microphone (far side cannot hear the conver-
sation)
“Unmute”Unmutes the microphone
CommandAction
“Read message”Reads the incoming message over the vehicle speakers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming message
*: Full screen message notification must be turned on within the phone settings (P.175)

134
1. VOICE COMMAND SYSTEM OPERATION
C-HR_Navi_USA_OM10581U_17CY
Radio
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play a station”Changes the radio to an FM station of the specified
genre*1
“Tune to preset <1-36>”Changes the radio to the specified preset radio station
“Tune to a satellite
station” *2Changes the radio to a satellite radio channel of the spec-
ified genre*3
“Tune to
” *2Changes the radio to the satellite radio channel with the
specified name*3
“Tune to channel on
XM” *2Changes the radio to a satellite radio channel of the spec-
ified number*3
*1: A station list must be built fi rst using the radio screen (P.85)
*2: Entune Audio Plus/Entune Premium Audio only
*3: Requires a satellite radio subscription

135
1. VOICE COMMAND SYSTEM OPERATION
VOICE COMMAND SYSTEM
4
C-HR_Navi_USA_OM10581U_17CY

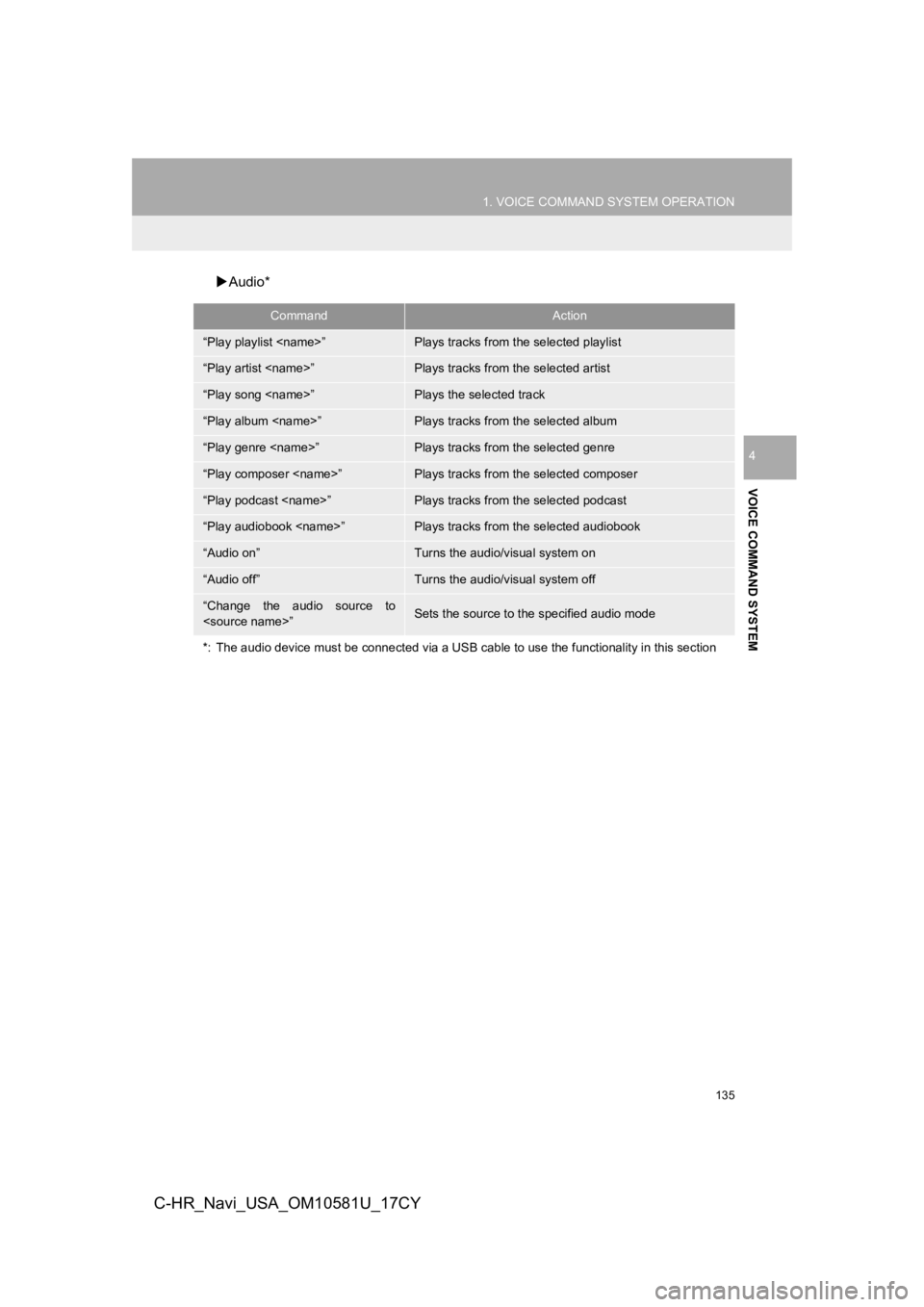

Audio*
CommandAction
“Play playlist ”Plays tracks from the selected playlist
“Play artist ”Plays tracks from the selected artist
“Play song ”Plays the selected track
“Play album ”Plays tracks from the selected album
“Play genre ”Plays tracks from the selected genre
“Play composer ”Plays tracks from the selected composer
“Play podcast ”Plays tracks from the selected podcast
“Play audiobook ”Plays tracks from the selected audiobook
“Audio on”Turns the audio/visual system on
“Audio off”Turns the audio/visual system off
“Change the audio source to
”Sets the source to the specified audio mode
*: The audio device must be connected via a USB cable to use the functionality in this section

136
1. VOICE COMMAND SYSTEM OPERATION
C-HR_Navi_USA_OM10581U_17CY
Information*1
Apps
CommandAction
“Get the forecast”Displays weather information
“Get the forecast for ”*2Displays weather for the specified city
“Show traffic”Displays traffic information
“Show traffic near here”Displays traffic information near your current location
“Get traffic along my route”Displays traffic information along your current route
“Show traffic on this street”Displays traffic information along road you are currently
driving on
“Show traffic for saved route”Displays traffic information for a saved route
“Show predictive traffic”Displays the predictive traffic map
*
1: Entune Premium Audio only
*2: Only major US cities are supported by voice
CommandAction
“Launch ”Activates the Toyota Entune App Suite Connect applica-
tion
INFORMATION
● When an application is opened and is in full screen mode, press ing the talk switch will
start the voice command system and commands for the currently d isplayed application
will be available.

137
VOICE COMMAND SYSTEM
4
C-HR_Navi_USA_OM10581U_17CY
2. MOBILE ASSISTANT OPERATION
1. MOBILE ASSISTANT
Type A
1Press and hold the talk switch on the
steering wheel until Mobile Assistant
screen is di splayed. 
Type B
1Press and hold the switch on the
steering wheel until Mobile Assistant
screen is displayed.
2Mobile Assistant can be used only
when the following screen is displayed.
 To cancel the Mobile Assistant, select
“Cancel” , or press and hold the talk
switch (Type A)/ switch (Type B) on
the steering wheel.
 To restart the Mobile Assistant for addi-
tional commands, press the talk switch
(Type A)/ switch (Type B) on the
steering wheel.
• Mobile Assistant can only be restarted
after the system responds to a voice
command.
• After saying a command, the Mobile
Assistant function will automatically end
to complete the requested action.
The Mobile Assistant function is a
voice input assist function. Mobile
Assist supports the Siri Eyes Free
Mode and Google App. (Google App
can be used only the corresponding
device.) Instructions can be spoken
into the vehicle microphone as if
speaking a command to the phone.
The content of the request is then
interpreted by the phone and the result
is output from the vehicle speakers. To
operate the Mobile Assistant, a
compatible device must be registered
and connected to this system via
Bluetooth
®. ( P.43)
When an Apple CarPlay connection is
established, this function will be
unavailable.
BG063S
 The volume of the Mobile Assistant can be
adjusted using the “POWER/VOLUME”
knob or steering wheel volume control
switches. The Mobile Assistant and phone
call volumes are synchronized.
BG064S

138
2. MOBILE ASSISTANT OPERATION
C-HR_Navi_USA_OM10581U_17CY
INFORMATION
●The available features and functions
may vary based on the iOS/Android ver-
sion installed on the connected device.
● While a phone call is active, the Mobile
Assistant cannot be used.
● If using the navigation feature of the cel-
lular phone, ensure the active audio
source is Bluetooth
® audio or iPod in
order to hear turn by turn direction
prompts.
● Wait for the listening beeps before using
the Mobile Assistant.
● The Mobile Assistant may not recognize
commands in the following situations:
• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while the
Mobile Assistant is being used.
• The fan speed of the air conditioning system is set at high.
• The air conditioning vents are turned toward the microphone.

5

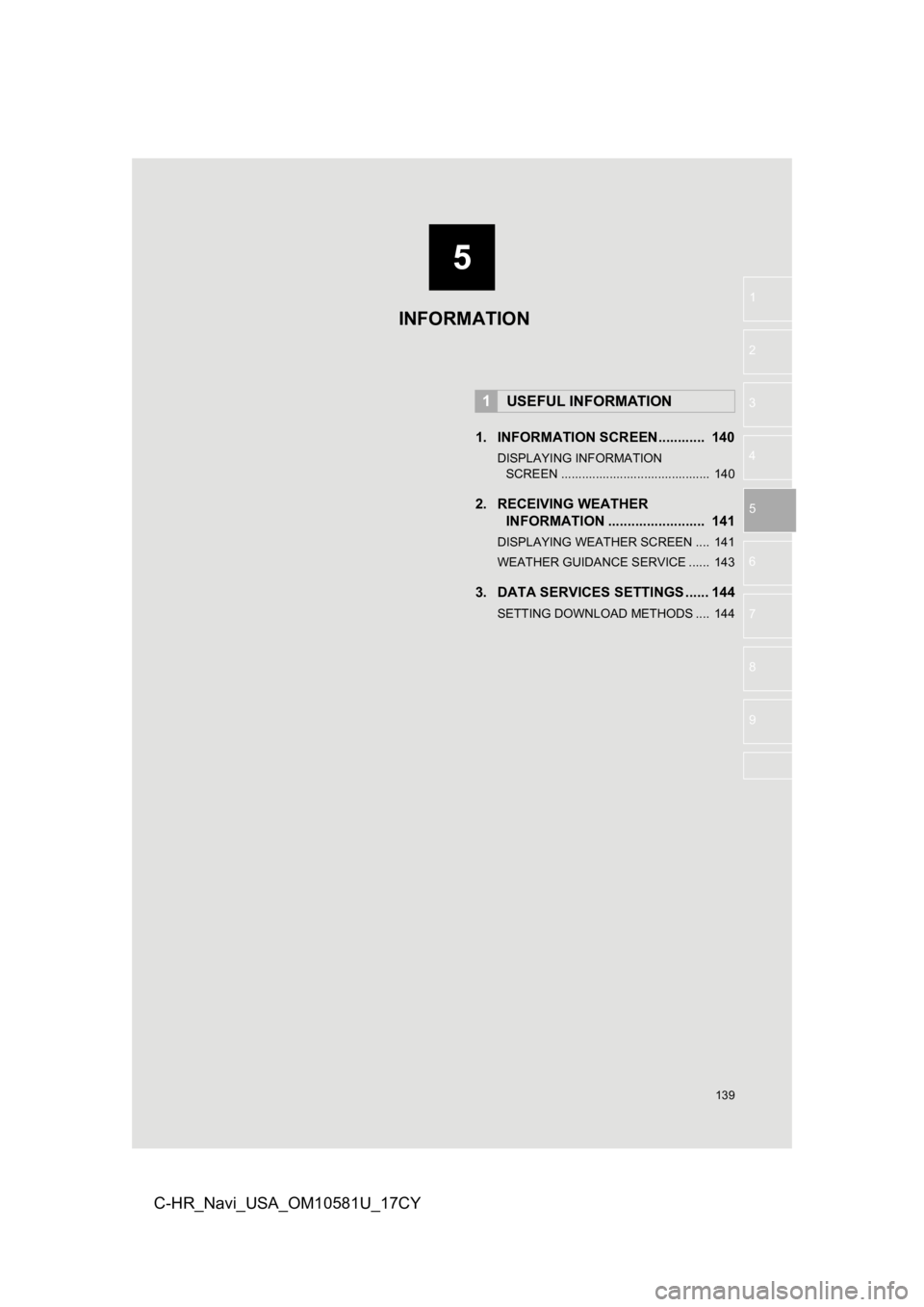

139
1
2
3
4
5
6
7
8
9
C-HR_Navi_USA_OM10581U_17CY
1. INFORMATION SCREEN............ 140
DISPLAYING INFORMATION SCREEN ........................................... 140
2. RECEIVING WEATHER INFORMATION ......................... 141
DISPLAYING WEATHER SCREEN .... 141
WEATHER GUIDANCE SERVICE ...... 143
3. DATA SERVICES SET TINGS ...... 144
SETTING DOWNLOAD METHODS .... 144
1USEFUL INFORMATION
INFORMATION

140
C-HR_Navi_USA_OM10581U_17CY
1. USEFUL INFORMATION
1. INFORMATION SCREEN*1
1Press the “MENU” button.
2Select “Info”.
3Select the desired item.Useful information, such as the fuel
consumption, weather,etc.,is available
on the information screen.
DISPLAYING INFORMATION
SCREEN
*1: Entune Audio Plus with DCM/Entune Premium Audio only
BG054S
No.FunctionPage
Select to display
the fuel consump-
tion screen.“OWNER’S
MANUAL”
*2Select to display
traffic information.206
*2Select to display
weather informa-
tion.
141
*3Select to display
the vehicle alert
history.

*
2: Entune Premium Audio only
*3: Vehicles with DCM
