TOYOTA CAMRY 2002 XV30 / 7.G Navigation Manual

Camry_Navi_U (L/O 0108)
942002 MY CAMRY NAVI_U (OM33559U)
Distance: You can change “km” or
“miles” to display your desired units.
Notify seasonal restrict: You can select
to notify or not to notify a seasonal re-
striction.
Voice guide in all mode: You can set
the voice guide in all mode or not.
Current street name: You can select to
show or not to show a current street
name on the map screen.
1. Touch the
“MENU” tab on the screen.
2. Touch the
“Setup” switch.
L00152
3. Select your desired day and/or night map color and then touch the “OK” switch to return to the map screen. See “Map
color list” below for details.
Touch the
“Normal” switch to select
the default the map color.
Touch the
“Auto” switch to have the
map color selected automatically. The
map color changes every three months. Map color list
Switch NO.Map color“Auto”
mode
1GreenMar. −May
2BlueJun. −Aug.
3GraySep. −Nov.
4BeigeDec. −Feb.
Map color

Camry_Navi_U (L/O 0108)
952002 MY CAMRY NAVI_U (OM33559U)
When the auto reroute feature is
turned on, the system will automatical-
ly search for a new route to the des-
tination if you leave the guidance
route. This feature does not operate
while you are driving on roads where
the guidance is not available.
Auto reroute

Camry_Navi_U (L/O 0108)
962002 MY CAMRY NAVI_U (OM33559U)

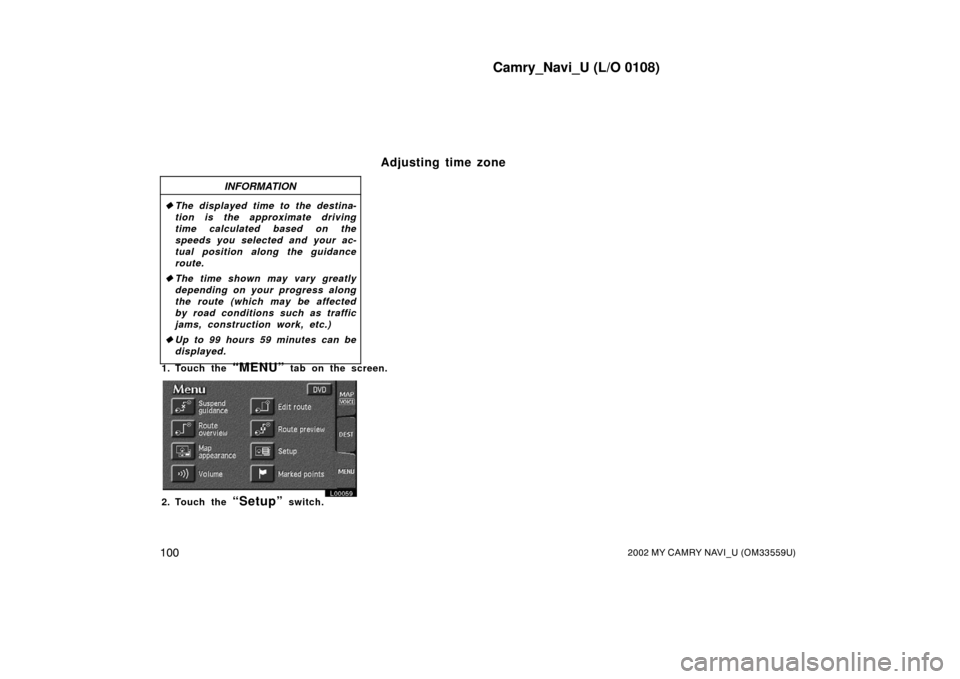

1. Touch the “MENU” tab on the screen to display the “Menu” screen, and touch the “Setup” switch.
L00059
L00133
2. Touch the “On” switch of “Auto reroute”. If you can not find the item on the list, touch or to scroll up
or down the list.
INFORMATION
If your vehicle leaves the guidance
route, the system searches for a new
route to the destination. The new
route may or may not take you back
to the previous route depending on
how far you are off the original guid-
ance route.When the “Estimated travel time” fea-
ture is turned on, the time required to
reach the destinatio n is displayed on
the route guidance screen.
L00059
To turn the “Estimated travel time” on:
Estimated travel time

Camry_Navi_U (L/O 0108)
972002 MY CAMRY NAVI_U (OM33559U)
1. Touch the “MENU” tab on the screen to display the “Menu” screen, and touch the “Setup” switch.

Camry_Navi_U (L/O 0108)
982002 MY CAMRY NAVI_U (OM33559U)
L00134

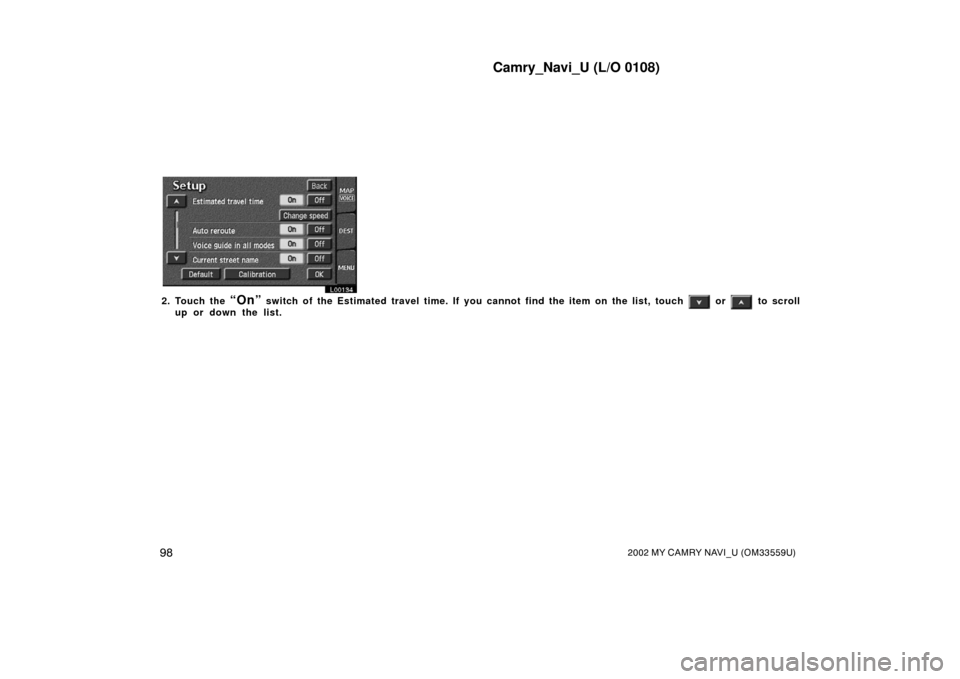

2. Touch the “On” switch of the Estimated travel time. If you cannot find the item on the list, touch or to scroll
up or down the list.

Camry_Navi_U (L/O 0108)
992002 MY CAMRY NAVI_U (OM33559U)
L00135

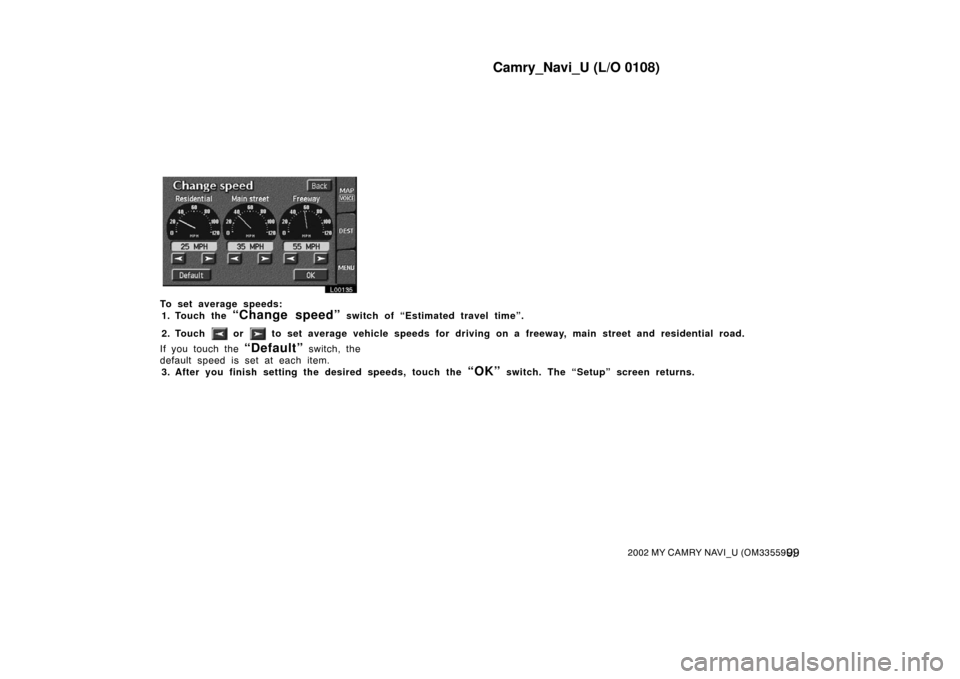

To set average speeds:1. Touch the
“Change speed” switch of “Estimated travel time”.
2. Touch
or to set average vehicle speeds for driving on a freeway, main street and residential road.
If you touch the
“Default” switch, the
default speed is set at each item.
3. After you finish setting th e desired speeds, touch the
“OK” switch. The “Setup” screen returns.

Camry_Navi_U (L/O 0108)
1002002 MY CAMRY NAVI_U (OM33559U)
INFORMATION
The displayed time to the destina-
tion is the approximate driving
time calculated based on the
speeds you selected and your ac-
tual position along the guidance
route.
 The time shown may vary greatly
depending on your progress along
the route (which may be affected
by road conditions such as traffic
jams, construction work, etc.)
 Up to 99 hours 59 minutes can be
displayed.
1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
Adjusting time zone

Camry_Navi_U (L/O 0108)
1012002 MY CAMRY NAVI_U (OM33559U)
L00162

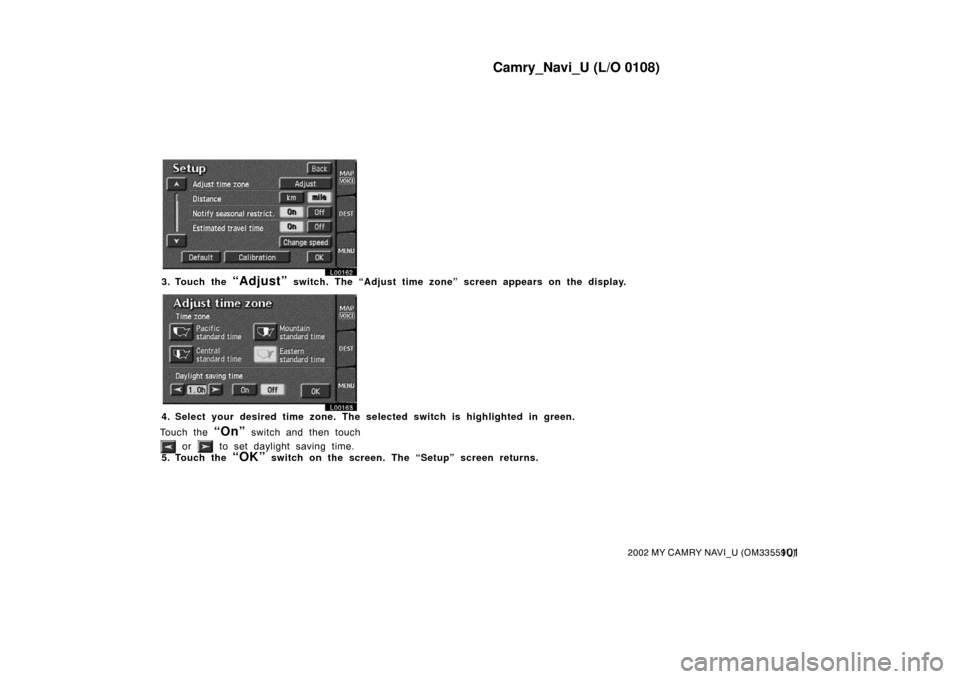

3. Touch the “Adjust” switch. The “Adjust time zone” screen appears on the display.
L00163
4. Select your desired time zone. The se lected switch is highlighted in green.
Touch the
“On” switch and then touch
or to set daylight saving time.
5. Touch the
“OK” switch on the screen. Th e “Setup” screen returns.

Camry_Navi_U (L/O 0108)
1022002 MY CAMRY NAVI_U (OM33559U)

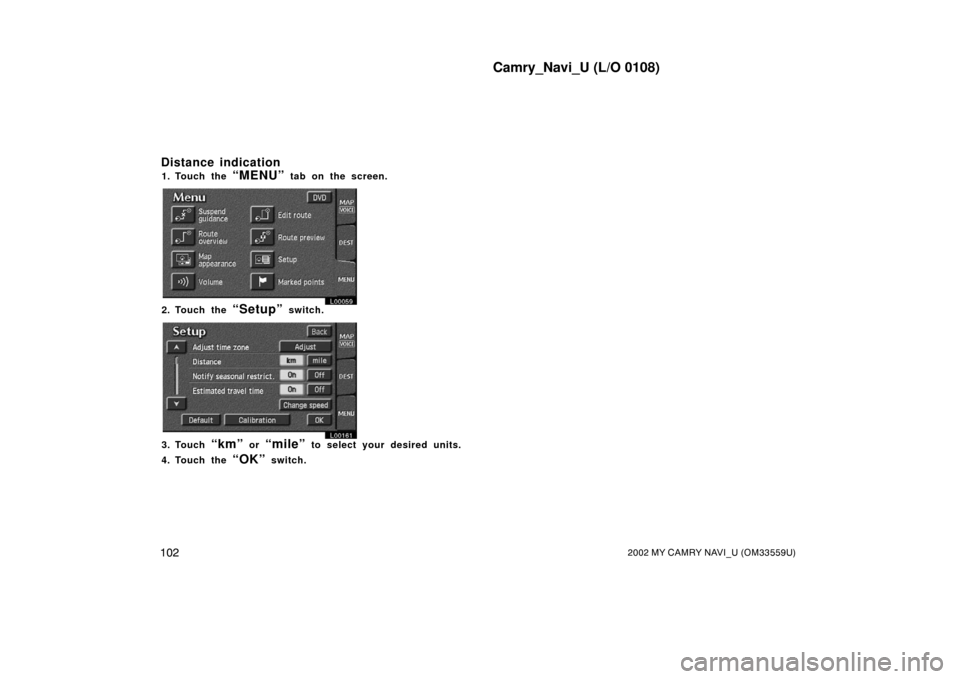

1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
L00161
3. Touch “km” or “mile” to select your desired units.
4. Touch the
“OK” switch.
Distance indication

Camry_Navi_U (L/O 0108)
1032002 MY CAMRY NAVI_U (OM33559U)
1. Touch the “MENU” tab on the screen.
L00059
2. Touch the “Setup” switch.
L00149
Notification seasonal
restrictions
