TOYOTA CAMRY V20 1986 Service Information

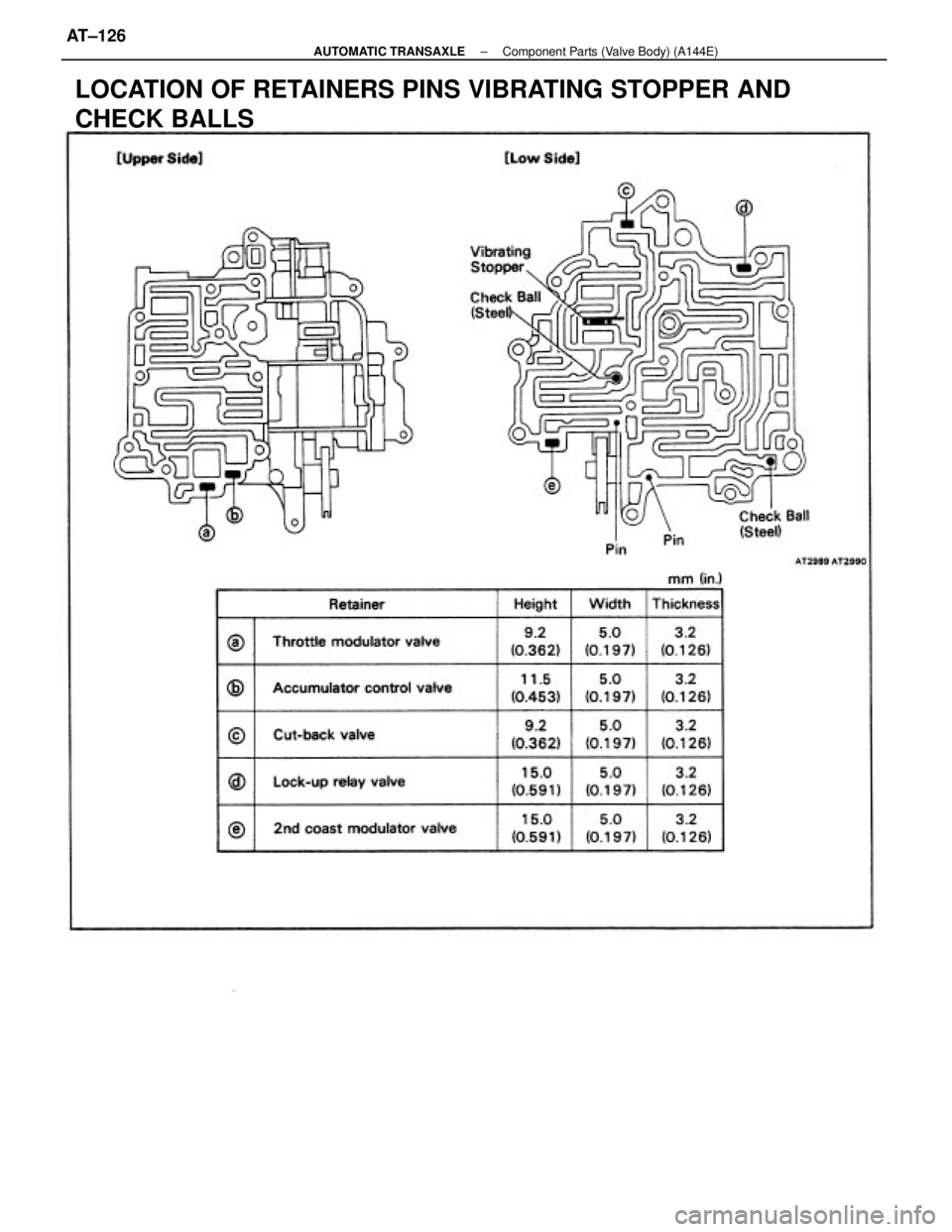

LOCATION OF RETAINERS PINS VIBRATING STOPPER AND
CHECK BALLS
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A144E)AT±126

(Lower. Valve Body)

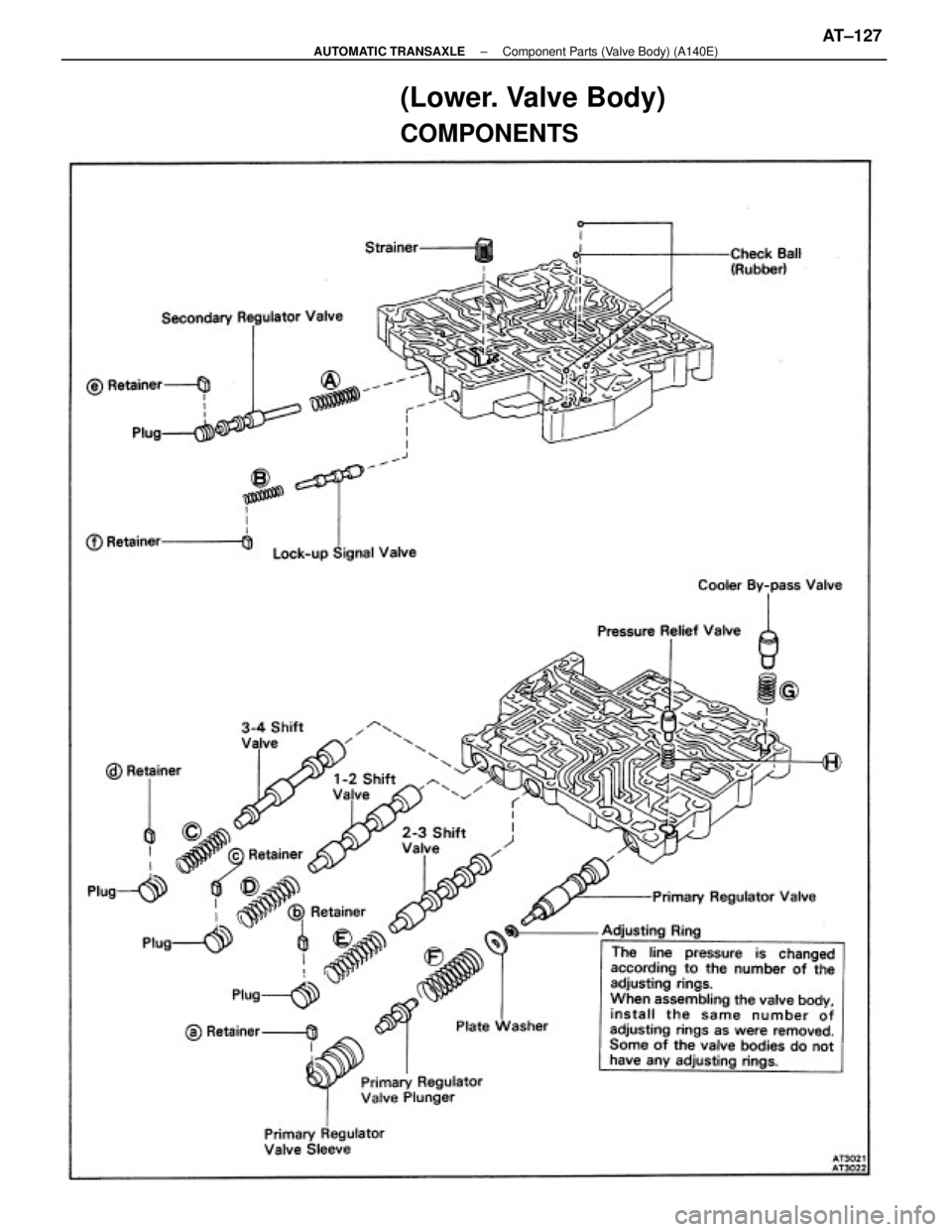

COMPONENTS
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±127

HINT: During re±assembly please refer to the spring specifications above to help discriminate be-
tween the different springs.

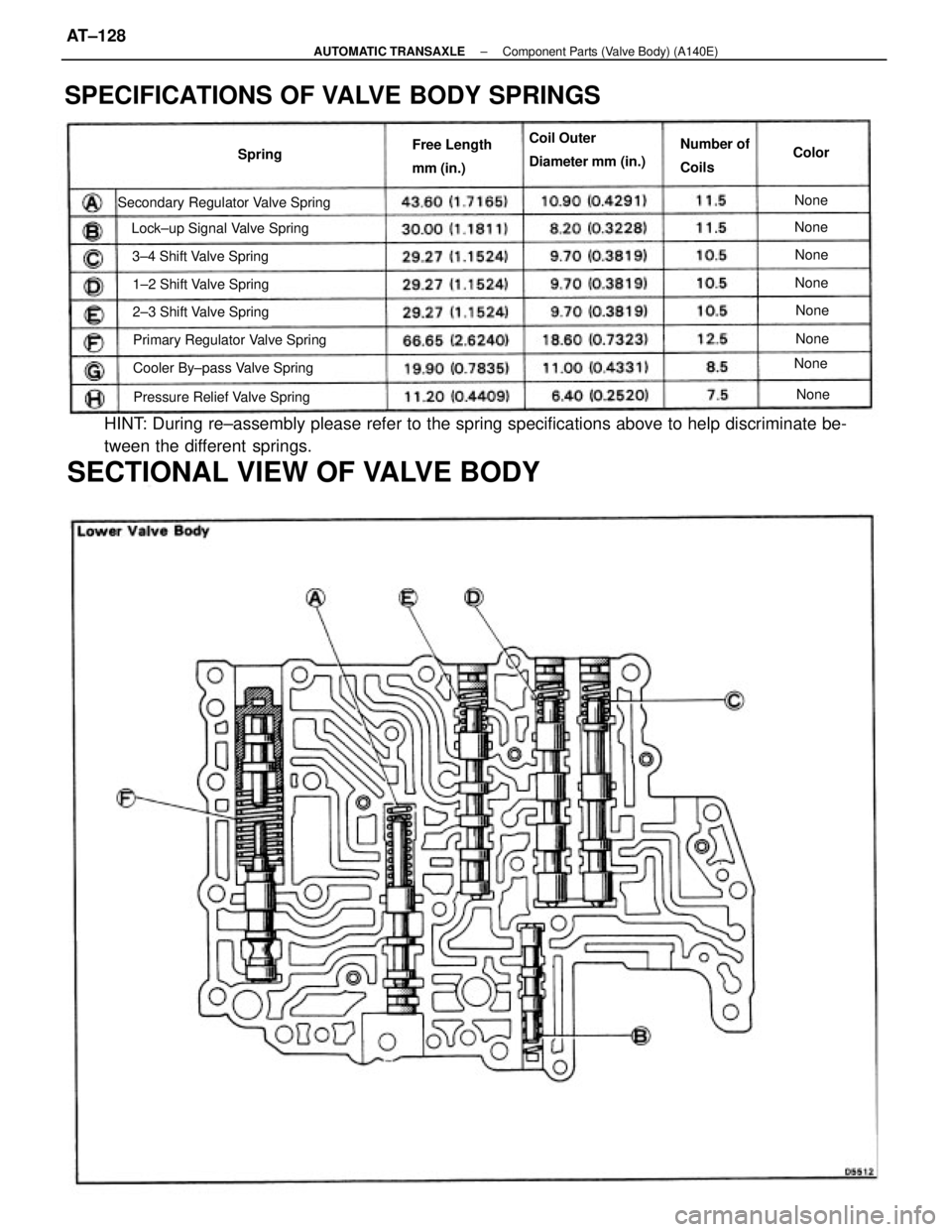

SECTIONAL VIEW OF VALVE BODY
SPECIFICATIONS OF VALVE BODY SPRINGS
Secondary Regulator Valve Spring
Primary Regulator Valve Spring
Cooler By±pass Valve Spring Lock±up Signal Valve Spring
Pressure Relief Valve SpringCoil Outer
Diameter mm (in.)
2±3 Shift Valve Spring 3±4 Shift Valve Spring
1±2 Shift Valve SpringFree Length
mm (in.)Number of
Coils SpringColor
None
NoneNone None
None None
None None
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±128

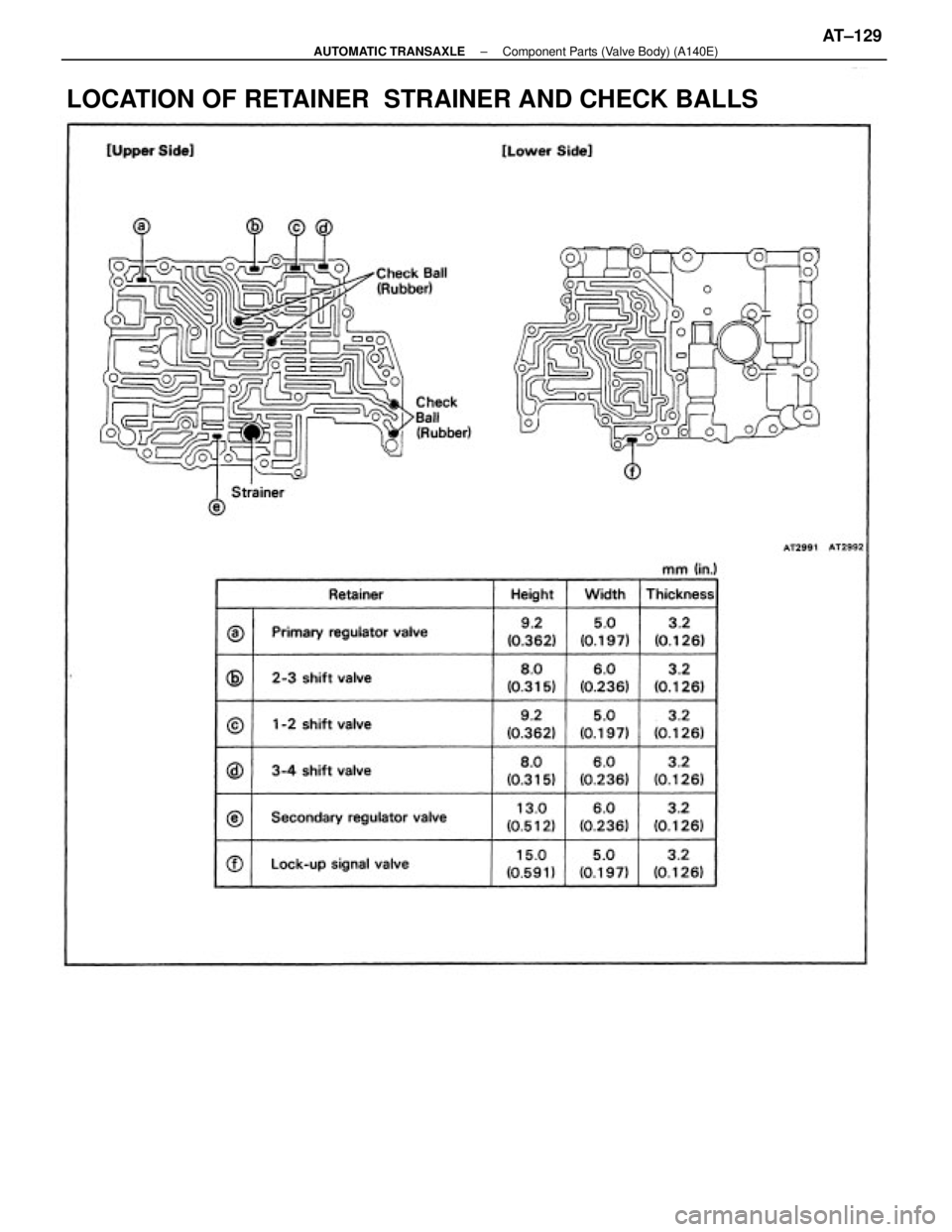

LOCATION OF RETAINER STRAINER AND CHECK BALLS
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±129

(Assembly of Valve Body)
(See page AT±121)

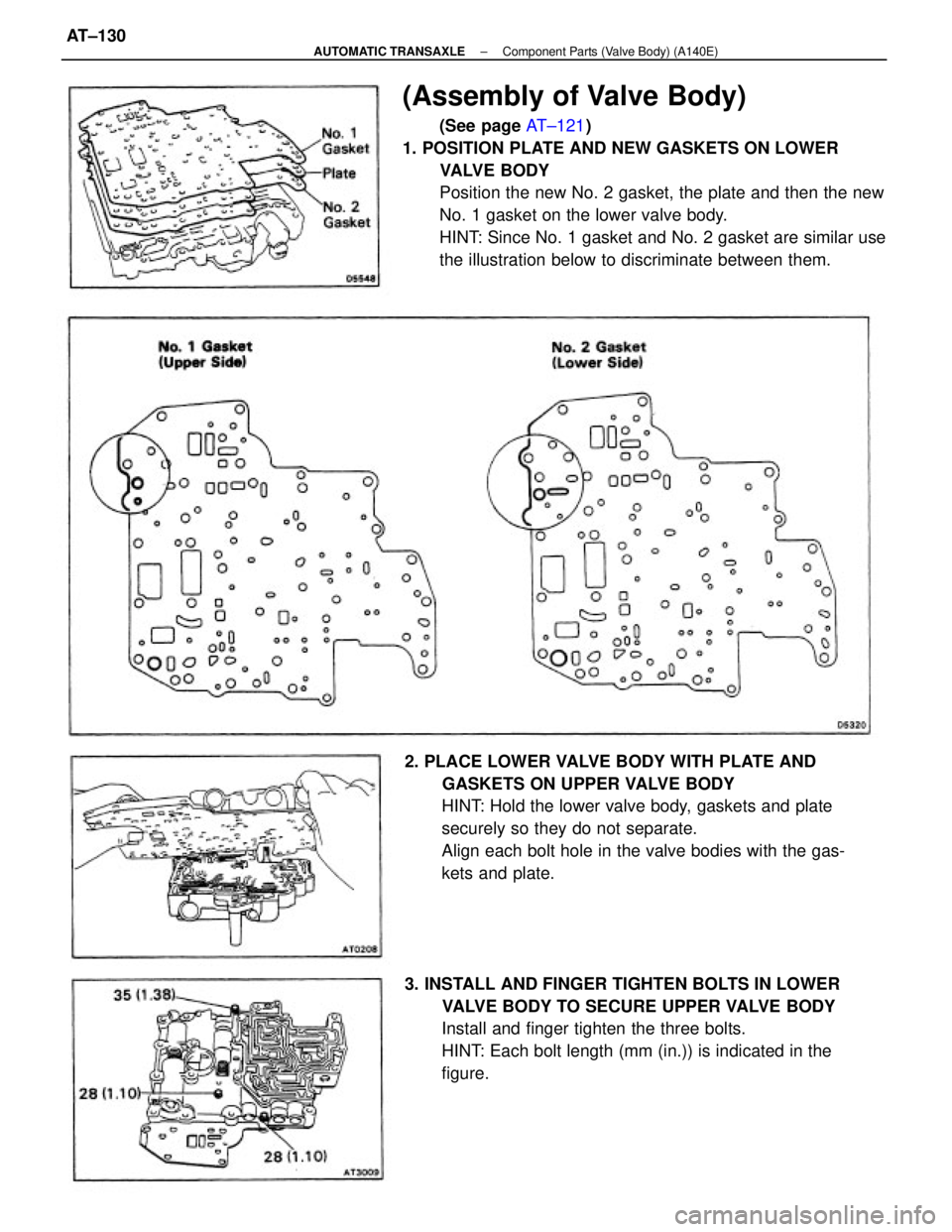

1. POSITION PLATE AND NEW GASKETS ON LOWER
VALVE BODY
Position the new No. 2 gasket, the plate and then the new
No. 1 gasket on the lower valve body.
HINT: Since No. 1 gasket and No. 2 gasket are similar use
the illustration below to discriminate between them.
2. PLACE LOWER VALVE BODY WITH PLATE AND
GASKETS ON UPPER VALVE BODY
HINT: Hold the lower valve body, gaskets and plate
securely so they do not separate.
Align each bolt hole in the valve bodies with the gas-
kets and plate.
3. INSTALL AND FINGER TIGHTEN BOLTS IN LOWER
VALVE BODY TO SECURE UPPER VALVE BODY
Install and finger tighten the three bolts.
HINT: Each bolt length (mm (in.)) is indicated in the
figure.
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±130

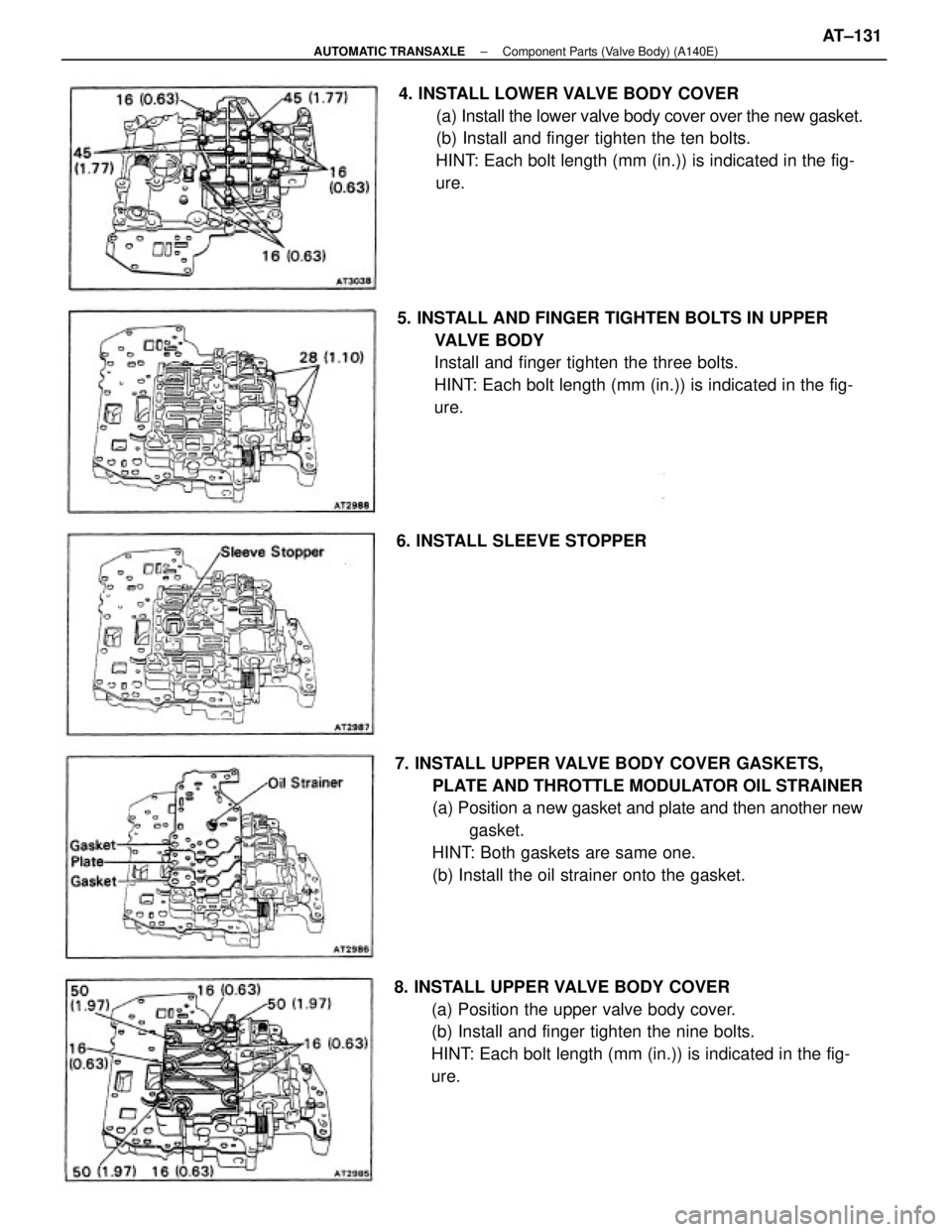

4. INSTALL LOWER VALVE BODY COVER
(a) Install the lower valve body cover over the new gasket.
(b) Install and finger tighten the ten bolts.
HINT: Each bolt length (mm (in.)) is indicated in the fig-
ure.
7. INSTALL UPPER VALVE BODY COVER GASKETS,
PLATE AND THROTTLE MODULATOR OIL STRAINER
(a) Position a new gasket and plate and then another new
gasket.
HINT: Both gaskets are same one.
(b) Install the oil strainer onto the gasket.
8. INSTALL UPPER VALVE BODY COVER
(a) Position the upper valve body cover.
(b) Install and finger tighten the nine bolts.
HINT: Each bolt length (mm (in.)) is indicated in the fig-
ure. 5. INSTALL AND FINGER TIGHTEN BOLTS IN UPPER
VALVE BODY
Install and finger tighten the three bolts.
HINT: Each bolt length (mm (in.)) is indicated in the fig-
ure.
6. INSTALL SLEEVE STOPPER
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±131

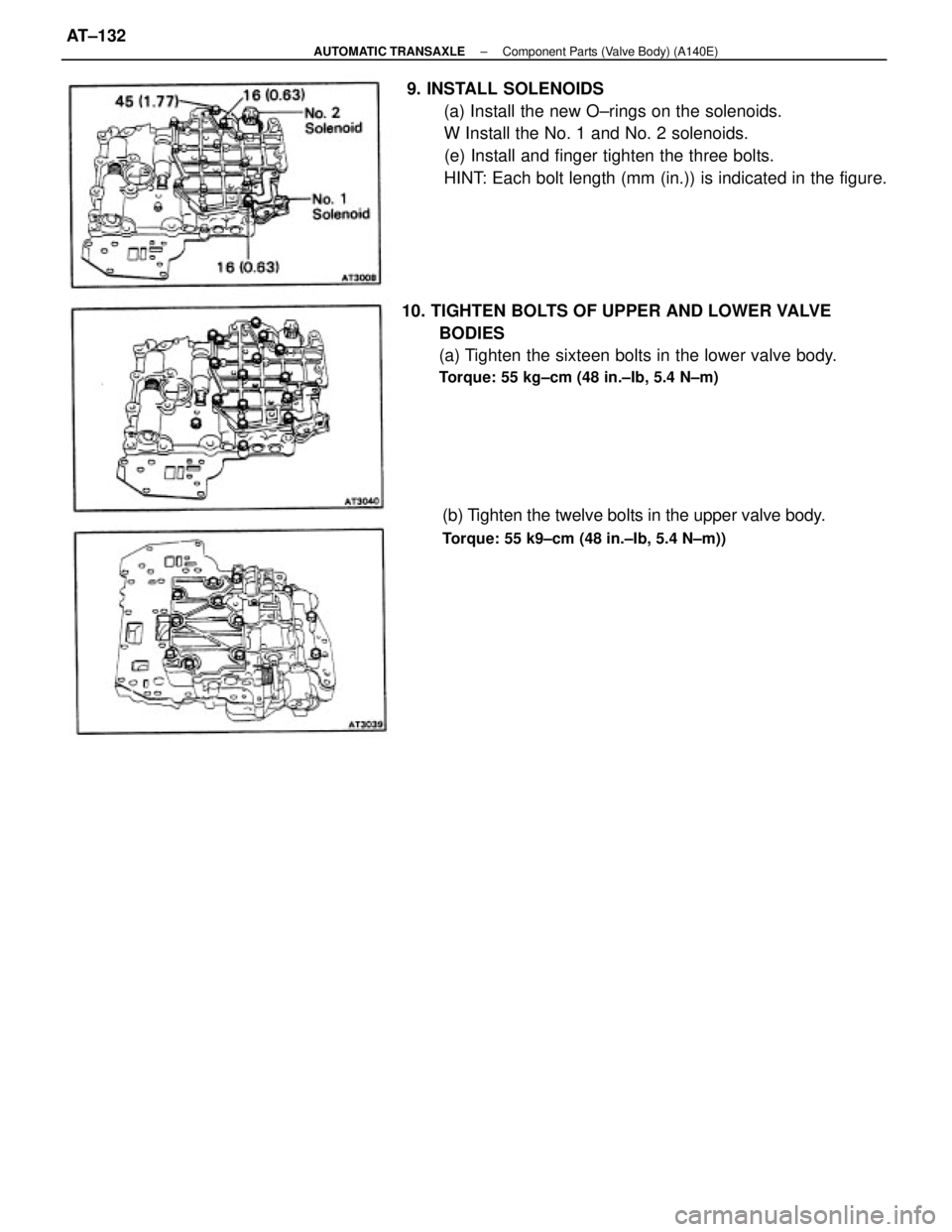

9. INSTALL SOLENOIDS
(a) Install the new O±rings on the solenoids.
W Install the No. 1 and No. 2 solenoids.
(e) Install and finger tighten the three bolts.
HINT: Each bolt length (mm (in.)) is indicated in the figure.
10. TIGHTEN BOLTS OF UPPER AND LOWER VALVE
BODIES
(a) Tighten the sixteen bolts in the lower valve body.
Torque: 55 kg±cm (48 in.±Ib, 5.4 N±m)
(b) Tighten the twelve bolts in the upper valve body.
Torque: 55 k9±cm (48 in.±Ib, 5.4 N±m))
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±132

(Disassembly of Valve Body)
1. NOTE THE NUMBER OF ADJUSTING RINGS
HINT: Count the number of adjusting rings before dis-
assembly of the valve body because the throttle pres-
sure
is changed according to the number. (Some of the
valve bodies do not have any adjusting rings.)
2. REMOVE UPPER VALVE BODY COVER
Remove the nine bolts and upper valve body cover.
Valve Body (A140L)
COMPONENTS
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140L)AT±133

4. REMOVE BOLTS FROM UPPER VALVE BODY

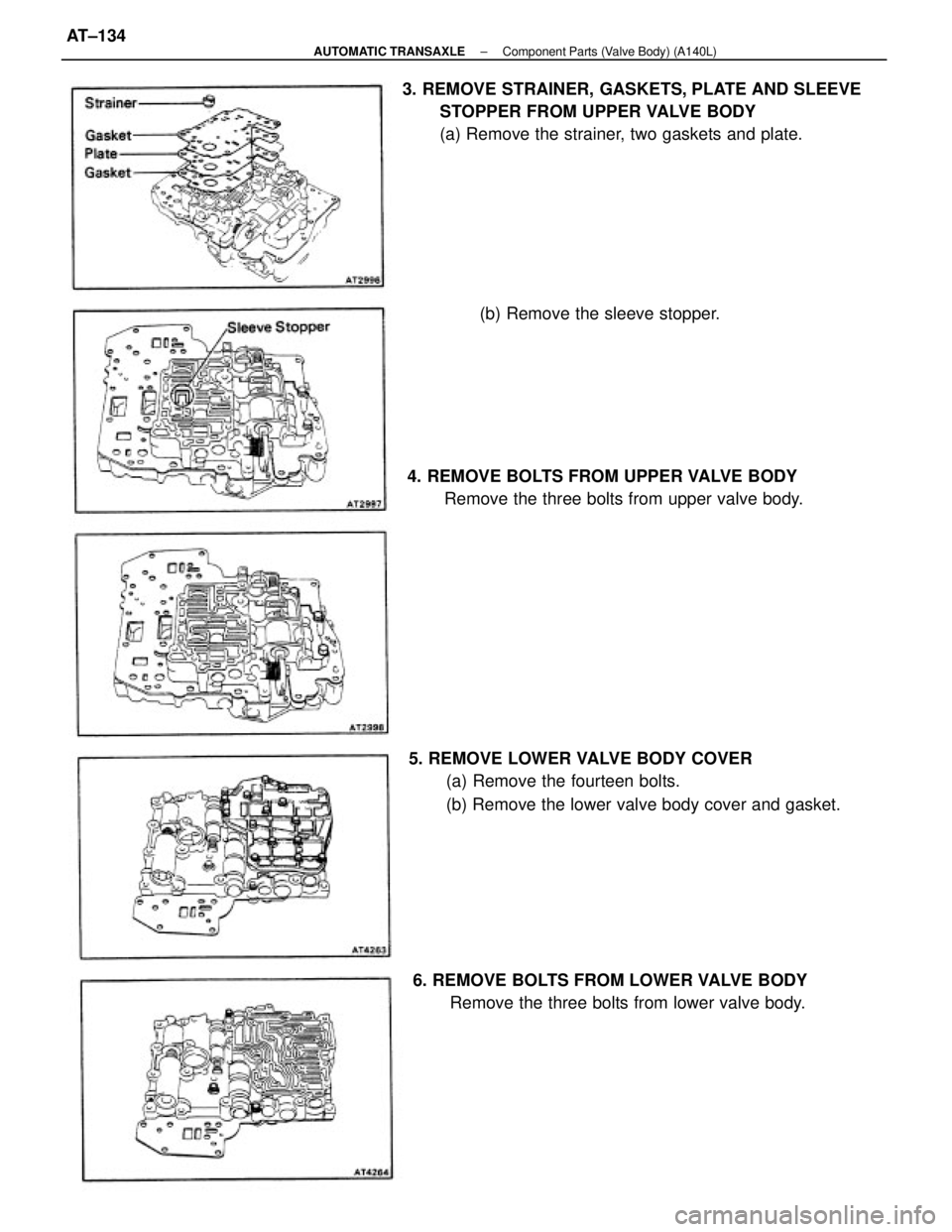

Remove the three bolts from upper valve body. 3. REMOVE STRAINER, GASKETS, PLATE AND SLEEVE
STOPPER FROM UPPER VALVE BODY
(a) Remove the strainer, two gaskets and plate.
5. REMOVE LOWER VALVE BODY COVER
(a) Remove the fourteen bolts.
(b) Remove the lower valve body cover and gasket.
6. REMOVE BOLTS FROM LOWER VALVE BODY
Remove the three bolts from lower valve body.(b) Remove the sleeve stopper.
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140L)AT±134

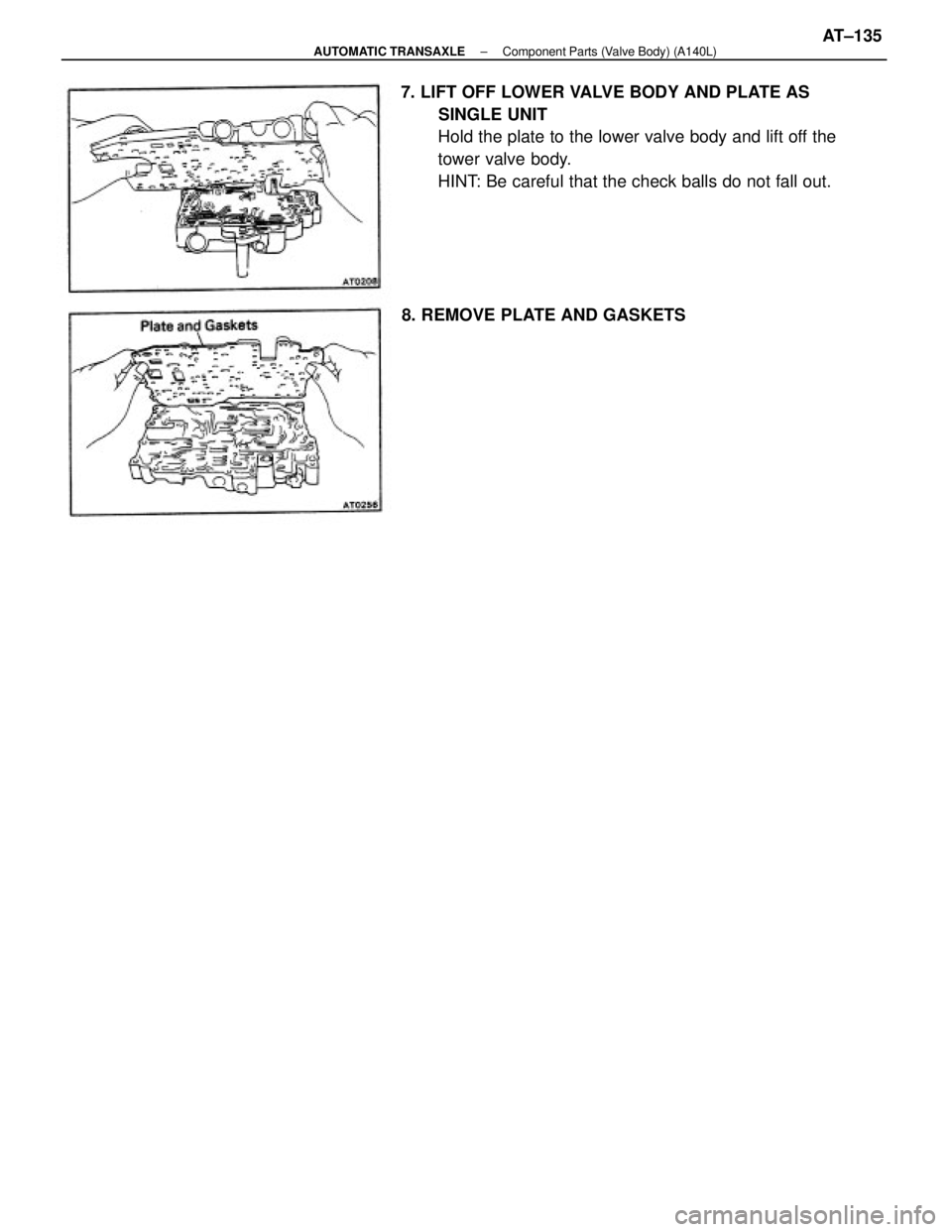

7. LIFT OFF LOWER VALVE BODY AND PLATE AS
SINGLE UNIT
Hold the plate to the lower valve body and lift off the
tower valve body.
HINT: Be careful that the check balls do not fall out.
8. REMOVE PLATE AND GASKETS
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140L)AT±135
