Page 441 of 2389

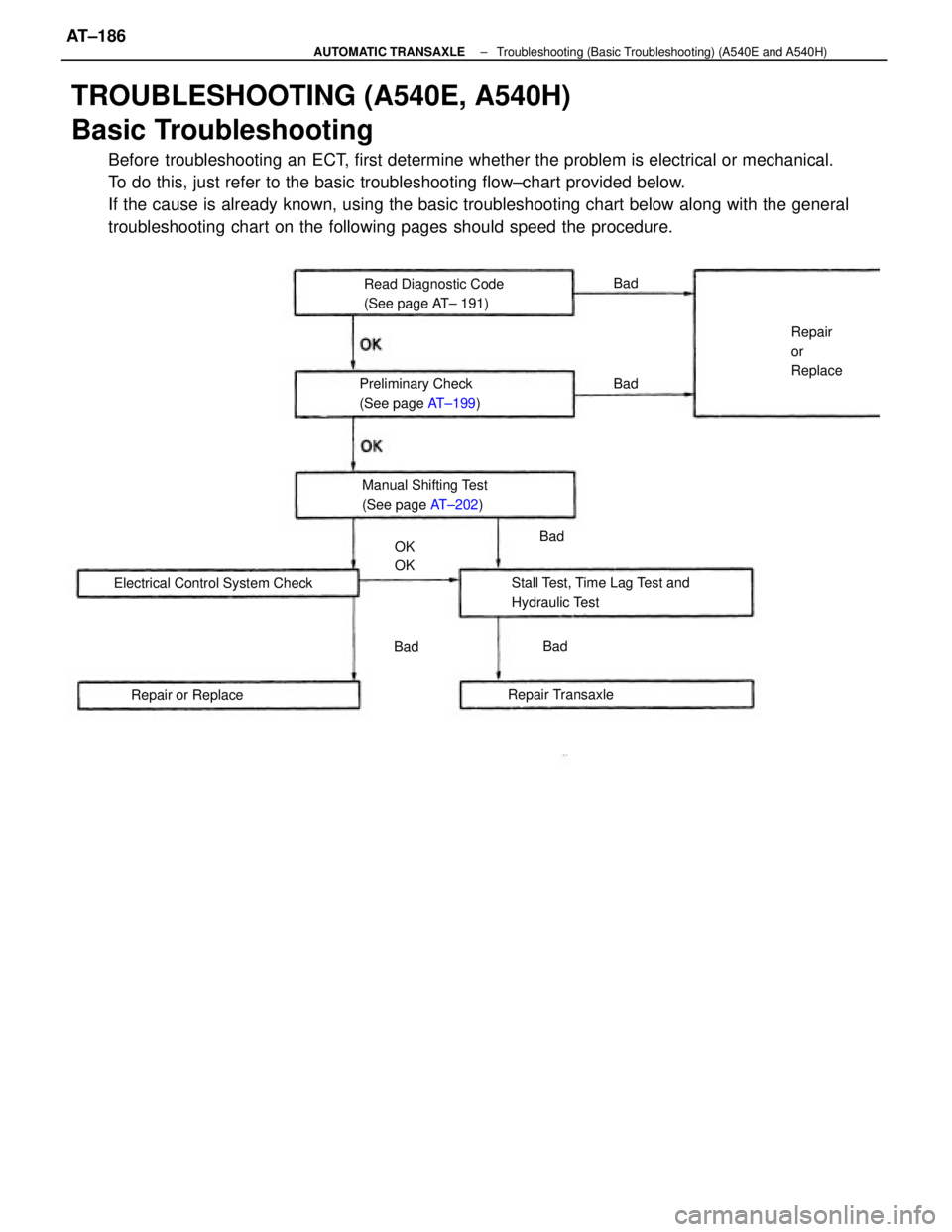

TOYOTA CAMRY V20 1986  Service Information TROUBLESHOOTING (A540E, A540H)
Basic Troubleshooting
Before troubleshooting an ECT, first determine whether the problem is electrical or mechanical.
To do this, just refer to the basic troubleshooting

Page 442 of 2389

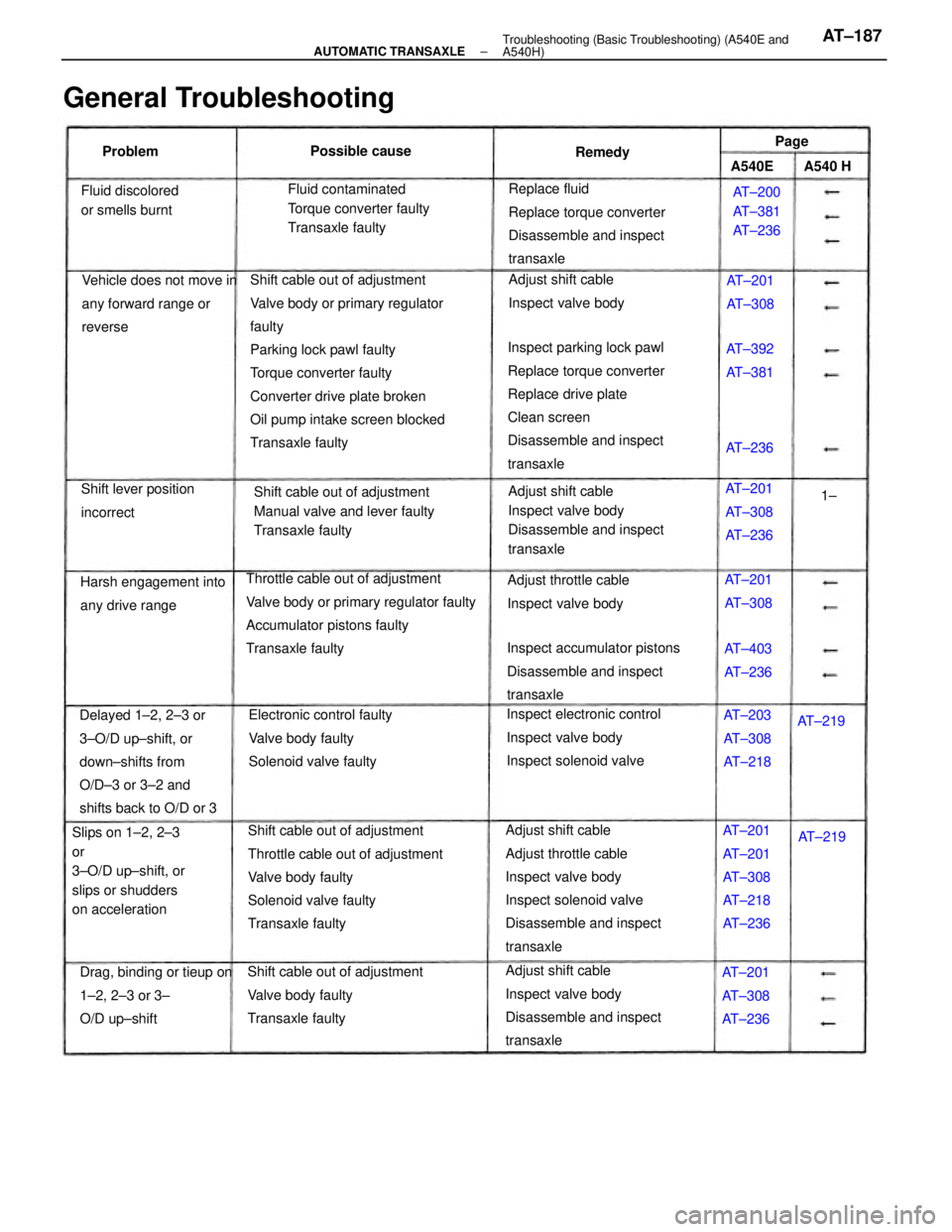

TOYOTA CAMRY V20 1986  Service Information Shift cable out of adjustment
Valve body or primary regulator
faulty
Parking lock pawl faulty
Torque converter faulty
Converter drive plate broken
Oil pump intake screen blocked
Transaxle faulty
Shift

Page 443 of 2389

TOYOTA CAMRY V20 1986  Service Information Throttle cable out of adjustment
Throttle cable and cam faulty
Accumulator pistons faulty
Valve body faulty
Transaxle faultyAdjust throttle cable
Inspect throttle cable and cam
Inspect accumulator pis

Page 444 of 2389

TOYOTA CAMRY V20 1986  Service Information (  ) 1: No fail±safe function X: Malfunctions
HINT: (A540H) When any one of the speed sensors (front or rear) or center differential control sole-
noid valves (No. 1 or No. 2) malfunction, the ECT EC

Page 445 of 2389

TOYOTA CAMRY V20 1986  Service Information Diagnosis System
DESCRIPTION
1. A self±diagnosis function is. built into the electrical control
system. Warning is indicated by the overdrive OFF indicator.
HINT: Warning and diagnostic codes can be

Page 446 of 2389

TOYOTA CAMRY V20 1986  Service Information wn the event of a malfunction, the light will blink once
every 0.5 seconds. The number of blinks will equal
the first number and, after 1.5 seconds pause, the
second number of the two digit diagnostic

Page 447 of 2389

TOYOTA CAMRY V20 1986  Service Information AT4B
HINT: If codes 62, 63, 64, 73 or 74 appear, there is an electrical malfunction in the solenoid.
Causes due t mechanical failure, such as a stuck valve, will not appear.
If codes 44 and 61 appear

Page 448 of 2389

TOYOTA CAMRY V20 1986  Service Information CANCEL OUT DIAGNOSTIC CODE
1. After repair of the trouble area, the diagnostic code
retained in memory by the Engine and ECT ECU (A540E)
or ECT ECU (A540H) must be canceled by removing the fuse EFI
(1

Page 449 of 2389

TOYOTA CAMRY V20 1986  Service Information TROUBLESHOOTING FLOW±CHART (A540E)
HINT:
wIf diagnostic code Nos. 42, 61, 62 or 63 are output, the overdrive OFF indicator light will begin to
blink immediately to warn the driver. However, an impact

Page 450 of 2389

TOYOTA CAMRY V20 1986  Service Information Remove the oil pan and check resistance of
No. t solenoid valve connector and body ground.
Resistance: 11 ± 1 S
Remove the oil pan and check resistance of lock±
up solenoid valve connector and body
