TOYOTA CAMRY V20 1986  Service Information TROUBLESHOOTING FLOW±CHART (A540H)
HINT:
wIf diagnostic code Nos. 44, 61, 62, 63, 73 or 74 are output, the overdrive OFF indicator light will
begin to blink immediately to warn the driver.
However, a

Page 452 of 2389

TOYOTA CAMRY V20 1986  Service Information Remove the oil pan and check resistance of lock±
up solenoid valve connector and body ground.
Resistance: 11 ± 15 W Remove the oil pan and check resistance of
No. 2 solenoid valve connector and body

Page 453 of 2389

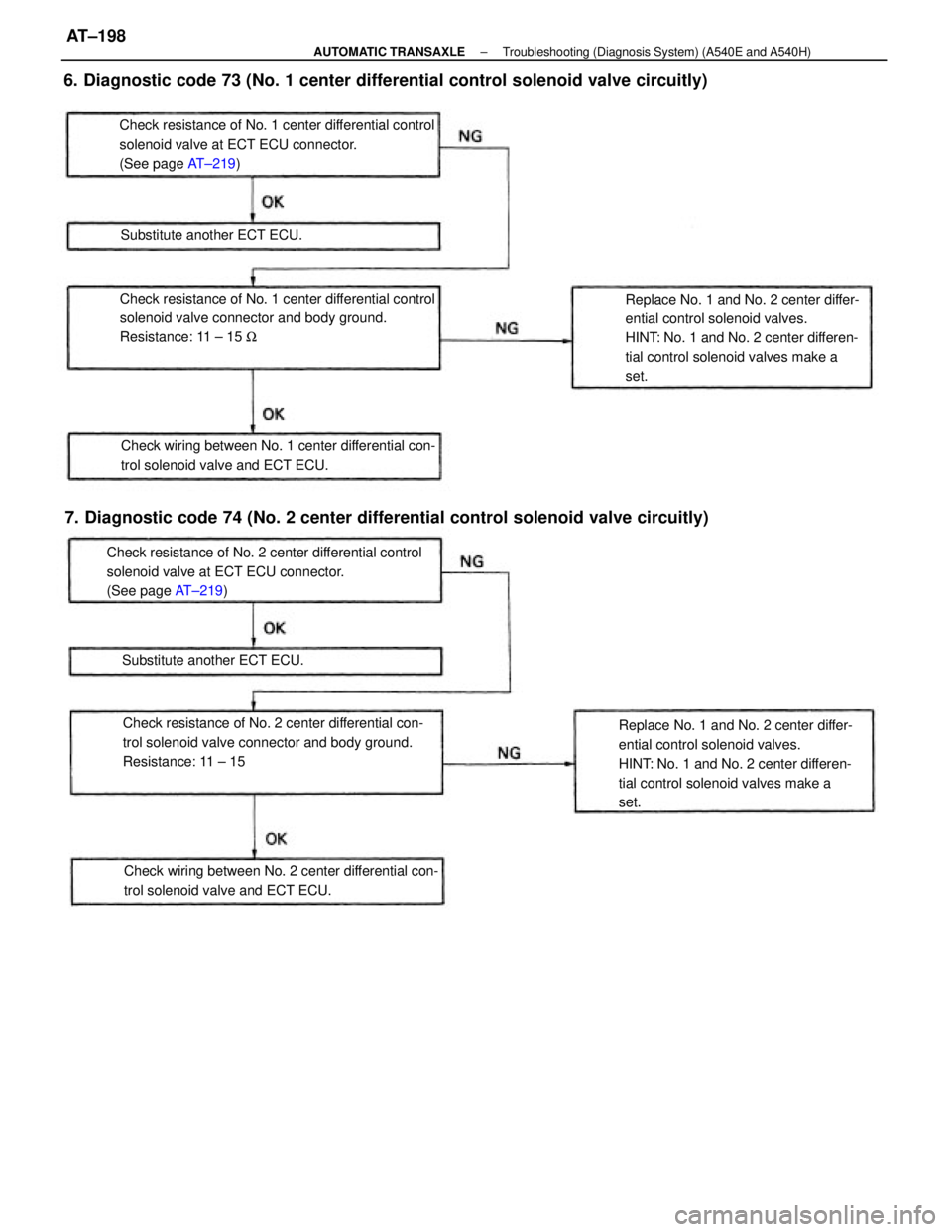

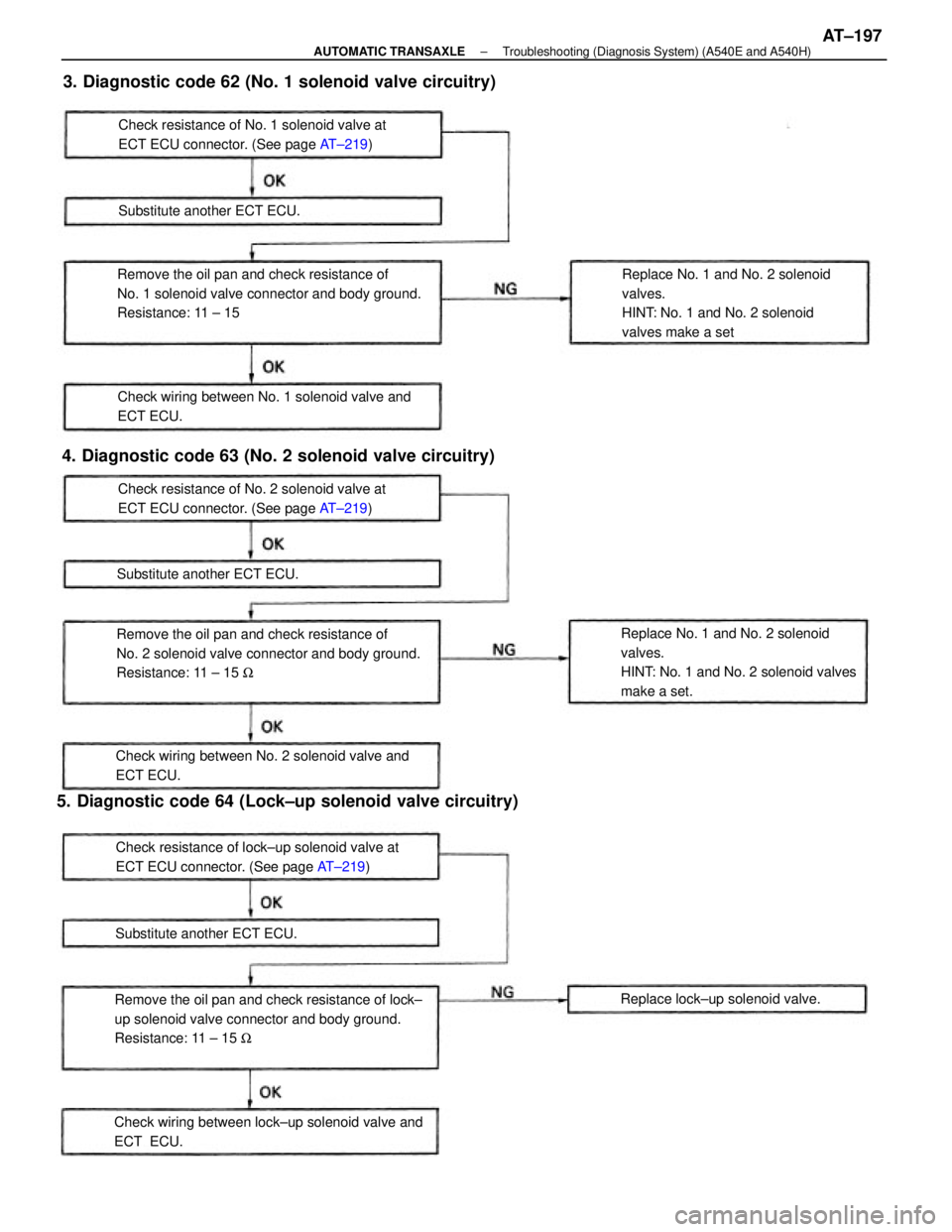

TOYOTA CAMRY V20 1986  Service Information 6. Diagnostic code 73 (No. 1 center differential control solenoid valve circuitly)
Replace No. 1 and No. 2 center differ-
ential control solenoid valves.
HINT: No. 1 and No. 2 center differen-
tial co

Page 454 of 2389

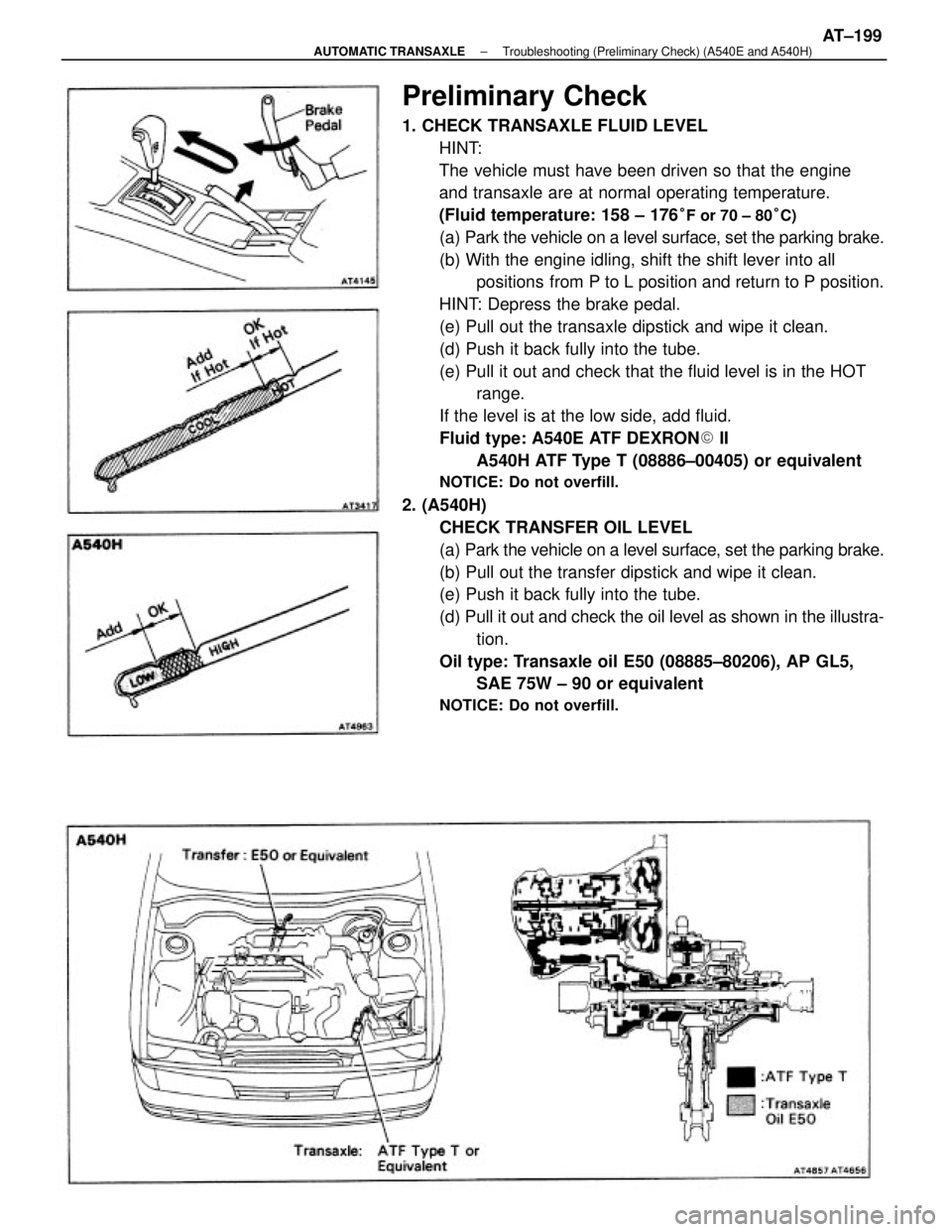

TOYOTA CAMRY V20 1986  Service Information Preliminary Check
1. CHECK TRANSAXLE FLUID LEVEL
HINT:
The vehicle must have been driven so that the engine
and transaxle are at normal operating temperature.
(Fluid temperature: 158 ± 176
°F or 70

Page 455 of 2389

TOYOTA CAMRY V20 1986  Service Information Capacity:
Dry fill: 7.0 liter (7.4 US qts, 6.2 Imp. qts)
Drain and refill:
3.3 liter (3.5 US qts, 2.9 Imp. qts)
(d) Start the engine and shift the selector into all positions
from P through L and then

Page 456 of 2389

TOYOTA CAMRY V20 1986  Service Information S. INSPECT AND ADJUST THROTTLE CABLE
(a) Depress the accelerator pedal all the way and check that
the throttle valve opens fully.
HINT: If the valve does not open fully, adjust the accelera-
tor cable

Page 457 of 2389

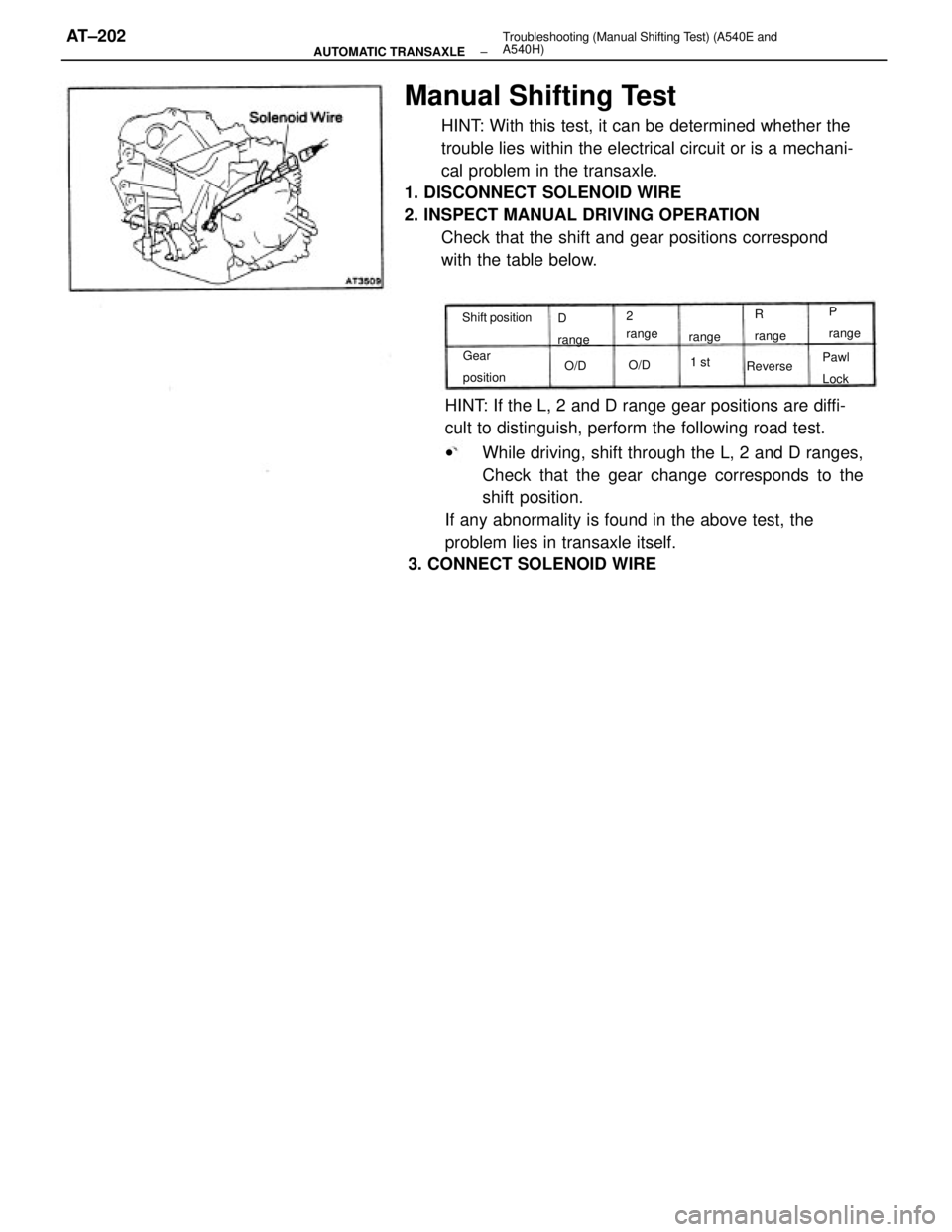

TOYOTA CAMRY V20 1986  Service Information Manual Shifting Test
HINT: With this test, it can be determined whether the
trouble lies within the electrical circuit or is a mechani-
cal problem in the transaxle.
1. DISCONNECT SOLENOID WIRE
2. INS

Page 458 of 2389

TOYOTA CAMRY V20 1986  Service Information Mechanical System Tests
STALL TEST
The object of this test is to check the overall performance of the transaxle and engine by measuring
the stall speeds in the D and R ranges.
CAUTION:
wPerform the te

Page 459 of 2389

TOYOTA CAMRY V20 1986  Service Information TIME LAG TEST
If the shift lever is shifted while the engine is idling, there will be a certain time elapse or lag before
the shock can be felt. This is used for checking the condition of the O/D dire

Page 460 of 2389

TOYOTA CAMRY V20 1986  Service Information HYDRAULIC TEST
PREPARATION
(a) Warm up the transaxle fluid.
(b) Remove the transaxle case test plug and connect the hydraulic pressure gauge.
SST 09992±00094 (Oil pressure gauge)
NOTICE:
wPerform the
