TOYOTA HILUX 2015 Owners Manual (in English)

911-2. Theft deterrent system
1
HILUX_OM_OM0K219E_(EE)
For safety and security
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
●The doors are unlocked using the key
and are opened.
● A person inside the vehicle opens a door
or hood.
● The battery is recharged or replaced
when the vehicle is locked.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
HILUX_OM_OM0K219E_(EE).book Page 91 Wednesday, May 14, 2014 3:06 PM

921-2. Theft deterrent system
HILUX_OM_OM0K219E_(EE)
HILUX_OM_OM0K219E_(EE).book Page 92 Wednesday, May 14, 2014 3:06 PM

93
2Instrument cluster
HILUX_OM_OM0K219E_(EE)2. Instrument cluster
Warning lights and indicators .................... 94
Gauges and meters ........... 100
Multi-information display .... 104
HILUX_OM_OM0K219E_(EE).book Page 93 Wednesday, May 14, 2014 3:06 PM

942. Instrument cluster
HILUX_OM_OM0K219E_(EE)
Warning lights and indicators

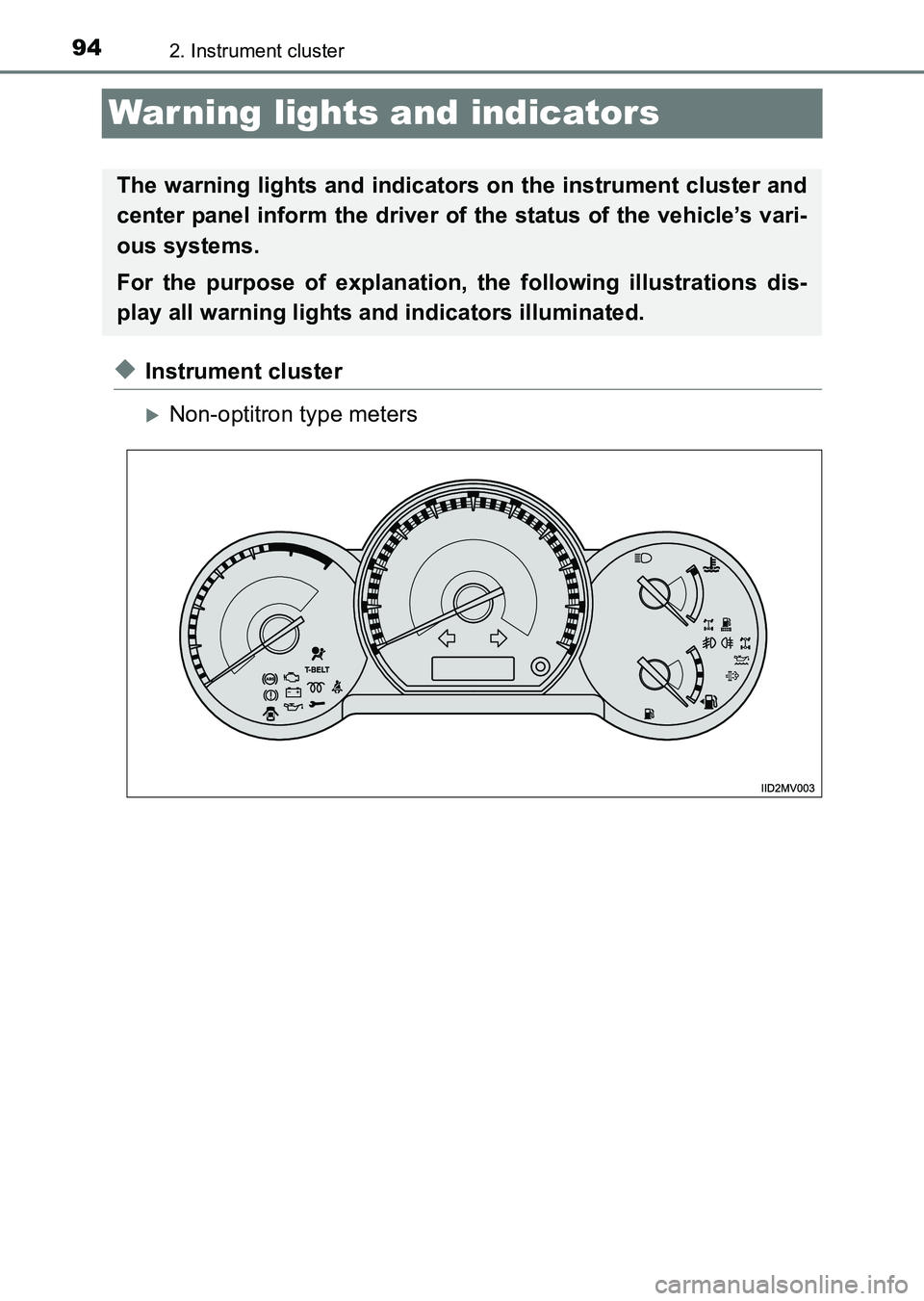

◆Instrument cluster
XNon-optitron type meters
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.
HILUX_OM_OM0K219E_(EE).book Page 94 Wednesday, May 14, 2014 3:06 PM

952. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)
XOptitron type meters
◆Center panel
XVehicles without
multi-information displayXVehicles with multi-information
display
HILUX_OM_OM0K219E_(EE).book Page 95 Wednesday, May 14, 2014 3:06 PM

962. Instrument cluster
HILUX_OM_OM0K219E_(EE)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1Brake system warning
light (→P. 448)*1
(if equipped)
Automatic transmission
fluid temperature
warning light ( →P. 450)
*1Charging system
warning light ( →P. 449)*1
(diesel engine)
Timing belt replacement
warning light ( →P. 450)
*1Low engine oil pressure
warning light ( →P. 449)*1
(diesel engine)
Fuel system warning
light ( →P. 451)
*1Malfunction indicator
lamp ( →P. 449)*1
(if equipped)
DPF system warning
light ( →P. 451)
*1
(if equipped)
SRS warning light
(→ P. 449)Open door warning light
(→ P. 452)
*1
(if equipped)
ABS warning light
(→ P. 450)Low fuel level warning
light ( →P. 452)
*1
(if equipped)
Slip indicator light
(→ P. 450)Driver’s seat belt
reminder light ( →P. 452)
*3
(if equipped)
Cruise control indicator
light ( →P. 450)Front passenger’s seat
belt reminder light
(→ P. 452)
HILUX_OM_OM0K219E_(EE).book Page 96 Wednesday, May 14, 2014 3:06 PM

972. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)

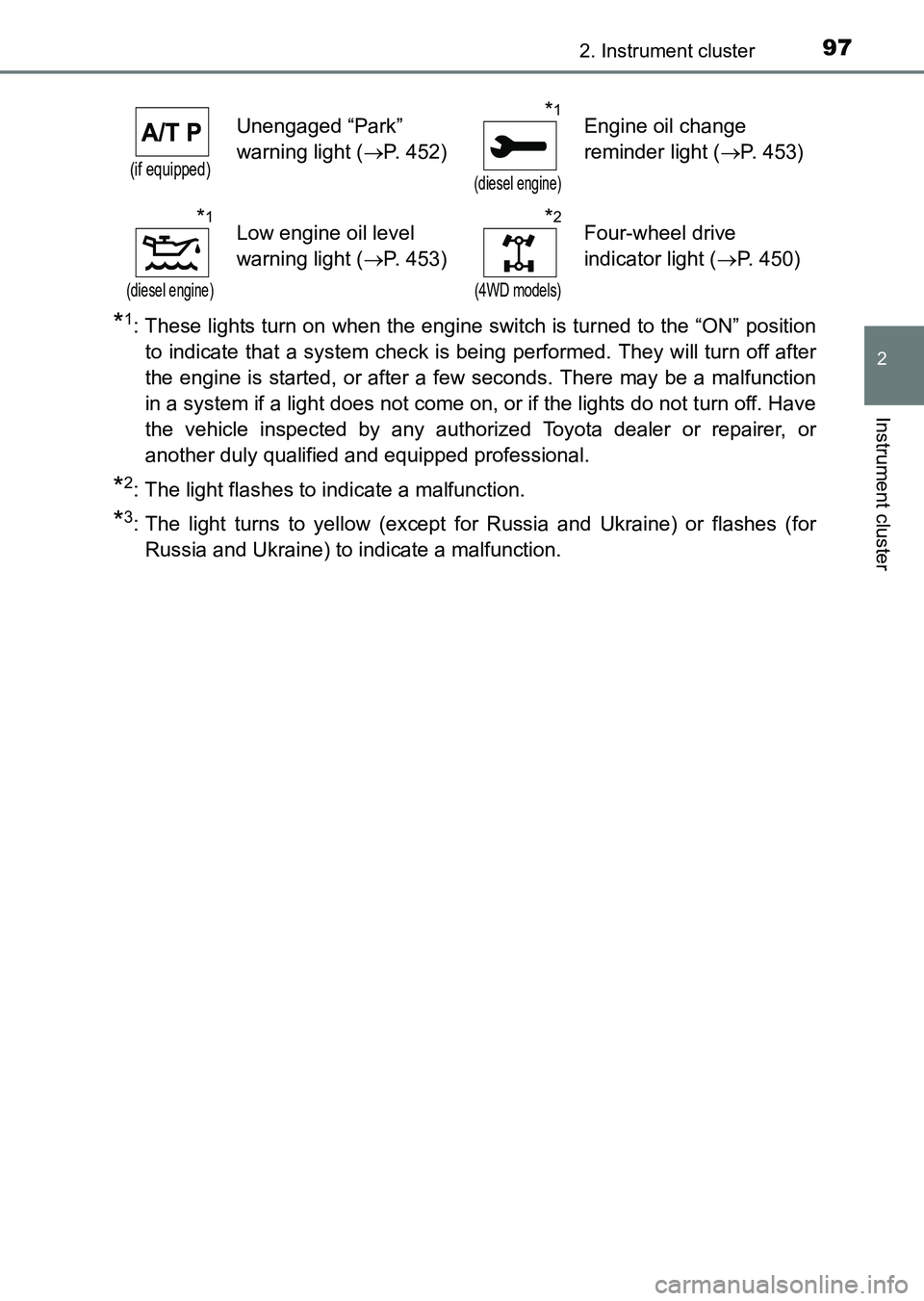

*1: These lights turn on when the engine switch is turned to the “ON” positionto indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: The light turns to yellow (except for Russia and Ukraine) or flashes (forRussia and Ukraine) to indicate a malfunction.
(if equipped)
Unengaged “Park”
warning light ( →P. 452)*1
(diesel engine)
Engine oil change
reminder light ( →P. 453)
*1
(diesel engine)
Low engine oil level
warning light ( →P. 453)*2
(4WD models)
Four-wheel drive
indicator light ( →P. 450)
HILUX_OM_OM0K219E_(EE).book Page 97 Wednesday, May 14, 2014 3:06 PM

982. Instrument cluster
HILUX_OM_OM0K219E_(EE)

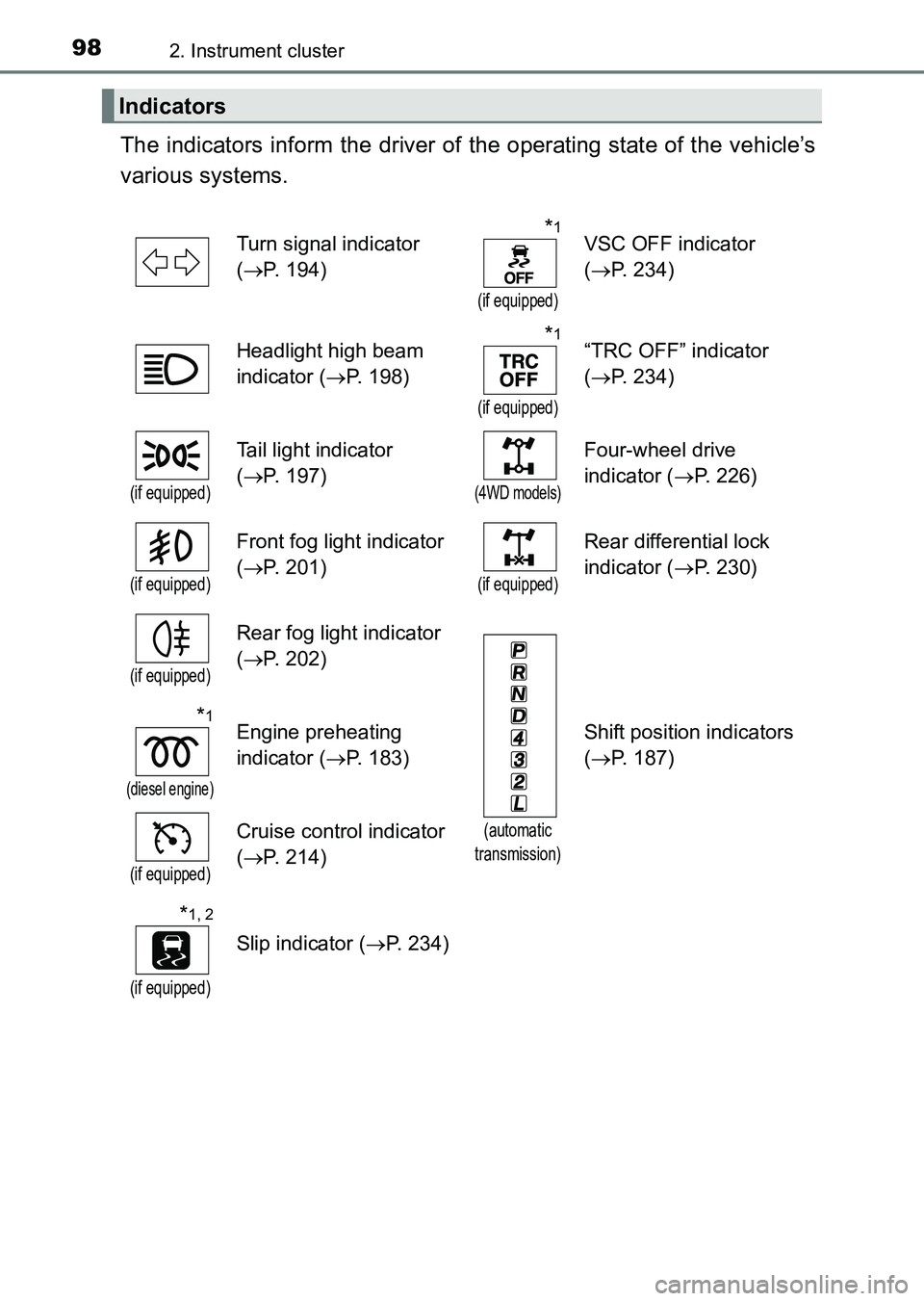

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 194)*1
(if equipped)
VSC OFF indicator
(→ P. 234)
Headlight high beam
indicator ( →P. 198)
*1
(if equipped)
“TRC OFF” indicator
(→ P. 234)
(if equipped)
Tail light indicator
(→ P. 197)
(4WD models)
Four-wheel drive
indicator ( →P. 226)
(if equipped)
Front fog light indicator
(→ P. 201)
(if equipped)
Rear differential lock
indicator ( →P. 230)
(if equipped)
Rear fog light indicator
(→ P. 202)
(automatic
transmission)
Shift position indicators
( → P. 187)*1
(diesel engine)
Engine preheating
indicator ( →P. 183)
(if equipped)
Cruise control indicator
(→ P. 214)
*1, 2
(if equipped)
Slip indicator ( →P. 234)
HILUX_OM_OM0K219E_(EE).book Page 98 Wednesday, May 14, 2014 3:06 PM

992. Instrument cluster
2
Instrument cluster
HILUX_OM_OM0K219E_(EE)
*1: These lights turn on when the engine switch is turned to the “ON” positionto indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.

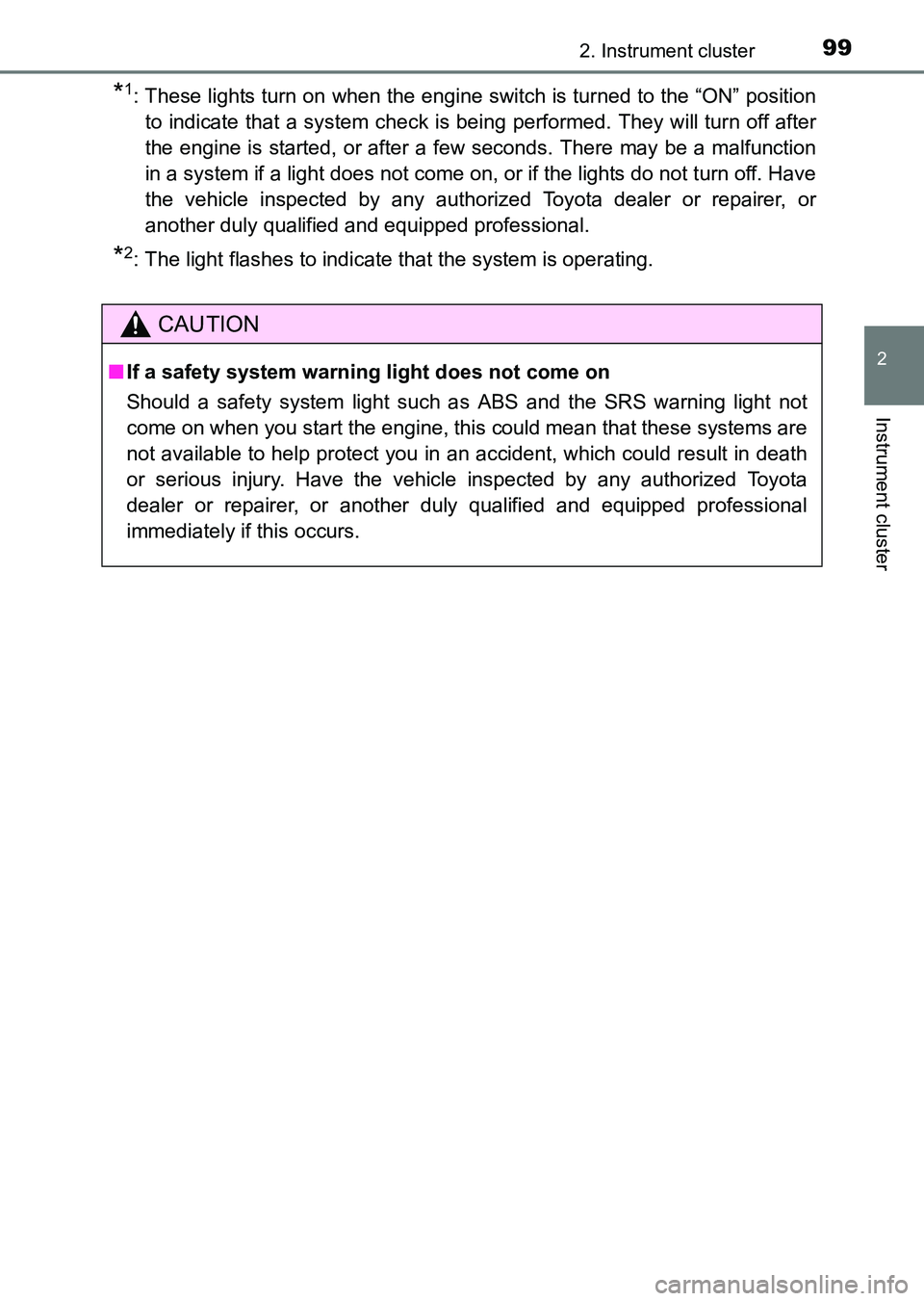

CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional
immediately if this occurs.
HILUX_OM_OM0K219E_(EE).book Page 99 Wednesday, May 14, 2014 3:06 PM

1002. Instrument cluster
HILUX_OM_OM0K219E_(EE)

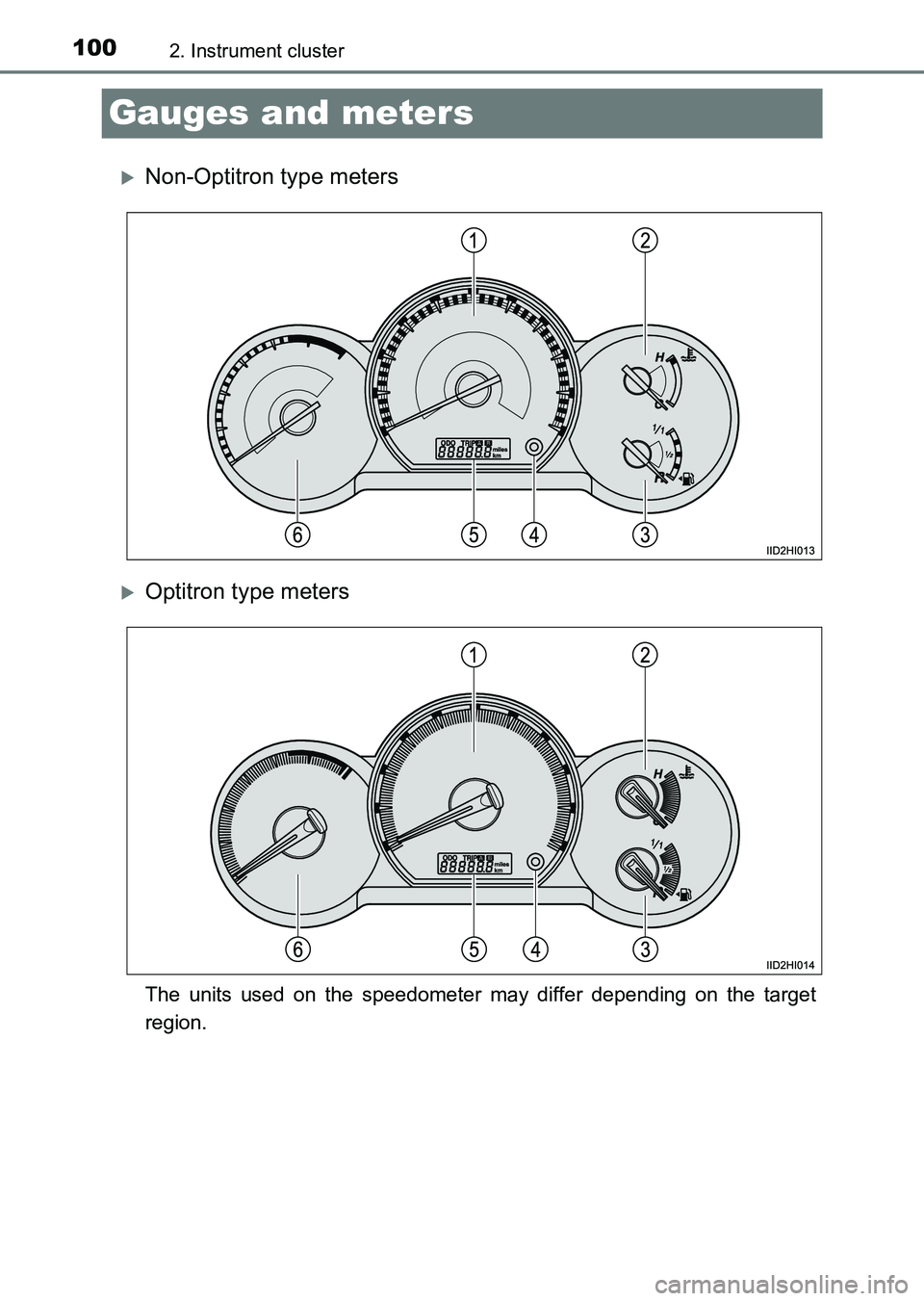

Gauges and meters
XNon-Optitron type meters
XOptitron type meters
The units used on the speedometer may differ depending on the target
region.
