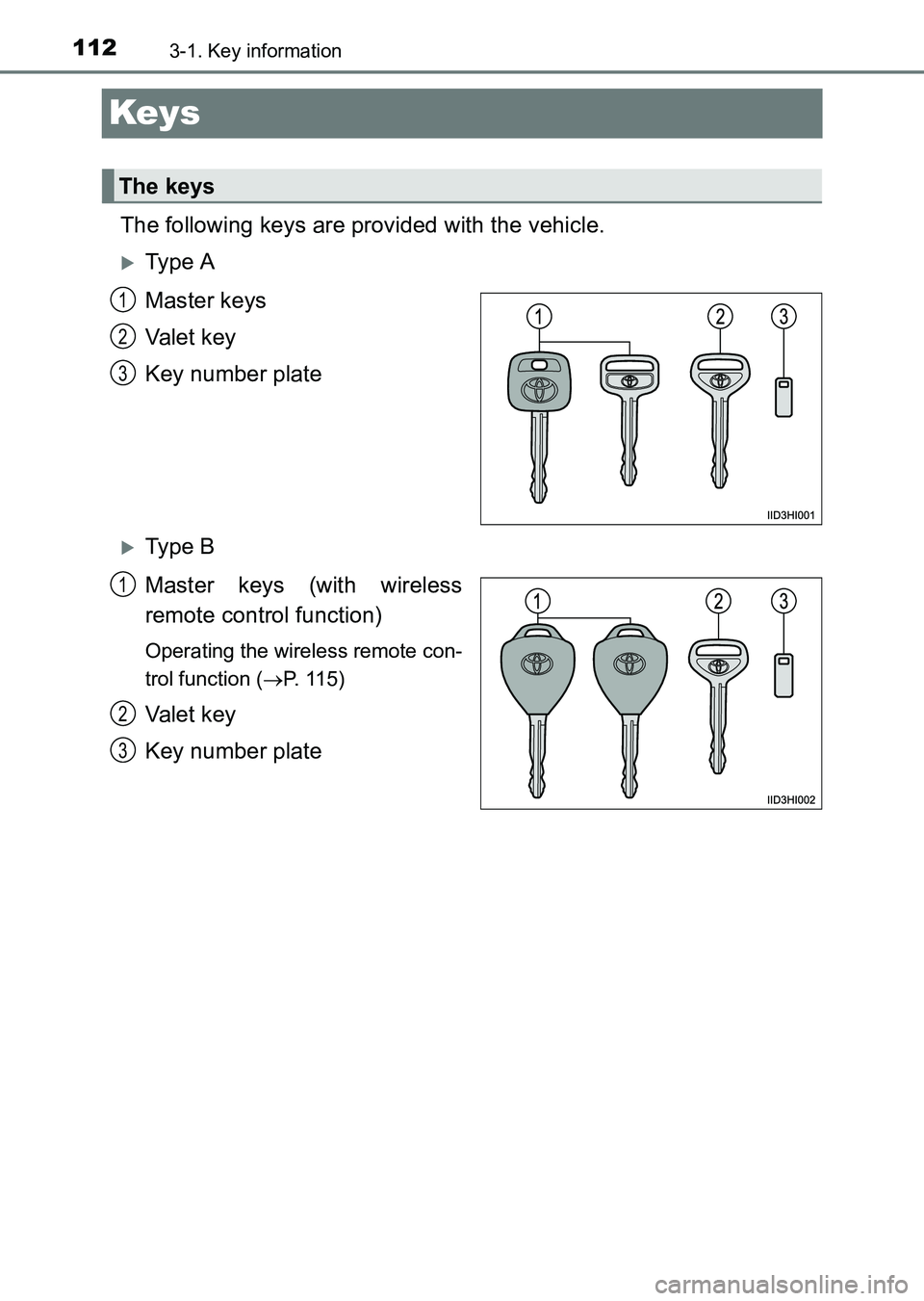

1123-1. Key information
HILUX_OM_OM0K219E_(EE)
Keys
The following keys are provided with the vehicle.
XTy pe A
Master keys
Va l e t k e y
Key number plate
XTy pe B
Master keys (with wireless
remote control function)
Operating the wireless remote con-
trol function (→P. 115)
Va l e t k e y
Key number plate
The keys
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 112 Wednesday, May 14, 2014 3:06 PM

1133-1. Key information
3
Operation of each component
HILUX_OM_OM0K219E_(EE)

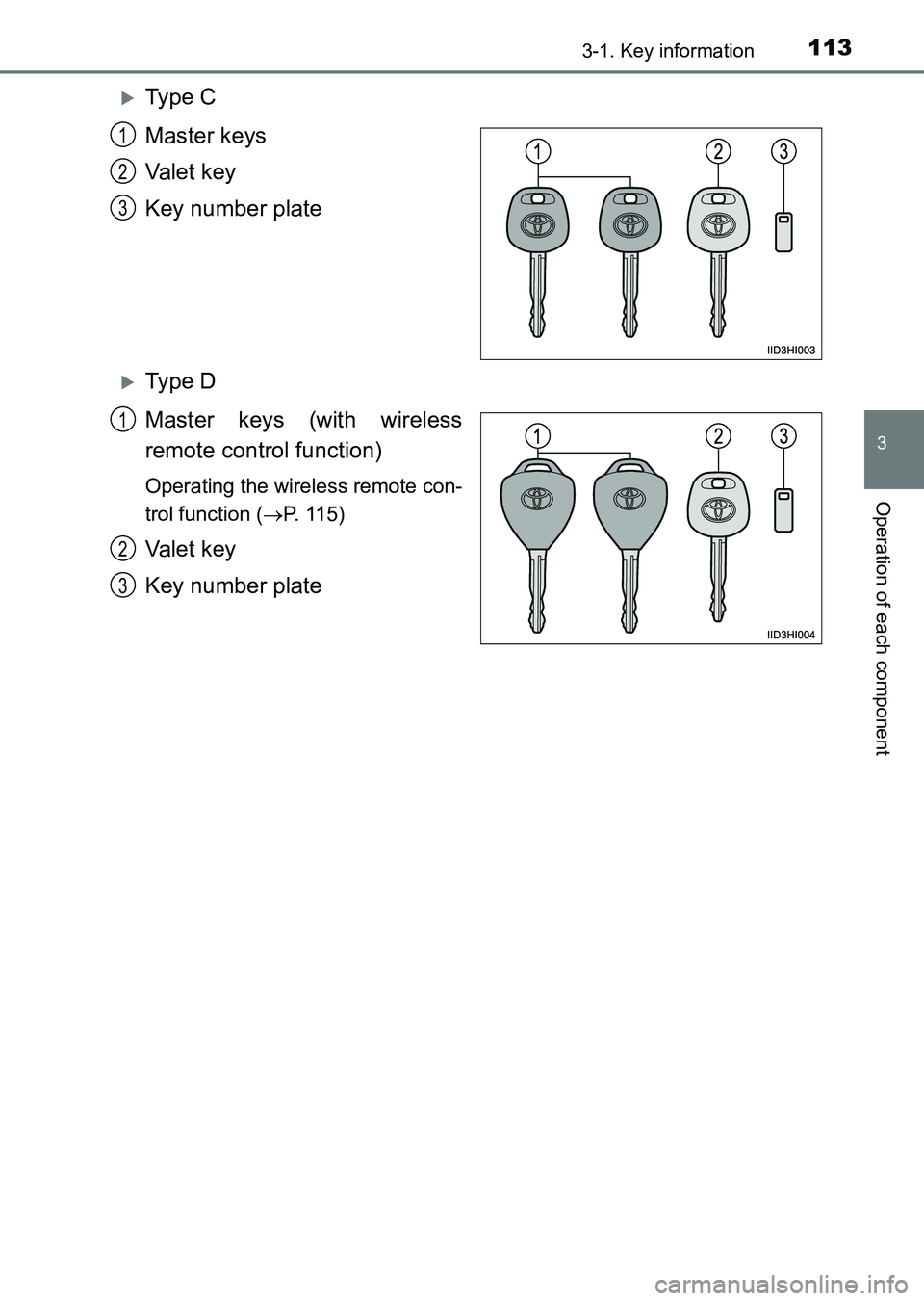

XTy pe C
Master keys
Va l e t k e y
Key number plate
XTy pe D
Master keys (with wireless
remote control function)
Operating the wireless remote con-
trol function (→P. 115)
Va l e t k e y
Key number plate
1
2
3
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 113 Wednesday, May 14, 2014 3:06 PM

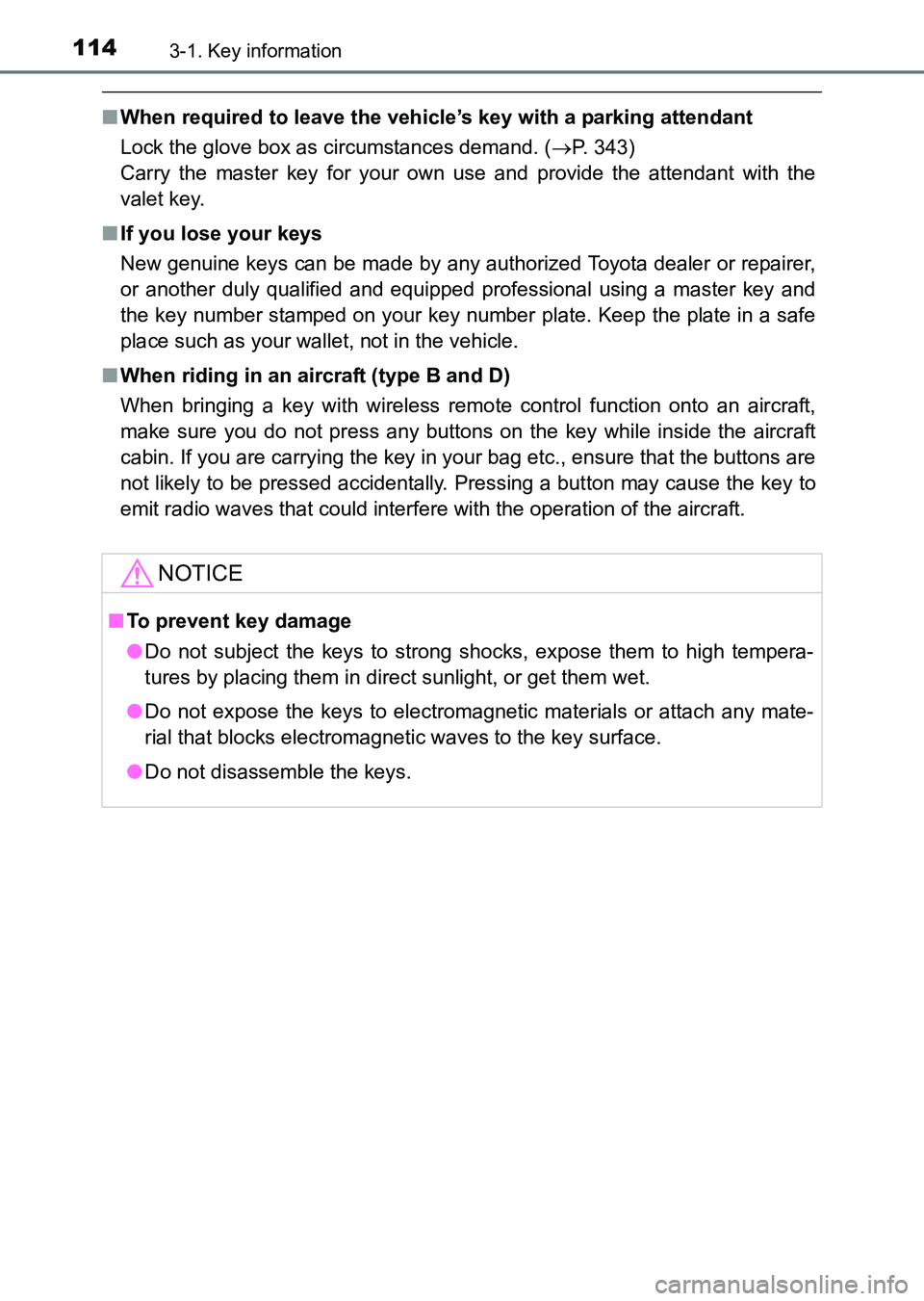

1143-1. Key information
HILUX_OM_OM0K219E_(EE)
■When required to leave the vehicle ’s key with a parking attendant
Lock the glove box as circumstances demand. ( →P. 343)
Carry the master key for your own use and provide the attendant with the
valet key.
■ If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using a master key and
the key number stamped on your key number plate. Keep the plate in a safe
place such as your wallet, not in the vehicle.
■ When riding in an aircraft (type B and D)
When bringing a key with wireless remo te control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
NOTICE
■ To prevent key damage
● Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the keys.
HILUX_OM_OM0K219E_(EE).book Page 114 Wednesday, May 14, 2014 3:06 PM

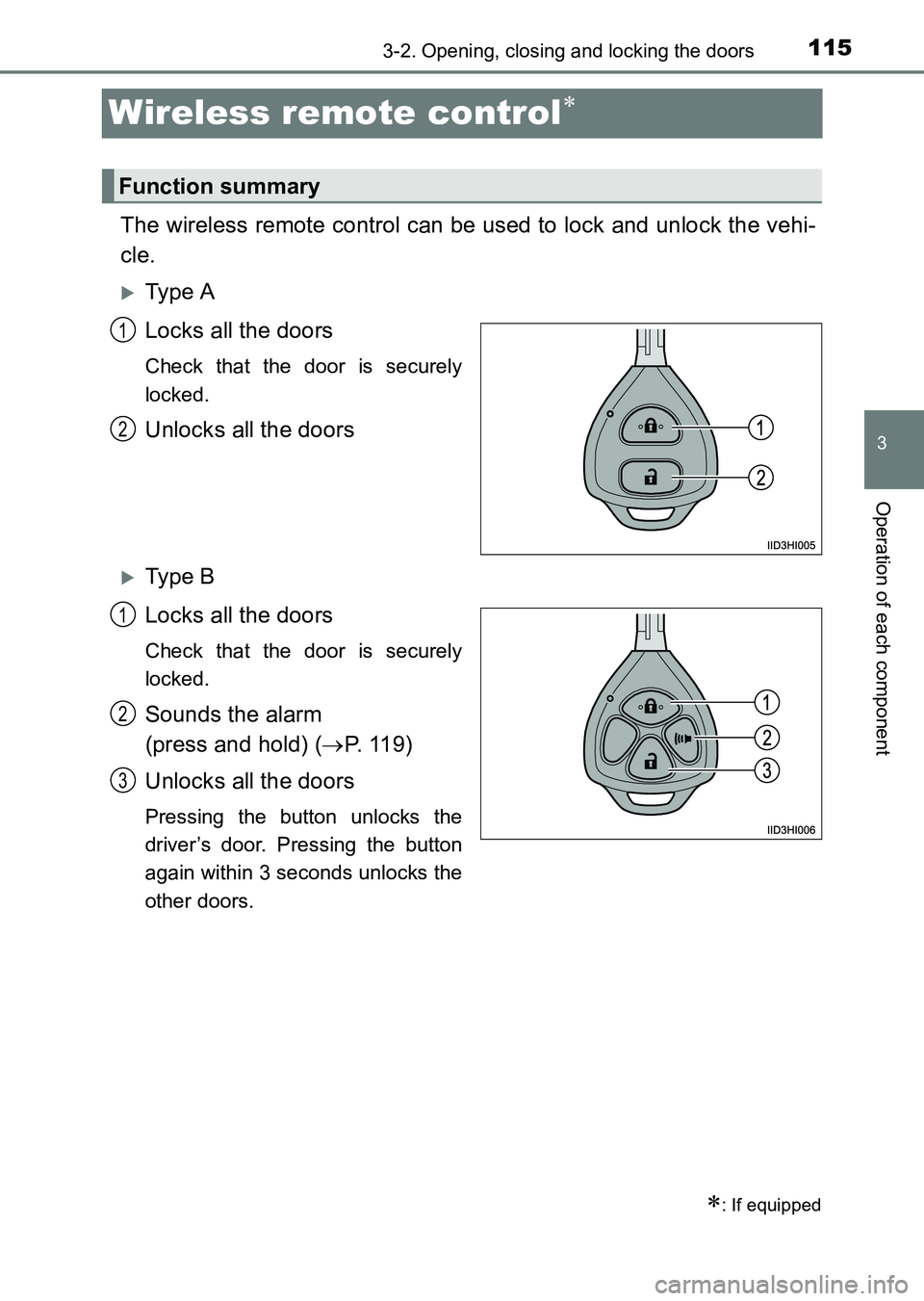

115
3
3-2. Opening, closing and locking the doors
Operation of each component
HILUX_OM_OM0K219E_(EE)
Wireless remote control∗
The wireless remote control can be used to lock and unlock the vehi-
cle.
XTy pe A
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
XTy pe B
Locks all the doors
Check that the door is securely
locked.
Sounds the alarm
(press and hold) (→P. 119)
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
∗: If equipped
Function summary
1
2
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 115 Wednesday, May 14, 2014 3:06 PM

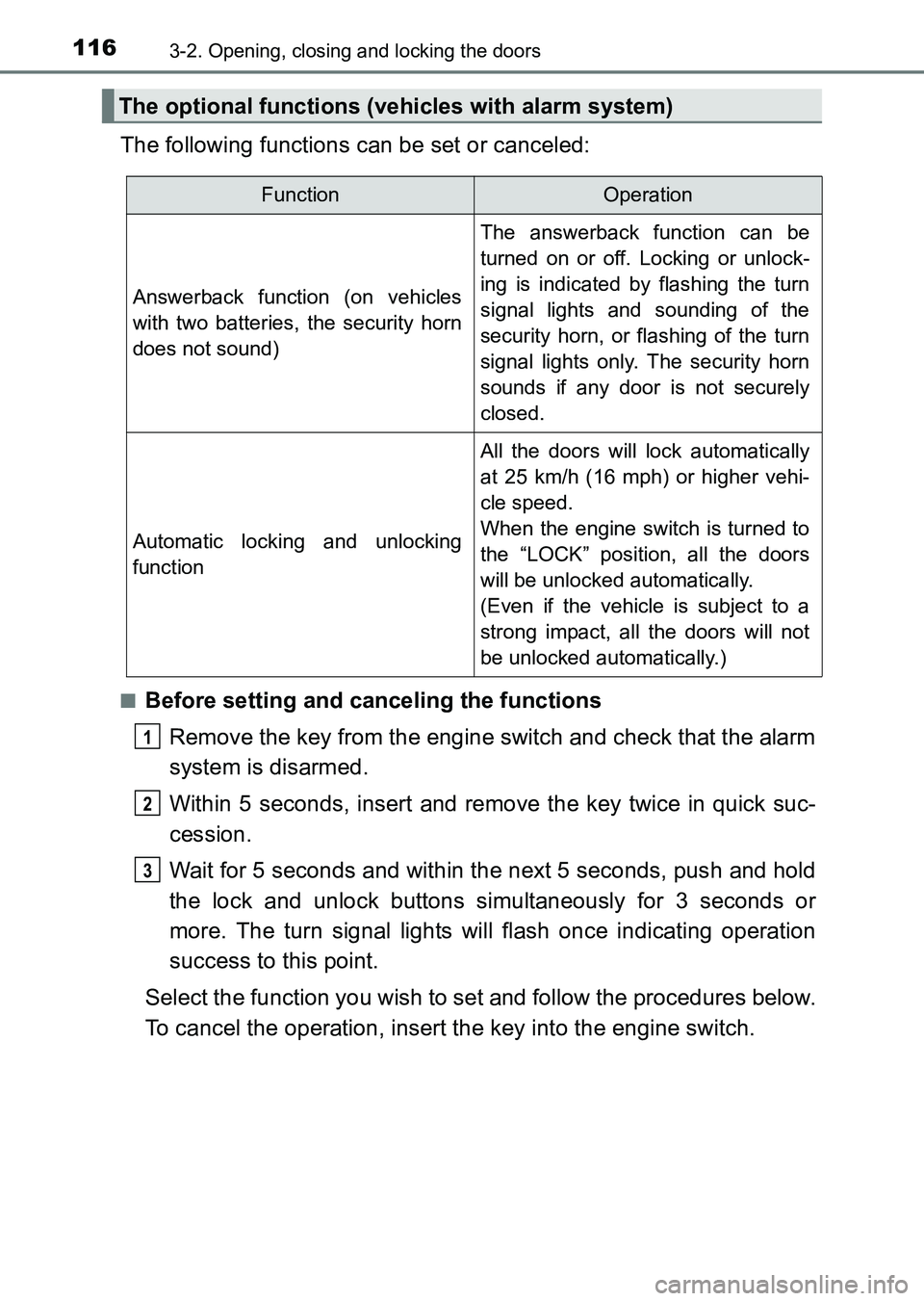

1163-2. Opening, closing and locking the doors
HILUX_OM_OM0K219E_(EE)
The following functions can be set or canceled:
■Before setting and canceling the functionsRemove the key from the engine switch and check that the alarm
system is disarmed.
Within 5 seconds, insert and remove the key twice in quick suc-
cession.
Wait for 5 seconds and within the next 5 seconds, push and hold
the lock and unlock buttons simultaneously for 3 seconds or
more. The turn signal lights will flash once indicating operation
success to this point.
Select the function you wish to set and follow the procedures below.
To cancel the operation, insert the key into the engine switch.
The optional functions (vehicles with alarm system)
FunctionOperation
Answerback function (on vehicles
with two batteries, the security horn
does not sound) The answerback function can be
turned on or off. Locking or unlock-
ing is indicated by flashing the turn
signal lights and sounding of the
security horn, or flashing of the turn
signal lights only. The security horn
sounds if any door is not securely
closed.
Automatic locking and unlocking
function
All the doors will lock automatically
at 25 km/h (16 mph) or higher vehi-
cle speed.
When the engine switch is turned to
the “LOCK” position, all the doors
will be unlocked automatically.
(Even if the vehicle is subject to a
strong impact, all the doors will not
be unlocked automatically.)
1
2
3
HILUX_OM_OM0K219E_(EE).book Page 116 Wednesday, May 14, 2014
3:06 PM

1173-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K219E_(EE)■

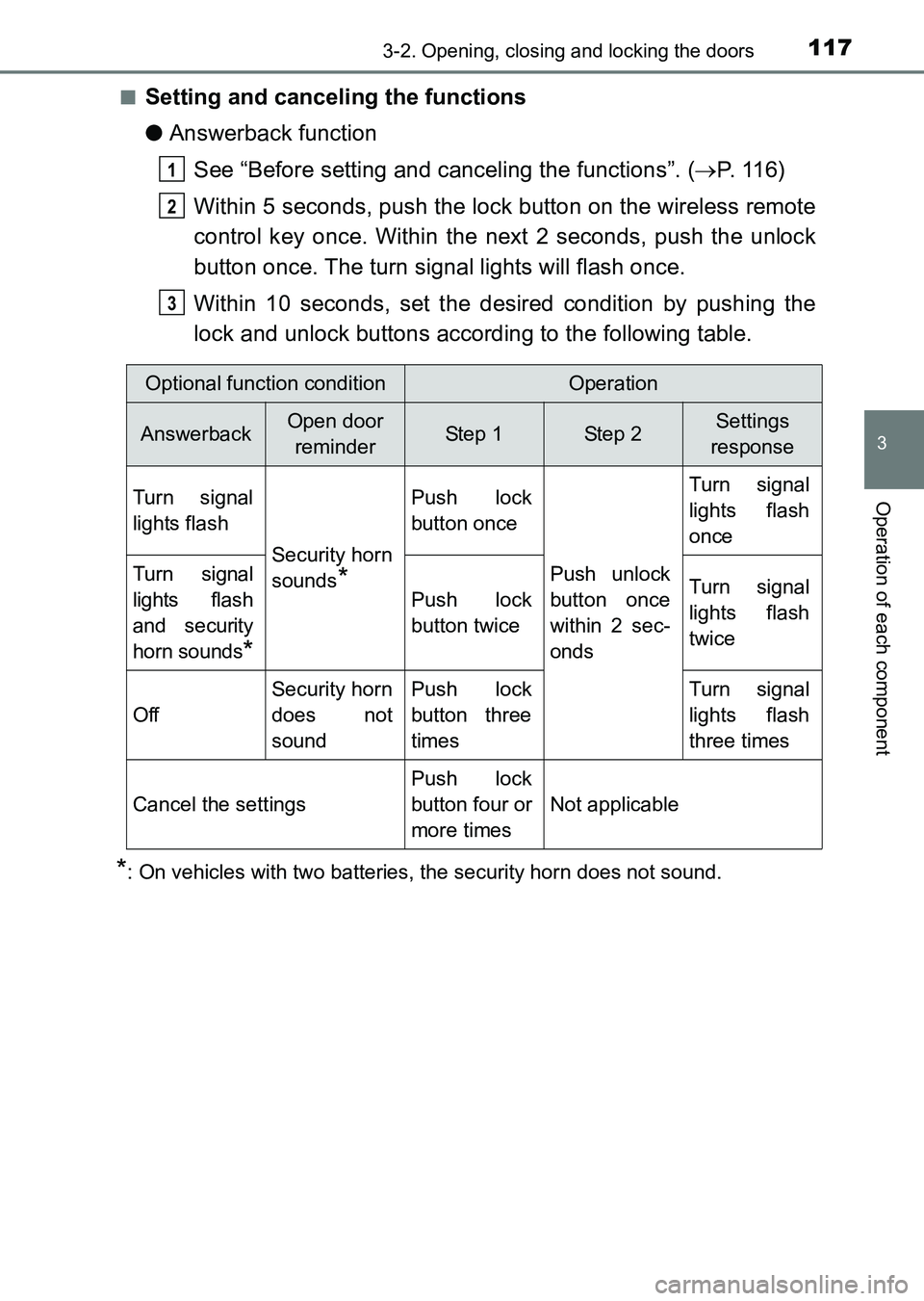

Setting and canceling the functions
●
Answerback function
See “Before setting and canceling the functions”. ( →P. 1 1 6 )
Within 5 seconds, push the lock button on the wireless remote
control key once. Within the next 2 seconds, push the unlock
button once. The turn signal lights will flash once.
Within 10 seconds, set the desired condition by pushing the
lock and unlock buttons according to the following table.
*: On vehicles with two batteries, the security horn does not sound.
1
2
3
Optional function conditionOperation
AnswerbackOpen door reminderStep 1Step 2Settings
response
Turn signal
lights flash
Security horn
sounds
*
Push lock
button once
Push unlock
button once
within 2 sec-
onds
Turn signal
lights flash
once
Turn signal
lights flash
and security
horn sounds
*
Push lock
button twiceTurn signal
lights flash
twice
Off
Security horn
does not
soundPush lock
button three
timesTurn signal
lights flash
three times
Cancel the settings
Push lock
button four or
more times
Not applicable
HILUX_OM_OM0K219E_(EE).book Page 117 Wednesday, May 14, 2014 3:06 PM

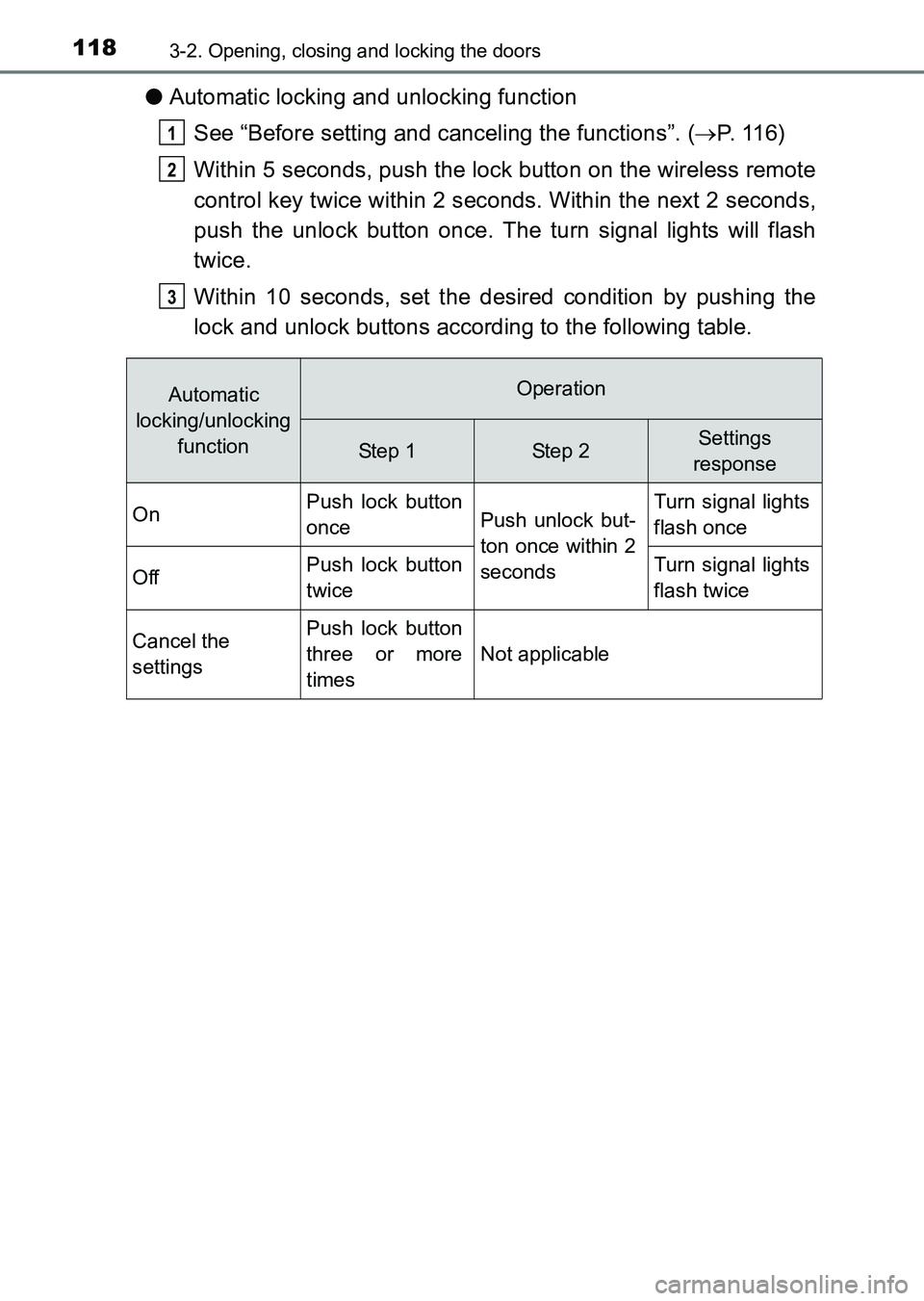

1183-2. Opening, closing and locking the doors
HILUX_OM_OM0K219E_(EE)
●Automatic locking and unlocking function
See “Before setting and canceling the functions”. ( →P. 1 1 6 )
Within 5 seconds, push the lock button on the wireless remote
control key twice within 2 seconds. Within the next 2 seconds,
push the unlock button once. The turn signal lights will flash
twice.
Within 10 seconds, set the desired condition by pushing the
lock and unlock buttons according to the following table.
1
2
3
Automatic
locking/unlocking functionOperation
Step 1Step 2Settings
response
On Push lock button
once
Push unlock but-
ton once within 2
secondsTurn signal lights
flash once
Off Push lock button
twice Turn signal lights
flash twice
Cancel the
settings Push lock button
three or more
times
Not applicable
HILUX_OM_OM0K219E_(EE).book Page 118 Wednesday, May 14, 2014
3:06 PM

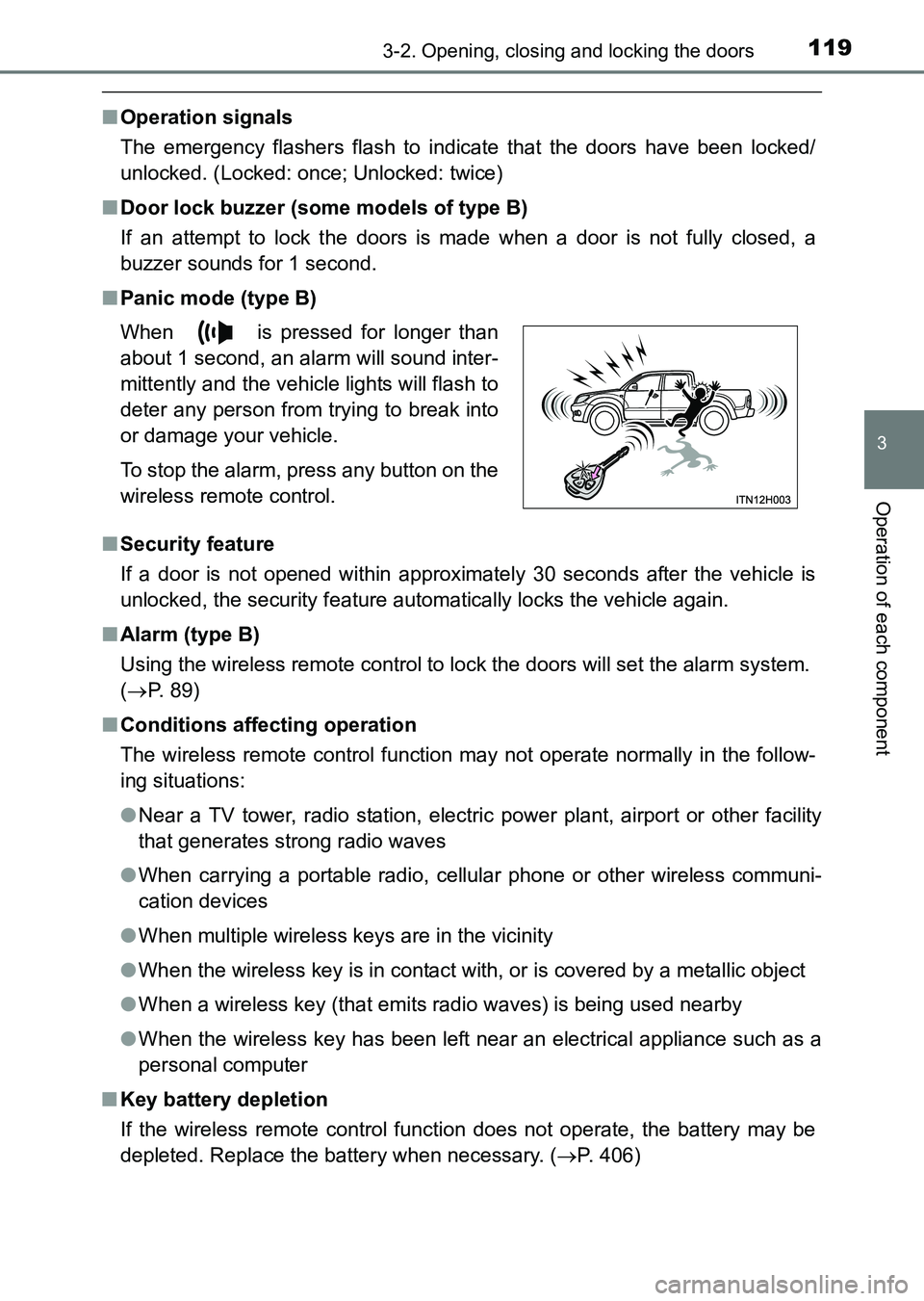

1193-2. Opening, closing and locking the doors
3
Operation of each component
HILUX_OM_OM0K219E_(EE)
■Operation signals
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Door lock buzzer (some models of type B)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds for 1 second.
■ Panic mode (type B)
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Alarm (type B)
Using the wireless remote control to lock the doors will set the alarm system.
(→ P. 89)
■ Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations:
●Near a TV tower, radio station, electr ic power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation devices
● When multiple wireless keys are in the vicinity
● When the wireless key is in contact with, or is covered by a metallic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
■ Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. ( →P. 406)
When is pressed for longer than
about 1 second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
