1615-1. Before driving
5
Driving
CAUTION
■Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compart-
ment:
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly,
may block the driver’s vision, or may result in items hitting the driver or
passengers, possibly causing an accident.
●Stow cargo and luggage in the luggage compartment whenever possi-
ble.
●Do not stack cargo and luggage in the luggage compartment higher
than the seatbacks.
Such items may be thrown about and possibly injure people in the
vehicle in the event of sudden braking or in an accident.
●Do not place cargo or luggage in or on the following locations.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the instrument panel
• On the dashboard
●Secure all items in the occupant compartment, as they may shift and
injure someone during sudden braking, sudden swerving or an acci-
dent.
●When you fold down the rear seats, long items should not be place
directly behind the front seats.
●Never allow anyone to ride in the luggage compartment. It is not
designed for passengers. They should ride in their seats with their seat
belts properly fastened.
■Capacity and distribution
●Do not exceed the maximum axle weight rating or the total vehicle
weight rating.
●Even if the total load of occupant’s weight and the cargo load is less
than the total load capacity, do not apply the load unevenly. Improper
loading may cause deterioration of steering or braking control which
may cause death or serious injury.

1625-1. Before driving
Vehicle load limits
◆Total load capacity (vehicle capacity weight): P. 3 9 6
Total load capacity means the combined weight of occupants, cargo
and luggage.
◆Seating capacity: 4 occupants (Front 2, Rear 2)
Seating capacity means the maxi mum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
◆Towing capacity
Scion does not recommend towing a trailer with your vehicle.
◆Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.
■Total load capacity and seating capacity
These details are also described on the tire and loading information label.
(  P. 292)
Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.
CAUTION
■Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering
and braking ability, resu lting in an accident.

1635-1. Before driving
5
Driving

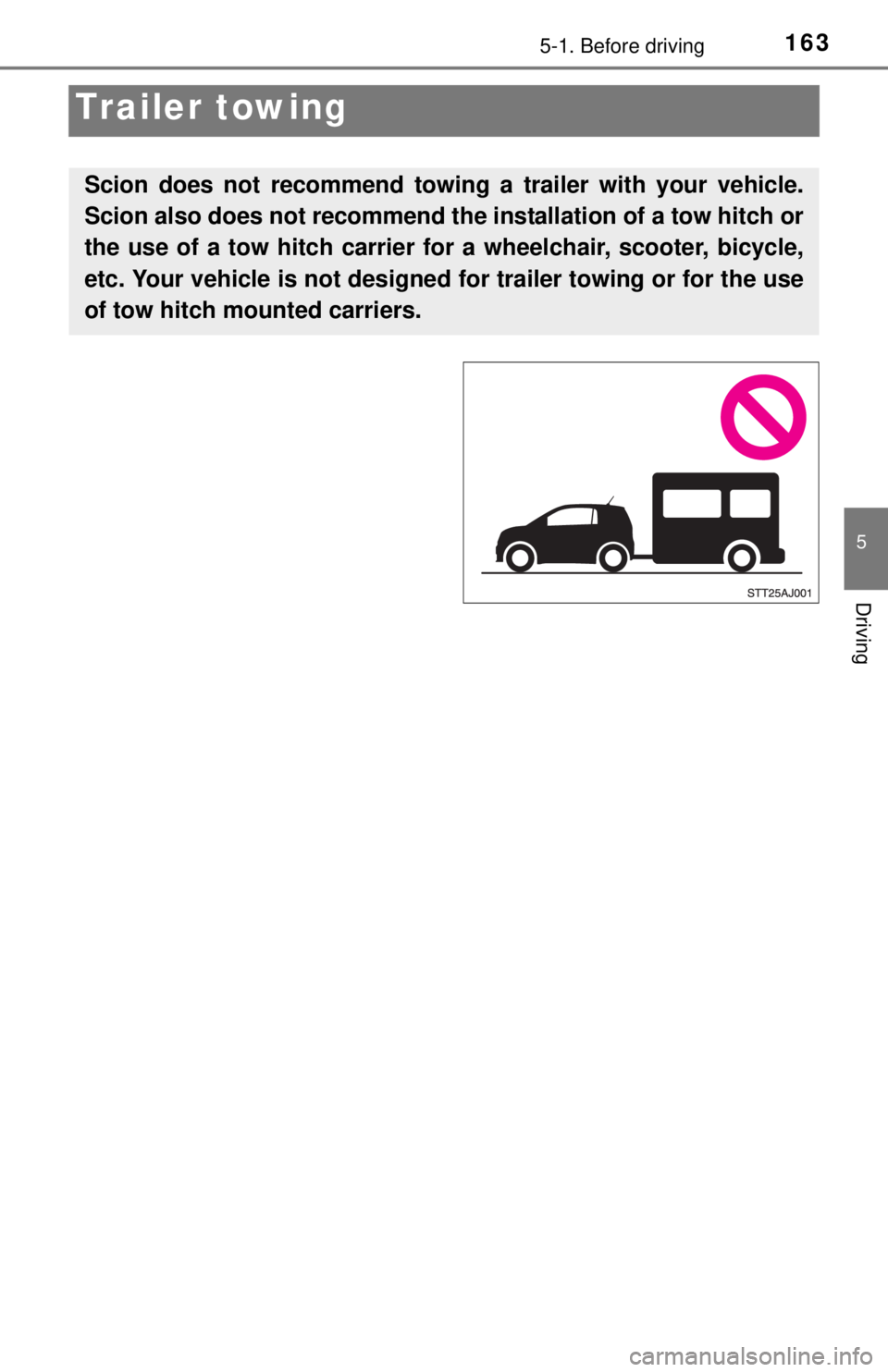

Trailer towing
Scion does not recommend towing a trailer with your vehicle.
Scion also does not recommend th e installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle,
etc. Your vehicle is not designed for trailer towing or for the use
of tow hitch mounted carriers.

1645-1. Before driving
Dinghy towing
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.

1655-2. Driving procedures
5
Driving
Power (ignition) switch
Check that the charging cable is disconnected. (P. 188)
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
The power switch indicator will turn green. If the indicator does not turn
green, the EV system cannot be started.
Press the power switch.
The vehicle can move when the
“READY” indicator is on.
Continue depressing the brake
pedal until the EV system is com-
pletely started.
The EV system can be started from
any power switch mode.
Check that the “READY” indicator is on.
The vehicle will not move when the “READY” indicator is off.
Performing the following operati ons when carrying the elec-
tronic key on your person starts the EV system or changes
power switch modes.
Starting the EV system
1
2
3
4
5
6

1665-2. Driving procedures
Depress the brake pedal until the vehicle comes to a complete
stop.
Set the parking brake. (P. 174)
Shift the shift lever to P.
Press the power switch.
Slowly release the brake pedal and check that the indicator on the
power switch is off.
Modes can be changed by pressing th e power switch with brake pedal
released. (The mode c hanges each time the switch is pressed.)
Off*
The emergency flashers can be
used.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
The power switch indicator turns
amber.
ON mode
All electrical components can be
used.
The power switch indicator turns
amber.
*: The power switch will be turned to ACCESSORY mode, not turned off
unless the shift lever is in P.
Stopping the EV system
Changing power switch modes
1
2
3
4
5
123
STY21EV003
1
2
3

1675-2. Driving procedures
5
Driving
If the EV system is stopped with the shift lever in a position other than
P, the power switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:Check that the parking brake is set.
Shift the shift lever to P.
Check that the power switch indicator is illu minated amber and then
press the power switch once.
Check that the power switch indicator goes out.
■ Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON
mode (the EV system is not operation) for more than an hour with the shift
lever in P, the power switch will automatically turn off. Furthermore, when the
mode is turned to ON mode while charging, the power switch will automati-
cally turn off after approximately 2 minutes have elapsed.
However, this function cannot entirely prevent 12-volt battery from discharge.
Do not leave the vehicle with the power switch in ACCESSORY or ON mode
for long periods of time when the EV system is not operating.
■ Sounds and vibrations speci fic to an electric vehicle
P. 7 7
■ Electronic key battery depletion
P. 128
■ When the ambient temperature is lo w, such as during winter driving con-
ditions
● When the temperature of the battery for driving power is low, a warning
message is displayed on the multi-information display and the output of the
electric motor will be restricted. ( P. 348)
● The “READY” indicator may flash for a long time when the EV system is
starting. Driving will become possible onc e the “READY” indicator has illumi-
nated. Wait until the “READY” indicator has illuminated.
■ Conditions affecting operation
P. 125
■ Notes for the entry function
P. 126
When stopping the EV system with the shift lever in a position
other than P
1
2
3
4

1685-2. Driving procedures
■If the EV system does not start
●The charging cable may be attached to the vehicle. ( P. 188)
● The immobilizer system may not have been deactivated. ( P. 66)
Contact your Scion dealer.
● Check that the shift lever is securely set in P. The EV system may not start if
the shift lever is displaced out of P. “SHIFT TO P POSITION WHEN
STARTING” will be displayed on the multi-information display.
● The steering lock may not have been deactivated.
■ Steering lock
After turning the power switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
power switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the EV system is turned on and off repeatedly in a short period of
time. In this case, refrain from operating the EV system. After about 10 sec-
onds, the steering lock motor will resume functioning.
■ When the power switch in dicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Scion
dealer immediately.
■ If the “READY” indicator does not come on
If the “READY” indicator does not come on when you press the power switch
with the shift lever in P and the brake pedal depressed, contact your Scion
dealer immediately.
■ If the EV system is malfunctioning
P. 345
■ If the electronic key battery is depleted
P. 299 “STEERING LOCK ACTIVE” will be dis-
played on the multi-information display
and the green indicator on the power
switch will flash.
Check that the shift lever is set in P. Press
the power switch while turning the steer-
ing wheel left and right.

1695-2. Driving procedures
5
Driving
■Operation of the power switch
●When operating the power switch, one short, firm press is enough. If the
switch is pressed improperly, the EV system may not start or the power
switch mode may not change. It is not necessary to press and hold the
switch.
● If attempting to restart the EV system immediately after turning the power
switch off, the EV system may not start in some cases. After turning the
power switch off, please wait a few seconds before restarting the EV sys-
tem.
■ If the smart key system has been deactivated in a customized setting
P. 384
CAUTION
■When starting the EV system
Always start the EV system while sitting in the driver’s seat. Do not depress
the accelerator pedal while starting the EV system under any circum-
stances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If EV system failure occurs while the vehicle is moving, do not lock or open
the doors until the vehicle reaches a safe and complete stop. Activation of
the steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the EV system in an emergency
If you want to stop the EV system in an emergency while driving the vehicle,
press and hold the power switch for more than 2 seconds, or press it briefly
3 times or more in succession. ( P. 329)
However, do not touch the power switch while driving except in an emer-
gency. Turning the EV system off while driving will not cause loss of steering
or braking control, but the power assist to these systems will be lost. This
will make it more difficult to steer and brake, so you should pull over and
stop the vehicle as soon as it is safe to do so.

1705-2. Driving procedures
NOTICE
■To prevent 12-volt battery discharge
● Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the EV system on.
● If the indicator on the power switch is illuminated, the power switch is not
off. When exiting the vehicle, always check that the power switch is off.
● Do not stop the EV system when the shift lever is in a position other than
P. If the EV system is stopped in another shift lever position, the power
switch will not be turned off but instead be turned to ACCESSORY mode.
If the vehicle is left in ACCESSORY mode, 12-volt battery discharge may
occur.
■ When starting the EV system
● Do not depress the accelerator pedal.
● If the EV system becomes difficult to start, have your vehicle checked by
your Scion dealer immediately.
■ Symptoms indicating a malf unction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Scion dealer immediately.
