TOYOTA iQ EV 2013 Owners Manual (in English)

1815-4. How to charge
5
Driving

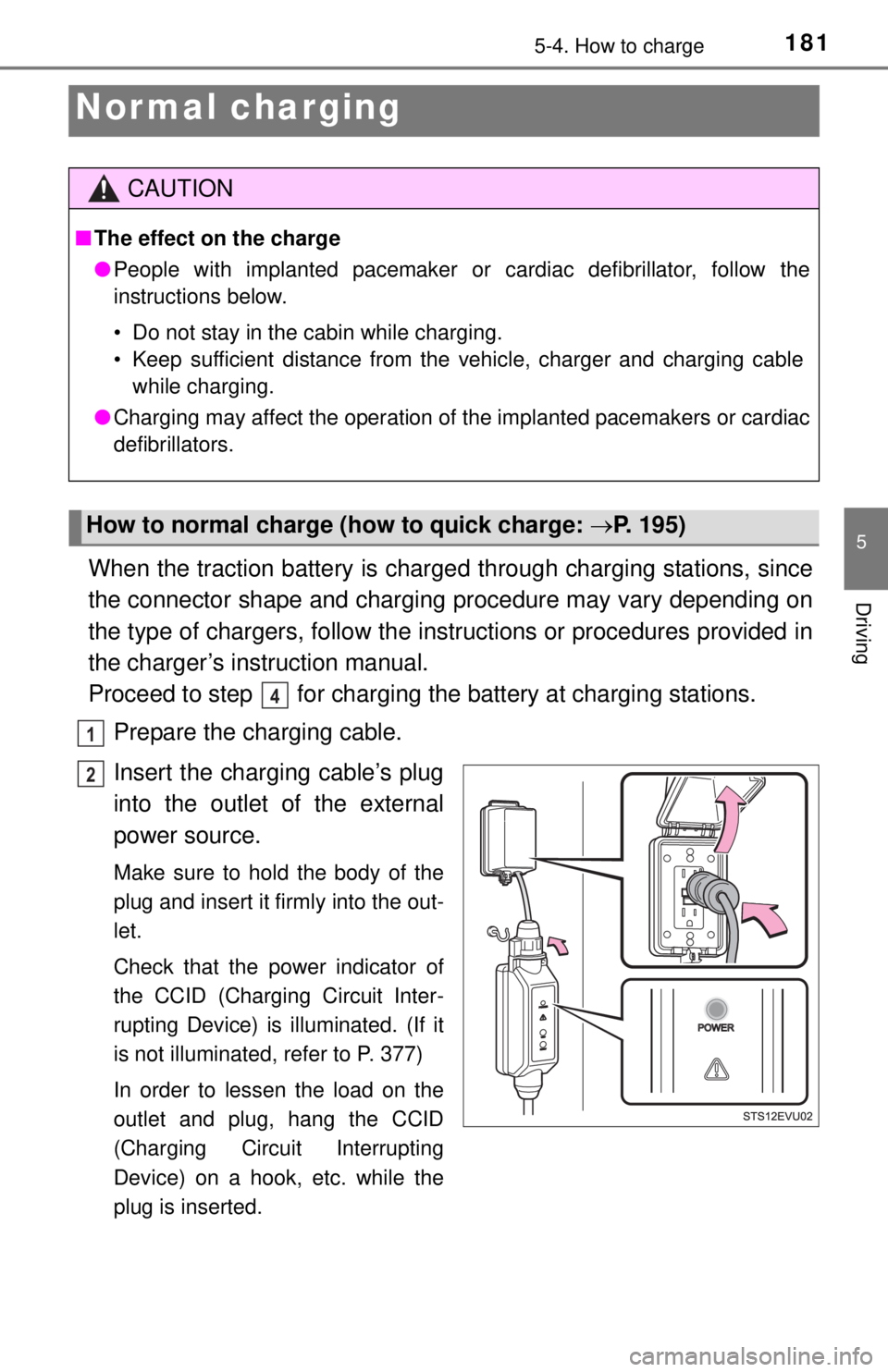

Nor mal charging
When the traction battery is charged through charging stations, since
the connector shape and charging procedure may vary depending on
the type of chargers, follow the inst ructions or procedures provided in
the charger’s instruction manual.
Proceed to step for charging the battery at charging stations.
Prepare the charging cable.
Insert the charging cable’s plug
into the outlet of the external
power source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator of
the CCID (Charging Circuit Inter-
rupting Device) is illuminated. (If it
is not illuminated, refer to P. 377)
In order to lessen the load on the
outlet and plug, hang the CCID
(Charging Circuit Interrupting
Device) on a hook, etc. while the
plug is inserted.
CAUTION
■The effect on the charge
● People with implanted pacemaker or cardiac defibrillator, follow the
instructions below.
• Do not stay in the cabin while charging.
• Keep sufficient distance from the vehicle, charger and charging cable
while charging.
● Charging may affect the operation of the implanted pacemakers or cardiac
defibrillators.
How to normal charge (how to quick charge: P. 195)
4
1
2

1825-4. How to charge

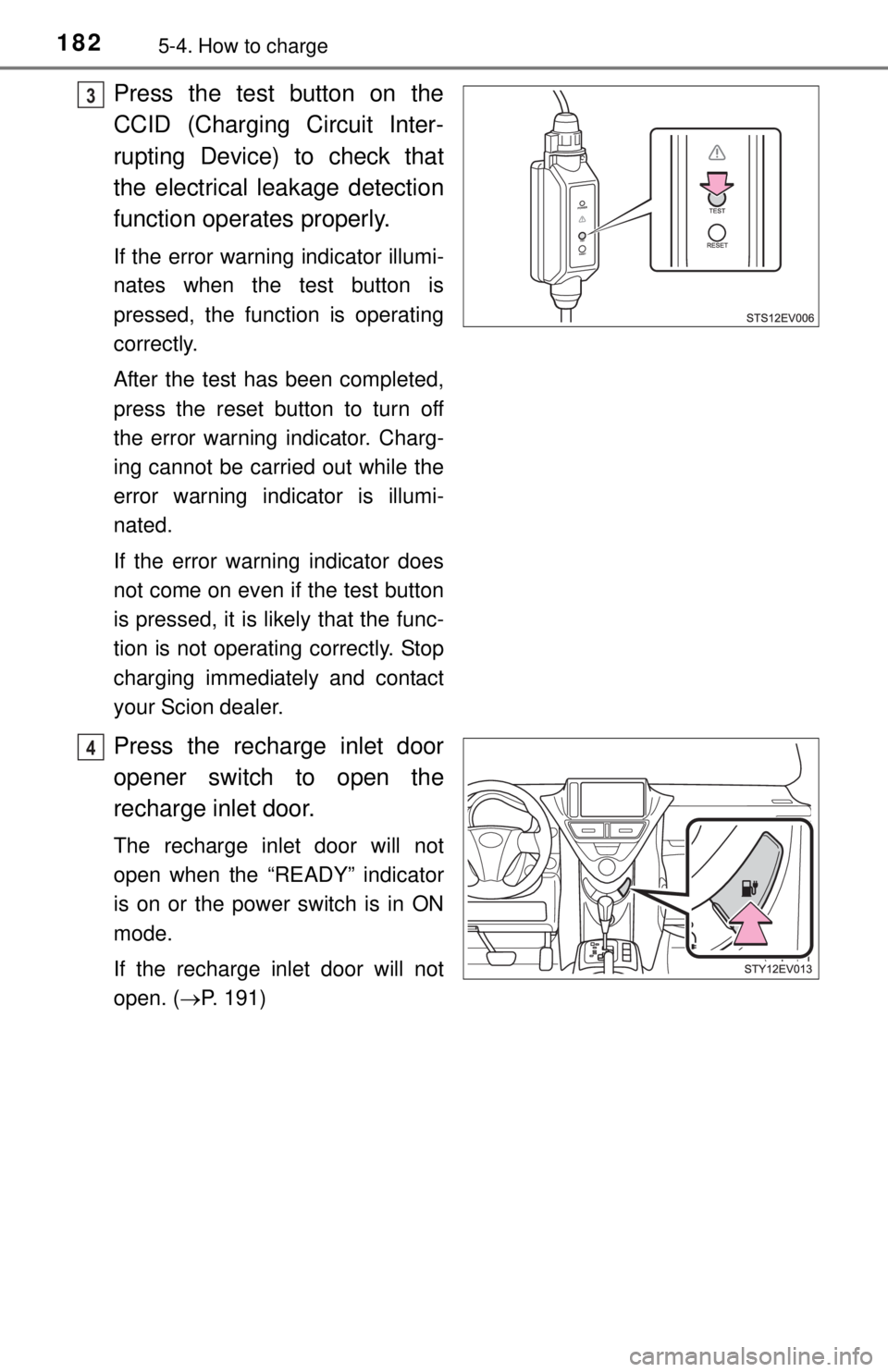

Press the test button on the
CCID (Charging Circuit Inter-
rupting Device) to check that
the electrical leakage detection
function operates properly.
If the error warning indicator illumi-
nates when the test button is
pressed, the function is operating
correctly.
After the test has been completed,
press the reset button to turn off
the error warning indicator. Charg-
ing cannot be carried out while the
error warning indicator is illumi-
nated.
If the error warning indicator does
not come on even if the test button
is pressed, it is likely that the func-
tion is not operating correctly. Stop
charging immediately and contact
your Scion dealer.
Press the recharge inlet door
opener switch to open the
recharge inlet door.
The recharge inlet door will not
open when the “READY” indicator
is on or the power switch is in ON
mode.
If the recharge inlet door will not
open. (P. 191)
3
4

1835-4. How to charge
5
Driving

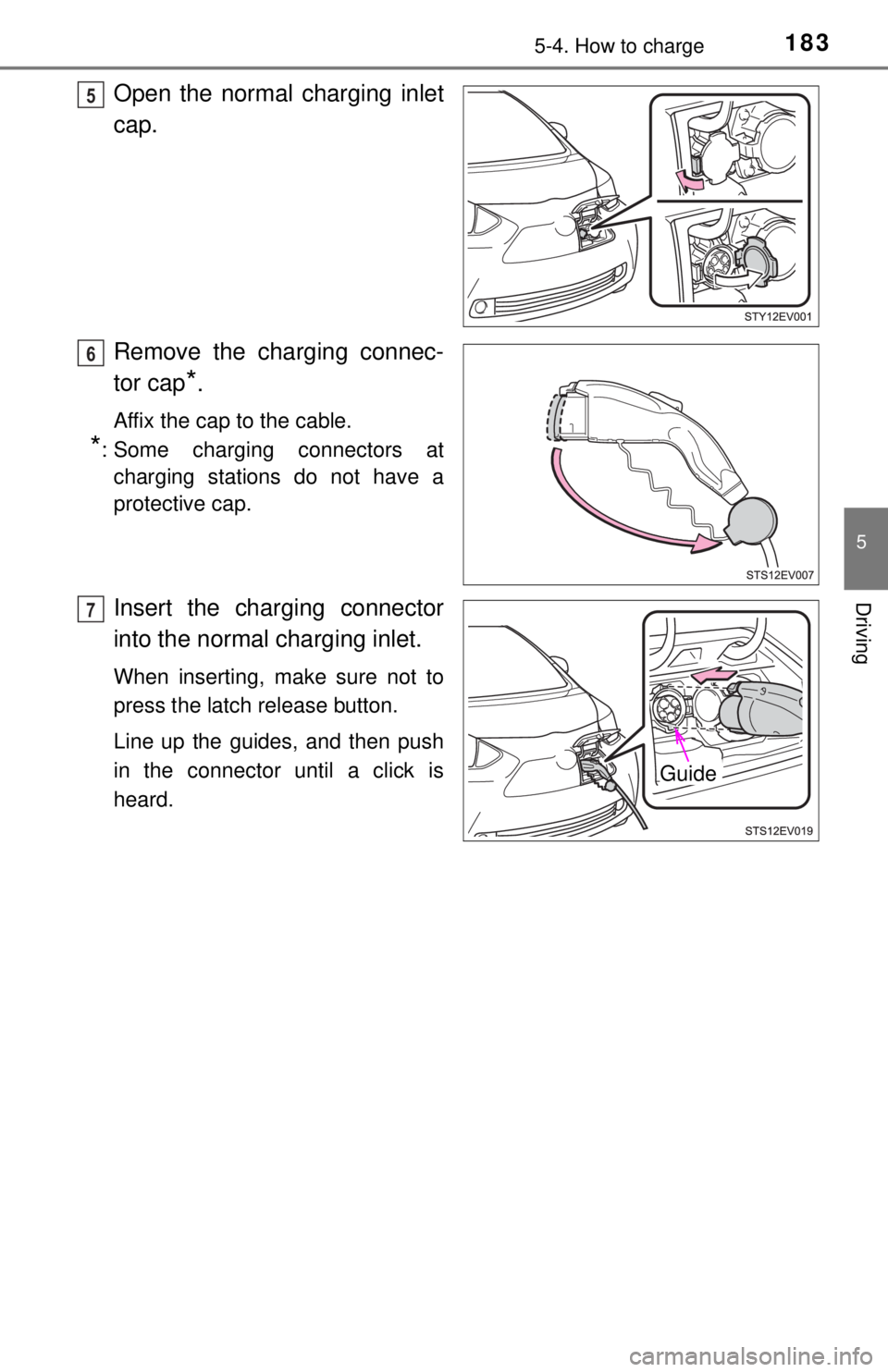

Open the normal charging inlet
cap.
Remove the charging connec-
tor cap
*.
Affix the cap to the cable.
*: Some charging connectors atcharging stations do not have a
protective cap.
Insert the charging connector
into the normal charging inlet.
When inserting, make sure not to
press the latch release button.
Line up the guides, and then push
in the connector until a click is
heard.
5
6
Guide
7

1845-4. How to charge

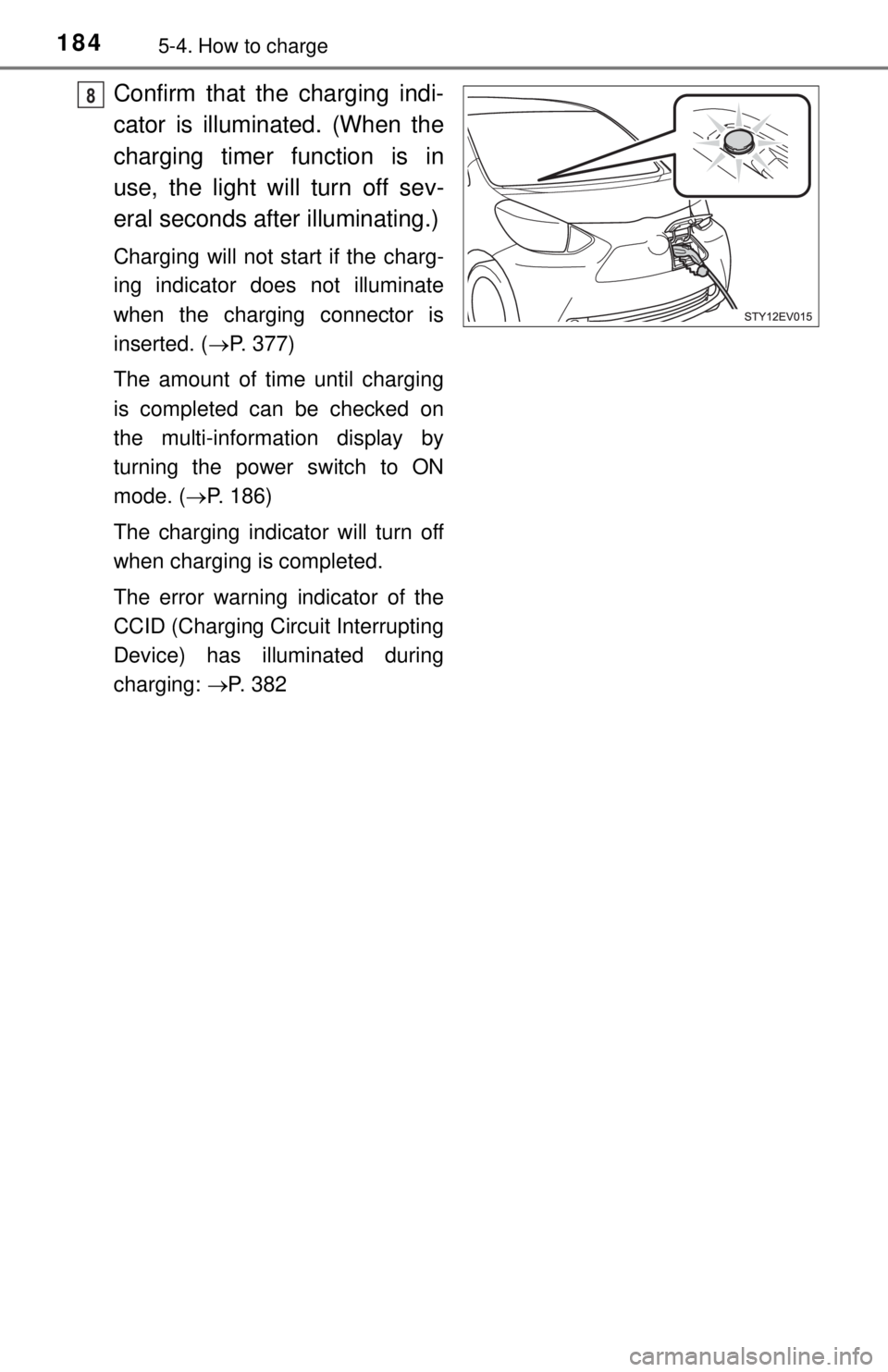

Confirm that the charging indi-
cator is illuminated. (When the
charging timer function is in
use, the light will turn off sev-
eral seconds after illuminating.)
Charging will not start if the charg-
ing indicator does not illuminate
when the charging connector is
inserted. ( P. 377)
The amount of time until charging
is completed can be checked on
the multi-information display by
turning the power switch to ON
mode. ( P. 186)
The charging indicator will turn off
when charging is completed.
The error warning indicator of the
CCID (Charging Circuit Interrupting
Device) has illuminated during
charging: P. 382
8

1855-4. How to charge
5
Driving

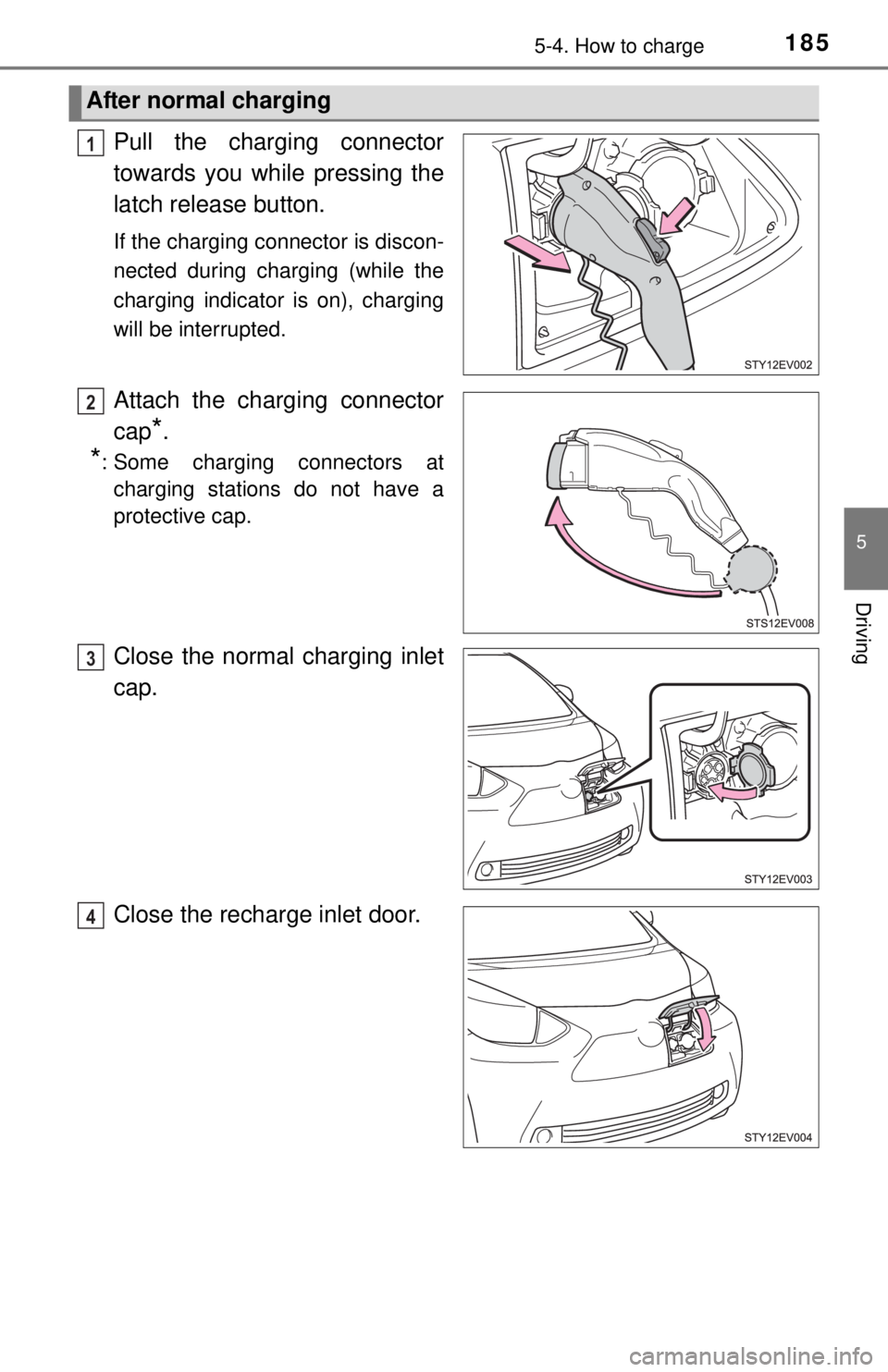

Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is discon-
nected during charging (while the
charging indicator is on), charging
will be interrupted.
Attach the charging connector
cap
*.
*: Some charging connectors atcharging stations do not have a
protective cap.
Close the normal charging inlet
cap.
Close the recharge inlet door.
After normal charging
1
2
3
4

1865-4. How to charge

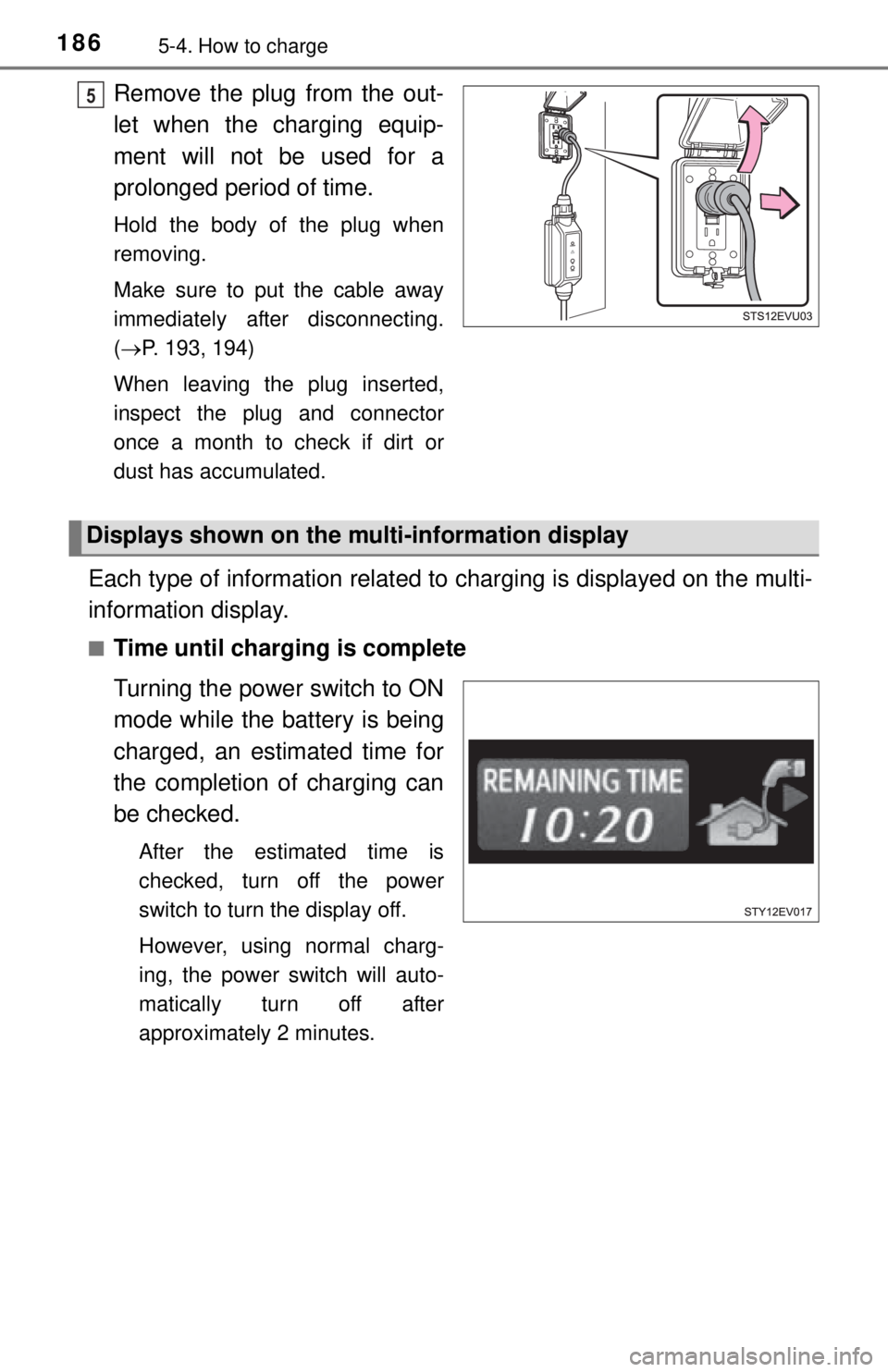

Remove the plug from the out-
let when the charging equip-
ment will not be used for a
prolonged period of time.
Hold the body of the plug when
removing.
Make sure to put the cable away
immediately after disconnecting.
(P. 193, 194)
When leaving the plug inserted,
inspect the plug and connector
once a month to check if dirt or
dust has accumulated.
Each type of information related to charging is displayed on the multi-
information display.
■Time until charging is complete
Turning the power switch to ON
mode while the battery is being
charged, an estimated time for
the completion of charging can
be checked.
After the estimated time is
checked, turn off the power
switch to turn the display off.
However, using normal charg-
ing, the power switch will auto-
matically turn off after
approximately 2 minutes.
5
Displays shown on the mu lti-information display

1875-4. How to charge
5
Driving

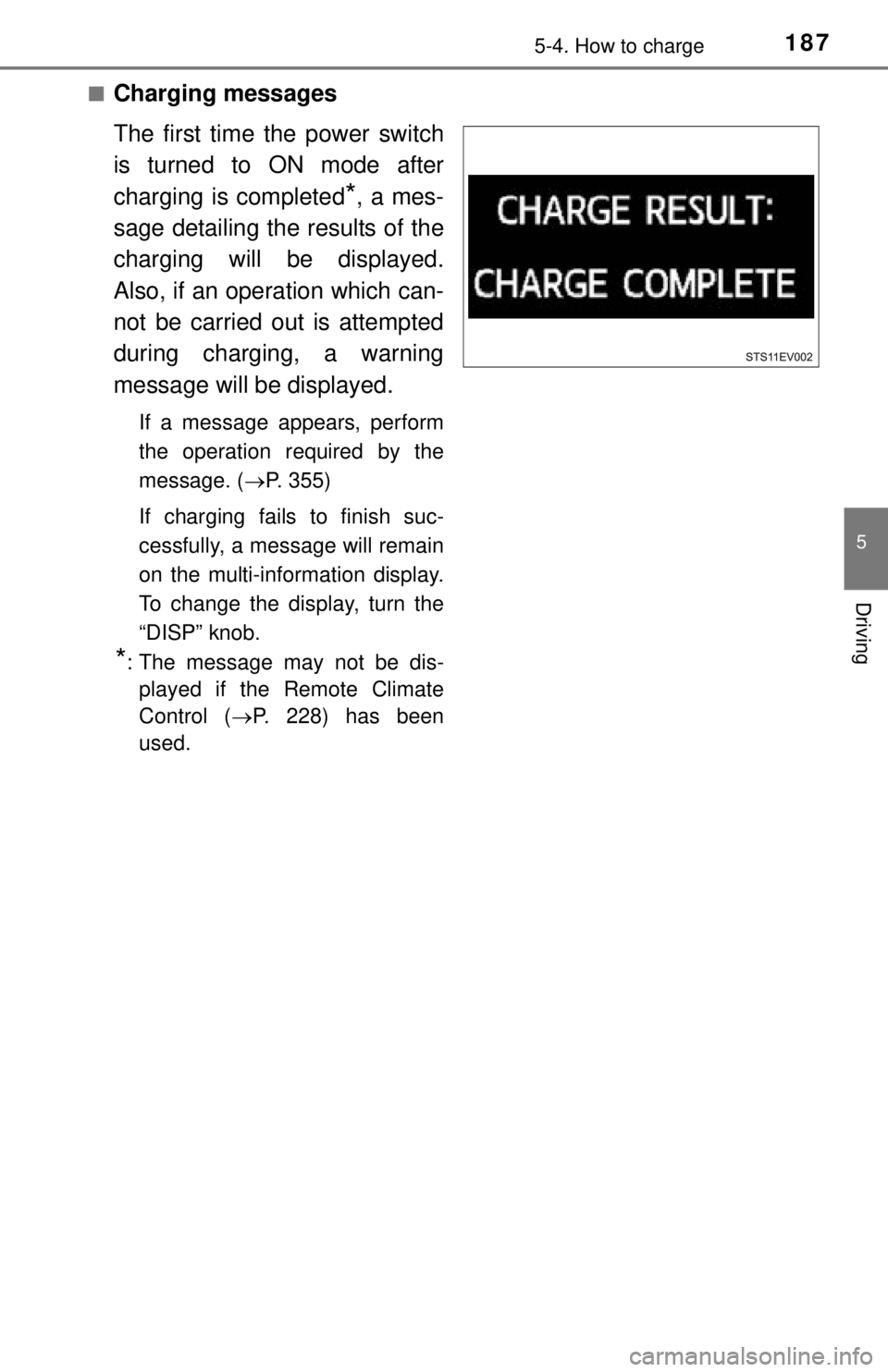

■Charging messages
The first time the power switch
is turned to ON mode after
charging is completed
*, a mes-
sage detailing the results of the
charging will be displayed.
Also, if an operation which can-
not be carried out is attempted
during charging, a warning
message will be displayed.
If a message appears, perform
the operation required by the
message. ( P. 355)
If charging fails to finish suc-
cessfully, a message will remain
on the multi-information display.
To change the display, turn the
“DISP” knob.
*: The message may not be dis- played if the Remote Climate
Control ( P. 228) has been
used.

1885-4. How to charge
■Safety functions
●The EV system will not start while the charging cable is connected to the
vehicle, even if the power switch is operated.
● If the charging cable is connected while the “READY” indicator is illumi-
nated, the EV system will stop automatically and driving will not be possible.
● When the charging cable is connected to the vehicle, the shift lever cannot
be shifted from P.
If the shift lock override button is pushed and the shift the shift lever in a
position other than P, charging is stopped.
● If the latch release button is pressed, charging will not begin even if the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging, reinsert the
charging connector after pulling it out, and check that the charging indicator
illuminates.
■ If the traction battery becomes low
P. 7 5
■ Amount of time required fo r charging in normal charge
Fully charging the traction battery, when the SOC (State of Charge) warning
light has come on, will take approximately 7 hours.
When the battery is charged at charging stations, it will take approximately 3
hours.
The amount of time until charging is complete will change in accordance with
the amount of charge remaining in the traction battery, the outside tempera-
ture, etc. However, charging at charging stations, the time may significantly
vary due to the specification of the charger.
■ Remaining charging time
●The remaining charging time is for reference only. It varies depending on the
traction battery temperature, outside temperature and charging equipment,
so the displayed time is longer than the actual remaining charging time.
● If a power outage occurs or the charging cable is disconnected from the
vehicle during while charging the traction battery, the remaining charging
time will not be able to be calculated, and “--:--” will be displa\
yed.
■ During normal charging
●The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction.
● Depending on radio wave conditions, interference may be heard on the
radio.

1895-4. How to charge
5
Driving
■If two charging connectors are used at the same time
Normal charging and quick charging cannot be conducted simultaneously.
If the two connectors have been connected to the vehicle, the battery will only
be charged through either one of the char ging modes that has started first.
However, the battery will not be recharged with the other method even after
the first mode is complete. To start the other mode, disconnect the charging
connector and then perform the charging operation again.
■ Charging indicator
●The charging indicator illuminates if the Remote Climate Control ( P. 228)
is used during charging or while the charging cable is connected.
● If a system malfunction occurs during charging or when the Remote Climate
Control is in use, the indicator will flash for approximately 10 seconds and
then turn off.
A warning message will appear on the multi-information display when the
power switch will be turned to ON mode next time. Follow the instructions in
the message. ( P. 355)
■ When the outside temperature is low or high
The level shown on the SOC (State of Charge) gauge ( P. 105) may drop
slightly when the power switch is tu rned to ON mode, even if charging has
been completed and the traction battery is fully charged. However, this does
not indicate a malfunction.

1905-4. How to charge
■Charging time may increase
In the following situations, charging time may become longer than normal:
●In very hot or very cold temperatures.
● The vehicle is consuming a lot of electricity (the headlights or audio system
are on).
● There is a power outage during charging.
● Supply power is adjusted at charging stations.
● The supply voltage is unstable.
● The charge in the 12-volt battery is low, for example due to the vehicle being
left unused for a long period of time.
■ Capacity reduction of the traction battery
The charge of the traction battery will decline gradually when the traction bat-
tery is in use.
The rate at which it declines will differ in accordance with environmental con-
ditions and the way in which the vehicle is used. By observing the following
precautions, battery charge decline can be suppressed.
●Avoid charging during extremely hot weather.
● Avoid parking the vehicle in areas with a high temperature under direct sun-
light when the battery is fully charged.
● Do not charge the battery when the battery temperature is high. ( P. 109)
● Do not repeatedly perform charging when the battery is close to fully
charged.
● Use normal charging as much as possible.
● Charge battery only when low if not driving often to maximize battery life.
● If the vehicle will not be used for a long time, do not have the battery fully
charged. However, do not leave it completely discharged.
● Use the charging timer function as much as possible in order to fully charge
the traction battery immediately before starting off (the timer function cannot
be used during quick charging).
■ Handling the traction battery
P. 8 3
