TOYOTA RAV4 2006  Service Repair Manual AX–4U241E AUTOMATIC TRANSAXLE  –  AUTOMATIC TRANSAXLE SYSTEM
AX

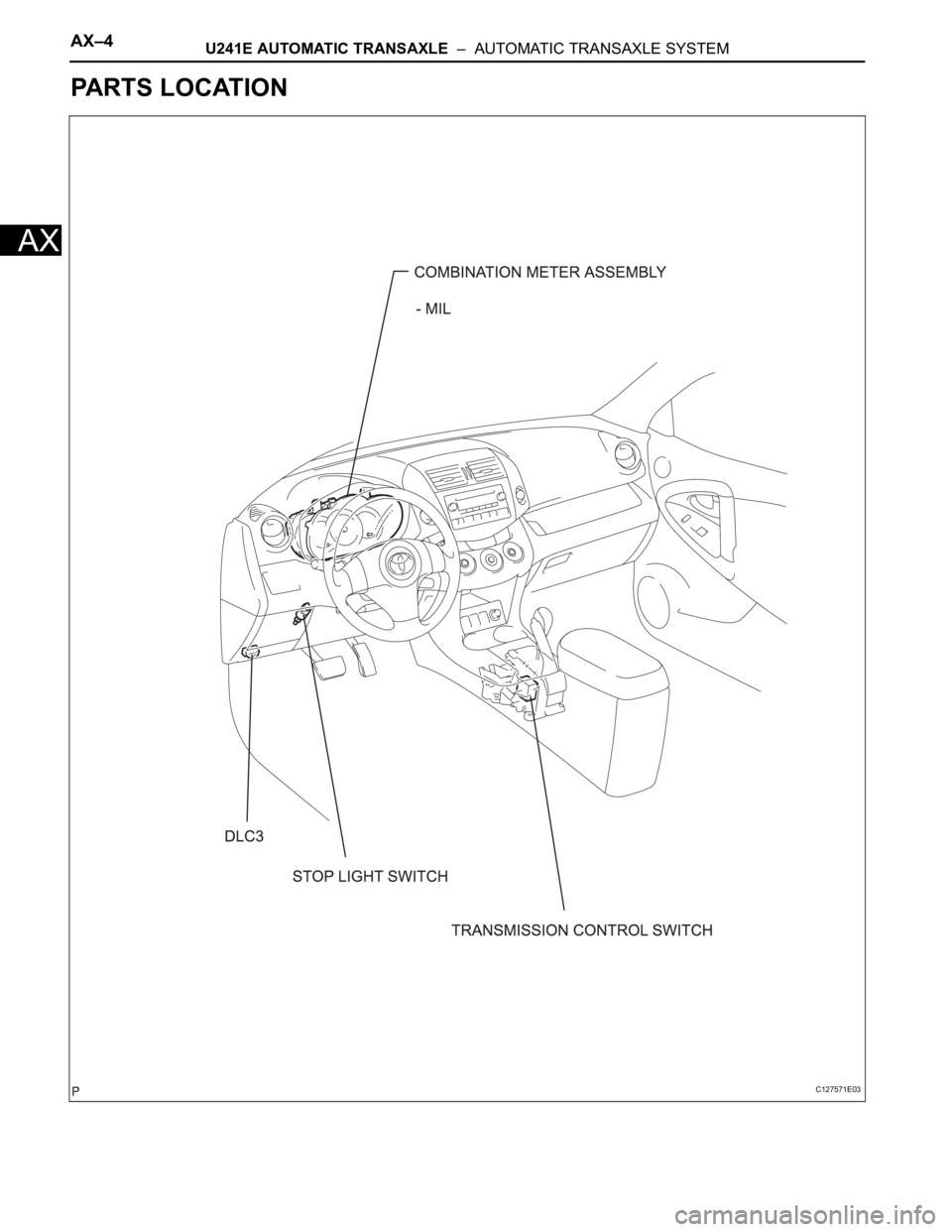

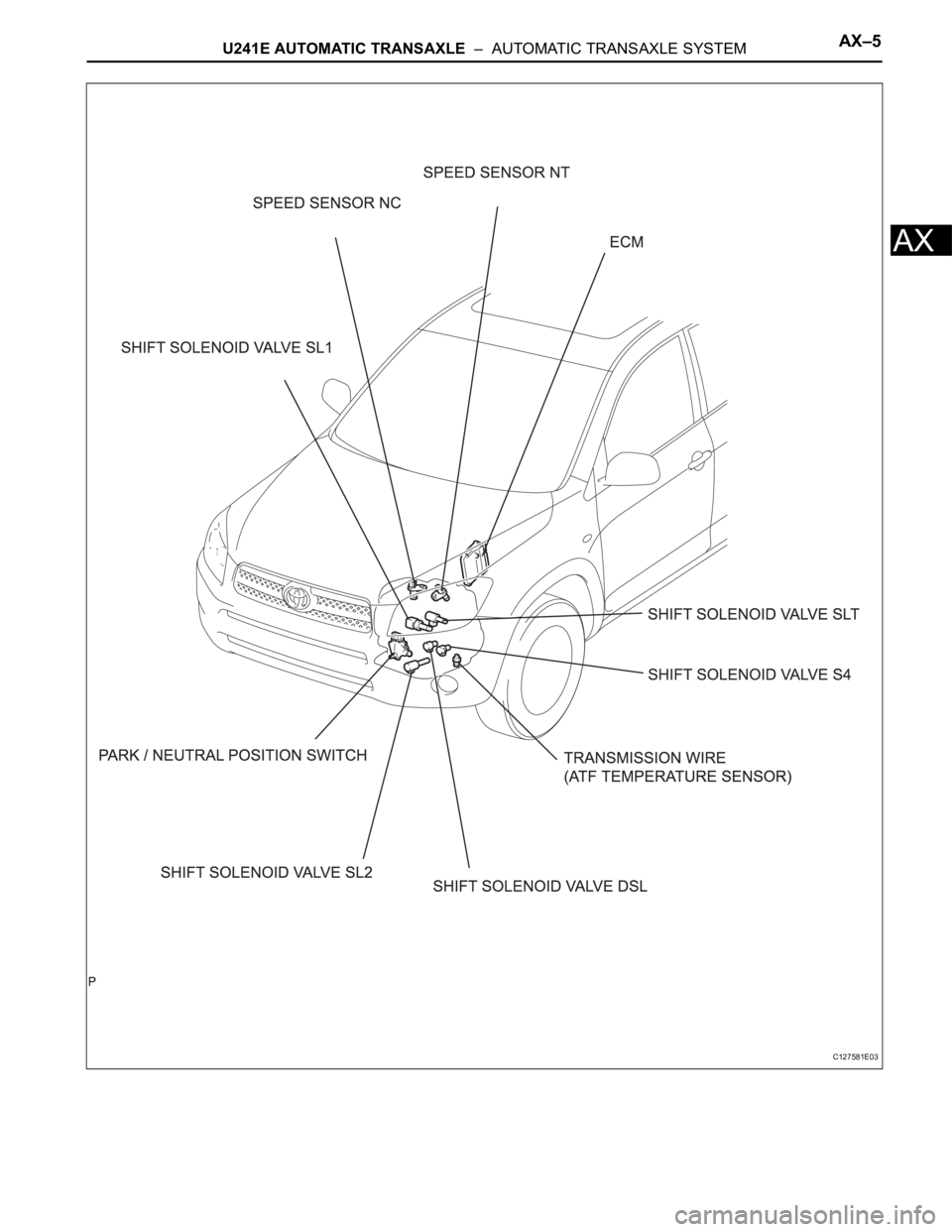

PARTS LOCATION
C127571E03

Page 372 of 2000

TOYOTA RAV4 2006  Service Repair Manual U241E AUTOMATIC TRANSAXLE  –  AUTOMATIC TRANSAXLE SYSTEMAX–5
AX
C127581E03

Page 373 of 2000

TOYOTA RAV4 2006  Service Repair Manual AX–136U241E AUTOMATIC TRANSAXLE  –  FLOOR SHIFT ASSEMBLY
AX

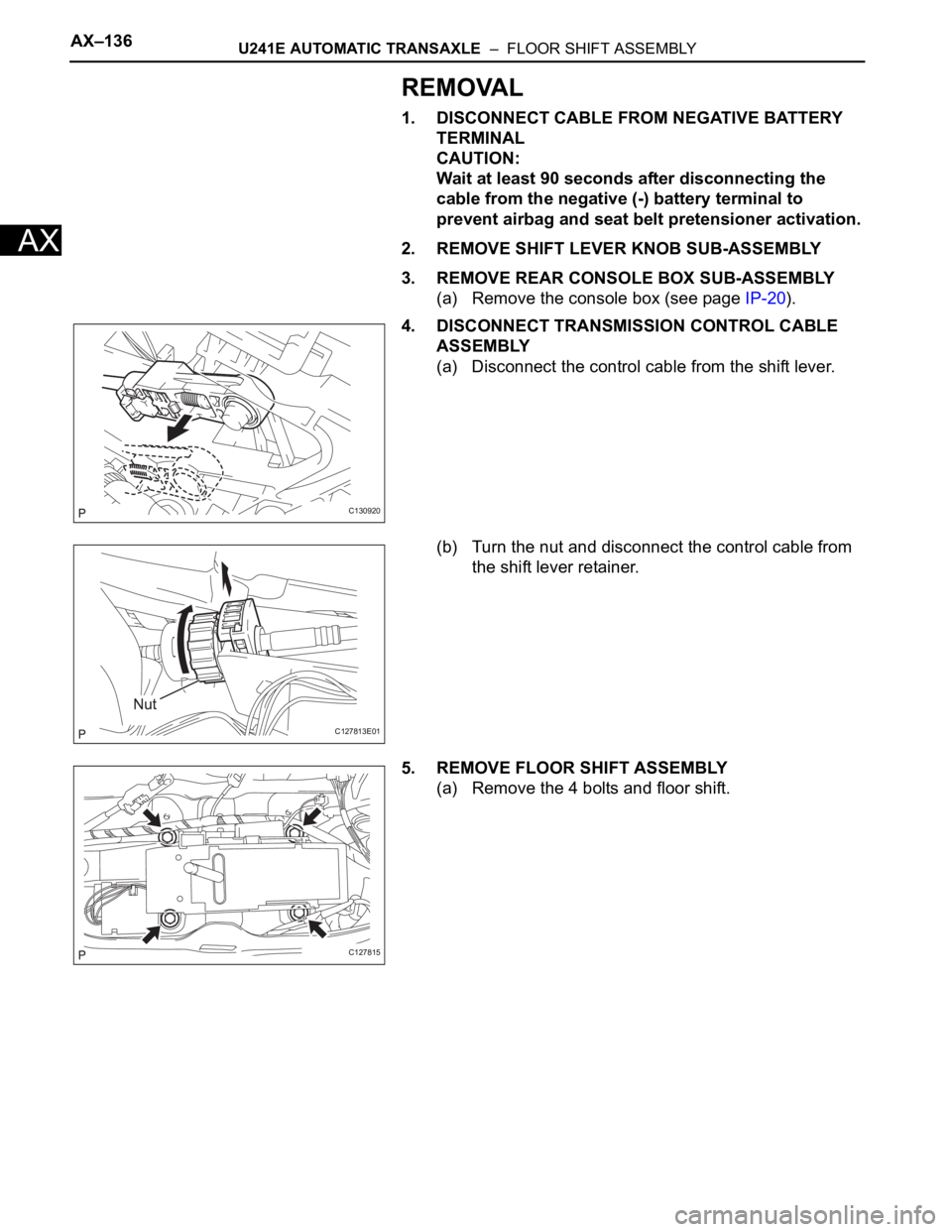

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the
cable from the ne

Page 374 of 2000

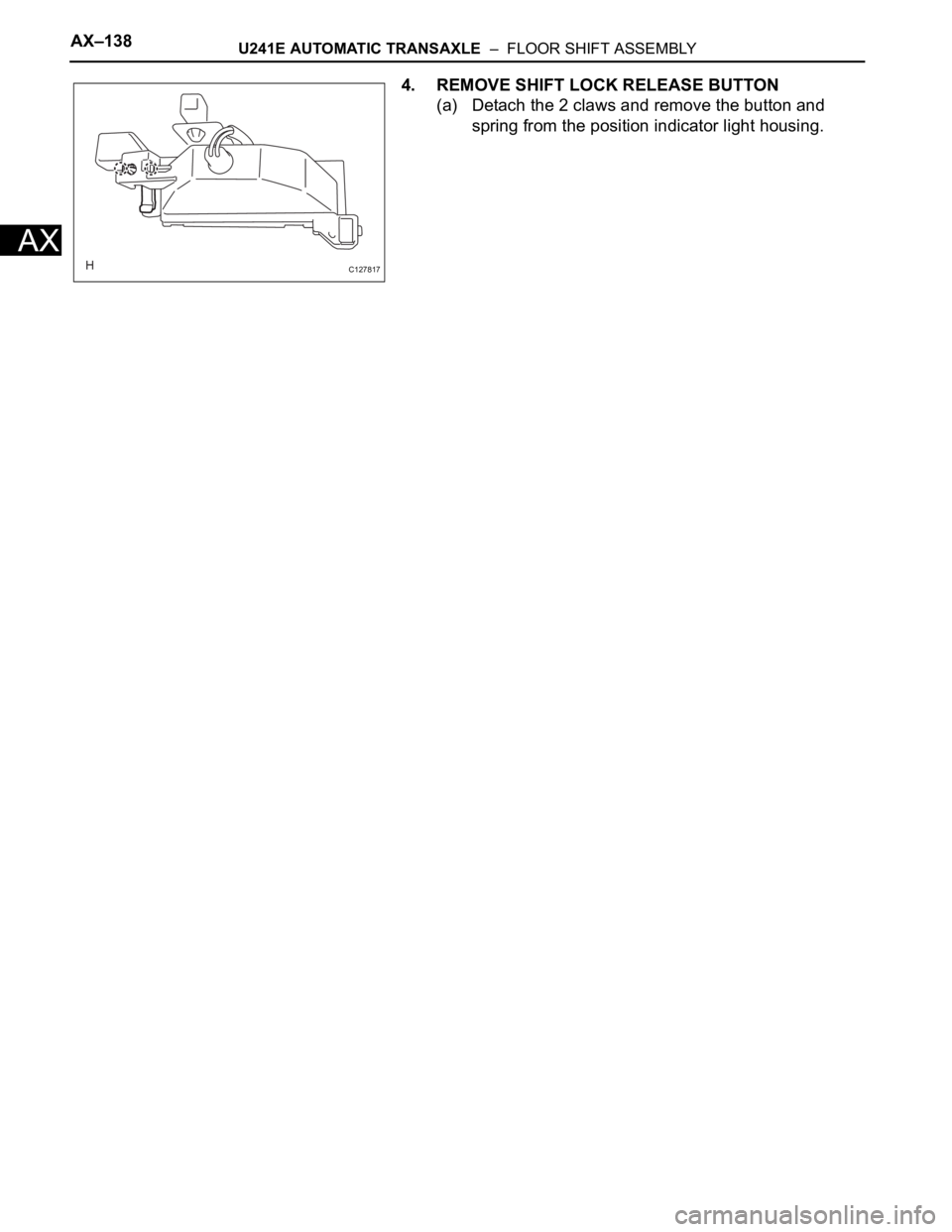

TOYOTA RAV4 2006  Service Repair Manual U241E AUTOMATIC TRANSAXLE  –  FLOOR SHIFT ASSEMBLYAX–137
AX

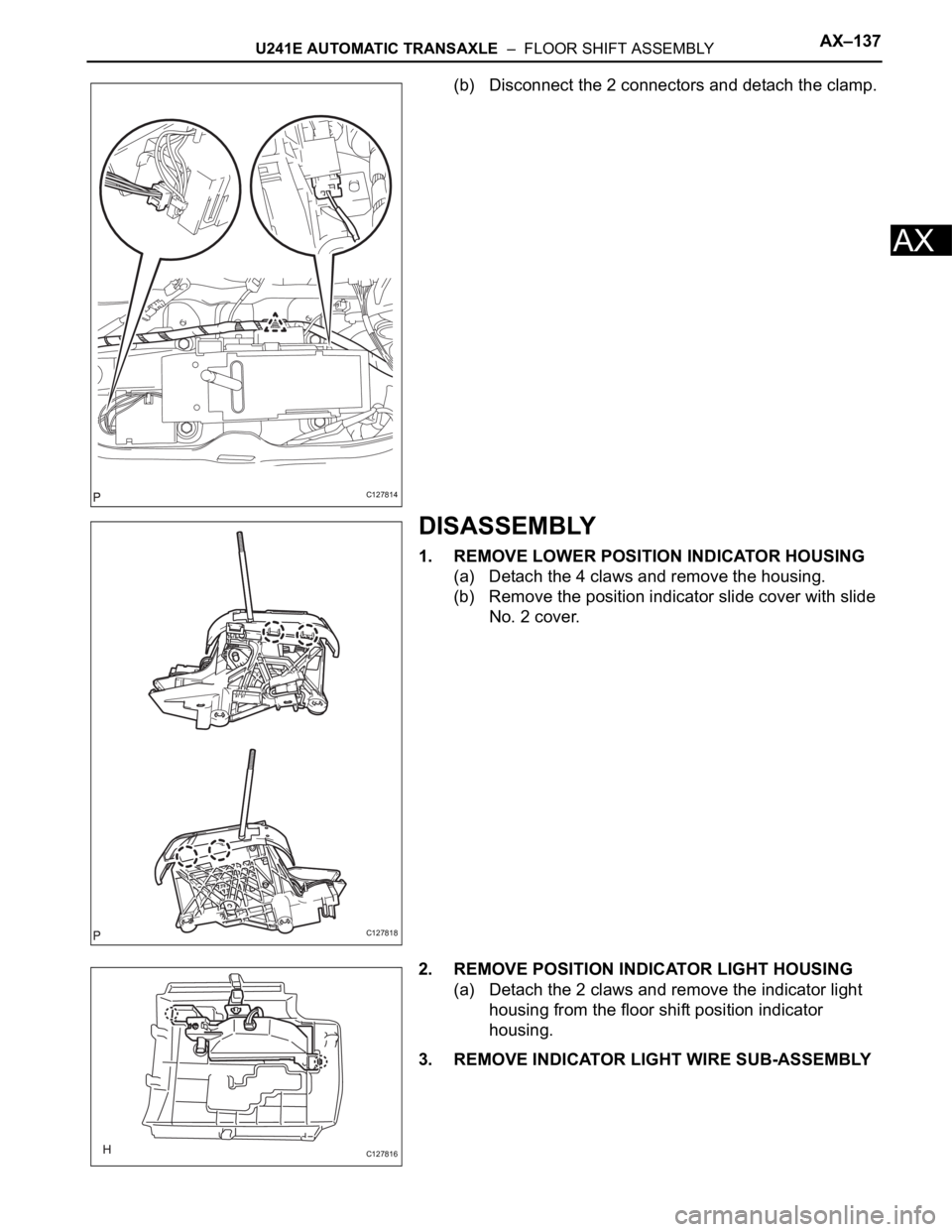

(b) Disconnect the 2 connectors and detach the clamp.
DISASSEMBLY
1. REMOVE LOWER POSITION INDICATOR HOUSING
(a) Detach the 4 claws and

Page 375 of 2000

TOYOTA RAV4 2006  Service Repair Manual AX–138U241E AUTOMATIC TRANSAXLE  –  FLOOR SHIFT ASSEMBLY
AX
4. REMOVE SHIFT LOCK RELEASE BUTTON
(a) Detach the 2 claws and remove the button and
spring from the position indicator light housing.

Page 376 of 2000

TOYOTA RAV4 2006  Service Repair Manual AX–248U241E AUTOMATIC TRANSAXLE  –  UNDERDRIVE CLUTCH
AX
INSPECTION

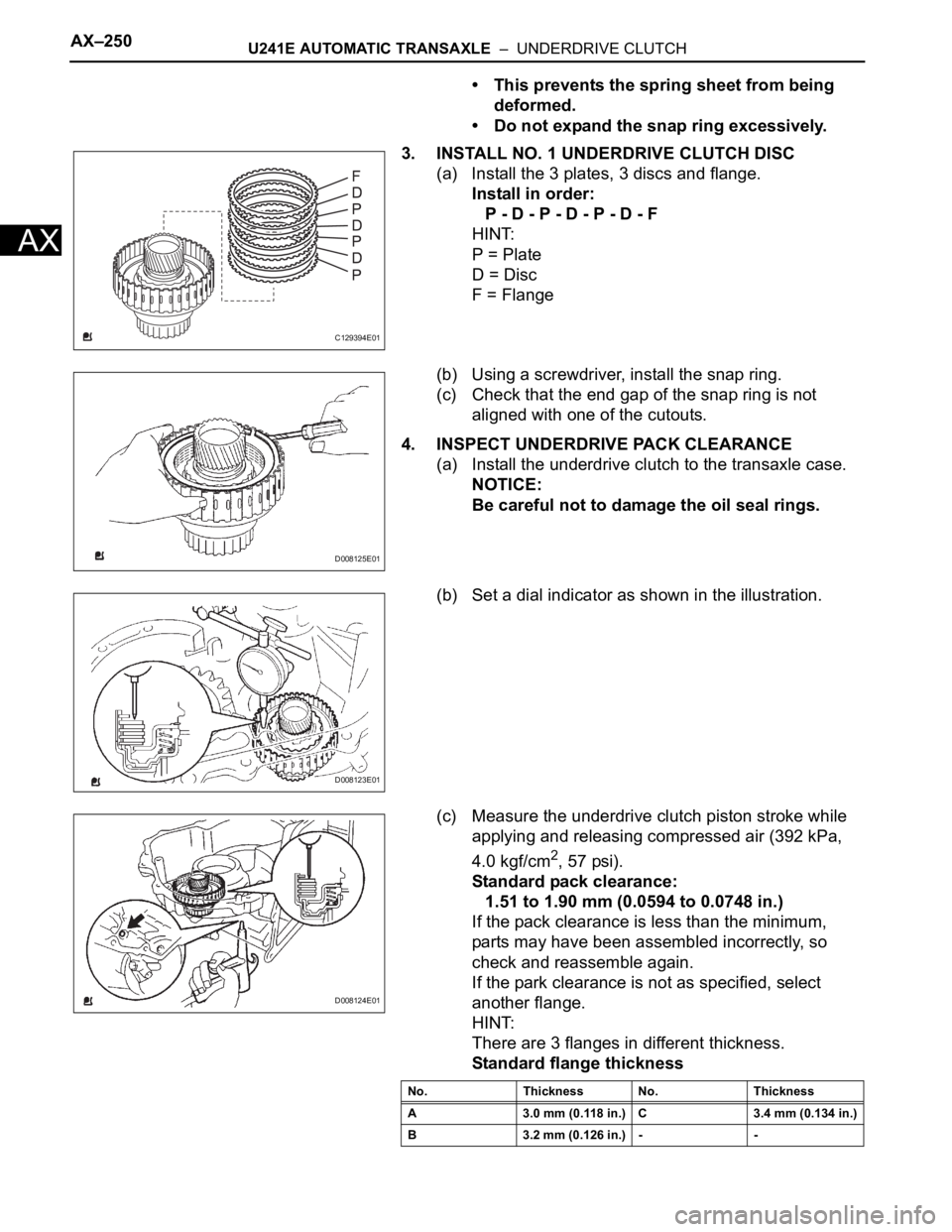

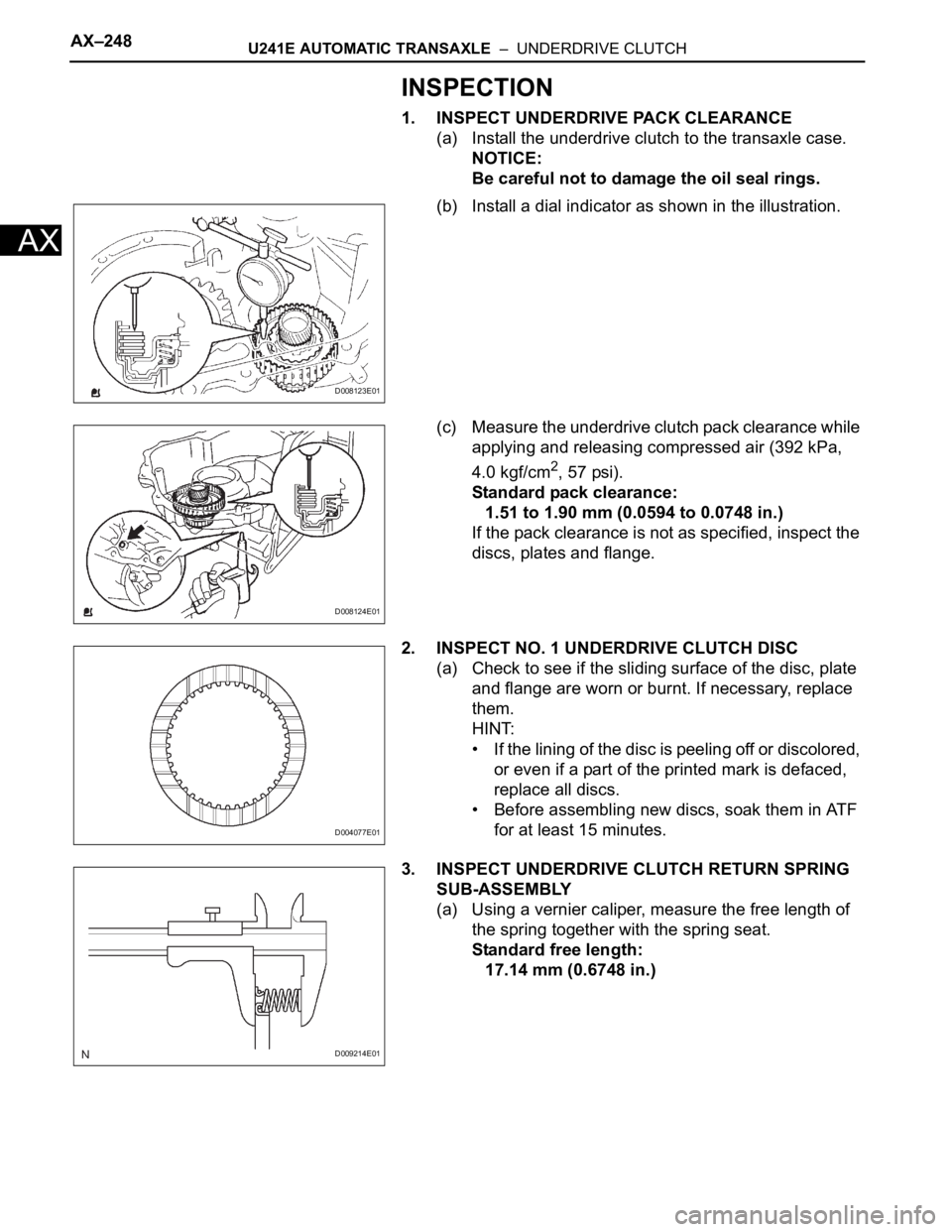

1. INSPECT UNDERDRIVE PACK CLEARANCE
(a) Install the underdrive clutch to the transaxle case.
NOTICE:
Be careful not to damage t

Page 377 of 2000

TOYOTA RAV4 2006  Service Repair Manual U241E AUTOMATIC TRANSAXLE  –  UNDERDRIVE CLUTCHAX–249
AX
4. INSPECT UNDERDRIVE CLUTCH DRUM SUB-
ASSEMBLY

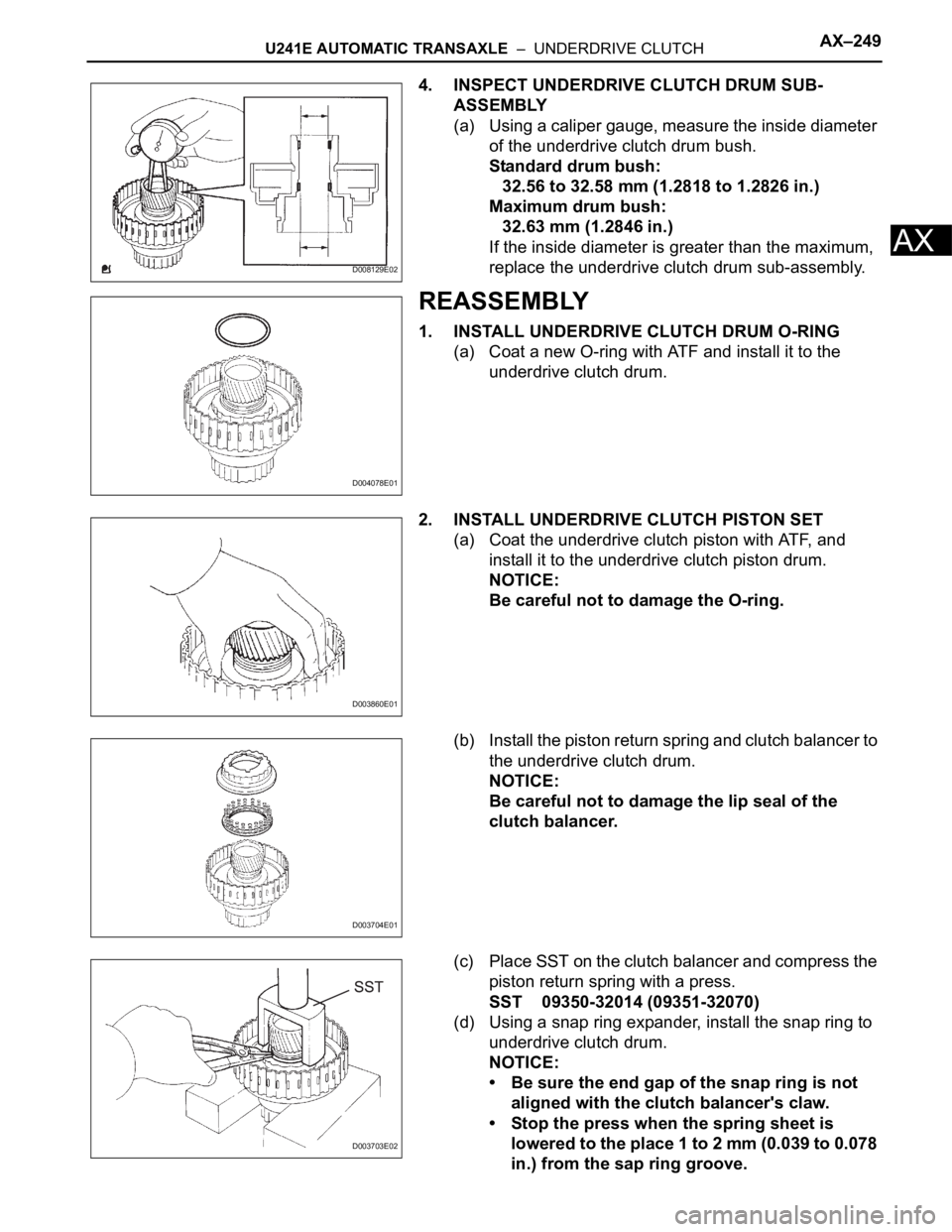

(a) Using a caliper gauge, measure the inside diameter
of the underdrive clutch drum bush.

Page 378 of 2000

TOYOTA RAV4 2006  Service Repair Manual AX–250U241E AUTOMATIC TRANSAXLE  –  UNDERDRIVE CLUTCH
AX
• This prevents the spring sheet from being
deformed.
• Do not expand the snap ring excessively.
3. INSTALL NO. 1 UNDERDRIVE CLUTCH DI

Page 379 of 2000

TOYOTA RAV4 2006  Service Repair Manual SS–12SERVICE SPECIFICATIONS  –  2AZ-FE ENGINE MECHANICAL
SS
TORQUE SPECIFICATIONS
DRIVE BELT
VALVE CLEARANCE
TIMING CHAIN
Part Tightened N*m kgf*cm ft.*lbf
Front suspension member
reinforcement R

Page 380 of 2000

TOYOTA RAV4 2006  Service Repair Manual SERVICE SPECIFICATIONS  –  2AZ-FE ENGINE MECHANICALSS–13
SS
CYLINDER HEAD
ENGINE ASSEMBLY
Part Tightened N*m kgf*cm ft.*lbf
Camshaft position sensor x Cylinder head 9.0 92 80 in.*lbf
Oil pressure
