Page 861 of 2000

TOYOTA RAV4 2006  Service Repair Manual 2GR-FE COOLING  –  THERMOSTATCO–21
CO
INSTALLATION
1. INSTALL THERMOSTAT
(a) Install a new gasket to the thermostat.
(b) Install the thermostat with the jiggle valve facing
upward.
HINT:
The jigg

Page 862 of 2000

TOYOTA RAV4 2006  Service Repair Manual CO–222GR-FE COOLING  –  THERMOSTAT
CO
8. INSTALL RADIATOR RESERVOIR TANK
(a) Install the radiator reservoir with the 2 bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
9. INSTALL RADIATOR SUPPORT OP

Page 863 of 2000

TOYOTA RAV4 2006  Service Repair Manual 2GR-FE COOLING  –  COOLING FAN MOTORCO–29
CO
REMOVAL
1. REMOVE RADIATOR ASSEMBLY
(a) Remove the radiator (see page CO-36).
DISASSEMBLY
1. REMOVE FAN
(a) Remove the 2 nuts and 2 fans.
2. REMOVE NO.

Page 864 of 2000

TOYOTA RAV4 2006  Service Repair Manual CO–302GR-FE COOLING  –  COOLING FAN MOTOR
CO
INSTALLATION
1. INSTALL RADIATOR ASSEMBLY
(a) Install the radiator (see page CO-40).

Page 865 of 2000

TOYOTA RAV4 2006  Service Repair Manual CO–362GR-FE COOLING  –  RADIATOR
CO
REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the
cable from the negative (-) battery termi

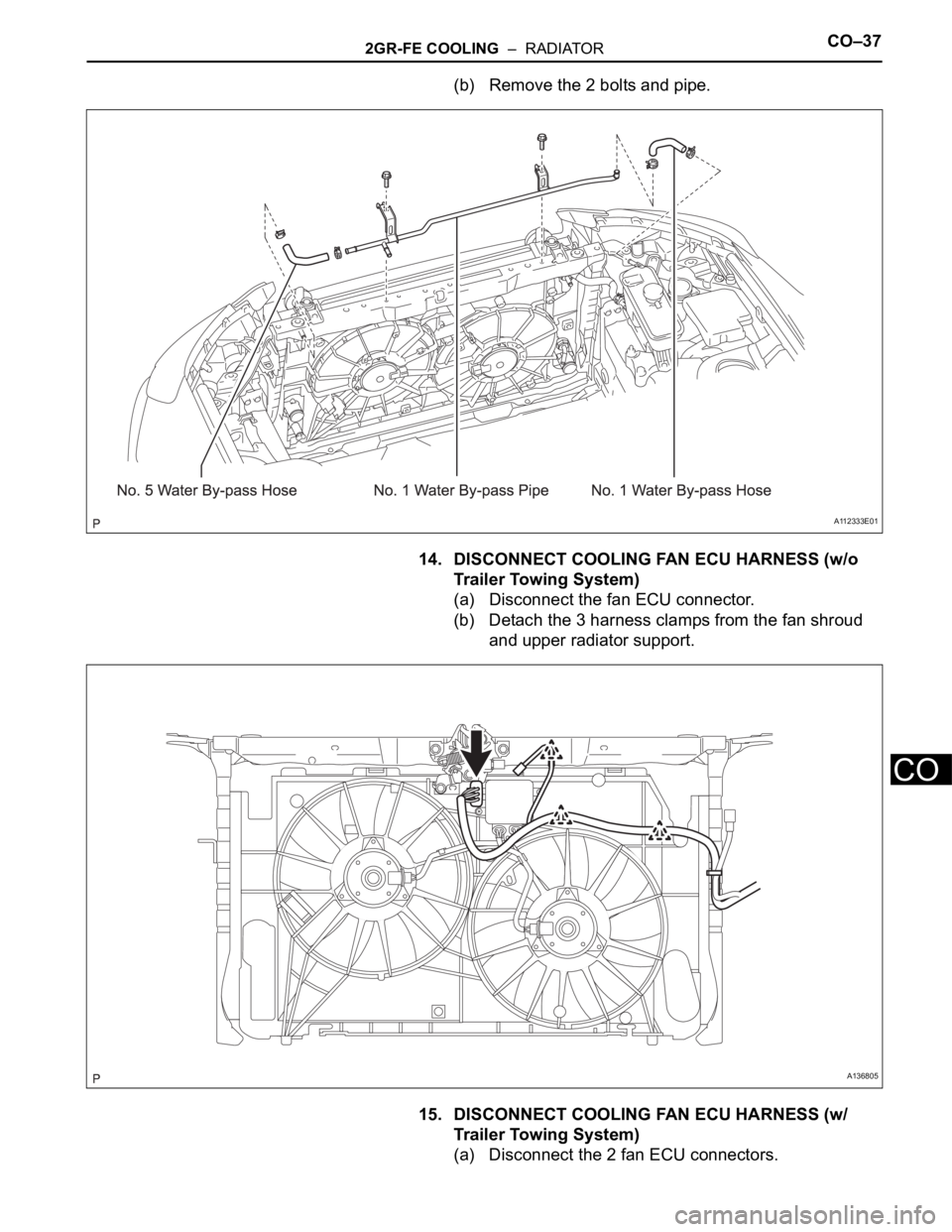

Page 866 of 2000

TOYOTA RAV4 2006  Service Repair Manual 2GR-FE COOLING  –  RADIATORCO–37
CO
(b) Remove the 2 bolts and pipe.
14. DISCONNECT COOLING FAN ECU HARNESS (w/o
Trailer Towing System)
(a) Disconnect the fan ECU connector.
(b) Detach the 3 harn

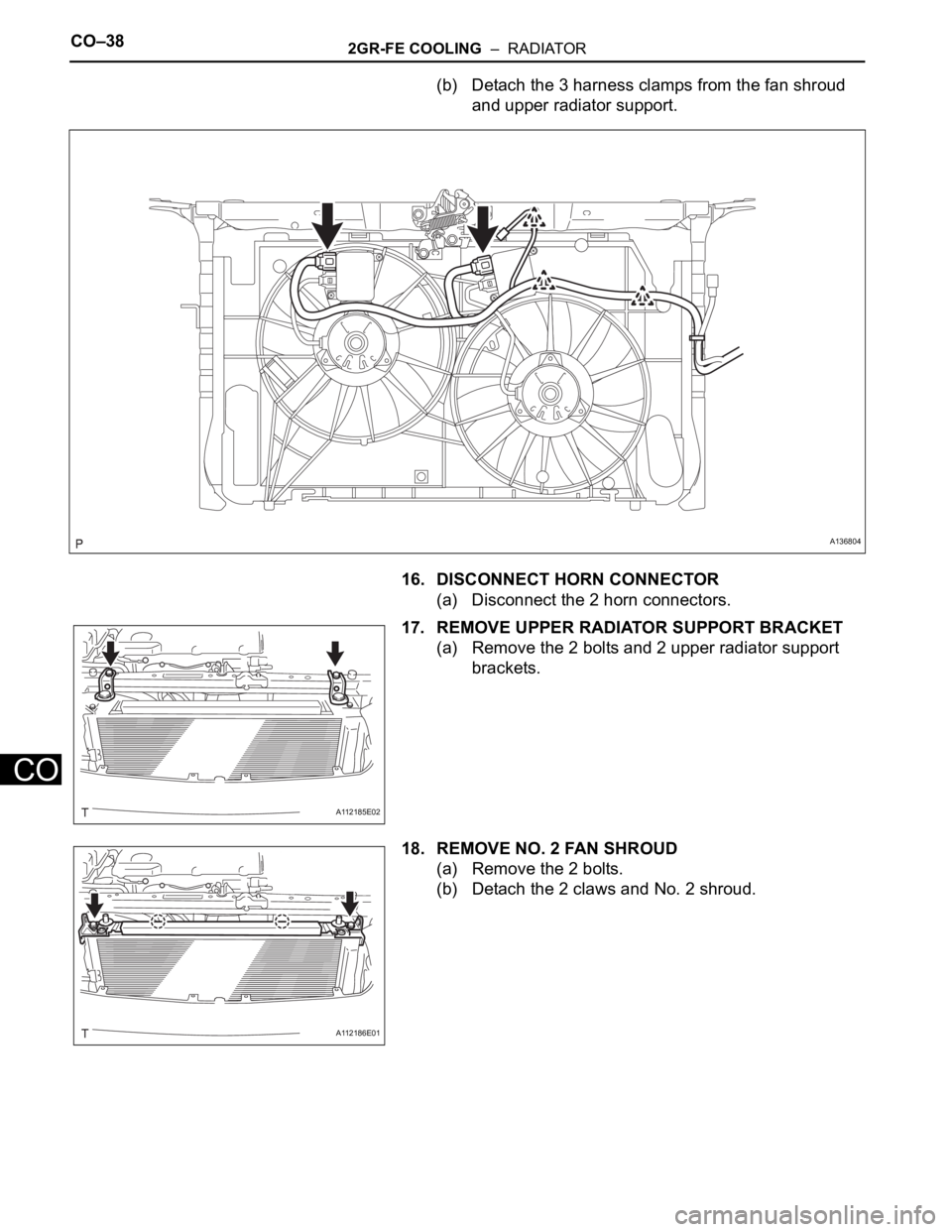

Page 867 of 2000

TOYOTA RAV4 2006  Service Repair Manual CO–382GR-FE COOLING  –  RADIATOR
CO
(b) Detach the 3 harness clamps from the fan shroud
and upper radiator support.
16. DISCONNECT HORN CONNECTOR
(a) Disconnect the 2 horn connectors.
17. REMOVE

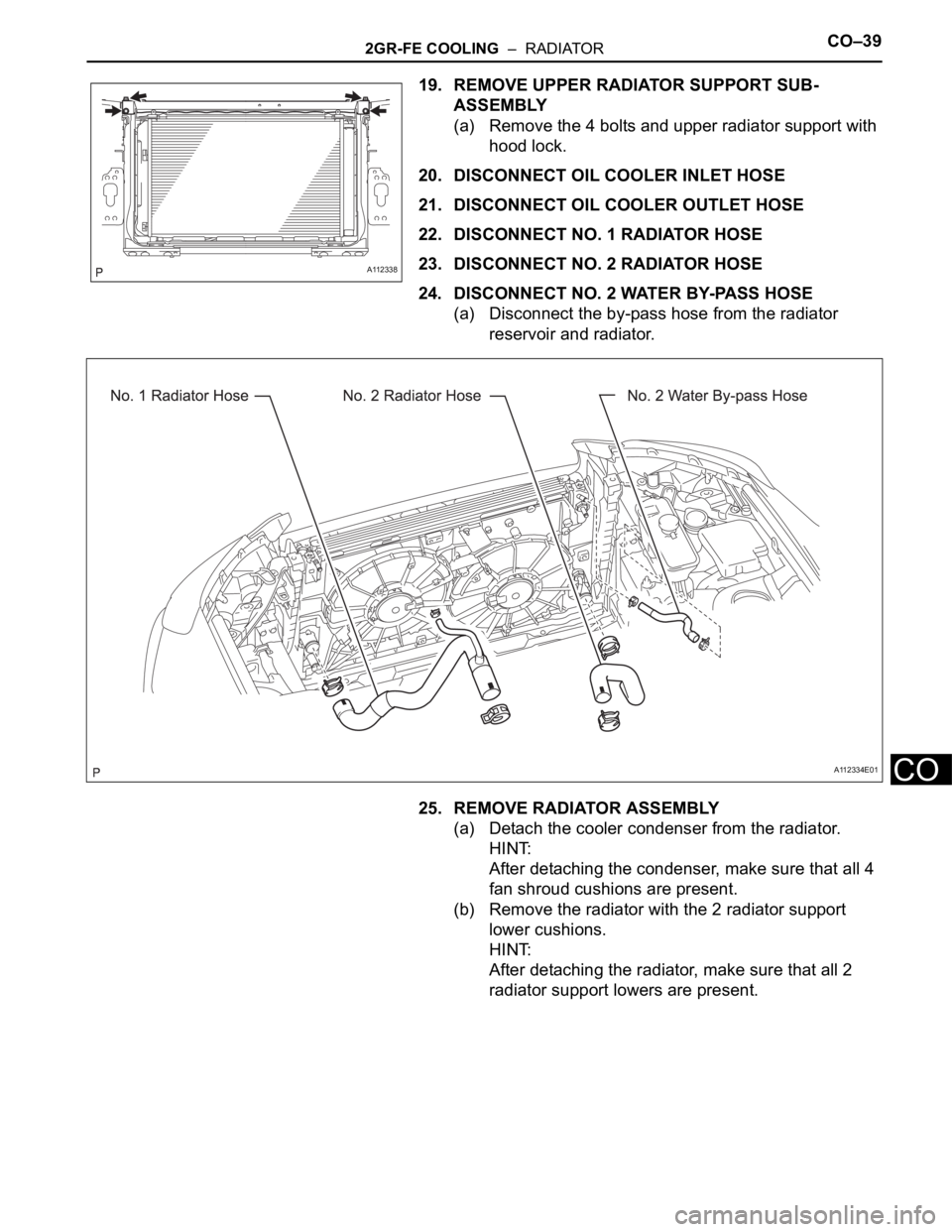

Page 868 of 2000

TOYOTA RAV4 2006  Service Repair Manual 2GR-FE COOLING  –  RADIATORCO–39
CO
19. REMOVE UPPER RADIATOR SUPPORT SUB-
ASSEMBLY
(a) Remove the 4 bolts and upper radiator support with
hood lock.
20. DISCONNECT OIL COOLER INLET HOSE
21. DISC

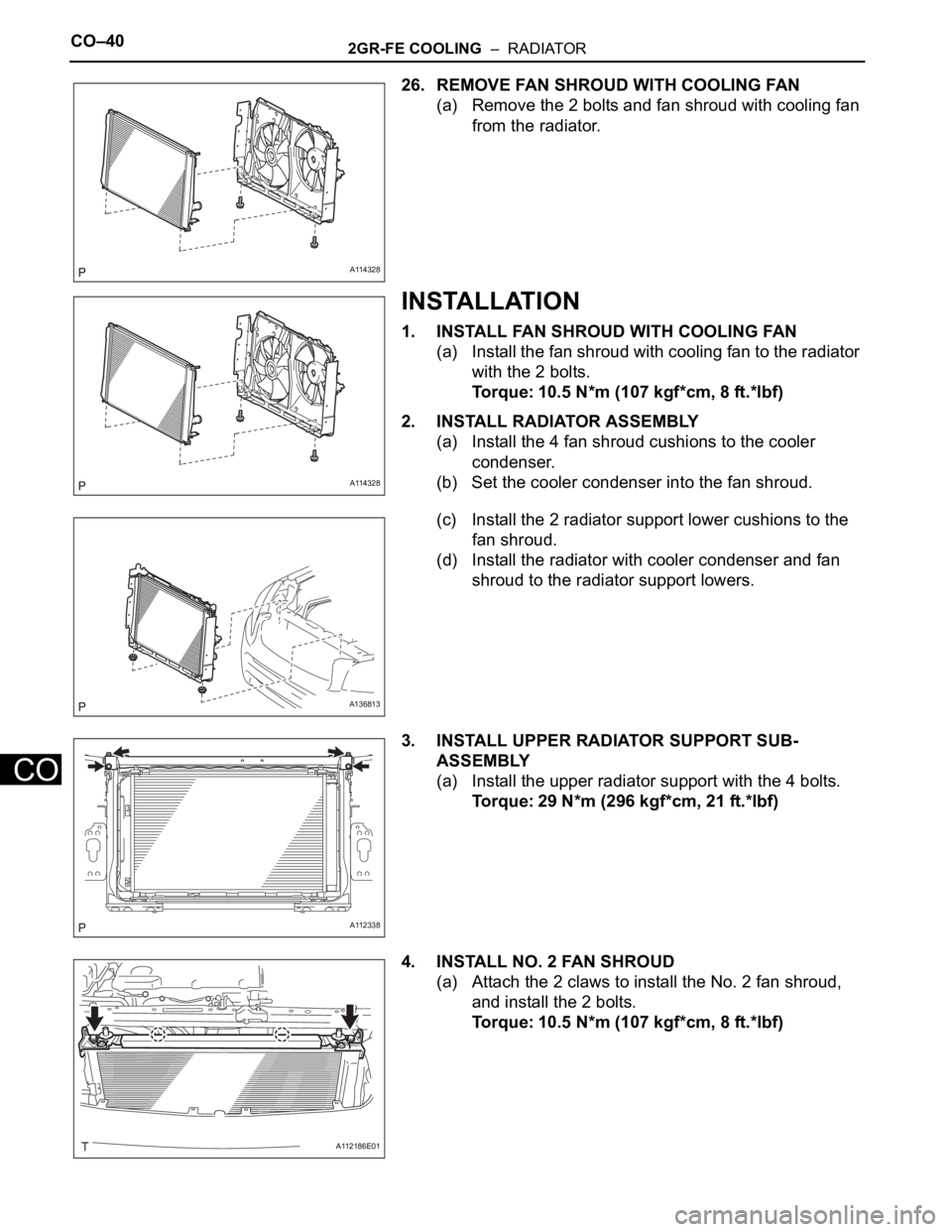

Page 869 of 2000

TOYOTA RAV4 2006  Service Repair Manual CO–402GR-FE COOLING  –  RADIATOR
CO
26. REMOVE FAN SHROUD WITH COOLING FAN
(a) Remove the 2 bolts and fan shroud with cooling fan
from the radiator.
INSTALLATION
1. INSTALL FAN SHROUD WITH COOLIN

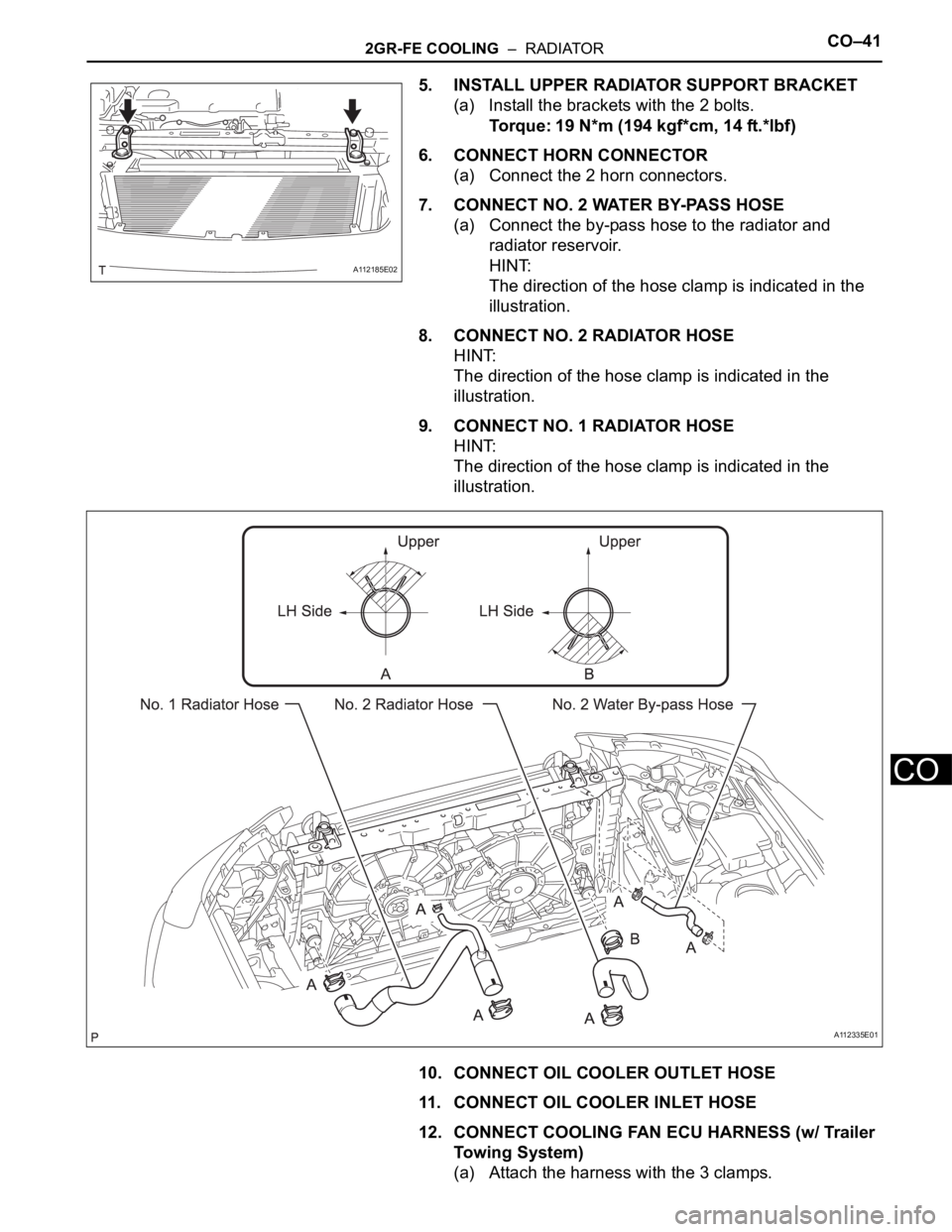

Page 870 of 2000

TOYOTA RAV4 2006  Service Repair Manual 2GR-FE COOLING  –  RADIATORCO–41
CO
5. INSTALL UPPER RADIATOR SUPPORT BRACKET
(a) Install the brackets with the 2 bolts.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
6. CONNECT HORN CONNECTOR
(a) Conne
