OTHER FUNCTIONS

150
V573_E
z Initializing the settings
You can initialize the settings.

Touch “Default”.

Touch “Yes”. (d) Setting the screen

1. Touch “Screen” to display the
“Screen Settings” screen.

2. Do the detail settings of the
screen and touch “OK”.

OTHER FUNCTIONS
151
V573_E

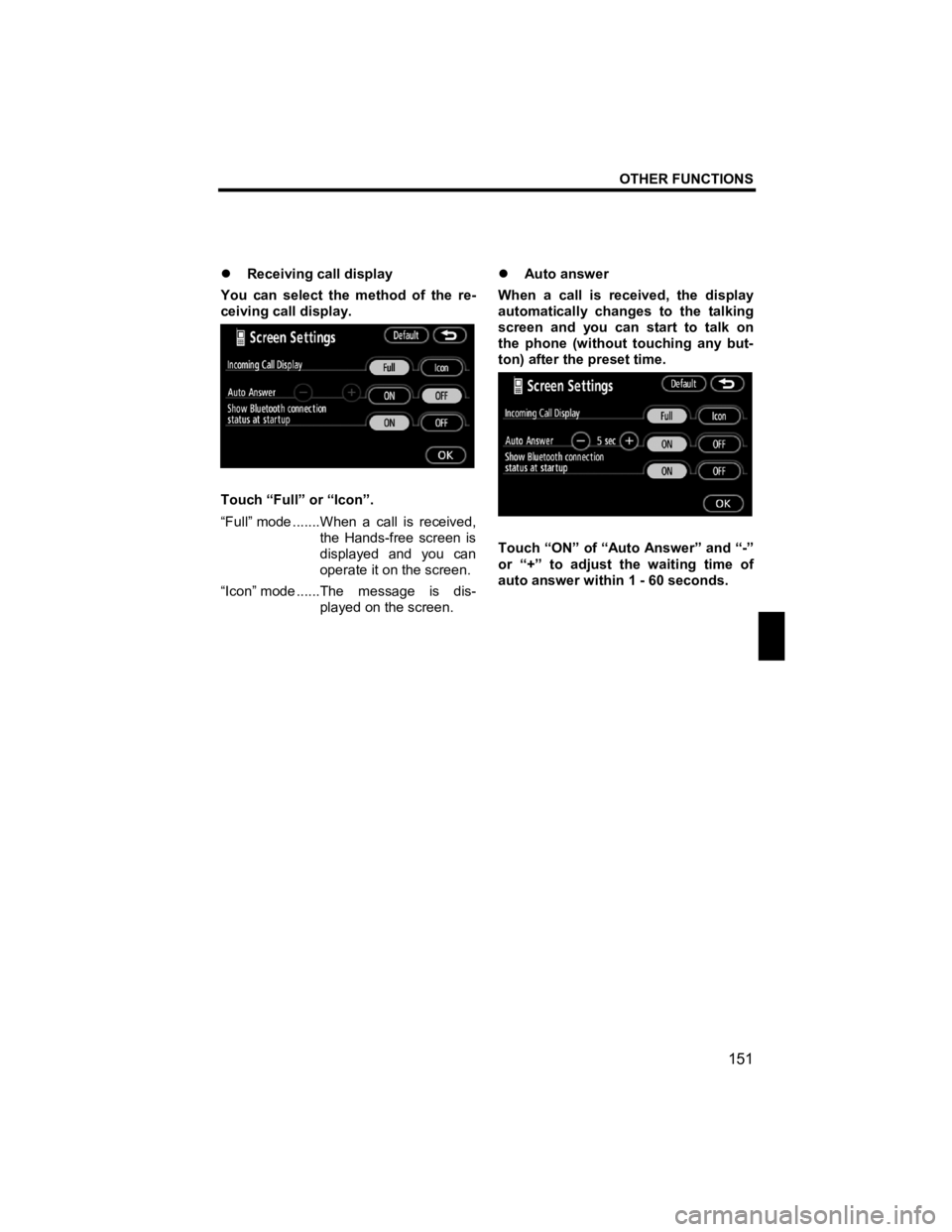

z Receiving call display
You can select the method of the re-
ceiving call display.

Touch “Full” or “Icon”.
“Full” mode .......When a call is received, the Hands-free screen is
displayed and you can
operate it on the screen.
“Icon” mode ......The message is dis- played on the screen. z
Auto answer
When a call is received, the display
automatically changes to the talking
screen and you can start to talk on
the phone (without touching any but-
ton) after the preset time.

Touch “ON” of “Auto Answer” and “-”
or “+” to adjust the waiting time of
auto answer within 1 - 60 seconds.

OTHER FUNCTIONS

152
V573_E
z The Bluetooth® connection status
at startup

Vehicles with smart entry and start sys-
tem—
When the “ENGINE START STOP”
switch is in the ACCESSORY or
IGNITION ON mode and the Blue-
tooth
® is automatically connected, the
connection check is displayed.
Vehicles without smart entry and start
system—
When the engine switch is in ACC or
ON position and the Bluetooth
® is
automatically connected, the connec-
tion check is displayed.

Touch “ON” or “OFF” of “Show Blue-
tooth∗ connection status at startup”.
∗: Bluetooth is a registered trademark
of Bluetooth SIG. Inc. z
Initializing the settings
You can initialize the settings.

Touch “Default”.

Touch “Yes”.

OTHER FUNCTIONS
153
V573_E

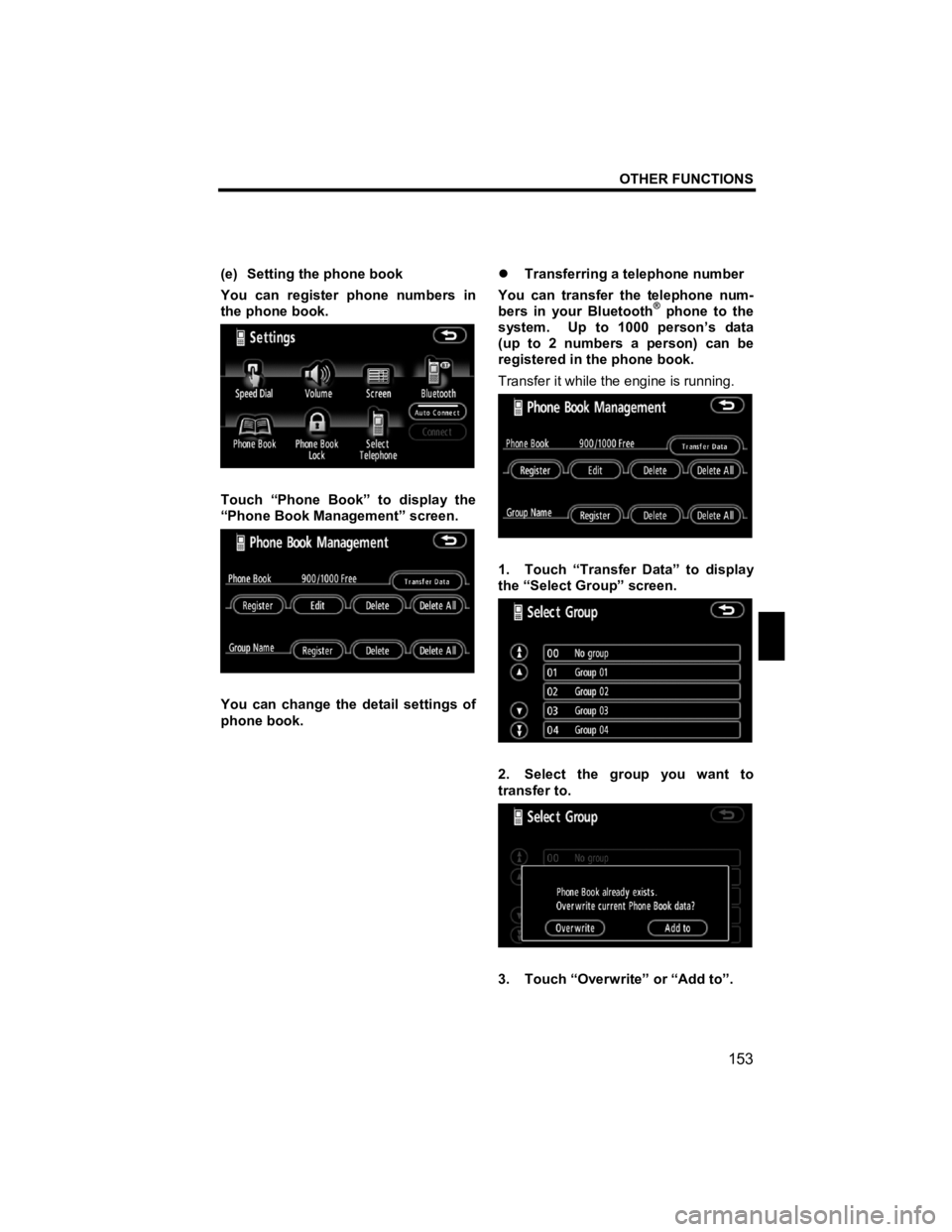

(e) Setting the phone book
You can register phone numbers in
the phone book.

Touch “Phone Book” to display the
“Phone Book Management” screen.

You can change the detail settings of
phone book. z
Transferring a telephone number
You can transfer the telephone num-
bers in your Bluetooth
® phone to the
system. Up to 1000 person’s data
(up to 2 numbers a person) can be
registered in the phone book.
Transfer it while the engine is running.

1. Touch “Transfer Data” to display
the “Select Group” screen.

2. Select the group you want to
transfer to.

3. Touch “Overwrite” or “Add to”.

OTHER FUNCTIONS

154
V573_E

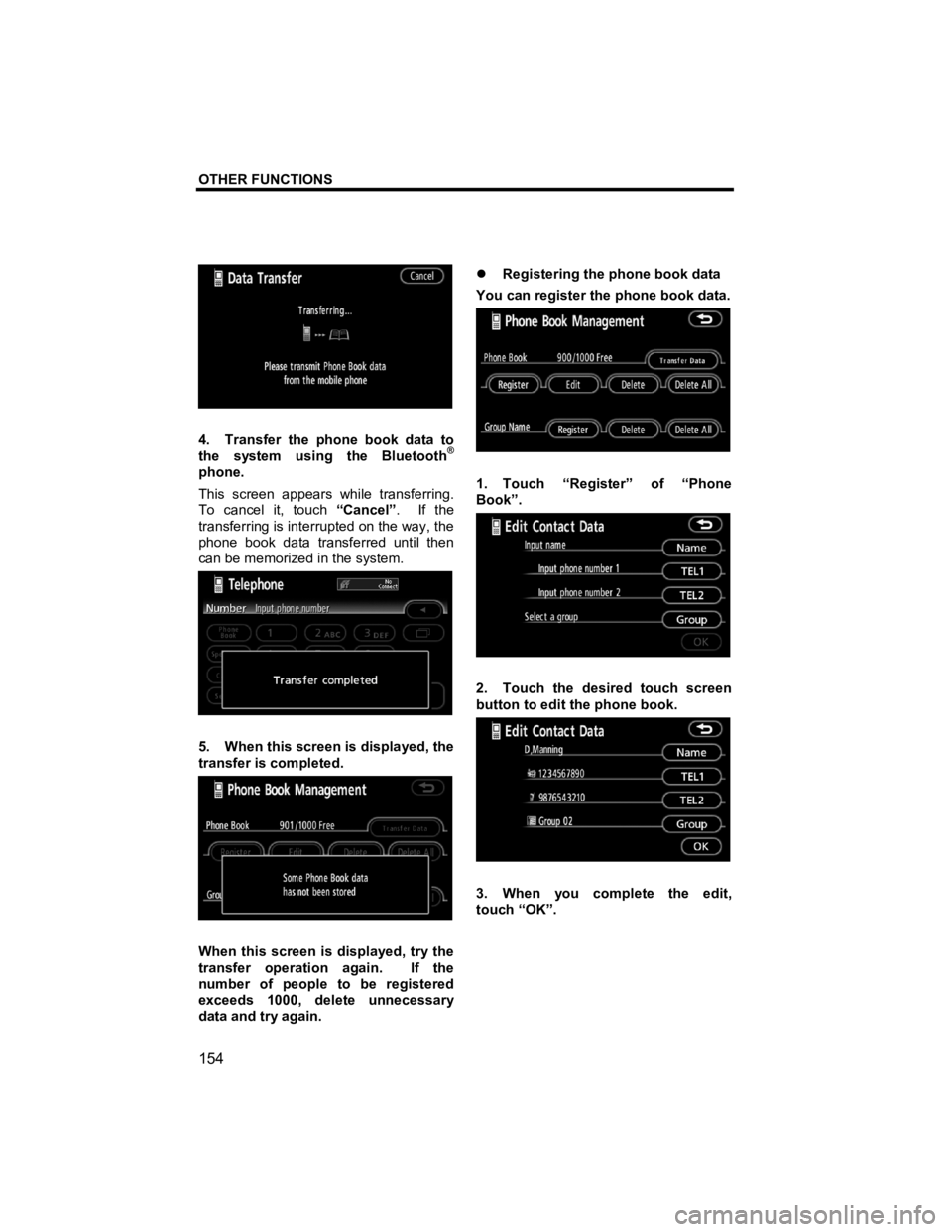

4. Transfer the phone book data to
the system using the Bluetooth®
phone.
This screen appears while transferring.
To cancel it, touch “Cancel”. If the
transferring is interrupted on the way, the
phone book data transferred until then
can be memorized in the system.

5. When this screen is displayed, the
transfer is completed.

When this screen is displayed, try the
transfer operation again. If the
number of people to be registered
exceeds 1000, delete unnecessary
data and try again. z
Registering the phone book data
You can register the phone book data.

1. Touch “Register” of “Phone
Book”.

2. Touch the desired touch screen
button to edit the phone book.

3. When you complete the edit,
touch “OK”.

OTHER FUNCTIONS
155
V573_E

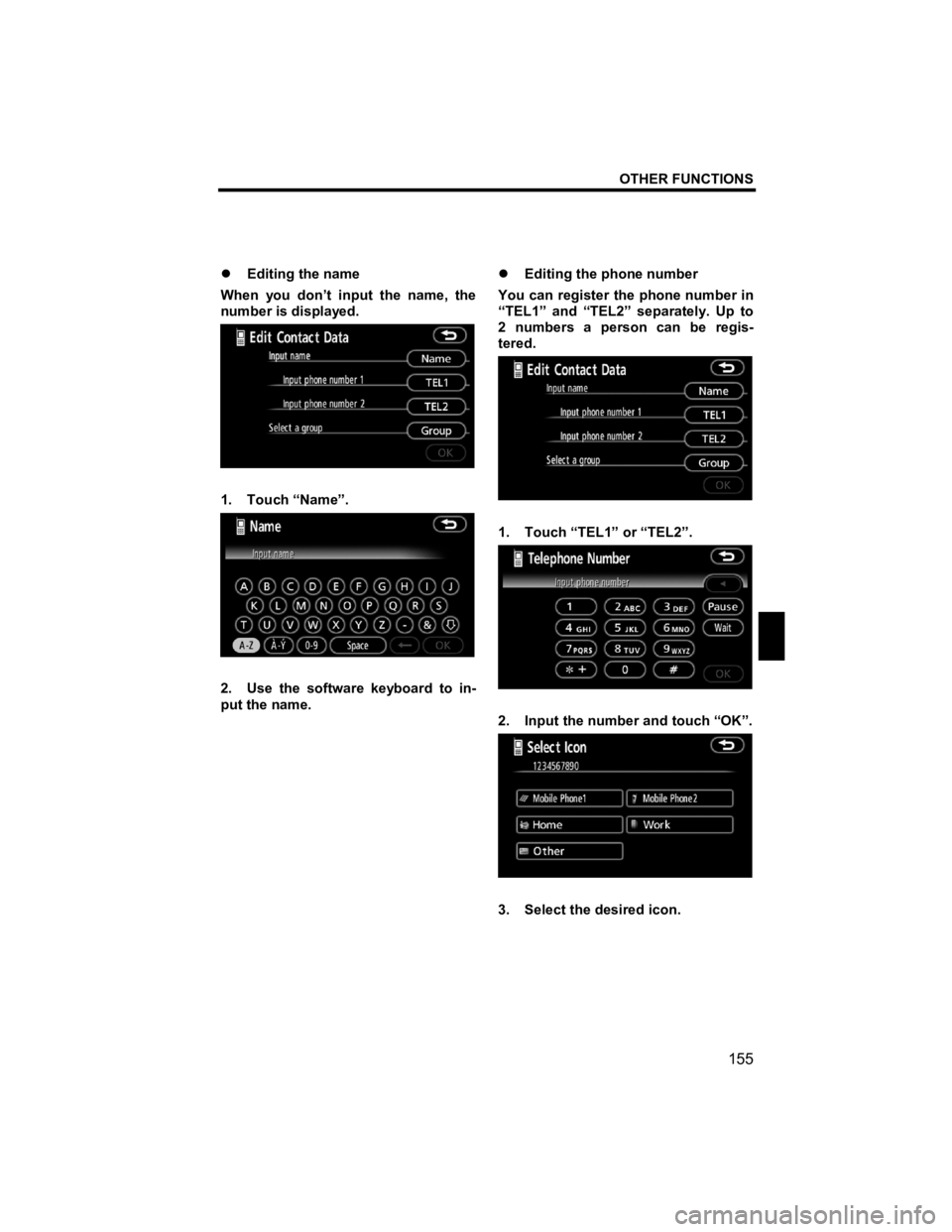

z Editing the name
When you don’t input the name, the
number is displayed.

1. Touch “Name”.

2. Use the software keyboard to in-
put the name. z
Editing the phone number
You can register the phone number in
“TEL1” and “TEL2” separately. Up to
2 numbers a person can be regis-
tered.

1. Touch “TEL1” or “TEL2”.

2. Input the number and touch “OK”.

3. Select the desired icon.

OTHER FUNCTIONS

156
V573_E

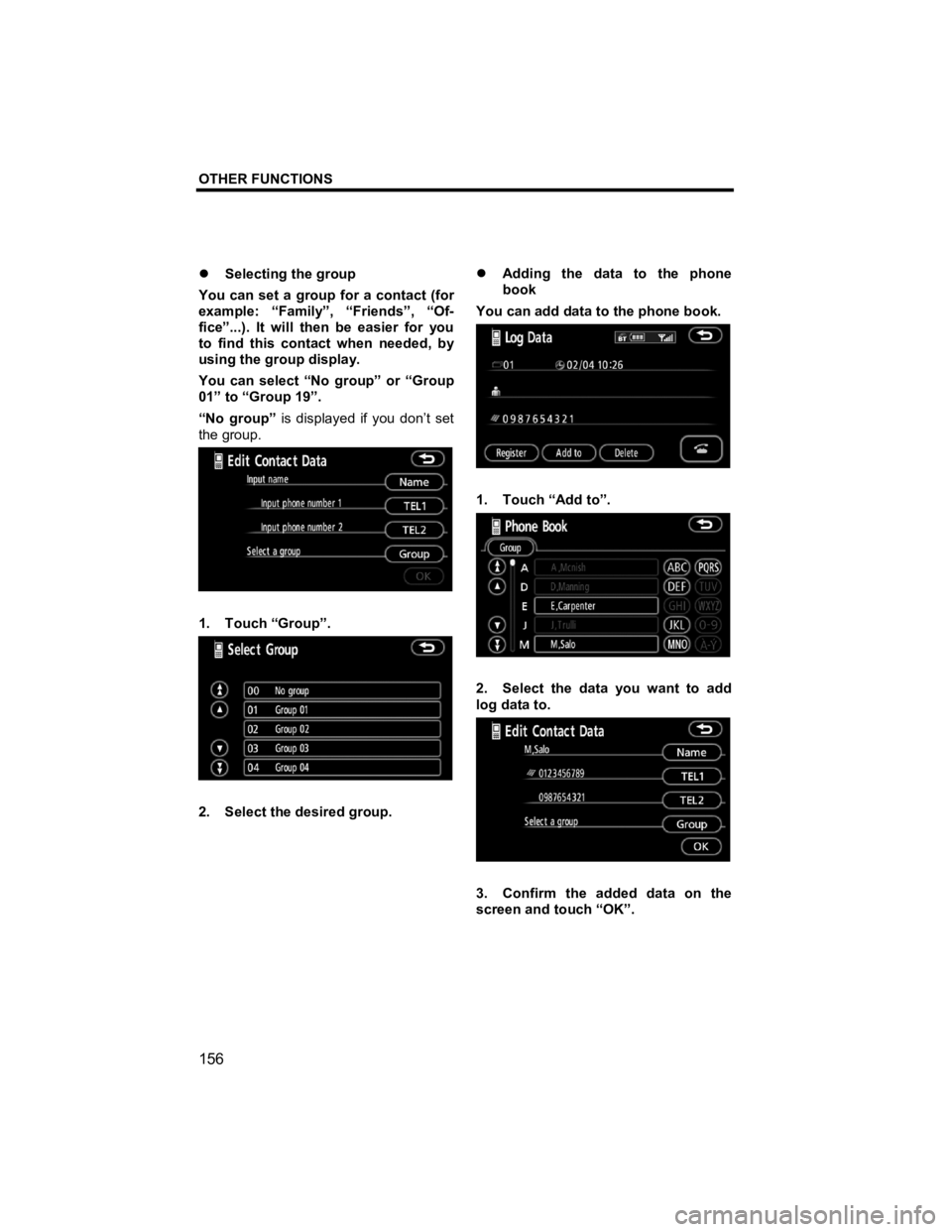

z Selecting the group
You can set a group for a contact (for
example: “Family”, “Friends”, “Of-
fice”...). It will then be easier for you
to find this contact when needed, by
using the group display.
You can select “No gr oup” or “Group
01” to “Group 19”.
“No group” is displayed if you don’t set
the group.

1. Touch “Group”.

2. Select the desired group. z
Adding the data to the phone
book
You can add data to the phone book.

1. Touch “Add to”.

2. Select the data you want to add
log data to.

3. Confirm the added data on the
screen and touch “OK”.

OTHER FUNCTIONS
157
V573_E

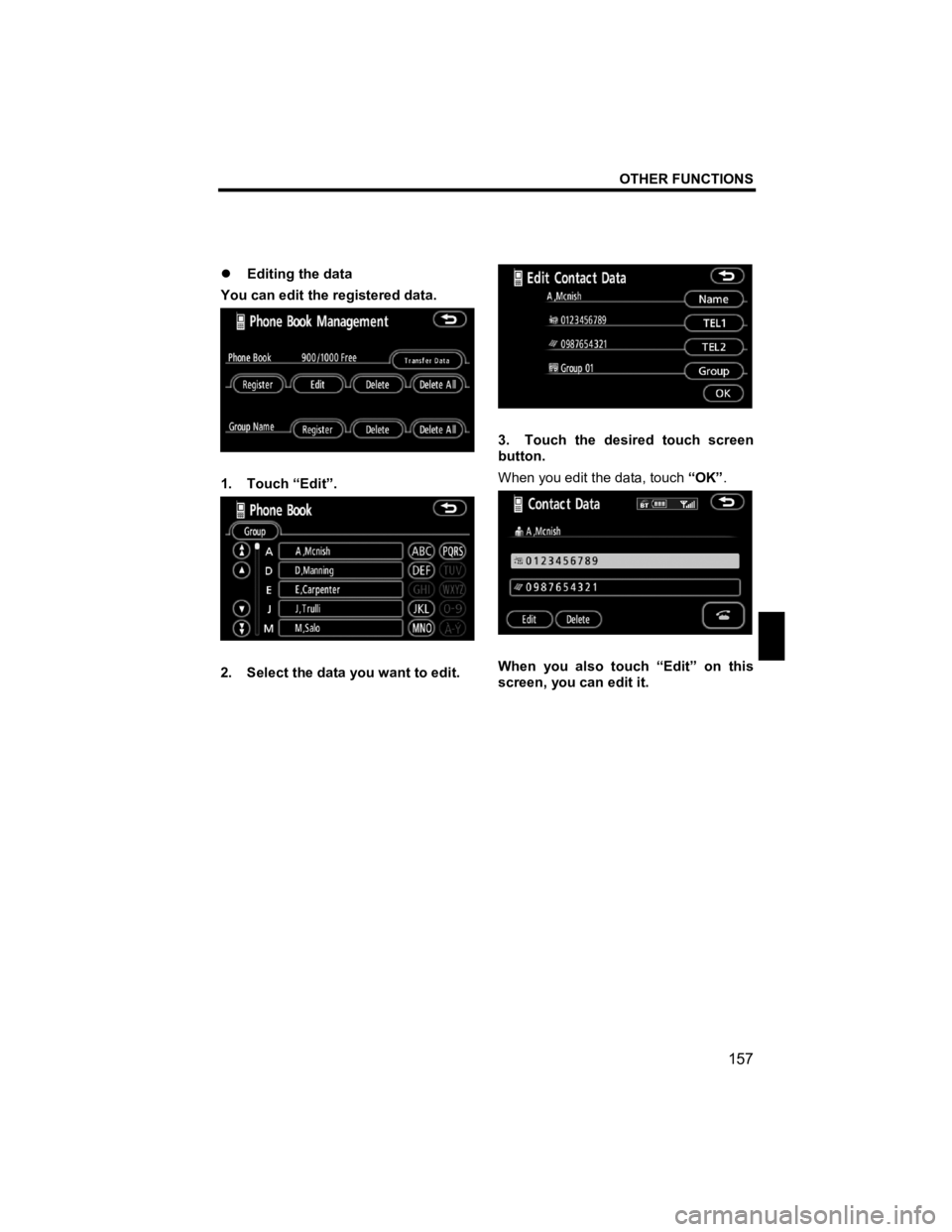

z Editing the data
You can edit the registered data.

1. Touch “Edit”.

2. Select the data you want to edit.


3. Touch the desired touch screen
button.
When you edit the data, touch “OK”.

When you also touch “Edit” on this
screen, you can edit it.

OTHER FUNCTIONS

158
V573_E

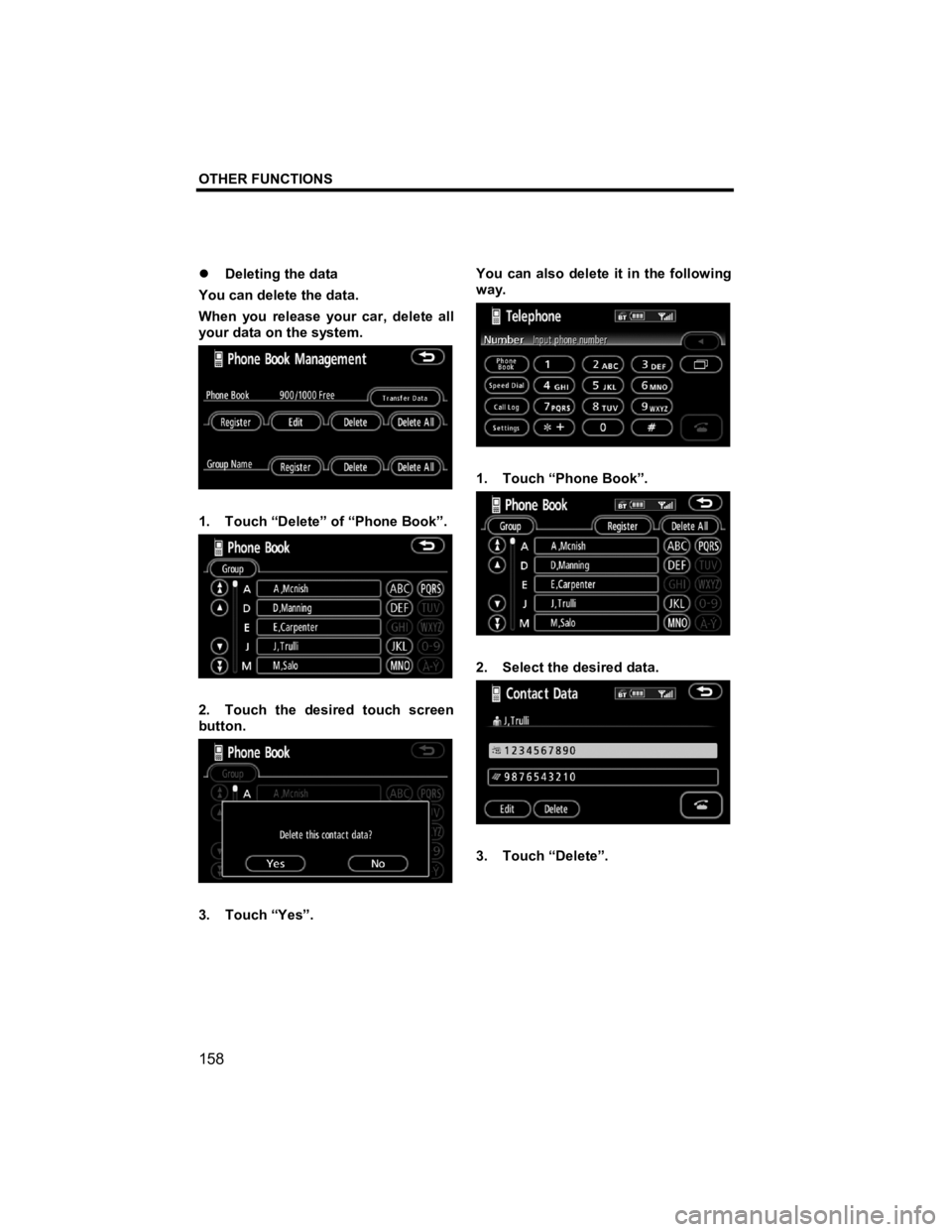

z Deleting the data
You can delete the data.
When you release your car, delete all
your data on the system.

1. Touch “Delete” of “Phone Book”.

2. Touch the desired touch screen
button.

3. Touch “Yes”. You can also delete it in the following
way.

1. Touch “Phone Book”.

2. Select the desired data.

3. Touch “Delete”.

OTHER FUNCTIONS
159
V573_E

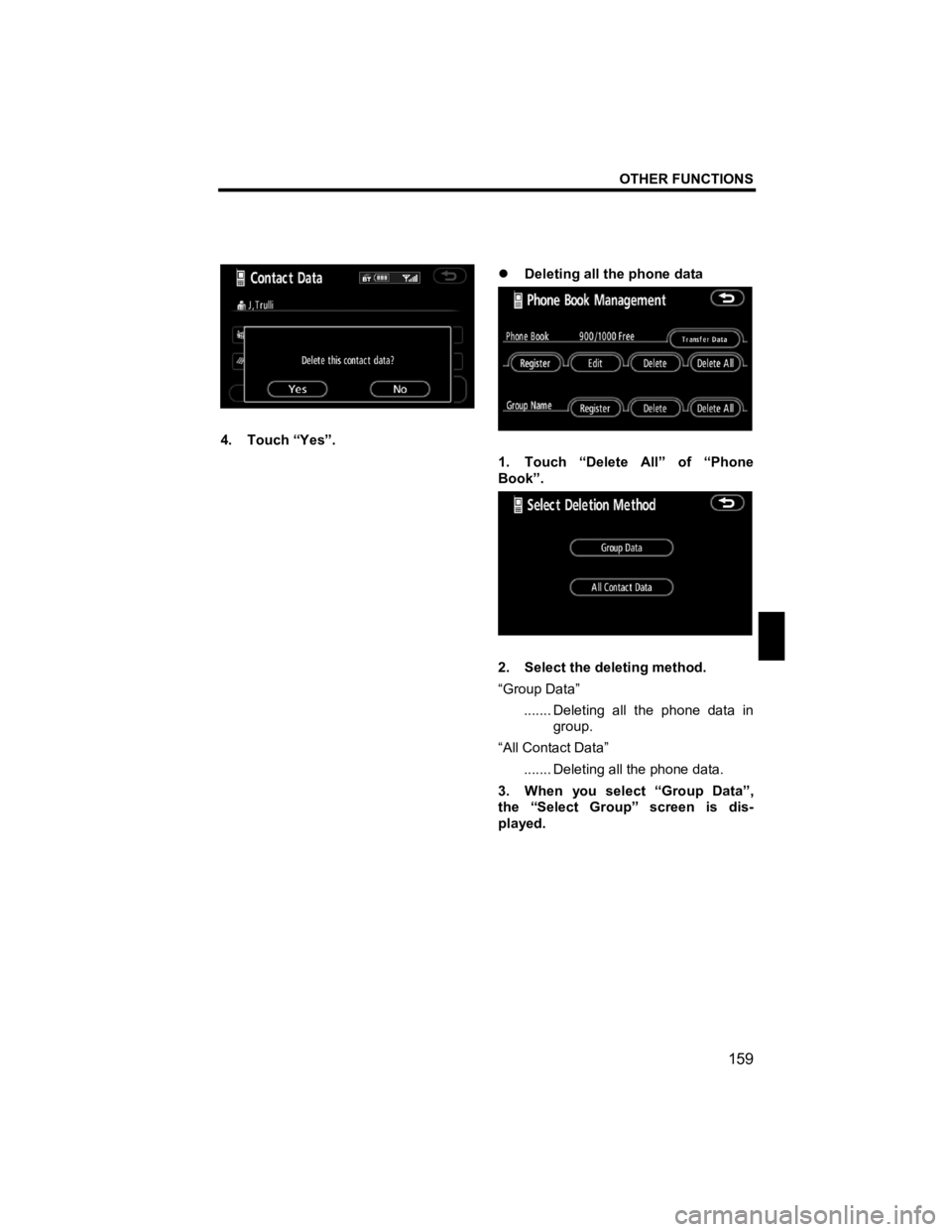

4. Touch “Yes”.
z
Deleting all the phone data
1. Touch “Delete All” of “Phone
Book”.

2. Select the deleting method.
“Group Data”
....... Deleting all the phone data in group.
“All Contact Data”
....... Deleting all the phone data.
3. When you select “Group Data”,
the “Select Group” screen is dis-
played.
