TOYOTA tC 2010 Accessories, Audio & Navigation (in English)

OTHER FUNCTIONS

160
V573_E

4. Select the desired group.

5. Touch “Yes”. You can also delete it in the following
way.

1. Touch “Phone Book”.

2. Touch “Delete All”.

3. Touch “Yes”.

OTHER FUNCTIONS
161
V573_E

z Registering a group name
You can register 20 groups. “No
group”, “Group 01” - “Group 19” is
registered by default.
You can change “Group 01” - “Group
19” into desired names.

1. Touch “Register” of “Group
Name”.

2. Select the group you want to reg-
ister.

3. When you complete all the edit,
touch “OK”.
z
Selecting a group icon

1. Touch “Icon”.

2. Select the desired icon.

OTHER FUNCTIONS

162
V573_E
z Editing a group name

1. Touch “Name”.

2. Use the software keyboard to in-
put the name. z
Deleting a group name
You can delete the group names indi-
vidually or all at once. If you delete a
group name, that group will return to
the default setting (excluding “No
group”).

1. Touch “Delete” of “Group Name”.

2. Select the group you want to de-
lete the name of.

3. Touch “Yes”.

OTHER FUNCTIONS
163
V573_E

z Deleting all the group name

1. Touch “Delete All” of “Group
Name”.

2. Touch “Yes”.
z
Deleting the log data
You can delete the log data individu-
ally or all at once.
When you release your car, delete all
the data on the system.
INDIVIDUALLY

1. Touch “Delete” on the “Log Data”
screen.

2. Touch “Yes”.

OTHER FUNCTIONS

164
V573_E
ALL AT ONCE

1. Touch “Delete All” on the “Out-
going Calls” or “Incoming Calls”
screen.

2. Touch “Yes”. (f) Setting the security
When you set the security, you can
prevent people from using some
functions of the hands-free system. It
is useful when you leave your car with
the hotel or you don’t want others to
see the data you registered.
When you set or unlock the security, you
have to input the security code. Be sure
to change the default code when you use
the security for the first time.

OTHER FUNCTIONS
165
V573_E

z Changing the security code
The security code is 4 digits and the
default is “0000”.
Change a new code that is hard for other
people to know.
When you change the security code,
don’t forget the code. The dealers cannot
unlock the security when you forget it.
If you forget the security code, initialize
your personal data. When you initialize
it, not only the phone book data but also
the memory points in the navigation
system, etc. will be deleted. (See “ ●
Initializing the security code” on page
167.)

1. Touch “Phone Book Lock”.

2. Touch “Change”.


3. Input the current code.
Each time you touch ◄, an inputted digit
is deleted.

4. Input a new code.

5. Touch “Yes”.

OTHER FUNCTIONS

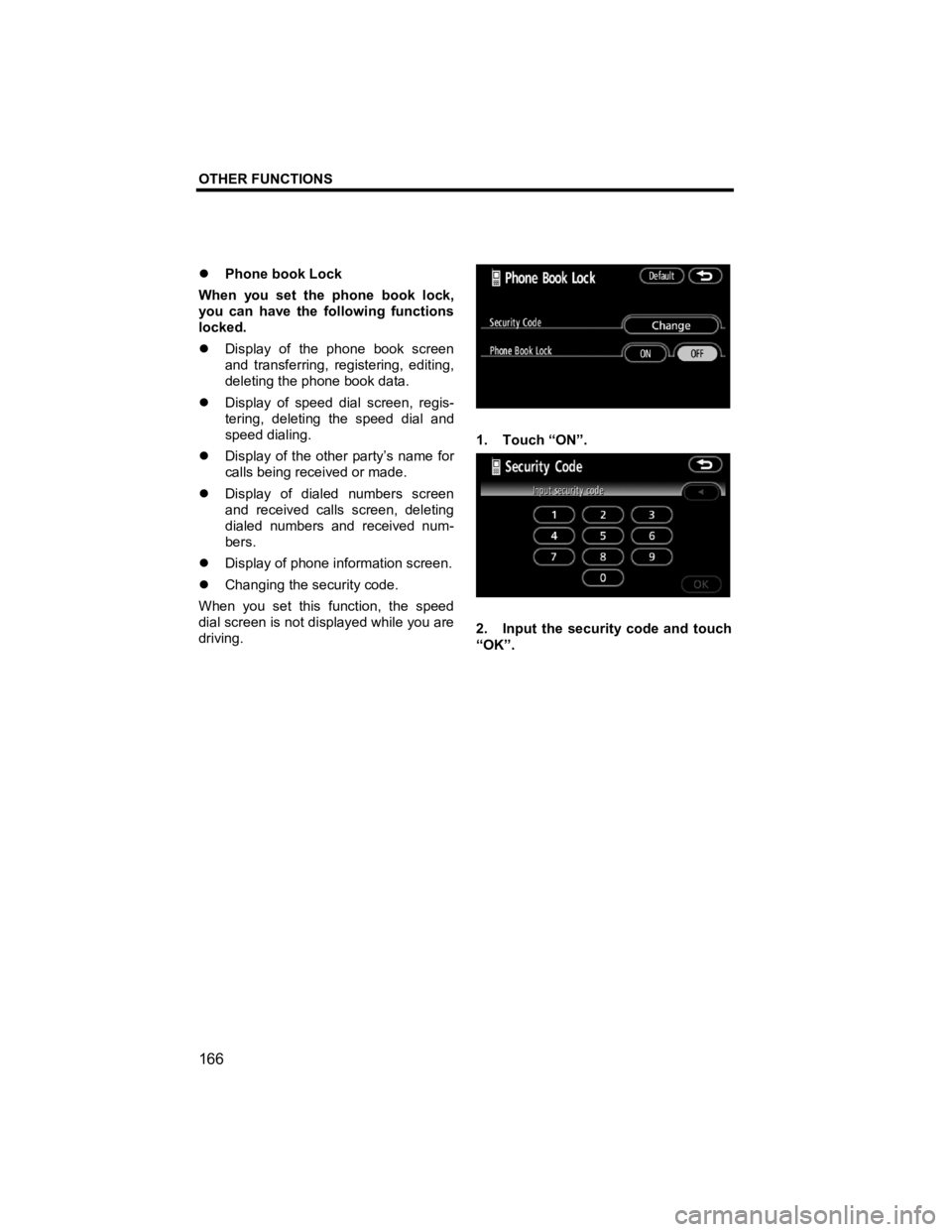

166
V573_E
z Phone book Lock
When you set the phone book lock,
you can have the following functions
locked.
z Display of the phone book screen
and transferring, registering, editing,
deleting the phone book data.
z Display of speed dial screen, regis-
tering, deleting the speed dial and
speed dialing.
z Display of the other party’s name for
calls being received or made.
z Display of dialed numbers screen
and received calls screen, deleting
dialed numbers and received num-
bers.
z Display of phone information screen.
z Changing the security code.
When you set this function, the speed
dial screen is not displayed while you are
driving.

1. Touch “ON”.

2. Input the security code and touch
“OK”.

OTHER FUNCTIONS

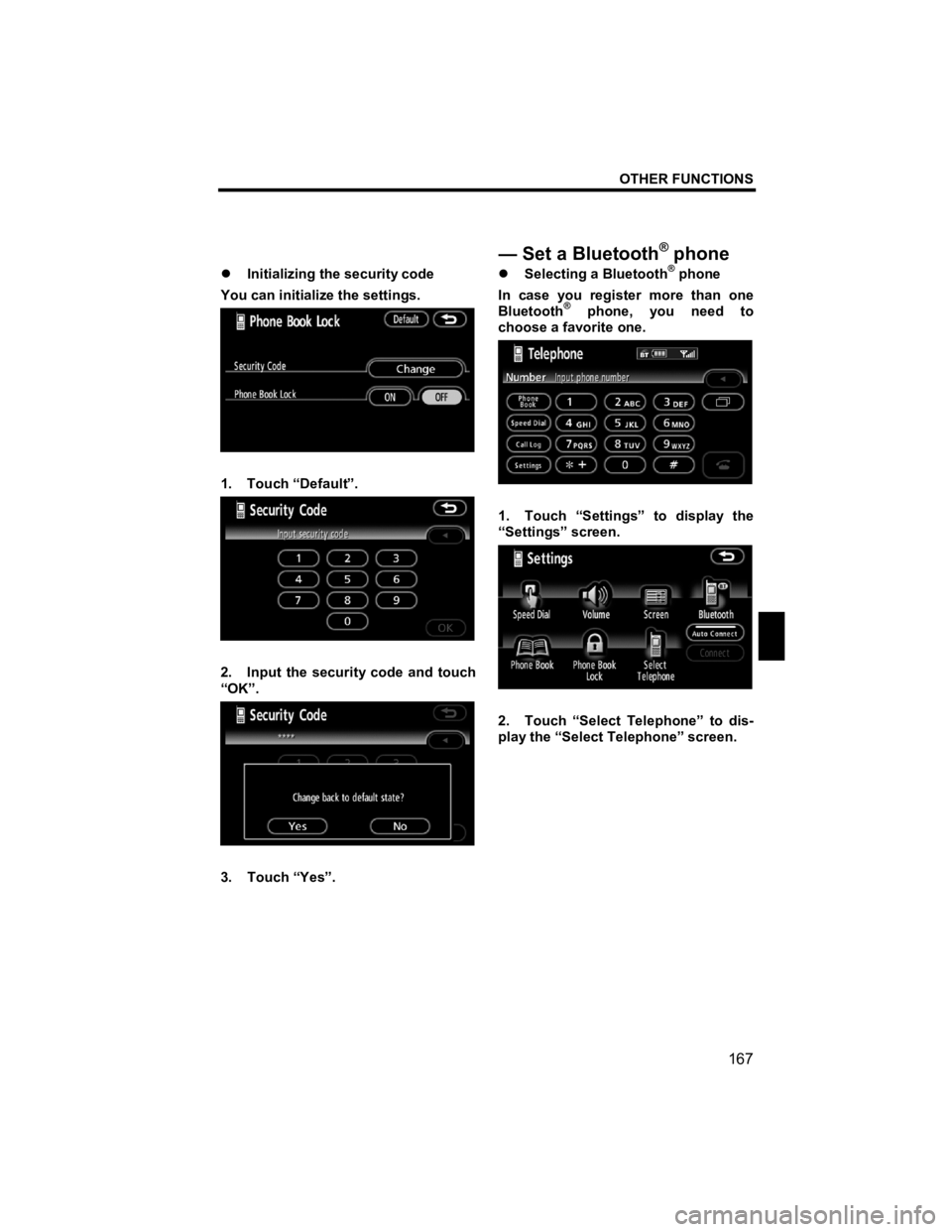

167
V573_E

z Initializing the security code
You can initialize the settings.

1. Touch “Default”.

2. Input the security code and touch
“OK”.

3. Touch “Yes”.

z Selecting a Bluetooth® phone
In case you register more than one
Bluetooth
® phone, you need to
choose a favorite one.

1. Touch “Settings” to display the
“Settings” screen.

2. Touch “Select Telephone” to dis-
play the “Select Telephone” screen.


—Set a Bluetooth® phone

OTHER FUNCTIONS

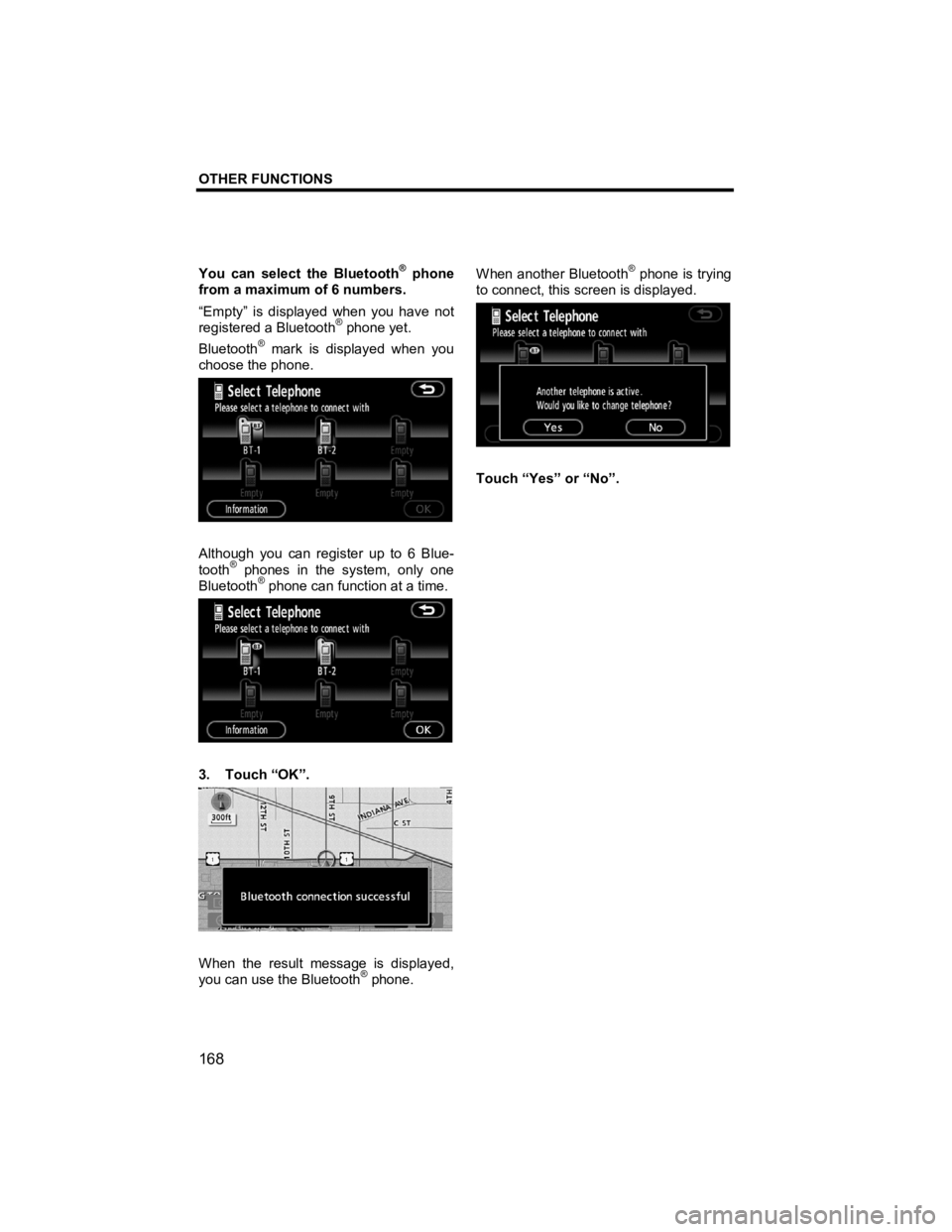

168
V573_E
You can select the Bluetooth® phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth
® phone yet.
Bluetooth® mark is displayed when you
choose the phone.

Although you can register up to 6 Blue-
tooth® phones in the system, only one
Bluetooth® phone can function at a time.

3. Touch “OK”.

When the result message is displayed,
you can use the Bluetooth® phone. When another Bluetooth
® phone is trying
to connect, this screen is displayed.

Touch “Yes” or “No”.

OTHER FUNCTIONS

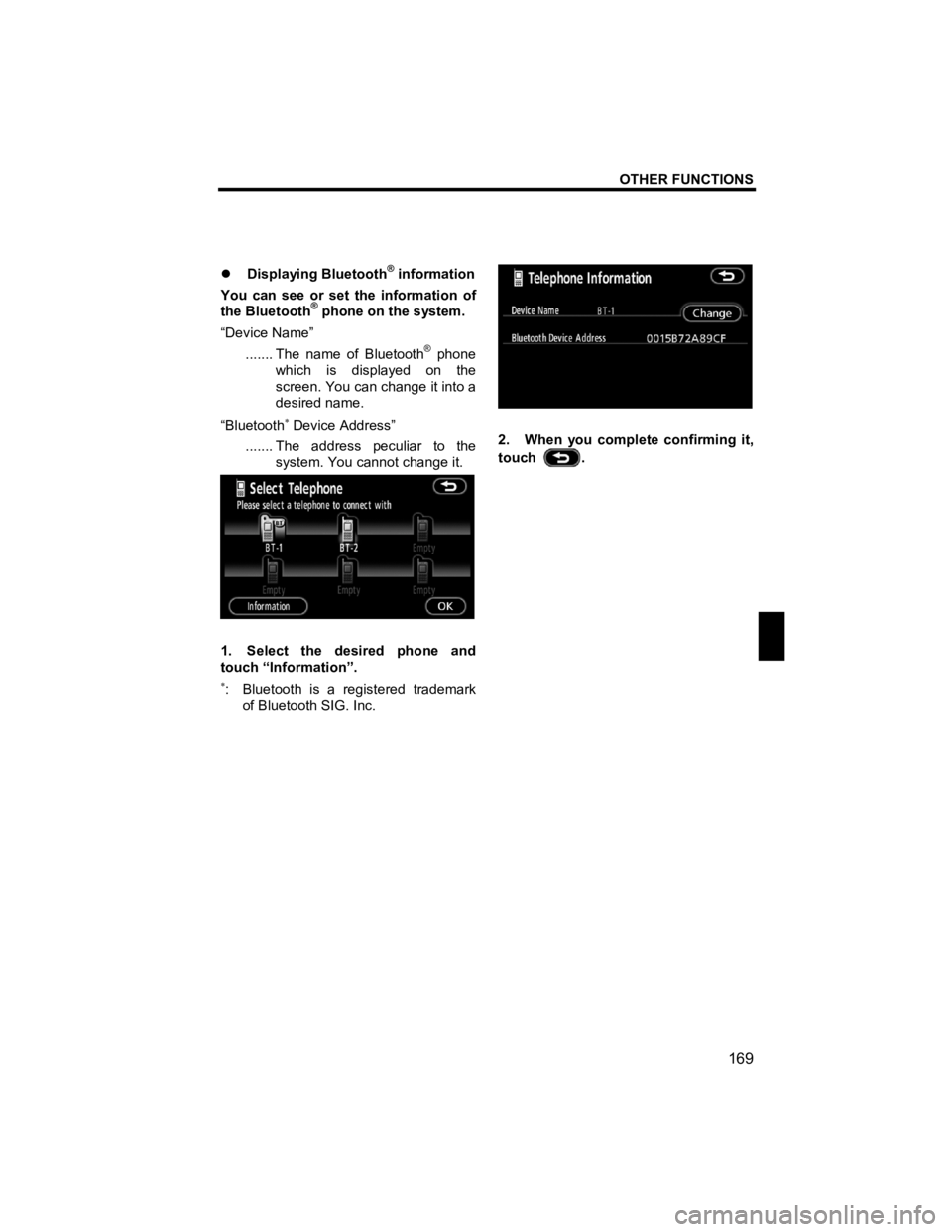

169
V573_E

z Displaying Bluetooth® information
You can see or set the information of
the Bluetooth
® phone on the system.
“Device Name” ....... The name of Bluetooth
® phone
which is displayed on the
screen. You can change it into a
desired name.
“Bluetooth
∗ Device Address”
....... The address peculiar to the system. You cannot change it.

1. Select the desired phone and
touch “Information”.
∗: Bluetooth is a registered trademark
of Bluetooth SIG. Inc.


2. When you complete confirming it,
touch
.
