ROUTE GUIDANCE
80
V573_E

Select the desired POI categories
from the list.
The selected category icon appears on
the top left of the screen.
By selecting the desired POI category
and then touching “OK”, the selected
POI icons are displayed on the map
screen.
To return to the POI category selection
screen, touch “More”. z
To display the local POI list
Points of Interest that are within 20 miles
(32 km) of the current position will be
listed from among the selected catego-
ries.

1. Touch “Local POI List” on the
“Display POI Icons” screen.

2. Touch the touch screen button of
the desired Point of Interest.
The selected Points of Interest are dis-
played on the map screen.
“On Route”: When the indicator is illu-
minated by touching this touch screen
button, the list of the items searched
along the route is displayed.

ROUTE GUIDANCE
81
V573_E

z To set a POI as a destination
You can select one of the Points of In-
terest icons on the map screen as a des-
tination and use it for route guidance.

1. Directly touch the Point of Interest
icon that you want to set as a destina-
tion.
The map will shift so that the icon is
centered on the screen and overlaps
with the cursor
. At this time, the
distance from the current position is dis-
played on the screen. The distance
shown is measured as a straight line
from the current vehicle position to the
POI.
2. When the desired Point of Interest
overlaps with the cursor, touch “Enter
”.
The screen changes and displays the
map location of the selected destination
and route preference. (See “Starting
route guidance” on page 61.)

1. Touch “Map View”.

2. Touch “Route Overview”.

The entire route from the current position
to the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (See
pages 72 and 75.)
“Turn List”: The following screen dis-
plays the list of the roads up to the des-
tination.


—Route overview

ROUTE GUIDANCE
82
V573_E

You can scroll through the list of roads
by touching
or . However, not
all road names in the route may appear
on the list. If a road changes its name
without requiring a turn (such as on a
street that runs through two or more cit-
ies), the name change will not appear on
the list. The street names will be dis-
played in order from the starting point,
along with the distance to the next turn.
These marks indicate the direction
in which you should turn at an in-
tersection.

Touch “Map” of the “Turn List”
screen.
The point which you choose is displayed
on the map screen.


1. Touch “Map View”.

2. Touch “Route Preview”.


—Route preview

ROUTE GUIDANCE
83
V573_E


: To indicate the next destination.
: To preview the route to the next
destination.
: To preview the route to the next
destination in fast-forward
mode.
: To pause preview.
: To review the route to the pre-
vious destination or starting
point.
: To review the route to the pre-
vious destination or starting
point in fast-forward mode.
: To indicate the previous desti-
nation or starting point. It is possible to store the traveled route
up to 124 miles (200 km) and retrace the
route on the display.

INFORMATION
This feature is available on the map
with more detailed map scale than
30 miles (50 km).


Touch “Map View”.


—Route trace

ROUTE GUIDANCE
84
V573_E

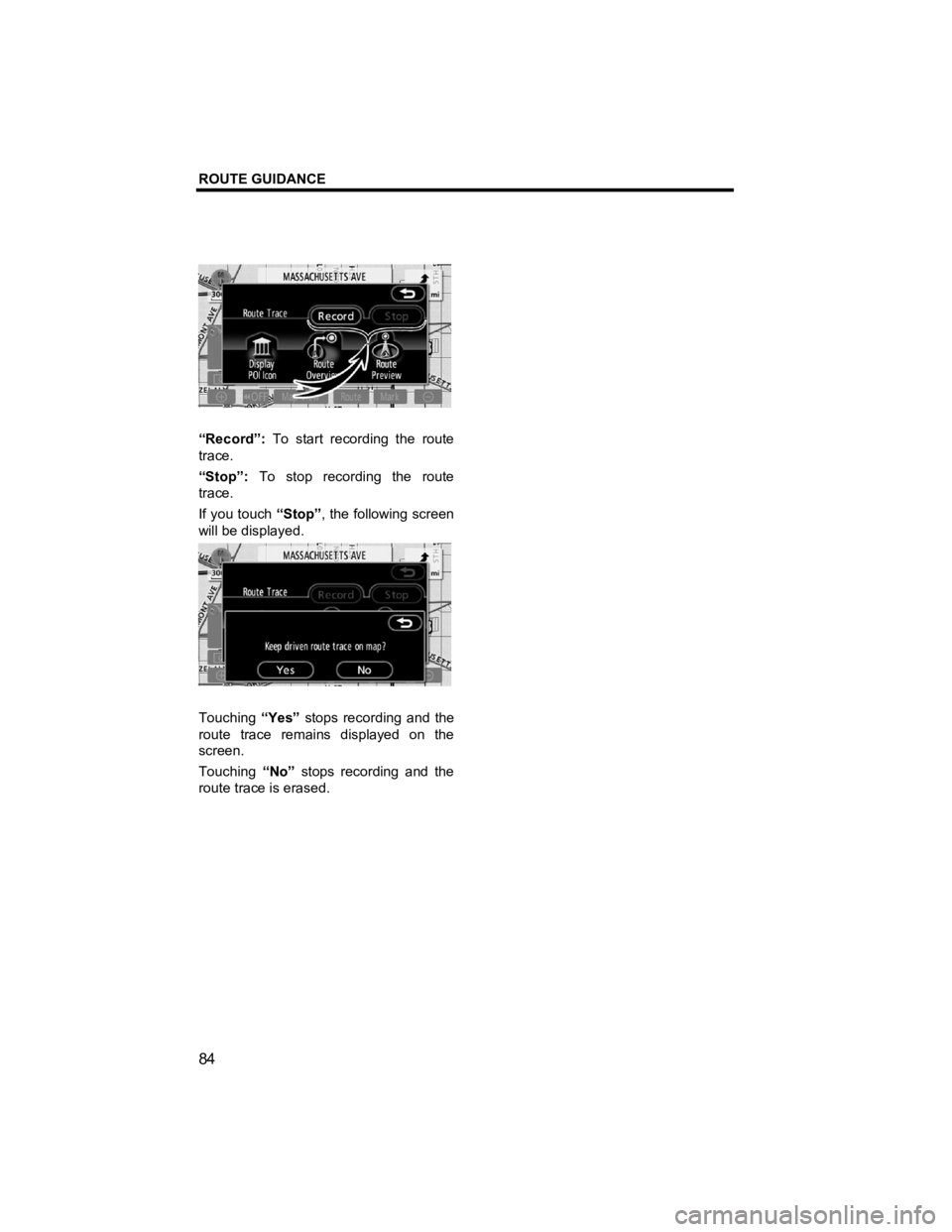

“Record”: To start recording the route
trace.
“Stop”: To stop recording the route
trace.
If you touch “Stop”, the following screen
will be displayed.

Touching “Yes” stops recording and the
route trace remains displayed on the
screen.
Touching “No” stops recording and the
route trace is erased.

ADVANCED FUNCTIONS
85
V573_E

SECTION 4
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
z Suspending and resuming guidance ··················\
··················\
·············· 86
z Volume··················\
··················\
··················\
··················\
··················\
······ 87
z User selection ··················\
··················\
··················\
··················\
············· 88
z XM
® NavTraffic ··················\
··················\
··················\
··················\
··········· 90
z My Places ··················\
··················\
··················\
··················\
··················\
96
Registering memory points ··················\
··················\
··················\
········ 97
Editing memory points ··················\
··················\
··················\
··············· 98
Deleting memory points ··················\
··················\
··················\
··········· 102
Registering home ··················\
··················\
··················\
··················\
··· 103
Deleting home ··················\
··················\
··················\
··················\
········ 104
Registering area to avoid ··················\
··················\
··················\
········· 104
Editing area to avoid ··················\
··················\
··················\
················ 105
Deleting area to avoid ··················\
··················\
··················\
·············· 108
Deleting previ ous points··················\
··················\
··················\
··········· 108
z Setup ··················\
··················\
··················\
··················\
··················\
······ 109

ADVANCED FUNCTIONS
86
V573_E

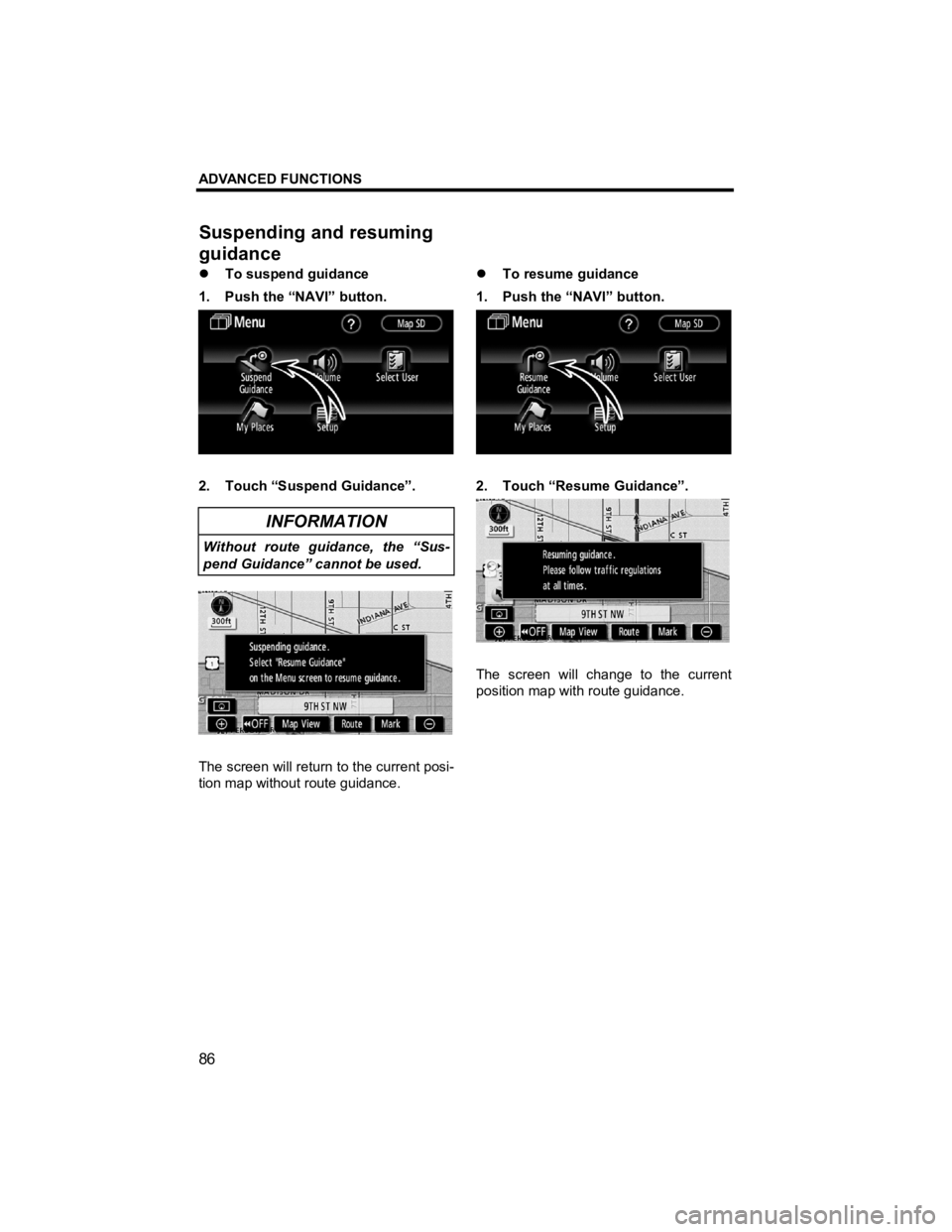

z To suspend guidance
1. Push the “NAVI” button.

2. Touch “Suspend Guidance”.
INFORMATION
Without route guidance, the “Sus-
pend Guidance” cannot be used.



The screen will return to the current posi-
tion map without route guidance. z
To resume guidance
1. Push the “NAVI” button.

2. Touch “Resume Guidance”.

The screen will change to the current
position map with route guidance.

Suspending and resuming
guidance

ADVANCED FUNCTIONS
87
V573_E

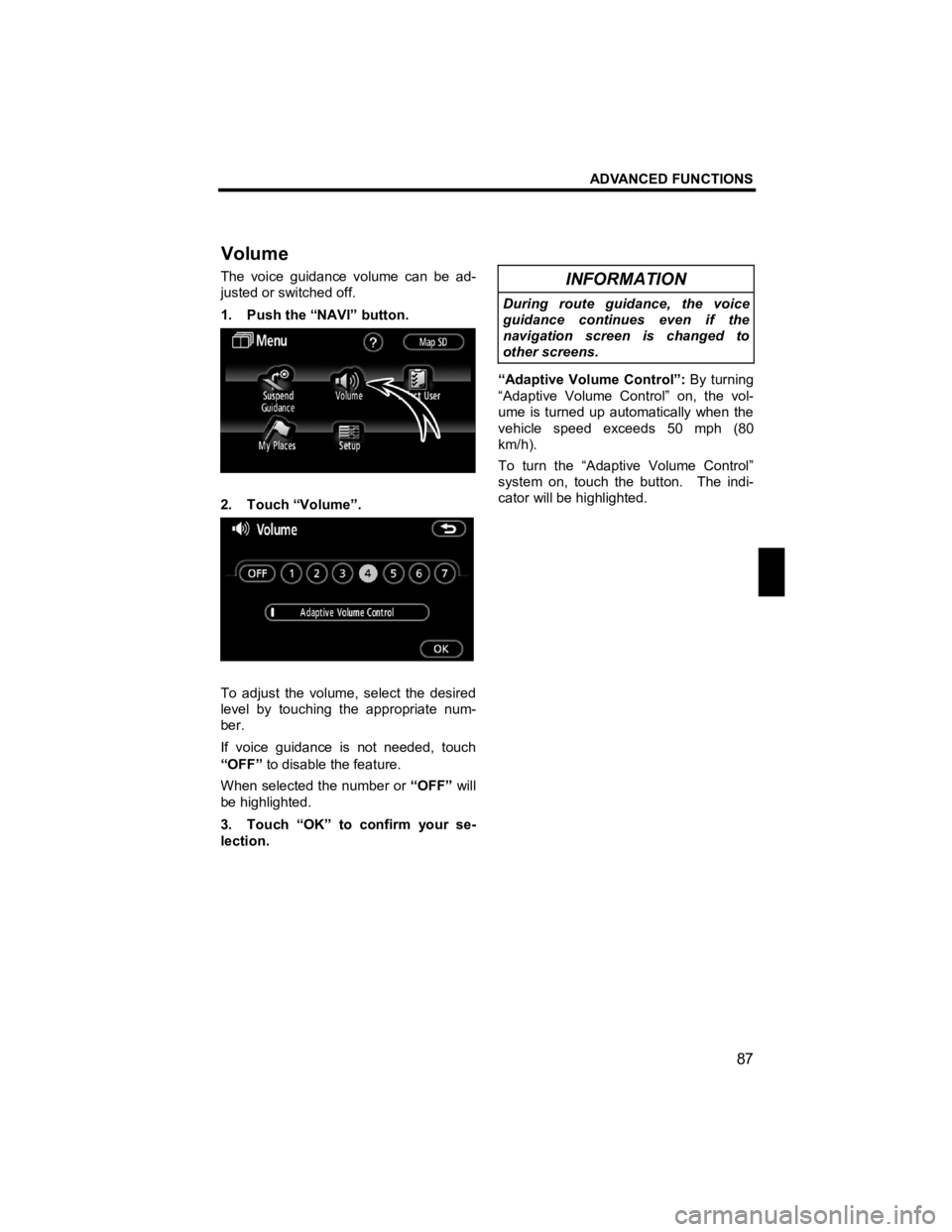

The voice guidance volume can be ad-
justed or switched off.
1. Push the “NAVI” button.

2. Touch “Volume”.

To adjust the volume, select the desired
level by touching the appropriate num-
ber.
If voice guidance is not needed, touch
“OFF” to disable the feature.
When selected the number or “OFF” will
be highlighted.
3. Touch “OK” to confirm your se-
lection.
INFORMATION
During route guidance, the voice
guidance continues even if the
navigation screen is changed to
other screens.
“Adaptive Volume Control”: By turning
“Adaptive Volume Control” on, the vol-
ume is turned up automatically when the
vehicle speed exceeds 50 mph (80
km/h).
To turn the “Adaptive Volume Control”
system on, touch the button. The indi-
cator will be highlighted.


Volume

ADVANCED FUNCTIONS
88
V573_E

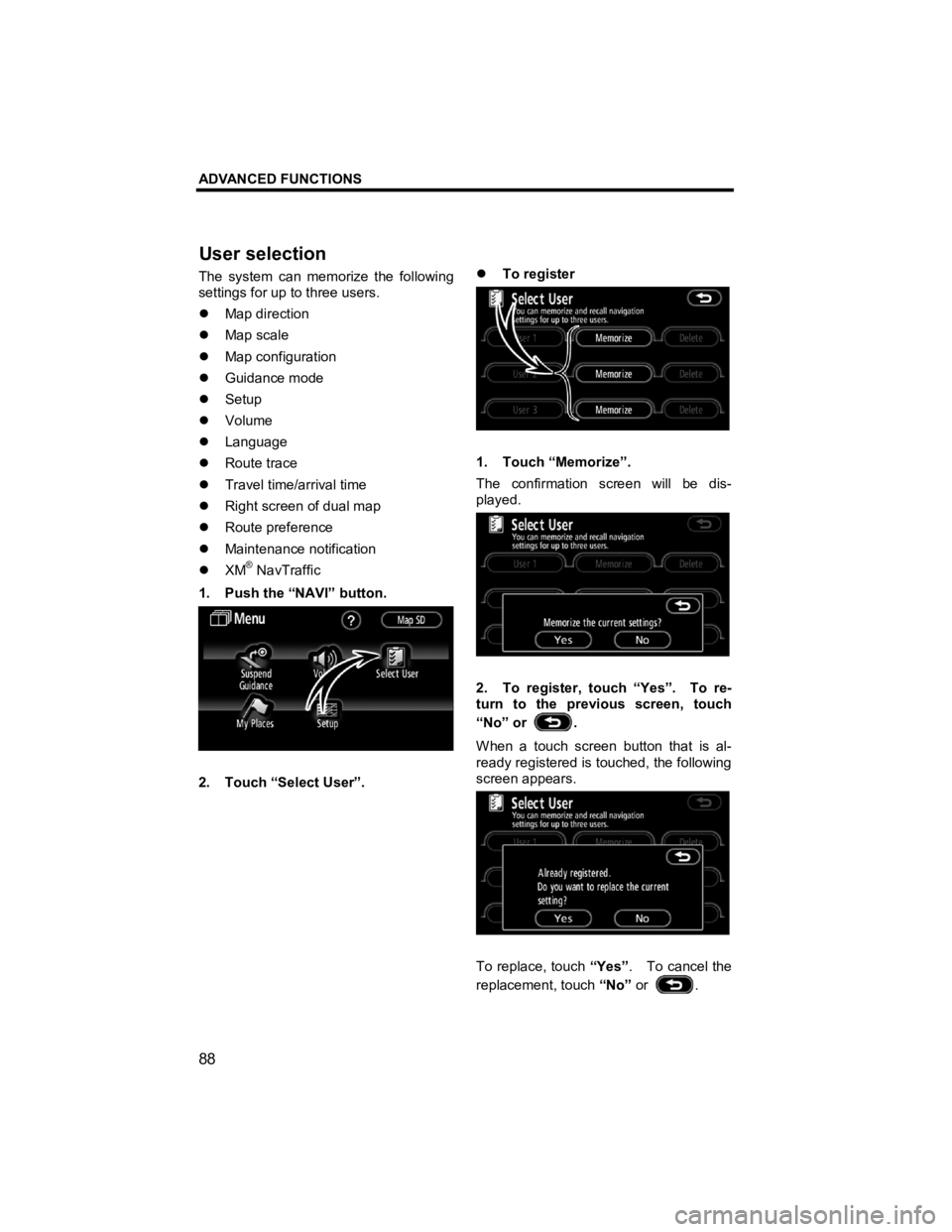

The system can memorize the following
settings for up to three users.
z Map direction
z Map scale
z Map configuration
z Guidance mode
z Setup
z Volume
z Language
z Route trace
z Travel time/arrival time
z Right screen of dual map
z Route preference
z Maintenance notification
z XM
® NavTraffic
1. Push the “NAVI” button.

2. Touch “Select User”. z
To register

1. Touch “Memorize”.
The confirmation screen will be dis-
played.

2. To register, touch “Yes”. To re-
turn to the previous screen, touch
“No” or

.
When a touch screen button that is al-
ready registered is touched, the following
screen appears.

To replace, touch “Yes”. To cancel the
replacement, touch “No” or

.


User selection

ADVANCED FUNCTIONS
89
V573_E

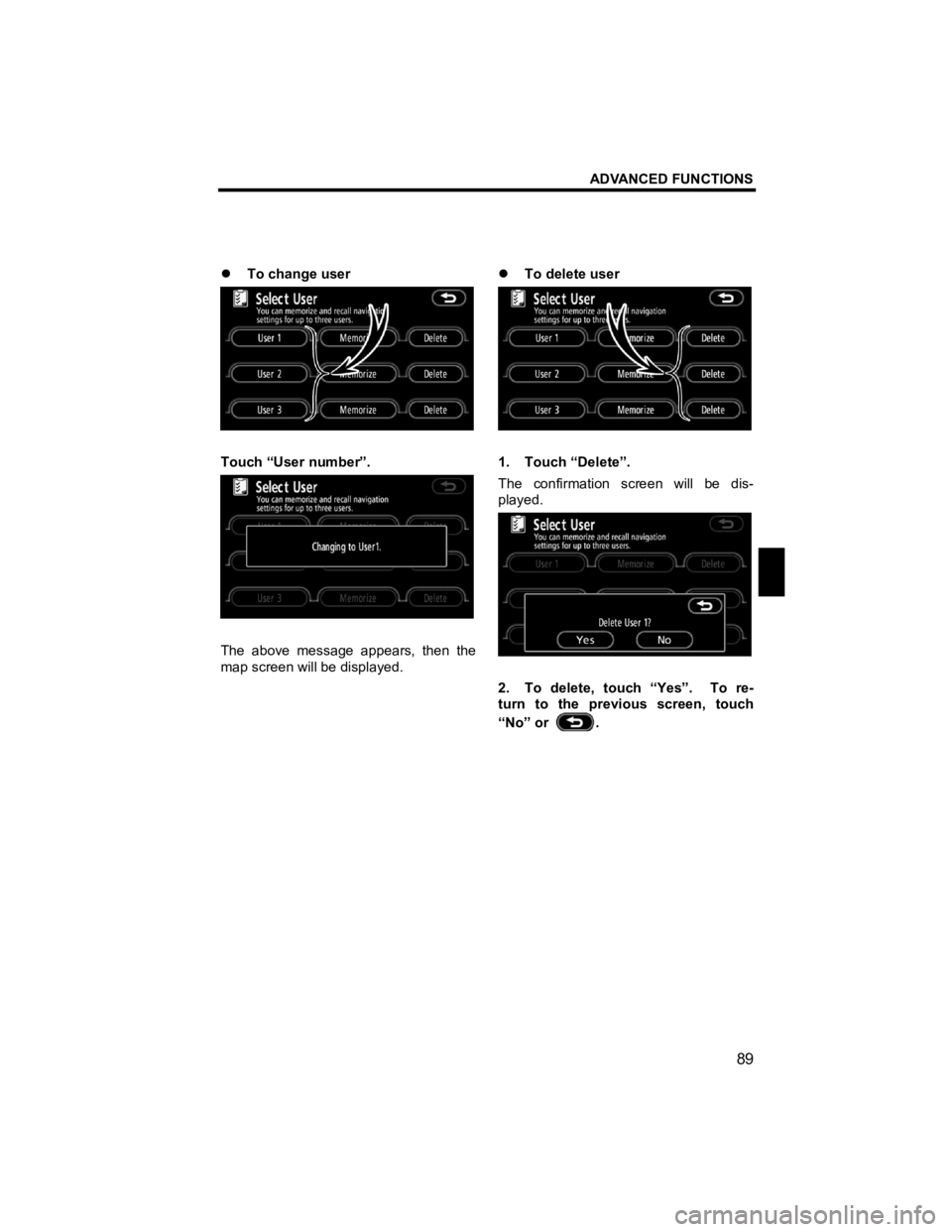

z To change user

Touch “User number”.

The above message appears, then the
map screen will be displayed. z
To delete user

1. Touch “Delete”.
The confirmation screen will be dis-
played.

2. To delete, touch “Yes”. To re-
turn to the previous screen, touch
“No” or
.
