VOLVO V90 2017 Owners Manual

INSTRUMENTS AND CONTROLS
* Option/accessory.119

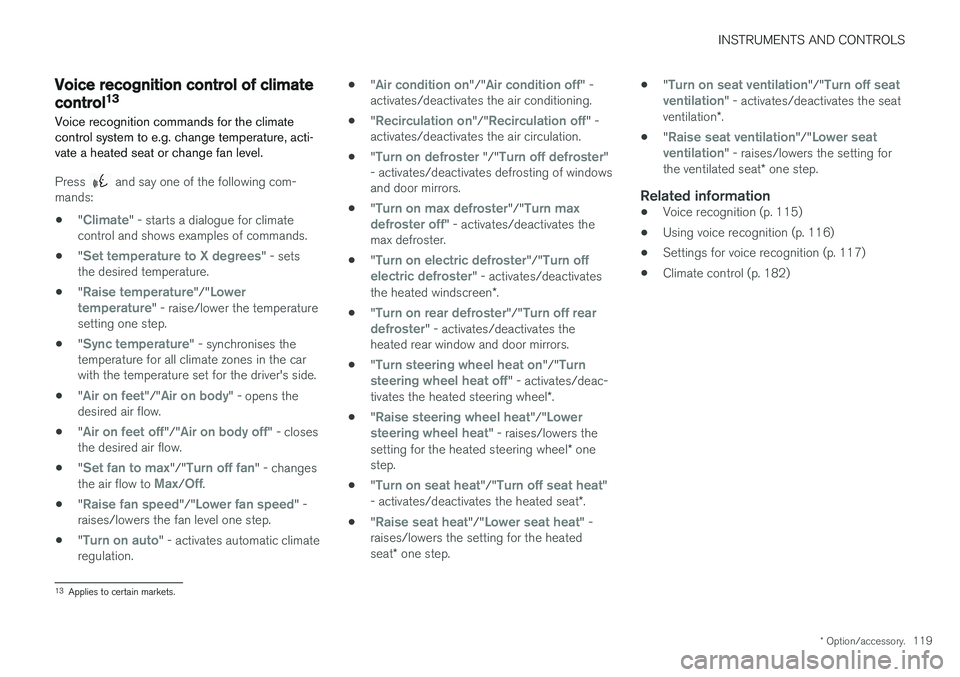

Voice recognition control of climate control13
Voice recognition commands for the climate control system to e.g. change temperature, acti-vate a heated seat or change fan level.
Press and say one of the following com-
mands:
• "
Climate" - starts a dialogue for climate
control and shows examples of commands.
• "
Set temperature to X degrees" - sets
the desired temperature.
• "
Raise temperature"/"Lower
temperature" - raise/lower the temperature
setting one step.
• "
Sync temperature" - synchronises the
temperature for all climate zones in the car with the temperature set for the driver's side.
• "
Air on feet"/"Air on body" - opens the
desired air flow.
• "
Air on feet off"/"Air on body off" - closes
the desired air flow.
• "
Set fan to max"/"Turn off fan" - changes
the air flow to Max/Off.
• "
Raise fan speed"/"Lower fan speed" -
raises/lowers the fan level one step.
• "
Turn on auto" - activates automatic climate
regulation. •
"
Air condition on"/"Air condition off" -
activates/deactivates the air conditioning.
• "
Recirculation on"/"Recirculation off" -
activates/deactivates the air circulation.
• "
Turn on defroster "/"Turn off defroster"
- activates/deactivates defrosting of windows and door mirrors.
• "
Turn on max defroster"/"Turn max
defroster off" - activates/deactivates the
max defroster.
• "
Turn on electric defroster"/"Turn off
electric defroster" - activates/deactivates
the heated windscreen *.
• "
Turn on rear defroster"/"Turn off rear
defroster" - activates/deactivates the
heated rear window and door mirrors.
• "
Turn steering wheel heat on"/"Turn
steering wheel heat off" - activates/deac-
tivates the heated steering wheel *.
• "
Raise steering wheel heat"/"Lower
steering wheel heat" - raises/lowers the
setting for the heated steering wheel * one
step.
• "
Turn on seat heat"/"Turn off seat heat"
- activates/deactivates the heated seat *.
• "
Raise seat heat"/"Lower seat heat" -
raises/lowers the setting for the heated seat * one step. •
"
Turn on seat ventilation"/"Turn off seat
ventilation" - activates/deactivates the seat
ventilation *.
• "
Raise seat ventilation"/"Lower seat
ventilation" - raises/lowers the setting for
the ventilated seat * one step.
Related information
• Voice recognition (p. 115)
• Using voice recognition (p. 116)
• Settings for voice recognition (p. 117)
• Climate control (p. 182)
13
Applies to certain markets.

INSTRUMENTS AND CONTROLS
120

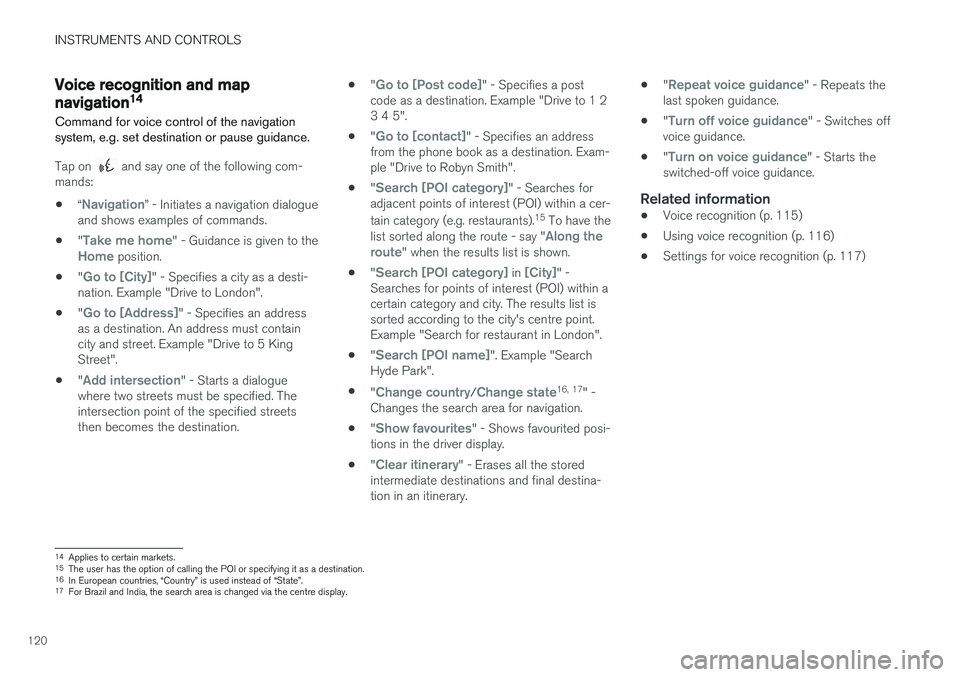

Voice recognition and map navigation14
Command for voice control of the navigation system, e.g. set destination or pause guidance.
Tap on and say one of the following com-
mands:
• “
Navigation” - Initiates a navigation dialogue
and shows examples of commands.
• "
Take me home" - Guidance is given to theHome position.
• "
Go to [City]" - Specifies a city as a desti-
nation. Example "Drive to London".
• "
Go to [Address]" - Specifies an address
as a destination. An address must contain city and street. Example "Drive to 5 KingStreet".
• "
Add intersection" - Starts a dialogue
where two streets must be specified. The intersection point of the specified streetsthen becomes the destination. •
"
Go to [Post code]" - Specifies a post
code as a destination. Example "Drive to 1 2 3 4 5".
• "
Go to [contact]" - Specifies an address
from the phone book as a destination. Exam- ple "Drive to Robyn Smith".
• "
Search [POI category]" - Searches for
adjacent points of interest (POI) within a cer- tain category (e.g. restaurants). 15
To have the
list sorted along the route - say "
Along the
route" when the results list is shown.
• "
Search [POI category] in [City]" -
Searches for points of interest (POI) within a certain category and city. The results list issorted according to the city's centre point.Example "Search for restaurant in London".
• "
Search [POI name]". Example "Search
Hyde Park".
• "
Change country/Change state16,
17
" -
Changes the search area for navigation.
• "
Show favourites" - Shows favourited posi-
tions in the driver display.
• "
Clear itinerary" - Erases all the stored
intermediate destinations and final destina- tion in an itinerary. •
"
Repeat voice guidance" - Repeats the
last spoken guidance.
• "
Turn off voice guidance" - Switches off
voice guidance.
• "
Turn on voice guidance" - Starts the
switched-off voice guidance.
Related information
• Voice recognition (p. 115)
• Using voice recognition (p. 116)
• Settings for voice recognition (p. 117)
14
Applies to certain markets.
15 The user has the option of calling the POI or specifying it as a destination.
16 In European countries, “Country” is used instead of “State”.
17 For Brazil and India, the search area is changed via the centre display.

INSTRUMENTS AND CONTROLS
* Option/accessory.121

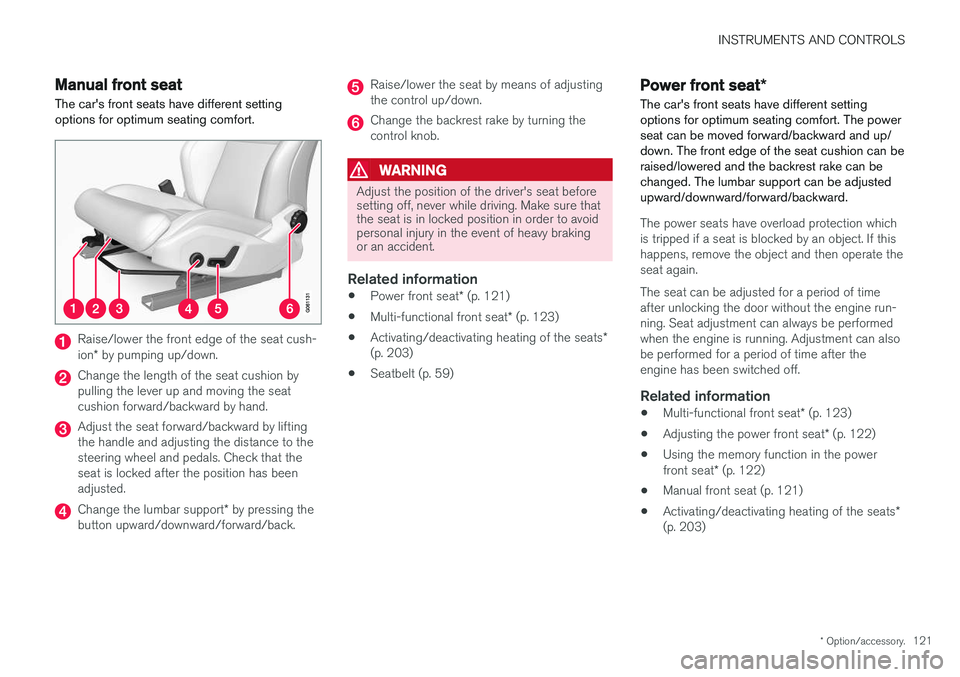

Manual front seat
The car's front seats have different setting options for optimum seating comfort.
Raise/lower the front edge of the seat cush- ion * by pumping up/down.
Change the length of the seat cushion by pulling the lever up and moving the seatcushion forward/backward by hand.
Adjust the seat forward/backward by lifting the handle and adjusting the distance to thesteering wheel and pedals. Check that theseat is locked after the position has beenadjusted.
Change the lumbar support * by pressing the
button upward/downward/forward/back.
Raise/lower the seat by means of adjusting the control up/down.
Change the backrest rake by turning the control knob.
WARNING
Adjust the position of the driver's seat before setting off, never while driving. Make sure thatthe seat is in locked position in order to avoidpersonal injury in the event of heavy brakingor an accident.
Related information
• Power front seat
* (p. 121)
• Multi-functional front seat
* (p. 123)
• Activating/deactivating heating of the seats
*
(p. 203)
• Seatbelt (p. 59)
Power front seat
*
The car's front seats have different setting options for optimum seating comfort. The powerseat can be moved forward/backward and up/down. The front edge of the seat cushion can beraised/lowered and the backrest rake can bechanged. The lumbar support can be adjustedupward/downward/forward/backward.
The power seats have overload protection which is tripped if a seat is blocked by an object. If thishappens, remove the object and then operate theseat again. The seat can be adjusted for a period of time after unlocking the door without the engine run-ning. Seat adjustment can always be performedwhen the engine is running. Adjustment can alsobe performed for a period of time after theengine has been switched off.
Related information
• Multi-functional front seat
* (p. 123)
• Adjusting the power front seat
* (p. 122)
• Using the memory function in the power front seat
* (p. 122)
• Manual front seat (p. 121)
• Activating/deactivating heating of the seats
*
(p. 203)

INSTRUMENTS AND CONTROLS
* Option/accessory.
122

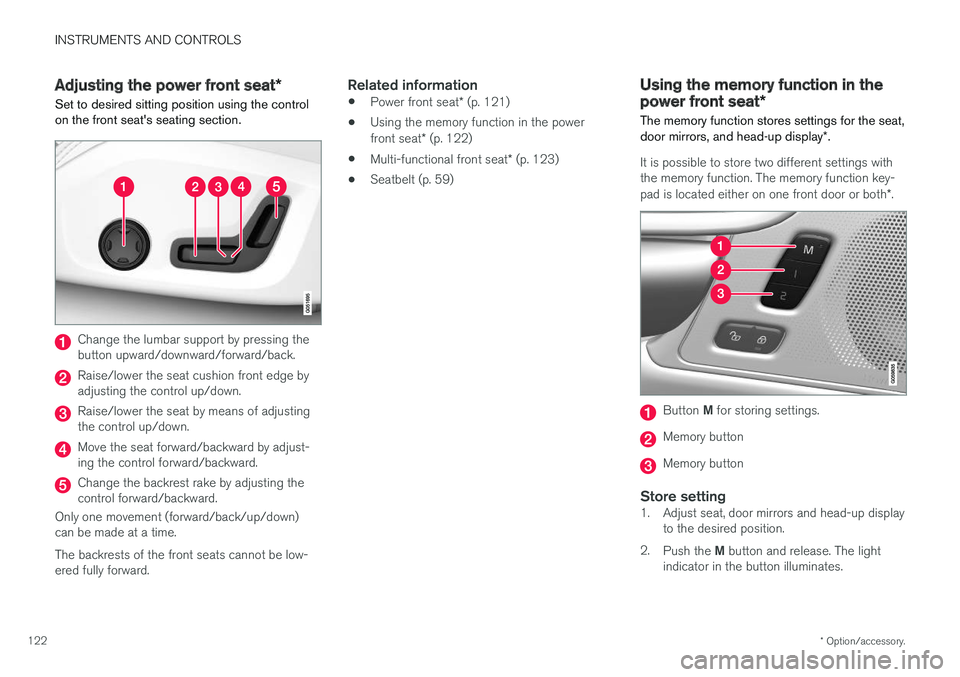

Adjusting the power front seat *
Set to desired sitting position using the control on the front seat's seating section.
Change the lumbar support by pressing the button upward/downward/forward/back.
Raise/lower the seat cushion front edge by adjusting the control up/down.
Raise/lower the seat by means of adjusting the control up/down.
Move the seat forward/backward by adjust- ing the control forward/backward.
Change the backrest rake by adjusting the control forward/backward.
Only one movement (forward/back/up/down)can be made at a time. The backrests of the front seats cannot be low- ered fully forward.
Related information
• Power front seat
* (p. 121)
• Using the memory function in the power front seat
* (p. 122)
• Multi-functional front seat
* (p. 123)
• Seatbelt (p. 59)
Using the memory function in the power front seat
*
The memory function stores settings for the seat, door mirrors, and head-up display *.
It is possible to store two different settings with the memory function. The memory function key- pad is located either on one front door or both *.
Button M for storing settings.
Memory button
Memory button
Store setting1. Adjust seat, door mirrors and head-up display
to the desired position.
2. Push the M button and release. The light
indicator in the button illuminates.

INSTRUMENTS AND CONTROLS
}}
* Option/accessory.123

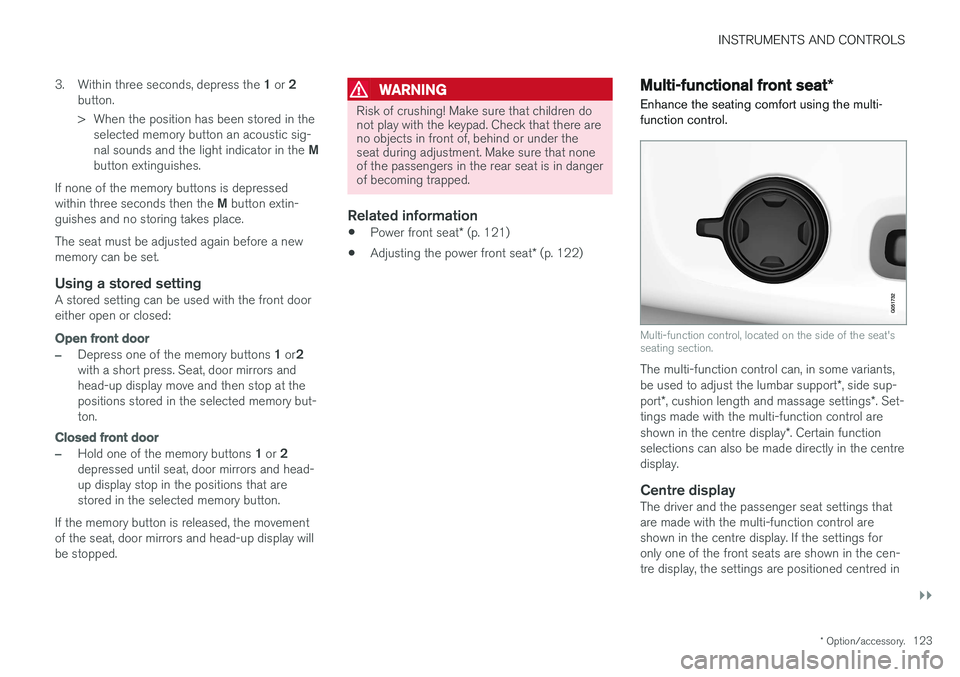

3.
Within three seconds, depress the 1 or 2
button.
> When the position has been stored in the selected memory button an acoustic sig- nal sounds and the light indicator in the M
button extinguishes.
If none of the memory buttons is depressedwithin three seconds then the M button extin-
guishes and no storing takes place. The seat must be adjusted again before a new memory can be set.
Using a stored settingA stored setting can be used with the front dooreither open or closed:
Open front door
–Depress one of the memory buttons 1 or 2
with a short press. Seat, door mirrors and head-up display move and then stop at thepositions stored in the selected memory but-ton.
Closed front door
–Hold one of the memory buttons 1 or 2
depressed until seat, door mirrors and head- up display stop in the positions that arestored in the selected memory button.
If the memory button is released, the movementof the seat, door mirrors and head-up display willbe stopped.
WARNING
Risk of crushing! Make sure that children do not play with the keypad. Check that there areno objects in front of, behind or under theseat during adjustment. Make sure that noneof the passengers in the rear seat is in dangerof becoming trapped.
Related information
• Power front seat
* (p. 121)
• Adjusting the power front seat
* (p. 122)
Multi-functional front seat *
Enhance the seating comfort using the multi- function control.
Multi-function control, located on the side of the seat's seating section.
The multi-function control can, in some variants, be used to adjust the lumbar support *, side sup-
port *, cushion length and massage settings *. Set-
tings made with the multi-function control areshown in the centre display *. Certain function
selections can also be made directly in the centre display.
Centre displayThe driver and the passenger seat settings thatare made with the multi-function control areshown in the centre display. If the settings foronly one of the front seats are shown in the cen-tre display, the settings are positioned centred in

||
INSTRUMENTS AND CONTROLS
* Option/accessory.

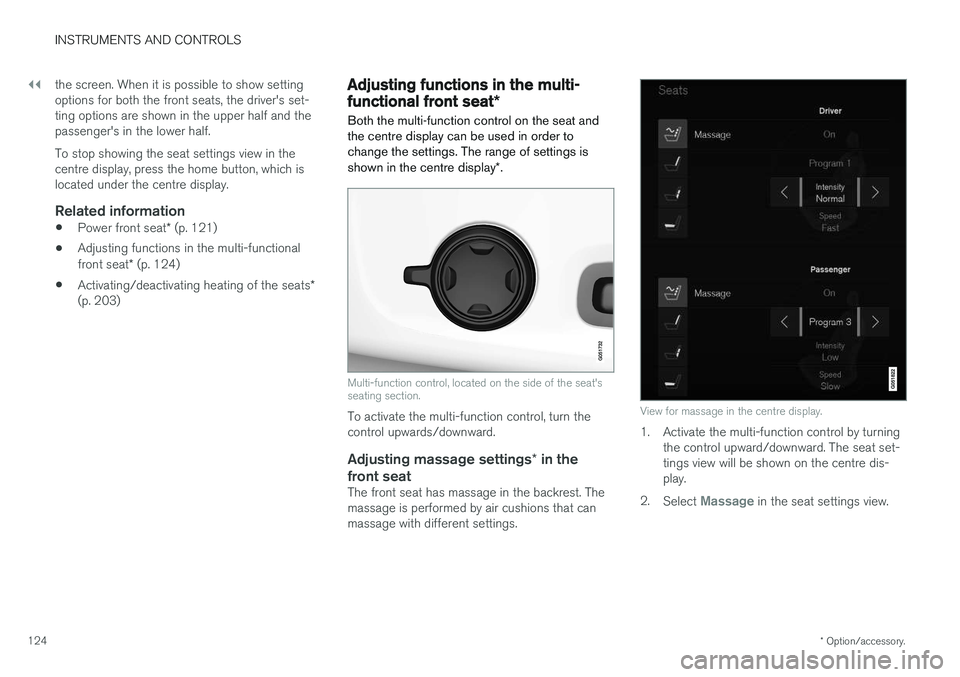

124 the screen. When it is possible to show setting options for both the front seats, the driver's set-ting options are shown in the upper half and thepassenger's in the lower half. To stop showing the seat settings view in the centre display, press the home button, which islocated under the centre display.
Related information
•
Power front seat
* (p. 121)
• Adjusting functions in the multi-functional front seat
* (p. 124)
• Activating/deactivating heating of the seats
*
(p. 203)
Adjusting functions in the multi- functional front seat *
Both the multi-function control on the seat and the centre display can be used in order tochange the settings. The range of settings is shown in the centre display *.
Multi-function control, located on the side of the seat's seating section.
To activate the multi-function control, turn the control upwards/downward.
Adjusting massage settings * in the
front seat
The front seat has massage in the backrest. Themassage is performed by air cushions that canmassage with different settings.
View for massage in the centre display.
1. Activate the multi-function control by turning the control upward/downward. The seat set- tings view will be shown on the centre dis-play.
2. Select
Massage in the seat settings view.

INSTRUMENTS AND CONTROLS
}}
* Option/accessory.125

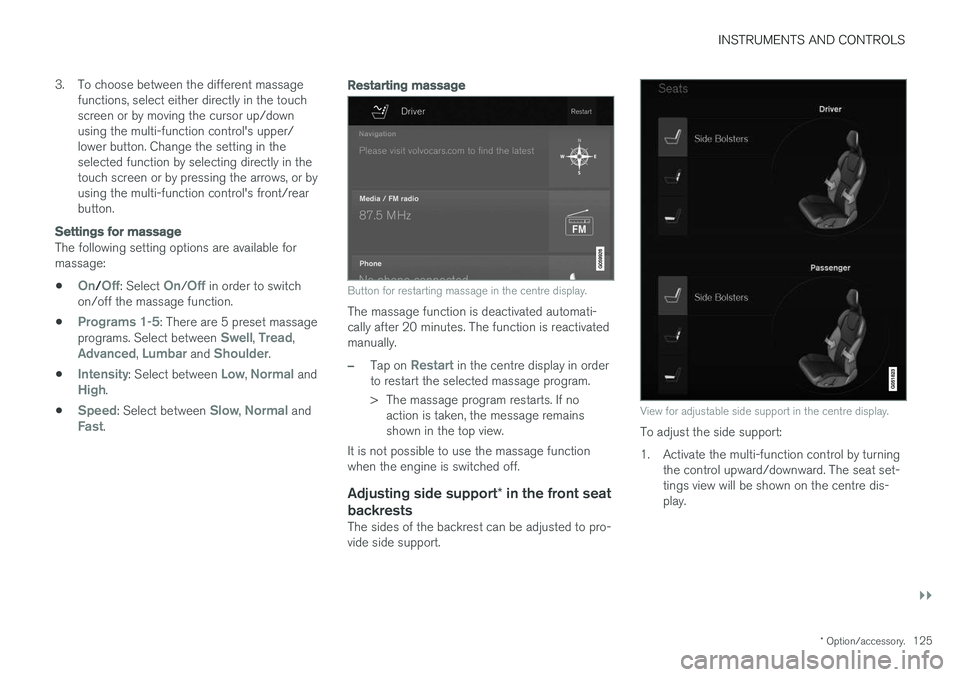

3. To choose between the different massage
functions, select either directly in the touch screen or by moving the cursor up/downusing the multi-function control's upper/lower button. Change the setting in theselected function by selecting directly in thetouch screen or by pressing the arrows, or byusing the multi-function control's front/rearbutton.
Settings for massage
The following setting options are available for massage:
•
On/Off: Select On/Off in order to switch
on/off the massage function.
•
Programs 1-5: There are 5 preset massage
programs. Select between Swell, Tread,Advanced, Lumbar and Shoulder.
•
Intensity: Select between Low, Normal andHigh.
•
Speed: Select between Slow, Normal andFast.
Restarting massage
Button for restarting massage in the centre display.
The massage function is deactivated automati- cally after 20 minutes. The function is reactivatedmanually.
–Tap on Restart in the centre display in order
to restart the selected massage program.
> The massage program restarts. If no action is taken, the message remains shown in the top view.
It is not possible to use the massage functionwhen the engine is switched off.
Adjusting side support * in the front seat
backrests
The sides of the backrest can be adjusted to pro-vide side support.
View for adjustable side support in the centre display.
To adjust the side support:
1. Activate the multi-function control by turning the control upward/downward. The seat set- tings view will be shown on the centre dis-play.

||
INSTRUMENTS AND CONTROLS
* Option/accessory.

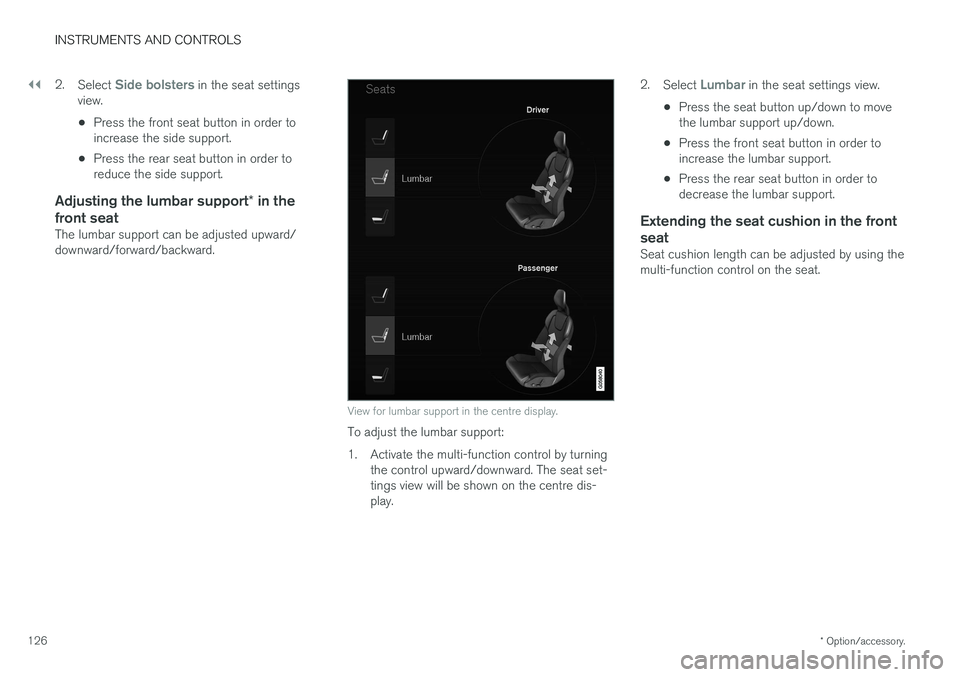

126 2.
Select
Side bolsters in the seat settings
view.
• Press the front seat button in order to increase the side support.
• Press the rear seat button in order toreduce the side support.
Adjusting the lumbar support
* in the
front seat
The lumbar support can be adjusted upward/downward/forward/backward.
View for lumbar support in the centre display.
To adjust the lumbar support:
1. Activate the multi-function control by turning the control upward/downward. The seat set- tings view will be shown on the centre dis-play. 2.
Select
Lumbar in the seat settings view.
• Press the seat button up/down to move the lumbar support up/down.
• Press the front seat button in order toincrease the lumbar support.
• Press the rear seat button in order todecrease the lumbar support.
Extending the seat cushion in the front seat
Seat cushion length can be adjusted by using the multi-function control on the seat.

INSTRUMENTS AND CONTROLS
}}
* Option/accessory.127

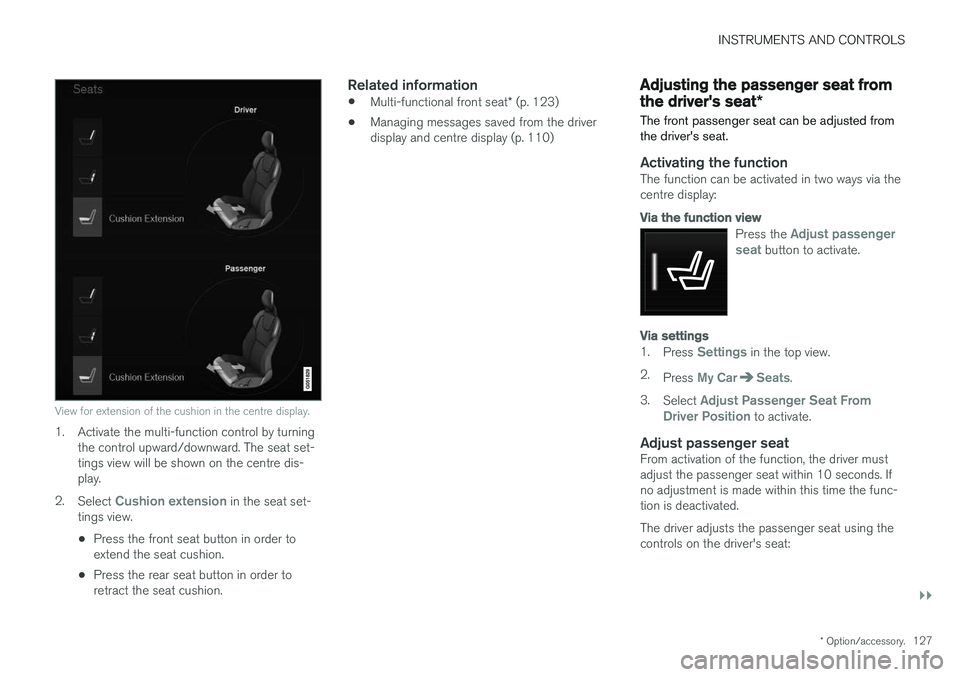

View for extension of the cushion in the centre display.
1. Activate the multi-function control by turning
the control upward/downward. The seat set- tings view will be shown on the centre dis-play.
2. Select
Cushion extension in the seat set-
tings view.
• Press the front seat button in order to extend the seat cushion.
• Press the rear seat button in order toretract the seat cushion.
Related information
•
Multi-functional front seat
* (p. 123)
• Managing messages saved from the driverdisplay and centre display (p. 110)
Adjusting the passenger seat from the driver's seat
*
The front passenger seat can be adjusted from the driver's seat.
Activating the functionThe function can be activated in two ways via the centre display:
Via the function view
Press the Adjust passenger
seat button to activate.
Via settings
1. Press Settings in the top view.
2. Press
My CarSeats.
3. Select
Adjust Passenger Seat From
Driver Position to activate.
Adjust passenger seatFrom activation of the function, the driver must adjust the passenger seat within 10 seconds. Ifno adjustment is made within this time the func-tion is deactivated. The driver adjusts the passenger seat using the controls on the driver's seat:

||

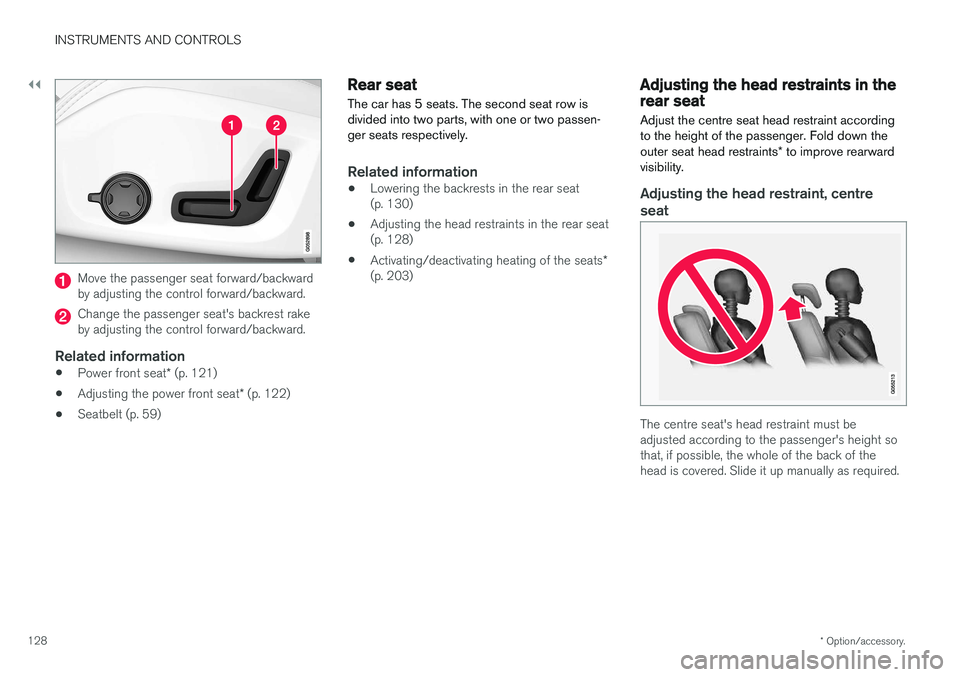

INSTRUMENTS AND CONTROLS
* Option/accessory.
128
Move the passenger seat forward/backward by adjusting the control forward/backward.
Change the passenger seat's backrest rake by adjusting the control forward/backward.
Related information
• Power front seat
* (p. 121)
• Adjusting the power front seat
* (p. 122)
• Seatbelt (p. 59)
Rear seat
The car has 5 seats. The second seat row is divided into two parts, with one or two passen-ger seats respectively.
Related information
• Lowering the backrests in the rear seat (p. 130)
• Adjusting the head restraints in the rear seat(p. 128)
• Activating/deactivating heating of the seats
*
(p. 203)
Adjusting the head restraints in the rear seat Adjust the centre seat head restraint according to the height of the passenger. Fold down the outer seat head restraints * to improve rearward
visibility.
Adjusting the head restraint, centre
seat
The centre seat's head restraint must be adjusted according to the passenger's height sothat, if possible, the whole of the back of thehead is covered. Slide it up manually as required.
