INSTRUMENTS AND CONTROLS
}}
169
1.
Press
Settings in the top view.
2. Press
SystemUnits.
3. Under
Units of Measurement, select the
required unit standard: Metric, Imperial orUS.
Related information
• Trip computer (p. 165)
• Show trip data in the driver display (p. 166)

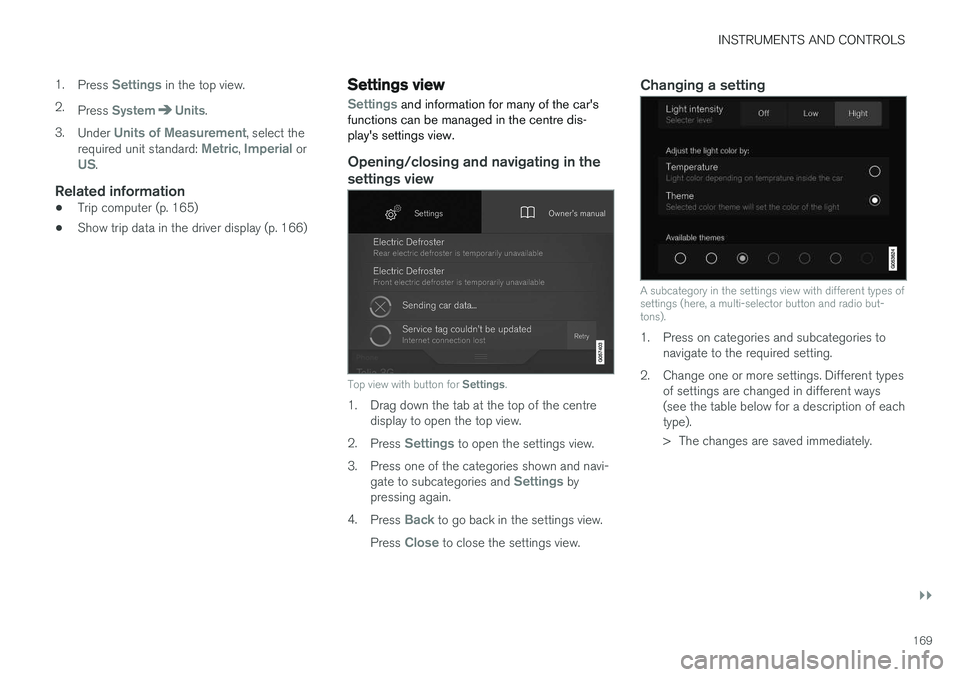

Settings view
Settings and information for many of the car's
functions can be managed in the centre dis- play's settings view.
Opening/closing and navigating in the
settings view
Top view with button for Settings.
1. Drag down the tab at the top of the centre
display to open the top view.
2. Press
Settings to open the settings view.
3. Press one of the categories shown and navi- gate to subcategories and
Settings by
pressing again.
4. Press
Back to go back in the settings view.
Press
Close to close the settings view.
Changing a setting
A subcategory in the settings view with different types of settings (here, a multi-selector button and radio but-tons).
1. Press on categories and subcategories to navigate to the required setting.
2. Change one or more settings. Different types of settings are changed in different ways (see the table below for a description of eachtype).
> The changes are saved immediately.

||
INSTRUMENTS AND CONTROLS
170

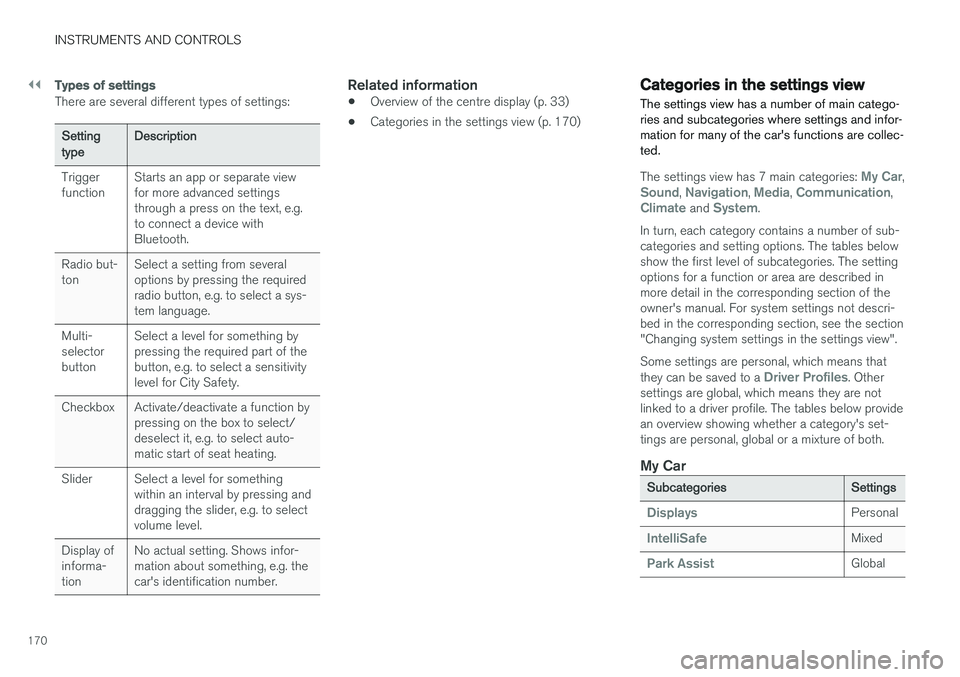

Types of settings
There are several different types of settings:
Setting typeDescription
Trigger function Starts an app or separate viewfor more advanced settingsthrough a press on the text, e.g.to connect a device withBluetooth.
Radio but-ton Select a setting from severaloptions by pressing the requiredradio button, e.g. to select a sys-tem language.
Multi-selectorbutton Select a level for something bypressing the required part of thebutton, e.g. to select a sensitivitylevel for City Safety.
Checkbox Activate/deactivate a function by pressing on the box to select/deselect it, e.g. to select auto-matic start of seat heating.
Slider Select a level for something within an interval by pressing anddragging the slider, e.g. to selectvolume level.
Display ofinforma-tion No actual setting. Shows infor-mation about something, e.g. thecar's identification number.
Related information
•
Overview of the centre display (p. 33)
• Categories in the settings view (p. 170)
Categories in the settings view The settings view has a number of main catego- ries and subcategories where settings and infor-mation for many of the car's functions are collec-ted.
The settings view has 7 main categories: My Car,Sound, Navigation, Media, Communication,Climate and System.
In turn, each category contains a number of sub- categories and setting options. The tables belowshow the first level of subcategories. The settingoptions for a function or area are described inmore detail in the corresponding section of theowner's manual. For system settings not descri-bed in the corresponding section, see the section"Changing system settings in the settings view". Some settings are personal, which means that they can be saved to a
Driver Profiles. Other
settings are global, which means they are not linked to a driver profile. The tables below providean overview showing whether a category's set-tings are personal, global or a mixture of both.
My Car
Subcategories Settings
DisplaysPersonal
IntelliSafeMixed
Park AssistGlobal

INSTRUMENTS AND CONTROLS
}}
* Option/accessory.171

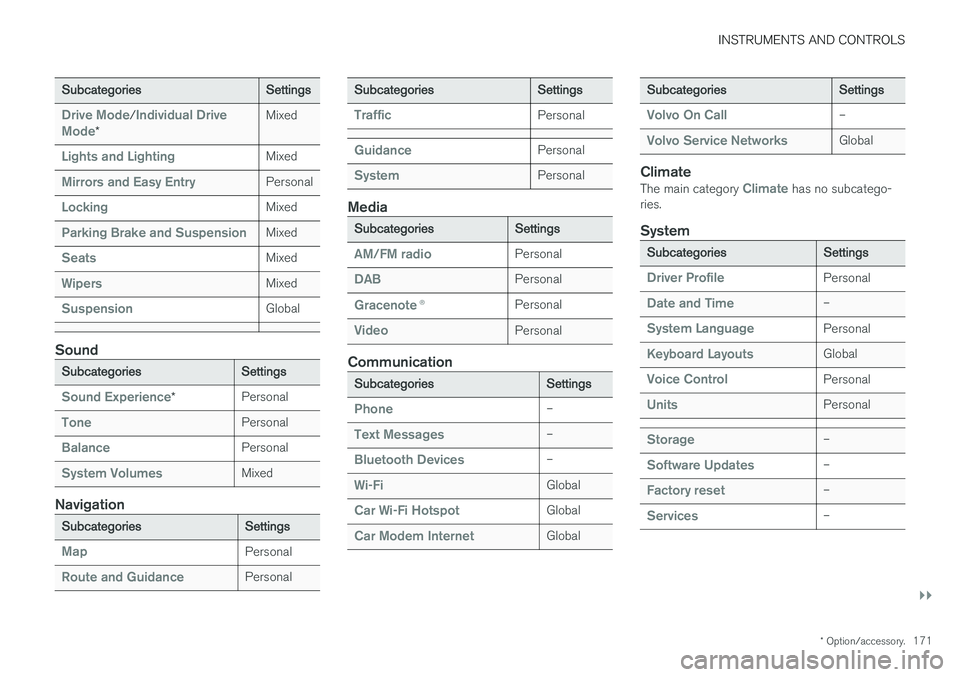

Subcategories Settings
Drive Mode/Individual Drive
Mode* Mixed
Lights and LightingMixed
Mirrors and Easy EntryPersonal
LockingMixed
Parking Brake and SuspensionMixed
SeatsMixed
WipersMixed
SuspensionGlobal
Sound
Subcategories
Settings
Sound Experience*Personal
TonePersonal
BalancePersonal
System VolumesMixed
Navigation
Subcategories
Settings
MapPersonal
Route and GuidancePersonal
SubcategoriesSettings
TrafficPersonal
GuidancePersonal
SystemPersonal
Media
SubcategoriesSettings
AM/FM radioPersonal
DABPersonal
Gracenote®Personal
VideoPersonal
Communication
Subcategories Settings
Phone–
Text Messages–
Bluetooth Devices–
Wi-FiGlobal
Car Wi-Fi HotspotGlobal
Car Modem InternetGlobal
SubcategoriesSettings
Volvo On Call–
Volvo Service NetworksGlobal
ClimateThe main category Climate has no subcatego-
ries.
System
Subcategories Settings
Driver ProfilePersonal
Date and Time–
System LanguagePersonal
Keyboard LayoutsGlobal
Voice ControlPersonal
UnitsPersonal
Storage–
Software Updates–
Factory reset–
Services–

||
INSTRUMENTS AND CONTROLS
172
Related information
•Settings view (p. 169)
• Changing system settings in the settings view (p. 172)

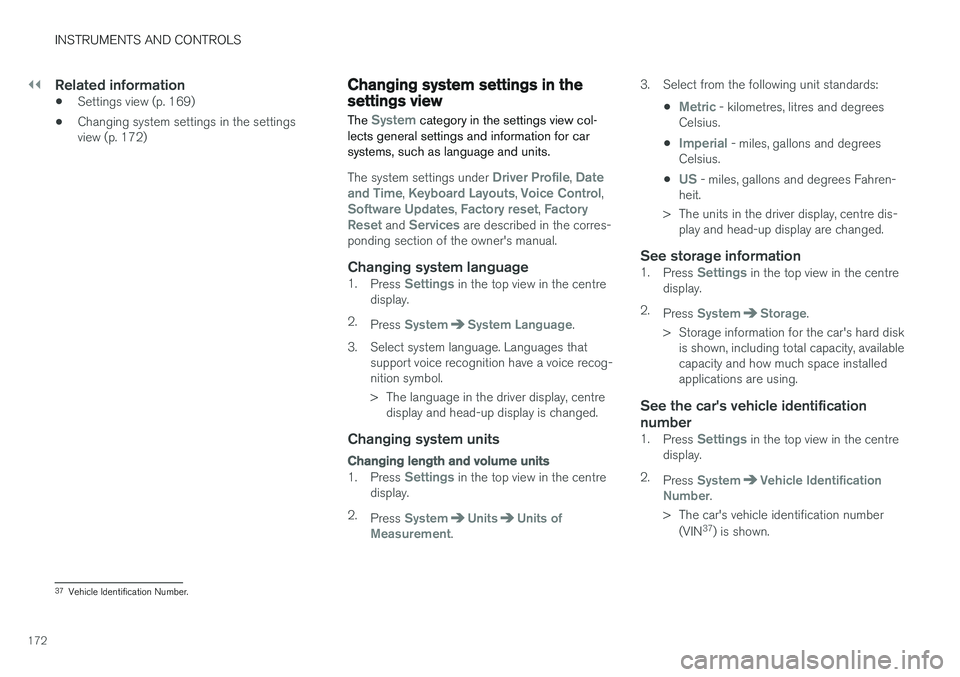

Changing system settings in the settings view The
System category in the settings view col-
lects general settings and information for car systems, such as language and units.
The system settings under Driver Profile, Date
and Time, Keyboard Layouts, Voice Control,Software Updates, Factory reset, Factory
Reset and Services are described in the corres-
ponding section of the owner's manual.
Changing system language1. Press Settings in the top view in the centre
display.
2. Press
SystemSystem Language.
3. Select system language. Languages that support voice recognition have a voice recog- nition symbol.
> The language in the driver display, centredisplay and head-up display is changed.
Changing system units
Changing length and volume units
1. Press Settings in the top view in the centre
display.
2. Press
SystemUnitsUnits of
Measurement. 3. Select from the following unit standards:
•
Metric - kilometres, litres and degrees
Celsius.
•
Imperial - miles, gallons and degrees
Celsius.
•
US - miles, gallons and degrees Fahren-
heit.
> The units in the driver display, centre dis- play and head-up display are changed.
See storage information1. Press Settings in the top view in the centre
display.
2. Press
SystemStorage.
> Storage information for the car's hard disk is shown, including total capacity, available capacity and how much space installedapplications are using.
See the car's vehicle identification number
1. Press Settings in the top view in the centre
display.
2. Press
SystemVehicle Identification
Number.
> The car's vehicle identification number (VIN 37
) is shown.
37 Vehicle Identification Number.

INSTRUMENTS AND CONTROLS
173
Related information
•Categories in the settings view (p. 170)
• Driver profiles (p. 174)
• Clock (p. 99)
• Using the keyboard in the centre display (p. 49)
• Settings for voice recognition (p. 117)
• System updates (p. 510)
• Resetting settings in the settings view(p. 173)
• Book service and repair (p. 506)
Resetting settings in the settings view
It is possible to reset all modified settings in the settings view to their default values at once.
Types of resetsThere are three different types of resets for set- tings in the settings view:
•
Factory Reset - clears all data and media
and resets all settings to their default values.
•
Reset Car Settings - resets global settings
to their default values.
•
Reset Personal Settings - clears personal
data and resets personal settings to their default values.
Resetting settings
NOTE
Factory reset is only possible when the car
is stationary.
1. Press Settings in the top view in the centre
display.
2. Press
SystemFactory reset.
3. Select the required reset type. > A pop-up window is shown. 4.
Press
OK to confirm the reset.
For
Reset Personal Settings, the reset
must be confirmed by pressing Reset for
the active profile or Reset for all profiles.
> Selected settings are reset.
Related information
• Changing system settings in the settings view (p. 172)
• Driver profiles (p. 174)
• Resetting user data for change of ownership(p. 179)

INSTRUMENTS AND CONTROLS
174

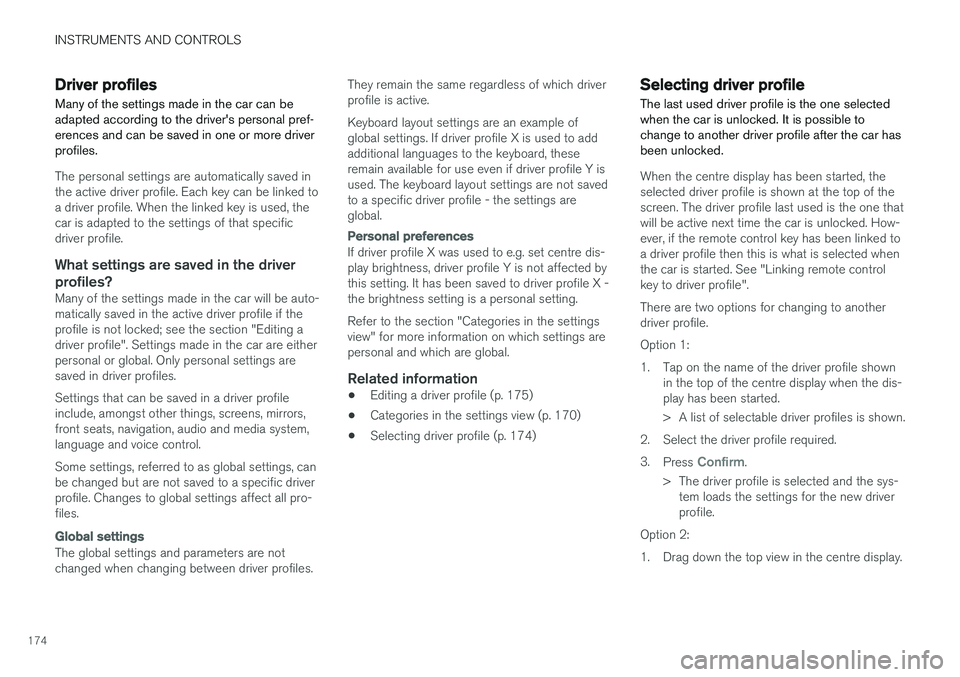

Driver profiles
Many of the settings made in the car can be adapted according to the driver's personal pref-erences and can be saved in one or more driverprofiles.
The personal settings are automatically saved in the active driver profile. Each key can be linked toa driver profile. When the linked key is used, thecar is adapted to the settings of that specificdriver profile.
What settings are saved in the driver profiles?
Many of the settings made in the car will be auto-matically saved in the active driver profile if theprofile is not locked; see the section "Editing adriver profile". Settings made in the car are eitherpersonal or global. Only personal settings aresaved in driver profiles. Settings that can be saved in a driver profile include, amongst other things, screens, mirrors,front seats, navigation, audio and media system,language and voice control. Some settings, referred to as global settings, can be changed but are not saved to a specific driverprofile. Changes to global settings affect all pro-files.
Global settings
The global settings and parameters are not changed when changing between driver profiles. They remain the same regardless of which driverprofile is active. Keyboard layout settings are an example of global settings. If driver profile X is used to addadditional languages to the keyboard, theseremain available for use even if driver profile Y isused. The keyboard layout settings are not savedto a specific driver profile - the settings areglobal.
Personal preferences
If driver profile X was used to e.g. set centre dis- play brightness, driver profile Y is not affected bythis setting. It has been saved to driver profile X -the brightness setting is a personal setting. Refer to the section "Categories in the settings view" for more information on which settings arepersonal and which are global.
Related information
•
Editing a driver profile (p. 175)
• Categories in the settings view (p. 170)
• Selecting driver profile (p. 174)
Selecting driver profile
The last used driver profile is the one selected when the car is unlocked. It is possible tochange to another driver profile after the car hasbeen unlocked.
When the centre display has been started, the selected driver profile is shown at the top of thescreen. The driver profile last used is the one thatwill be active next time the car is unlocked. How-ever, if the remote control key has been linked toa driver profile then this is what is selected whenthe car is started. See "Linking remote controlkey to driver profile". There are two options for changing to another driver profile. Option 1:
1. Tap on the name of the driver profile shown in the top of the centre display when the dis- play has been started.
> A list of selectable driver profiles is shown.
2. Select the driver profile required. 3. Press
Confirm.
> The driver profile is selected and the sys- tem loads the settings for the new driver profile.
Option 2:
1. Drag down the top view in the centre display.

INSTRUMENTS AND CONTROLS
}}
175
2.
Press
Profile.
> The same list as for Option 1 is shown.
3. Select the driver profile required. 4. Press
Confirm.
> The driver profile is selected and the sys- tem loads the settings for the new driver profile.
Related information
• Driver profiles (p. 174)
• Editing a driver profile (p. 175)
• Linking remote control key to driver profile(p. 176)

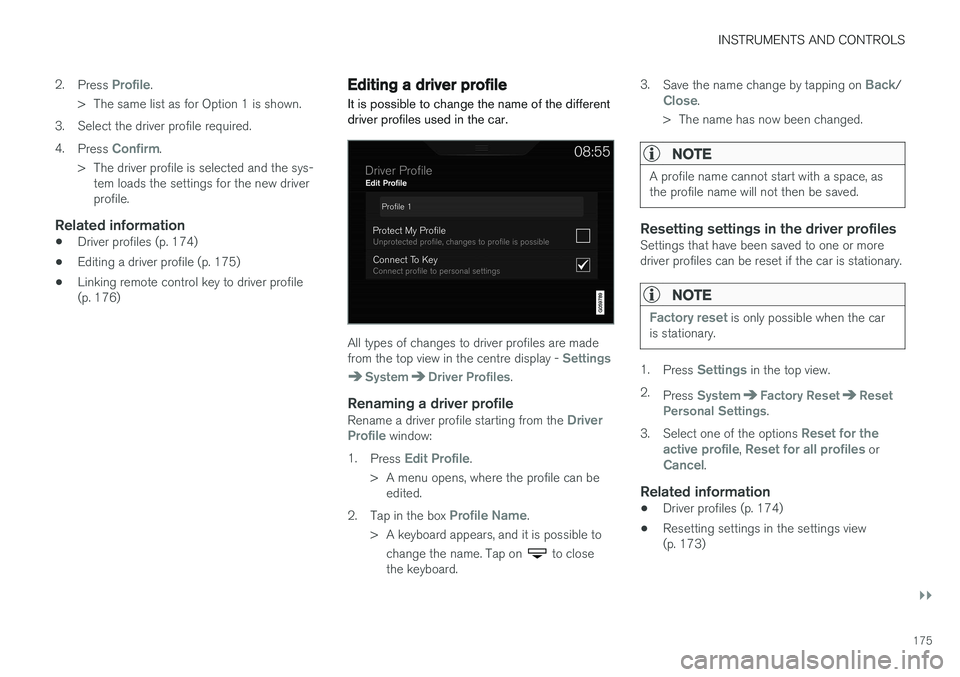

Editing a driver profile
It is possible to change the name of the different driver profiles used in the car.
All types of changes to driver profiles are made from the top view in the centre display - Settings
SystemDriver Profiles.
Renaming a driver profileRename a driver profile starting from the Driver
Profile window:
1. Press
Edit Profile.
> A menu opens, where the profile can be edited.
2. Tap in the box
Profile Name.
> A keyboard appears, and it is possible to change the name. Tap on
to close
the keyboard. 3.
Save the name change by tapping on
Back/Close.
> The name has now been changed.
NOTE
A profile name cannot start with a space, as the profile name will not then be saved.
Resetting settings in the driver profilesSettings that have been saved to one or more driver profiles can be reset if the car is stationary.
NOTE
Factory reset is only possible when the car
is stationary.
1. Press Settings in the top view.
2. Press
SystemFactory ResetReset
Personal Settings.
3. Select one of the options
Reset for the
active profile, Reset for all profiles orCancel.
Related information
• Driver profiles (p. 174)
• Resetting settings in the settings view (p. 173)

INSTRUMENTS AND CONTROLS
176•
Using the keyboard in the centre display (p. 49)
• Selecting driver profile (p. 174)
Linking remote control key to driver profile It is possible to link your key to a driver profile. The driver profile along with all of its settings willthen be automatically selected every time the caris used with that specific remote control key.
The first time the remote control key is used, it is not linked to any specific driver profile. When the car is started, the
Guest profile will automatically
be activated. A driver profile can be selected manually without linking it to the key. When the car is unlocked,the last active driver profile is activated. Once thekey has been linked to a driver profile, a driverprofile does not need to be selected when thatspecific key is used.
Linking a remote control key to a driver
profile
First select the profile to be linked to the key, ifthe profile to be linked is not already active. Theactive profile can then be linked to the key. 1. Press
Settings in the top view in the centre
display.
2. Press
SystemDriver Profiles.
3. Select the desired profile. The
Guest profile
cannot be linked to a key. 4.
Drag down the top view and tap on
Settings
SystemDriver ProfilesEdit
Profile.
5. Select
Connect key to link the profile with
the key. It is not possible to link a driver pro- file to a different key than the one currentlybeing used in the car. If there are multiple keys in the car, the message
More than one
key is found, put the key you want to connect on backup reader
will be dis-
played.
Backup reader's location in the tunnel console.> When the message Profile connected
to key is shown, the key and the driver
profile are linked.
6. Press
OK.
> This key is now linked to the driver profile and will remain linked as long as the
Connect key box is not unticked.

INSTRUMENTS AND CONTROLS
}}
177
Related information
•Driver profiles (p. 174)
• Editing a driver profile (p. 175)
• Remote control key (p. 236)

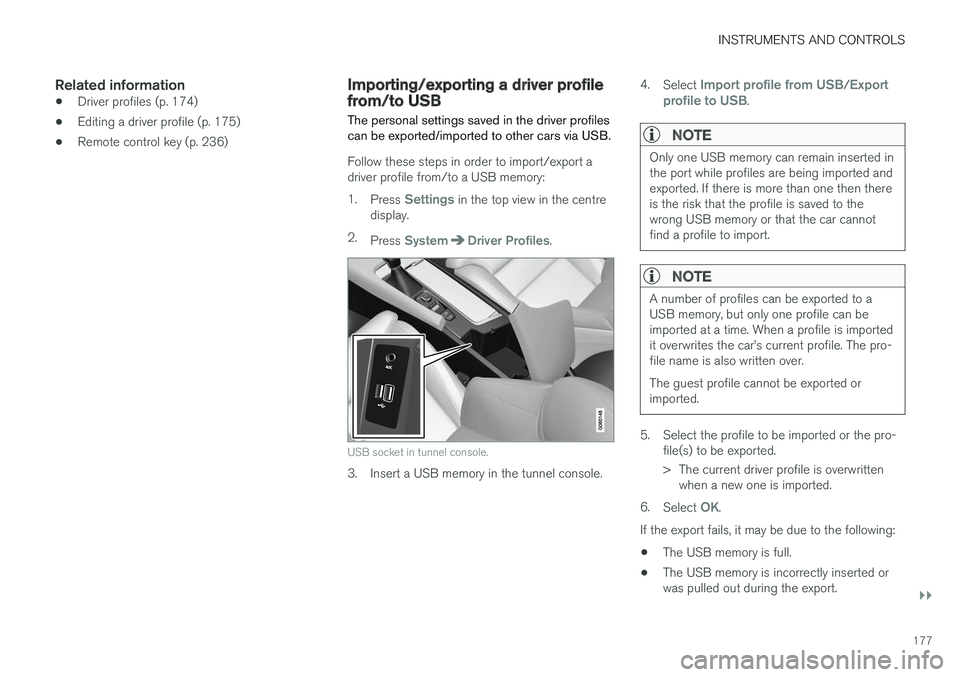

Importing/exporting a driver profile from/to USB
The personal settings saved in the driver profiles can be exported/imported to other cars via USB.
Follow these steps in order to import/export a driver profile from/to a USB memory: 1. Press
Settings in the top view in the centre
display.
2. Press
SystemDriver Profiles.
USB socket in tunnel console.
3. Insert a USB memory in the tunnel console. 4.
Select
Import profile from USB/Export
profile to USB.
NOTE
Only one USB memory can remain inserted in the port while profiles are being imported andexported. If there is more than one then thereis the risk that the profile is saved to thewrong USB memory or that the car cannotfind a profile to import.
NOTE
A number of profiles can be exported to a USB memory, but only one profile can beimported at a time. When a profile is importedit overwrites the car

||
INSTRUMENTS AND CONTROLS

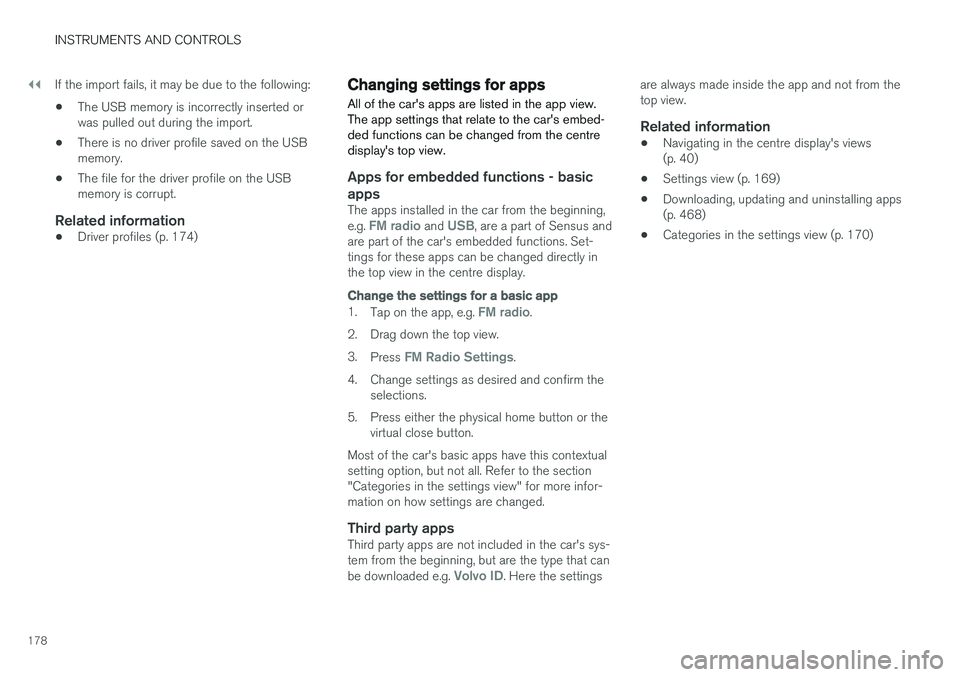

178If the import fails, it may be due to the following:
• The USB memory is incorrectly inserted or was pulled out during the import.
• There is no driver profile saved on the USBmemory.
• The file for the driver profile on the USBmemory is corrupt.
Related information
• Driver profiles (p. 174)
Changing settings for apps
All of the car's apps are listed in the app view. The app settings that relate to the car's embed-ded functions can be changed from the centredisplay's top view.
Apps for embedded functions - basic
apps
The apps installed in the car from the beginning, e.g. FM radio and USB, are a part of Sensus and
are part of the car's embedded functions. Set- tings for these apps can be changed directly inthe top view in the centre display.
Change the settings for a basic app
1. Tap on the app, e.g. FM radio.
2. Drag down the top view. 3. Press
FM Radio Settings.
4. Change settings as desired and confirm the selections.
5. Press either the physical home button or the virtual close button.
Most of the car's basic apps have this contextual setting option, but not all. Refer to the section"Categories in the settings view" for more infor-mation on how settings are changed.
Third party appsThird party apps are not included in the car's sys-tem from the beginning, but are the type that can be downloaded e.g.
Volvo ID. Here the settings are always made inside the app and not from the top view.
Related information
•
Navigating in the centre display's views(p. 40)
• Settings view (p. 169)
• Downloading, updating and uninstalling apps(p. 468)
• Categories in the settings view (p. 170)
