YAMAHA XSR 900 2022 Owner's Manual

Special features
3-5
1
234
5
6
7
8
9
10
11
12
13

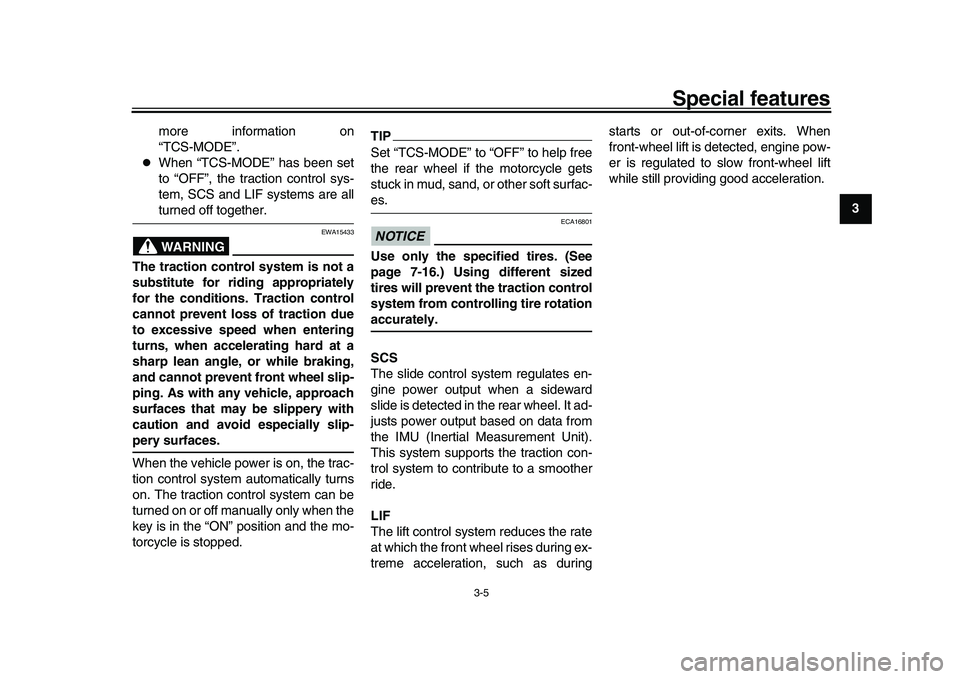

more information on
“TCS-MODE”.

When “TCS-MODE” has been set
to “OFF”, the traction control sys-
tem, SCS and LIF systems are allturned off together.WARNING
EWA15433
The traction control system is not a
substitute for riding appropriately
for the conditions. Traction control
cannot prevent loss of traction due
to excessive speed when entering
turns, when accelerating hard at a
sharp lean angle, or while braking,
and cannot prevent front wheel slip-
ping. As with any vehicle, approach
surfaces that may be slippery with
caution and avoid especially slip-pery surfaces.
When the vehicle power is on, the trac-
tion control system automatically turns
on. The traction control system can be
turned on or off manually only when the
key is in the “ON” position and the mo-
torcycle is stopped.
TIPSet “TCS-MODE” to “OFF” to help free
the rear wheel if the motorcycle gets
stuck in mud, sand, or other soft surfac-es.NOTICE
ECA16801
Use only the specified tires. (See
page 7-16.) Using different sized
tires will prevent the traction control
system from controlling tire rotationaccurately.
SCS
The slide control system regulates en-
gine power output when a sideward
slide is detected in the rear wheel. It ad-
justs power output based on data from
the IMU (Inertial Measurement Unit).
This system supports the traction con-
trol system to contribute to a smoother
ride.
LIF
The lift control system reduces the rate
at which the front wheel rises during ex-
treme acceleration, such as during starts or out-of-corner exits. When
front-wheel lift is detected, engine pow-
er is regulated to slow front-wheel lift
while still providing good acceleration.
BEA-28199-E0.book 5 ページ ２０２１年１２月１日　水曜日　午後７時８分

Special features
3-6
1
23
4
5
6
7
8
9
10
11
12
13
EAU91341

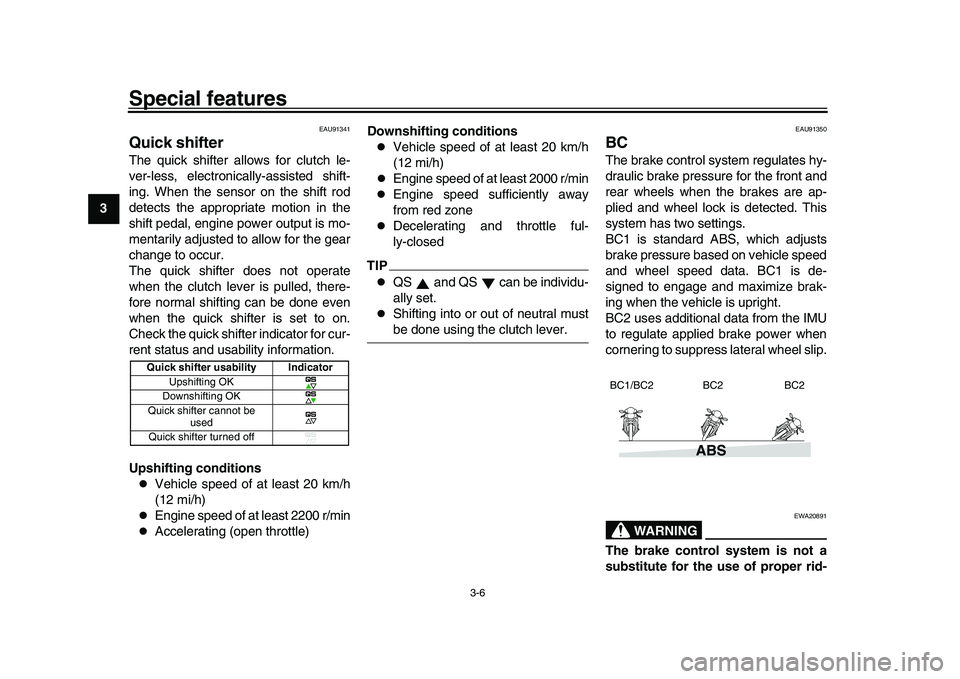

Quick shifterThe quick shifter allows for clutch le-
ver-less, electronically-assisted shift-
ing. When the sensor on the shift rod
detects the appropriate motion in the
shift pedal, engine power output is mo-
mentarily adjusted to allow for the gear
change to occur.
The quick shifter does not operate
when the clutch lever is pulled, there-
fore normal shifting can be done even
when the quick shifter is set to on.
Check the quick shifter indicator for cur-
rent status and usability information.
Upshifting conditions
Vehicle speed of at least 20 km/h
(12 mi/h)

Engine speed of at least 2200 r/min

Accelerating (open throttle) Downshifting conditions

Vehicle speed of at least 20 km/h
(12 mi/h)

Engine speed of at least 2000 r/min

Engine speed sufficiently away
from red zone

Decelerating and throttle ful-
ly-closed
TIP
QS and QS can be individu-
ally set.

Shifting into or out of neutral mustbe done using the clutch lever.
EAU91350
BCThe brake control system regulates hy-
draulic brake pressure for the front and
rear wheels when the brakes are ap-
plied and wheel lock is detected. This
system has two settings.
BC1 is standard ABS, which adjusts
brake pressure based on vehicle speed
and wheel speed data. BC1 is de-
signed to engage and maximize brak-
ing when the vehicle is upright.
BC2 uses additional data from the IMU
to regulate applied brake power when
cornering to suppress lateral wheel slip.
WARNING
EWA20891
The brake control system is not a
substitute for the use of proper rid-
Quick shifter usability Indicator
Upshifting OK
Downshifting OK
Quick shifter cannot be used
Quick shifter turned off
ABS
BC1/BC2 BC2 BC2
BEA-28199-E0.book 6 ページ ２０２１年１２月１日　水曜日　午後７時８分

Special features
3-7
1
234
5
6
7
8
9
10
11
12
13

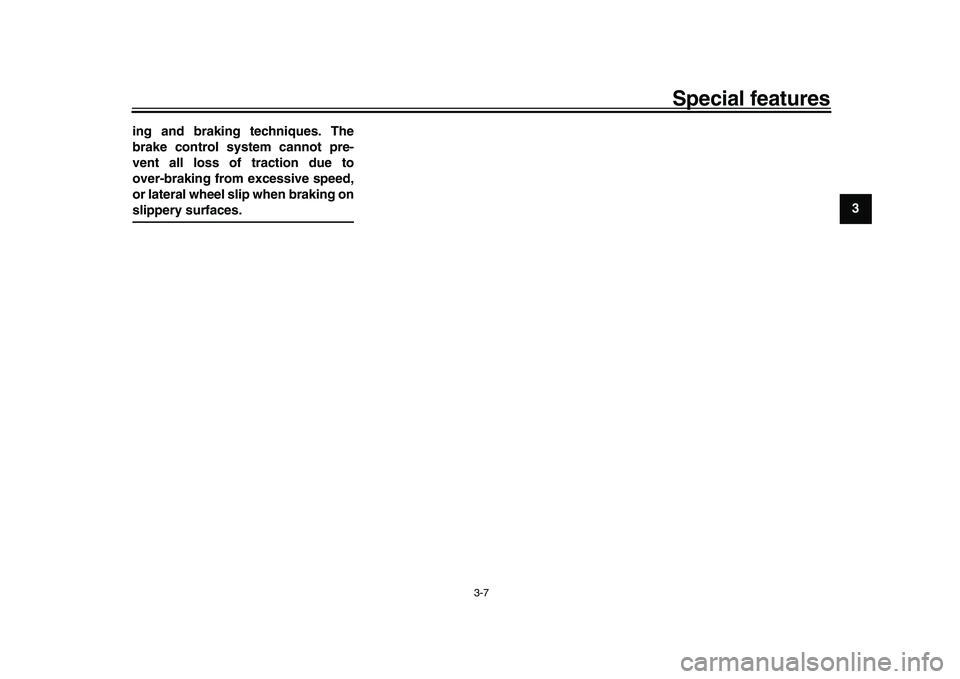

ing and braking techniques. The
brake control system cannot pre-
vent all loss of traction due to
over-braking from excessive speed,
or lateral wheel slip when braking on
slippery surfaces.
BEA-28199-E0.book 7 ページ ２０２１年１２月１日　水曜日　午後７時８分

4-1
1
2
34
5
6
7
8
9
10
11
12
13
Instrument and control functions
EAU1097B
Immobilizer systemThis vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing:
a code re-registering key

two standard keys

a transponder (in each key)

an immobilizer unit (on the vehicle)

an ECU (on the vehicle)

a system indicator light (page 4-7)
About the keys
The code re-registering key is used to
register codes in each standard key. Store the code re-registering key in a
safe place. Use a standard key for daily
operation.
When key replacement or re-register-
ing is necessary, bring the vehicle and
the code re-registering key along with
any remaining standard keys to a
Yamaha dealer to have them re-regis-
tered.
TIP
Keep the standard keys as well as
keys of other immobilizer systems
away from the code re-registering
key.

Keep other immobilizer system
keys away from the main switch as
they may cause signal interfer-ence.
NOTICE
ECA11823
DO NOT LOSE THE CODE RE-REG-
ISTERING KEY! CONTACT YOUR
DEALER IMMEDIATELY IF IT IS
LOST! If the code re-registering key
is lost, the existing standard keys
can still be used to start the vehicle.
However, registering a new stan-
dard key is impossible. If all keyshave been lost or damaged, the en-
tire immobilizer system must be re-
placed. Therefore, handle the keys
carefully.

Do not submerse in water.

Do not expose to high tempera-
tures.

Do not place near magnets.

Do not place near items that
transmit electrical signals.

Do not handle roughly.

Do not grind or alter.

Do not disassemble.

Do not put two keys of any im-
mobilizer system on the samekey ring.
1. Code re-registering key (red bow)
2. Standard keys (black bow)
BEA-28199-E0.book 1 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-2
1
2
345
6
7
8
9
10
11
12
13
EAU10474

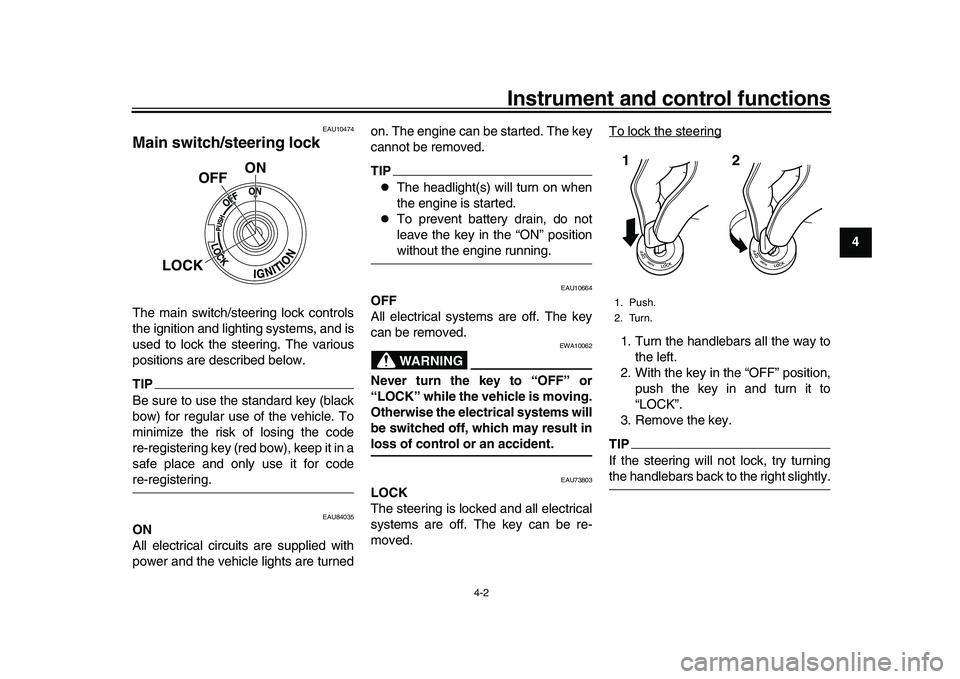

Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code
re-registering key (red bow), keep it in a
safe place and only use it for codere-registering.
EAU84035
ON
All electrical circuits are supplied with
power and the vehicle lights are turned on. The engine can be started. The key
cannot be removed.
TIP
The headlight(s) will turn on when
the engine is started.

To prevent battery drain, do not
leave the key in the “ON” positionwithout the engine running.
EAU10664
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU73803
LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turningthe handlebars back to the right slightly.
ON
OFF
LOCK
1. Push.
2. Turn.12
BEA-28199-E0.book 2 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-3
1
2
34
5
6
7
8
9
10
11
12

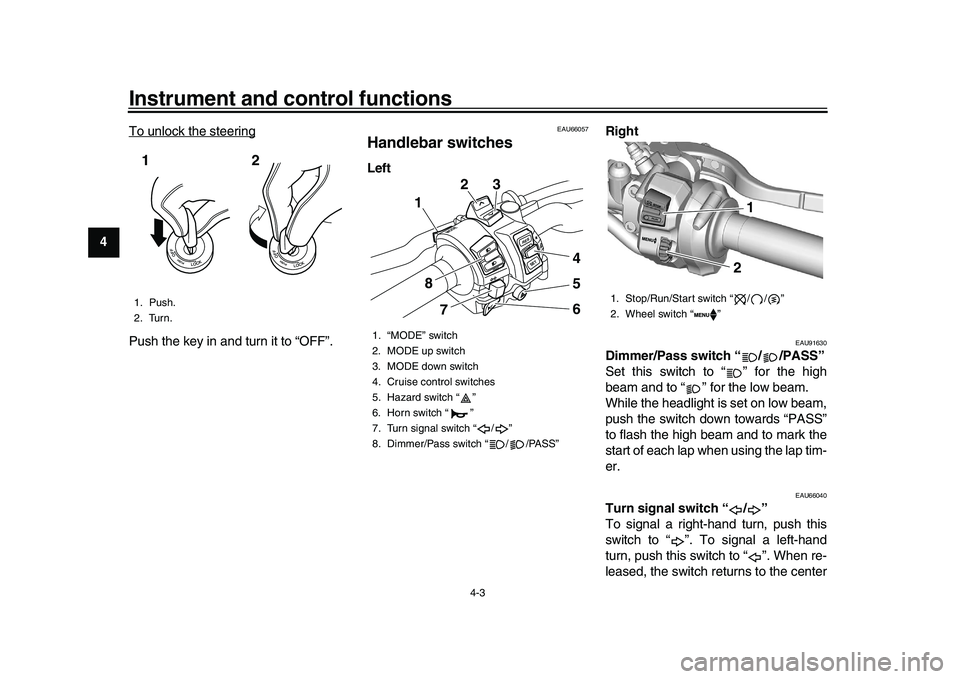

13 To unlock the steering
Push the key in and turn it to “OFF”.
EAU66057
Handlebar switchesLeft
Right
EAU91630
Dimmer/Pass switch “ / /PASS”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
While the headlight is set on low beam,
push the switch down towards “PASS”
to flash the high beam and to mark the
start of each lap when using the lap tim-
er.
EAU66040
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
1. Push.
2. Turn.12
1. “MODE” switch
2. MODE up switch
3. MODE down switch
4. Cruise control switches
5. Hazard switch “ ”
6. Horn switch “ ”
7. Turn signal switch “ / ”
8. Dimmer/Pass switch “ / /PASS”
RESSET
MODE
P
ASS
23
4
5
6
1
8 7
1. Stop/Run/Start switch “ / / ”
2. Wheel switch “ ”
1 1 12 2
BEA-28199-E0.book 3 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-4
1
2
345
6
7
8
9
10
11
12
13

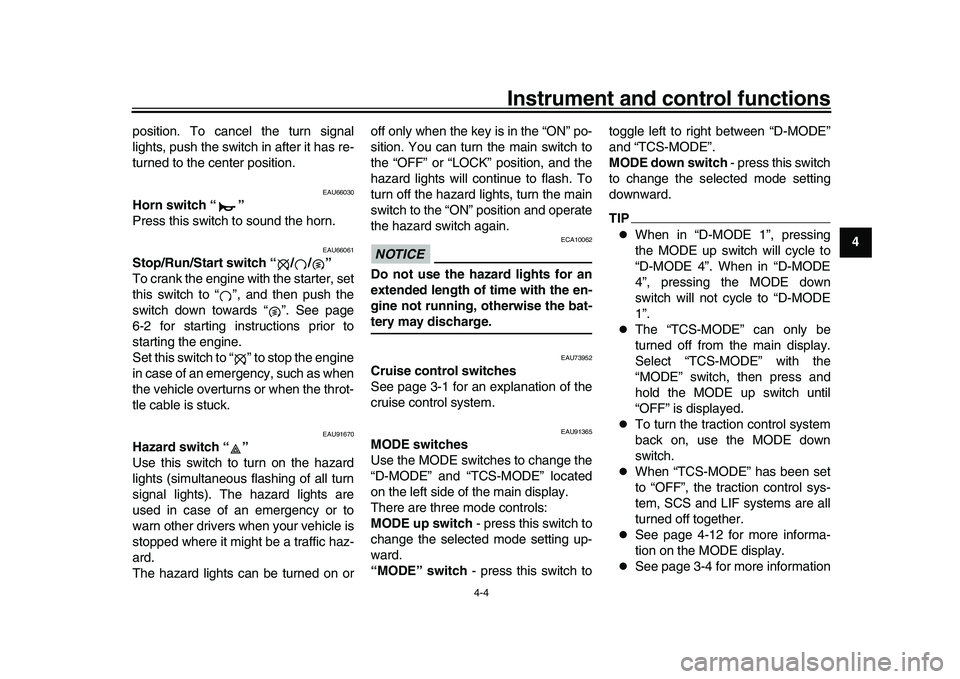

position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU66030
Horn switch “ ”
Press this switch to sound the horn.
EAU66061
Stop/Run/Start switch “ / / ”
To crank the engine with the starter, set
this switch to “ ”, and then push the
switch down towards “ ”. See page
6-2 for starting instructions prior to
starting the engine.
Set this switch to “ ” to stop the engine
in case of an emergency, such as when
the vehicle overturns or when the throt-
tle cable is stuck.
EAU91670
Hazard switch “ ”
Use this switch to turn on the hazard
lights (simultaneous flashing of all turn
signal lights). The hazard lights are
used in case of an emergency or to
warn other drivers when your vehicle is
stopped where it might be a traffic haz-
ard.
The hazard lights can be turned on or off only when the key is in the “ON” po-
sition. You can turn the main switch to
the “OFF” or “LOCK” position, and the
hazard lights will continue to flash. To
turn off the hazard lights, turn the main
switch to the “ON” position and operate
the hazard switch again.
NOTICE
ECA10062
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU73952
Cruise control switches
See page 3-1 for an explanation of the
cruise control system.
EAU91365
MODE switches
Use the MODE switches to change the
“D-MODE” and “TCS-MODE” located
on the left side of the main display.
There are three mode controls:
MODE up switch
- press this switch to
change the selected mode setting up-
ward.
“MODE” switch - press this switch to toggle left to right between “D-MODE”
and “TCS-MODE”.
MODE down switch
- press this switch
to change the selected mode setting
downward.
TIP
When in “D-MODE 1”, pressing
the MODE up switch will cycle to
“D-MODE 4”. When in “D-MODE
4”, pressing the MODE down
switch will not cycle to “D-MODE
1”.

The “TCS-MODE” can only be
turned off from the main display.
Select “TCS-MODE” with the
“MODE” switch, then press and
hold the MODE up switch until
“OFF” is displayed.

To turn the traction control system
back on, use the MODE down
switch.

When “TCS-MODE” has been set
to “OFF”, the traction control sys-
tem, SCS and LIF systems are all
turned off together.

See page 4-12 for more informa-
tion on the MODE display.

See page 3-4 for more information
BEA-28199-E0.book 4 ページ ２０２１年１２月１日　水曜日　午後７時８分

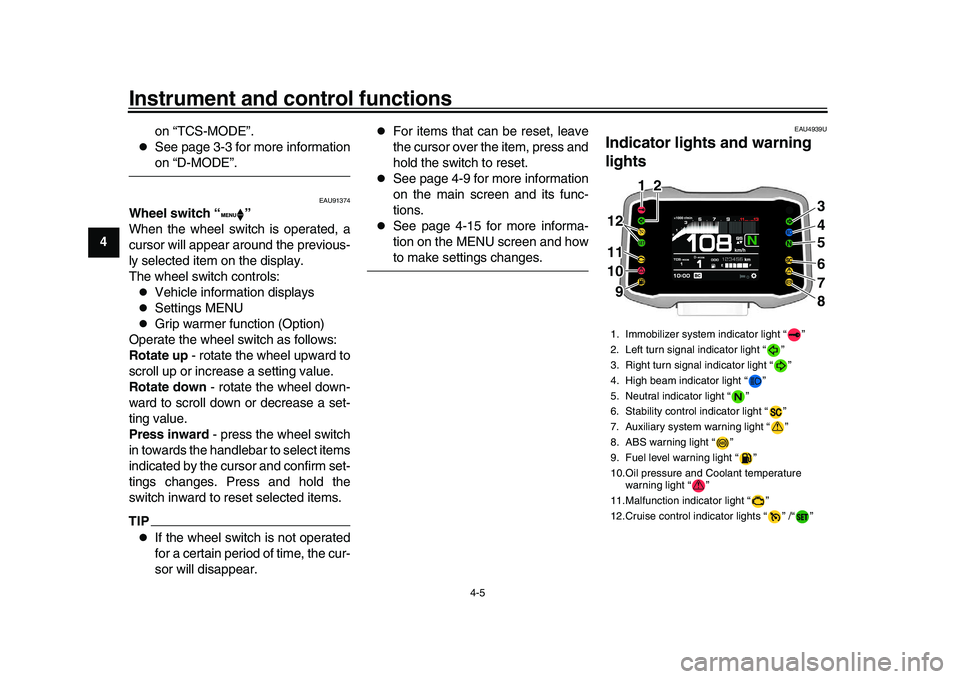

Instrument and control functions
4-5
1
2
34
5
6
7
8
9
10
11
12
13 on “TCS-MODE”.

See page 3-3 for more informationon “D-MODE”.
EAU91374
Wheel switch “ ”
When the wheel switch is operated, a
cursor will appear around the previous-
ly selected item on the display.
The wheel switch controls:
Vehicle information displays

Settings MENU

Grip warmer function (Option)
Operate the wheel switch as follows:
Rotate up - rotate the wheel upward to
scroll up or increase a setting value.
Rotate down - rotate the wheel down-
ward to scroll down or decrease a set-
ting value.
Press inward - press the wheel switch
in towards the handlebar to select items
indicated by the cursor and confirm set-
tings changes. Press and hold the
switch inward to reset selected items.
TIP
If the wheel switch is not operated
for a certain period of time, the cur-
sor will disappear.

For items that can be reset, leave
the cursor over the item, press and
hold the switch to reset.

See page 4-9 for more information
on the main screen and its func-
tions.

See page 4-15 for more informa-
tion on the MENU screen and howto make settings changes.
EAU4939U
Indicator lights and warning
lights1. Immobilizer system indicator light “ ”
2. Left turn signal indicator light “ ”
3. Right turn signal indicator light “ ”
4. High beam indicator light “ ”
5. Neutral indicator light “ ”
6. Stability control indicator light “ ”
7. Auxiliary system warning light “ ”
8. ABS warning light “ ”
9. Fuel level warning light “ ”
10.Oil pressure and Coolant temperature warning light “ ”
11.Malfunction indicator light “ ”
12.Cruise control indicator lights “ ” /“ ”
ABS
3
4
56
7
8
11 11
10 10 9
11 1 12
2 2
1012 12 12 9 9
BEA-28199-E0.book 5 ページ ２０２１年１２月１日　水曜日　午後７時８分

Instrument and control functions
4-6
1
2
345
6
7
8
9
10
11
12
13
EAU88280
Turn signal indicator lights “ ” and
“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU88300
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU88310
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU88320
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2.7 L (0.71 US gal, 0.59 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the vehicle
on. The warning light should come on
for a few seconds, and then go off.TIPIf the warning light does not come on at all, remains on after refueling, or if the
warning light flashes repeatedly, have
a Yamaha dealer check the vehicle.
EAU91650
Cruise control indicator lights “ ”/
“”
These indicator lights come on when
the cruise control system is activated.
(See page 3-1.)TIPWhen the vehicle is turned on, these
lights should come on for a few sec-
onds and then go off. Otherwise, havea Yamaha dealer check the vehicle.
EAU88331
Malfunction indicator light (MIL)
“”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system
. If this occurs,
have a Yamaha dealer check the
on-board diagnostic system. The elec-
trical circuit of the warning light can be
checked by turning the vehicle power
on. The light should come on for a few
seconds, and then go off. If the light does not come on initially when the ve-
hicle power is turned on, or if the light
remains on, have a Yamaha dealer
check the vehicle.
NOTICE
ECA26820
If the MIL starts flashing, reduce en-
gine speed to prevent exhaust sys-tem damage.TIPThe engine is sensitively monitored by
the on-board diagnostic system to de-
tect deterioration or malfunction of the
emission control system. Therefore the
MIL may come on or flash due to vehi-
cle modifications, lack of maintenance,
or excessive/improper use of the mo-
torcycle. To prevent this, observe these
precautions.
Do not attempt to modify the soft-
ware of the engine control unit.

Do not add any electrical accesso-
ries that interfere with engine con-
trol.

Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
BEA-28199-E0.book 6 ページ ２０２１年１２月１日　水曜日　午後７時８分

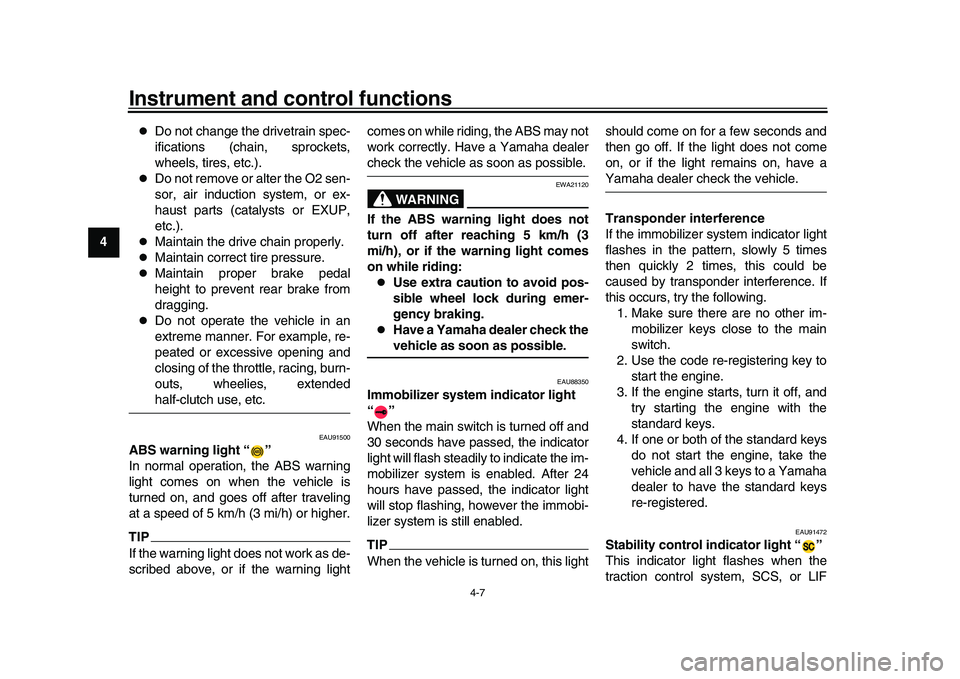

Instrument and control functions
4-7
1
2
34
5
6
7
8
9
10
11
12
13

Do not change the drivetrain spec-
ifications (chain, sprockets,
wheels, tires, etc.).

Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).

Maintain the drive chain properly.

Maintain correct tire pressure.

Maintain proper brake pedal
height to prevent rear brake from
dragging.

Do not operate the vehicle in an
extreme manner. For example, re-
peated or excessive opening and
closing of the throttle, racing, burn-
outs, wheelies, extendedhalf-clutch use, etc.
EAU91500
ABS warning light “ ”
In normal operation, the ABS warning
light comes on when the vehicle is
turned on, and goes off after traveling
at a speed of 5 km/h (3 mi/h) or higher.TIPIf the warning light does not work as de-
scribed above, or if the warning light comes on while riding, the ABS may not
work correctly. Have a Yamaha dealer
check the vehicle as soon as possible.
WARNING
EWA21120
If the ABS warning light does not
turn off after reaching 5 km/h (3
mi/h), or if the warning light comes
on while riding: 
Use extra caution to avoid pos-
sible wheel lock during emer-
gency braking.

Have a Yamaha dealer check thevehicle as soon as possible.
EAU88350
Immobilizer system indicator light
“”
When the main switch is turned off and
30 seconds have passed, the indicator
light will flash steadil
y to indicate the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.TIPWhen the vehicle is turned on, this light should come on for a few seconds and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
Transponder interference
If the immobilizer system indicator light
flashes in the pattern, slowly 5 times
then quickly 2 times, this could be
caused by transponder interference. If
this occurs, try the following.
1. Make sure there are no other im- mobilizer keys close to the main
switch.
2. Use the code re-registering key to start the engine.
3. If the engine starts, turn it off, and try starting the engine with the
standard keys.
4. If one or both of the standard keys do not start the engine, take the
vehicle and all 3 keys to a Yamaha
dealer to have the standard keys
re-registered.
EAU91472
Stability control indicator light “ ”
This indicator light flashes when the
traction control system, SCS, or LIF
BEA-28199-E0.book 7 ページ ２０２１年１２月１日　水曜日　午後７時８分
