13-102 Manual Transmission

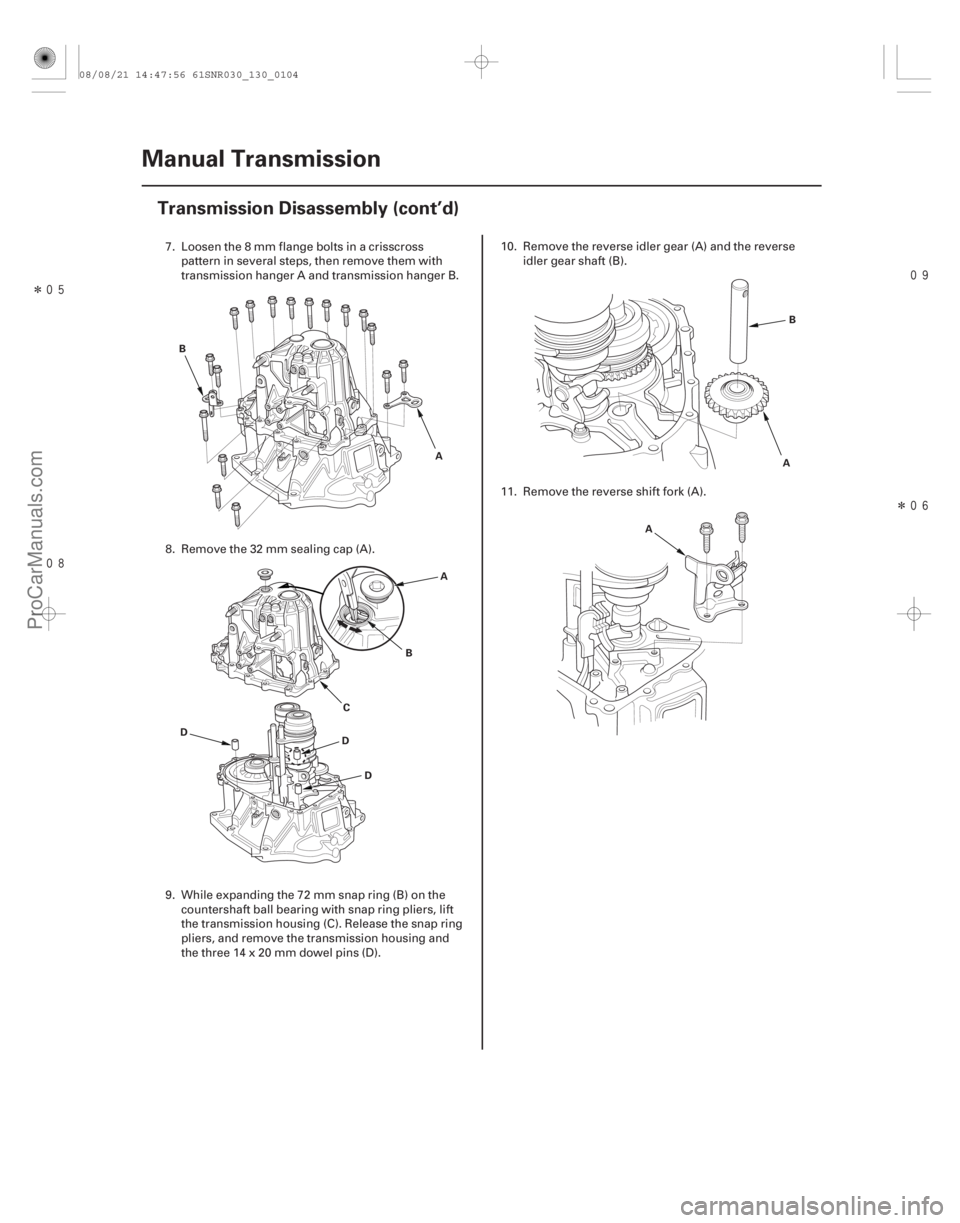

Transmission Disassembly (cont’d)
A
B
A
D B
C
D
D A
B
A
7. Loosen the 8 mm flange bolts in a crisscross pattern in several steps, then remove them with
transmission hanger A and transmission hanger B.
8. Remove the 32 mm sealing cap (A).
9. While expanding the 72 mm snap ring (B) on the countershaft ball bearing with snap ring pliers, lift
the transmission housing (C). Release the snap ring
pliers, and remove the transmission housing and
the three 14 x 20 mm dowel pins (D). 10. Remove the reverse idler gear (A) and the reverse
idler gear shaft (B).
11. Remove the reverse shift fork (A).
08/08/21 14:47:56 61SNR030_130_0104
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
13-103
D
E B
C
F A
A B M
B
A
12. Apply tape to the mainshaft splines to protect the seal, then remove the mainshaft assembly (A) and
the countershaft assembly (B) with the shift fork
assembly (C) from the clutch housing (D).
13. Remove the 28 mm spring washer (E) and the 28 mm washer (F).
14. Remove the differential assembly (A) and the magnet (B). 15. Remove the oil gutter plate (A), the 72 mm shim (B),
and oil guide plate M.
08/08/21 14:47:57 61SNR030_130_0105
ProCarManuals.com
DYNOMITE -2009-


(#'



")
Î

(#'

")
µµ
µµ µµ
µµ
Standard: 0.20 0.59 mm (0.008 0.023 in.)
Service Limit: 1.3 mm (0.051 in.)
Standard: 13.4 13.7 mm (0.528 0.539 in.) Standard: 0.05 0.25 mm (0.002 0.010 in.)
Service Limit: 0.50 mm (0.020 in.)
Standard: 15.00 15.10 mm (0.591 0.594 in.)
13-10413-104Manual Transmission
Reverse Shift Fork Clearance
Inspection
Change Lever Clearance Inspection
B
A
C A
B C
1. Measure the clearance between the reverse idler
gear (A) and the reverse shift fork (B) with a feeler
gauge (C). If the clearance exceeds the service limit,
go to step 2.
2. Measure the width of the reverse shift fork.  If the width is not within the standard, replace thereverse shift fork.
 If the width is within the standard, replace the reverse idler gear. 1. Measure the clearance between the change lever
(A) and the select lever (B) with a feeler gauge (C). If
the clearance exceeds the service limit, go to step
2.
2. Measure the groove width of the change lever.  If the groove width is not within the standard,replace the change lever.
 If the groove width is within the standard, replace the select lever.
08/08/21 14:47:58 61SNR030_130_0106
ProCarManuals.com
DYNOMITE -2009-

Î
(#'

")
13-105

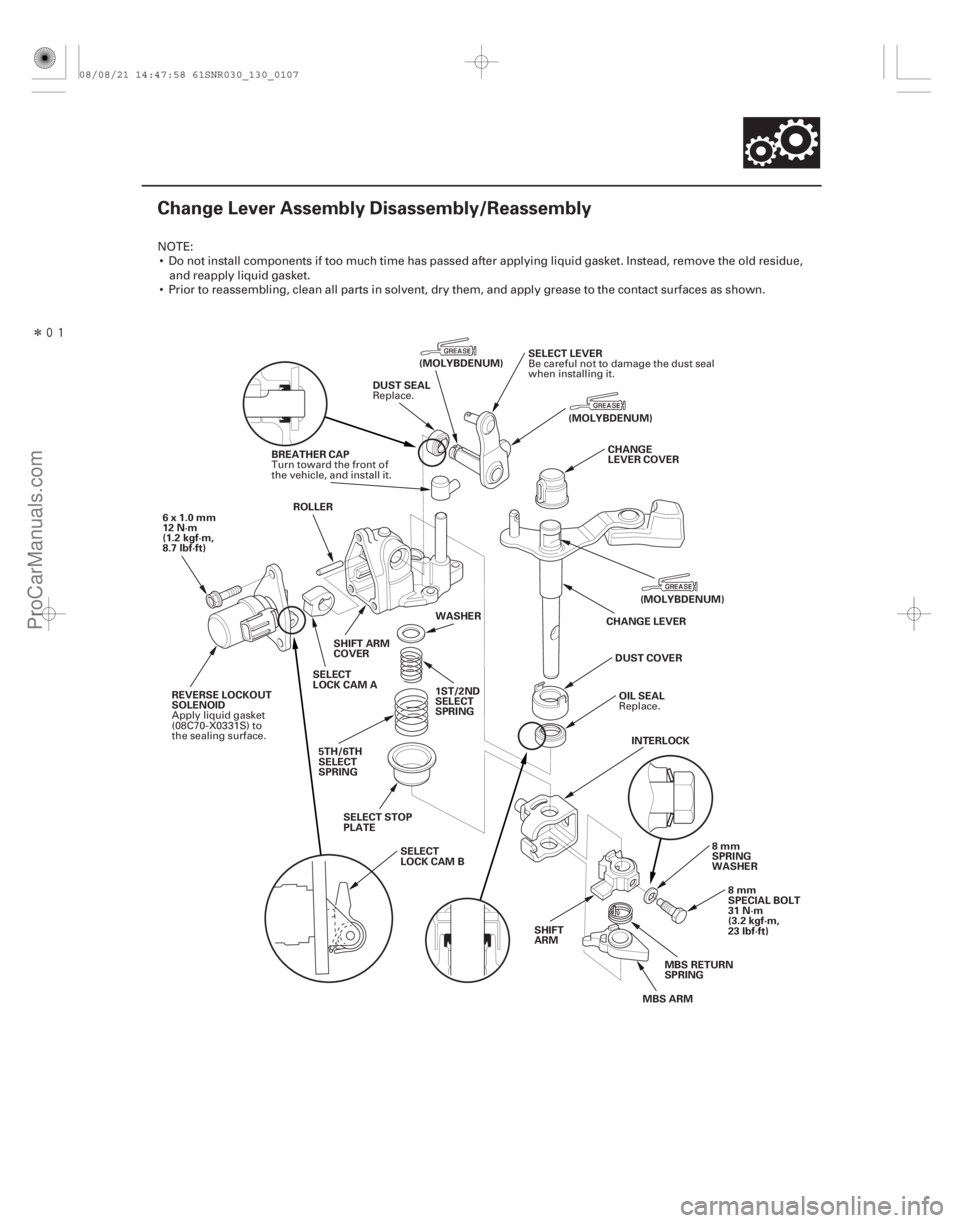

Change Lever Assembly Disassembly/Reassembly
DUST COVEROIL SEAL
SHIFT ARM
COVER
SELECT STOP
PLATE DUST SEAL
INTERLOCK
5TH/6TH
SELECT
SPRING WASHER
REVERSE LOCKOUT
SOLENOID (MOLYBDENUM)
1ST/2ND
SELECT
SPRING
SELECT
LOCK CAM A
MBS RETURN
SPRING
CHANGE
LEVER COVER
SHIFT
ARM (MOLYBDENUM)
(MOLYBDENUM)
SELECT LEVER
SELECT
LOCK CAM B
ROLLER
CHANGE LEVER
6x1.0mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)
8mm
SPRING
WASHER8mm
SPECIAL BOLT
31 N·m
(3.2 kgf·m,
23 lbf·ft)
MBS ARM
BREATHER CAP
NOTE:
 Do not install components if too much time has passed after applying liquid gasket. Instead, remove the old residue, and reapply liquid gasket.
 Prior to reassembling, clean all parts in solvent, dry them, and apply grease to the contact surfaces as shown.
Replace.
Replace.
Apply liquid gasket
(08C70-X0331S) to
the sealing surface. Be careful not to damage the dust seal
when installing it.
Turn toward the front of
the vehicle, and install it.
08/08/21 14:47:58 61SNR030_130_0107
ProCarManuals.com
DYNOMITE -2009-




(#'

")
µµ
µµ µµ
µµ
Standard: 0.35 0.65 mm (0.014 0.026 in.)
Service Limit: 1.0 mm (0.039 in.)
Standard: 7.4 7.6 mm (0.29 0.30 in.) Standard: 0.2 0.5 mm (0.008 0.020 in.)
Service Limit: 0.62 mm (0.024 in.)
Standard: 16.9 17.0 mm (0.665 0.669 in.)
13-106Manual Transmission
Shift Fork Clearance Inspection
A
B
A
B
1. Measure the clearance between each shift fork (A)and its matching synchro sleeve (B). If the
clearance exceeds the service limit, go to step 2.
2. Measure the thickness of the shift fork fingers.  If the thickness is not within the standard, replacethe shift fork.
 If the thickness is within the standard, replace the synchro sleeve and the synchro hub as a set.
 If one arm of the shift fork shows more wear than others, the fork may be bent and needs to be
replaced. 3. Measure the clearance between the shift fork (A)
and the shift arm (B). If the clearance exceeds the
service limit, go to step 4.
4. Measure the width of the shift arm.  If the width is not within the standard, replace theshift arm.
 If the width is within the standard, replace the shift fork or the reverse shift piece.
08/08/21 14:47:59 61SNR030_130_0108
ProCarManuals.com
DYNOMITE -2009-

Î
(#'

")
13-107

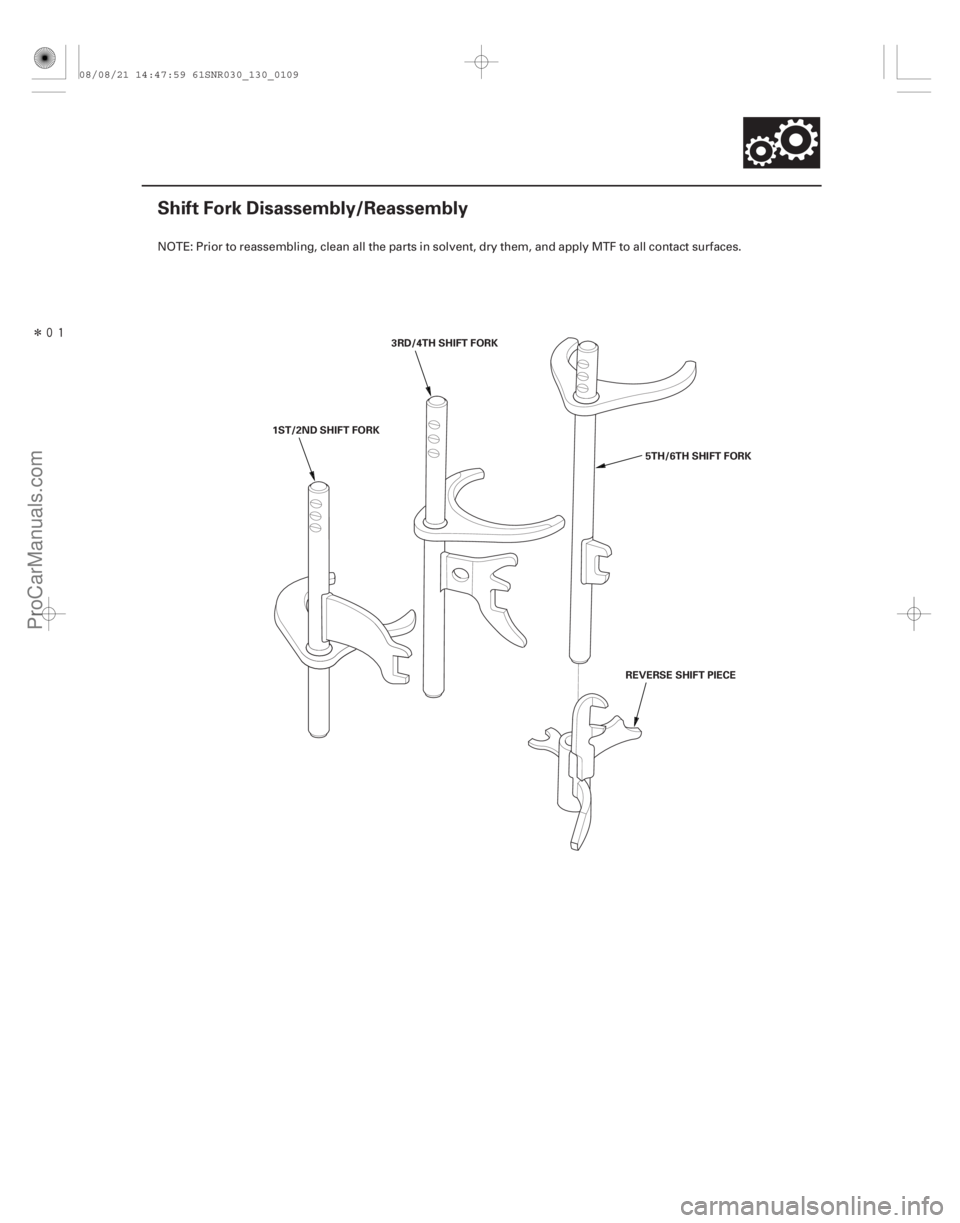

Shift Fork Disassembly/Reassembly
REVERSE SHIFT PIECE
1ST/2ND SHIFT FORK
3RD/4TH SHIFT FORK
5TH/6TH SHIFT FORK
NOTE: Prior to reassembling, clean all the parts in solvent, dry them, and apply MTF to all contact surfaces.
08/08/21 14:47:59 61SNR030_130_0109
ProCarManuals.com
DYNOMITE -2009-

Î

Î
(#'
")

µµ
µµ
µµ
Standard: 0.06 0.16 mm (0.002 0.006 in.)
Service Limit: 0.25 mm (0.010 in.) Standard: 23.92 23.97 mm (0.942 0.944 in.)
Service Limit: 23.80 mm (0.937 in.)
Standard: 0.06 0.16 mm (0.002 0.006 in.)
Service Limit: 0.25 mm (0.010 in.)
13-108Manual Transmission
Mainshaft Assembly Clearance Inspection
D
E
B
C
A
B
C
A
1. Support the bearing inner race with an appropriate
sized socket (A), and push down on the mainshaft
(B).
2. Measure the clearance between 2nd gear (C) and 3rd gear (D) with a feeler gauge (E).
 If the clearance exceeds the service limit, go to step 3.
 If the clearance is within the service limit, go to step 4. 3. Measure the thickness of 3rd gear.
 If the thickness is less than the service limit,replace 3rd gear.
 If the thickness is within the service limit, replace the 3rd/4th synchro hub and the 3rd/4th synchro
sleeve as a set.
4. Measure the clearance between 4th gear (A) and the 4th/5th gear distance collar (B) with a dial
indicator (C).
 If the clearance exceeds the service limit, go to step 5.
 If the clearance is within the service limit, go to step 7.
08/08/21 14:48:00 61SNR030_130_0110
ProCarManuals.com
DYNOMITE -2009-

Î Î
Î
µµ
µµ µµ
µµ
Standard: 24.03 24.08 mm (0.946 0.948 in.)
Standard: 23.92 23.97 mm (0.942 0.944 in.)
Service Limit: 23.80 mm (0.937 in.)
Standard: 0.06 0.16 mm (0.002 0.006 in.)
Service Limit: 0.25 mm (0.010 in.)
Standard: 24.03 24.08 mm (0.946 0.948 in.)
13-109
A
C
B
5. Measure the length of the 4th/5th gear distancecollar as shown.
 If the length is not within the standard, replace the 4th/5th gear distance collar.
 If the length is within the standard, go to step 6.
6. Measure the thickness of 4th gear.  If the thickness is less than the service limit,replace 4th gear.
 If the thickness is within the service limit, replace the 3rd/4th synchro hub and the 3rd/4th synchro
sleeve as a set. 7. Measure the clearance between the 4th/5th gear
distance collar (A) and 5th gear (B) with a dial
indicator (C).
 If the clearance exceeds the service limit, go to step 8.
 If the clearance is within the service limit, go to step 10.
8. Measure the length of the 4th/5th gear distance collar as shown.
 If the length is not within the standard, replace the 4th/5th gear distance collar.
 If the length is within the standard, go to step 9.
(cont’d)
08/08/21 14:48:00 61SNR030_130_0111
ProCarManuals.com
DYNOMITE -2009-


Î


µµ
µµ µµ
µµ
Standard: 23.92 23.97 mm (0.942 0.944 in.)
Service Limit: 23.80 mm (0.937 in.)
Standard: 0.06 0.16 mm (0.002 0.006 in.)
Service Limit: 0.25 mm (0.010 in.) Standard: 24.03 24.08 mm (0.946 0.948 in.)
Standard: 23.92 23.97 mm (0.942 0.944 in.)
Service Limit: 23.80 mm (0.937 in.)
13-110Manual Transmission

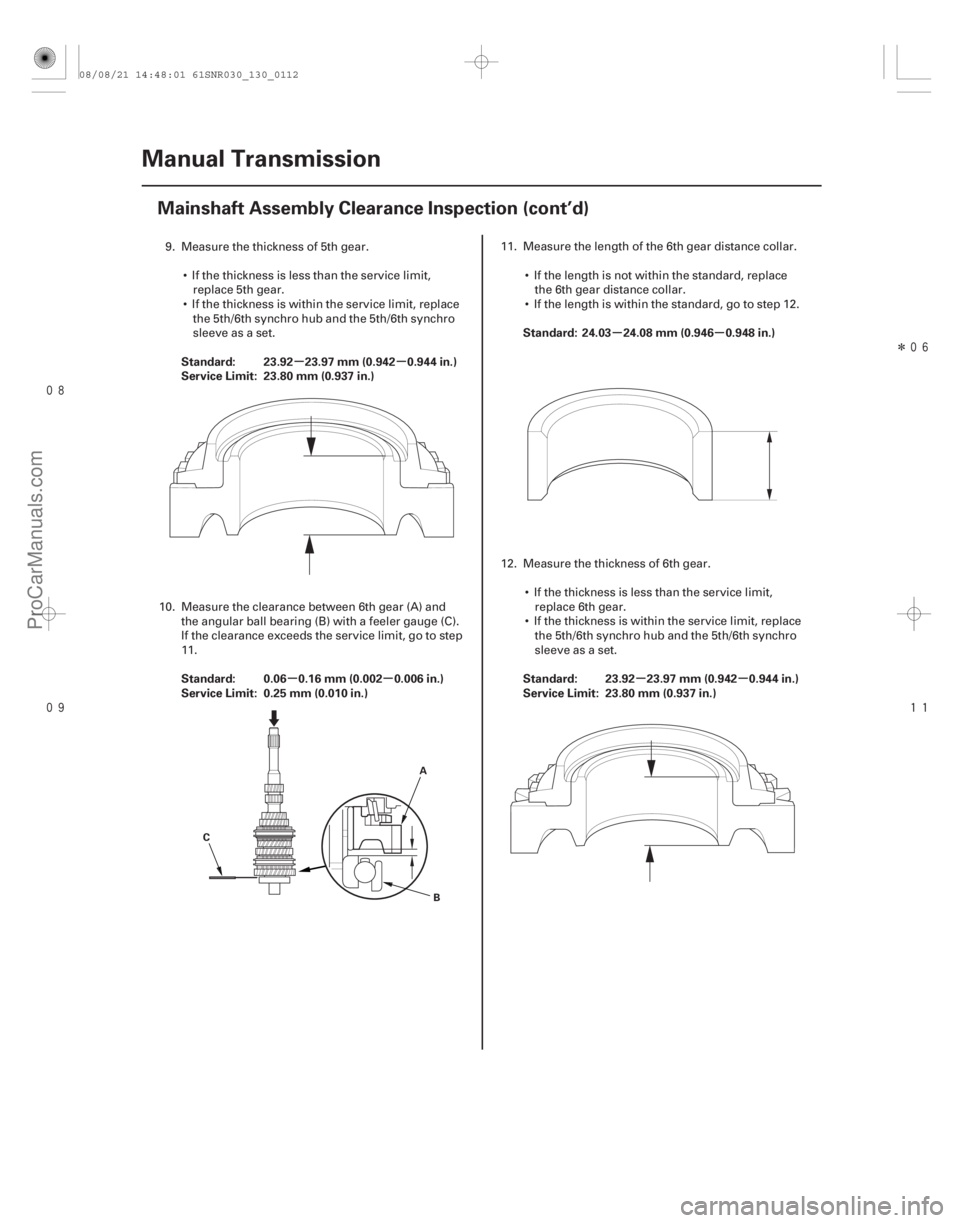

Mainshaft Assembly Clearance Inspection (cont’d)
A
B
C
9. Measure the thickness of 5th gear.
 If the thickness is less than the service limit,replace 5th gear.
 If the thickness is within the service limit, replace the 5th/6th synchro hub and the 5th/6th synchro
sleeve as a set.
10. Measure the clearance between 6th gear (A) and the angular ball bearing (B) with a feeler gauge (C).
If the clearance exceeds the service limit, go to step
11. 11. Measure the length of the 6th gear distance collar.
 If the length is not within the standard, replacethe 6th gear distance collar.
 If the length is within the standard, go to step 12.
12. Measure the thickness of 6th gear.  If the thickness is less than the service limit,replace 6th gear.
 If the thickness is within the service limit, replace the 5th/6th synchro hub and the 5th/6th synchro
sleeve as a set.
08/08/21 14:48:01 61SNR030_130_0112
ProCarManuals.com
DYNOMITE -2009-



(#'
!)
13-111

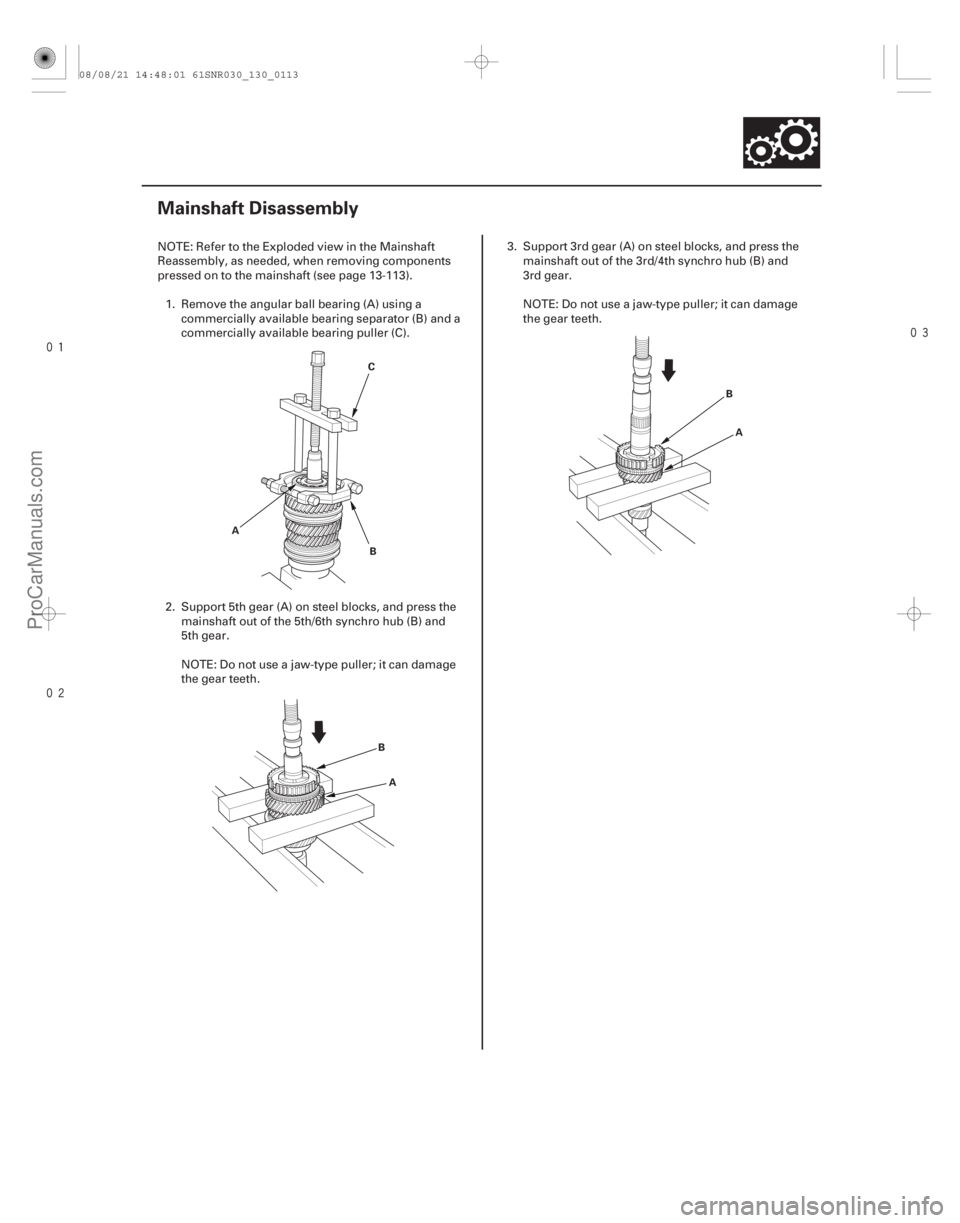

Mainshaft Disassembly
