ACURA NSX 1997 Service Repair Manual

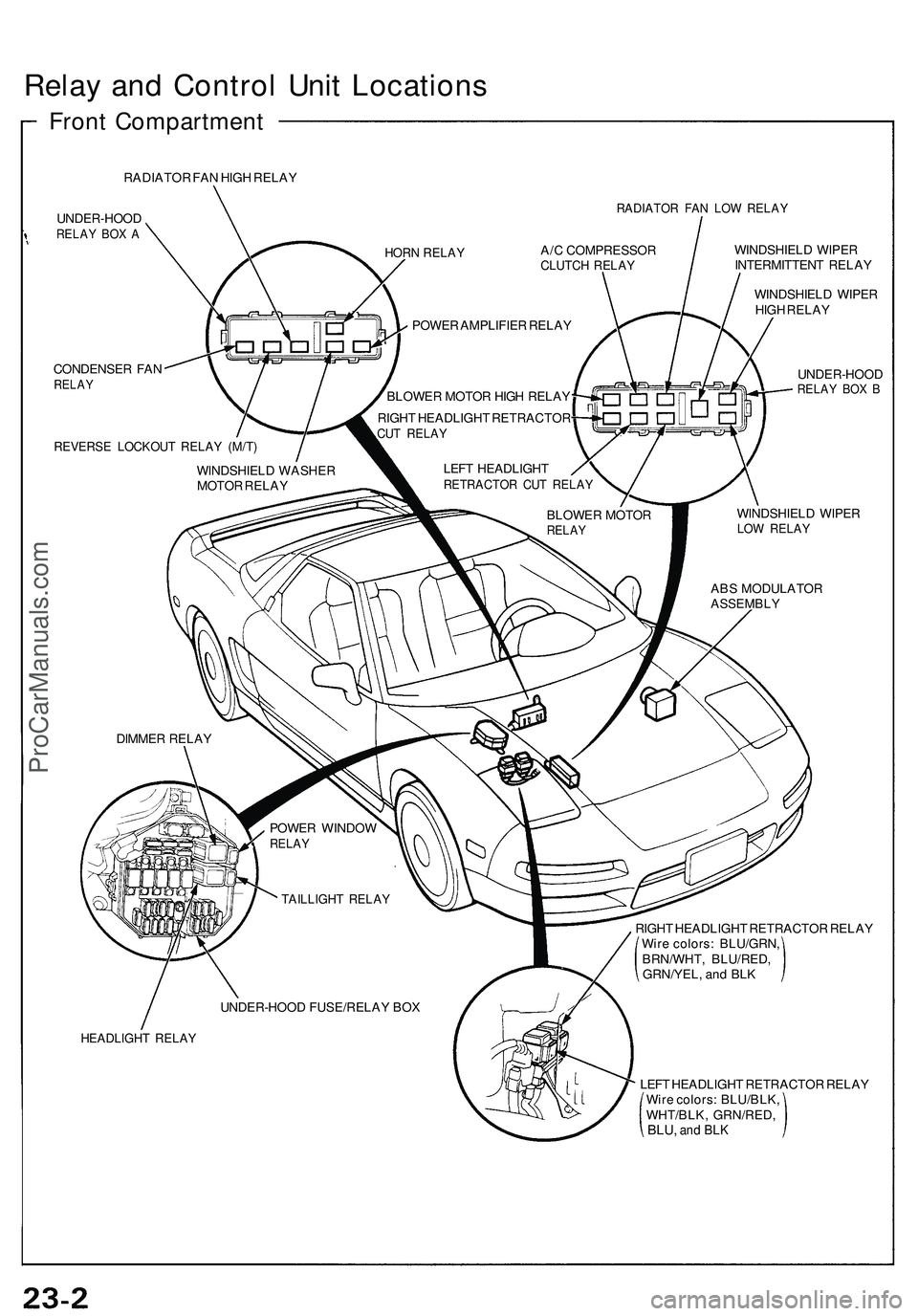

Relay an d Contro l Uni t Location s
Front Compartmen t
RADIATOR FA N HIG H RELA Y
UNDER-HOO D
RELAY BO X A
RADIATO R FA N LO W RELA Y
CONDENSE R FA NRELA Y
REVERS E LOCKOU T RELA Y (M/T )
WINDSHIEL D WIPE R
INTERMITTEN T RELA Y
WINDSHIEL D WIPE R
HIG H RELA Y
UNDER-HOO D
RELAY BO X B
WINDSHIEL D WIPE RLOW RELA Y
RIGHT HEADLIGH T RETRACTO R RELA Y
Wir e colors : BLU/GRN ,
BRN/WHT , BLU/RED ,
GRN/YEL , an d BL K
HEADLIGH T RELA Y
LEFT HEADLIGH T RETRACTO R RELA Y
Wir e colors : BLU/BLK ,
WHT/BLK , GRN/RED ,
BLU, and BL K
HOR N RELA YA/C COMPRESSO RCLUTCH RELA Y
POWER AMPLIFIE R RELA Y
BLOWE R MOTO R HIG H RELA Y
RIGH T HEADLIGH T RETRACTO R
CUT RELA Y
LEFT HEADLIGH TRETRACTO R CU T RELA Y
BLOWE R MOTO RRELAY
ABS MODULATO RASSEMBLY
WINDSHIEL D WASHE R
MOTO R RELA Y
DIMME R RELA Y
POWER WINDO W
RELAY
TAILLIGH T RELA Y
UNDER-HOO D FUSE/RELA Y BO X
ProCarManuals.com

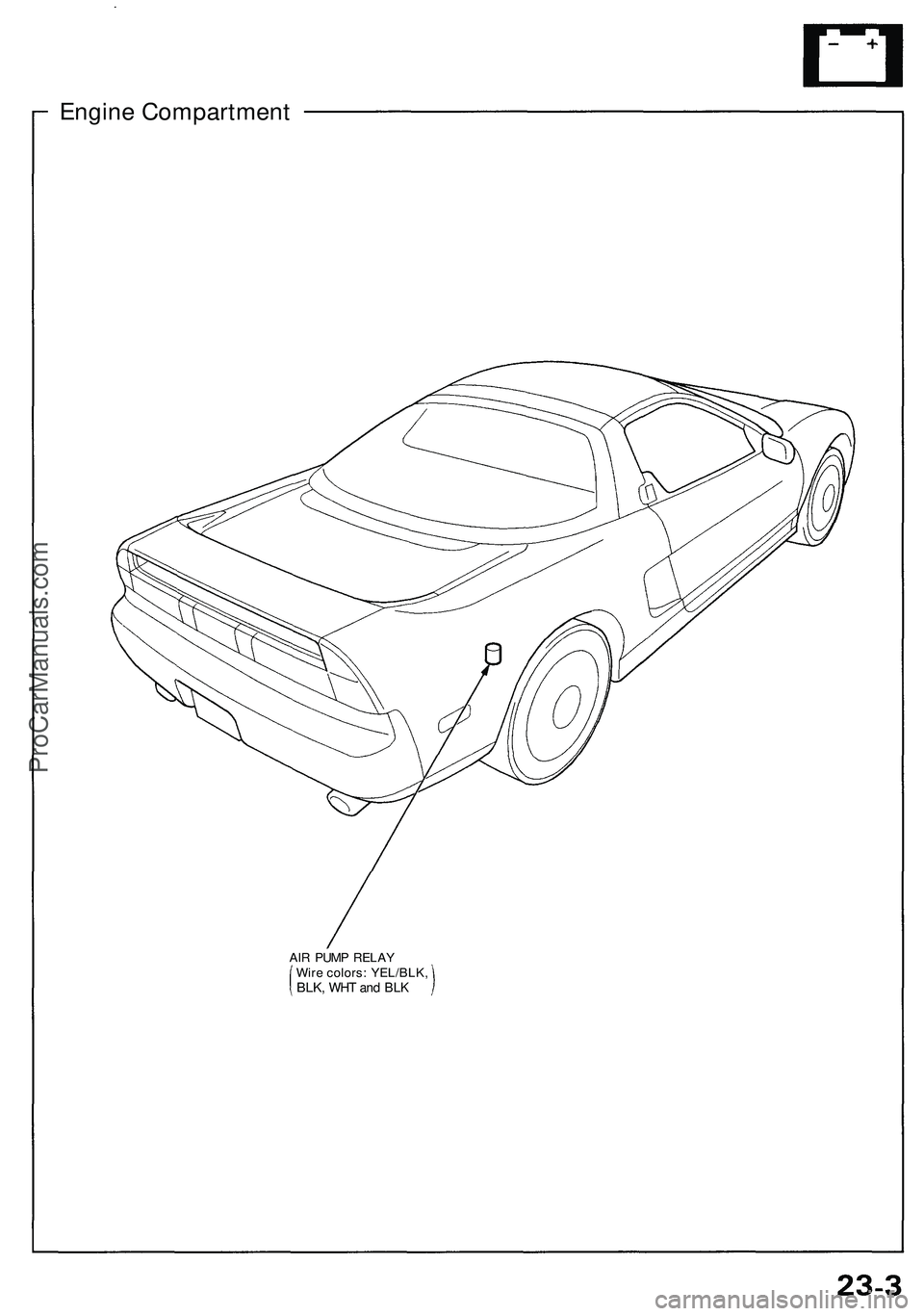

Engine Compartment

AIR PUMP RELAY

Wire colors: YEL/BLK,

BLK,
WHT and BLKProCarManuals.com

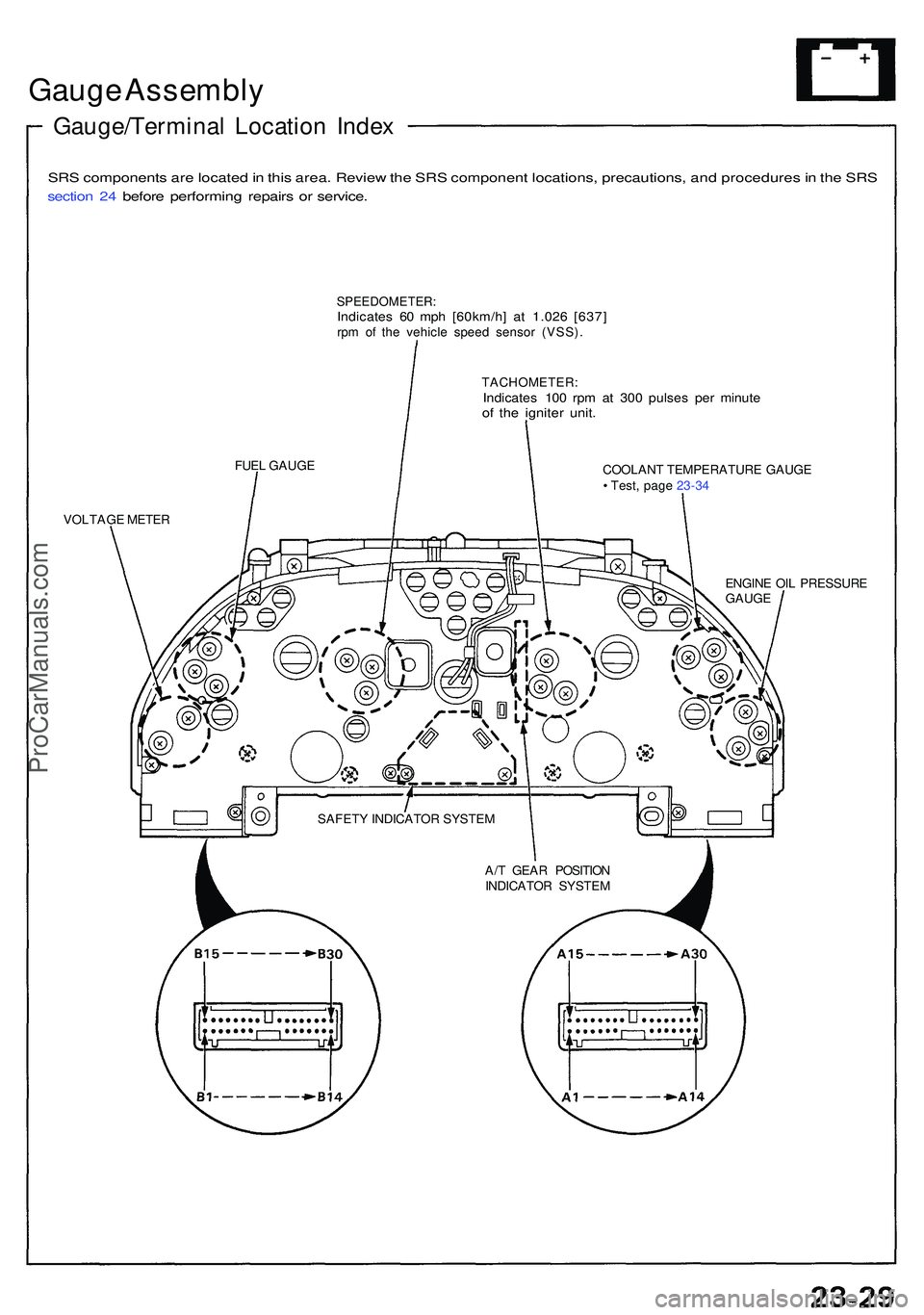

Gauge Assembl y
Gauge/Termina l Locatio n Inde x
SRS component s ar e locate d in thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s in th e SR S
sectio n 24 befor e performin g repair s o r service .
SPEEDOMETER :Indicates 6 0 mp h [60km/h ] a t 1.02 6 [637 ]rpm o f th e vehicl e spee d senso r (VSS) .
TACHOMETER :
Indicates 10 0 rp m a t 30 0 pulse s pe r minut eof th e ignite r unit .
COOLAN T TEMPERATUR E GAUG E
• Test , pag e 23-3 4
VOLTAG E METE R
ENGINE OI L PRESSUR E
GAUGE
A/T GEA R POSITIO N
INDICATO R SYSTE M
SAFET
Y INDICATO R SYSTE M
FUE
L GAUG E
ProCarManuals.com

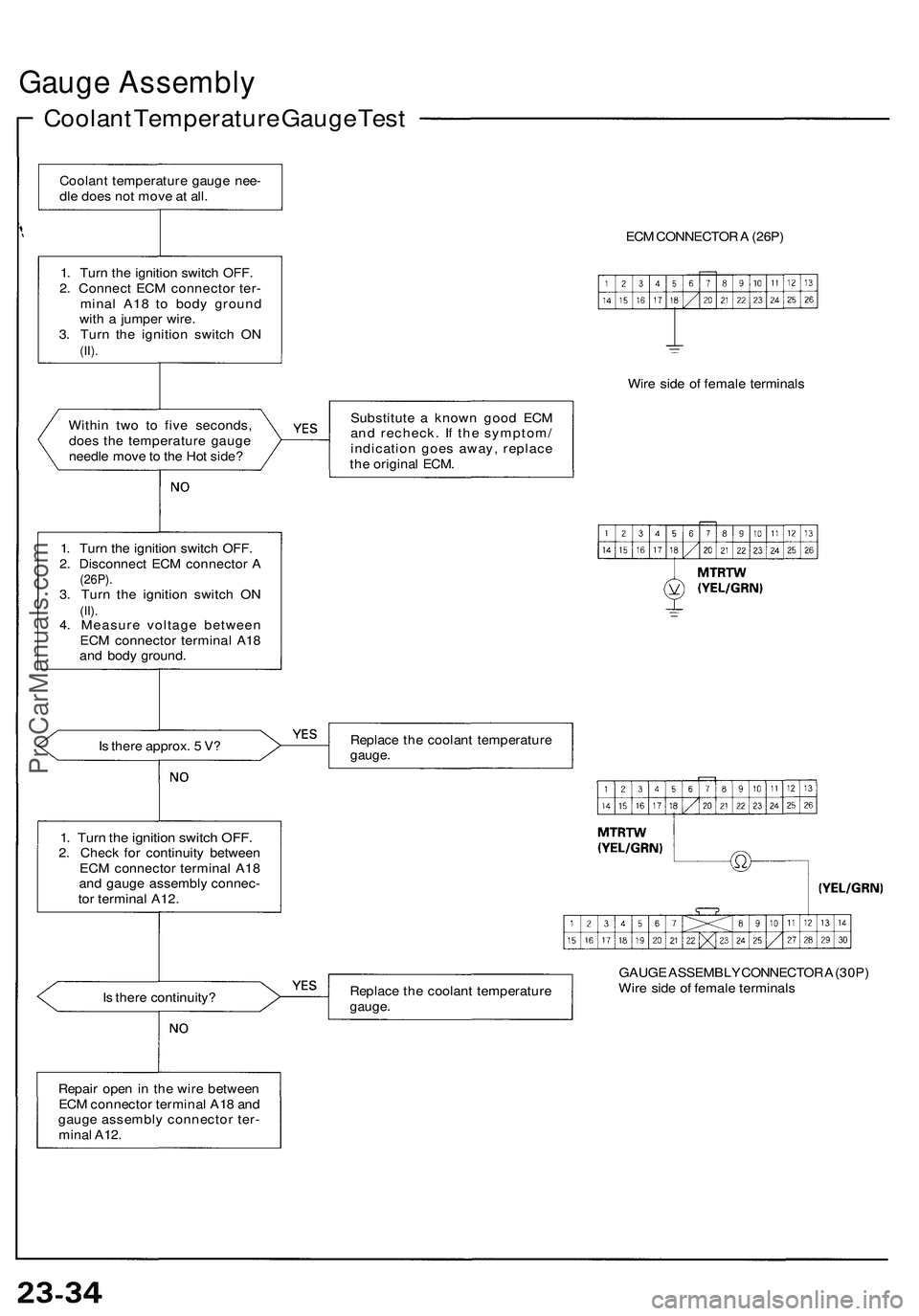

Gauge Assembly

Coolant Temperature Gauge Test

Within two to five seconds,

does the temperature gauge

needle move to the Hot side?

Is there approx. 5 V?

1. Turn the ignition switch OFF.

2. Check for continuity between

ECM connector terminal A18

and gauge assembly connec-

tor terminal A12.

Is there continuity?
ECM CONNECTOR A (26P)

Wire side of female terminals

Substitute a known good ECM

and recheck. If the symptom/

indication goes away, replace

the original ECM.

Replace the coolant temperature

gauge.

Replace the coolant temperature

gauge.
GAUGE ASSEMBLY CONNECTOR A (30P)

Wire side of female terminals
Coolant temperature gauge nee-

dle does not move at all.

1. Turn the ignition switch OFF.

2. Connect ECM connector ter-

minal A18 to body ground

with a jumper wire.

3. Turn the ignition switch ON

(II).

1. Turn the ignition switch OFF.

2. Disconnect ECM connector A

(26P).

3. Turn the ignition switch ON

(II).

4. Measure voltage between

ECM connector terminal A18

and body ground.

Repair open in the wire between

ECM connector terminal A18 and

gauge assembly connector ter-

minal A12.ProCarManuals.com

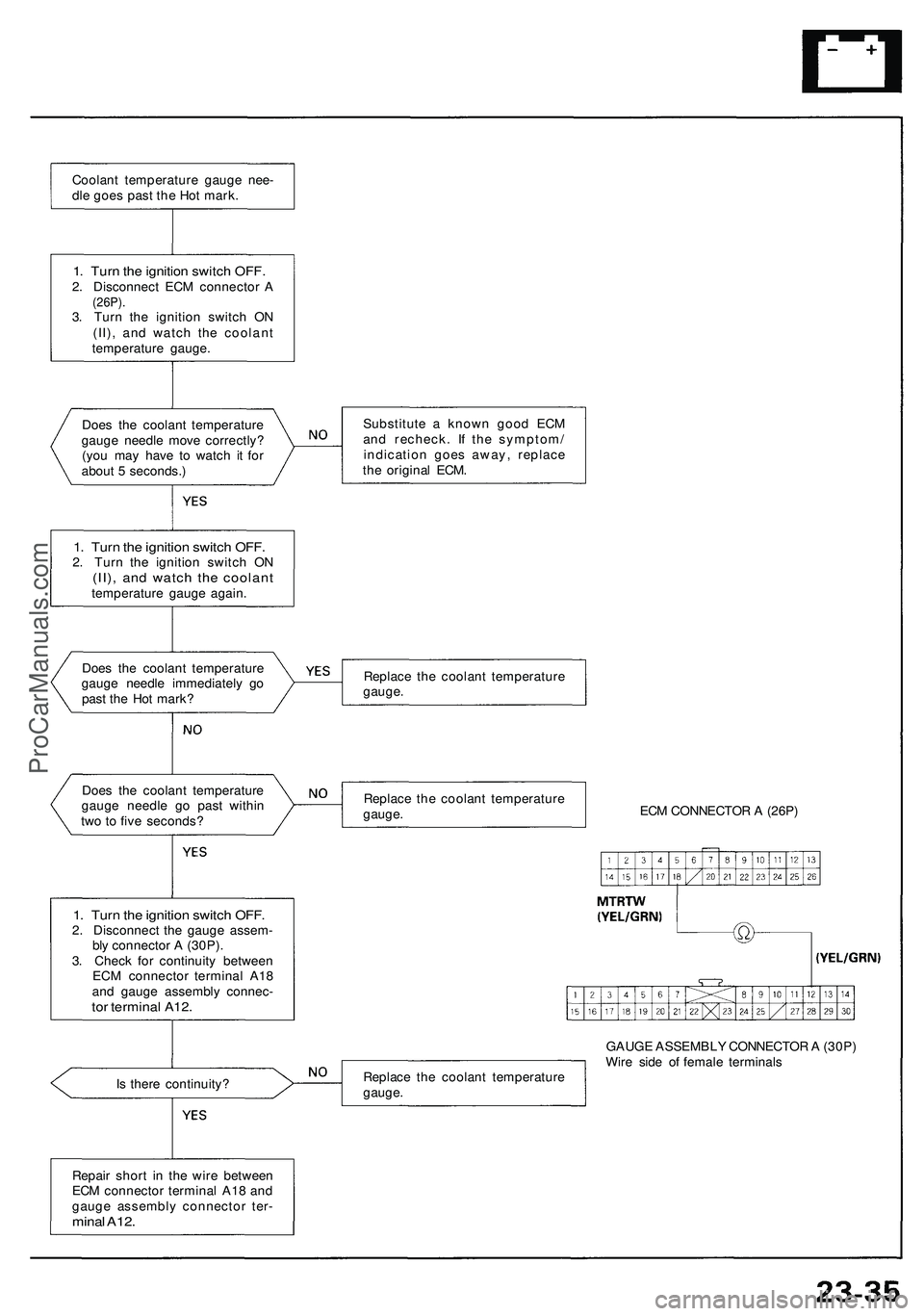

Does the coolant temperature

gauge needle move correctly?

(you may have to watch it for

about 5 seconds.)

1. Turn the ignition switch OFF.

2. Turn the ignition switch ON

(II), and watch the coolant

temperature gauge again.

Does the coolant temperature

gauge needle immediately go

past the Hot mark?

Does the coolant temperature

gauge needle go past within

two to five seconds?

1. Turn the ignition switch OFF.

2. Disconnect the gauge assem-

bly connector A (30P).

3. Check for continuity between

ECM connector terminal A18

and gauge assembly connec-

tor terminal A12.

Is there continuity?
Substitute a known good ECM

and recheck. If the symptom/

indication goes away, replace

the original ECM.

Replace the coolant temperature

gauge.

Replace the coolant temperature

gauge.
ECM CONNECTOR A (26P)

Replace the coolant temperature

gauge.
GAUGE ASSEMBLY CONNECTOR A (30P)

Wire side of female terminals

Repair short in the wire between

ECM connector terminal A18 and

gauge assembly connector ter-

minal A12.
1. Turn the ignition switch OFF.

2. Disconnect ECM connector A

(26P).

3. Turn the ignition switch ON

(II), and watch the coolant

temperature gauge.
Coolant temperature gauge nee-

dle goes past the Hot mark.ProCarManuals.com

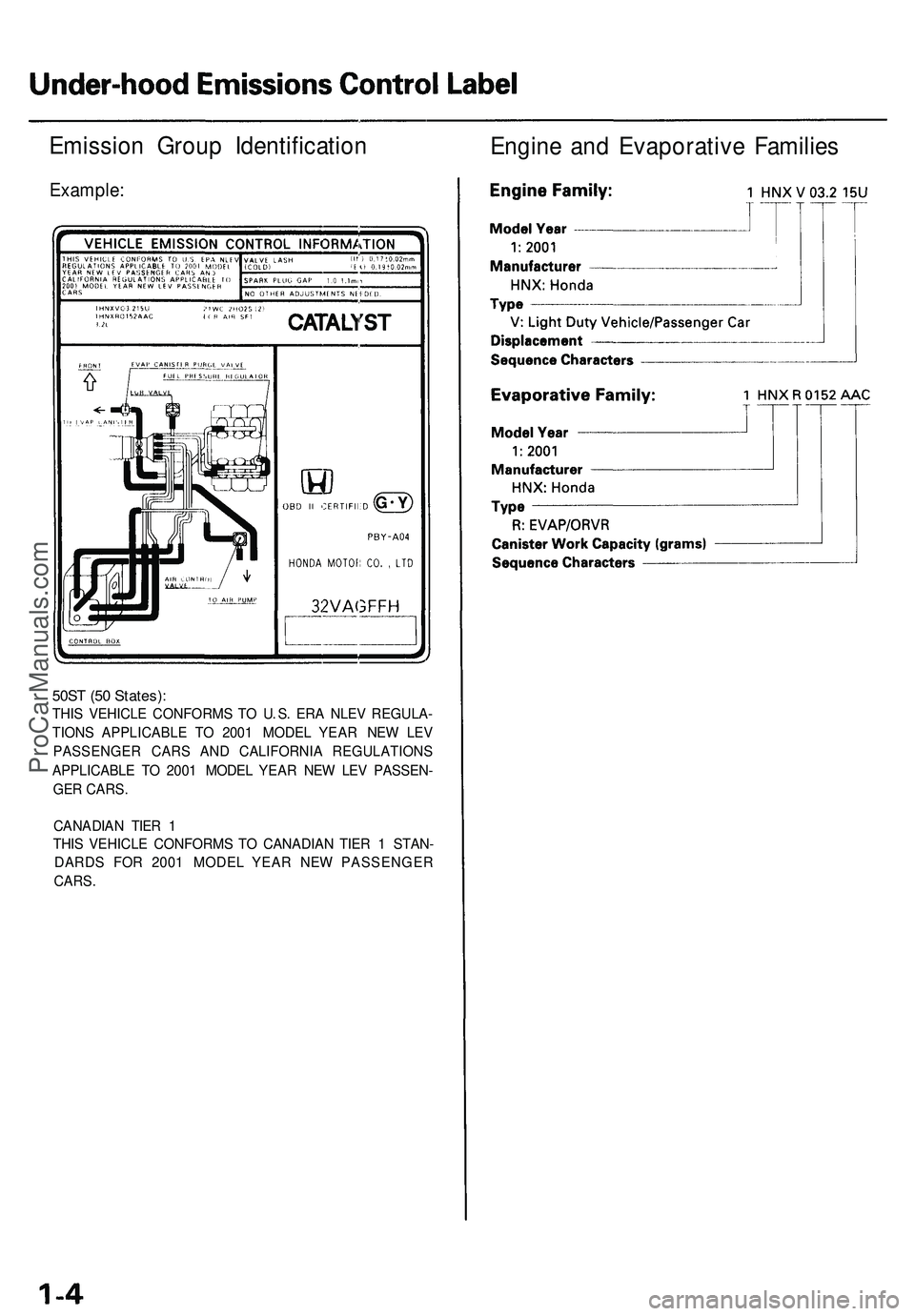

Emission Group Identification

Example:
Engine and Evaporative Families

50ST (50 States):

THIS VEHICLE CONFORMS TO U. S. ERA NLEV REGULA-

TIONS APPLICABLE TO 2001 MODEL YEAR NEW LEV

PASSENGER CARS AND CALIFORNIA REGULATIONS

APPLICABLE TO 2001 MODEL YEAR NEW LEV PASSEN-

GER CARS.

CANADIAN TIER 1

THIS VEHICLE CONFORMS TO CANADIAN TIER 1 STAN-

DARDS FOR 2001 MODEL YEAR NEW PASSENGER

CARS.ProCarManuals.com

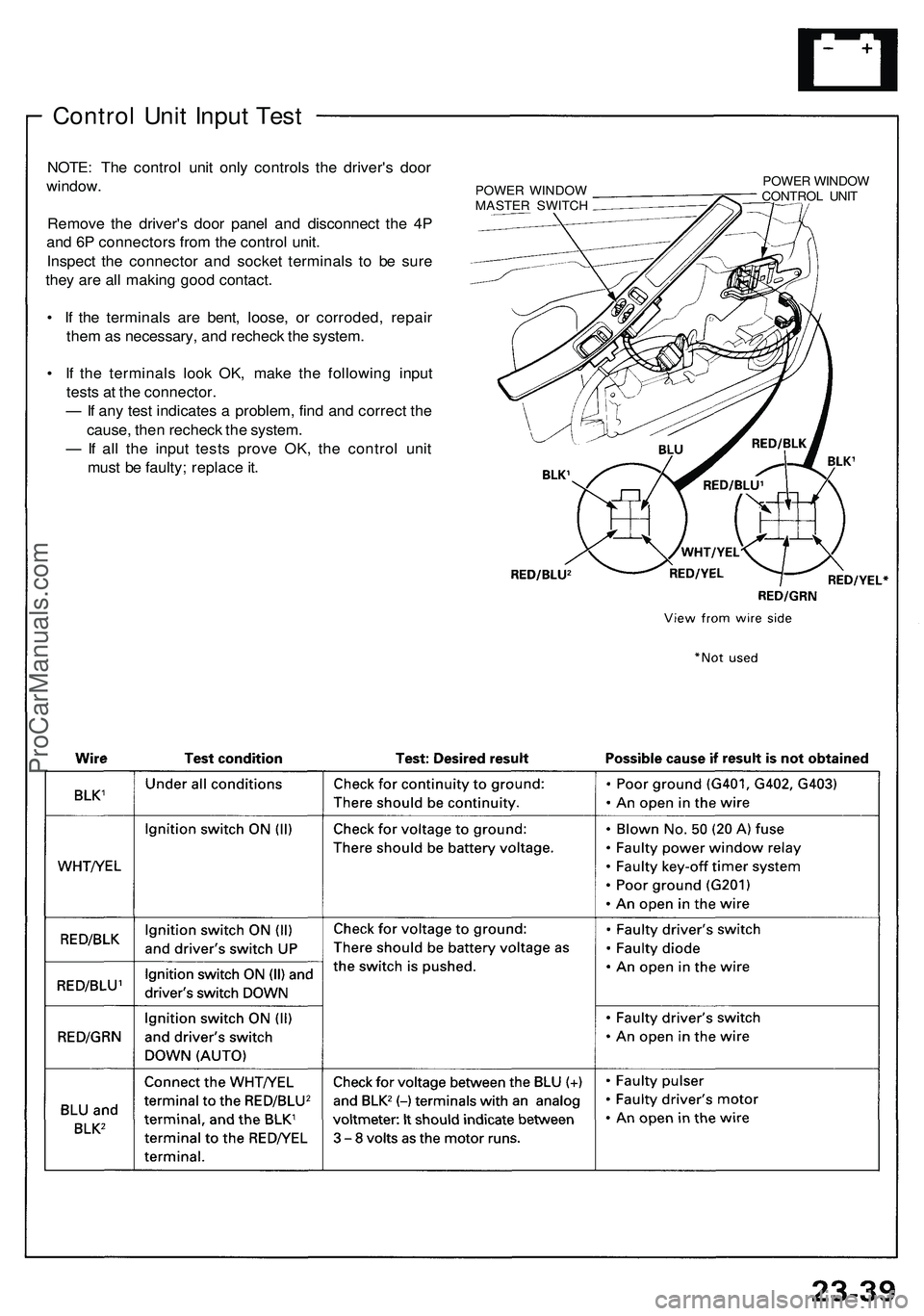

Control Unit Input Test

NOTE: The control unit only controls the driver's door

window.

Remove the driver's door panel and disconnect the 4P

and 6P connectors from the control unit.

Inspect the connector and socket terminals to be sure

they are all making good contact.

• If the terminals are bent, loose, or corroded, repair

them as necessary, and recheck the system.

• If the terminals look OK, make the following input

tests at the connector.

— If any test indicates a problem, find and correct the

cause, then recheck the system.

— If all the input tests prove OK, the control unit

must be faulty; replace it.
POWER WINDOW

MASTER SWITCH
POWER WINDOW

CONTROL UNITProCarManuals.com

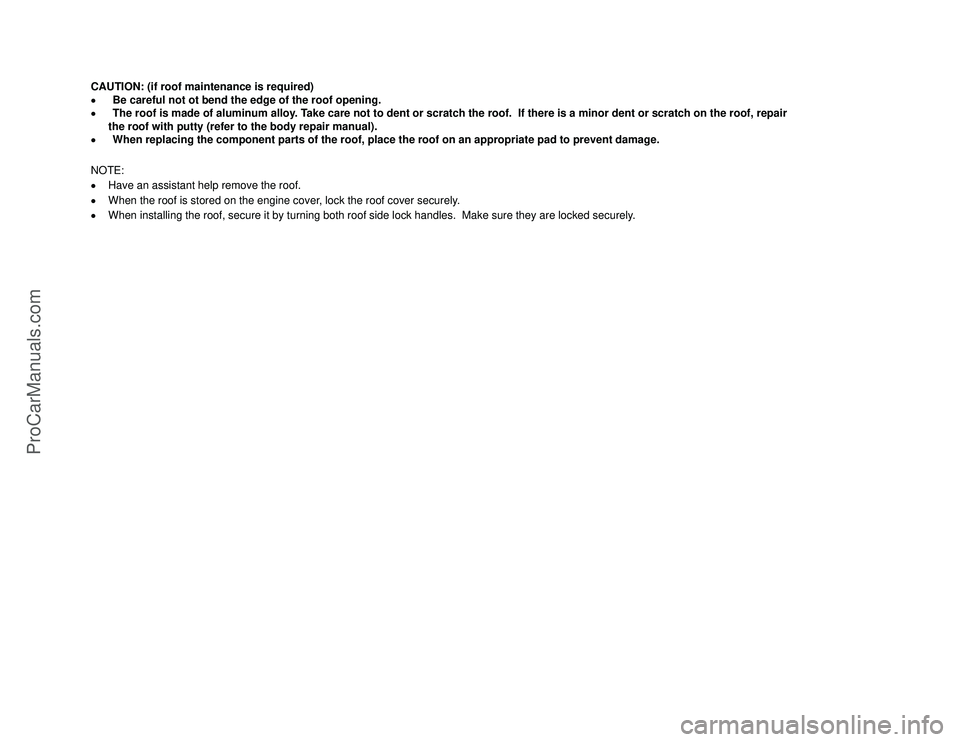

CAUTION: (if roof maintenance is required)

Be careful not ot bend the edge of the roof opening.

The roof is made of aluminum alloy. Take care not to dent or scratch the roof. If there is a minor dent or scratch on the roof, repair
the roof with putty (refer to the body repair manual).

When replacing the component parts of the roof, place the roof on an appropriate pad to prevent damage.
NOTE:

Have an assistant help remove the roof.

When the roof is stored on the engine cover, lock the roof cover securely.

When installing the roof, secure it by turning both roof side lock handles. Make sure they are locked securely.
ProCarManuals.com

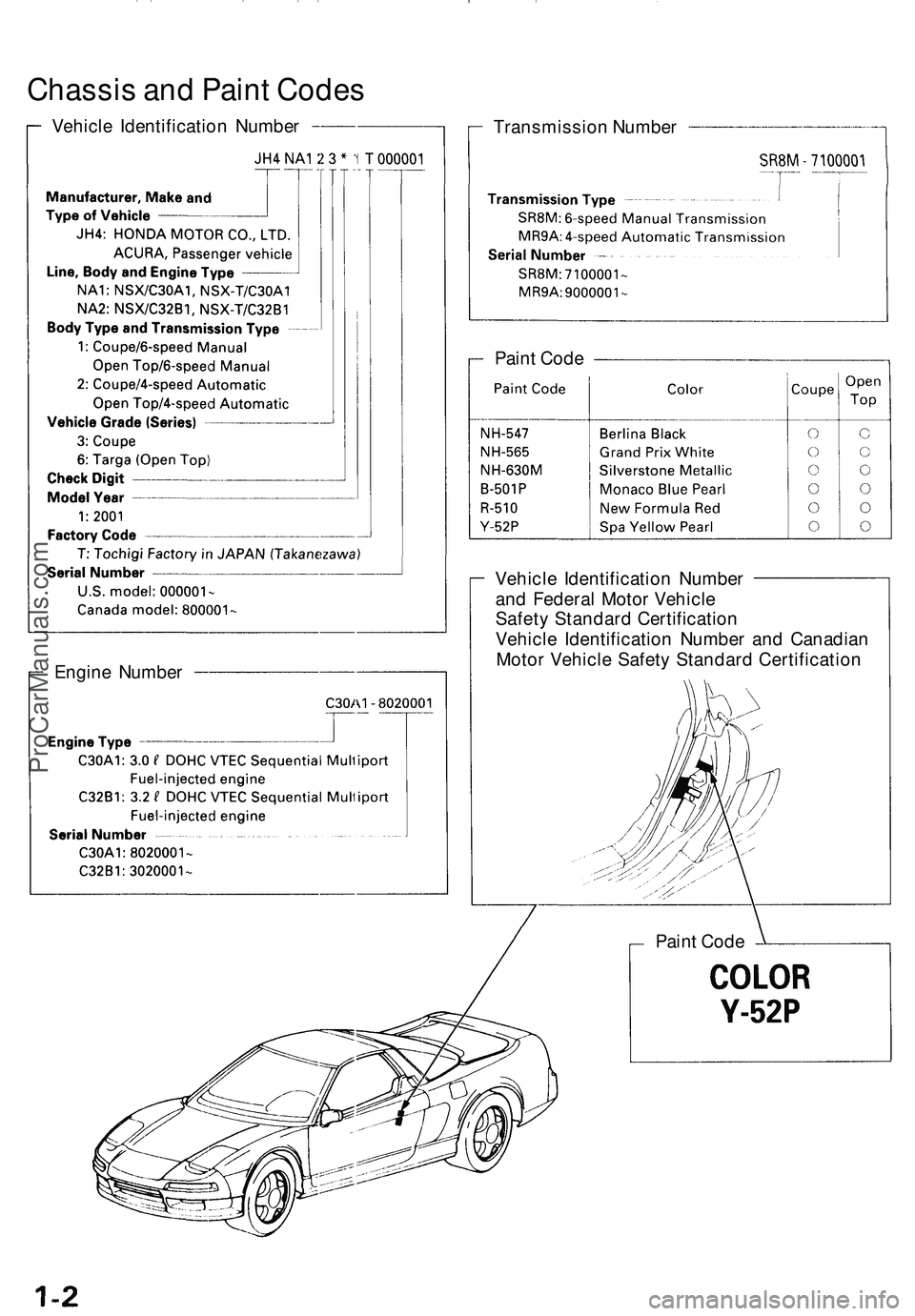

Chassis and Paint Codes

Vehicle Identification Number

Transmission Number

Paint Code

Vehicle Identification Number

and Federal Motor Vehicle

Safety Standard Certification

Vehicle Identification Number and Canadian

Motor Vehicle Safety Standard Certification

Engine Number

Paint CodeProCarManuals.com

Identification Number LocationsProCarManuals.com
