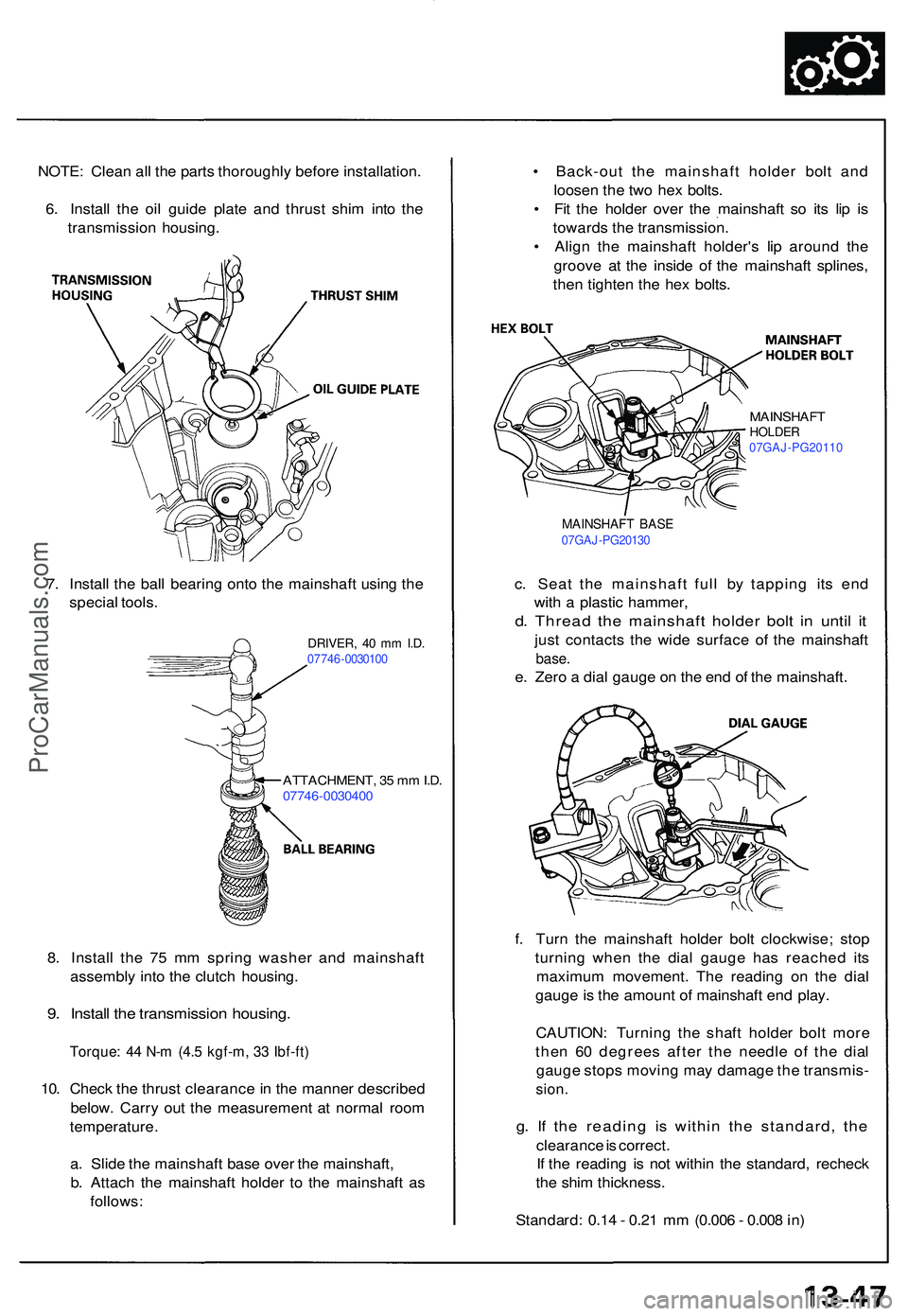

ACURA NSX 1997  Service Repair Manual NOTE: Clea n al l th e part s thoroughl y befor e installation .
6 . Instal l th e oi l guid e plat e an d thrus t shi m int o th e
transmissio n housing .
DRIVER, 4 0 m m I.D .07746 -003010 0
7. Inst

Page 702 of 1503

ACURA NSX 1997  Service Repair Manual
Transmission

Reassembly

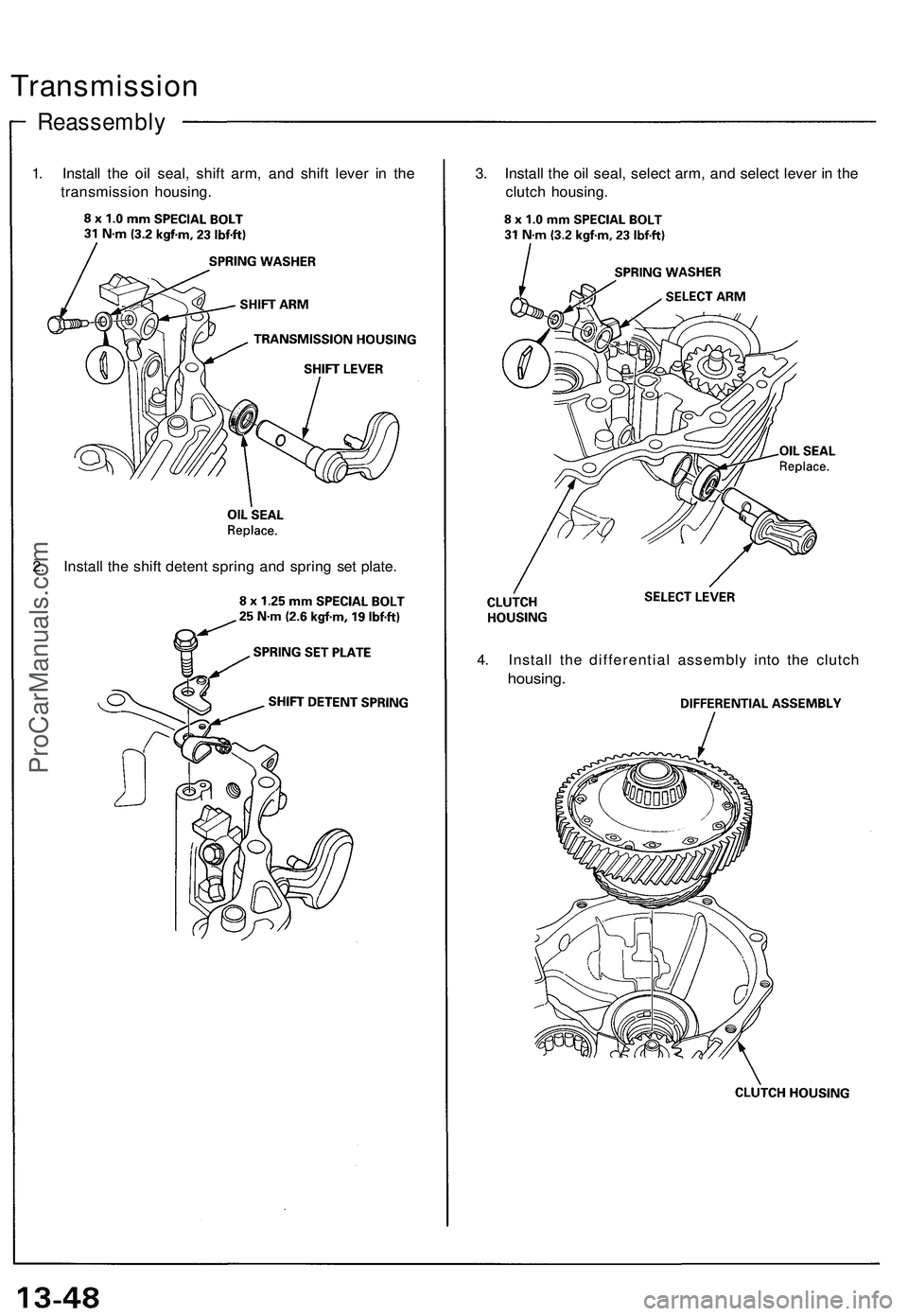

1. Install the oil seal, shift arm, and shift lever in the

transmission housing.
3. Install the oil seal, select arm, and select lever in the

clutch housing.

2. Install

Page 703 of 1503

ACURA NSX 1997  Service Repair Manual

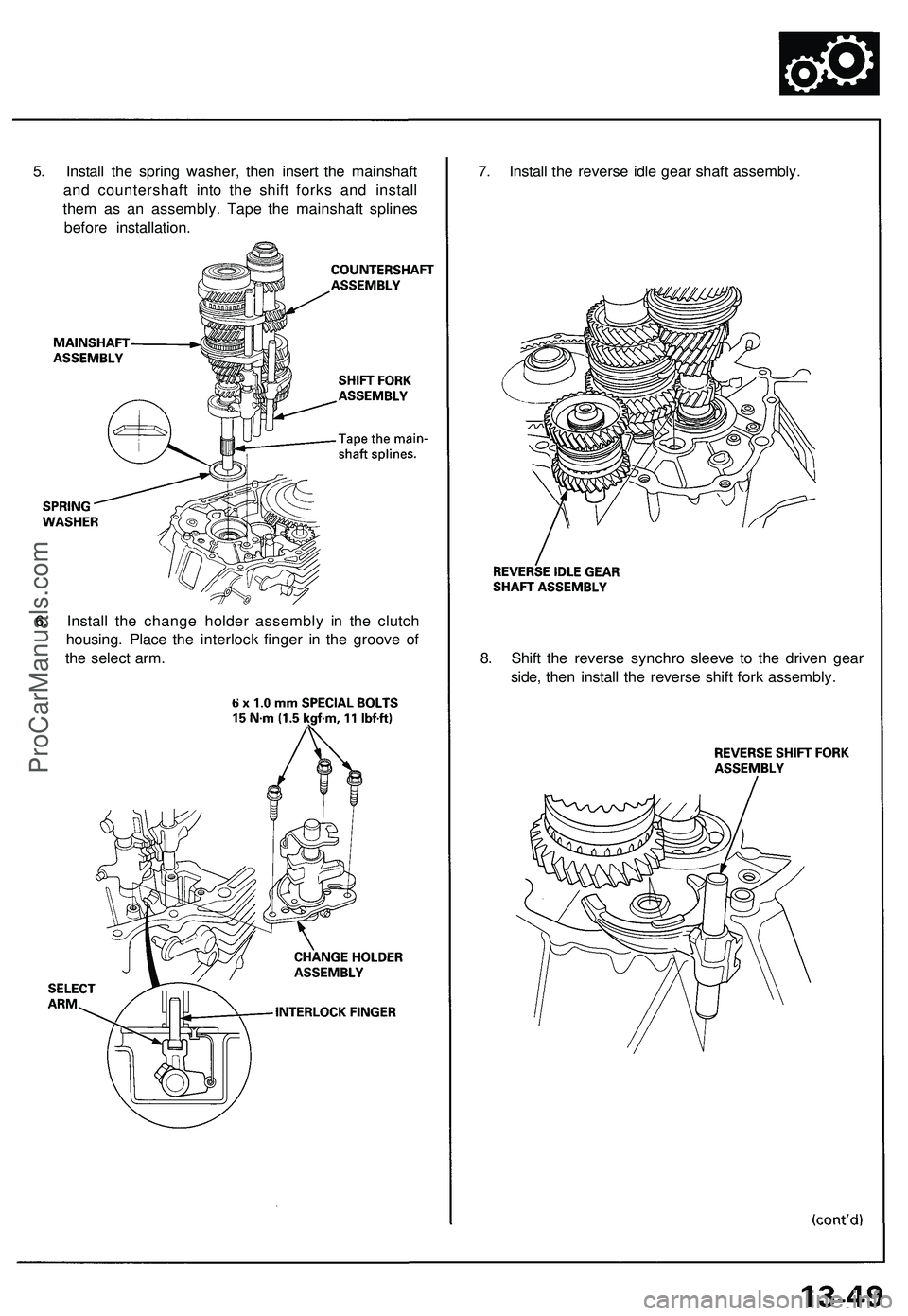

5. Install the spring washer, then insert the mainshaft

and countershaft into the shift forks and install

them as an assembly. Tape the mainshaft splines

before installation.
7. Install the rever

Page 704 of 1503

ACURA NSX 1997  Service Repair Manual
Transmission

Reassembly (cont'd)

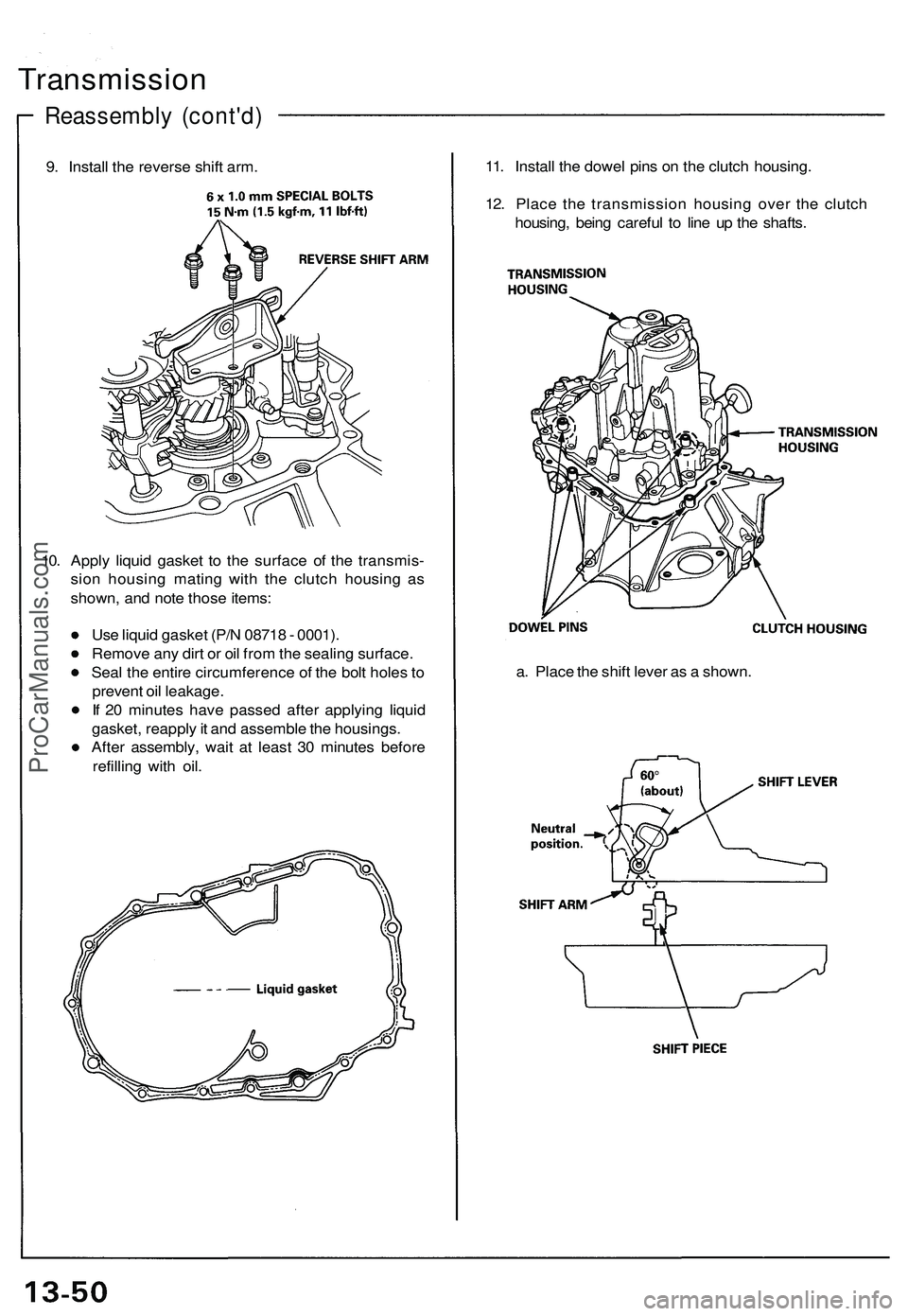

9. Install the reverse shift arm.
11. Install the dowel pins on the clutch housing.

12. Place the transmission housing over the clutch

housing, being careful

Page 705 of 1503

ACURA NSX 1997  Service Repair Manual

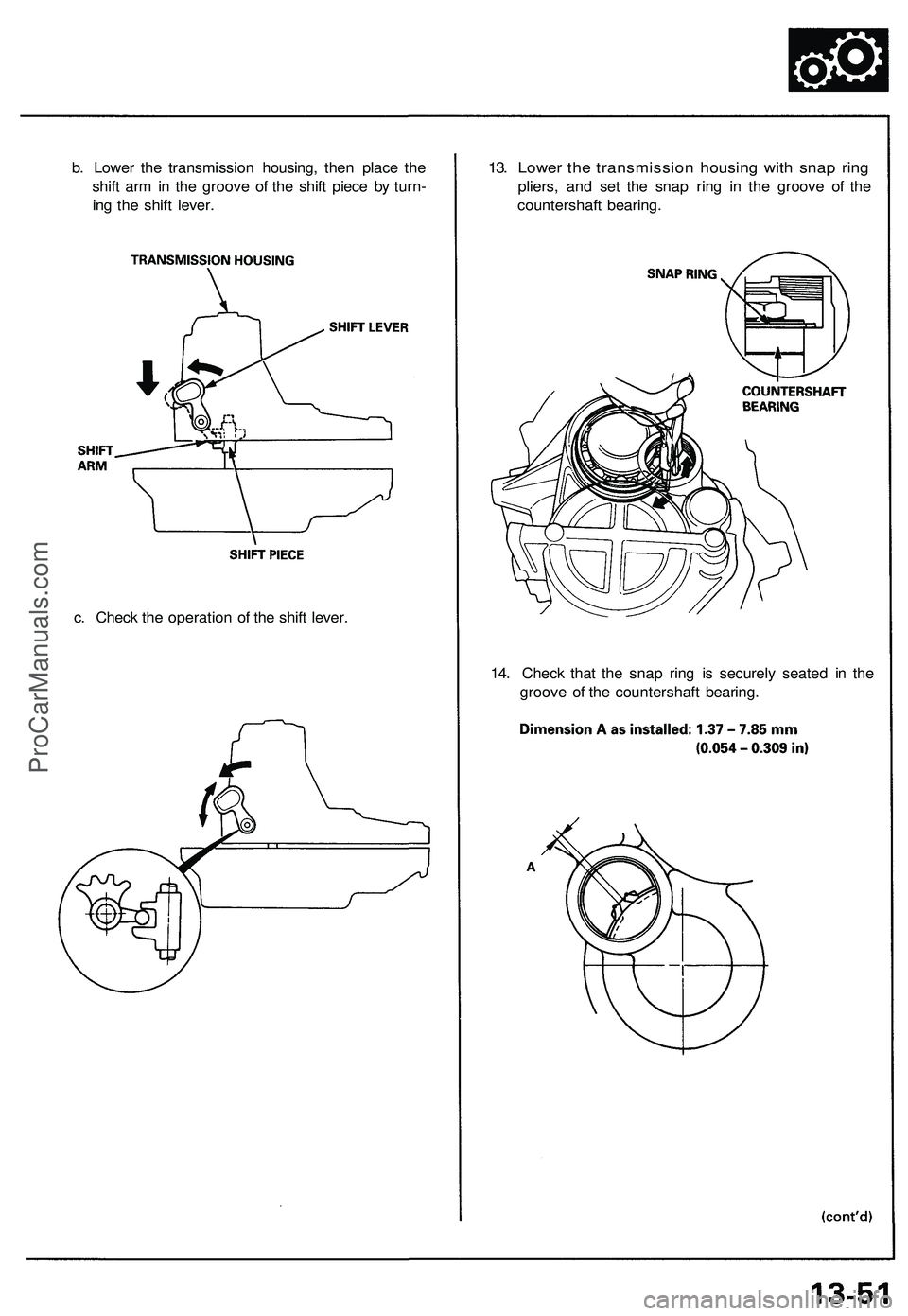

13. Lower the transmission housing with snap ring

pliers, and set the snap ring in the groove of the

countershaft bearing.
b. Lower the transmission housing, then place the

shift arm in the groove

Page 706 of 1503

ACURA NSX 1997  Service Repair Manual 15. Tighte n th e transmissio n housin g attachin g bolt s
i n  a  crisscros s patter n i n severa l step s a s show n
below.
Transmissio n
Reassembly (cont'd )
18. Appl y liqui d gaske t (P/ N 08

Page 707 of 1503

ACURA NSX 1997  Service Repair Manual

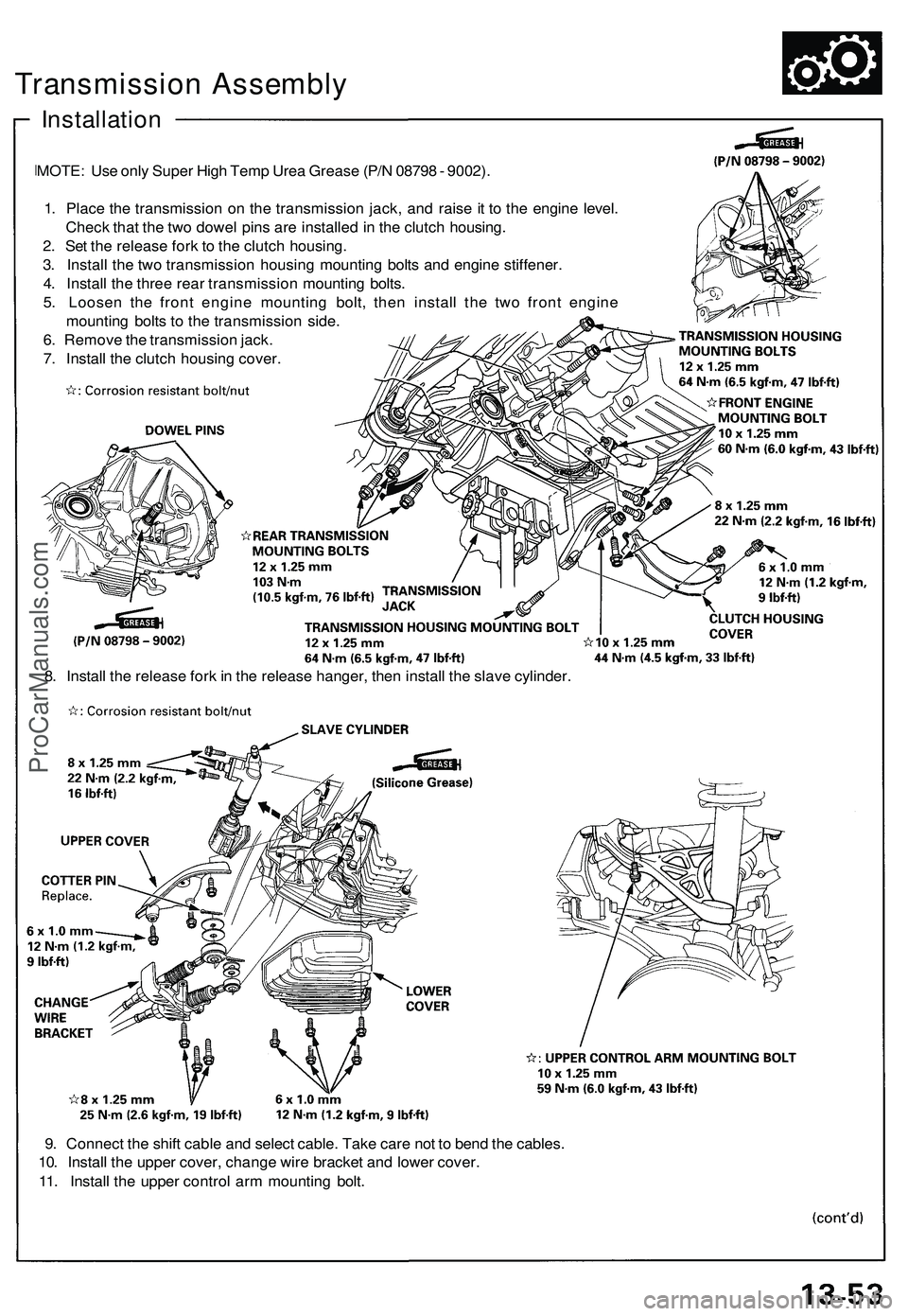

Transmission Assembly

Installation

MOTE: Use only Super High Temp Urea Grease (P/N 08798 - 9002).

1. Place the transmission on the transmission jack, and raise it to the engine level.

Check that

Page 708 of 1503

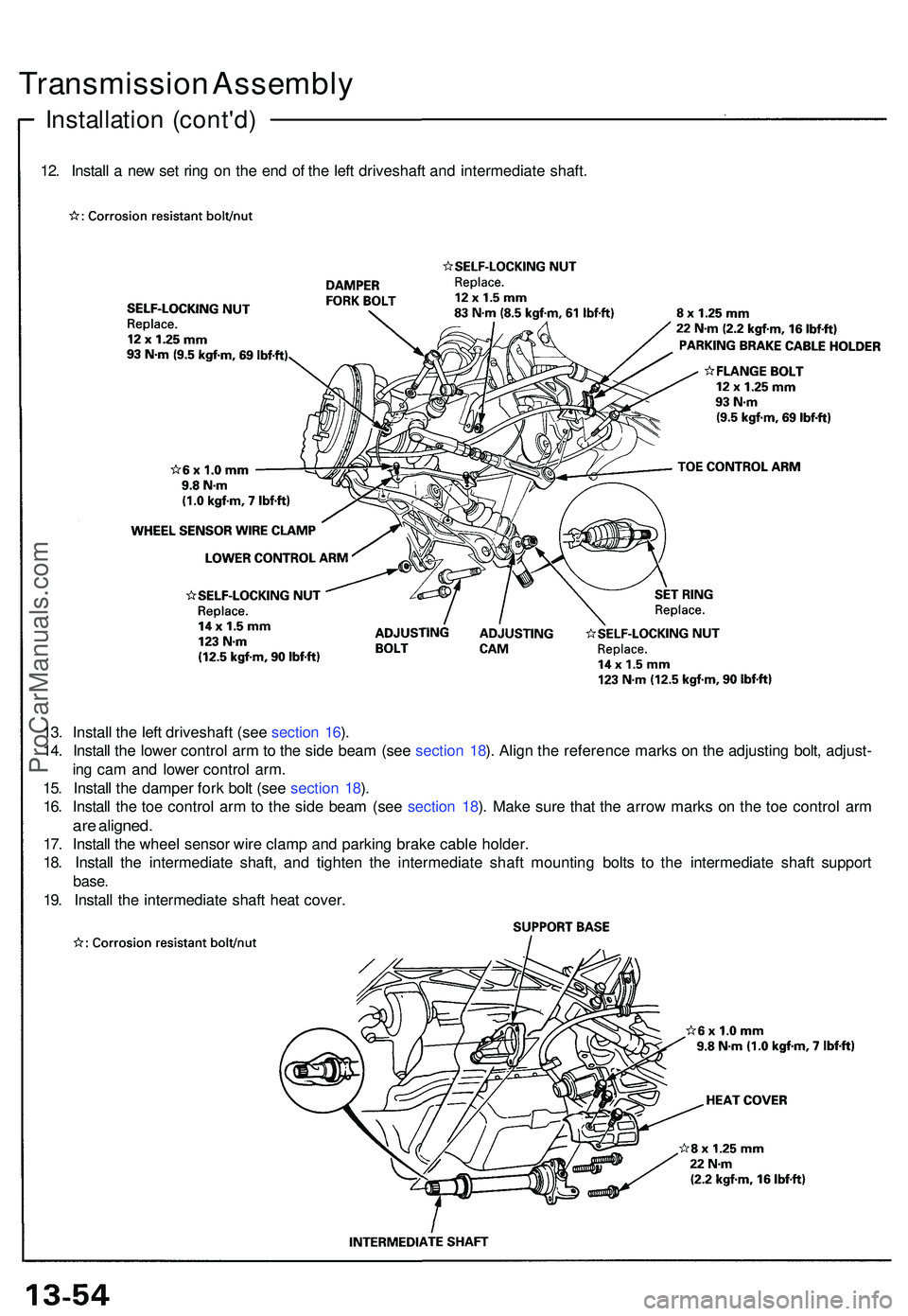

ACURA NSX 1997  Service Repair Manual Transmission Assembl y
Installatio n (cont'd )
12. Instal l a  ne w se t rin g o n th e en d o f th e lef t driveshaf t an d intermediat e shaft .
13 . Instal l th e lef t driveshaf t (se e sectio

Page 709 of 1503

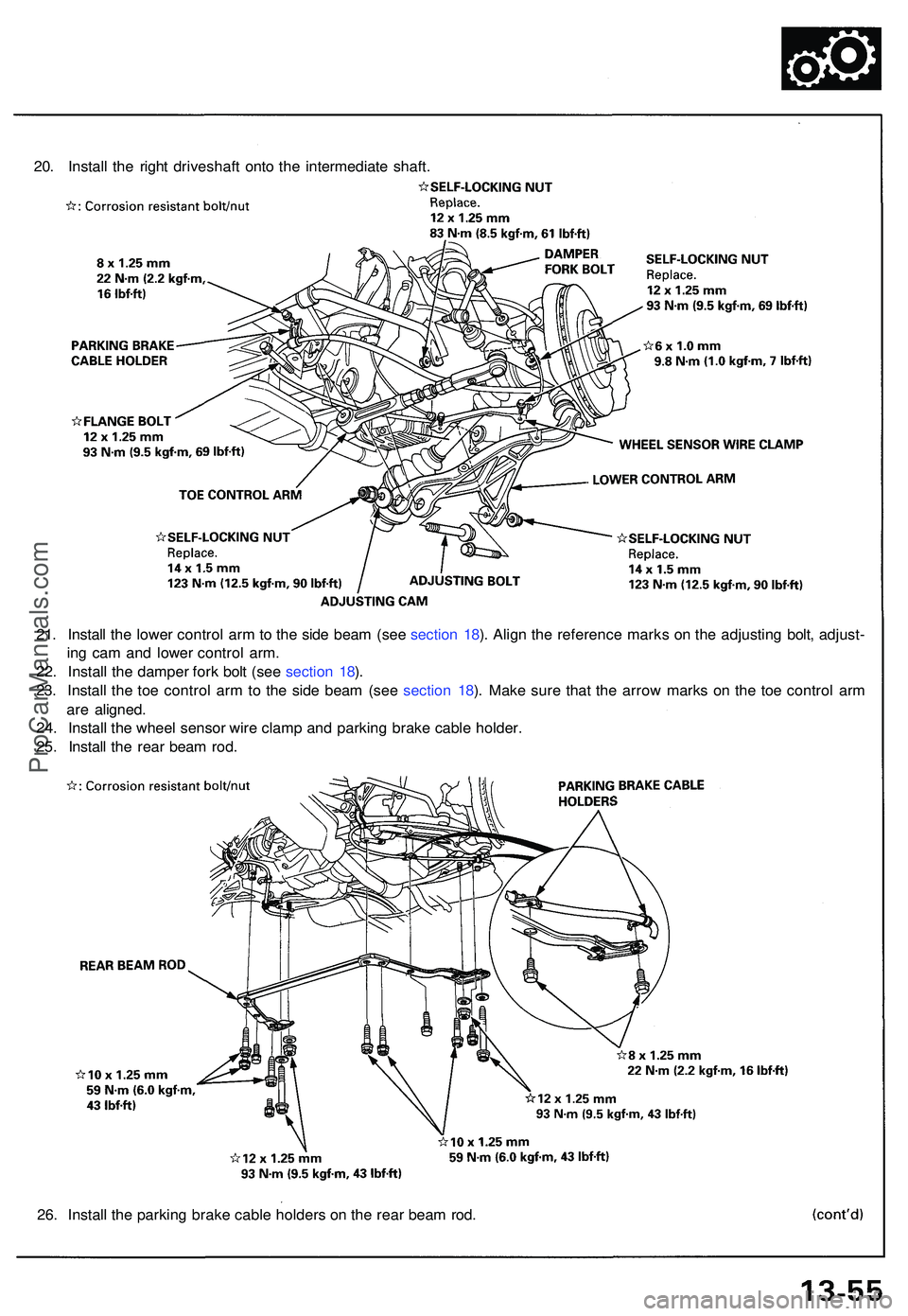

ACURA NSX 1997  Service Repair Manual 20. Instal l th e righ t driveshaf t ont o th e intermediat e shaft .
21 . Instal l th e lowe r contro l ar m to th e sid e bea m (se e sectio n 18 ). Alig n th e referenc e mark s o n th e adjustin g

Page 710 of 1503

ACURA NSX 1997  Service Repair Manual Transmission Assembl y
Installatio n (cont'd )
27. Instal l th e transmissio n moun t an d tw o transmissio n
housin g mountin g bolts .
28 . Instal l th e starte r motor , an d connec t th e star
