Page 691 of 1503

ACURA NSX 1997  Service Repair Manual

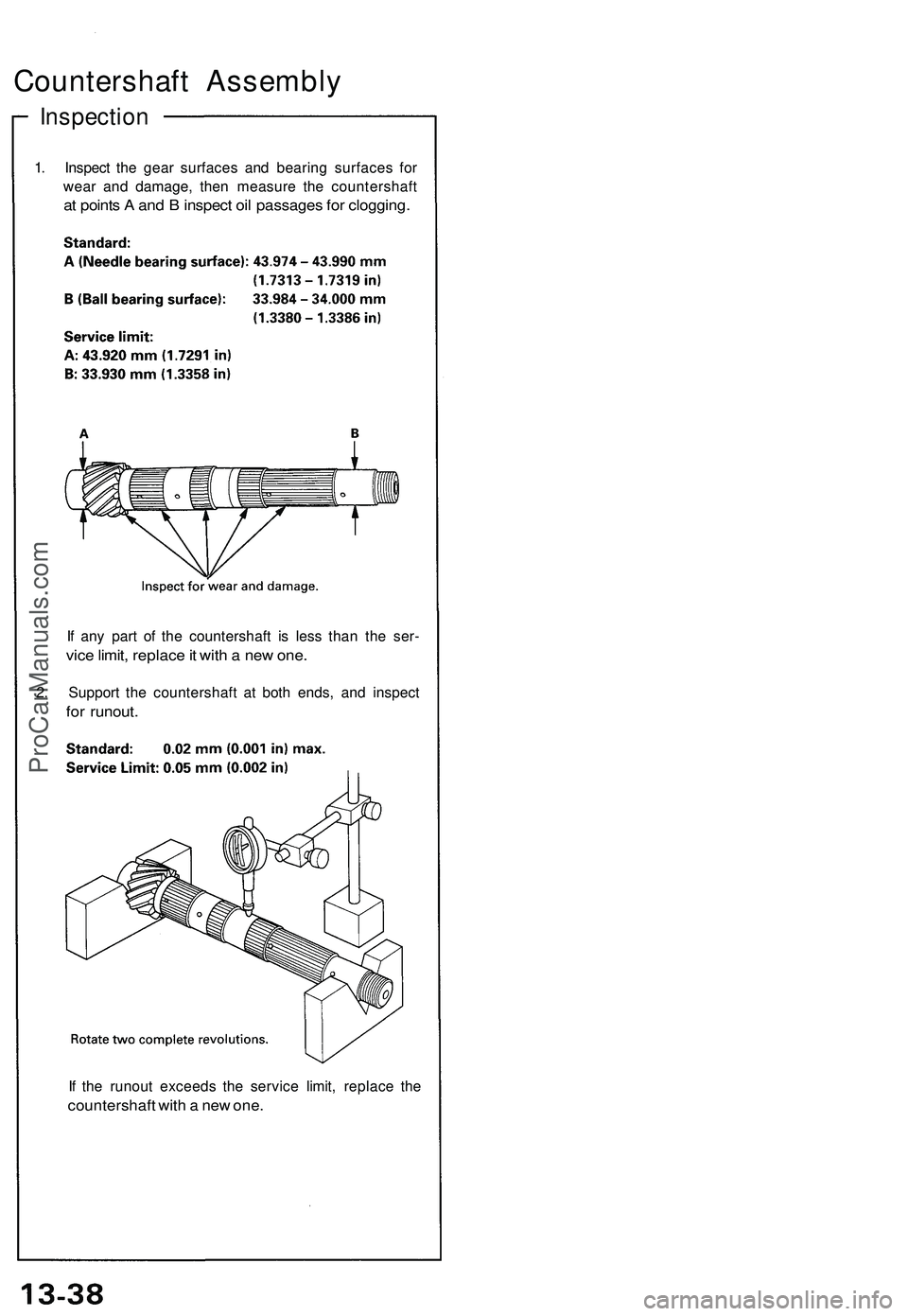

Countershaft Assembly

Inspection

1. Inspect the gear surfaces and bearing surfaces for

wear and damage, then measure the countershaft

at points A and B inspect oil passages for clogging.

If any

Page 692 of 1503

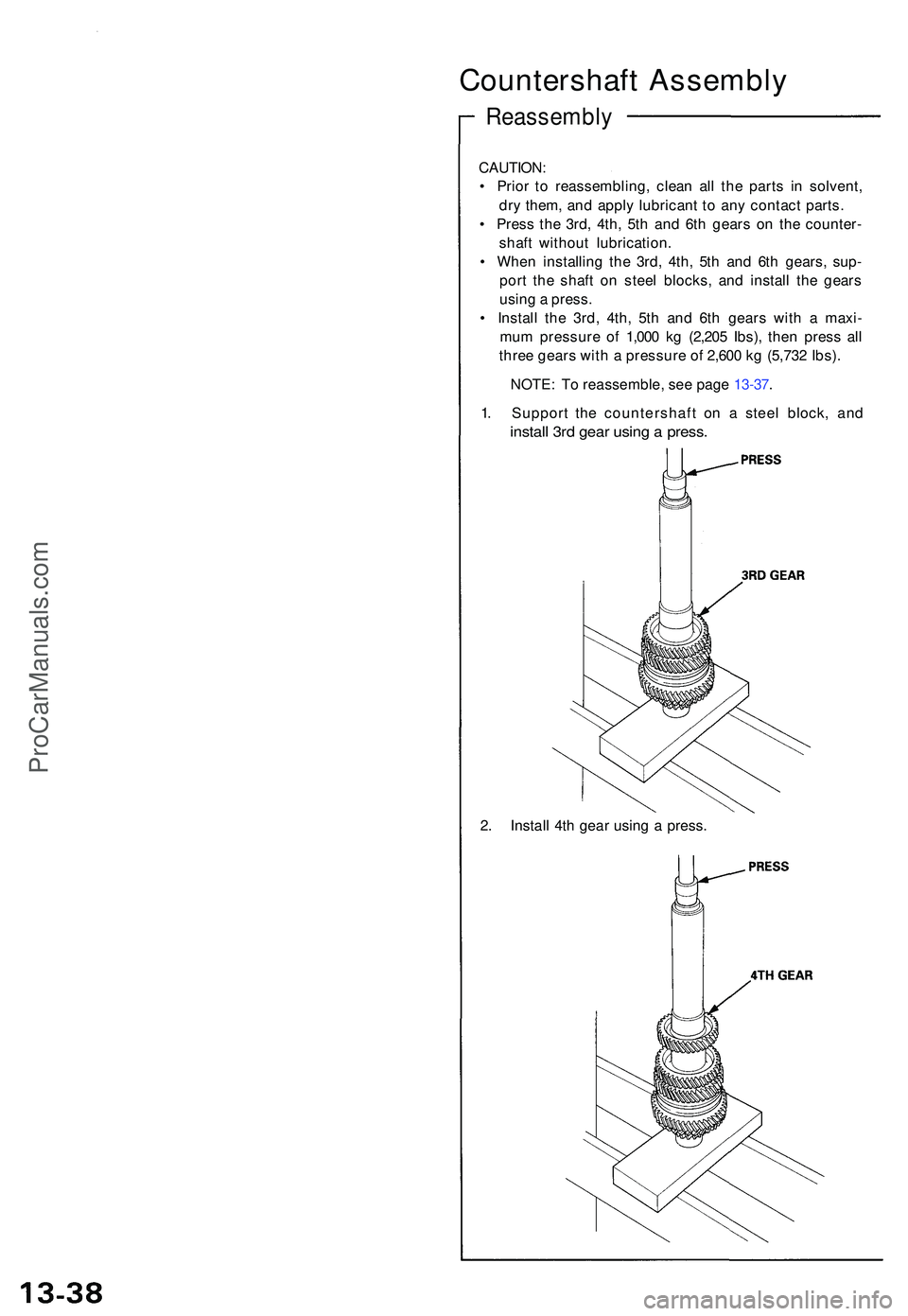

ACURA NSX 1997  Service Repair Manual Countershaft Assembl y
Reassembl y
CAUTION:
•  Prio r t o reassembling , clea n al l th e part s i n solvent ,
dr y them , an d appl y lubrican t t o an y contac t parts .
•  Pres s th e 3rd , 4th

Page 693 of 1503

ACURA NSX 1997  Service Repair Manual

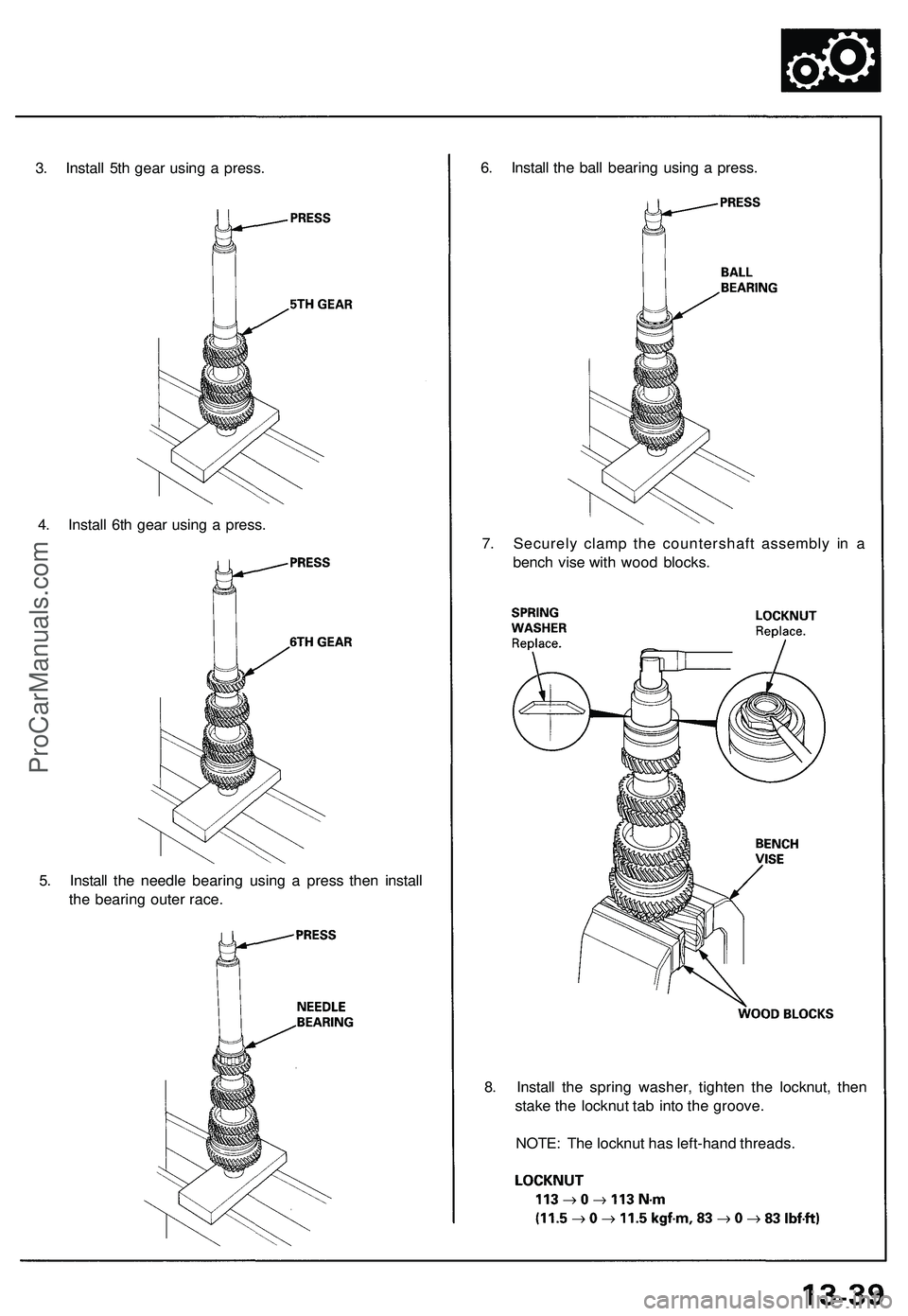

5. Install the needle bearing using a press then install

the bearing outer race.

8. Install the spring washer, tighten the locknut, then

stake the locknut tab into the groove.

NOTE: The locknut h

Page 694 of 1503

ACURA NSX 1997  Service Repair Manual

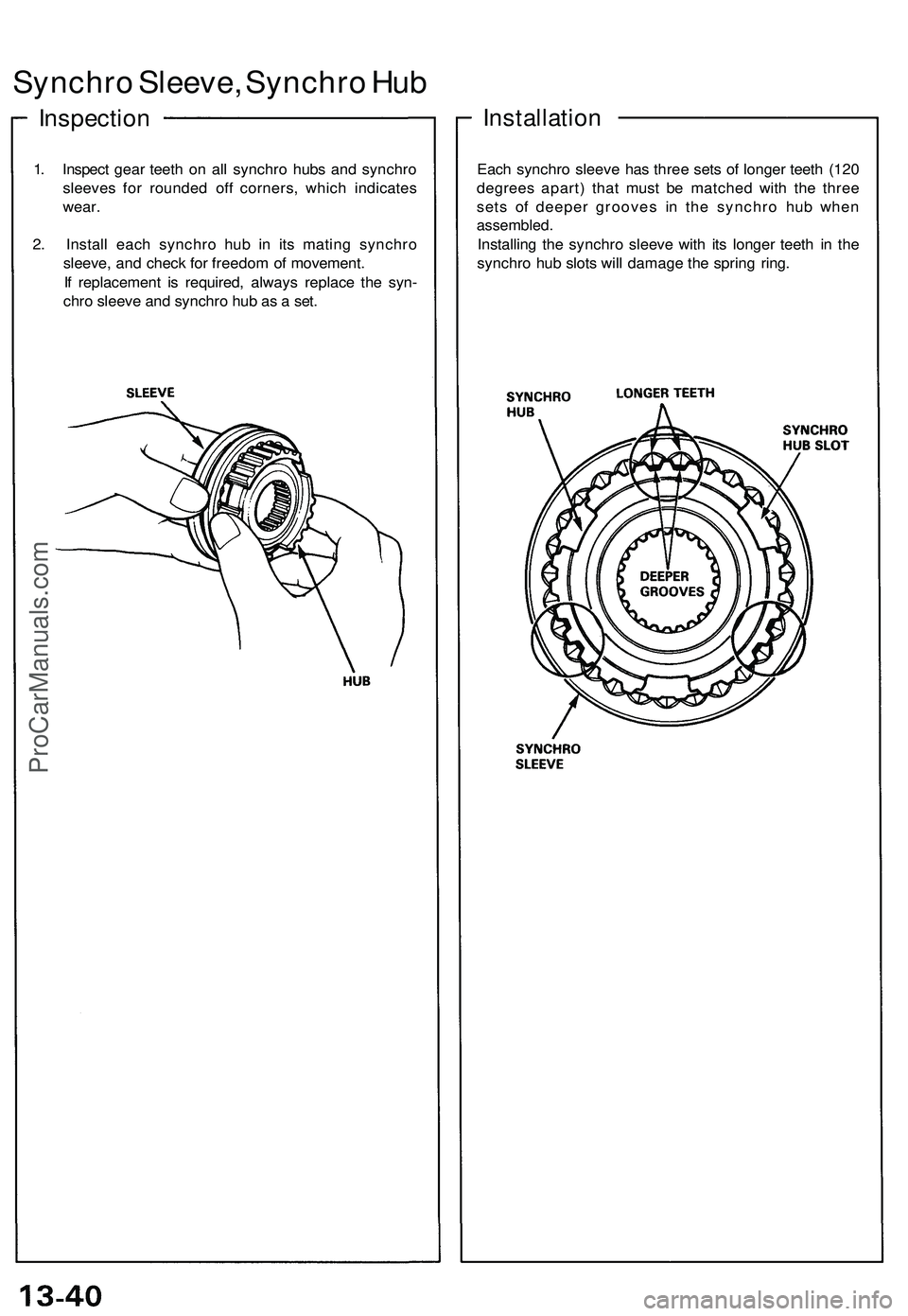

Synchro Sleeve, Synchro Hub

Inspection

1. Inspect gear teeth on all synchro hubs and synchro

sleeves for rounded off corners, which indicates

wear.

2. Install each synchro hub in its mating sync

Page 695 of 1503

ACURA NSX 1997  Service Repair Manual
If the clearance is less than the service limit, replace

the synchro ring and synchro cone.

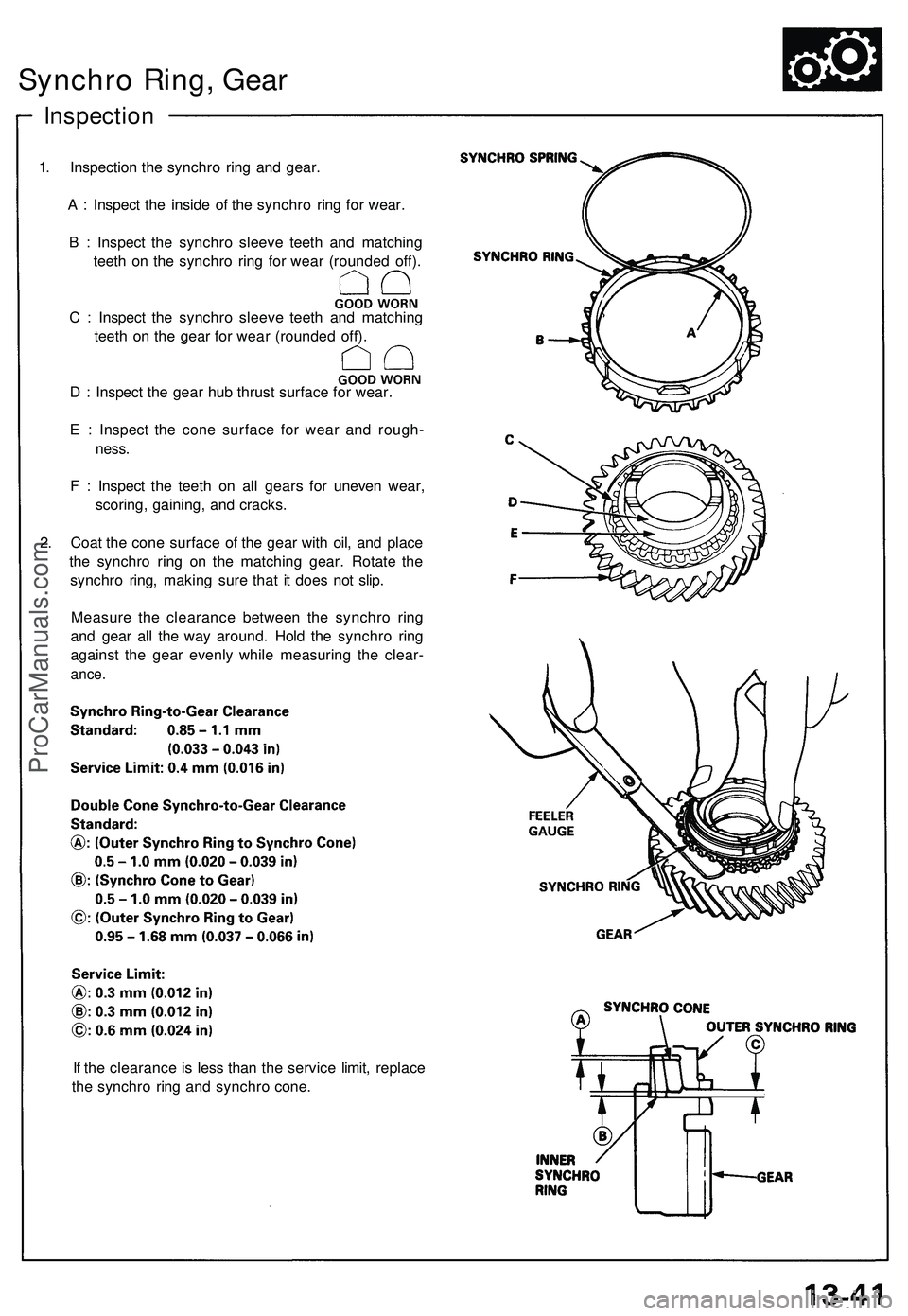

Synchro Ring, Gear

Inspection

1. Inspection the synchro ring and gear.

A : Inspect the inside of the sy

Page 696 of 1503

ACURA NSX 1997  Service Repair Manual

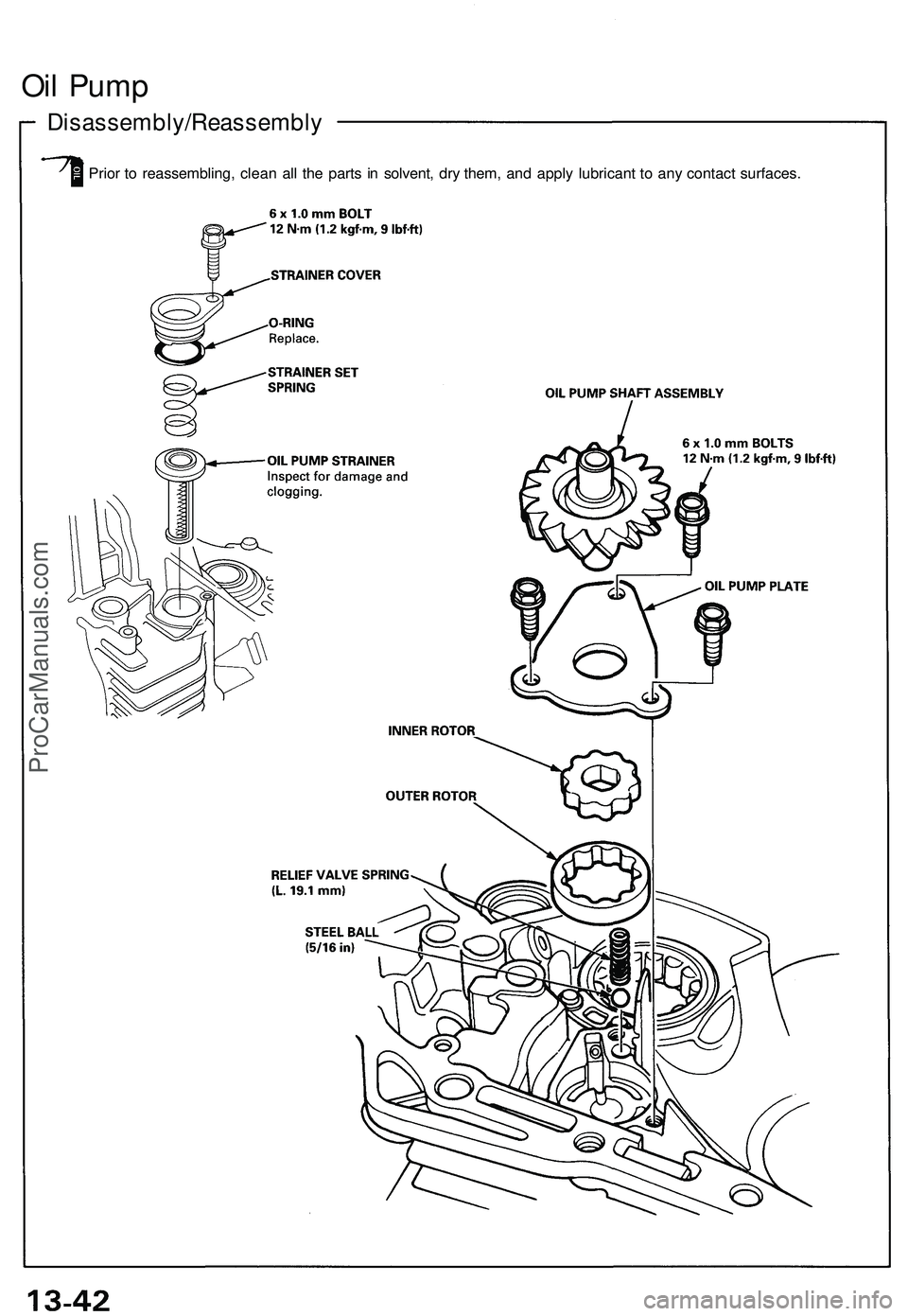

Oil Pump

Disassembly/Reassembly

Prior to reassembling, clean all the parts in solvent, dry them, and apply lubricant to any contact surfaces.ProCarManuals.com

Page 697 of 1503

ACURA NSX 1997  Service Repair Manual

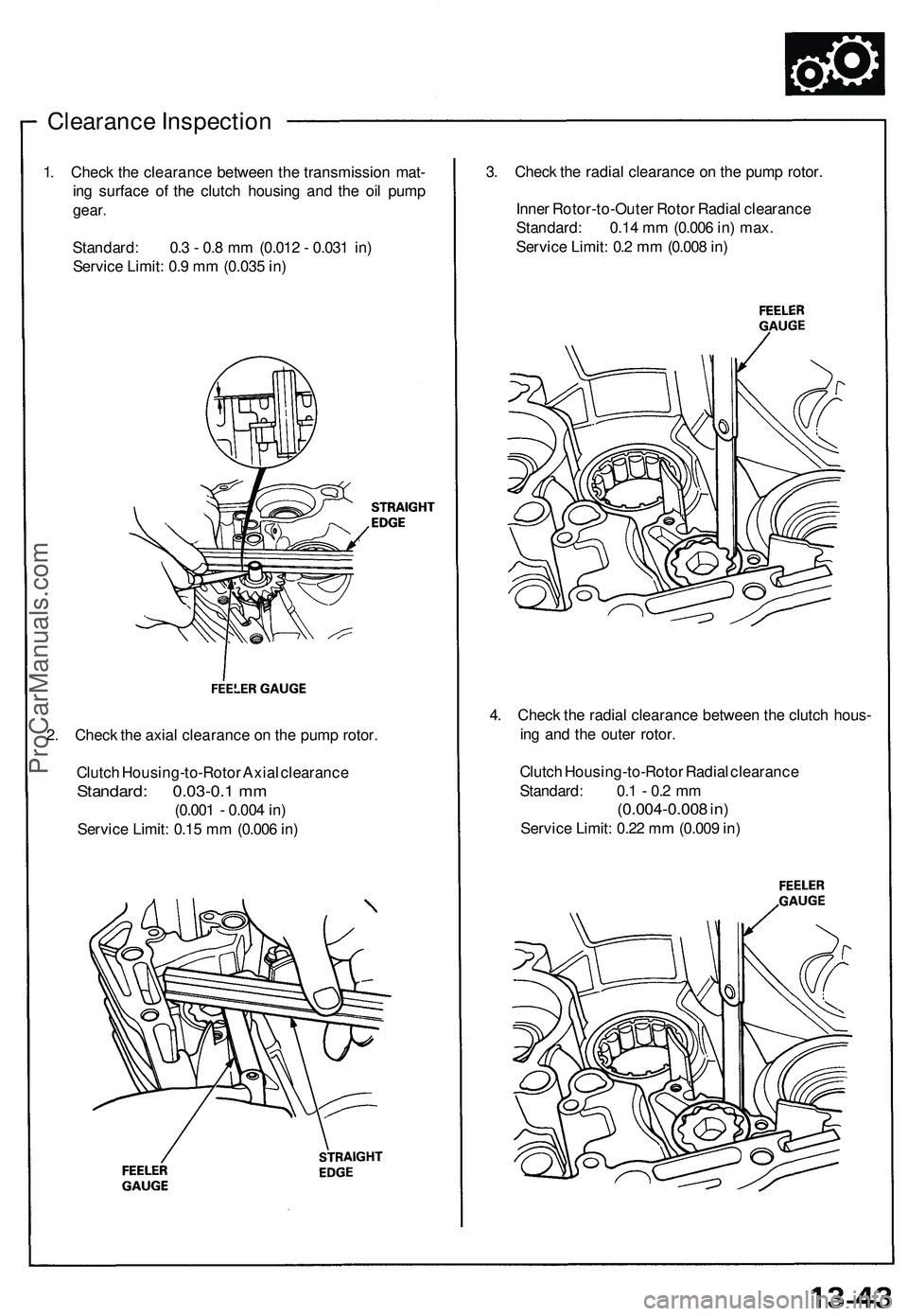

Clearance Inspection

1. Check the clearance between the transmission mat-

ing surface of the clutch housing and the oil pump

gear.
3. Check the radial clearance on the pump rotor.

2. Check the a

Page 698 of 1503

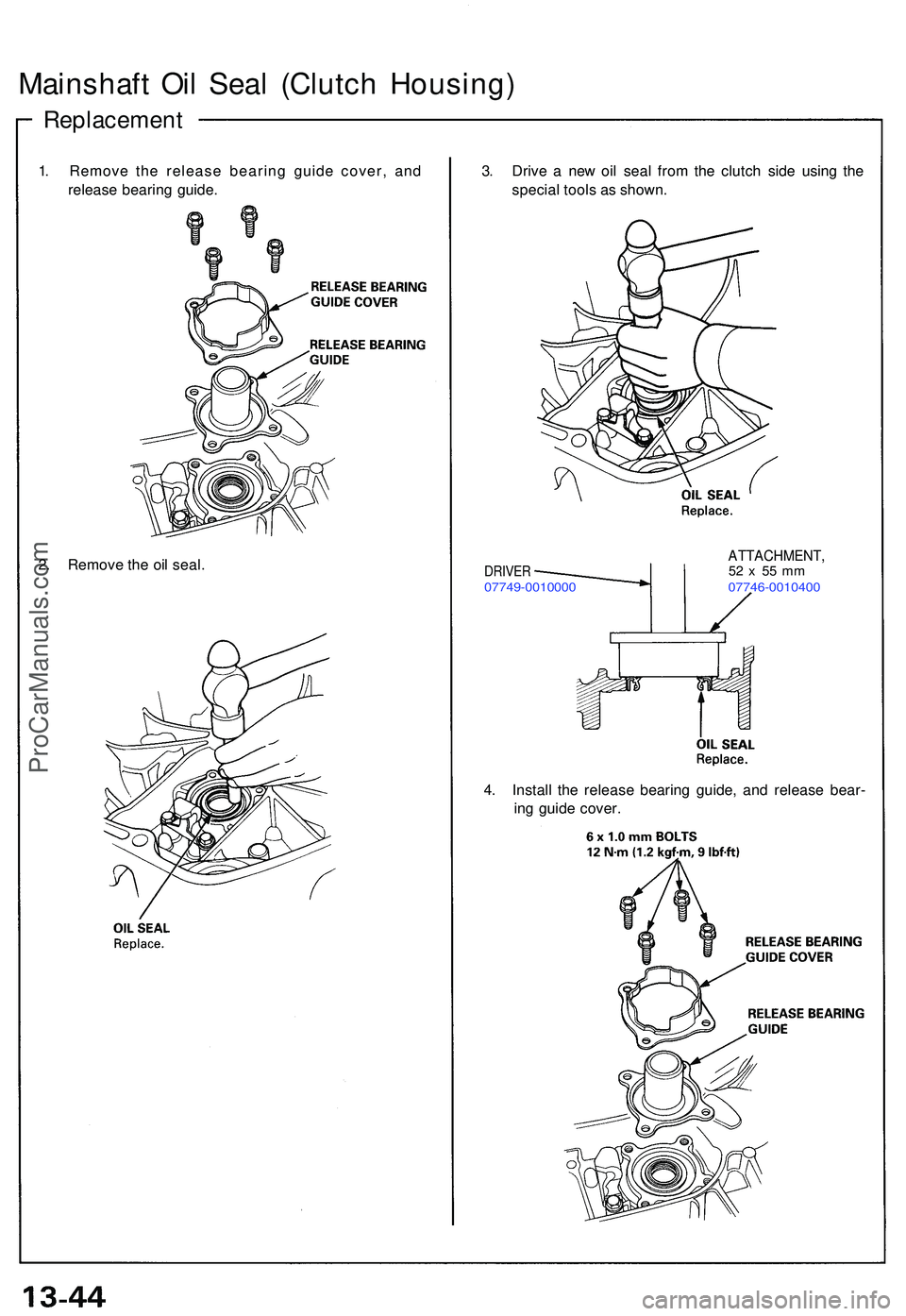

ACURA NSX 1997  Service Repair Manual Mainshaft Oi l Sea l (Clutc h Housing )
Replacemen t
1. Remov e th e releas e bearin g guid e cover , an d
releas e bearin g guide . 3
. Driv e a  ne w oi l sea l fro m th e clutc h sid e usin g th e

Page 699 of 1503

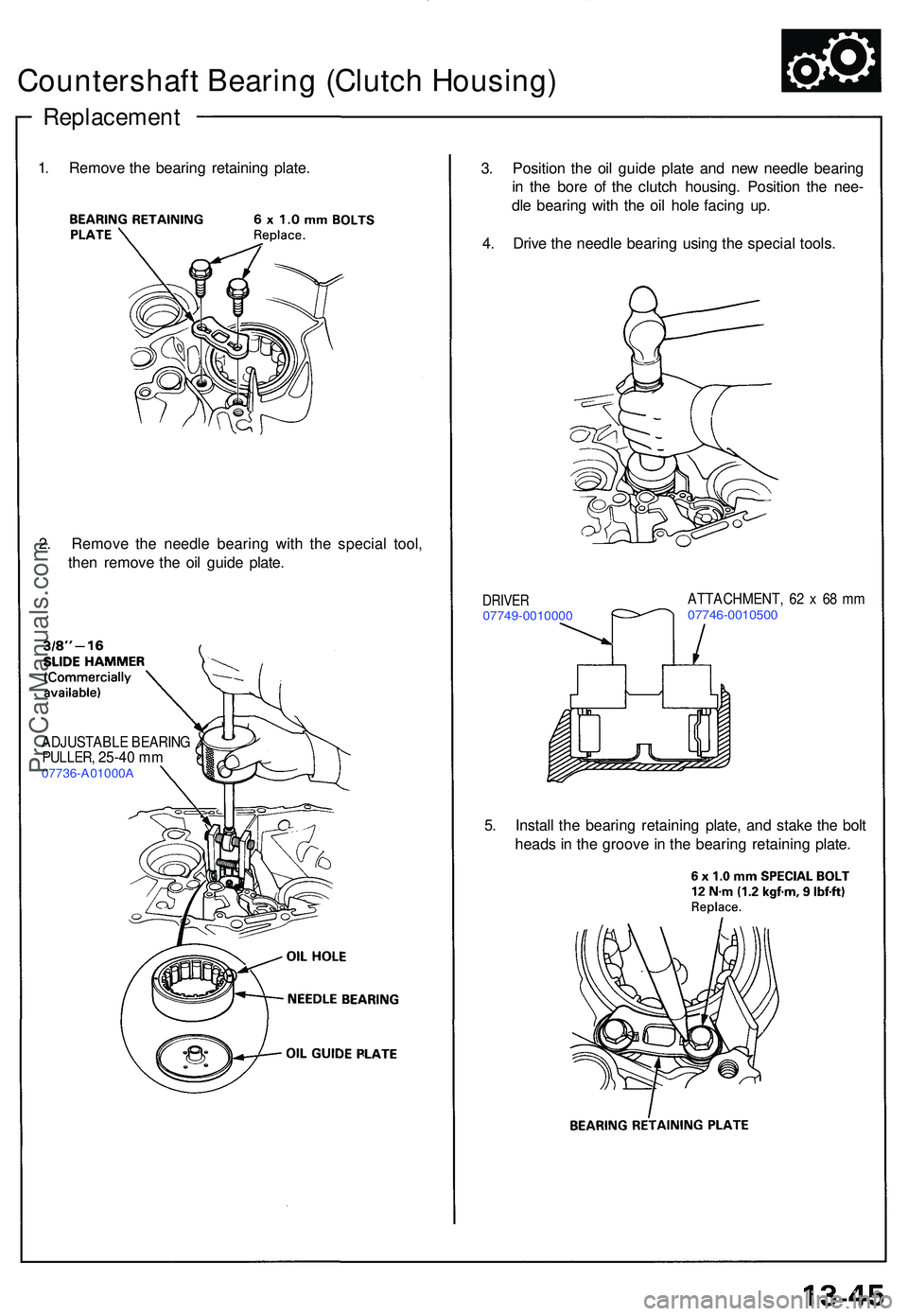

ACURA NSX 1997  Service Repair Manual Countershaft Bearin g (Clutc h Housing )
Replacemen t
1. Remov e th e bearin g retainin g plate .
3. Positio n th e oi l guid e plat e an d ne w needl e bearin g
i n  th e bor e o f th e clutc h housi

Page 700 of 1503

ACURA NSX 1997  Service Repair Manual

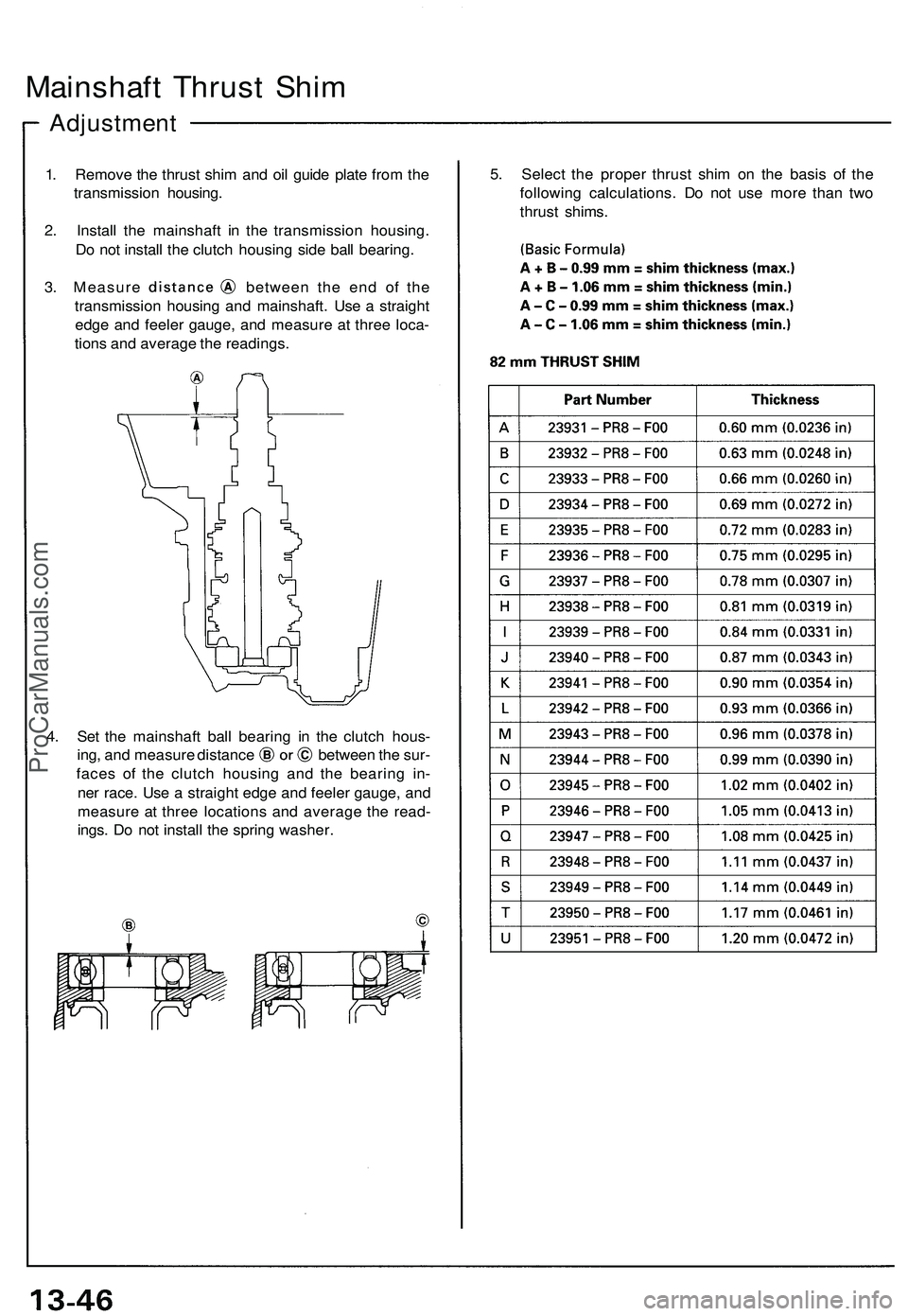

Mainshaft Thrust Shim

Adjustment

1. Remove the thrust shim and oil guide plate from the

transmission housing.

2. Install the mainshaft in the transmission housing.

Do not install the clutch hous
