Alfa Romeo Giulietta 2013 Owner handbook (in English)

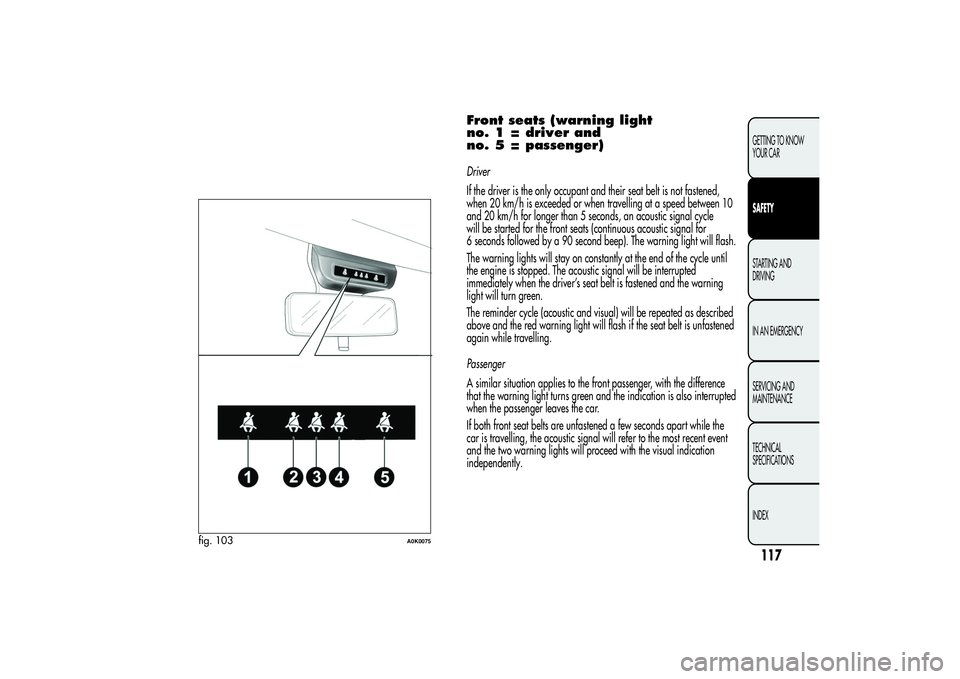

Front seats (warning light
no. 1 = driver and
no. 5 = passenger)Driver
If the driver is the only occupant and their seat belt is not fastened,
when 20 km/h is exceeded or when travelling at a speed between 10
and 20 km/h for longer than 5 seconds, an acoustic signal cycle
will be started for the front seats (continuous acoustic signal for
6 seconds followed by a 90 second beep). The warning light will flash.
The warning lights will stay on constantly at the end of the cycle until
the engine is stopped. The acoustic signal will be interrupted
immediately when the driver’s seat belt is fastened and the warning
light will turn green.
The reminder cycle (acoustic and visual) will be repeated as described
above and the red warning light will flash if the seat belt is unfastened
again while travelling.
Passenger
A similar situation applies to the front passenger, with the difference
that the warning light turns green and the indication is also interrupted
when the passenger leaves the car.
If both front seat belts are unfastened a few seconds apart while the
car is travelling, the acoustic signal will refer to the most recent event
and the two warning lights will proceed with the visual indication
independently.
fig. 103
A0K0075
117GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Rear seats (warning light no. 2,
no. 3 and no. 4)For the rear seats, the reminder cycle is only activated when any seat
belt is unfastened (flashing red).
In this condition, the warning light for the seat belt which has been
unfastened will flash (red) for approximately 30 seconds. An acoustic
signal is also emitted.
The visual indication (flashing red) will start and stop independently for
each warning light if several seat belts are unfastened. The warning
light will become green when the relevant seat belt is fastened again.
The rear seat warning lights will switch off, regardless of the state
of the belt (red or green) approximately 30 seconds after the last
signal.
IMPORTANT
The warning lights are all off if all seat belts (front and rear) are
already fastened when the ignition key is turned to MAR.
All warning lights switch on when at least one belt changes from
fastened to unfastened or vice versa.
PRETENSIONERSThe car is equipped with front seat belt pretensioners, which draw
back the seat belts by several centimetres in the event of a violent
frontal impact. This guarantees the perfect adherence of the seat belts
to the occupants’ bodies before the restraining action begins.
It is evident that the pretensioners have been activated when the belt
withdraws towards the reel.
The car is also equipped with a second pretensioner (in the kick plate
area). Its activation is signalled by the shortening of the metal cable.
A slight discharge of smoke may be produced during the activation of
the pretensioner. This is not harmful and does not indicate the start
of a fire.
IMPORTANT To obtain the highest degree of protection from the action
of the pretensioner, wear the seat belt tight to the chest and pelvis.
The pretensioner does not require any maintenance or lubrication: any
changes to its original conditions will invalidate its efficiency. If, due
to exceptional natural events (floods, sea storms, etc.), the device
has been affected by water and mud, it must be replaced.LOAD LIMITERSTo increase protection, the front seat belt reels contain a load limiter
which controls the force acting on the chest and shoulders during
the belt restraining action in the event of a head-on collision.
118GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

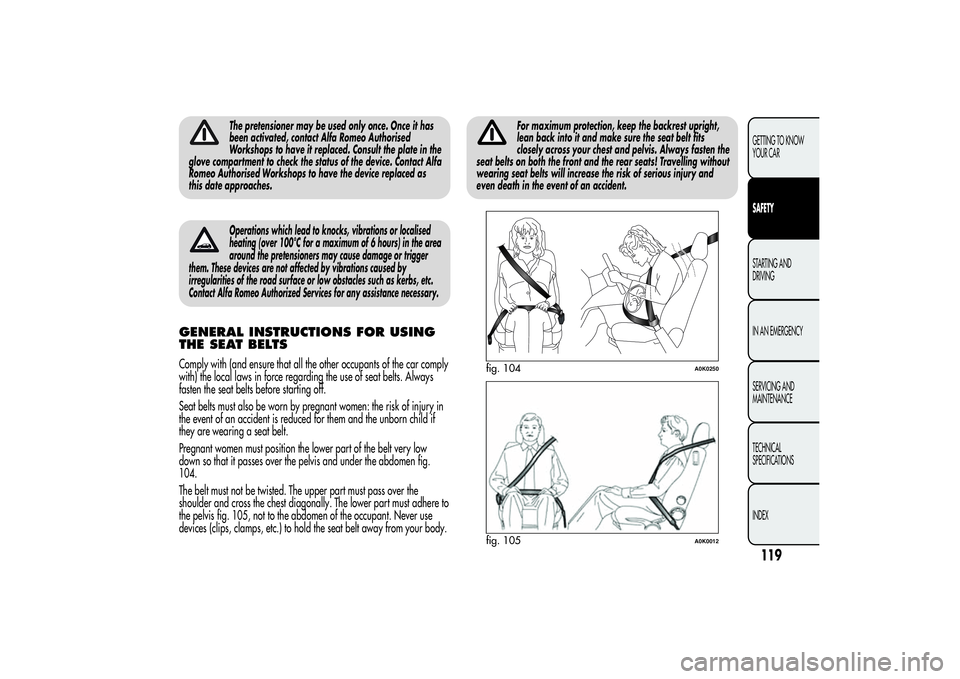

The pretensioner may be used only once. Once it has
been activated, contact Alfa Romeo Authorised
Workshops to have it replaced. Consult the plate in the
glove compartment to check the status of the device. Contact Alfa
Romeo Authorised Workshops to have the device replaced as
this date approaches.Operations which lead to knocks, vibrations or localised
heating (over 100°C for a maximum of 6 hours) in the area
around the pretensioners may cause damage or trigger
them. These devices are not affected by vibrations caused by
irregularities of the road surface or low obstacles such as kerbs, etc.
Contact Alfa Romeo Authorized Services for any assistance necessary.
GENERAL INSTRUCTIONS FOR USING
THE SEAT BELTSComply with (and ensure that all the other occupants of the car comply
with) the local laws in force regarding the use of seat belts. Always
fasten the seat belts before starting off.
Seat belts must also be worn by pregnant women: the risk of injury in
the event of an accident is reduced for them and the unborn child if
they are wearing a seat belt.
Pregnant women must position the lower part of the belt very low
down so that it passes over the pelvis and under the abdomen fig.
104.
The belt must not be twisted. The upper part must pass over the
shoulder and cross the chest diagonally. The lower part must adhere to
the pelvis fig. 105, not to the abdomen of the occupant. Never use
devices (clips, clamps, etc.) to hold the seat belt away from your body.
For maximum protection, keep the backrest upright,
lean back into it and make sure the seat belt fits
closely across your chest and pelvis. Always fasten the
seat belts on both the front and the rear seats! Travelling without
wearing seat belts will increase the risk of serious injury and
even death in the event of an accident.
fig. 104
A0K0250
fig. 105
A0K0012
119GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

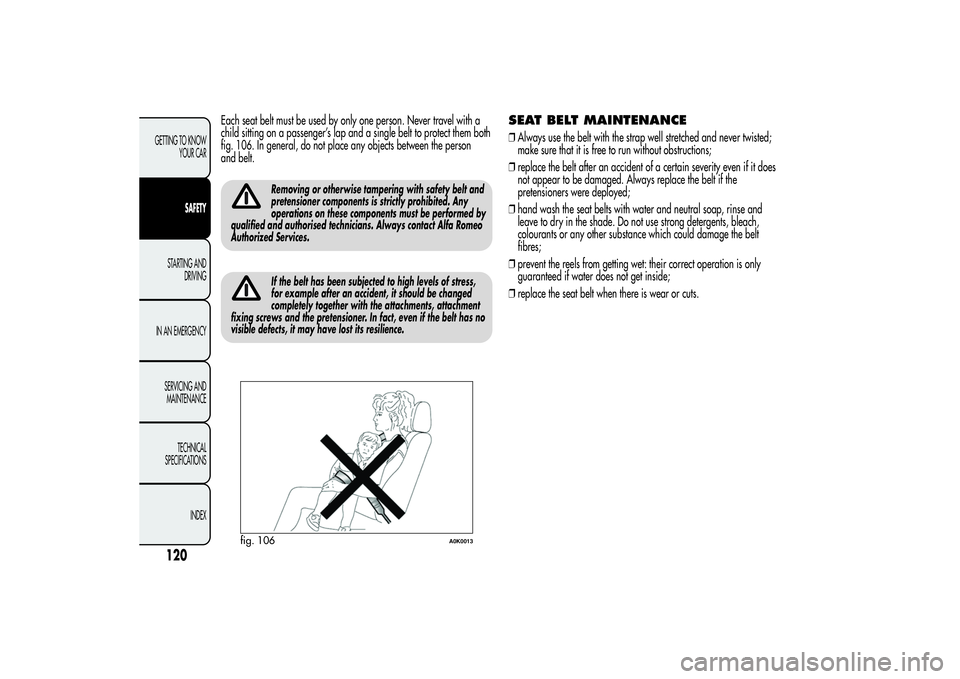

Each seat belt must be used by only one person. Never travel with a
child sitting on a passenger’s lap and a single belt to protect them both
fig. 106. In general, do not place any objects between the person
and belt.
Removing or otherwise tampering with safety belt and
pretensioner components is strictly prohibited. Any
operations on these components must be performed by
qualified and authorised technicians. Always contact Alfa Romeo
Authorized Services.If the belt has been subjected to high levels of stress,
for example after an accident, it should be changed
completely together with the attachments, attachment
fixing screws and the pretensioner. In fact, even if the belt has no
visible defects, it may have lost its resilience.
SEAT BELT MAINTENANCE❒Always use the belt with the strap well stretched and never twisted;
make sure that it is free to run without obstructions;
❒replace the belt after an accident of a certain severity even if it does
not appear to be damaged. Always replace the belt if the
pretensioners were deployed;
❒hand wash the seat belts with water and neutral soap, rinse and
leave to dry in the shade. Do not use strong detergents, bleach,
colourants or any other substance which could damage the belt
fibres;
❒prevent the reels from getting wet: their correct operation is only
guaranteed if water does not get inside;
❒replace the seat belt when there is wear or cuts.
fig. 106
A0K0013
120GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

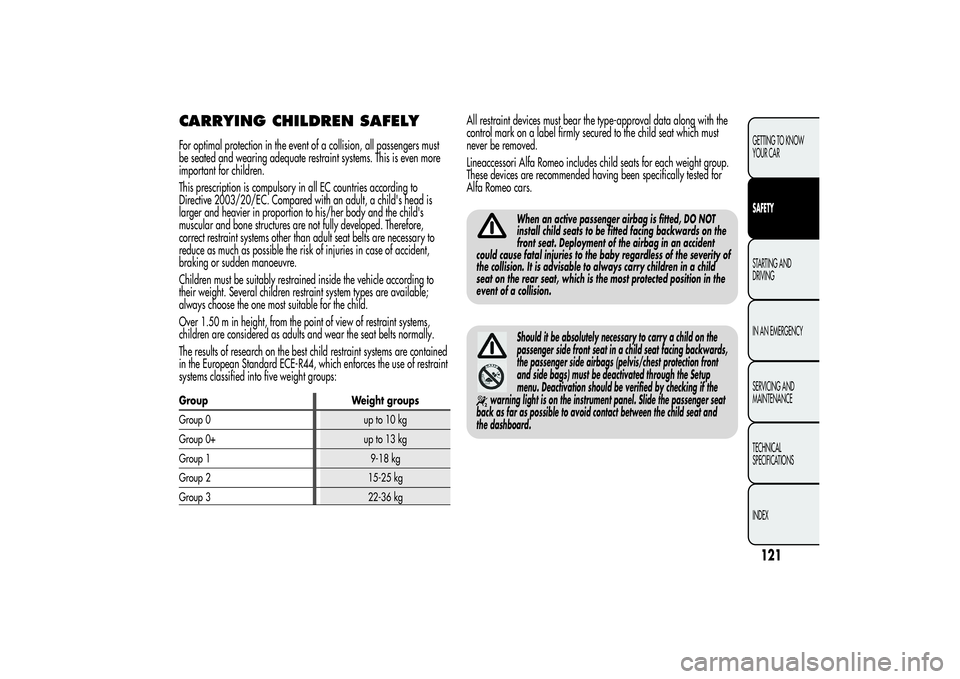

CARRYING CHILDREN SAFELYFor optimal protection in the event of a collision, all passengers must
be seated and wearing adequate restraint systems. This is even more
important for children.
This prescription is compulsory in all EC countries according to
Directive 2003/20/EC. Compared with an adult, a child's head is
larger and heavier in proportion to his/her body and the child's
muscular and bone structures are not fully developed. Therefore,
correct restraint systems other than adult seat belts are necessary to
reduce as much as possible the risk of injuries in case of accident,
braking or sudden manoeuvre.
Children must be suitably restrained inside the vehicle according to
their weight. Several children restraint system types are available;
always choose the one most suitable for the child.
Over 1.50 m in height, from the point of view of restraint systems,
children are considered as adults and wear the seat belts normally.
The results of research on the best child restraint systems are contained
in the European Standard ECE-R44, which enforces the use of restraint
systems classified into five weight groups:Group Weight groups
Group0 upto10kg
Group 0+ up to 13 kg
Group 1 9-18 kg
Group 2 15-25 kg
Group 3 22-36 kg
All restraint devices must bear the type-approval data along with the
control mark on a label firmly secured to the child seat which must
never be removed.
Lineaccessori Alfa Romeo includes child seats for each weight group.
These devices are recommended having been specifically tested for
Alfa Romeo cars.
When an active passenger airbag is fitted, DO NOT
install child seats to be fitted facing backwards on the
front seat. Deployment of the airbag in an accident
could cause fatal injuries to the baby regardless of the severity of
the collision. It is advisable to always carry children in a child
seat on the rear seat, which is the most protected position in the
event of a collision.Should it be absolutely necessary to carry a child on the
passenger side front seat in a child seat facing backwards,
the passenger side airbags (pelvis/chest protection front
and side bags) must be deactivated through the Setup
menu. Deactivation should be verified by checking if the
warning light is on the instrument panel. Slide the passenger seat
back as far as possible to avoid contact between the child seat and
the dashboard.
121GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

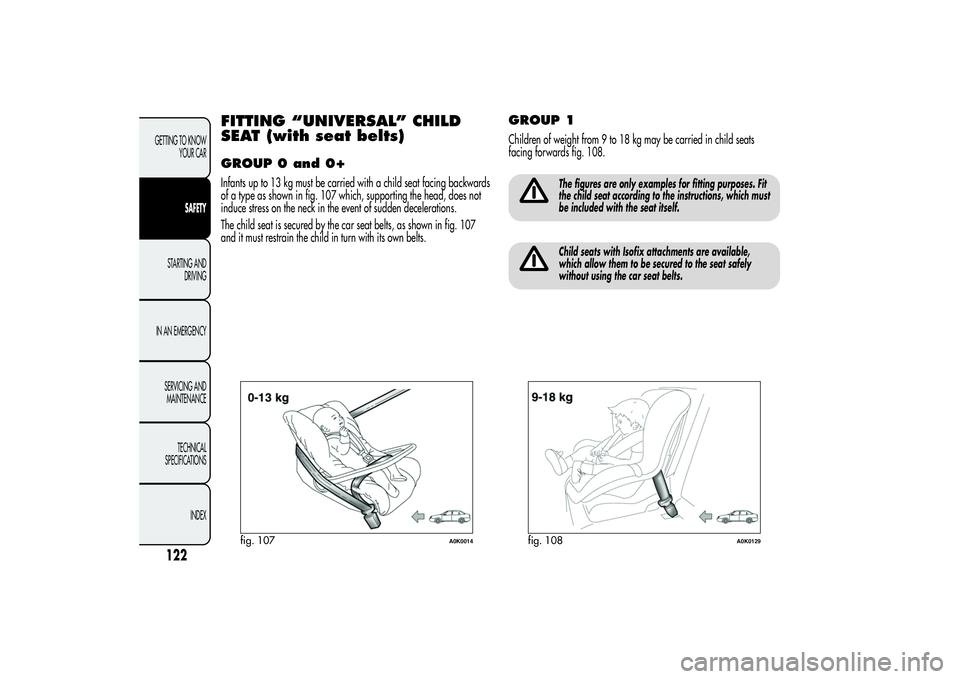

FITTING “UNIVERSAL” CHILD
SEAT (with seat belts)GROUP 0 and 0+Infants up to 13 kg must be carried with a child seat facing backwards
of a type as shown in fig. 107 which, supporting the head, does not
induce stress on the neck in the event of sudden decelerations.
The child seat is secured by the car seat belts, as shown in fig. 107
and it must restrain the child in turn with its own belts.
GROUP 1Children of weight from 9 to 18 kg may be carried in child seats
facing forwards fig. 108.
The figures are only examples for fitting purposes. Fit
the child seat according to the instructions, which must
be included with the seat itself.Child seats with Isofix attachments are available,
which allow them to be secured to the seat safely
without using the car seat belts.
fig. 107
A0K0014
fig. 108
A0K0129
122GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

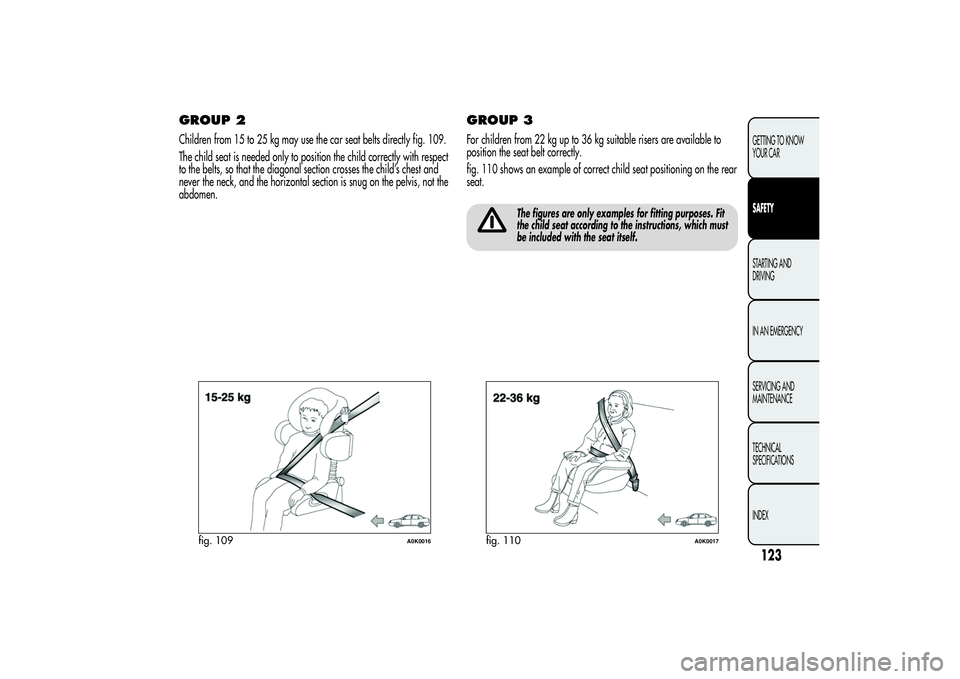

GROUP 2Children from 15 to 25 kg may use the car seat belts directly fig. 109.
The child seat is needed only to position the child correctly with respect
to the belts, so that the diagonal section crosses the child’s chest and
never the neck, and the horizontal section is snug on the pelvis, not the
abdomen.
GROUP 3For children from 22 kg up to 36 kg suitable risers are available to
position the seat belt correctly.
fig. 110 shows an example of correct child seat positioning on the rear
seat.
The figures are only examples for fitting purposes. Fit
the child seat according to the instructions, which must
be included with the seat itself.
fig. 109
A0K0016
fig. 110
A0K0017
123GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

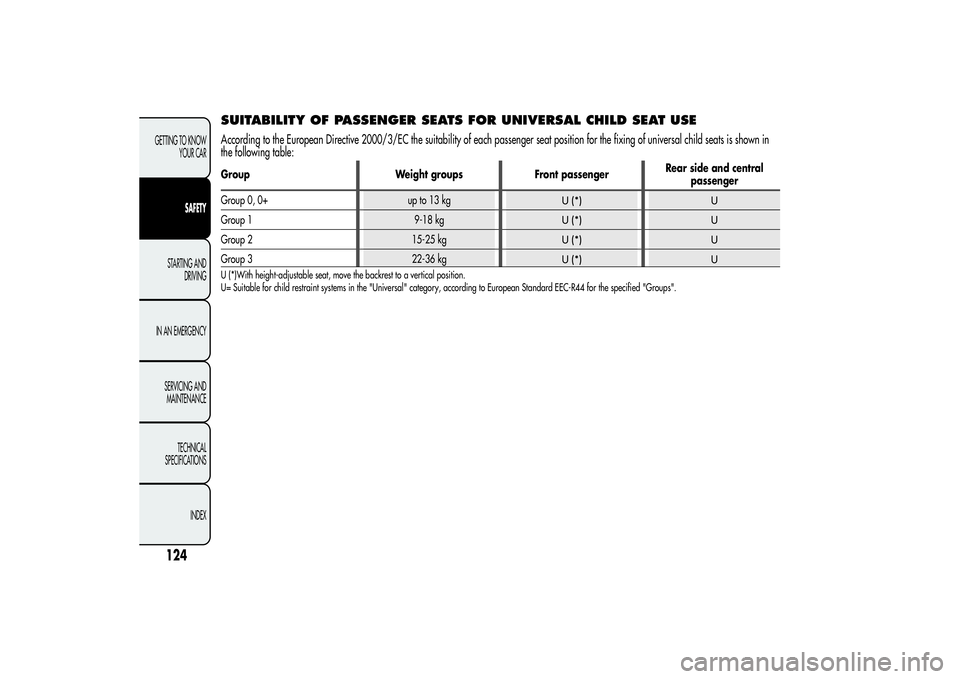

SUITABILITY OF PASSENGER SEATS FOR UNIVERSAL CHILD SEAT USEAccording to the European Directive 2000/3/EC the suitability of each passenger seat position for the fixing of universal child seats is shown in
the following table:Group Weight groups Front passengerRear side and central
passenger
Group 0, 0+ up to 13 kg
U (*) U
Group 1 9-18 kg
U (*) U
Group 2 15-25 kg
U (*) U
Group 3 22-36 kg
U (*) U
U (*)With height-adjustable seat, move the backrest to a vertical position.
U= Suitable for child restraint systems in the "Universal" category, according to European Standard EEC-R44 for the specified "Groups".
124GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

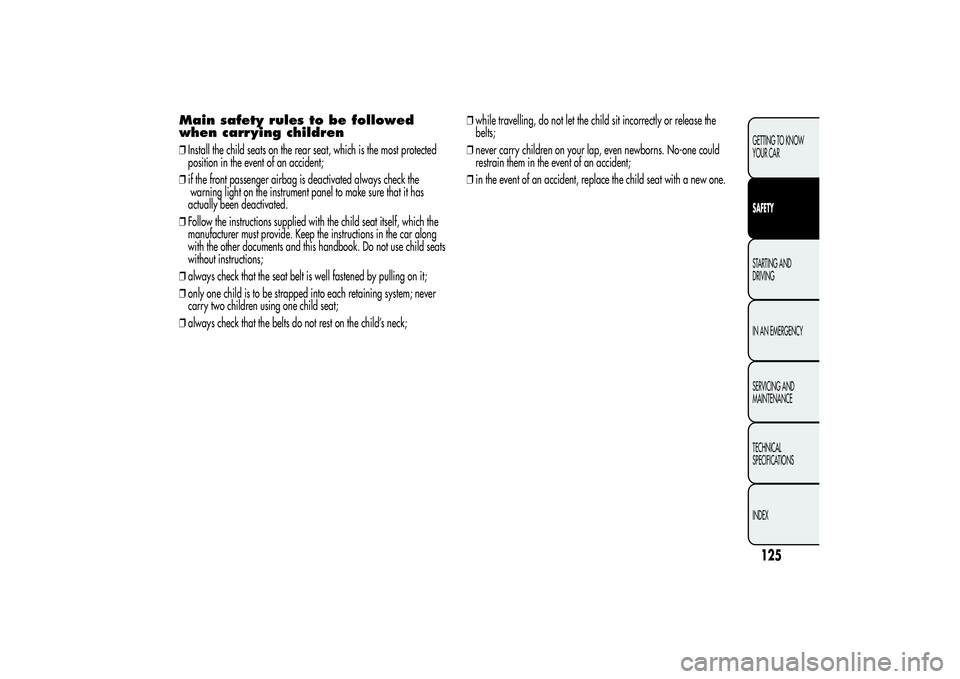

Main safety rules to be followed
when carrying children❒Install the child seats on the rear seat, which is the most protected
position in the event of an accident;
❒if the front passenger airbag is deactivated always check the
warning light on the instrument panel to make sure that it has
actually been deactivated.
❒Follow the instructions supplied with the child seat itself, which the
manufacturer must provide. Keep the instructions in the car along
with the other documents and this handbook. Do not use child seats
without instructions;
❒always check that the seat belt is well fastened by pulling on it;
❒only one child is to be strapped into each retaining system; never
carry two children using one child seat;
❒always check that the belts do not rest on the child’s neck;❒while travelling, do not let the child sit incorrectly or release the
belts;
❒never carry children on your lap, even newborns. No-one could
restrain them in the event of an accident;
❒in the event of an accident, replace the child seat with a new one.
125GETTING TO KNOW
YOUR CARSAFETYSTARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

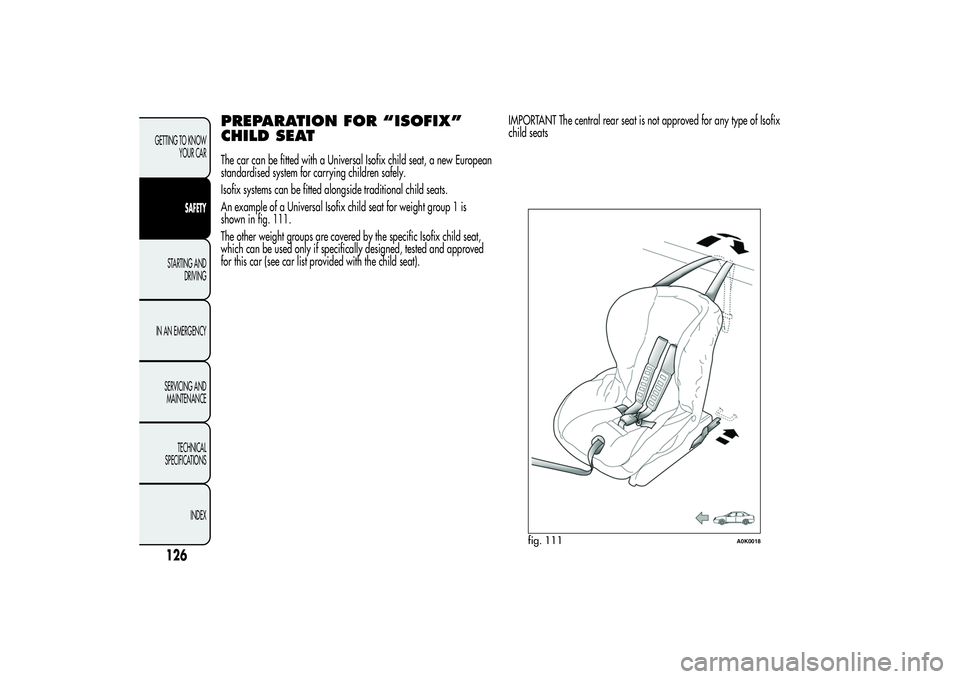

PREPARATION FOR “ISOFIX”
CHILD SEATThe car can be fitted with a Universal Isofix child seat, a new European
standardised system for carrying children safely.
Isofix systems can be fitted alongside traditional child seats.
An example of a Universal Isofix child seat for weight group 1 is
shown in fig. 111.
The other weight groups are covered by the specific Isofix child seat,
which can be used only if specifically designed, tested and approved
for this car (see car list provided with the child seat).IMPORTANT The central rear seat is not approved for any type of Isofix
child seats
fig. 111
A0K0018
126GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
