Page 861 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 861

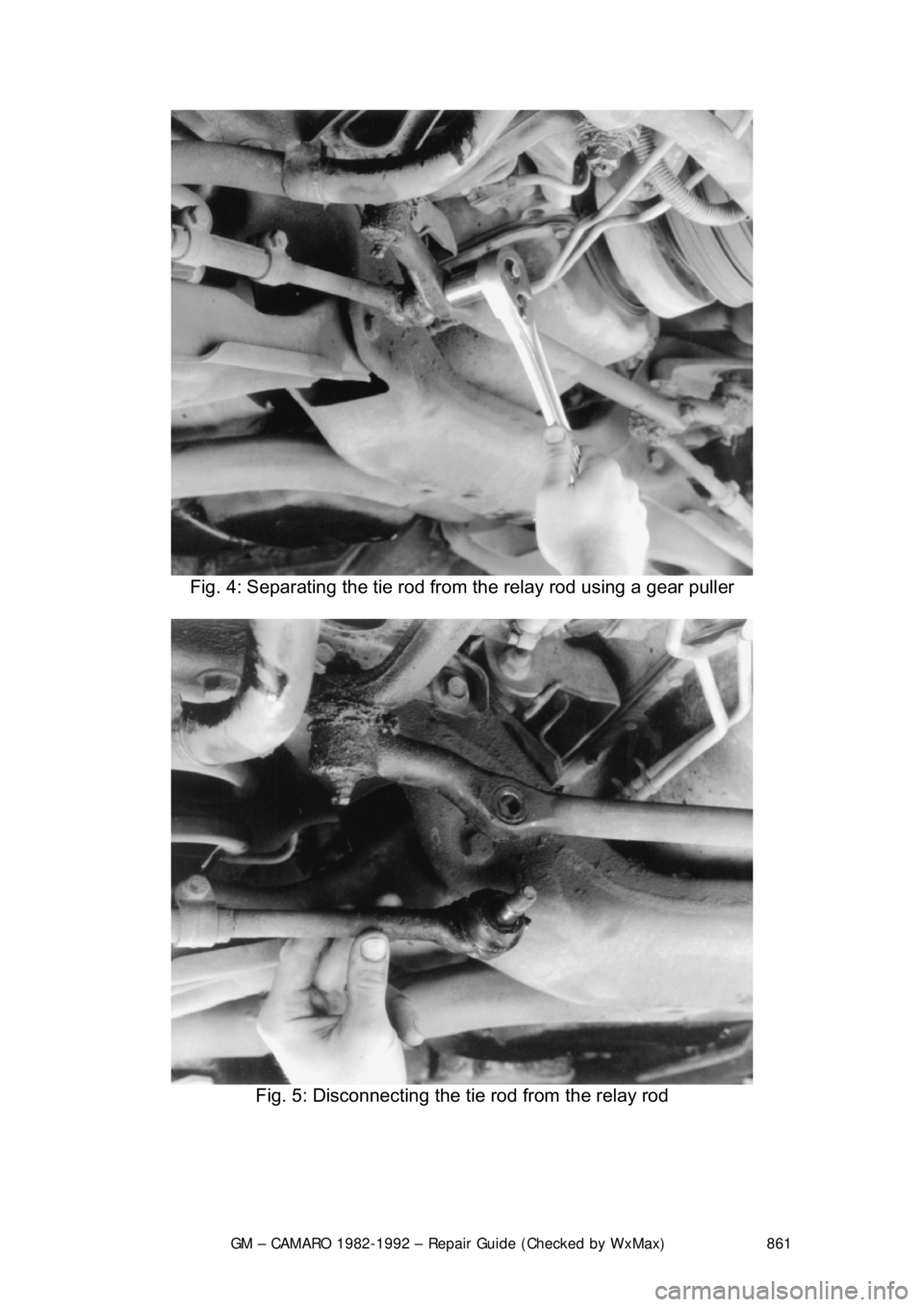

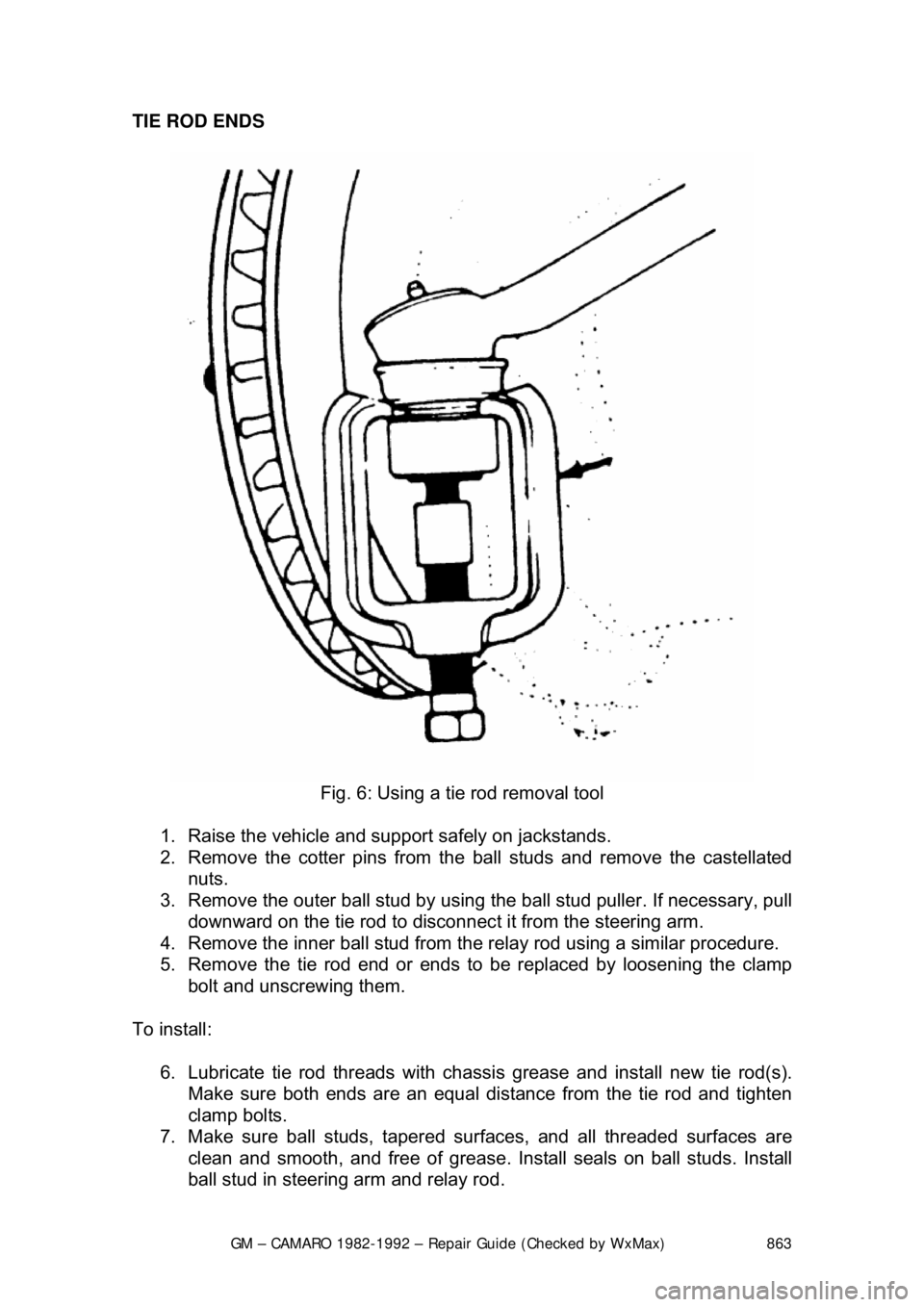

Fig. 4: Separating the tie rod from  the relay rod using a gear puller

Fig. 5: Disconnecting the tie rod from the relay rod

Page 862 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 862
During production, the installe
d position of the relay rod is carefully controlled to
assure that the rod is at  the proper height. B

Page 863 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 863
TIE ROD ENDS

Fig. 6: Using a tie rod removal tool
1.  Raise the vehicle and support safely on jackstands.
2.  Remove the cotter

Page 864 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 864
8.  Rotate both inner and out
er tie rod housings rearward to the limit of ball
joint travel before tightening clamps . Make sure clam

Page 865 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 865

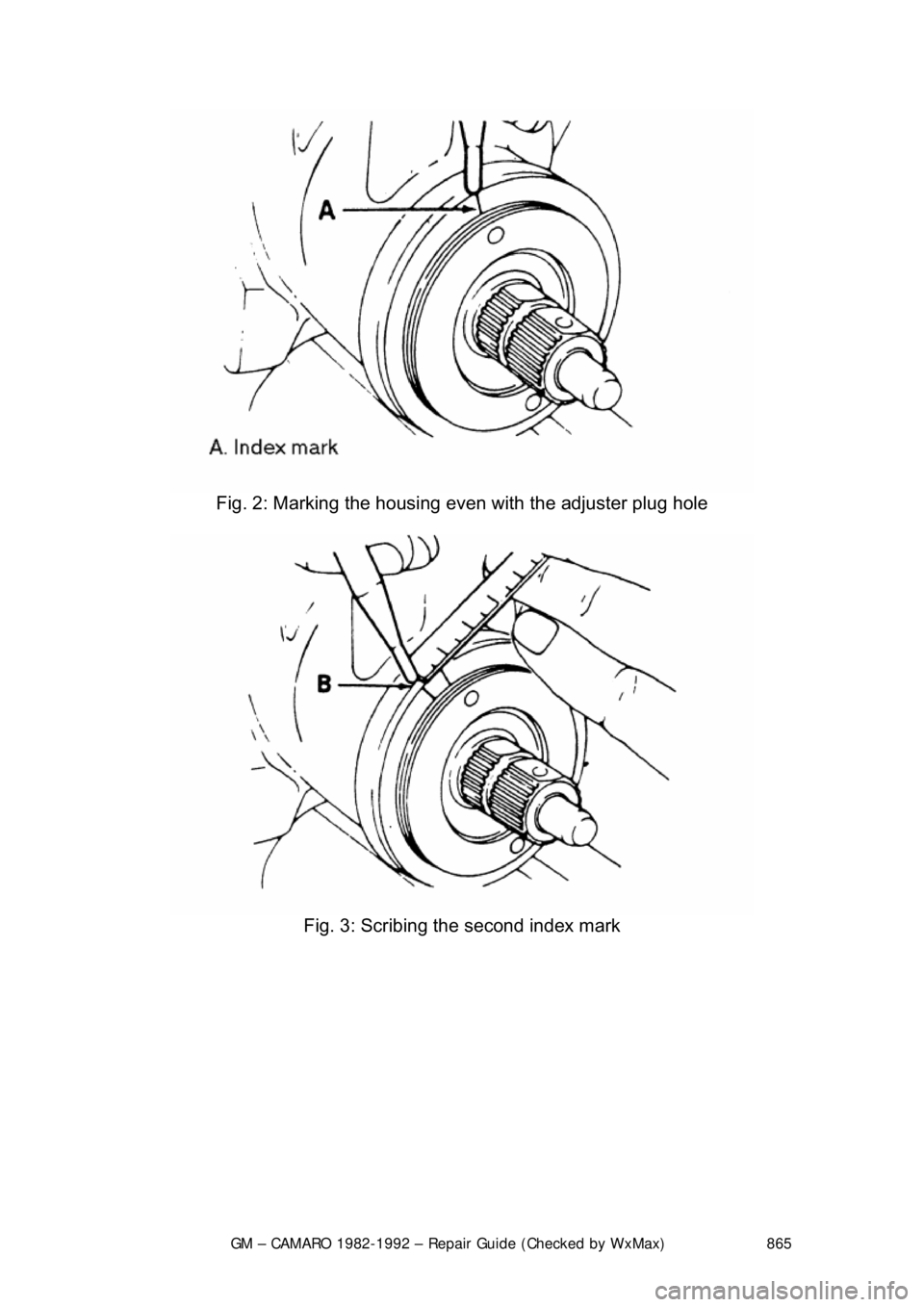

Fig. 2: Marking the housing ev en with the adjuster plug hole

Fig. 3: Scribing the second index mark

Page 866 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 866

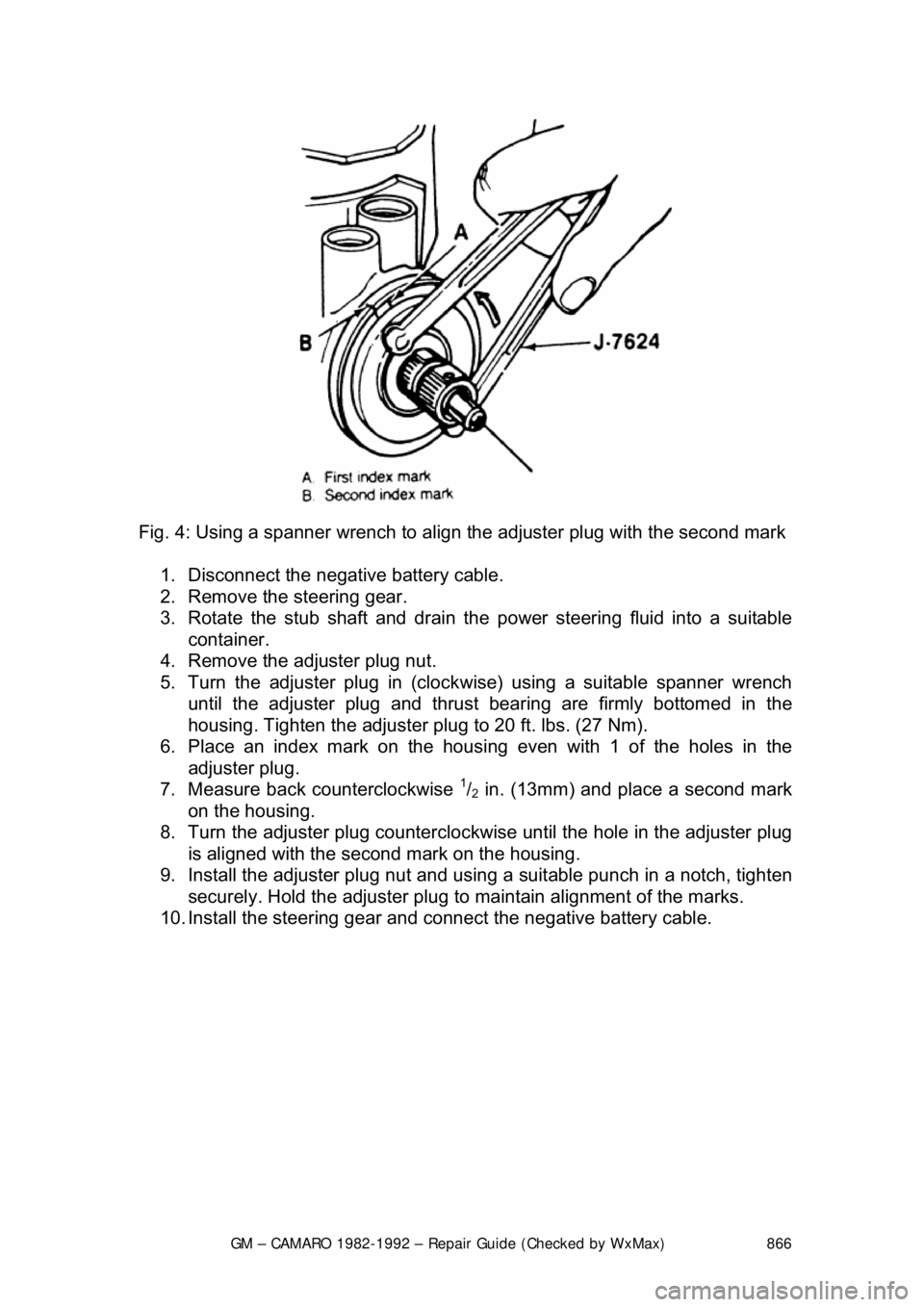

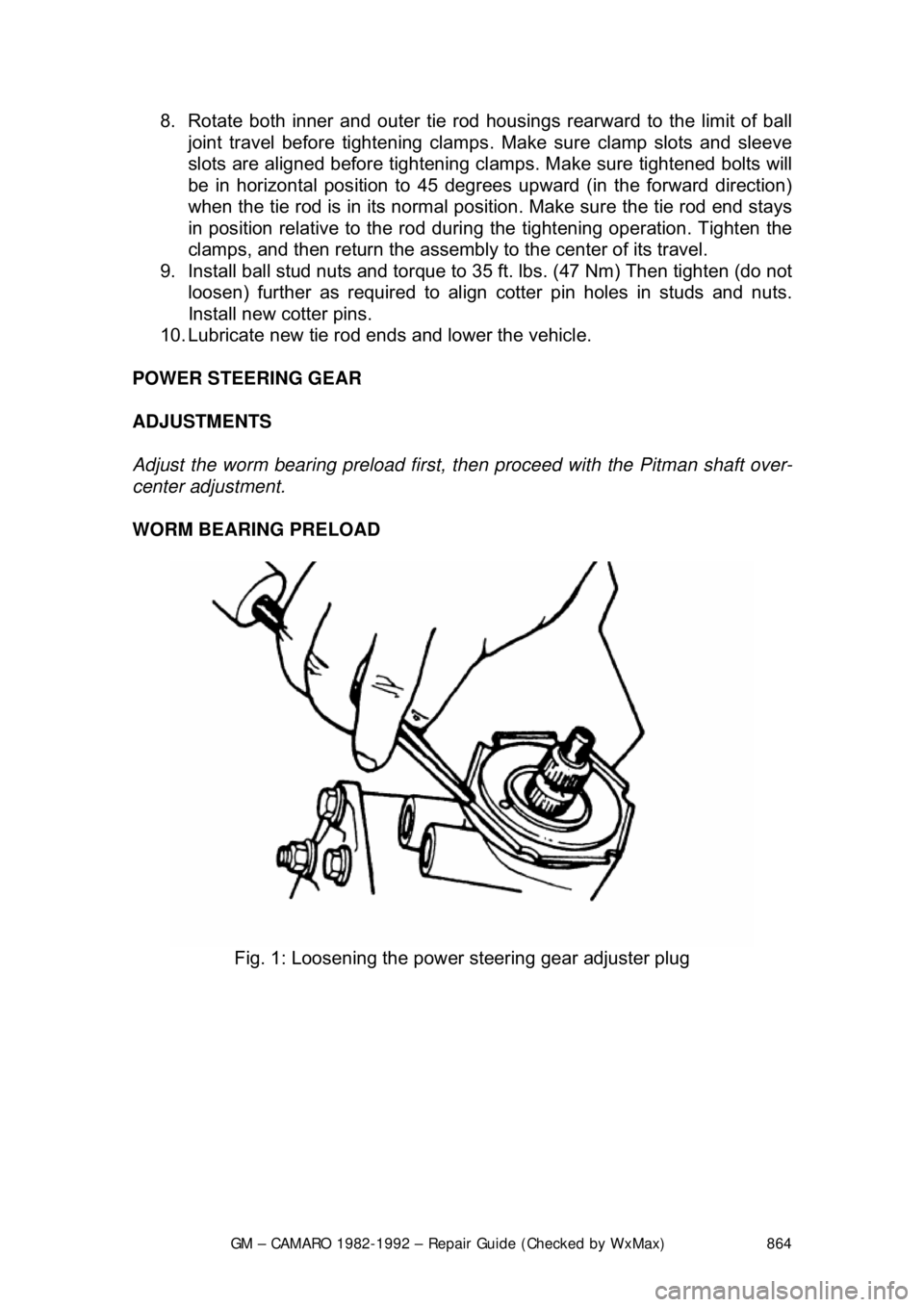

Fig. 4: Using a spanner wrench to align  the adjuster plug with the second mark
1.  Disconnect the negative battery cable.
2.  Rem

Page 867 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 867
Pitman Shaft Over-Center

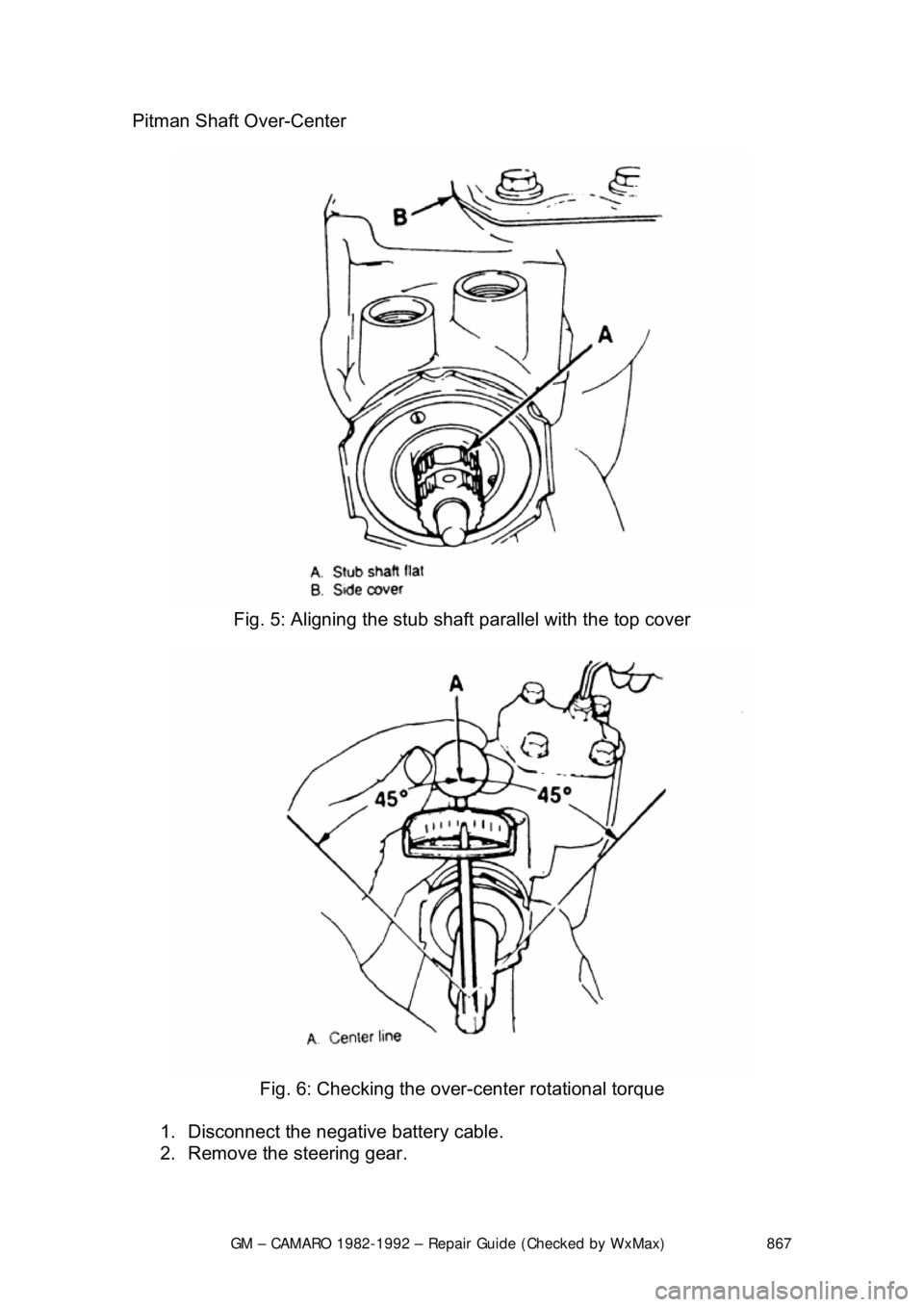

Fig. 5: Aligning the stub sha ft parallel with the top cover

Fig. 6: Checking the over-center rotationa

Page 868 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 868
3.  Rotate the stub shaft and drain the
power steering fluid into a suitable
container.
4. Turn the Pitman shaft adjuster  screw co

Page 869 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 869
4.  Remove Pitman arm using spec
ial tool J-6632 or its equal.

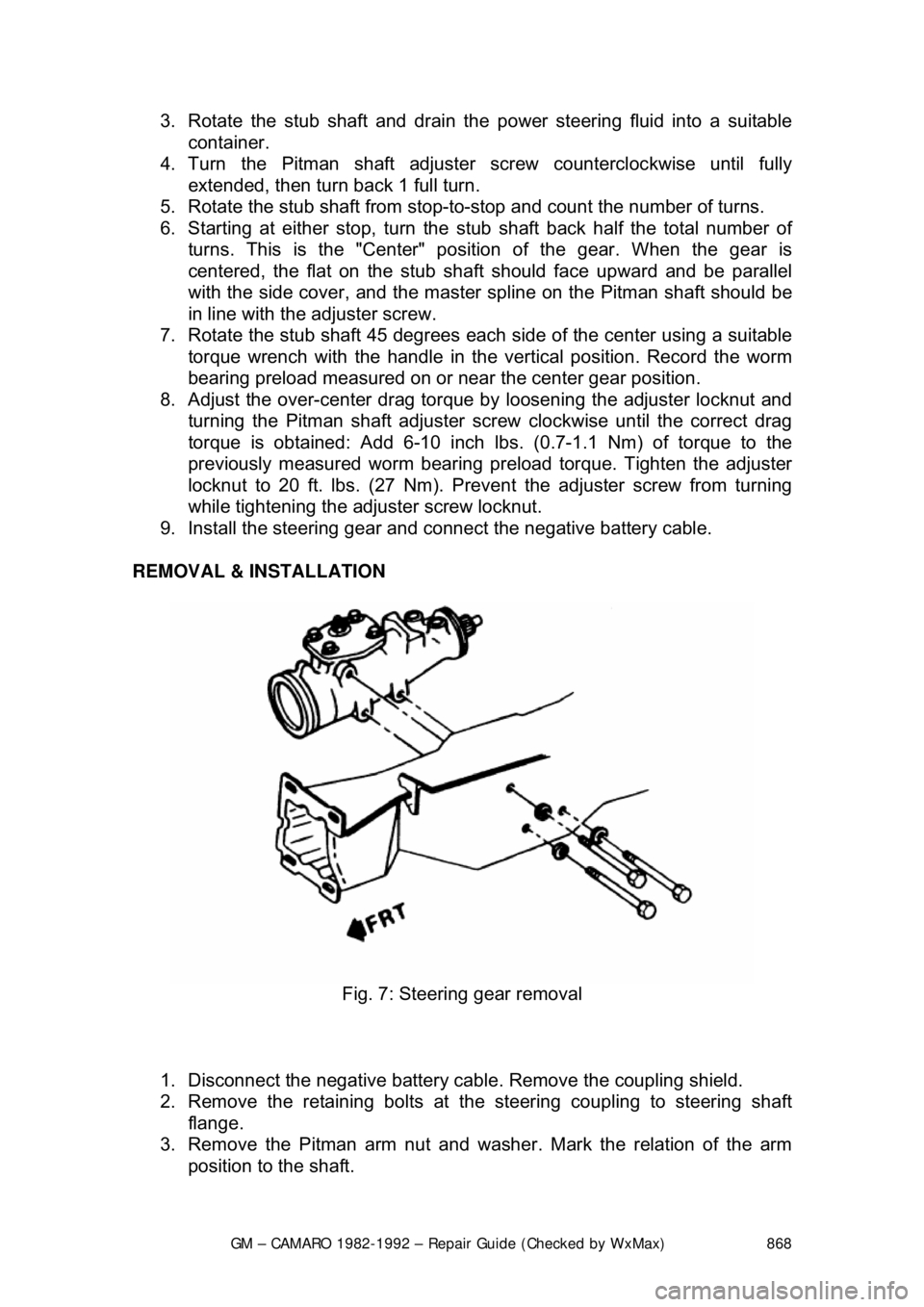

5.  Remove the steering box to fram e bolts. Remove the steering box.

Page 870 of 875

CHEVROLET CAMARO 1982  Repair Guide
GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 870

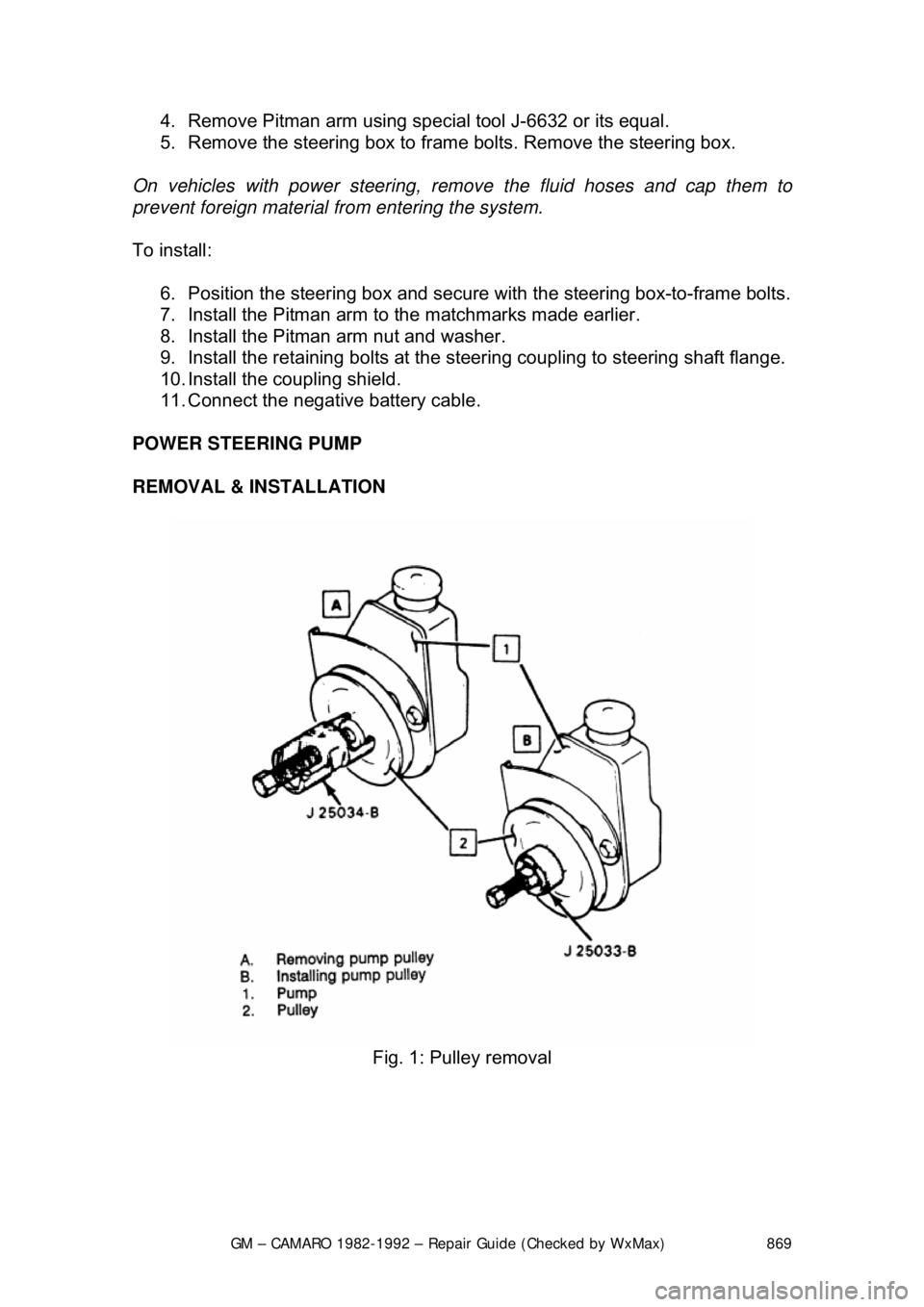

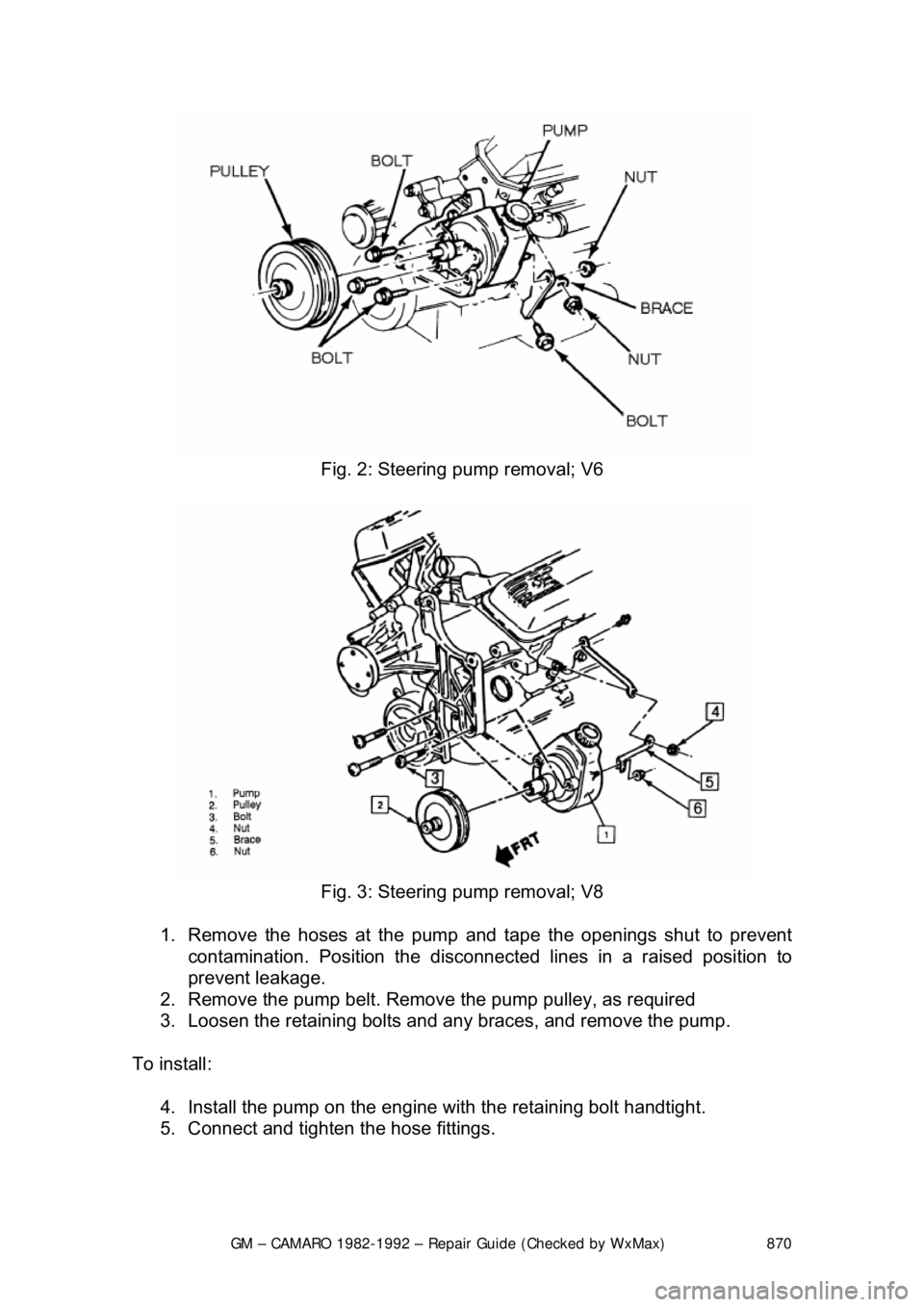

Fig. 2: Steering pump removal; V6

Fig. 3: Steering pump removal; V8
1.  Remove the hoses at the pump and  tape the openings shut
