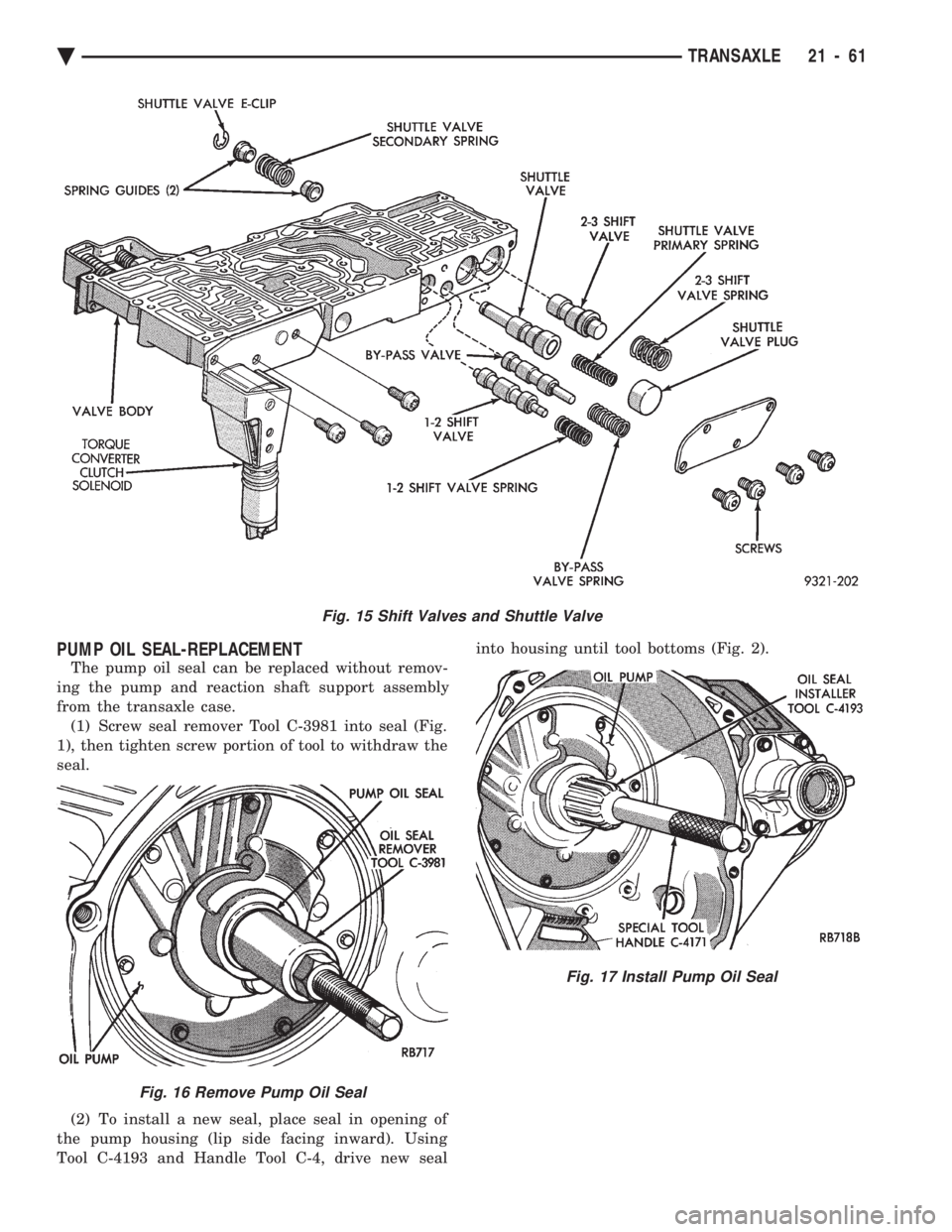

PUMP OIL SEAL-REPLACEMENT
The pump oil seal can be replaced without remov-
ing the pump and reaction shaft support assembly
from the transaxle case. (1) Screw seal remover Tool C-3981 into seal (Fig.
1), then tighten screw portion of tool to withdraw the
seal.
(2) To install a new seal, place seal in opening of
the pump housing (lip side facing inward). Using
Tool C-4193 and Handle Tool C-4, drive new seal into housing until tool bottoms (Fig. 2).
Fig. 15 Shift Valves and Shuttle Valve
Fig. 16 Remove Pump Oil Seal
Fig. 17 Install Pump Oil Seal
Ä
TRANSAXLE 21 - 61

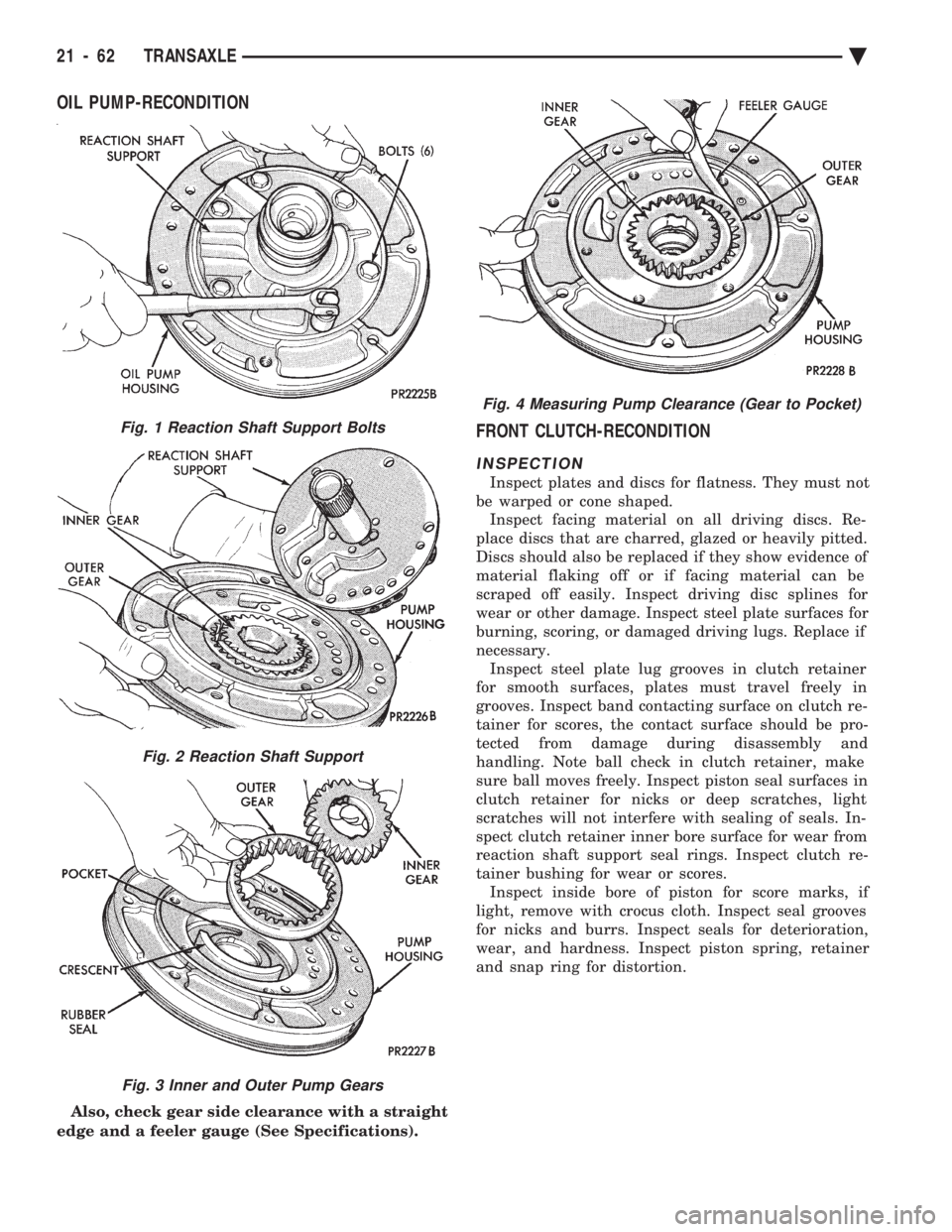

OIL PUMP-RECONDITION
Also, check gear side clearance with a straight
edge and a feeler gauge (See Specifications).
FRONT CLUTCH-RECONDITION
INSPECTION
Inspect plates and discs for flatness. They must not
be warped or cone shaped. Inspect facing material on all driving discs. Re-
place discs that are charred, glazed or heavily pitted.
Discs should also be replaced if they show evidence of
material flaking off or if facing material can be
scraped off easily. Inspect driving disc splines for
wear or other damage. Inspect steel plate surfaces for
burning, scoring, or damaged driving lugs. Replace if
necessary. Inspect steel plate lug grooves in clutch retainer
for smooth surfaces, plates must travel freely in
grooves. Inspect band contacting surface on clutch re-
tainer for scores, the contact surface should be pro-
tected from damage during disassembly and
handling. Note ball check in clutch retainer, make
sure ball moves freely. Inspect piston seal surfaces in
clutch retainer for nicks or deep scratches, light
scratches will not interfere with sealing of seals. In-
spect clutch retainer inner bore surface for wear from
reaction shaft support seal rings. Inspect clutch re-
tainer bushing for wear or scores. Inspect inside bore of piston for score marks, if
light, remove with crocus cloth. Inspect seal grooves
for nicks and burrs. Inspect seals for deterioration,
wear, and hardness. Inspect piston spring, retainer
and snap ring for distortion.
Fig. 4 Measuring Pump Clearance (Gear to Pocket)
Fig. 1 Reaction Shaft Support Bolts
Fig. 2 Reaction Shaft Support
Fig. 3 Inner and Outer Pump Gears
21 - 62 TRANSAXLE Ä

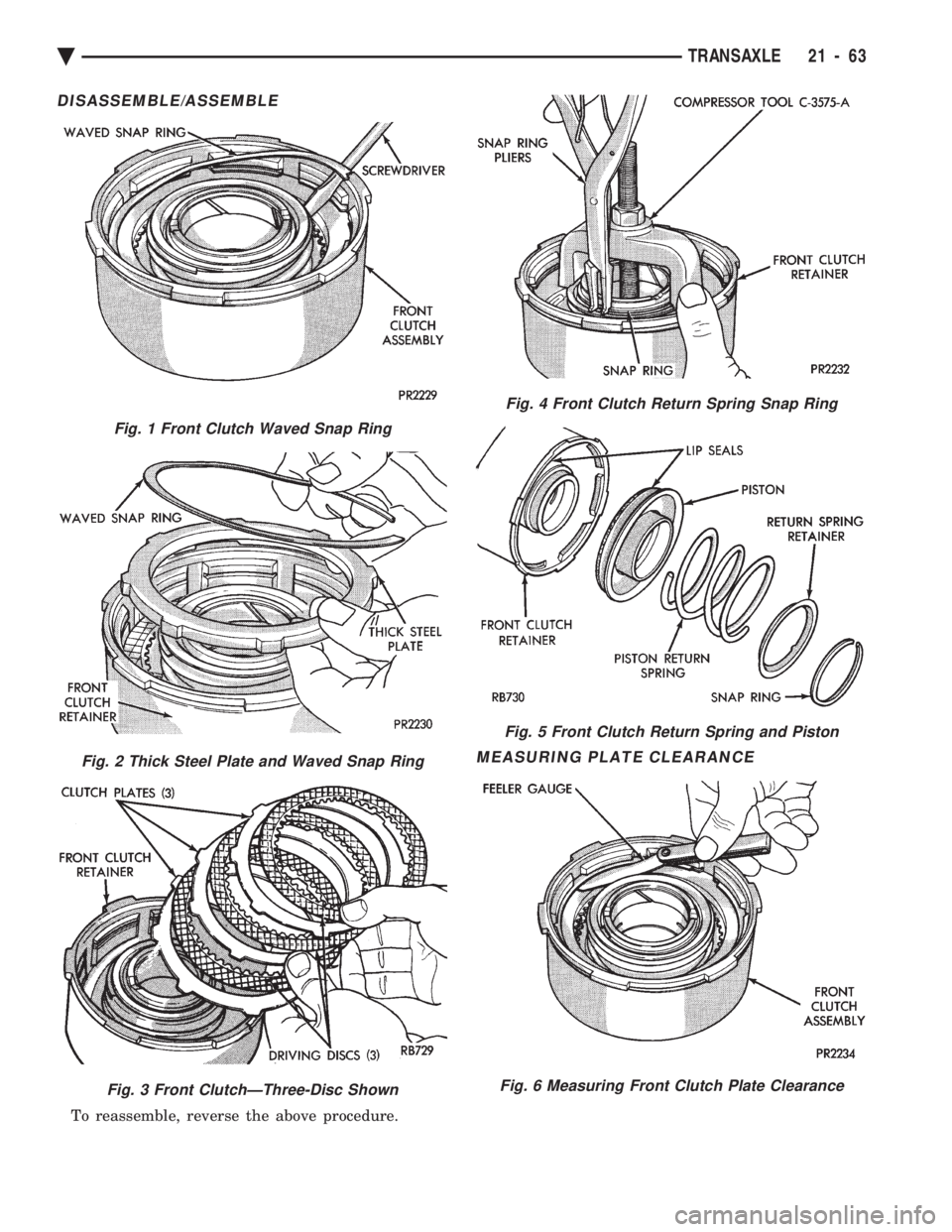

DISASSEMBLE/ASSEMBLE
To reassemble, reverse the above procedure.
MEASURING PLATE CLEARANCE
Fig. 1 Front Clutch Waved Snap Ring
Fig. 2 Thick Steel Plate and Waved Snap Ring
Fig. 3 Front ClutchÐThree-Disc Shown
Fig. 4 Front Clutch Return Spring Snap Ring
Fig. 5 Front Clutch Return Spring and Piston
Fig. 6 Measuring Front Clutch Plate Clearance
Ä TRANSAXLE 21 - 63

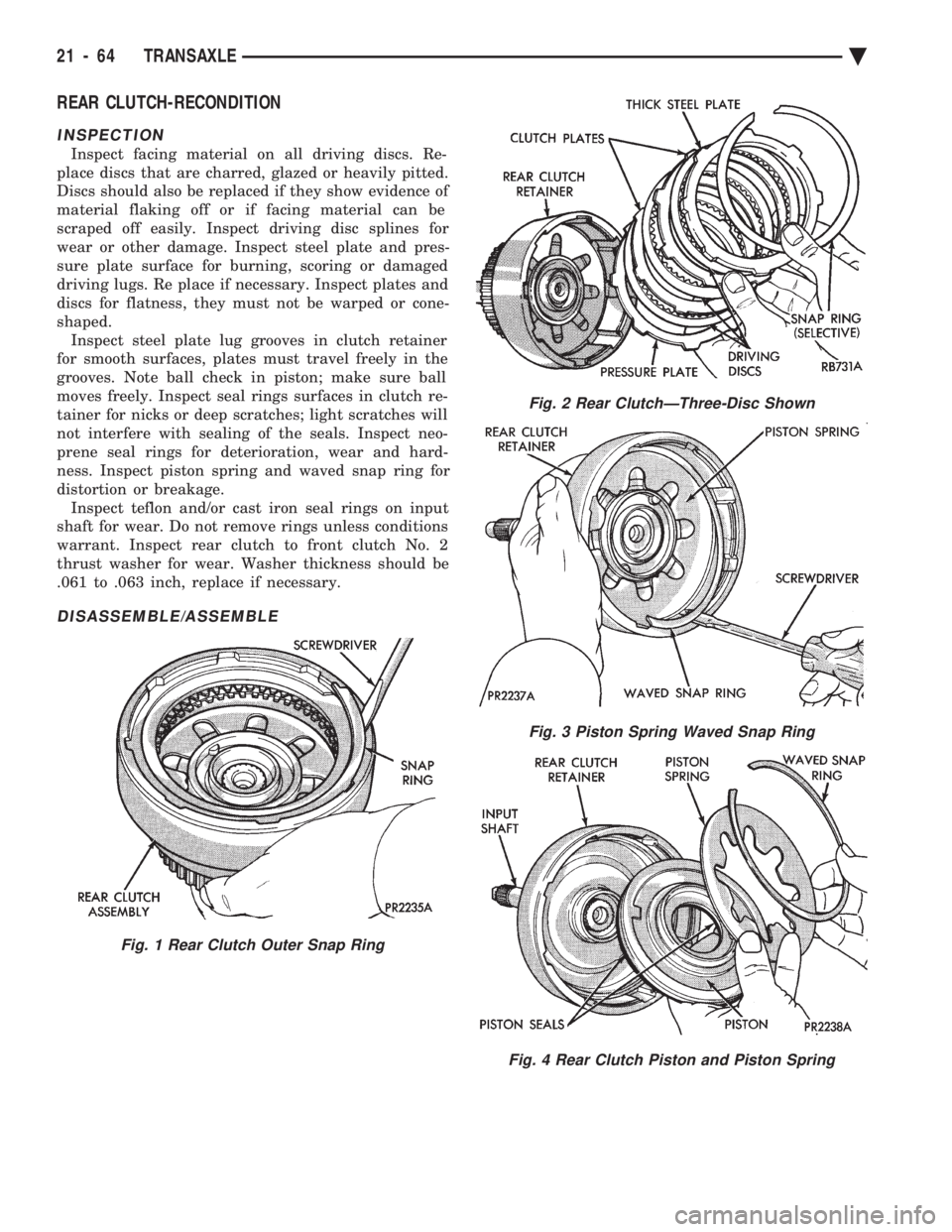

REAR CLUTCH-RECONDITION
INSPECTION
Inspect facing material on all driving discs. Re-
place discs that are charred, glazed or heavily pitted.
Discs should also be replaced if they show evidence of
material flaking off or if facing material can be
scraped off easily. Inspect driving disc splines for
wear or other damage. Inspect steel plate and pres-
sure plate surface for burning, scoring or damaged
driving lugs. Re place if necessary. Inspect plates and
discs for flatness, they must not be warped or cone-
shaped. Inspect steel plate lug grooves in clutch retainer
for smooth surfaces, plates must travel freely in the
grooves. Note ball check in piston; make sure ball
moves freely. Inspect seal rings surfaces in clutch re-
tainer for nicks or deep scratches; light scratches will
not interfere with sealing of the seals. Inspect neo-
prene seal rings for deterioration, wear and hard-
ness. Inspect piston spring and waved snap ring for
distortion or breakage. Inspect teflon and/or cast iron seal rings on input
shaft for wear. Do not remove rings unless conditions
warrant. Inspect rear clutch to front clutch No. 2
thrust washer for wear. Washer thickness should be
.061 to .063 inch, replace if necessary.
DISASSEMBLE/ASSEMBLE
Fig. 1 Rear Clutch Outer Snap Ring
Fig. 2 Rear ClutchÐThree-Disc Shown
Fig. 3 Piston Spring Waved Snap Ring
Fig. 4 Rear Clutch Piston and Piston Spring
21 - 64 TRANSAXLE Ä

Press out input shaft, if required.
To reassemble, reverse the above procedure.
MEASURING PLATE CLEARANCE
FRONT PLANETARY & ANNULUS
GEAR-RECONDITION

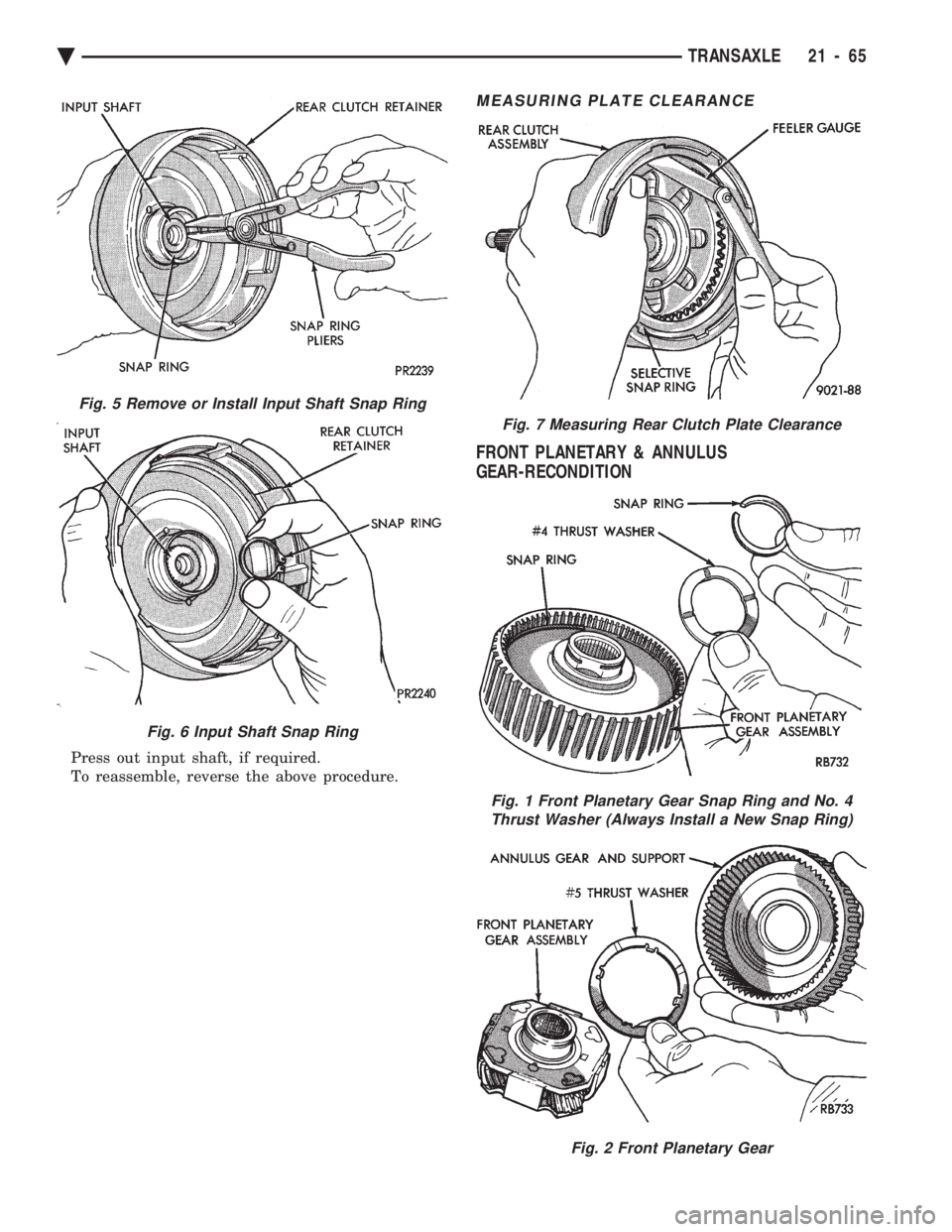

Fig. 5 Remove or Install Input Shaft Snap Ring
Fig. 6 Input Shaft Snap Ring
Fig. 7 Measuring Rear Clutch Plate Clearance
Fig. 1 Front Planetary Gear Snap Ring and No. 4
Thrust Washer (Always Install a New Snap Ring)
Fig. 2 Front Planetary Gear
Ä TRANSAXLE 21 - 65

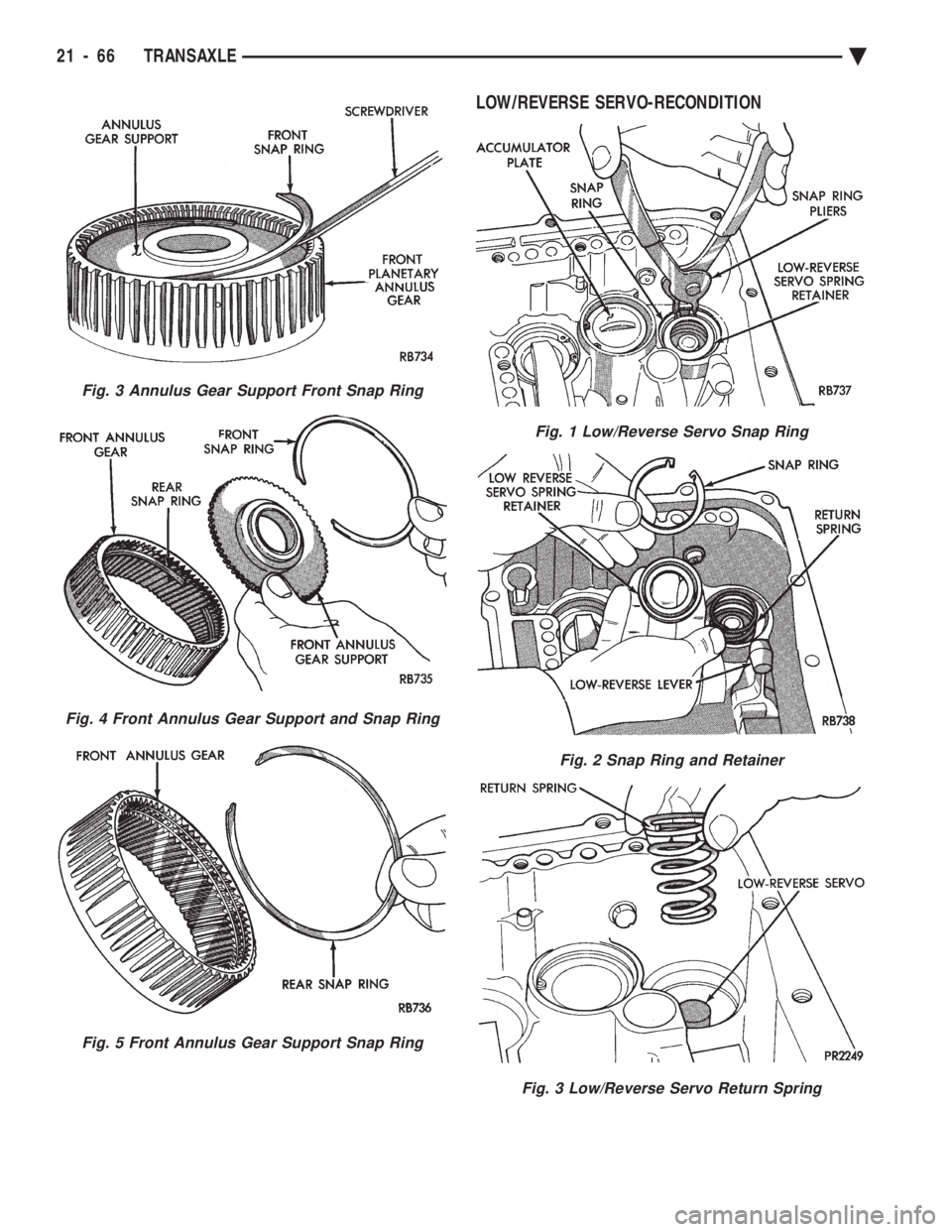

LOW/REVERSE SERVO-RECONDITION
Fig. 3 Annulus Gear Support Front Snap Ring
Fig. 4 Front Annulus Gear Support and Snap Ring
Fig. 5 Front Annulus Gear Support Snap Ring
Fig. 1 Low/Reverse Servo Snap Ring
Fig. 2 Snap Ring and Retainer
Fig. 3 Low/Reverse Servo Return Spring
21 - 66 TRANSAXLE Ä

To assemble, reverse the above procedure.

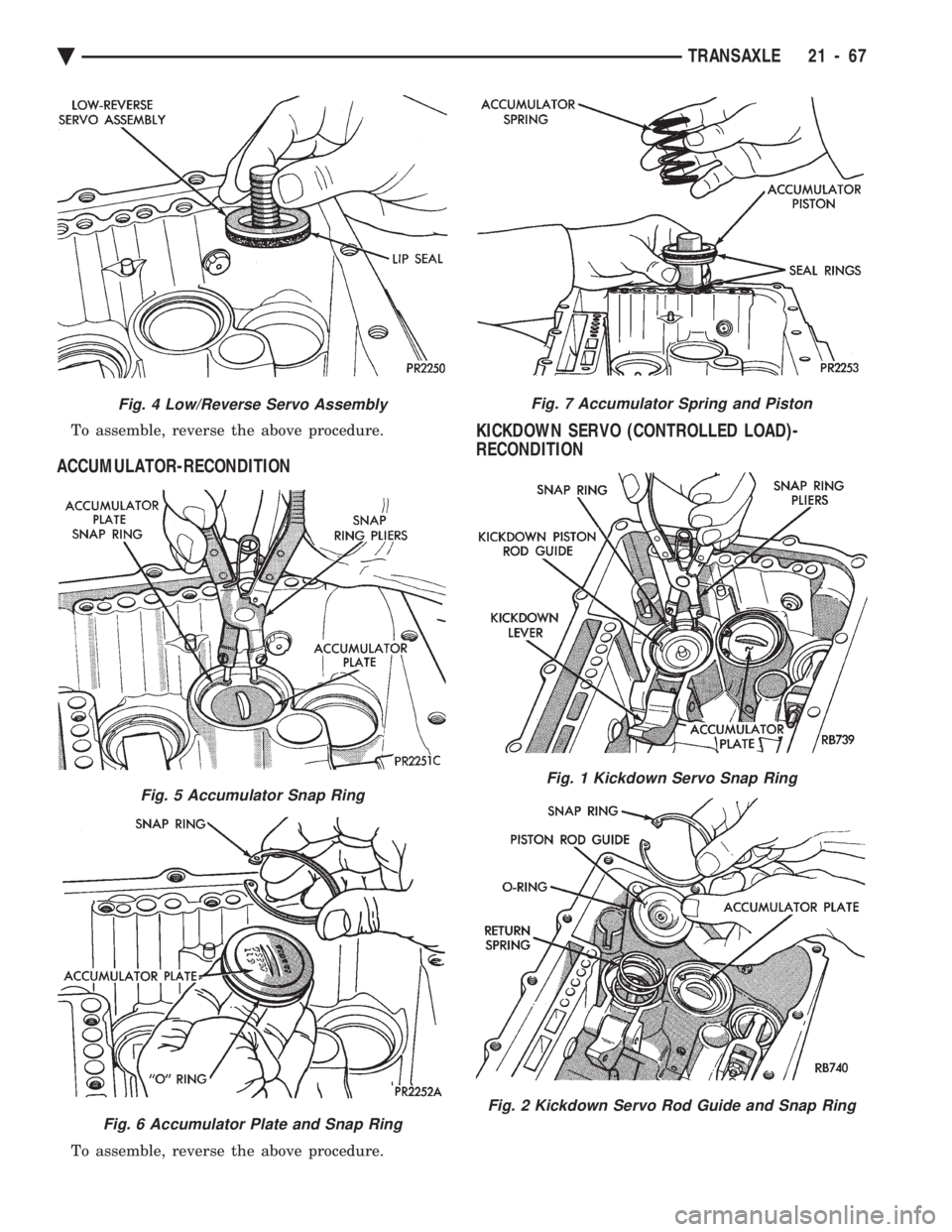

ACCUMULATOR-RECONDITION
To assemble, reverse the above procedure.
KICKDOWN SERVO (CONTROLLED LOAD)-
RECONDITION
Fig. 4 Low/Reverse Servo Assembly
Fig. 5 Accumulator Snap Ring
Fig. 6 Accumulator Plate and Snap Ring
Fig. 7 Accumulator Spring and Piston
Fig. 1 Kickdown Servo Snap Ring
Fig. 2 Kickdown Servo Rod Guide and Snap Ring
Ä TRANSAXLE 21 - 67

To assemble, reverse the above procedure.

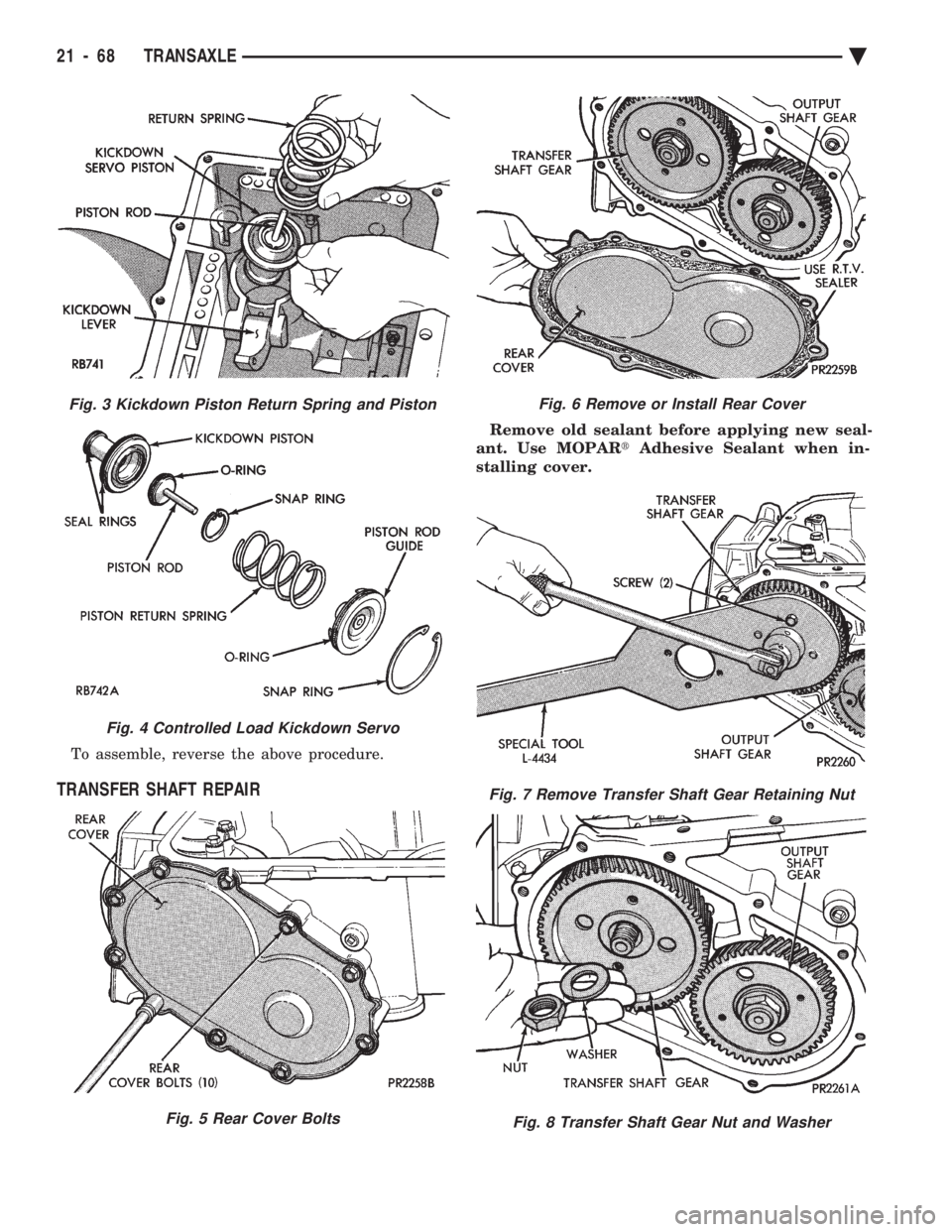

TRANSFER SHAFT REPAIR
Remove old sealant before applying new seal-
ant. Use MOPAR tAdhesive Sealant when in-
stalling cover.
Fig. 3 Kickdown Piston Return Spring and Piston
Fig. 4 Controlled Load Kickdown Servo
Fig. 5 Rear Cover Bolts
Fig. 6 Remove or Install Rear Cover
Fig. 7 Remove Transfer Shaft Gear Retaining Nut
Fig. 8 Transfer Shaft Gear Nut and Washer
21 - 68 TRANSAXLE Ä

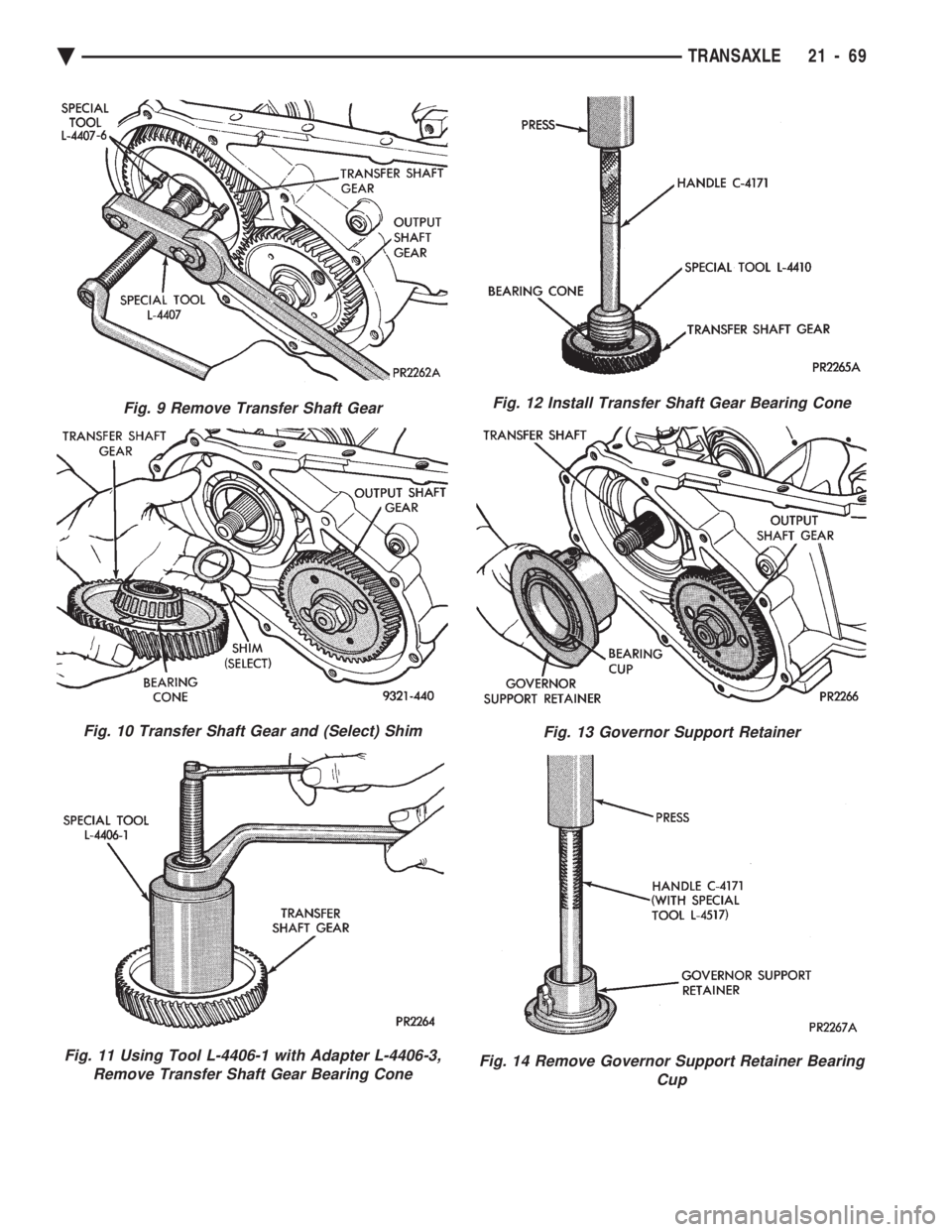

Fig. 9 Remove Transfer Shaft Gear
Fig. 10 Transfer Shaft Gear and (Select) Shim
Fig. 11 Using Tool L-4406-1 with Adapter L-4406-3, Remove Transfer Shaft Gear Bearing Cone
Fig. 12 Install Transfer Shaft Gear Bearing Cone
Fig. 13 Governor Support Retainer
Fig. 14 Remove Governor Support Retainer Bearing Cup
Ä TRANSAXLE 21 - 69

Remove or install both governor valves and
governor body.

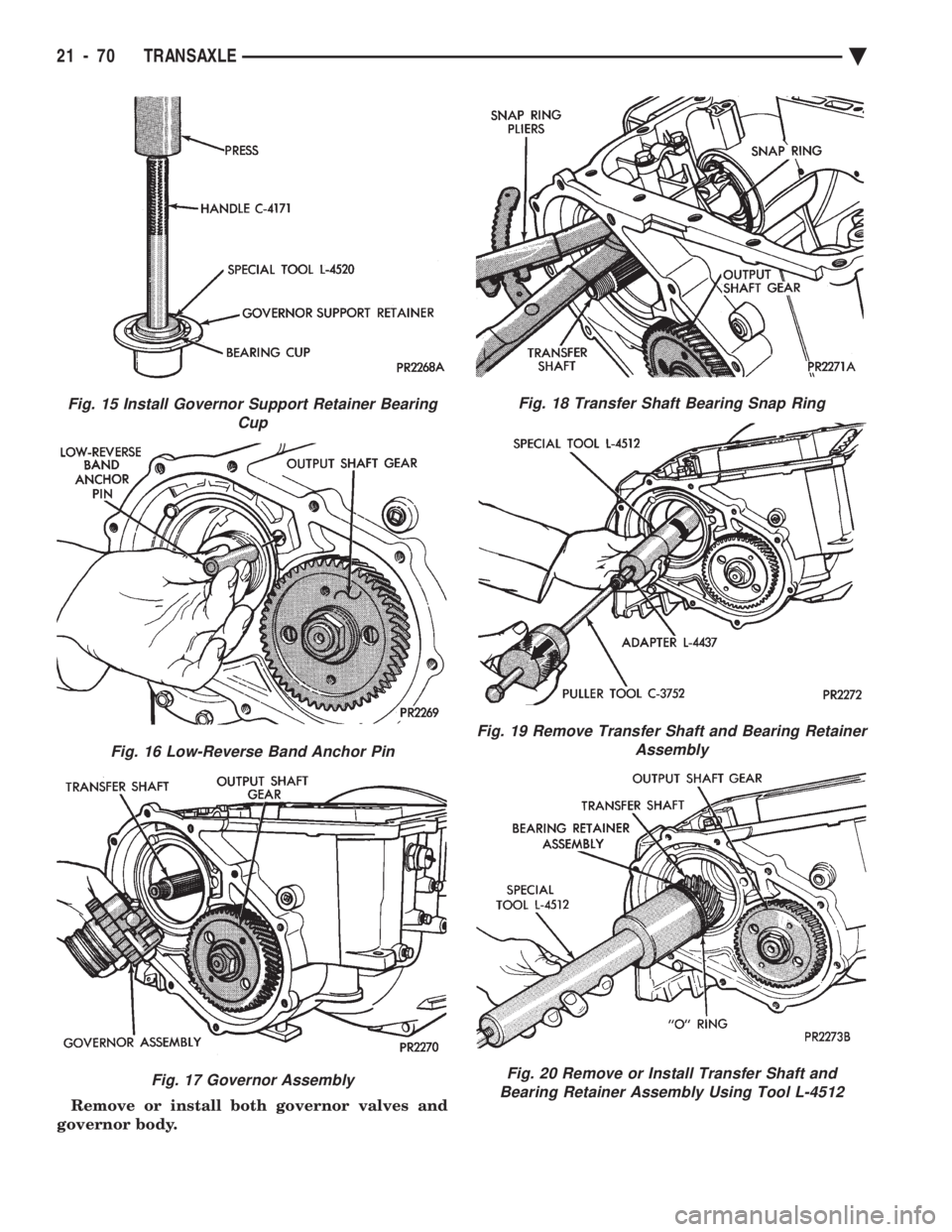

Fig. 18 Transfer Shaft Bearing Snap Ring
Fig. 19 Remove Transfer Shaft and Bearing Retainer Assembly
Fig. 20 Remove or Install Transfer Shaft and
Bearing Retainer Assembly Using Tool L-4512
Fig. 15 Install Governor Support Retainer Bearing Cup
Fig. 16 Low-Reverse Band Anchor Pin
Fig. 17 Governor Assembly
21 - 70 TRANSAXLE Ä
