Page 2321 of 2438

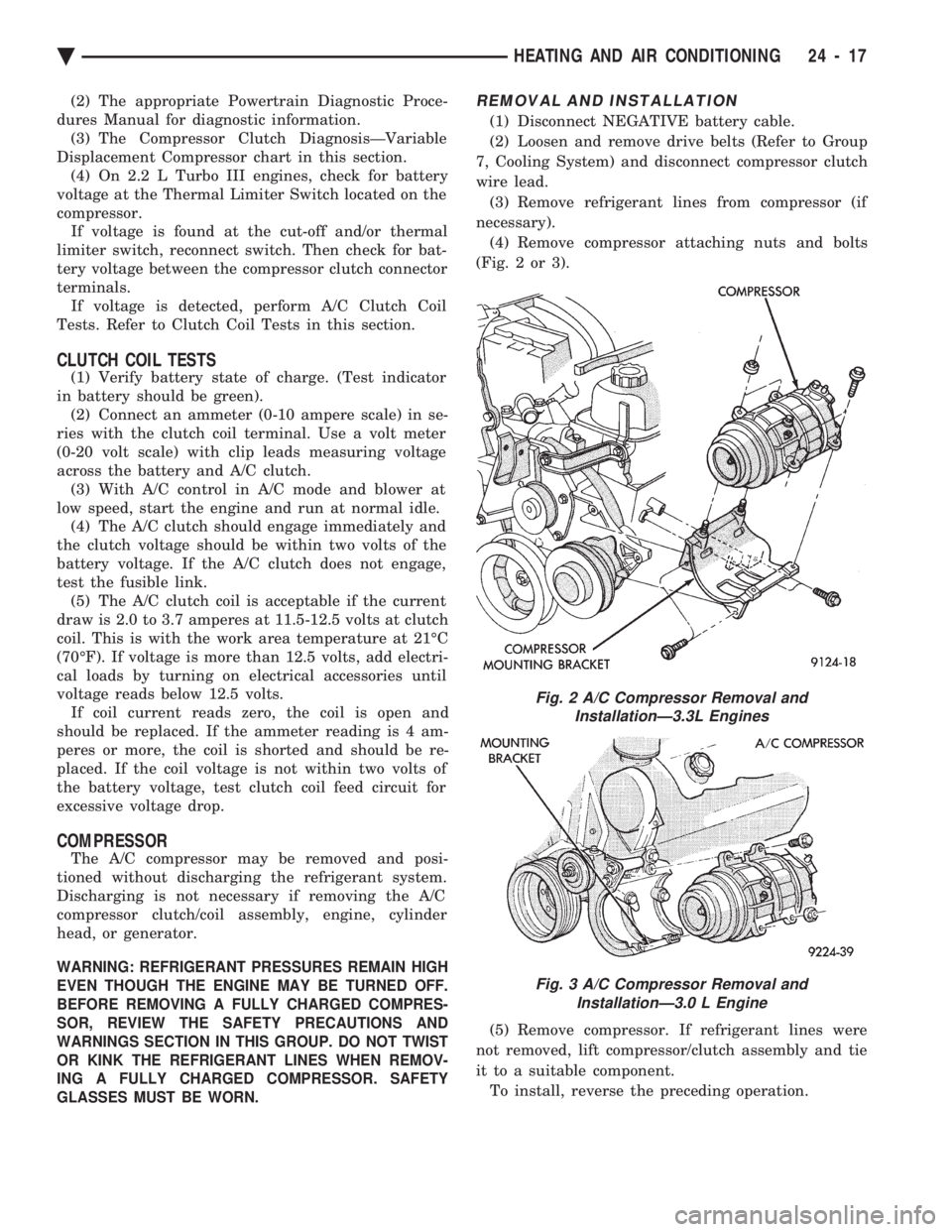

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) The appropriate Powertrain Diagnostic Proce-
dures Manual for diagnostic information. (3) The Compressor Clutch DiagnosisÐVariable
Displacement Compressor chart in this section. (4) On 2.2 L Tur

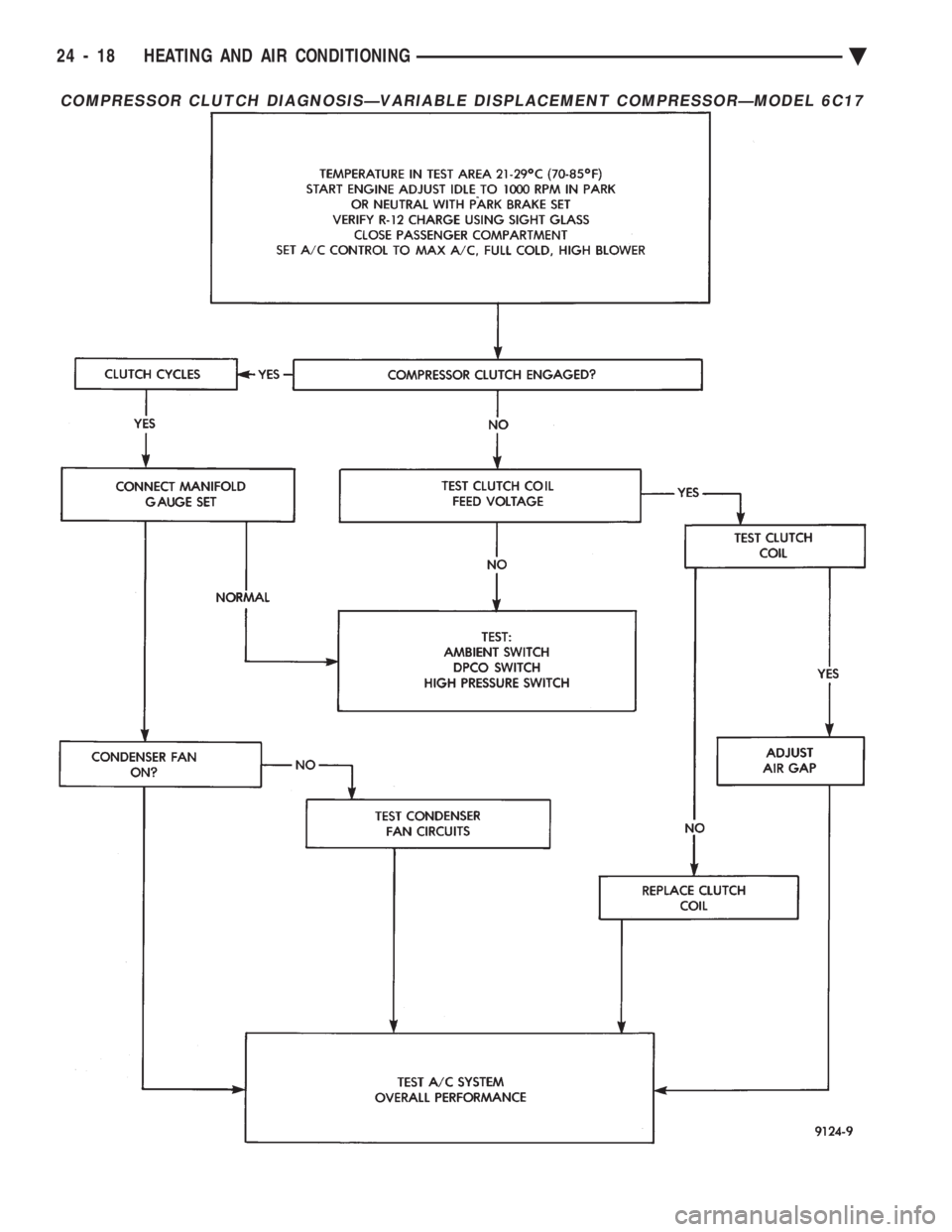

Page 2322 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual COMPRESSOR CLUTCH DIAGNOSISÐVARIABLE DISPLACEMENT COMPRESSORÐMODEL 6C17
24 - 18 HEATING AND AIR CONDITIONING Ä

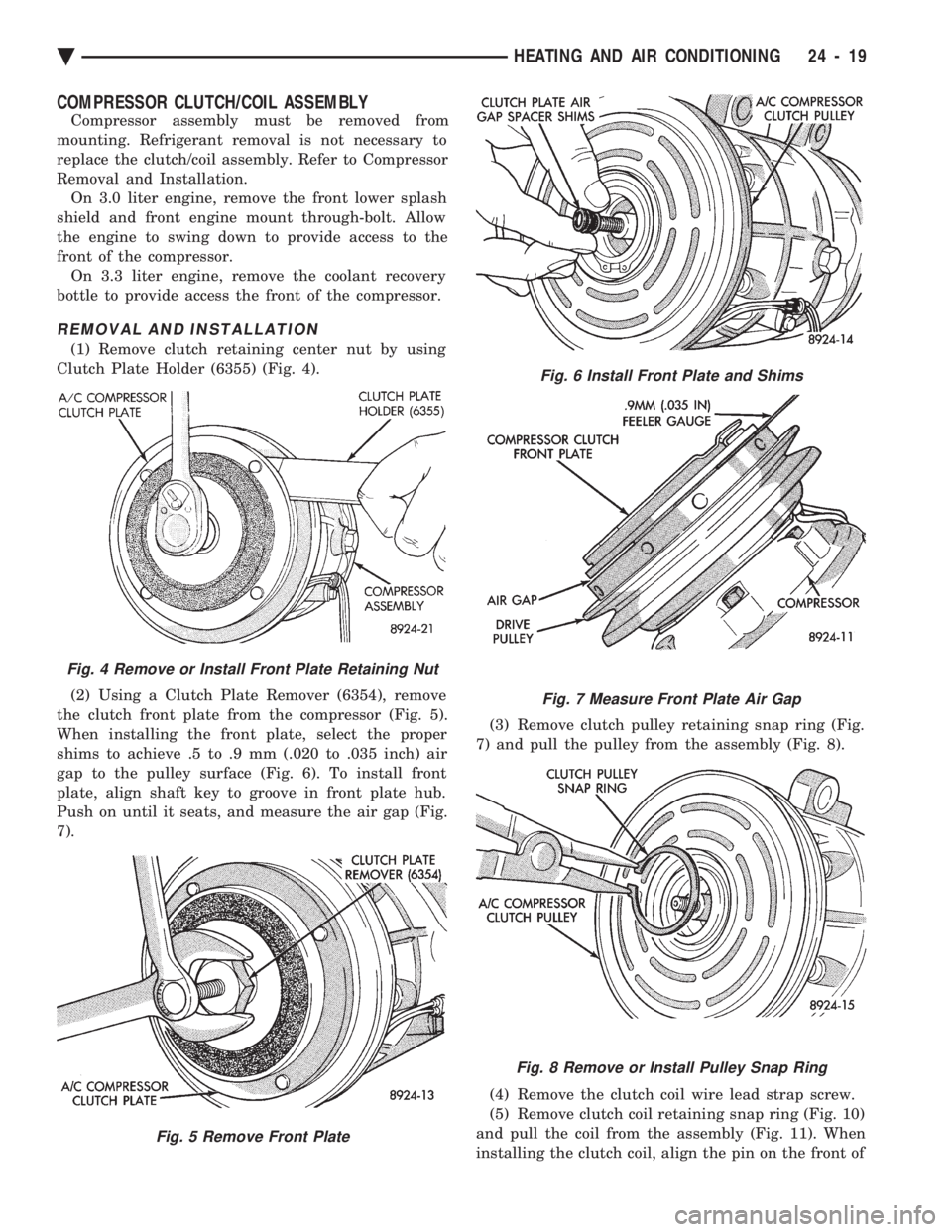

Page 2323 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual COMPRESSOR CLUTCH/COIL ASSEMBLY
Compressor assembly must be removed from
mounting. Refrigerant removal is not necessary to
replace the clutch/coil assembly. Refer to Compressor
Removal and Installati

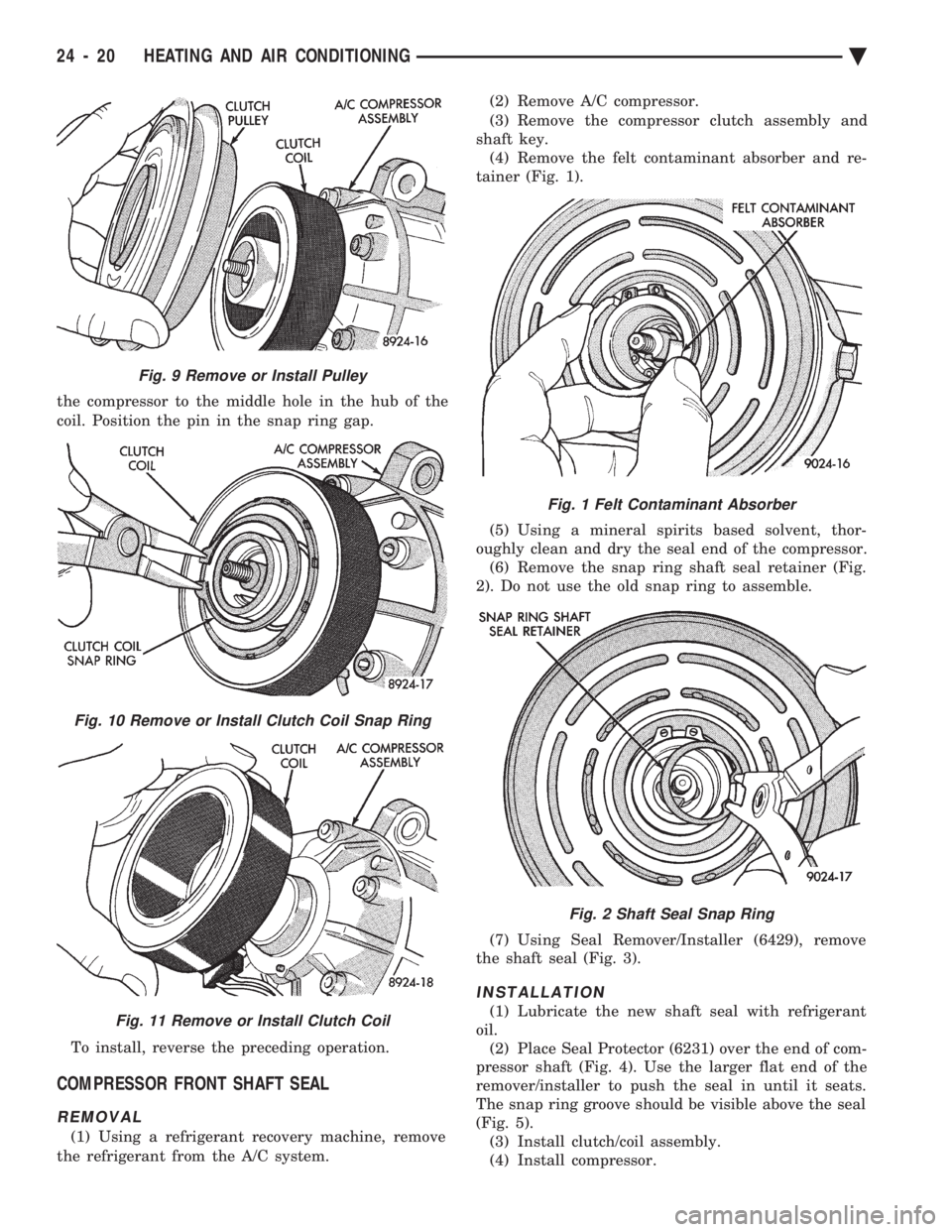

Page 2324 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual the compressor to the middle hole in the hub of the
coil. Position the pin in the snap ring gap.
To install, reverse the preceding operation.
COMPRESSOR FRONT SHAFT SEAL
REMOVAL
(1) Using a refriger

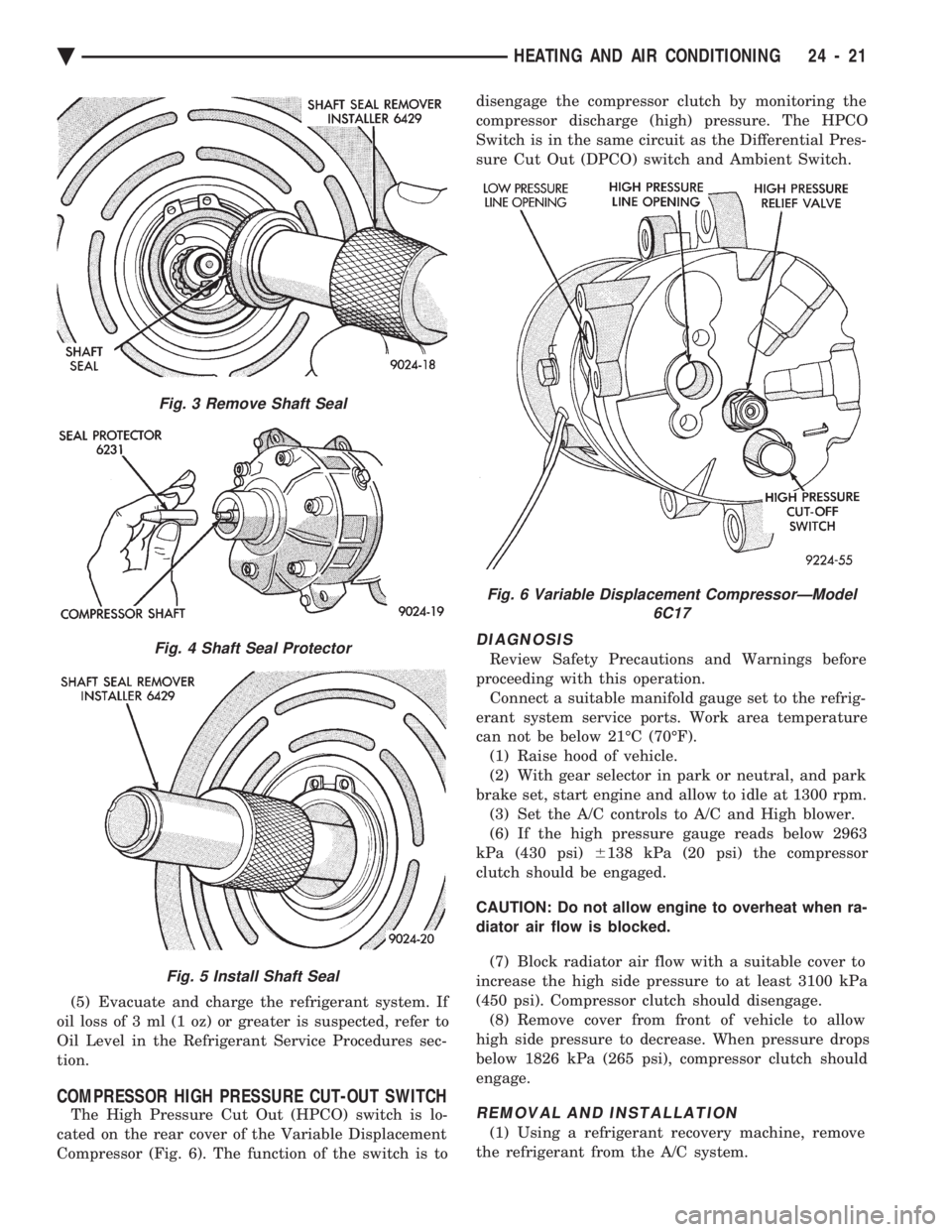

Page 2325 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (5) Evacuate and charge the refrigerant system. If
oil loss of 3 ml (1 oz) or greater is suspected, refer to
Oil Level in the Refrigerant Service Procedures sec-
tion.
COMPRESSOR HIGH PRESSURE CUT-OU

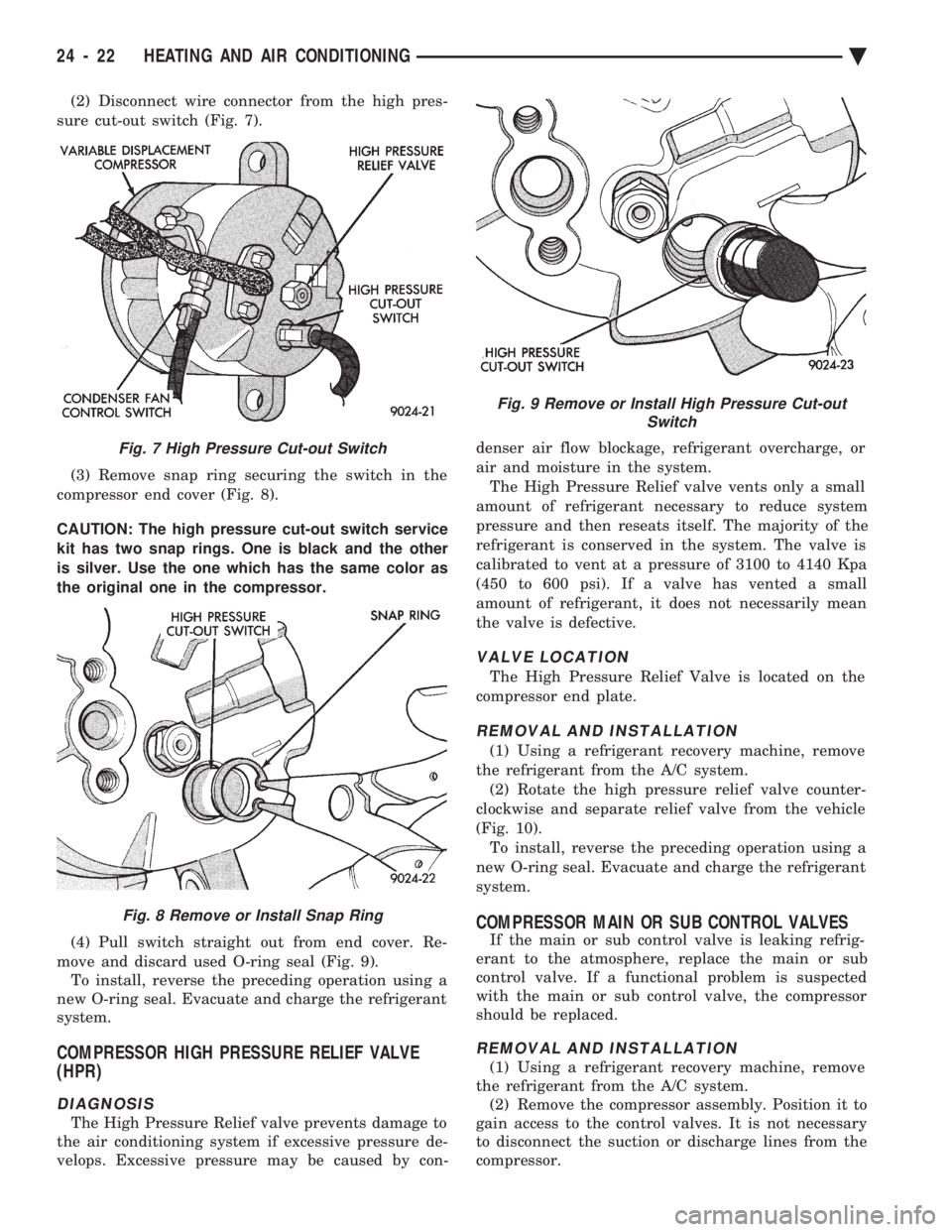

Page 2326 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (2) Disconnect wire connector from the high pres-
sure cut-out switch (Fig. 7).
(3) Remove snap ring securing the switch in the
compressor end cover (Fig. 8).
CAUTION: The high pressure cut-out sw

Page 2327 of 2438

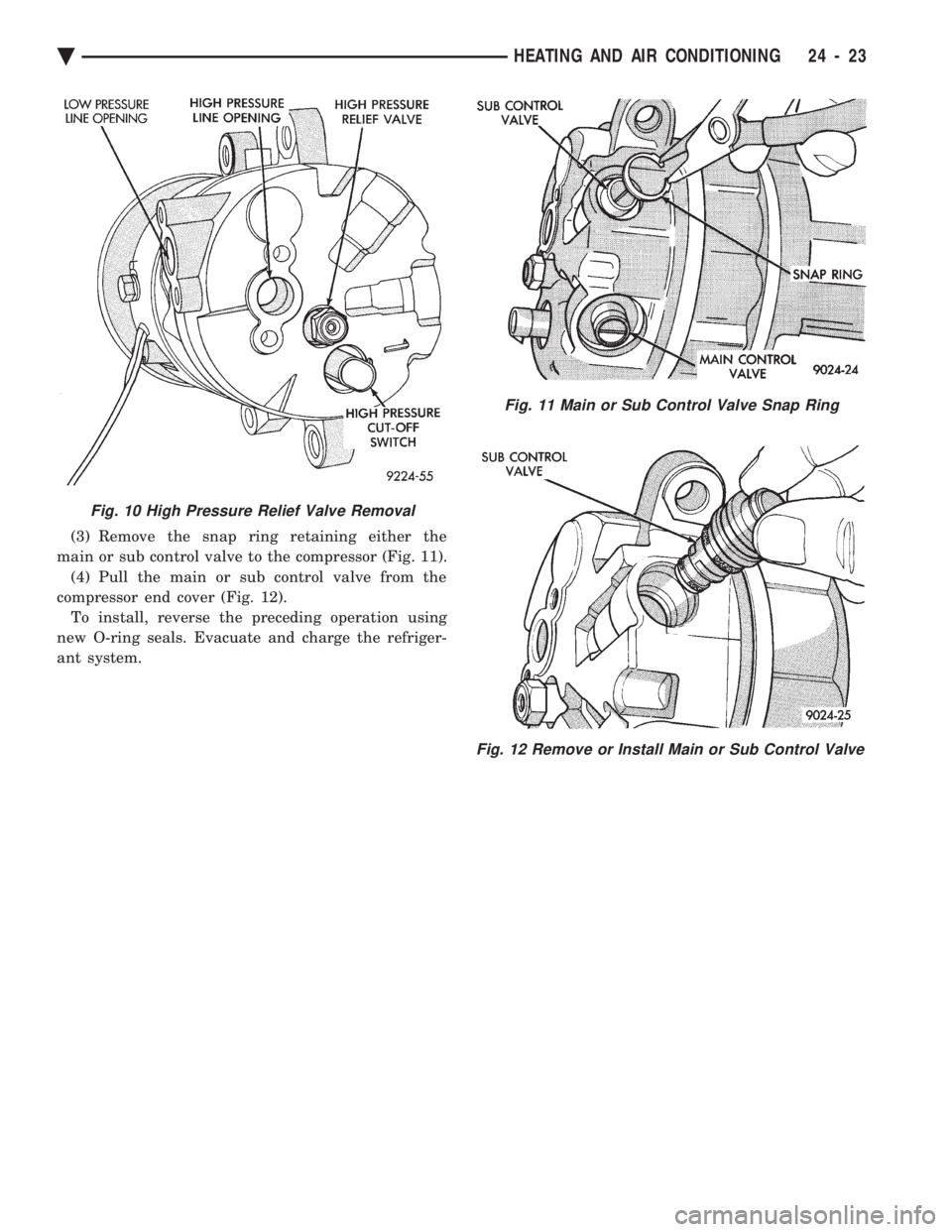

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (3) Remove the snap ring retaining either the
main or sub control valve to the compressor (Fig. 11). (4) Pull the main or sub control valve from the
compressor end cover (Fig. 12). To install, revers

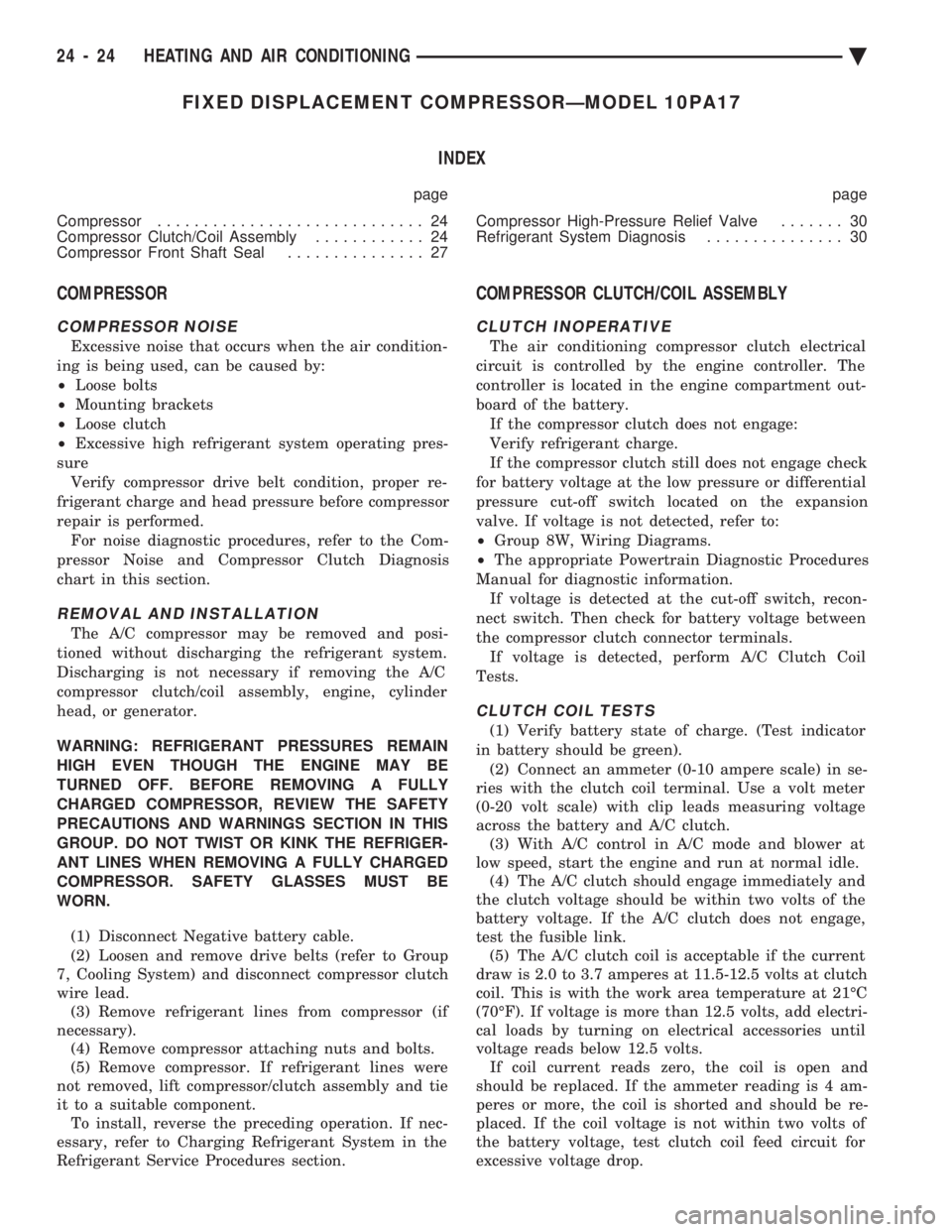

Page 2328 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual FIXED DISPLACEMENT COMPRESSORÐMODEL 10PA17 INDEX
page page
Compressor  ............................. 24
Compressor Clutch/Coil Assembly  ............ 24
Compressor Front Shaft Seal  ..............

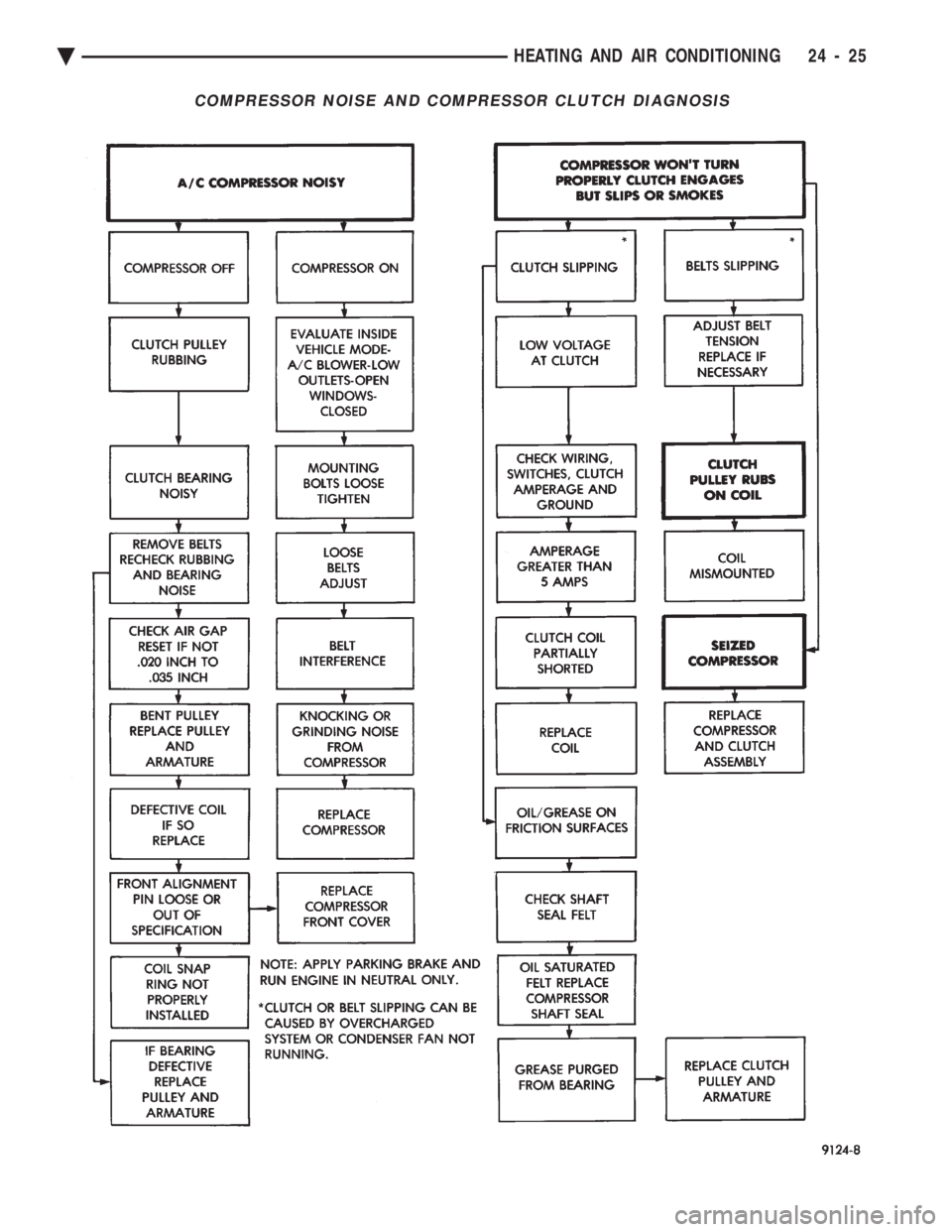

Page 2329 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual COMPRESSOR NOISE AND COMPRESSOR CLUTCH DIAGNOSIS
Ä HEATING AND AIR CONDITIONING 24 - 25

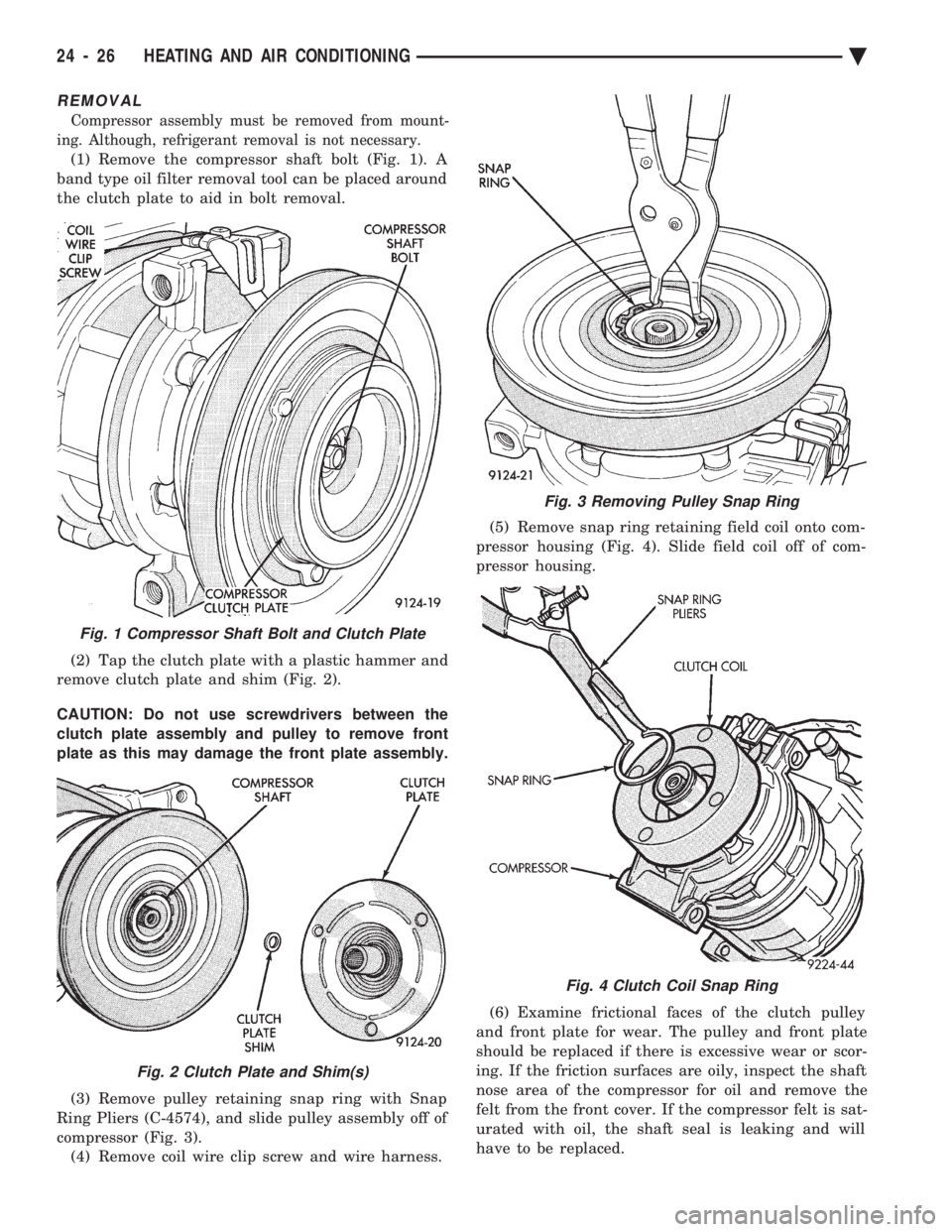

Page 2330 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual REMOVAL
Compressor assembly must be removed from mount-
ing. Although, refrigerant removal is not necessary.
(1) Remove the compressor shaft bolt (Fig. 1). A
band type oil filter removal tool can be
