C203 (UNITED KINGDOM) - WHITE (BODY
SIDE)
CAV CIRCUIT
1 D97 18WT/OR
2 D96 18WT/LB
3 A600 18RD/LB
4 G944 18LB/BR
C203 (UNITED KINGDOM) - WHITE (INSTRU-
MENT PANEL SIDE)
CAV CIRCUIT
1 D97 20WT/OR
2 D96 20WT/LB
3 A600 20RD/LB
4 G944 20LB/BR
C300 (LHD) - BLACK (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z821 12BK/BR (POWER LOCKS)
2 Z75 20BK/VT (EXCEPT POWER LOCKS)
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG (POWER LOCKS)
6 P1 20TN/LG (POWER LOCKS)
7 P3 20TN/WT (POWER LOCKS)
8 F304 12WT/PK (POWER WINDOWS)
8 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/GY (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
C300 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z821 12BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK (POWER WINDOWS)
8 F302 18GY/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/GY (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-25

C303 (LHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z822 20BK/BR (POWER LOCKS)
2 Z74 20BK/WT (EXCEPT POWER
LOCKS)
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG (POWER LOCKS)
6 P2 20TN/GY (POWER LOCKS)
7 P4 20TN/BR (POWER LOCKS)
8 F304 12WT/PK (POWER WINDOWS)
8 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
C303 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z822 20BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK (POWER WINDOWS)
8 F304 18GY/PK (EXCEPT POWER WIN-
DOWS)
9-
10 -
C303 (RHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9-
10 -
11 Q13 16OR/DB
12 Q23 16OR/LB
13 Q14 16OR/GY
14 Q24 16OR/DG
8Wa - 80 - 28 8W-80 CONNECTOR PIN-OUTSRG

DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C61 20LB/WT(RHD) DRIVER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C61 20LB/WT (LHD) DRIVER BLEND DOOR DRIVER (A)
DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (RHD) GROUND
1 Z321 20BK/BR (LHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (RHD) GROUND
3 Z461 20BK/DG (LHD) GROUND
DRIVER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18DB (LHD) HEATED SEAT DRIVER
A S1 18RD (RHD) HEATED SEAT DRIVER
B S2 18DG (LHD) GROUND
B S2 18BK (RHD) GROUND
8Wa - 80 - 50 8W-80 CONNECTOR PIN-OUTSRG

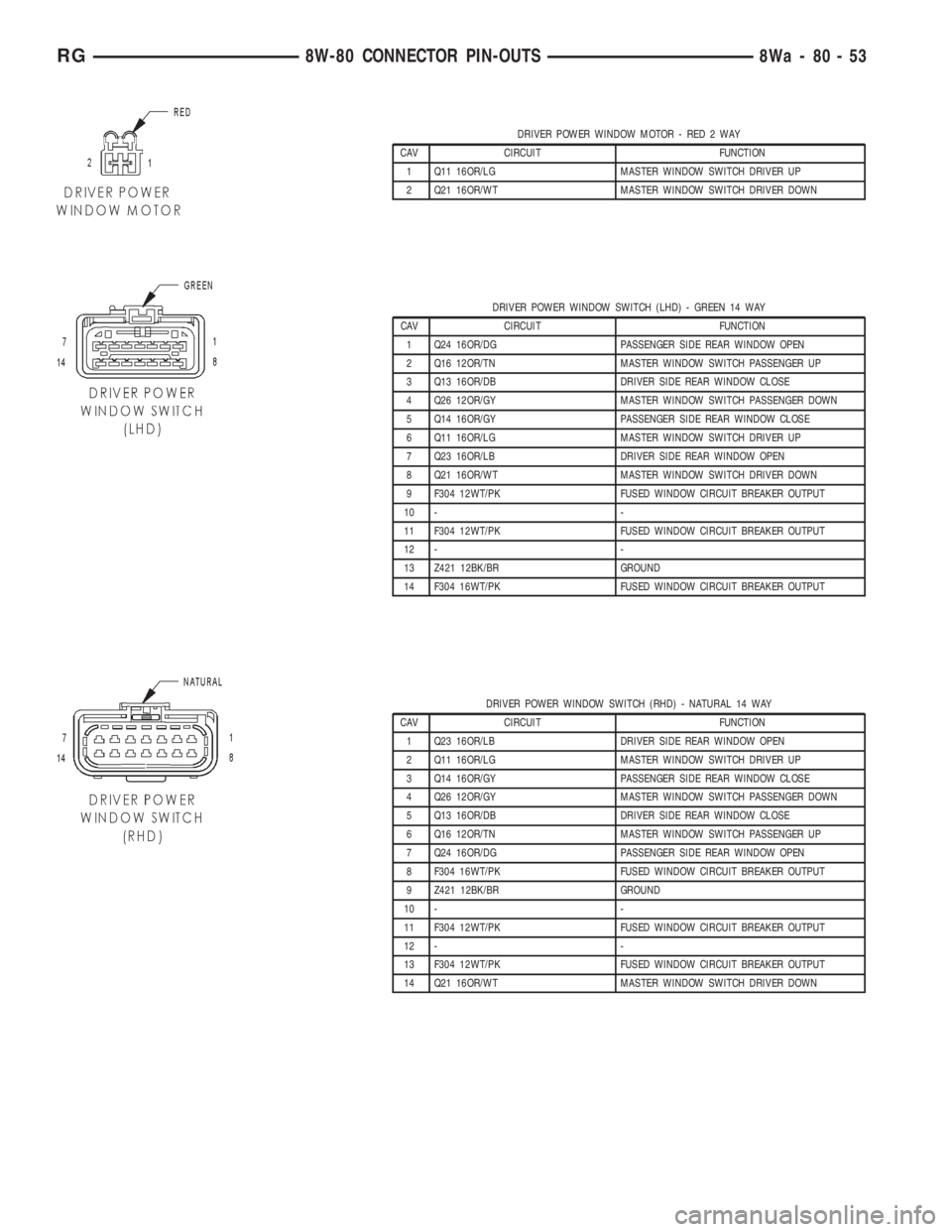

DRIVER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
2 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
DRIVER POWER WINDOW SWITCH (LHD) - GREEN 14 WAY
CAV CIRCUIT FUNCTION
1 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
2 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
3 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
4 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
5 Q14 16OR/GY PASSENGER SIDE REAR WINDOW CLOSE
6 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
7 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
8 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
9 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 Z421 12BK/BR GROUND
14 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
DRIVER POWER WINDOW SWITCH (RHD) - NATURAL 14 WAY
CAV CIRCUIT FUNCTION
1 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
2 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER UP
3 Q14 16OR/GY PASSENGER SIDE REAR WINDOW CLOSE
4 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
5 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
6 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
7 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
8 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
9 Z421 12BK/BR GROUND
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
14 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER DOWN
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-53

INTELLIGENT POWER MODULE C6 - NATURAL 10 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 Z117 16BK/WT GROUND
3 Z118 16BK/YL GROUND
4 A110 12OR/RD (POWER SEAT) FUSED B(+)
5- -
6- -
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 F307 16LB/PK (BATTERY POSITION) FUSED B(+)
8 F307 16LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESORY RELAY OUTPUT
9 A113 12WT/RD (POWER SLIDING
DOOR)FUSED B(+)
10 - -
INTELLIGENT POWER MODULE C7 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 C16 18DB/GY (BUILT-UP-EXPORT) FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
1 C16 20DB/GY (EXCEPT BUILT-UP-EX-
PORT)FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 T751 20YL (EXCEPT BUILT-UP-EX-
PORT)IGNITION SWITCH OUTPUT (START)
2 T141 20YL/OR (BUILT-UP-EXPORT) IGNITION SWITCH OUTPUT (START)
3 D25 20WT/VT PCI BUS
4 L13 20WT/YL (BUILT-UP-EXPORT) HEADLAMP ADJUST SIGNAL
5 K32 18DB/YL (GAS) BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
6- -
7 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
8 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
9 F201 18PK/OR FCM OUTPUT (RUN-START)
10 F214 18PK/LG FCM OUTPUT (RUN-START)
11 A106 20LB/RD FUSED B(+)
12 - -
13 F2 18PK/WT (GAS) FCM OUTPUT (UNLOCK-RUN-START)
14 - -
15 A114 16GY/RD FUSED B(+) (I.O.D.)
16 D23 20WT/BR FLASH PROGRAM ENABLE
17 L50 18WT/TN PRIMARY BRAKE SWITCH SIGNAL
18 X1 16DG/BR (PREMIUM 8 SPEAKER) NAME BRAND SPEAKER RELAY OUTPUT
19 X3 20DG/VT HORN SWITCH SENSE
20 F100 18PK/VT FCM OUTPUT (RUN)
8Wa - 80 - 70 8W-80 CONNECTOR PIN-OUTSRG

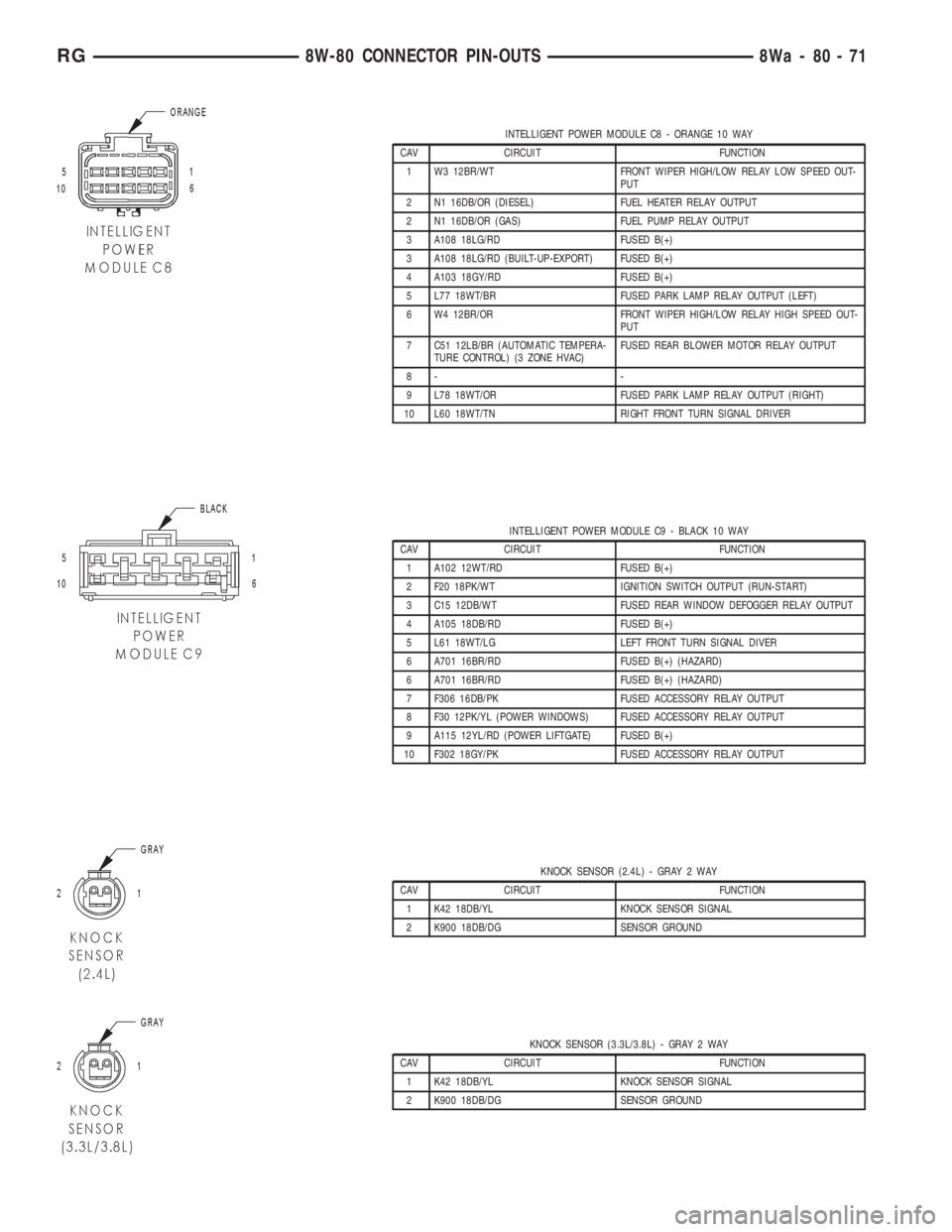

INTELLIGENT POWER MODULE C8 - ORANGE 10 WAY
CAV CIRCUIT FUNCTION
1 W3 12BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT-
PUT
2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT
2 N1 16DB/OR (GAS) FUEL PUMP RELAY OUTPUT
3 A108 18LG/RD FUSED B(+)
3 A108 18LG/RD (BUILT-UP-EXPORT) FUSED B(+)
4 A103 18GY/RD FUSED B(+)
5 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
6 W4 12BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUT-
PUT
7 C51 12LB/BR (AUTOMATIC TEMPERA-
TURE CONTROL) (3 ZONE HVAC)FUSED REAR BLOWER MOTOR RELAY OUTPUT
8- -
9 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
10 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
INTELLIGENT POWER MODULE C9 - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 A102 12WT/RD FUSED B(+)
2 F20 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
3 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 A105 18DB/RD FUSED B(+)
5 L61 18WT/LG LEFT FRONT TURN SIGNAL DIVER
6 A701 16BR/RD FUSED B(+) (HAZARD)
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
8 F30 12PK/YL (POWER WINDOWS) FUSED ACCESSORY RELAY OUTPUT
9 A115 12YL/RD (POWER LIFTGATE) FUSED B(+)
10 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
KNOCK SENSOR (2.4L) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K42 18DB/YL KNOCK SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
KNOCK SENSOR (3.3L/3.8L) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K42 18DB/YL KNOCK SENSOR SIGNAL
2 K900 18DB/DG SENSOR GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-71

LEFT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT(LEFT)
LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (BUILT-UP-EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 20TN/OR (EXCEPT BUILT-UP-
EXPORT/MEMORY)MIRROR B(+)
3 P114 20TN/WT (EXCEPT BUILT-UP-
EXPORT/MEMORY)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (BUILT-UP-EXPORT/
RHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (BUILT-UP-EXPORT/
LHD)DRIVER FOLDING MIRROR FOLD DRIVER
8 Z215 20BK/LG GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR HORIZONTAL DRIVER
12 P75 20TN/LG LEFT MIRROR VERTICAL DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z363 18BK/DG (BUILT-UP-EXPORT) GROUND
1 L63 18WT/DG (EXCEPT BUILT-UP-EX-
PORT)LEFT REAR TURN SIGNAL DRIVER
2 L62 18WT/BR (EXCEPT BUILT-UP-EX-
PORT)RIGHT REAR TURN SIGNAL DRIVER
2 L63 18WT/DG (BUILT-UP-EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L77 18WT/BR (EXCEPT BUILT-UP-EX-
PORT)FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (BUILT-UP-EXPORT) PRIMARY BRAKE SWITCH SIGNAL
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
5 Z363 18BK/DG (EXCEPT BUILT-UP-
EXPORT)GROUND
6 L50 18WT/TN (EXCEPT BUILT-UP-EX-
PORT)PRIMARY BRAKE SWITCH SIGNAL
6 L77 18WT/BR (BUILT-UP-EXPORT) FUSED PARK RELAY OUTPUT (LEFT)
8Wa - 80 - 76 8W-80 CONNECTOR PIN-OUTSRG

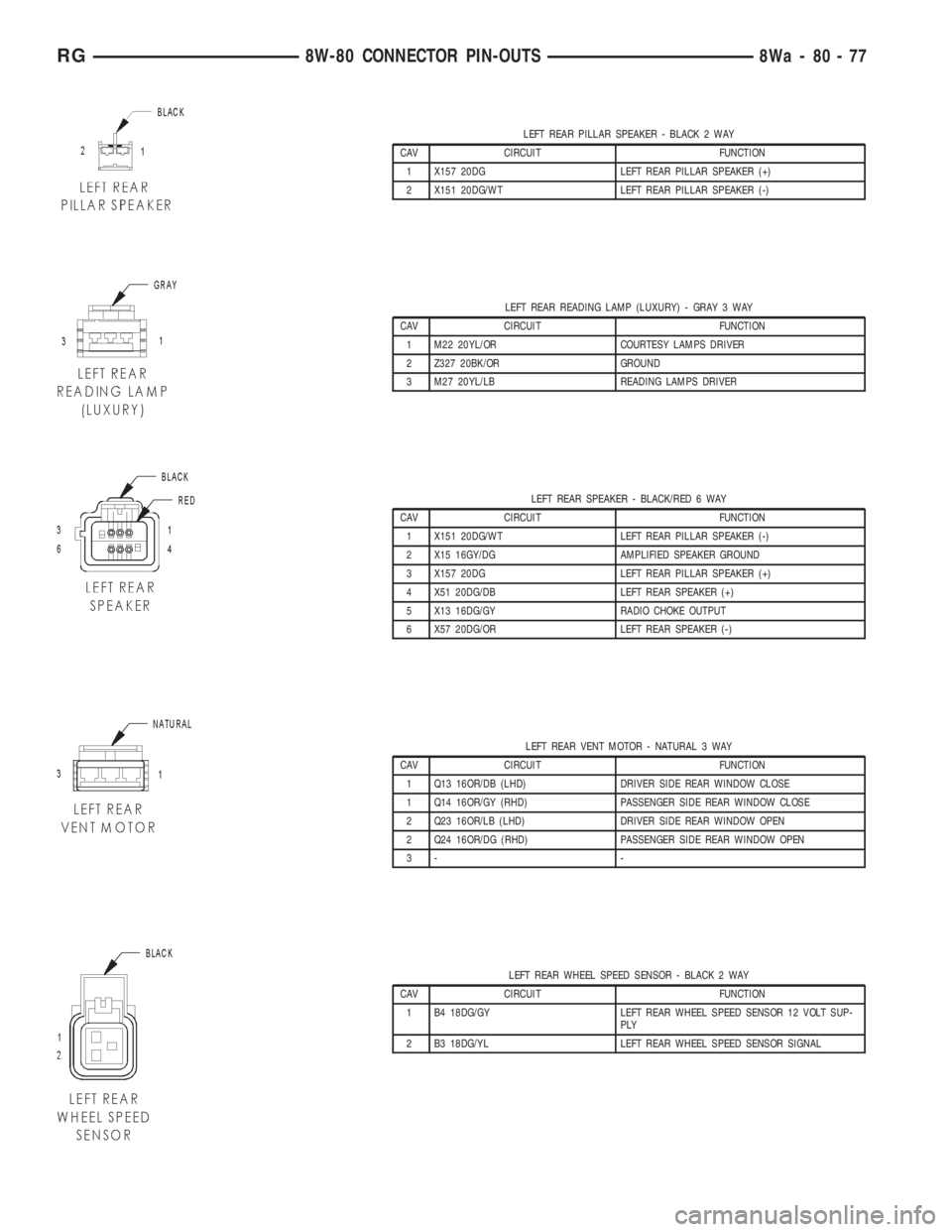

LEFT REAR PILLAR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X157 20DG LEFT REAR PILLAR SPEAKER (+)
2 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
LEFT REAR READING LAMP (LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
LEFT REAR SPEAKER - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X151 20DG/WT LEFT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG AMPLIFIED SPEAKER GROUND
3 X157 20DG LEFT REAR PILLAR SPEAKER (+)
4 X51 20DG/DB LEFT REAR SPEAKER (+)
5 X13 16DG/GY RADIO CHOKE OUTPUT
6 X57 20DG/OR LEFT REAR SPEAKER (-)
LEFT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 Q13 16OR/DB (LHD) DRIVER SIDE REAR WINDOW CLOSE
1 Q14 16OR/GY (RHD) PASSENGER SIDE REAR WINDOW CLOSE
2 Q23 16OR/LB (LHD) DRIVER SIDE REAR WINDOW OPEN
2 Q24 16OR/DG (RHD) PASSENGER SIDE REAR WINDOW OPEN
3- -
LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-77

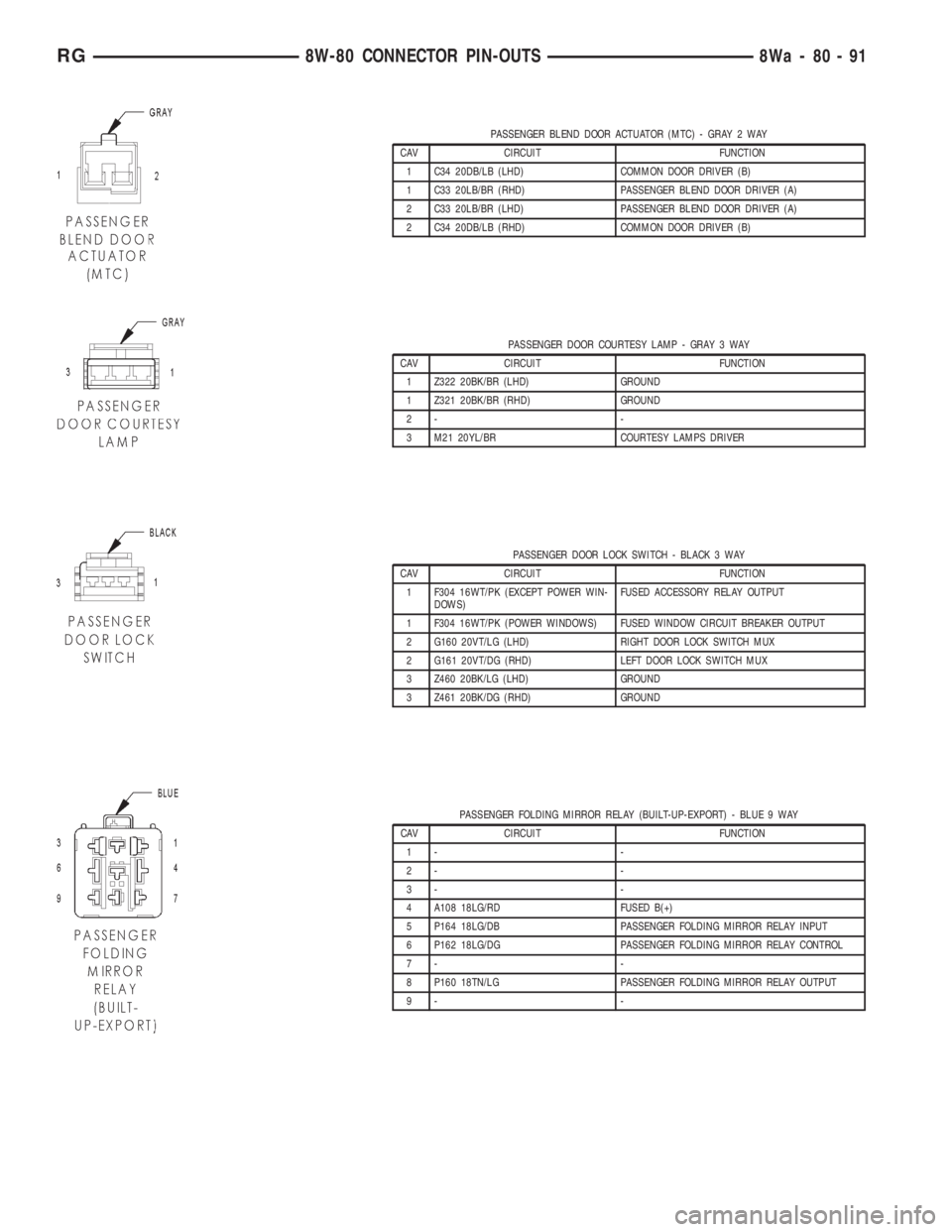

PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A)
2 C33 20LB/BR (LHD) PASSENGER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
PASSENGER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (LHD) GROUND
1 Z321 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
PASSENGER FOLDING MIRROR RELAY (BUILT-UP-EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-91

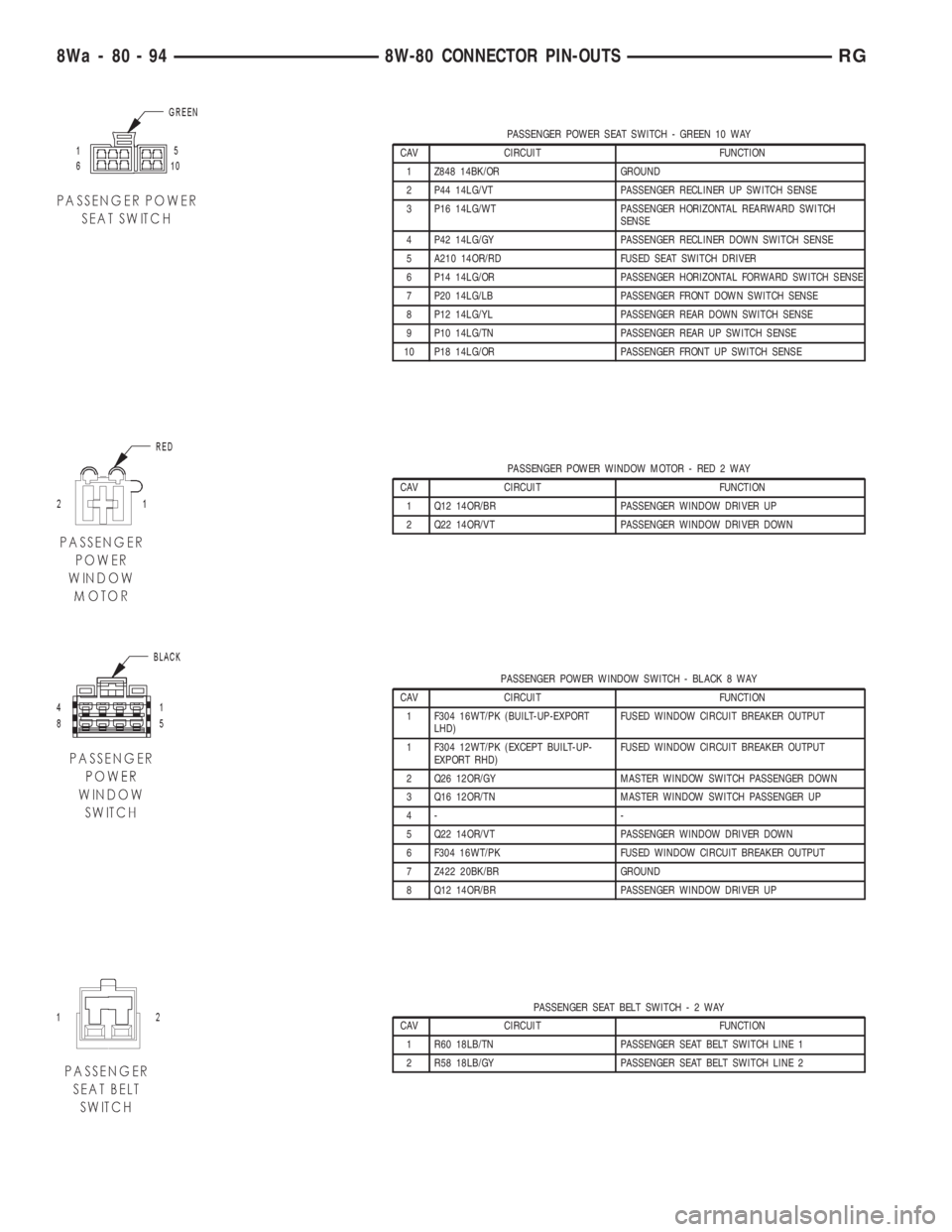

PASSENGER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z848 14BK/OR GROUND
2 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
3 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
4 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD FUSED SEAT SWITCH DRIVER
6 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
7 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
8 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
9 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
10 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
PASSENGER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q12 14OR/BR PASSENGER WINDOW DRIVER UP
2 Q22 14OR/VT PASSENGER WINDOW DRIVER DOWN
PASSENGER POWER WINDOW SWITCH - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (BUILT-UP-EXPORT
LHD)FUSED WINDOW CIRCUIT BREAKER OUTPUT
1 F304 12WT/PK (EXCEPT BUILT-UP-
EXPORT RHD)FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
3 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
4- -
5 Q22 14OR/VT PASSENGER WINDOW DRIVER DOWN
6 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
7 Z422 20BK/BR GROUND
8 Q12 14OR/BR PASSENGER WINDOW DRIVER UP
PASSENGER SEAT BELT SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
2 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
8Wa - 80 - 94 8W-80 CONNECTOR PIN-OUTSRG
