CITROEN C6 2005 Owners Manual

Downloaded from www.Manualslib.com manuals search engine INJECTION
85

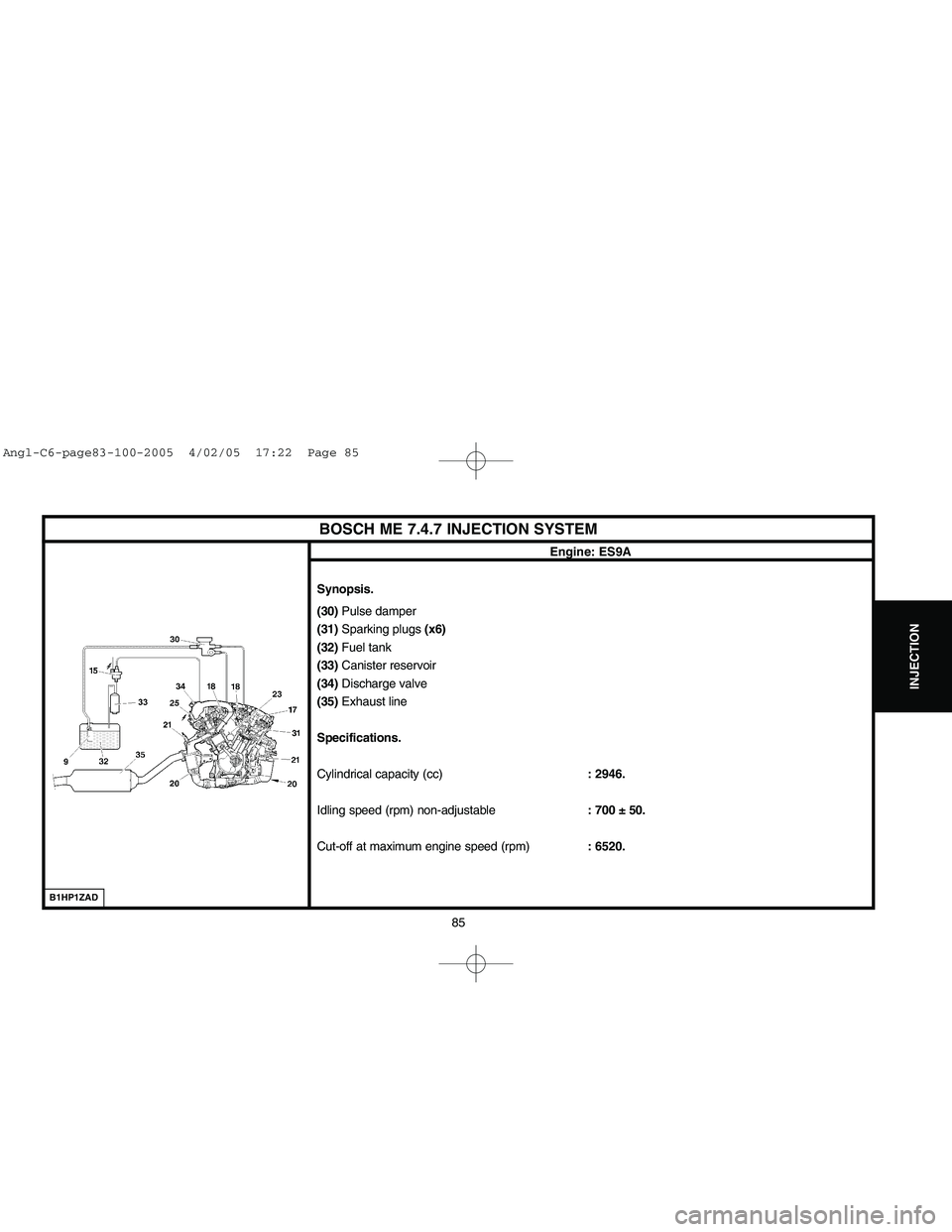

BOSCH ME 7.4.7 INJECTION SYSTEM
Engine: ES9A
Synopsis.
(30)Pulse damper
(31)Sparking plugs (x6)
(32)Fuel tank
(33)Canister reservoir
(34)Discharge valve
(35)Exhaust line
Specifications.
Cylindrical capacity (cc): 2946.
Idling speed (rpm) non-adjustable: 700 ± 50.
Cut-off at maximum engine speed (rpm): 6520.
B1HP1ZAD
Angl-C6-page83-100-2005 4/02/05 17:22 Page 85

Downloaded from www.Manualslib.com manuals search engine 86
INJECTION
BOSCH ME 7.4.7 INJECTION SYSTEM
Engine: ES9AFuel circuit
Component Location Supplier Reference Observations
Recommended fuel Super unleaded 95 RONor 98 RON
Fuel tank 32Capacity 65 litres
Composition polyethylene
Electric pump submerged in the tank
Fuel pump, filter andVoltage, 12 V
pressure regulator9 MARWALL Pressure, 3 bars
Flow, 115 à 120 l/h
Regulation pressure, 3,5 bars
Canister reservoir 33 PURFLUX PPGF 30 Installation under the front LH wing
Electrovalve normally closed
Canister purge 15 BOSCH 0 280 142 3172-way brownconnector
electrovalveInstallation, under the front LH wing
Resistance, 24 ohms
EV 14 Group of injectors, 1-2-3, 2-way brownconnector
0 280 155 613 Group of injectors, 4-5-6, 2-way blackconnector
Petrol injectors 18 BOSCH Marking, yellow in colour
Injectors, 4 jets
Resistance, 16 ohms
Pulse damper 30 0 280 161 500Installation, on the timing cover
Equipped with a SCHRAEDERvalve
Angl-C6-page83-100-2005 4/02/05 17:22 Page 86

Downloaded from www.Manualslib.com manuals search engine 87
INJECTION
BOSCH ME 7.4.7 INJECTION SYSTEM
Engine: ES9AAir circuit
Component Location Supplier Reference Observations
Integrated pressure sensor 25DS-S2 03-way greyconnector
261 260 140 Integrated in the inlet manifold
Motorised butterfly housing 14DVE56-way blackconnector
BOSCH 0 280 750 041 Fixing, on the inlet manifold
Accelerator pedal 14 43 336-way blackconnector
position sensor26 Supply, 5 volts
Fixing, on the accelerator
Electrical circuit
ME 7.4.7.128-wayconnector
Ignition injection
29 BOSCH0 261 B00 736 Sequential injection
ECU"Flash"type Eprom (reprogrammable eprom)
Installation, in the electronic ECU compartment
280 9112-way blueconnector
Opening of contact at 20 bars
Power steering pressureFor ECU information
sensor 24 BITRON(steering on full lock)
Marking mauve ring seal
Fixing : on the power steering high pressure
pump outlet pipe
Angl-C6-page83-100-2005 4/02/05 17:22 Page 87

Downloaded from www.Manualslib.com manuals search engine 88
INJECTION
BOSCH ME 7.4.7 INJECTION SYSTEM
Engine: ES9AElectrical circuit
Component Location Supplier Reference Observations
Inlet air temperature sensor 27 JAEGER 402 084 012-way greyconnector
Fixing: on the air filter inlet duct
Camshaft position
13 ELECTRICFIL14 43 2514 43 3-way grey connector
sensor25
Fixing: on the inlet camshaft bearing cap cover
3-way green connector
Knock sensor 23 BOSCH 0 261 231 10 Fixing: on the central part of the «V»of the engine block
Essential to respect tightening torque: 2 ± 0,5 m.daN
DAV 402 243 032-way greenconnector
Engine coolant temperature 22Fixing: on the coolant outlet housing
sensor
14 43 32Tightening torque:
ELECTRICFILTighten to: 2 ± 0,2 m.daN
Engine speed sensor 12 14 43 282-way blackconnector
Fixing: on the gearbox clutch housing
Angl-C6-page83-100-2005 4/02/05 17:22 Page 88

Downloaded from www.Manualslib.com manuals search engine 89
INJECTION
BOSCH ME 7.4.7 INJECTION SYSTEM
Engine: ES9AIgnition circuit
Component Location Supplier Reference Observations
BOSCH FGR8MQPEElectrode gap: 1 mm
Sparking plugs 31Tightening torque
NGK PFR6E 10Tighten to: 1 ± 0,1 m.daN
Angular tightening: 90°
Pencil type ignition 17 SAGEM BAC 14-way blackconnector
coils 2526140 Twin-static type ignition
Exhaust circuit
4-way greenconnector
Upstream oxygen sensor 21 258 040 232 Front fixing: on the exhaust manifold
Rear fixing: on the pre-catalyser
BOSCH4-way blueconnector
Front fixing: on the pre-catalyser
Downstream oxygen sensor 20 258 006 185 Rear fixing: on the pre-catalyser
Tightening torque
Tighten to: 4,7 ± 0,1 m.daN
Angl-C6-page83-100-2005 4/02/05 17:22 Page 89

Downloaded from www.Manualslib.com manuals search engine 90
INJECTION
PROHIBITED OPERATIONS: SIEMENS HDI DIRECT INJECTION SYSTEM
Engine: DT17BTED4
Cleaning.
The use of high pressure cleaners is prohibited.
Do not use compressed air.
Fuel supply circuit.
Required fuel: Diesel.
WARNING: Do not use other fuels.
Electrical circuit.
Swapping injection ECUs between two vehicles will render it impossible to start either vehicle.
It is forbiddento supply a diesel injector with 12 volts.
Do not disconnect a diesel injector when the engine is running.
Fuel high pressure pump.
Do not separate the fuel high pressure pump (1)from the following components:
- The sealing ring (a)(no replacement parts).
- The high pressure outlet connector (b)(will cause a malfunction).
- The fuel pressure regulator (c)(no replacement parts).
- The flow electrovalve (d)(no replacement parts).
B1HP23GC
Angl-C6-page83-100-2005 4/02/05 17:22 Page 90

Downloaded from www.Manualslib.com manuals search engine 91
INJECTION
PROHIBITED OPERATIONS: SIEMENS HDI DIRECT INJECTION SYSTEM
Engine: DT17BTED4
B1HP23JCB1HP23HC
Diesel injectors.
WARNING: Diesel and ultrasonic cleaners are prohibited.Do not separate the diesel injector carrier (2)from the following components:
- Diesel injector (g)(no replacement parts).
- The fuel flow actuator (e)(destruction).
Do not move the nut (f)(will cause a malfunction).
Do not separate the union (h)from a diesel injector.
It is forbidden
to clean the carbon deposits from the diesel injector nozzle.
Central fuel high pressure common injection rail.
Do not separate the fuel high pressure sensor (j)from the central fuel high pressure injection rail (3).
Angl-C6-page83-100-2005 4/02/05 17:22 Page 91

Downloaded from www.Manualslib.com manuals search engine 92
INJECTION
SAFETY REQUIREMENTS: HDi DIRECT INJECTION SYSTEM
Safety requirements.
Preamble.
All interventions on the injection system must be carried out to conform
with the following requirements and regulations:
- Competent health authorities.
- Accident prevention.
- Environmental protection.
WARNING: Repairs must be carried out by specialised personnel
informed of the safety requirements and of the precautions to be
taken.
Safety requirements.
IMPERATIVE: Take into account the very high pressures in the high
pressure fuel circuit (1600 bars), and respect the requirements
below:
- No smoking in proximity to the high pressure circuit when work is being
carried out.
- Avoid working close to flame or sparks.
Engine running:
- Do not work on the high pressure fuel circuit.
- Always stay clear of the trajectory of any possible jet of fuel, which could
cause serious injuries.
- Do not place your hand close to any leak in the high pressure fuel circuit.After the engine has stopped, wait 30 secondsbefore any intervention.
NOTE:This waiting time is necessary in order to allow the high pressure
fuel circuit to return to atmospheric pressure.
Cleanliness requirements.
Preliminary operations.
IMPERATIVE: The technician should wear clean overall.
Before working on the injection system, it may be necessary to
clean the apertures of the following sensitive componen (refer to
corresponding procedures):
- Fuel filter.
- Fuel high pressure pump.
- Fuel high pressure common injection rail.
- Fuel high pressure pipes
- Diesel injector carriers.
IMPERATIVE: After dismantling, immediately block the apertures of
sensitive components with plugs, to avoid the entry of impurities.
Work area:
- The work area must be clean and free of clutter.
- Components being worked on must be protected from dust.
Angl-C6-page83-100-2005 4/02/05 17:22 Page 92

Downloaded from www.Manualslib.com manuals search engine 93
INJECTION
CHECKS: LOW PRESSURE FUEL SUPPLY CIRCUIT
Engine: DT17BTED4
Tools.
[1] Ø 10 mmlow pressure connector: 4215-T
[2] Ø 8 mmlow pressure connector: 4218-T
[3]Pressure gauge for testing boost pressure: 4073-T Kit 4073-T
[4]Extension: 4251-T
Checks.
IMPERATIVE : Respect the safety and cleanliness requirements specific to high pressure
diesel injection (HDi) engines.
Connect the tool [1]between the booster pump and the fuel filter (white mark on the fuel supply
pipe).
Connect the tool [2]downstream of the diesel injectors, between the high pressure fuel pump and
the fuel filter green mark on the fuel return pipe.
Connect the tool [3]on tool [1]or on tool [2].
WARNING: Any check of pressure downstream of the fuel filter is prohibited.
NOTE:To check the pressures while the vehicle is being driven, insert the extension [4] between
tool [3]and tools [1]or [2].
B1BP3CRD
Angl-C6-page83-100-2005 4/02/05 17:22 Page 93

Downloaded from www.Manualslib.com manuals search engine 94
INJECTION
CHECKS: LOW PRESSURE FUEL SUPPLY CIRCUIT
Engine: DT17BTED4
Checks on pressure: static.
Switch on the ignition.
For 3 seconds(normal functioning):
- Fuel supply pressure shown by the pressure gauge[3] = 1.1 ± 0.4 bar.
- Fuel return pressure shown by the pressure gauge [3] = 2 ± 0.5 bar.
Abnormal functioning:
Fuel supply Fuel return
Checks
pressure pressure
Between 2and 3 bar 0.8 ± 0.4 barCheck the condition of the diesel fuel filter
More than 3 barMore than 0.8 barCheck the fuel return circuit (pipe pinched)
Between
Less than 0.8 barCheck the fuel suppy circuit :
0.3and 0.5 barBooster pump (low pressure), piping
Impossible to start the engine:
- Fuel supply pressure less than 0.3 bar.
B1BP3CRD
Angl-C6-page83-100-2005 4/02/05 17:22 Page 94
