FIAT MULTIPLA 2004 1.G Connect NavPlus Manual

120
CONNECT NAV
NAVIGATOR
Scrolling the lists fig. 65
Since only five lines can be displayed,
some lists are split into several
screens. In this case, an arrow will
appear on the bottom right-hand side
to indicate that the list continues.
To scroll the list, turn the knob/but-
ton (11) in the required direction.
A scrolling arrow or will appear
on the penultimate line (from the bot-
tom or from the top). Turn the
knob/button (11) to display the oth-
er lines in the list.Scrolling lists page by page
The longer lists can be scrolled page
by page to seek your destination
faster.
Proceed as follows:
1) turn knob/button (11) to position
the cursor on the arrow in lower
right-hand side of the display
2)press knob/button (11) to confirm
the page change. In this way, the fol-
lowing screen will be shown and the
cursor will remain on the arrow
3)once you have reached the re-
quired page, select as required and
confirm by pressing the knob/button
(11).Entering the destination
“CITY”
Proceed as follows:
1) select DEST. ENTRY in the main
navigation menu with the knob/button
(11)
2) confirm the selection by pressing
the knob/button (11)
3) use the knob/button (11) to se-
lect CITY fig. 66
4)confirm the selection by pressing
the knob/button (11). The destination
entry menu will be opened
5) position the cursor on the re-
quired character by turning the
knob/button (11)
fig. 66F0E3038gfig. 65F0E3037g

121
CONNECT NAV
NAVIGATOR
6)press the knob/button (11) to
confirm. The selected character is dis-
played in the editing field 3-fig. 64
7) repeat the procedure for the oth-
er letters in the name
8)when entering the name, the list
of destinations matching the entered
letters will appear in the editing list 2-
fig. 64.
9) position the cursor on the symbol
jand press the knob/button (11) or
hold the knob/button (11) pressed for
longer than two seconds. The alpha-
betical list of destinations will appear
10)turn the knob/button (11) to
seek the required town destination
name in the editing list
11) confirm the destination by press-
ing the knob/button (11).Press ESC (9) to not confirm the
destination and return to the editing
menu (Speller) fig. 64.
After selecting the destination, the
sound/navigation system offers the fol-
lowing options: STREET, CENTRE,
DEST. SURROUND)
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
“STREET” The destination street
can be entered. This option depends
on the size of the town and data
stored on the navigation CD.Confirm the street. The entering
procedure will continue with the fol-
lowing options:
– CONTINUE: select this item to
continue;
– INTERSECTION: select this item
to define an intersection with the pre-
viously selected street as a destination.
In this case, an alphabetical list where
to select the required intersection will
be displayed;
– HOUSE NUMBER: select this item
to define a house number on the pre-
viously selected street as a destination.
“CENTRE” The town centre or
district (for big cities) can be entered
as a destination.

122
CONNECT NAV
NAVIGATOR
“P.O.I.” Special destinations in the
surroundings of the town - e.g.: mo-
torways, railway stations, shopping
centres, etc. - can be directly select-
ed
The system will automatically return
to the main navigation menu after the
entry.
Select ROUTE GUIDANCE and
confirm by pressing the knob/button
(11).
The system will calculate the route
in a few seconds and start providing
visual instructions (drawings) and
voice messages to guide you to your
destination.
Press ESC (9) to return to the pre-
vious menu.Entering the destination
“STREET”
You can specify a street as a desti-
nation in the previously selected town
as follows:
1)select DEST. ENTRY fig. 62in
the main navigation menu with the
knob/button (11)
2) confirm the selection by pressing
the knob/button (11)
3)use the knob/button (11) to se-
lect STREET fig. 67. The editing menu
for entering the street fig. 68will be
displayed4)press the knob/button (11) to
confirm, the menu for entering the
destination will be displayed
5) position the cursor on the re-
quired character by turning the
knob/button (
11)
6) confirm the selected character by
pressing the knob/button (
11). The
selected character will appear in the
editing field
7) repeat the procedure for the oth-
er letters in the name
8) when entering the name, the list
of destinations matching the entered
letters will appear in the editing list
fig. 68F0E3042gfig. 67F0E3039g

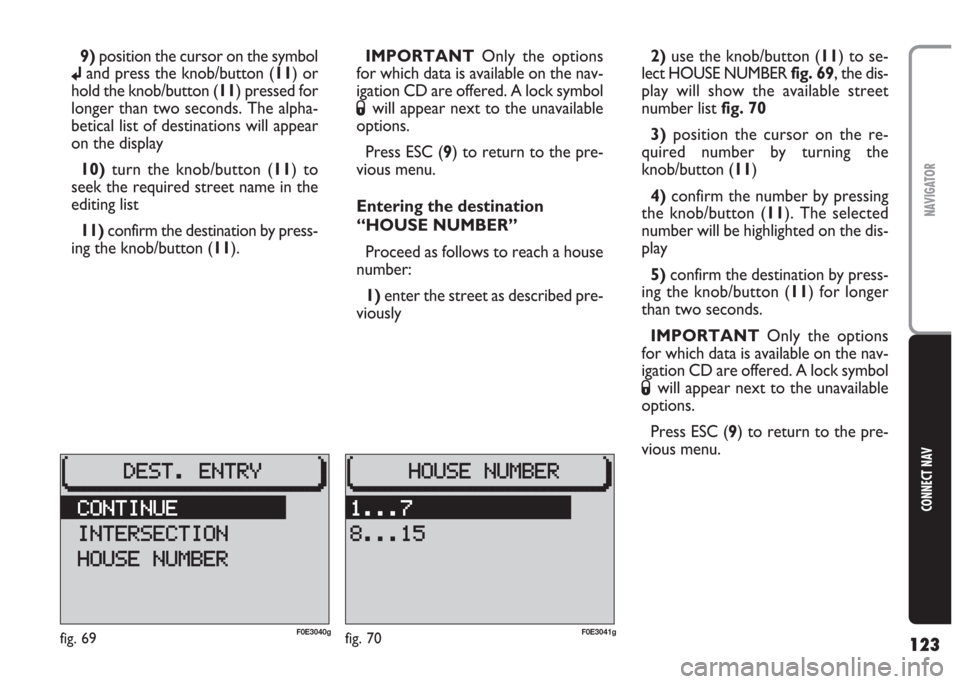

123
CONNECT NAV
NAVIGATOR
9)position the cursor on the symbol
jand press the knob/button (11) or
hold the knob/button (11) pressed for
longer than two seconds. The alpha-
betical list of destinations will appear
on the display
10)turn the knob/button (11) to
seek the required street name in the
editing list
11) confirm the destination by press-
ing the knob/button (11).IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
Press ESC (9) to return to the pre-
vious menu.
Entering the destination
“HOUSE NUMBER”
Proceed as follows to reach a house
number:
1) enter the street as described pre-
viously2)use the knob/button (11) to se-
lect HOUSE NUMBERfig. 69, the dis-
play will show the available street
number listfig. 70
3) position the cursor on the re-
quired number by turning the
knob/button (11)
4)confirm the number by pressing
the knob/button (11). The selected
number will be highlighted on the dis-
play
5)confirm the destination by press-
ing the knob/button (11) for longer
than two seconds.
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
Press ESC (9) to return to the pre-
vious menu.
fig. 69F0E3040gfig. 70F0E3041g

124
CONNECT NAV
NAVIGATOR
Entering the destination
“INTERSECTION”
Proceed as follows to reach an in-
tersection:
1) enter the street name as de-
scribed above
2) use the knob/button (11) to
select INTERSECTION fig. 69, the
display will show the intersection list
fig. 76.
IMPORTANT If the list includes
more than 5 names, see paragraph
“Entering the destination name” in this
section
to speed up the search.3)position the cursor on the re-
quired intersection by turning the
knob/button (11)
4)confirm the intersection by press-
ing the knob/button (11).
IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
Press ESC (9) to return to the pre-
vious menu.Entering the destination
“TOWN CENTRE”
Proceed as follows to reach town
centre:
1) from the main menu, use the
knob/button (11) to select DEST. EN-
TRY fig. 72.
2)confirm the selection by pressing
the knob/button (11). The destination
entry menu will be started
3) use the knob/button (11) to se-
lect CENTRE fig. 73, the display will
show the editing menu for entering
the town (see “Entering the destina-
tion “City” in this section).
fig. 72F0E3034gfig. 71F0E3043g

125
CONNECT NAV
NAVIGATOR
4)enter the town and confirm with
the knob/button (11). The list of town
centres and districts will appear on the
display
5)position the cursor on the re-
quired town centre by turning the
knob/button (11)
6)confirm the selection by pressing
the knob/button (11). The selected
town centre will be highlighted on the
display
7) confirm the destination by press-
ing the knob/button (11).IMPORTANT Only the options
for which data is available on the nav-
igation CD are offered. A lock symbol
Swill appear next to the unavailable
options.
Press ESC (9) to return to the pre-
vious menu.
ENTERING SPECIAL
DESTINATIONS
These are destinations contained in
directories in alphabetical order and
include motorways, railway stations,
shopping centres, service stations,
parking areas, etc.
Special destinations can be sought in
four different ways:
– IN DEST. AREA: displaying the spe-
cial destinations related to the previ-
ous selection;– SUPRAREG. DESTS. supraregion-
al destinations): displaying special des-
tinations in other locations with re-
spect to the selected destination. The
directories only refer to the country
on the CD;
– DEST. SURROUND (destination
surroundings): displaying special desti-
nations (example: sports grounds, etc.)
in the area surrounding the previous-
ly selected destination;
– POS. SURROUND. (position sur-
roundings): displaying special destina-
tions near the current position of the
car.
IMPORTANT You will need to
have entered a destination: CITY or
STREET, CENTRE or INTERSEC-
TION to have access to the directo-
ries.
fig. 73F0E3044g

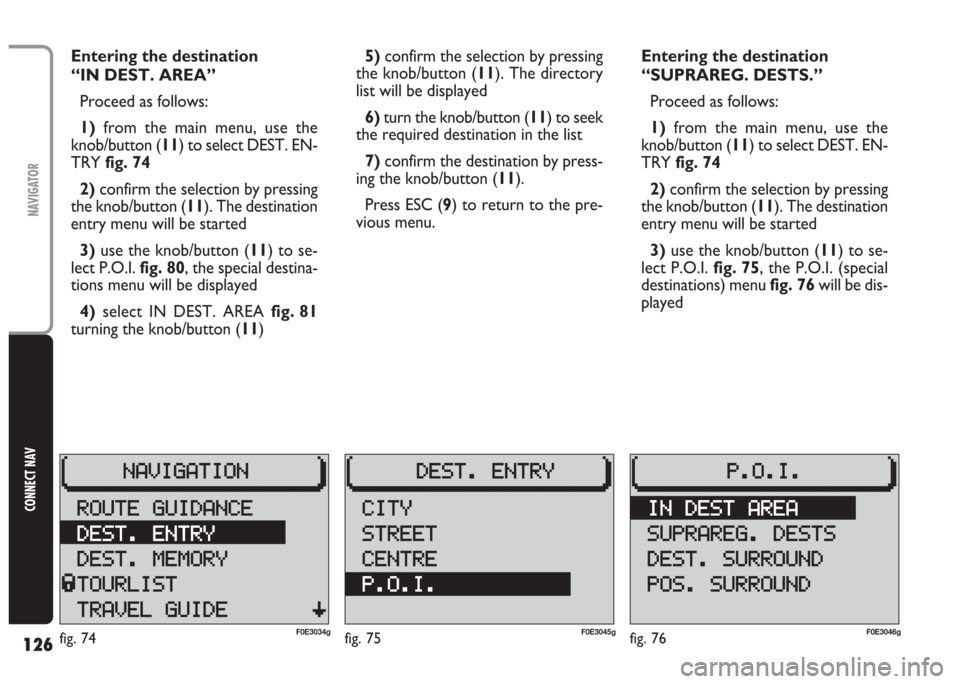

126
CONNECT NAV
NAVIGATOR
Entering the destination
“IN DEST. AREA”
Proceed as follows:
1)from the main menu, use the
knob/button (11) to select DEST. EN-
TRY fig. 74
2)confirm the selection by pressing
the knob/button (11). The destination
entry menu will be started
3) use the knob/button (11) to se-
lect P.O.I. fig. 80, the special destina-
tions menu will be displayed
4)select IN DEST. AREA fig. 81
turning the knob/button (11)5)confirm the selection by pressing
the knob/button (11). The directory
list will be displayed
6)turn the knob/button (11) to seek
the required destination in the list
7)confirm the destination by press-
ing the knob/button (11).
Press ESC (9) to return to the pre-
vious menu.Entering the destination
“SUPRAREG. DESTS.”
Proceed as follows:
1)from the main menu, use the
knob/button (11) to select DEST. EN-
TRY fig. 74
2)confirm the selection by pressing
the knob/button (11). The destination
entry menu will be started
3) use the knob/button (11) to se-
lect P.O.I. fig. 75, the P.O.I. (special
destinations) menu fig. 76will be dis-
played
fig. 76F0E3046gfig. 74F0E3034gfig. 75F0E3045g

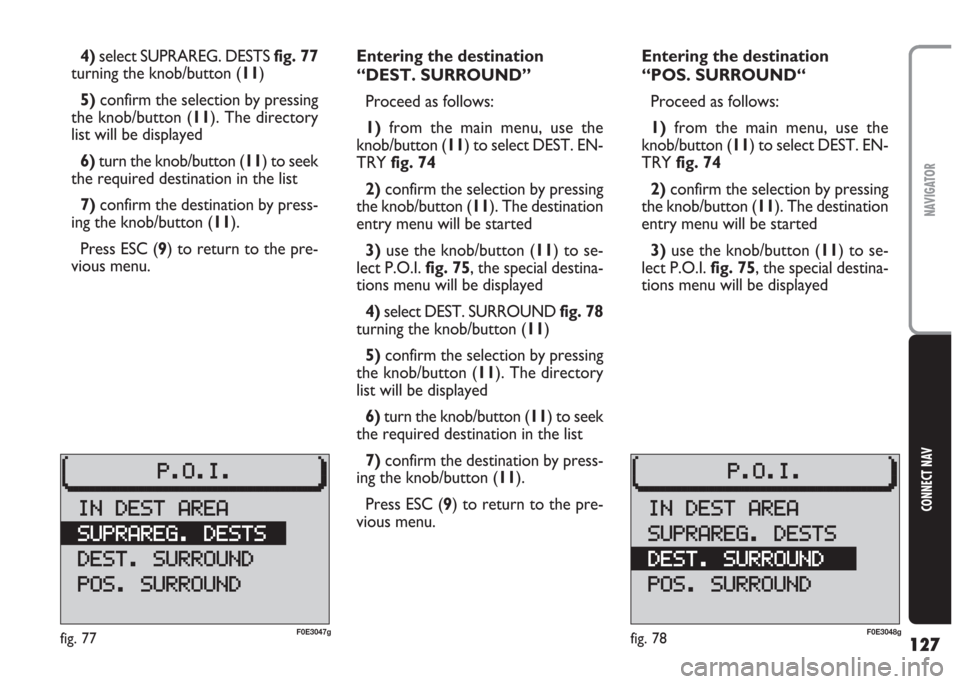

127
CONNECT NAV
NAVIGATOR
4)select SUPRAREG. DESTS fig. 77
turning the knob/button (11)
5) confirm the selection by pressing
the knob/button (11). The directory
list will be displayed
6)turn the knob/button (11) to seek
the required destination in the list
7) confirm the destination by press-
ing the knob/button (11).
Press ESC (9) to return to the pre-
vious menu.Entering the destination
“DEST. SURROUND”
Proceed as follows:
1)from the main menu, use the
knob/button (11) to select DEST. EN-
TRY fig. 74
2)confirm the selection by pressing
the knob/button (11). The destination
entry menu will be started
3)use the knob/button (11) to se-
lect P.O.I. fig. 75, the special destina-
tions menu will be displayed
4)select DEST. SURROUND fig. 78
turning the knob/button (11)
5)confirm the selection by pressing
the knob/button (11). The directory
list will be displayed
6)turn the knob/button (11) to seek
the required destination in the list
7)confirm the destination by press-
ing the knob/button (11).
Press ESC (9) to return to the pre-
vious menu.Entering the destination
“POS. SURROUND“
Proceed as follows:
1)from the main menu, use the
knob/button (11) to select DEST. EN-
TRY fig. 74
2)confirm the selection by pressing
the knob/button (11). The destination
entry menu will be started
3)use the knob/button (11) to se-
lect P.O.I. fig. 75, the special destina-
tions menu will be displayed
fig. 78F0E3048gfig. 77F0E3047g

128
CONNECT NAV
NAVIGATOR
4) select POS. SURROUND fig. 77
turning the knob/button (11)
5) confirm the selection by pressing
the knob/button (11). The directory
list will be displayed
6)turn the knob/button (11) to seek
the required destination in the list
7)confirm the destination by press-
ing the knob/button (11).
Press ESC (9) to return to the pre-
vious menu.USING STORED
DESTINATIONS
You can use previously stored des-
tinations. Three memory categories
are offered:
– LAST 10: the last ten navigation
destinations. The destinations are au-
tomatically entered in the LAST 10
memory when the LAST 10 option in
the DSC NAVI navigation menu is on.
See “Destination memory” in the “Ac-
tive navigation”;
– POSITION MARK: car position is
stored and can be selected as a desti-
nation;
– ALPH. SORTING (alphabetical
sorting): the destinations are stored in
alphabetical order;
– MANUAL SORTING: the destina-
tions are shown in the previously set
order.Proceed as follows to use a previ-
ously stored destination:
1) press the NAV button (12) to dis-
play the main navigation menu
2)use the knob/button (11) to se-
lect DEST. MEMORY fig. 80
fig. 80F0E3050gfig. 79F0E3049g

129
CONNECT NAV
NAVIGATOR
3) press the knob/button (11) to
confirm. The destination memory
menu will be displayed fig. 81
4)position the cursor on the re-
quired destination by turning the
knob/button (11)
5)confirm the destination by press-
ing the knob/button (11).
Press ESC (9) to return to the pre-
vious menu.Storing the current
position
Proceed as follows to store the cur-
rent position:
1)from the main menu, use the
knob/ button (11) to select DEST.
MEMORY fig. 80
2)press the knob/button (11) to
confirm. The menu for entering the
destination will be displayed3)use the knob/button (11) to se-
lect POSITION MARKfig. 82
4)confirm the destination with the
knob/button (11).
IMPORTANT This procedure can
only be carried out with a navigation
CD inserted in the drive.
Press ESC (9) to return to the pre-
vious menu.
fig. 81F0E3051gfig. 82F0E3052g
