Hyundai Accent 2006 Owner's Manual

1CONTROLS AND EQUIPMENT
34
B990B04Y-EAT Side Impact Airbag (Not all models) Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide thevehicle's driver and/or the front passen- ger with additional protection than that offered by the seat belt alone. The sideimpact airbags are designed to deploy only during certain side impact colli- sions, depending on the crash severity,angle, speed and point of impact. The side impact air bags are not designed to deploy in all side impact situations. B990B02Y-Do The SRS can function only when
the ignition key is in the "ON" position. If the SRS SRI does not come on, or continuously remains on, after flashing for about 6 sec-onds when the ignition key is turned to the "ON" position, or after the engine is started, or comeson whilst driving, the SRS is not working properly. If this occurs, have your vehicle immediately in-spected by your Hyundai dealer.
o Before you replace a fuse or dis-
connect a battery terminal, turnthe ignition key to the "LOCK" position or remove the ignition key. Never remove or replace theair bag related fuse(s) when the ignition key is in the "ON" posi- tion. Failure to heed this warningwill cause the SRS SRI to illumi- nate.
!WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout the vehicle. These conditions are nor-mal and are not hazardous. How- ever, the fine dust generated dur- ing airbag deployment may causeskin irritation. Be sure to wash your hands and face thoroughly with lukewarm water and a mildsoap after an accident in which the airbags were deployed.

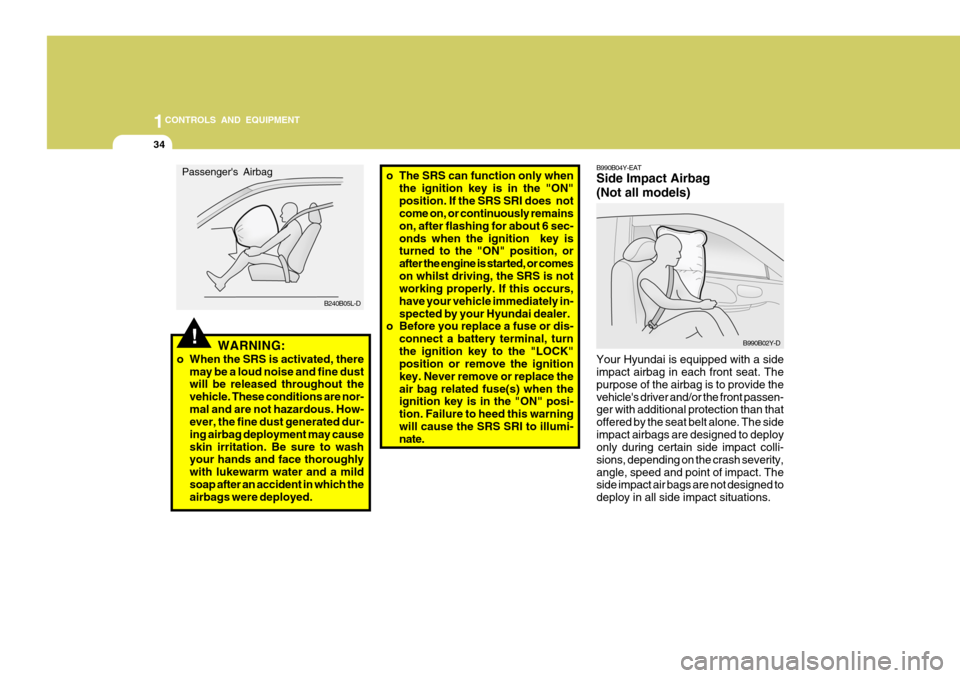

Passenger's Airbag
B240B05L-D

35
1
CONTROLS AND EQUIPMENT
!

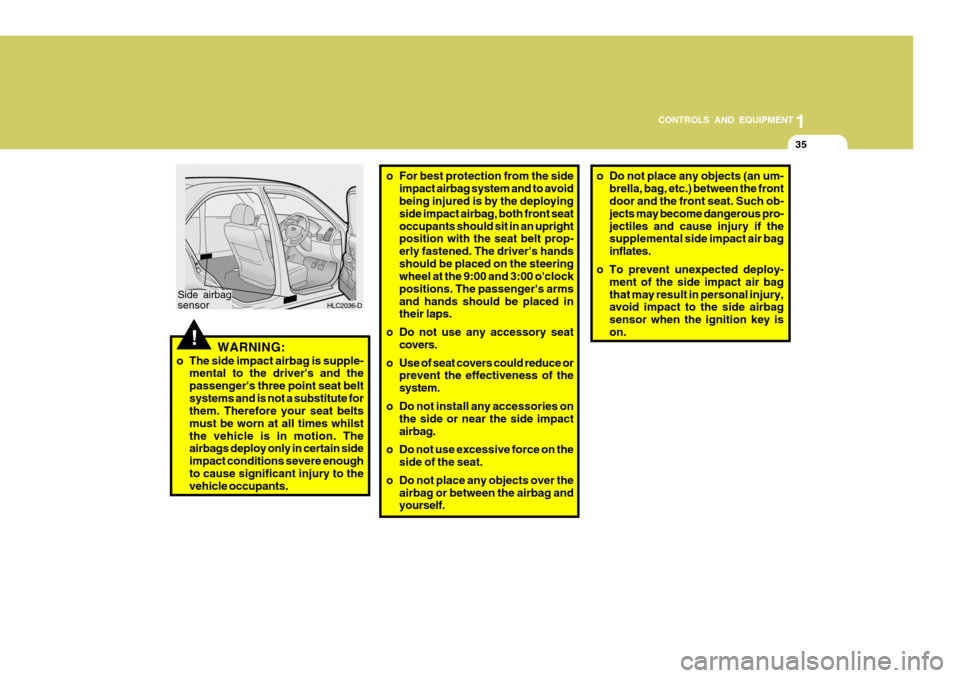

Side airbag sensor
WARNING:
o The side impact airbag is supple- mental to the driver's and the passenger's three point seat beltsystems and is not a substitute for them. Therefore your seat belts must be worn at all times whilstthe vehicle is in motion. The airbags deploy only in certain side impact conditions severe enoughto cause significant injury to the vehicle occupants. HLC2036-D
o For best protection from the side
impact airbag system and to avoid being injured is by the deploying side impact airbag, both front seatoccupants should sit in an upright position with the seat belt prop- erly fastened. The driver's handsshould be placed on the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's armsand hands should be placed in their laps.
o Do not use any accessory seat covers.
o Use of seat covers could reduce or prevent the effectiveness of the system.
o Do not install any accessories on the side or near the side impactairbag.
o Do not use excessive force on the side of the seat.
o Do not place any objects over the airbag or between the airbag and yourself.o Do not place any objects (an um-brella, bag, etc.) between the front door and the front seat. Such ob- jects may become dangerous pro-jectiles and cause injury if the supplemental side impact air bag inflates.
o To prevent unexpected deploy- ment of the side impact air bagthat may result in personal injury, avoid impact to the side airbag sensor when the ignition key ison.

1CONTROLS AND EQUIPMENT
36
o Modification to SRS components
or wiring, including the addition of any kind of badges to the padcovers or modifications to the body structure, can adversely affect SRS performance and lead to possibleinjury.
o For cleaning the airbag pad cov- ers, use only a soft, dry cloth or one which has been moistened with plain water. Solvents orcleaners could adversely affect the airbag covers and proper deployment of the system.
o No objects should be placed over or near the airbag modules on the steering wheel, instrument panel, and the front passenger'spanel above the glove box, be- cause any such object could cause harm if the vehicle is in acrash severe enough to cause the airbags to inflate.
o If the airbags inflate, they must be replaced by an authorized Hyundai dealer.

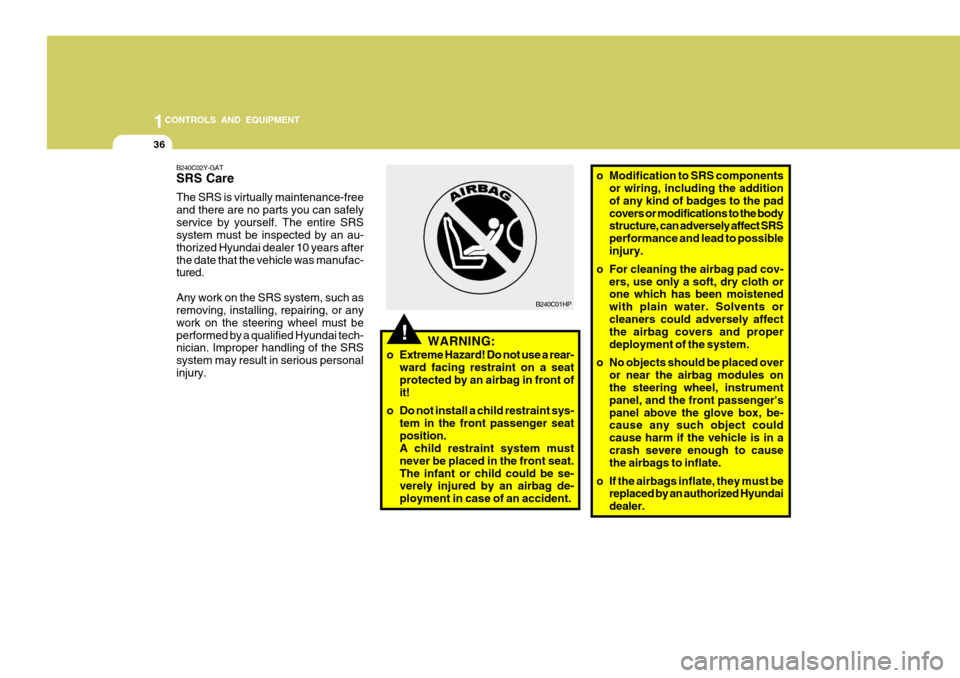

!WARNING:
o Extreme Hazard! Do not use a rear- ward facing restraint on a seat protected by an airbag in front of it!
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint system must never be placed in the front seat.The infant or child could be se- verely injured by an airbag de- ployment in case of an accident. B240C01HP
B240C02Y-GAT SRS Care The SRS is virtually maintenance-free and there are no parts you can safelyservice by yourself. The entire SRS system must be inspected by an au- thorized Hyundai dealer 10 years afterthe date that the vehicle was manufac- tured. Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must beperformed by a qualified Hyundai tech- nician. Improper handling of the SRS system may result in serious personalinjury.

37
1
CONTROLS AND EQUIPMENT

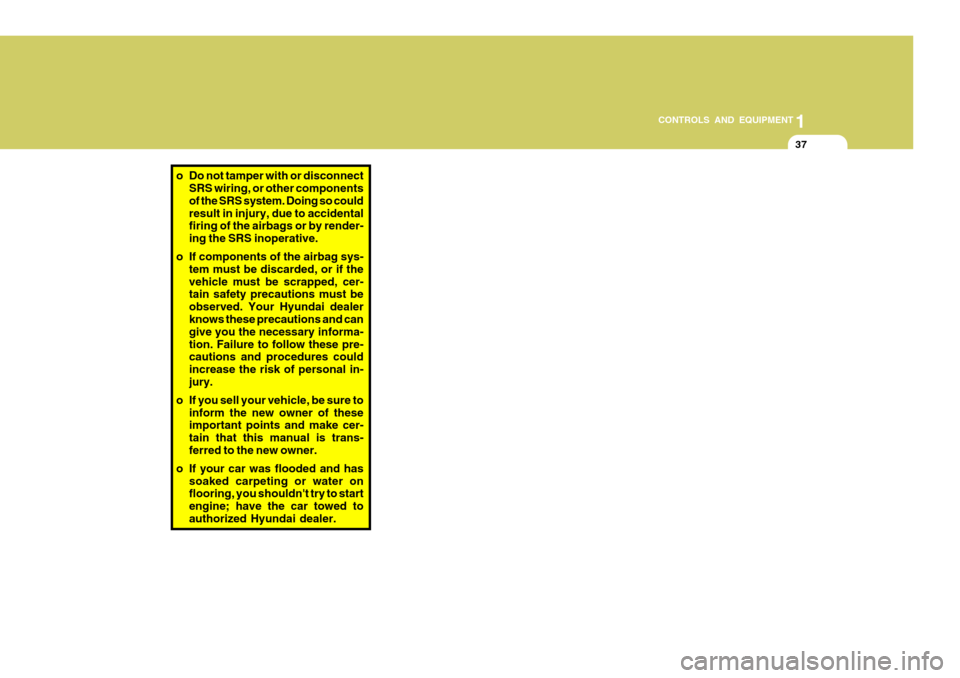

o Do not tamper with or disconnect
SRS wiring, or other components of the SRS system. Doing so couldresult in injury, due to accidental firing of the airbags or by render- ing the SRS inoperative.
o If components of the airbag sys- tem must be discarded, or if thevehicle must be scrapped, cer- tain safety precautions must be observed. Your Hyundai dealerknows these precautions and can give you the necessary informa- tion. Failure to follow these pre- cautions and procedures could increase the risk of personal in-jury.
o If you sell your vehicle, be sure to inform the new owner of these important points and make cer- tain that this manual is trans-ferred to the new owner.
o If your car was flooded and has soaked carpeting or water on flooring, you shouldn't try to start engine; have the car towed toauthorized Hyundai dealer.

1CONTROLS AND EQUIPMENT
38
B260B03A-EAT Petrol Engine
B260A02A-E
12 3 2
45
6
78 91011121314 151617 18
INSTRUMENT CLUSTER AND INDICATOR

39
1
CONTROLS AND EQUIPMENT
1. Tachometer
2. Turn Signal Indicator Light
3. Speedometer
4. Odometer/Trip Odometer /Trip Computer (Not all models)
5. Fuel Gauge
6. Temperature Gauge
7. SRS (Airbag) Warning Light
8. ABS Warning Light (Not all models)
9. Immobilizer Warning Indicator Light 10. Overdrive Off Indicator Light (Automatic Transaxle only)
11. High Beam Indicator Light
12. Door Ajar Warning Light
13. Parking Brake/Low Brake Fluid Level Warning Light
14. Charging System Warning Light
15. Low Oil Pressure Warning Light
16. Trip Odometer Reset Switch/
Trip Computer Reset Switch (Not all models)
17. Low Fuel Warning Light
18. Malfunction Indicator Light (MIL)

1CONTROLS AND EQUIPMENT
40
B260C02A-EAT Diesel Engine
B260B02A-E
12 3 2
45
6
78 9 10111213141516171819

41
1
CONTROLS AND EQUIPMENT
1. Tachometer
2. Turn Signal Indicator Light
3. Speedometer
4. Odometer/Trip Odometer /Trip Computer (Not all models)
5. Fuel Gauge
6. Temperature Gauge
7. SRS (Airbag) Warning Light
8. ABS Warning Light (Not all models)
9. Immobilizer Warning Indicator Light
10. High Beam Indicator Light 11. Door Ajar Warning Light
12. Parking Brake/Low Brake Fluid Level Warning Light
13. Charging System Warning Light
14. Trip Odometer Reset Switch/
Trip Computer Reset Switch (Not all models)
15. Low Oil Pressure Warning Light
16. Fuel Filter Warning Light
17. Low Fuel Warning Light
18. Diesel Pre-heat Indicator Light
19. Malfunction Indicator Light (MIL)

1CONTROLS AND EQUIPMENT
42WARNING AND INDICATOR LIGHTS
!
B260B01S-GAT
SRS (Airbag) Service Reminder Indicator (SRI)
The SRS service reminder indicator (SRI) comes on and flashes for about 6seconds after the ignition key is turned to the "ON" position or after the engine is started, after which it will go out. This light also comes on when the SRS is not working properly. If the SRI doesnot come on, or continuously remains on after flashing for about 6 seconds when you turned the ignition key to the"ON" position or started the engine, or if it comes on whilst driving, have the SRS inspected by an authorized HyundaiDealer. B260P02Y-EAT
ABS Service
Reminder Indicator (SRI)(Not all models)
When the key is turned to the "ON" position, the Anti-Lock Brake System SRI will come on and then go off in a fewseconds. If the ABS SRI remains on, comes on while driving, or does not come on when the key is turned to the"ON" position, this indicates that there may be a problem with the ABS. If this occurs, have your vehiclechecked by your Hyundai dealer as soon as possible. The normal braking system will still be operational, butwithout the assistance of the anti-lock brake system. SB210E1-E
Overdrive OFF Indicator Light(Automatic Transaxle only)
When the overdrive (4th gear) switch is turned off and the operation of overdrive (4th gear) is cancelled, the overdrivewarning light (O/D OFF) will be illumi- nated. When the switch is at the on position, the gearbox will operate in thenormal fully automatic mode and the warning light will be extinguished. SB210G1-E Turn Signal Indicator Light
Operation of a turn signal is indicated by the warning light located in the in- strument cluster. If the light fails toilluminate or does not flash, a malfunc- tion within the turn signal system is indicated.
WARNING:
If the both ABS SRI and Parking Brake/ Brake fluid level warning lights re- main "ON" or come on while driving, there may be a problem with E.B.D(Electronic brake force distribution). If this occurs, avoid sudden stops and have your vehicle checked byyour Hyundai dealer as soon as pos- sible.

43
1
CONTROLS AND EQUIPMENT
!
SB210J1-E
High Beam Indicator Light
The high beam indicator light will illumi- nate whenever the headlights areswitched to high beam of flash position.
B260H03A-EATParking Brake/ Low Brake Fluid LevelWarning Light
SB210K1-ELow Oil Pressure Warning Light
!CAUTION:
If the oil pressure warning light illu- minates when the engine is running,an insufficient oil pressure level for continued safe operation of the en- gine exists. Continued operation ofthe engine in this condition may result in serious engine damage. Under normal circumstances, the light will illuminate when the igni- tion is turned "on" and will be extin-guished when the engine is started. If the oil pressure warning light illu- minates whilst the engine is run-ning, stop the engine immediately and check the engine oil level. If the level is insufficient, add the required amount of oil as indicated by theengine oil dipstick. If the light fails to extinguish when the engine is re- started, do not continue to operatethe vehicle. If the oil pressure light illuminates during normal operation and thecause is not an insufficient oil level, or the light fails to illuminate when the ignition is turned "on", contactthe nearest Hyundai dealer before further operating the vehicle.
Warning Light Operation The parking brake/brake fluid level warn- ing light will be illuminated wheneverthe ignition switch is turned to the "ON" position irrespective of whether or not the parking brake is applied and mustbe extinguished when the engine starts and the parking brake released. If the warning light fails to extinguish orilluminates at any other time, the ve- hicle must be brought to rest in a safe location and the level of brake fluid inthe reservoir checked. If the fluid level is incorrect, fluid conforming to DOT 3 or DOT 4 specifications should be added.If, after correcting the brake fluid level, the warning light continues to be illumi- nated, the advice of the nearest Hyundaidealer must be sought before the ve- hicle is driven again. Your Hyundai is equipped with a diago-nally split dual braking system which will ensure that in the event of one of the brake circuits becoming defective, ap-proximately fifty per cent of the normal braking performance will be available. If failure of one of the circuits occurs,the required amount of pedal effort, pedal travel and stopping distance will be increased. Use of the gearbox is
WARNING:
In the event of problems being sus-pected with the braking system, theadvice of the nearest Hyundai dealer must be sought before the vehicle is driven. Driving the vehicle with ei-ther an electrical or hydraulic brak- ing system defect may be danger- ous, resulting in accident or per-sonal injury.
