INFINITI FX35 2008 Service Manual

SRS-24
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Trouble Diagnosis with CONSULT-III
INFOID:0000000001524168
DIAGNOSTIC PROCEDURE
DTC No. Index (“SELF-DIAG [ CURRENT]” “SELF-DIAG [PAST]” or TROUBLE DIAG RECORD)
 Air bag is deployed.
 Seat belt pre-tensioner is deployed. Go to
SRS-47, "For Frontal Colli-
sion" or SRS-48, "For Side Collision"
 Diagnosis sensor unit is malfunction-
ing.
 Air bag power supply circuit is mal-
functioning.
 SRS air bag warning lamp circuit is malfunctioning. Go to
SRS-32, "
Trouble Diagnosis:
"AIR BAG" Warning Lamp Does Not
Turn OFF".
 Diagnosis sensor unit is malfunction- ing.
 Air bag warning lamp circuit is mal-
functioning. Go to
SRS-32, "
Trouble Diagnosis:
"AIR BAG" Warning Lamp Does Not
Turn ON".
“AIR BAG” warning lamp operation — User mode
—
SRS condition Reference item
SHIA0013E
SHIA0014E
Diagnostic mode Description
SELF-DIAG RESULT The self-d iagnosis result is Displayed. (SELF-DIAG [ CURRENT], [PAST], [RECORD])
ECU DISCRIMINATED No. The parts number of diagnosis sensor units displayed.
Diagnostic item Explanation Repair order
“Recheck SRS at each replacement”
NO DTC IS DETECT-
ED. When malfunction is in-
dicated by the “AIR
BAG” warning lamp in
User mode. Low battery voltage (Less than 9V)
 Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after re-
pair.
 Intermittent malfunction has been de- tected in the past. Go to
SRS-21, "
CONSULT-III Func-
tion".
 No malfunction is detected. —
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[B1001-B1015]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit.
(ACU)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISSRS-25
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
OCCUPANT SENS
[UNIT FAIL]
[1018]  Trouble occurs in Occupant Classification System-SENS. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace front passenger seat cushion and occupant classifica-
tion system control unit as an as-
sembly.
4. Replace diagnosis sensor unit (ACU).
BELT TENSION SENS
[UNIT FAIL]
[B1019]  Trouble occurs in Belt Tension
sensor (BTS), circuit of BTS—Oc-
cupant Classification System-CU, or Occupant Classification
System-CU. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace passenger side seat belt assembly.
4. Replace diagnosis sensor unit
(ACU).
OCCUPANT SENS C/U
[UNIT FAIL]
[B1017] [B1020]
[B1021]  Trouble occurs in Occupant Classification System-CU. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi-
ble damage.
3. Replace front passenger seat cushion and occupant classifica-
tion system control unit as an as-
sembly.
4. Replace diagnosis sensor unit
(ACU).
OCCUPANT SENS C/U
[COMM FAIL]
[B1022]  Trouble occurs in Occupant Classification System-CU, circuit of
OCS-CU-ACU, or ACU. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi-
ble damage.
3. Replace front passenger seat cushion and occupant classifica-
tion system control unit as an as-
sembly.
4. Replace diagnosis sensor unit
(ACU).
PASS A/B INDCTR
CKT
[B1023]  Front passenger air bag cut-off indicator circuit is open, or short-
ed each other or to ground. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace front passenger air bag off indicator unit.
4. Replace diagnosis sensor unit
(ACU).
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[B1026-B1031]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit.
(ACU)
CRASH ZONE SEN
[UNIT FAIL]
[B1033] [B1034]
CRASH ZONE SEN
[COMM FAIL]
[B1035]  Crash zone sensor is out of order. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace crash zone sensor.
4. Replace diagnosis sensor unit (ACU).
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[B1042-B1047]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit.
(ACU)
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SRS-26
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
DRIVER AIR BAG
MODULE
[OPEN]
[B1049] [B1054] Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace driver air bag module.
4. Replace spiral cable.
5. Replace diagnosis sensor unit (ACU).
DRIVER AIR BAG
MODULE
[VB-SHORT]
[B1050] [B1055]  Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIR BAG
MODULE
[GND-SHORT]
[B1051] [B1056]  Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIR BAG
MODULE
[SHORT]
[B1052] [B1057]  Driver air bag module circuit is shorted between lines.
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[B1058-B1063]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit.
(ACU)
ASSIST A/B MODULE
[OPEN]
[B1065] [B1070]  Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace front passenger air bag
module.
4. Replace diagnosis sensor unit (ACU).
ASSIST A/B MODULE
[VB-SHORT]
[B1066] [B1071]
 Front passenger air bag module circuit is shorted to a power sup-
ply circuit.
ASSIST A/B MODULE
[GND-SHORT]
[B1067] [B1072]  Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
[B1068] [B1073]  Front passenger air bag module circuit is shorted between lines.
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[B1074-B1079]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit.
(ACU)
PRE-TEN FRONT RH
[OPEN]
[B1081]  Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visi- ble damage.
3. Replace front RH seat belt.
4. Replace diagnosis sensor unit
(ACU).
PRE-TEN FRONT RH
[VB-SHORT]
[B1082]
 Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]  Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]  Front RH pre-tensioner circuit is shorted between lines.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISSRS-27
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
PRE-TEN FRONT LH
[OPEN]
[B1086]  Front LH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visi- ble damage.
3. Replace the front LH seat belt.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[VB-SHORT]
[B1087]
 Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]  Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]  Front LH pre-tensioner circuit is shorted between lines.
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[ B 11 0 6 - B 1111 ]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit
(ACU).
SATELLITE SENS RH
[UNIT FAIL]
[ B 111 3 ] [ B 111 4 ]
SATELLITE SENS RH
[COMM FAIL]
[ B 111 5 ]  RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi-
ble damage.
3. Replace RH side air bag (Satel- lite) sensor.
4. Replace diagnosis sensor unit (ACU).
SATELLITE SENS LH
[UNIT FAIL]
[ B 111 8 ] [ B 111 9 ]
SATELLITE SENS LH
[COMM FAIL]
[B1120]  LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace LH side air bag (Satel-
lite) sensor.
4. Replace diagnosis sensor unit (ACU).
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[ B 11 2 2 - B 11 2 7 ]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit
(ACU).
SIDE MODULE RH
[OPEN]
[B1129]  Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace front RH side air bag module.
4. Replace diagnosis sensor unit (ACU).
SIDE MODULE RH
[VB-SHORT]
[B1130]
 Front RH side air bag module circuit is shorted to a power supply
circuit.
SIDE MODULE RH
[GND-SHORT]
[B1131]  Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
[B1132]  Front RH side air bag module circuit is shorted between lines.
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SRS-28
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-III eac h time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.

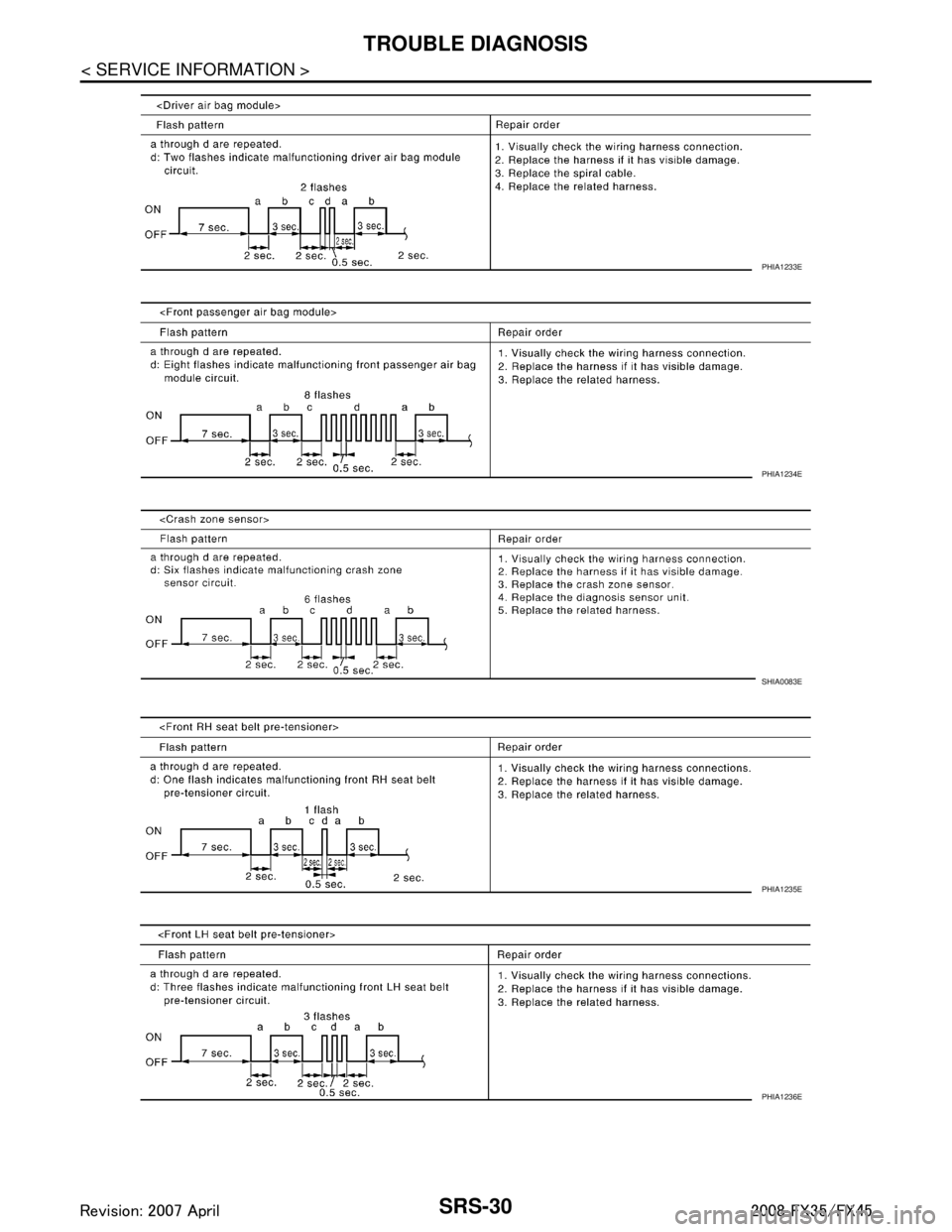

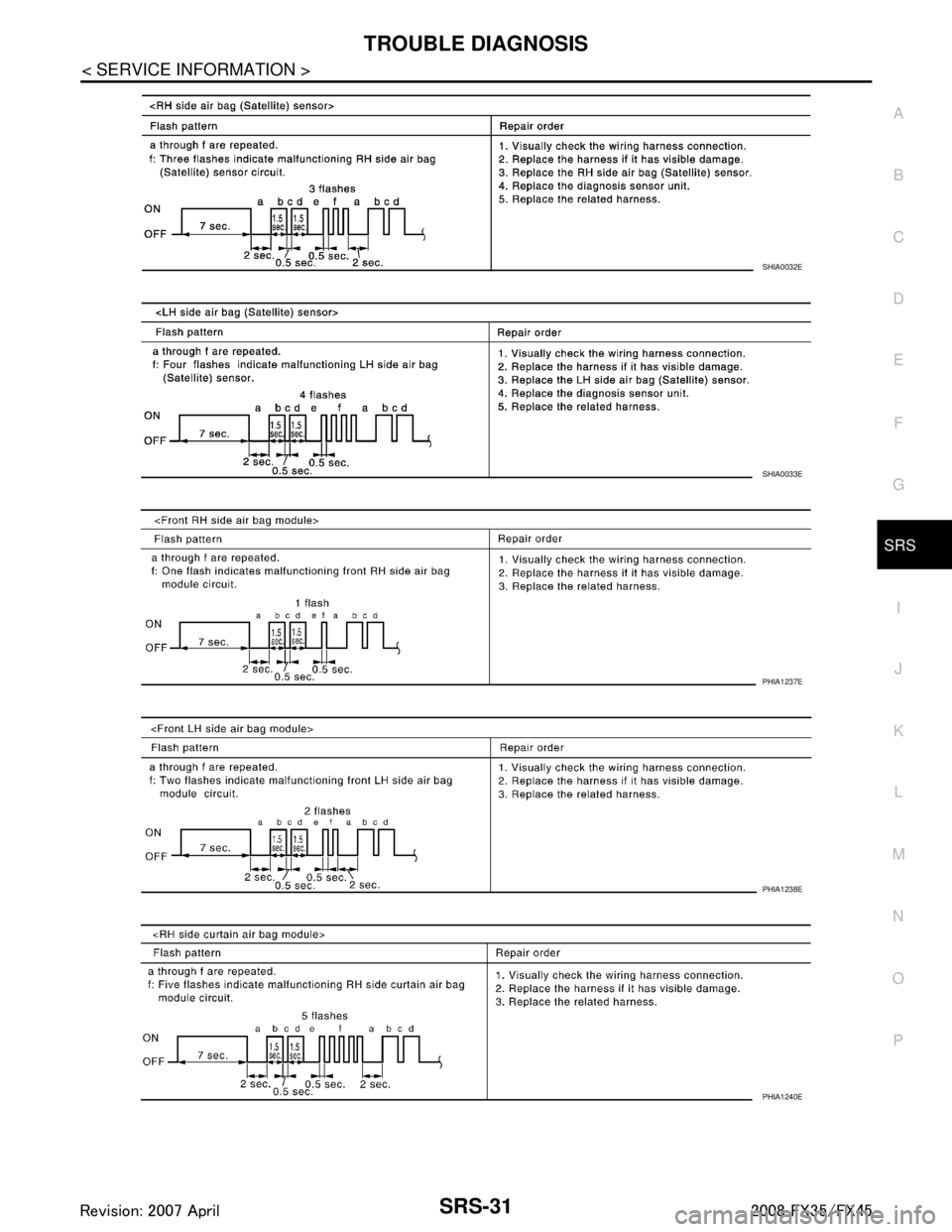

Trouble Diagnosis without CONSULT-IIIINFOID:0000000001524169
DIAGNOSTIC PROCEDURE
SIDE MODULE LH
[OPEN]
[B1134] Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace front LH side air bag module.
4. Replace diagnosis sensor unit
(ACU).
SIDE MODULE LH
[VB-SHORT]
[B1135]
 Front LH side air bag module circuit is shorted to a power supply
circuit.
SIDE MODULE LH
[GND-SHORT]
[B1136]  Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
[B1137]  Front LH side air bag module circuit is shorted between lines.
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[ B 11 3 8 - B 11 4 3 ]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit
(ACU).
CURTAIN MODULE RH
[OPEN]
[B1145]  RH side curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi-
ble damage.
3. Replace RH side curtain air bag module.
4. Replace diagnosis sensor unit (ACU).
CURTAIN MODULE RH
[VB-SHORT]
[B1146]
 RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]  RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]  RH side curtain air bag module circuit is shorted between lines.
CURTAIN MODULE LH
[OPEN]
[B1150]  LH side curtain air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visi- ble damage.
3. Replace LH side curtain air bag module.
4. Replace diagnosis sensor unit
(ACU).
CURTAIN MODULE LH
[VB-SHORT]
[B1151]
 LH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE LH
[GND-SHORT]
[B1152]  LH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE LH
[SHORT]
[B1153]  LH side curtain air bag module circuit is shorted between lines.
DIAGNOSIS SENSOR
UNIT (CONTROL UNIT)
[B1202-B1207]  Diagnosis sensor is out of order.  Replace diagnosis sensor unit.
FRONTAL COLLISION-
DETECTION
[B1209]  Seat belt pre-tensioner and front air bag are deployed.  Go to
SRS-47, "
For Frontal Colli-
sion".
SIDE COLLISION DE-
TECTION
[B1210]  Side and curtain air bag is deployed.  Go to
SRS-48, "
For Side Collision".
Diagnostic item Explanation
Repair order
“Recheck SRS at each replacement”
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISSRS-29
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
Inspecting SRS Malfunctioning Parts by Using “AIR BAG” Warning Lamp — Diagnosis Mode
NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.
1. Turn ignition switch ON.
2. After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.
3. Wait more than 3 seconds.
4. Repeat the steps 1 to 3 twice. (Perform three times in all.)
5. Turn ignition switch ON.
SRS is now in Diagnosis mode.
“AIR BAG” warning lamp operates in Diagnosis mode as follows:
WARNING LAMP FLASH CODE CHART
PHIA0532E
SHIA0028E
PHIA1242E
PHIA1243E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SRS-30
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
PHIA1233E
PHIA1234E
SHIA0083E
PHIA1235E
PHIA1236E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISSRS-31
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
SHIA0032E
SHIA0033E
PHIA1237E
PHIA1238E
PHIA1240E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SRS-32
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Trouble Diagnosis: "AIR BAG" Warning Lamp Does Not Turn OFF
INFOID:0000000001524170
DIAGNOSTIC PROCEDURE
1.CHECK DEPLOYMENT OF AIR BAG MODULE
Check the air bag module.
Is
“AIR BAG MODULE” deployed?
YES >> Refer to SRS-47, "For Frontal Collision" or SRS-48, "For Side Collision".
NO >> GO TO 2.
2.CHECK AIR BAG FUSE
Check the air bag fuse. Refer to PG-16, "
Fuse".
Check 10A fuse [No.13, located in fuse block (J/B)] normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.CHECK AIR BAG FUSE AGAIN
Replace “AIR BAG” fuse and turn ignition switch ON.
Does the
“AIR BAG” fuse blow again?
YES >> Repair or replace main harness.
NO >> INSPECTION END
4.CHECK DIAGNOSIS SENSOR UNIT
Check the screen of CONSULT-III.
Is
“DIAGNOSIS SENSOR UNIT” displayed on CONSULT-III?
YES >> Replace diagnosis sensor unit.
NO >> GO TO 5.
5.CHECK HARNESS CONNECTION
Check the connection of harness connector.
Is harness connection between warning lamp and diagnosis sensor unit normal?
OK >> Check the intermittent incident.
NO >> Replace wiring harness connector.
Trouble Diagnosis: "AIR BAG" Warning Lamp Does Not Turn ONINFOID:0000000001524171
DIAGNOSTIC PROCEDURE
1.CHECK METER FUSE
Check the meter fuse. Refer to PG-16, "
Fuse".
Check 10A fuse [No.14, located in fuse block (J/B)] normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK METER FUSE AGAIN
PHIA1241E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

TROUBLE DIAGNOSISSRS-33
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
Replace 10A fuse [No. 14, located in fuse block (J/B)] and turn ignition switch ON.
Does the meter fuse blow again?
YES >> Repair or replace the related harness.
NO >> INSPECTION END
3.CHECK HARNESS CONNECTION BETWEEN DIAGNO SIS SENSOR UNIT AND COMBINATION METER
Disconnect diagnosis sensor unit connec tor and turn ignition switch ON.
Does AIR BAG warning lamp turn ON?
YES >> Replace diagnosis sensor unit.
NO >> Replace combination meter assembly.
Passenger Seatbelt Warning System (Seatbelt reminder).
1.CHECK THE SYSTEM 1
Check seatbelt warning lamp function.
Seatbelt warning lamp turns ON in the following conditions.
 Driver seatbelt is fastened.
 Occupant is on passenger seat.
 Passenger seatbelt is not fasten.
OK or NG
OK >> GO TO 2.
NG >> Check the followings.  Harness between air bag diagnosis sensor unit and combination meter.
 Seatbelt buckle switch (passenger side) circuit.
 Seatbelt buckle switch (passenger side).If these are OK, replace air bag diagnosis sensor unit.
2.CHECK THE SYSTEM 2
Check seatbelt warning lamp function.
Seatbelt warning lamp turns OFF in the following conditions.
 Driver seatbelt is fastened.
 Occupant is on passenger seat.
 Passenger seatbelt is fastened.
OK or NG
OK >> System is OK.
NG >> Check the followings.  Seatbelt buckle switch (passenger side) circuit.
 Seatbelt buckle switch (passenger side).
If these are OK, replace air bag diagnosis sensor unit.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
