INFINITI FX35 2008 Service Manual

AT-258
< SERVICE INFORMATION >
OVERHAUL
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Clip 36. Oil pan mounting bolt
37. Oil pan 38. Magnet 39. Drain plug
40. Drain plug gasket 41. Oil pan gasket 42. Terminal cord assembly
43. O-ring 44. Retaining pin 45. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OVERHAULAT-259
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VK45DE models for 4WD
SCIA8101E
1. Rear oil seal 2. Self-sealing bolt 3. Bracket
4. Adapter case 5. Parking actuator support 6. Parking pawl
7. Return spring 8. Pawl shaft 9. Seal ring
10. Needle bearing 11. Gasket 12. Revolution sensor
13. Parking gear 14. Output shaft 15. Bearing race
16. Needle bearing 17. Manual plate 18. Parking rod
19. Manual shaft oil seal 20. Manual shaft 21. O-ring
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-260
< SERVICE INFORMATION >
OVERHAUL
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Clip 36. Bracket
37. Bracket 38. Oil pan mounting bolt 39. Oil pan
40. Magnet 41. Drain plug 42. Drain plug gasket
43. Oil pan gasket 44. Terminal cord assembly 45. O-ring
46. Retaining pin 47. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OVERHAULAT-261
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

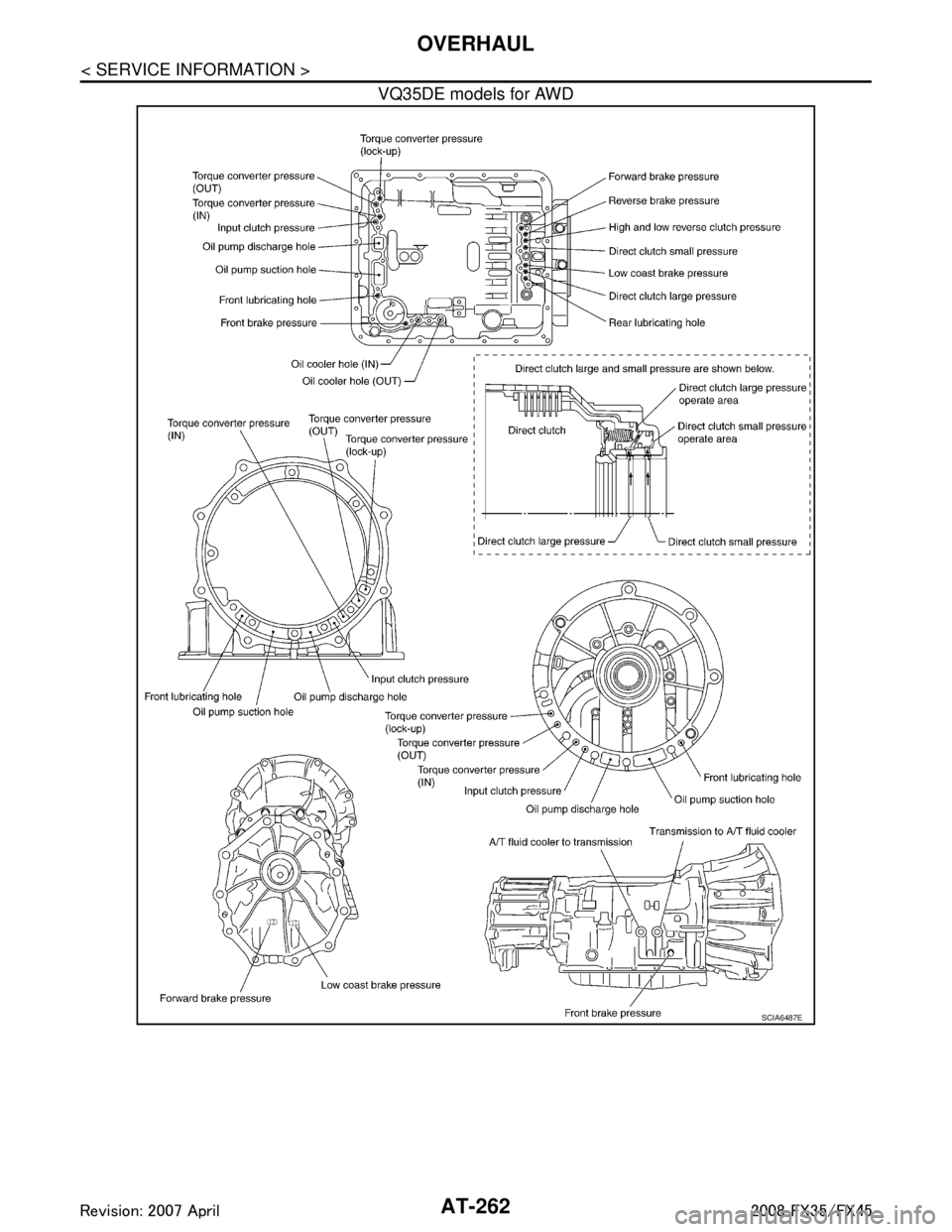

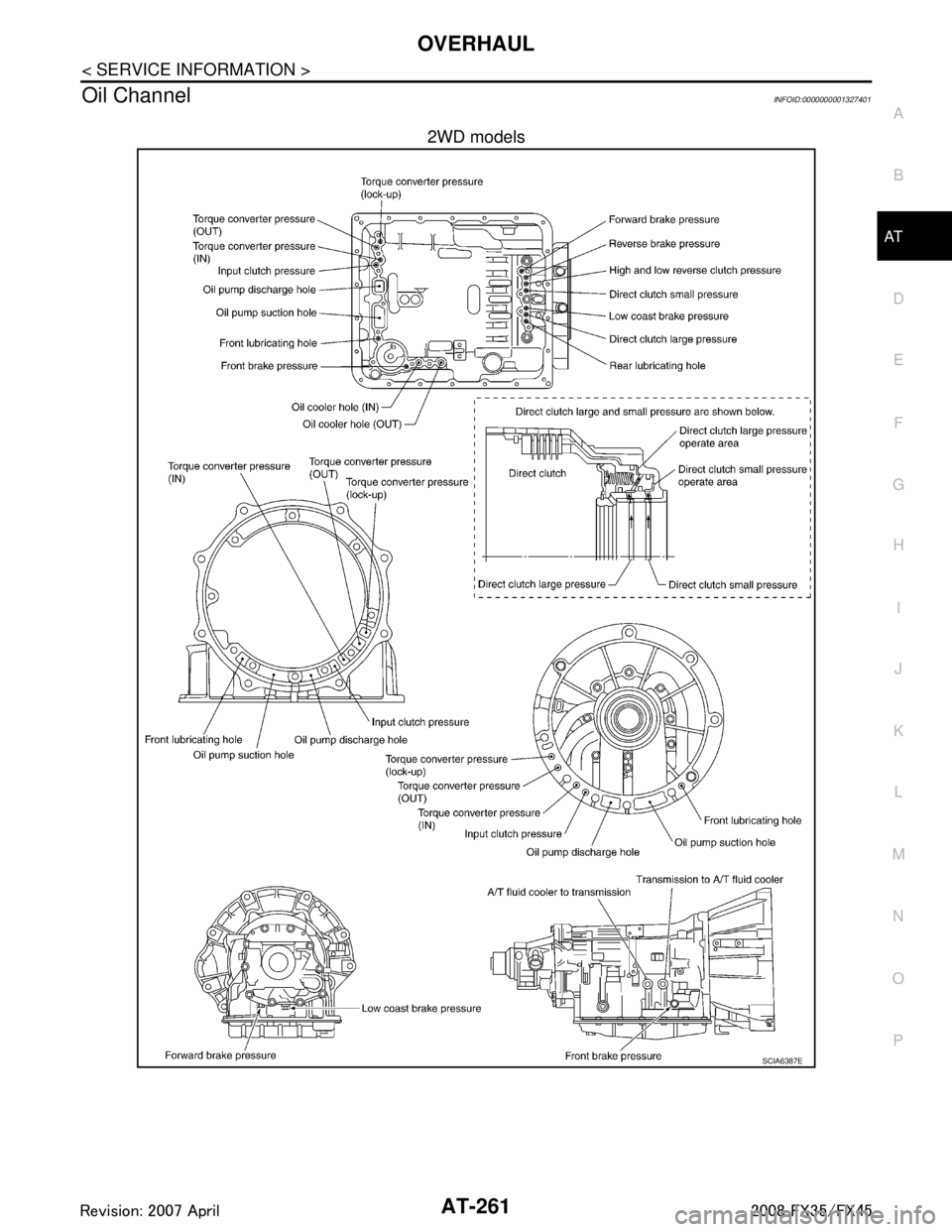

Oil ChannelINFOID:0000000001327401
2WD models
SCIA6387E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-262
< SERVICE INFORMATION >
OVERHAUL

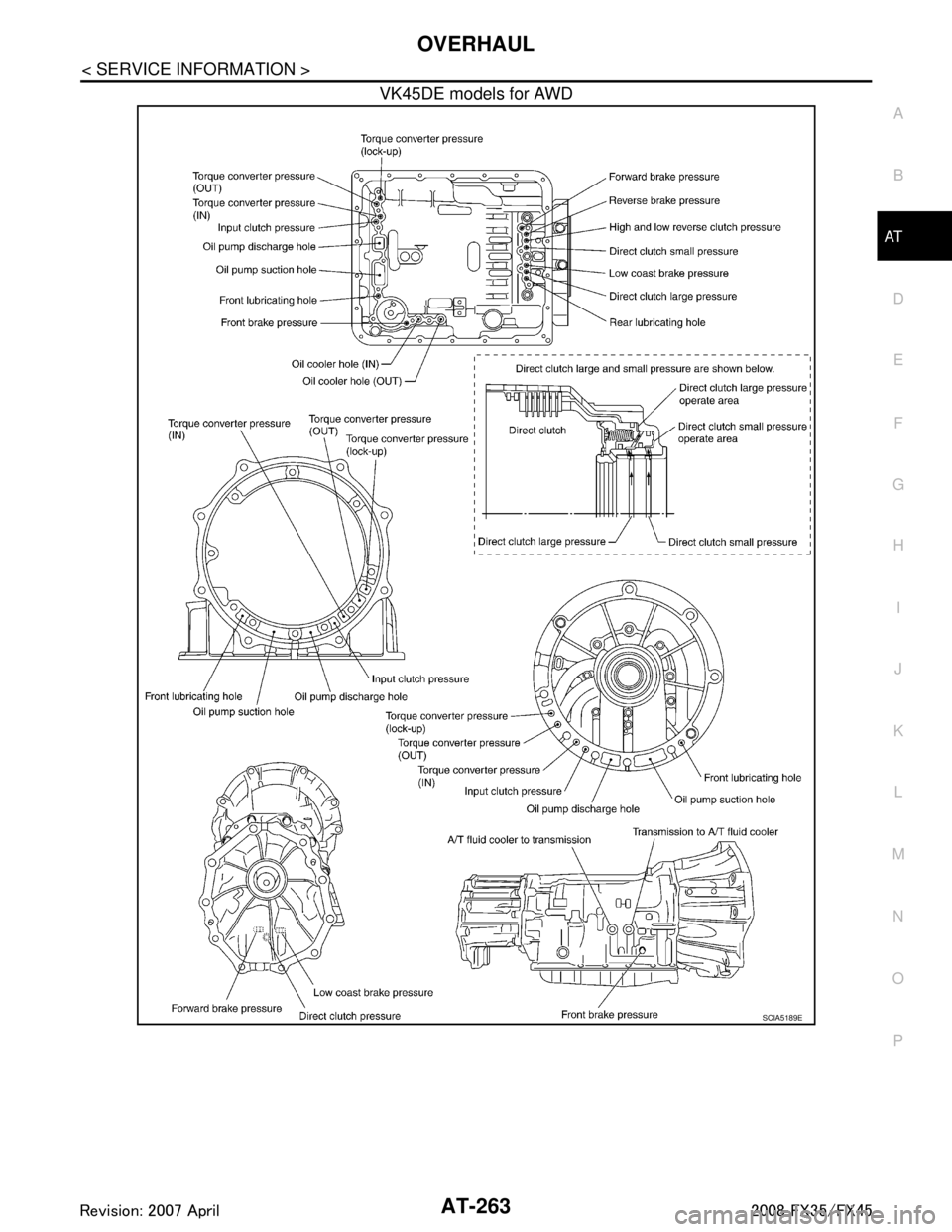

VQ35DE models for AWD
SCIA6487E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OVERHAULAT-263
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VK45DE models for AWD
SCIA5189E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-264
< SERVICE INFORMATION >
OVERHAUL
Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings
INFOID:0000000001327402
2WD models
SCIA6535E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OVERHAULAT-265
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VQ35DE models for AWD
SCIA6488E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-266
< SERVICE INFORMATION >
OVERHAUL
VK45DE models for AWD
SCIA7223E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DISASSEMBLYAT-267
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
DISASSEMBLY
DisassemblyINFOID:0000000001327403
CAUTION:
Do not disassemble parts behind drum support. Refer to AT-16, "
Cross-Sectional View (2WD Models)",
AT-17, "
Cross-Sectional View (VQ35DE Models for AWD)" or AT-18, "Cross-Sectional View (VK45DE
Models for AWD)".
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turning while pulling straight out.
3. Check torque converter one-way clutch using check tool as shown in the figure.
a. Insert check tool into the groove of bearing support built into one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one-way clutch spline using screwdriver.
c. Make sure that inner race rotates clockwise only. If not, replace torque converter assembly.
4. Remove tightening bolts (1) for converter housing and transmis- sion case.
 : Bolt (8)
 Self-sealing bolts (2)
5. Remove converter housing from transmission case. CAUTION:
Be careful not to scratch converter housing.
SCIA5010E
SCIA3171E
SCIA7985E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
