INFINITI M35 2006 Factory Service Manual

WW-44
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
DISASSEMBLY
1. Remove wiper linkage from wiper motor and motor frame.
2. Remove wiper motor mounting bolts (3), and remove wiper motor from wiper frame.
CAUTION:
Be careful not to bend linkage and not to damage the resin part of ball joint when removing wiper link-
age.
ASSEMBLY
1. Connect wiper motor connector. Turn wiper switch ON to operate wiper motor, and then turn wiper switch
OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install wiper motor to wiper frame.
4. Install wiper linkage to wiper frame and wiper motor.
CAUTION:
Never drop the wiper motor or cause it to contact other parts.
Check grease conditions of the motor arm and wiper linkage joint (at retainer). Apply grease if
necessary.
Washer Nozzle AdjustmentNKS003X1
Adjust spray positions to match the positions shown in the figure.
Unit: mm (in)
Insert a needle or suitable tool into the nozzle hole and move up/
down and left/right to adjust the spray position.Wiper motor mounting bolts : 4.5 Nꞏm (0.46 kg-m, 40 in-lb)
Spray position h (height) l (width)Diameter
(spray point area)
A 167.1 (6.58) 491.9 (19.37) 130.8 (5.15)
B 271.4 (10.69) 304.6 (11.99) 150 (5.91)
C 119.7 (4.71) 175.6 (6.91) 130 (5.12)
D 160.5 (63.2) 60.1 (2.37) 120 (4.72)
E 266.6 (10.50) 292.6 (11.52) 140 (5.51)
F 118.8 (4.68) 485.0 (19.09) 85 (3.35)
SKIB4232E
SKIB4250E

FRONT WIPER AND WASHER SYSTEM
WW-45
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45

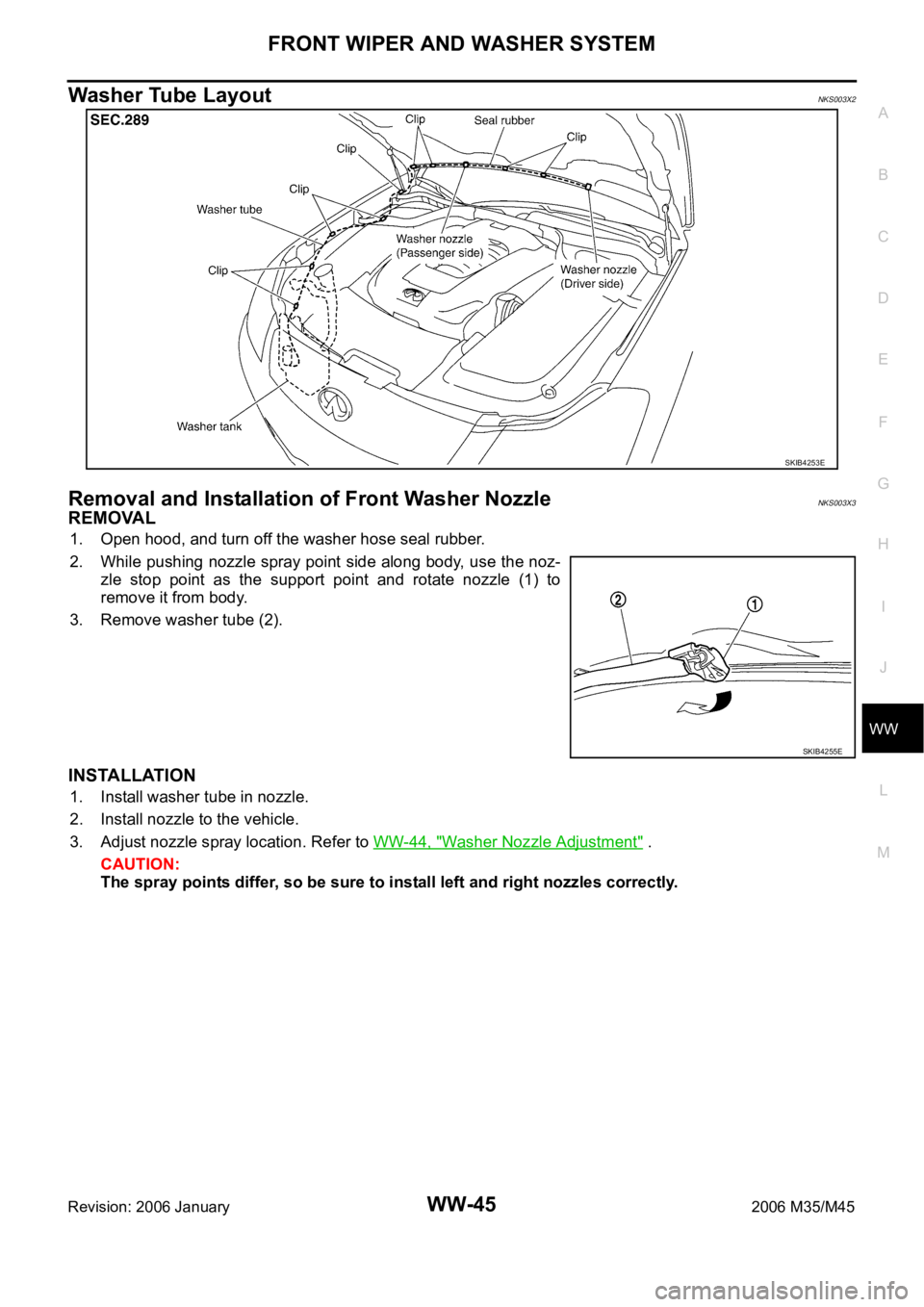

Washer Tube LayoutNKS003X2
Removal and Installation of Front Washer NozzleNKS003X3
REMOVAL
1. Open hood, and turn off the washer hose seal rubber.
2. While pushing nozzle spray point side along body, use the noz-
zle stop point as the support point and rotate nozzle (1) to
remove it from body.
3. Remove washer tube (2).
INSTALLATION
1. Install washer tube in nozzle.
2. Install nozzle to the vehicle.
3. Adjust nozzle spray location. Refer to WW-44, "
Washer Nozzle Adjustment" .
CAUTION:
The spray points differ, so be sure to install left and right nozzles correctly.
SKIB4253E
SKIB4255E

WW-46
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
Inspection for Washer Nozzle NKS003X4
CHECK VALVE INSPECTION
Blow air in the injection direction, and make sure that air flows only
one way. Make sure that the reverse direction (inhale) is not possi-
ble.
Inspection of Front Wiper and Washer Switch CircuitNKS003X5
Refer to LT- 2 4 0 , "Combination Switch Inspection" .
Removal and Installation of Front Wiper and Washer SwitchNKS003X6
REMOVAL
1. Remove steering column cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect the wiper and washer switch connector.
3. Pull wiper and washer switch (1) toward the passenger door
while pressing pawls (A) in direction shown by the arrow in the
figure, and remove it from the base.
INSTALLATION
Installation is the reverse order of removal.
SKIB4256E
SKIB4257E

FRONT WIPER AND WASHER SYSTEM
WW-47
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
Removal and Installation of Washer TankNKS003X7
: Vehicle front
REMOVAL
1. Remove engine room cover (RH). Refer to EM-14, "Removal and Installation" .
2. Remove clip (A) and pull washer tank inlet (1) out of washer
tank.
3. Remove front bumper. Refer to EI-11, "
Removal and Installation" .
4. Disconnect washer pump connector and wash fluid level sensor connector.
5. Remove washer tank mounting nuts (A) and remove screw (B).
6. Remove washer tube, and remove washer tank (1) from vehicle.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of washer tank inlet, and check for water leaks.
SKIB4258E
SKIB4259E
Washer tank mounting nuts : 4.5 Nꞏm (0.46 kg-m, 40 in-lb)
Washer tank mounting screw : 4.5 Nꞏm (0.46 kg-m, 40 in-lb)

WW-48
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
Removal and Installation of Washer PumpNKS003X8
: Vehicle front
REMOVAL
1. Remove fender protector (front) RH. Refer to EI-20, "FENDER PROTECTOR" .
2. Disconnect washer pump connector (1) and remove washer
tube.
3. Pull out washer pump (2) in direction shown by the arrow in the
figure. Remove washer pump (2) from washer tank.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
When installing washer pump, there should be no packing twists, etc.
SKIB4260E

CIGARETTE LIGHTER
WW-49
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
CIGARETTE LIGHTERPFP:35330
Wiring Diagram — CIGAR —NKS003X9
TKWT3219E

WW-50
CIGARETTE LIGHTER
Revision: 2006 January2006 M35/M45
Removal and InstallationNKS003XA
REMOVAL
1. Remove A/T console finisher. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (A) from reverse side cigarette lighter socket.
3. Pull out cigarette lighter (1).
4. Insert a small screwdriver or similar tool between the cigarette
lighter socket (2) and cigarette lighter ring (3). Pull out cigarette
lighter socket (2).
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of cigarette lighter ring and cigarette lighter socket when installing.
SKIB4207E
SKIB4262E

POWER SOCKET
WW-51
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
POWER SOCKETPFP:253A2
Wiring Diagram — P/SCKT —NKS003XB
TKWT3220E

WW-52
POWER SOCKET
Revision: 2006 January2006 M35/M45
Removal and Installation of Center Console Box Power SocketNKS003XC
REMOVAL
1. Remove console box. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove inner socket (1) from the ring (2) while pressing the
hook (B) on the ring out from square hole (A).
3. Remove ring from console box while pressing pawls.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of inner socket and ring, and console box when installing.
Removal and Installation of Center Console Box Rear Side Power SocketNKS003XD
REMOVAL
1. Remove the console rear finisher. Refer to IP-19, "CENTER CONSOLE ASSEMBLY" .
2. Remove inner socket (1) and ring (2) from the console rear fin-
isher while pressing the hook on ring from square hole.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of inner socket and ring, and console box when installing.
SKIB4263E
SKIB4265E

HORN
WW-53
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
HORNPFP:25610
Wiring Diagram — HORN —NKS003XE
TKWT3221E
