INFINITI QX4 2001 Factory Service Manual

MAT919A
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC (Cont'd)
AT-216

MAT920A
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC (Cont'd)
AT-217

1. O/D OFF Indicator Lamp Does Not Come OnNBAT0073SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to ªONº.
1 CHECK TCM POWER SOURCE STEP 1
1. Turn ignition switch to ON position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
SAT611J
OK or NG
OK©GO TO 2.
NG©GO TO 3.
2 CHECK TCM POWER SOURCE STEP 2
1. Turn ignition switch to OFF position.
2. Check voltage between TCM terminal 28 and ground.
SAT612JC
OK or NG
OK©GO TO 4.
NG©GO TO 3.
3 DETECT MALFUNCTIONING ITEM
Check the following items:
IHarness for short or open between ignition switch and TCM terminals 10, 19 and 28 (Main harness)
IIgnition switch and 10A or 7.5A fuse [No. 18 or 24, located in the fuse block (J/B)]
Refer to EL-9, ªSchematicº.
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On
AT-218

4 CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground. Refer to wiring diagram Ð AT Ð MAIN.
Continuity should exist.
If OK, check harness for short to ground and short to power.
OK or NG
OK©GO TO 5.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
5 CHECK LAMP CIRCUIT
1. Turn ignition switch to ªONº position.
2. Set overdrive control switch to ªONº position.
3. Check voltage between TCM terminals 13 and ground.
SAT529J
Does battery voltage exist?
Ye s©GO TO 7.
No©GO TO 6.
6 CHECK MALFUNCTIONING ITEM
Check the following items:
IFuse
IO/D OFF indicator lamp
IHarness for short or open between ignition switch and O/D OFF indicator lamp (Main harness)
IRefer to EL-9, ªSchematicº.
IHarness for short or open between O/D OFF indicator lamp and TCM
OK or NG
OK©GO TO 7.
NG©Repair or replace damaged parts.
7 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©GO TO 8.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On (Cont'd)
AT-219

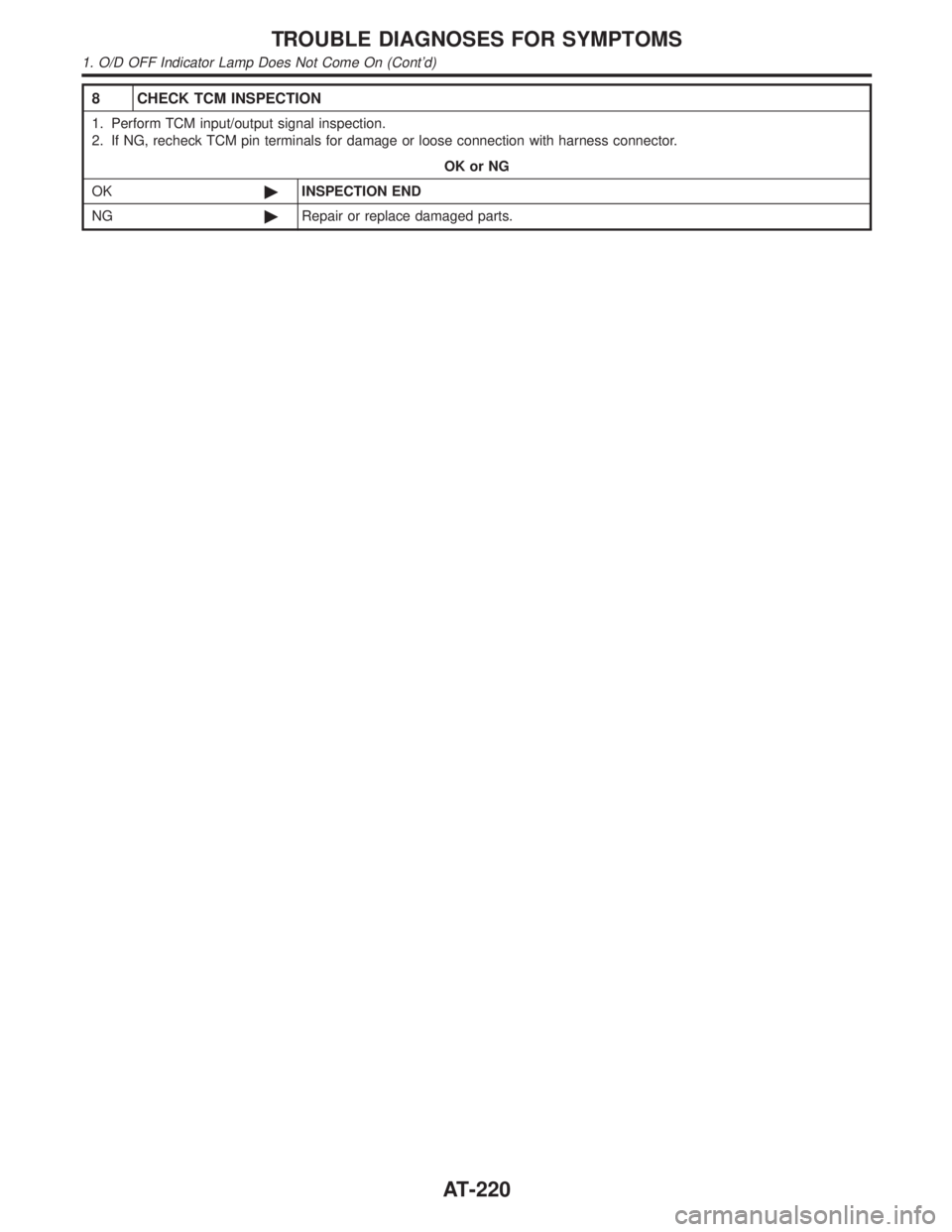

8 CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On (Cont'd)
AT-220

2. Engine Cannot Be Started In ªPº and ªNº
Position
=NBAT0074SYMPTOM:
Engine cannot be started with selector lever in ªPº or ªNº
position.
Engine cannot be started with selector lever in ªPºEngine can
be started with selector lever in ªDº, ª2º, ª1º or ªRº position.
1 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªTCM INPUT SIGNALSº in Data Monitor show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ªDTC P0705º, AT-99.
No©GO TO 2.
2 CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch 2-pin connector. Refer to ªComponents Inspectionº, AT-103.
SAT838BB
OK or NG
OK©GO TO 3.
NG©Repair or replace PNP switch.
3 CHECK STARTING SYSTEM
Check starting system. Refer to SC-10, ªSystem Descriptionº.
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
2. Engine Cannot Be Started In ªPº and ªNº Position
AT-221

3. In ªPº Position, Vehicle Moves Forward Or
Backward When Pushed
=NBAT0075SYMPTOM:
Vehicle moves when it is pushed forward or backward with
selector lever in ªPº position.
1 CHECK PARKING COMPONENTS
Check parking components.
Refer to ªParking Pawl Componentsº, AT-337.
SAT133B
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
3. In ªPº Position, Vehicle Moves Forward Or Backward When Pushed
AT-222

4. In ªNº Position, Vehicle Moves=NBAT0076SYMPTOM:
Vehicle moves forward or backward when selecting ªNº posi-
tion.
1 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªTCM INPUT SIGNALSº in Data Monitor show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ªDTC P0705º, AT-99.
No©GO TO 2.
2 CHECK CONTROL LINKAGE
Check control linkage. Refer to AT-276.
SAT032G
OK or NG
OK©GO TO 3.
NG©Adjust control linkage. Refer to AT-276.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
4. In ªNº Position, Vehicle Moves
AT-223

3 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 4.
NG©Refill ATF.
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©1. Disassemble A/T.
2. Check the following items:
IForward clutch assembly
IOverrun clutch assembly
IReverse clutch assembly
5 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
4. In ªNº Position, Vehicle Moves (Cont'd)
AT-224

5. Large Shock. ªNº®ªRº Position=NBAT0077SYMPTOM:
There is large shock when changing from ªNº to ªRº position.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, line pressure solenoid valve or throttle position sensor
circuit?
SAT579I
YesorNo
Ye s©Check damaged circuit. Refer to ªDTC P0710, DTC P0745 or DTC P1705º, AT-105, 162
or 176.
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-174, ªDescriptionº.
SAT142K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
5. Large Shock. ªNº®ªRº Position
AT-225
