7 CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT-301.
2. Check line pressure circuit valves for sticking.
IPressure regulator valve
IPilot valve
IPressure modifier valve
SAT367H
OK or NG
OK©GO TO 8.
NG©Repair control valve.
8 CHECK SHIFT UP (D3TO D4)
Does A/T shift from D3to D4at the specified speed?
YesorNo
Ye s©GO TO 9.
No©Check control valve again. Repair or replace control valve assembly.
9 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-154.
OK or NG
OK©INSPECTION END
NG©IGO TO 10.
IAnd check for proper lock-up.
10 CHECK LOCK-UP CONDITION
During ªCruise test þ Part 1º, AT-71.
Does A/T perform lock-up at the specified speed?
YesorNo
Ye s©Perform ªCruise test þ Part 1º again and return to the start point of this flow chart.
No©GO TO 11.
11 CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE
1. Remove control valve assembly. Refer to AT-273.
2. Check torque converter clutch solenoid valve operation.
Refer to AT-161.
OK or NG
OK©GO TO 12.
NG©Replace solenoid valve assembly.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0744 IMPROPER LOCK-UP OPERATION
Diagnostic Procedure (Cont'd)
AT-159

12 CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT-301.
2. Check control valves for sticking.
ITorque converter clutch control valve
ITorque converter clutch relief valve
SAT367H
OK or NG
OK©GO TO 13.
NG©Repair control valve
13 CHECK LOCK-UP CONDITION
Does A/T perform lock-up at the specified speed?
YesorNo
Ye s©GO TO 14.
No©Check control valve again. Repair or replace control valve assembly.
14 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-154.
OK or NG
OK©INSPECTION END
NG©Perform ªCruise test Ð Part 1º again and return to the start point of this flow chart.
DTC P0744 IMPROPER LOCK-UP OPERATION
Diagnostic Procedure (Cont'd)
AT-160

SAT159J
Component InspectionNBAT0056SOLENOID VALVESNBAT0056S01IFor removal, refer to AT-273.
Resistance CheckNBAT0056S0101ICheck resistance between terminals (6 or 7) and ground.
Solenoid valve Terminal No. Resistance (Approx.)
Line pressure solenoid valve 6
Ground2.5-5W
Torque converter clutch
solenoid valve7 10-20W
SAT158J
Operation CheckNBAT0056S0102ICheck solenoid valve by listening for its operating sound while
applying battery voltage to the terminals (6 or 7) and ground.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC P0744 IMPROPER LOCK-UP OPERATION
Component Inspection
AT-161

7 CHECK TCM POWER SOURCE STEP 1
1. Turn ignition switch to ON position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
SAT611J
OK or NG
OK©GO TO 8.
NG©GO TO 9.
8 CHECK TCM POWER SOURCE STEP 2
1. Turn ignition switch to OFF position.
2. Check voltage between TCM terminal 28 and ground.
SAT612JC
OK or NG
OK©GO TO 10.
NG©GO TO 9.
9 DETECT MALFUNCTIONING ITEM
Check the following items:
IHarness for short or open between ignition switch and TCM terminals 10, 19 and 28 (Main harness)
IIgnition switch and 10A or 7.5A fuse [No. 18 or 24, located in the fuse block (J/B)]
Refer to EL-9, ªSchematicº.
OK or NG
OK©GO TO 10.
NG©Repair or replace damaged parts.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Diagnostic Procedure (Cont'd)
AT-195

1. O/D OFF Indicator Lamp Does Not Come OnNBAT0073SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to ªONº.
1 CHECK TCM POWER SOURCE STEP 1
1. Turn ignition switch to ON position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
SAT611J
OK or NG
OK©GO TO 2.
NG©GO TO 3.
2 CHECK TCM POWER SOURCE STEP 2
1. Turn ignition switch to OFF position.
2. Check voltage between TCM terminal 28 and ground.
SAT612JC
OK or NG
OK©GO TO 4.
NG©GO TO 3.
3 DETECT MALFUNCTIONING ITEM
Check the following items:
IHarness for short or open between ignition switch and TCM terminals 10, 19 and 28 (Main harness)
IIgnition switch and 10A or 7.5A fuse [No. 18 or 24, located in the fuse block (J/B)]
Refer to EL-9, ªSchematicº.
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On
AT-218

12. A/T Does Not Perform Lock-up=NBAT0084SYMPTOM:
A/T does not perform lock-up at the specified speed.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to torque converter clutch solenoid valve circuit after cruise test?
SAT581I
YesorNo
Ye s©Check torque converter clutch solenoid valve circuit. Refer to ªDTC P0740º, AT-148.
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-174, ªDescriptionº.
SAT142K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor.
3 DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT-273.
2. Check following items:
ITorque converter clutch control valve
ITorque converter relief valve
ITorque converter clutch solenoid valve
IPilot valve
IPilot filter
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
12. A/T Does Not Perform Lock-up
AT-245

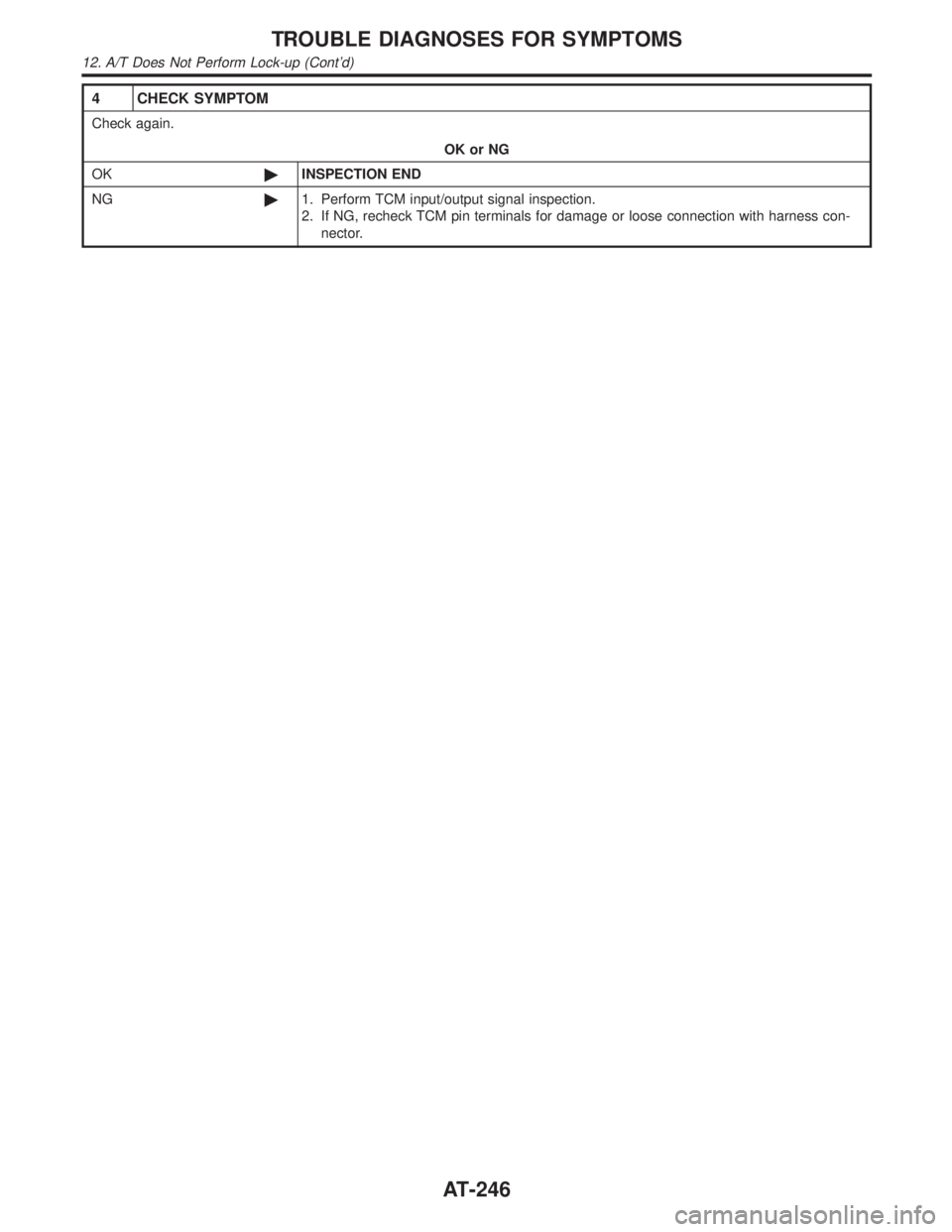

4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
12. A/T Does Not Perform Lock-up (Cont'd)
AT-246

13. A/T Does Not Hold Lock-up Condition=NBAT0085SYMPTOM:
A/T does not hold lock-up condition for more than 30 seconds.
1 CHECK DIAGNOSTIC RESULTS
Does self-diagnosis show damage to engine speed signal circuit after cruise test?
SAT582I
YesorNo
Ye s©Check engine speed signal circuit. Refer to ªDTC P0725º, AT-116.
No©GO TO 2.
2 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 3.
NG©GO TO 5.
3 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-273.
2. Check the following items:
ITorque converter clutch control valve
IPilot valve
IPilot filter
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
13. A/T Does Not Hold Lock-up Condition
AT-247

4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
5 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT-273.
2. Check the following items:
ITorque converter clutch control valve
IPilot valve
IPilot filter
3. Disassemble A/T.
4. Check torque converter and oil pump assembly.
OK or NG
OK©GO TO 4.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
13. A/T Does Not Hold Lock-up Condition (Cont'd)
AT-248

14. Lock-up Is Not Released=NBAT0086SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1 CHECK THROTTLE POSITION SWITCH CIRCUIT
With CONSULT-II
Does ªTCM INPUT SIGNALSº in Data Monitor show damage to closed throttle position switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to closed throttle position switch circuit?
SAT367J
YesorNo
Ye s©Check closed throttle position switch circuit. Refer to ªDTC P1705º, AT-176.
No©GO TO 2.
2 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
GI
MA
EM
LC
EC
FE
TF
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TROUBLE DIAGNOSES FOR SYMPTOMS
14. Lock-up Is Not Released
