ISUZU KB P190 2007 Workshop Repair Manual

Engine Mechanical – V6 Page 6A1–272

Right-hand Cylinder Head Rear Face

Figure 6A1 – 523
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–273

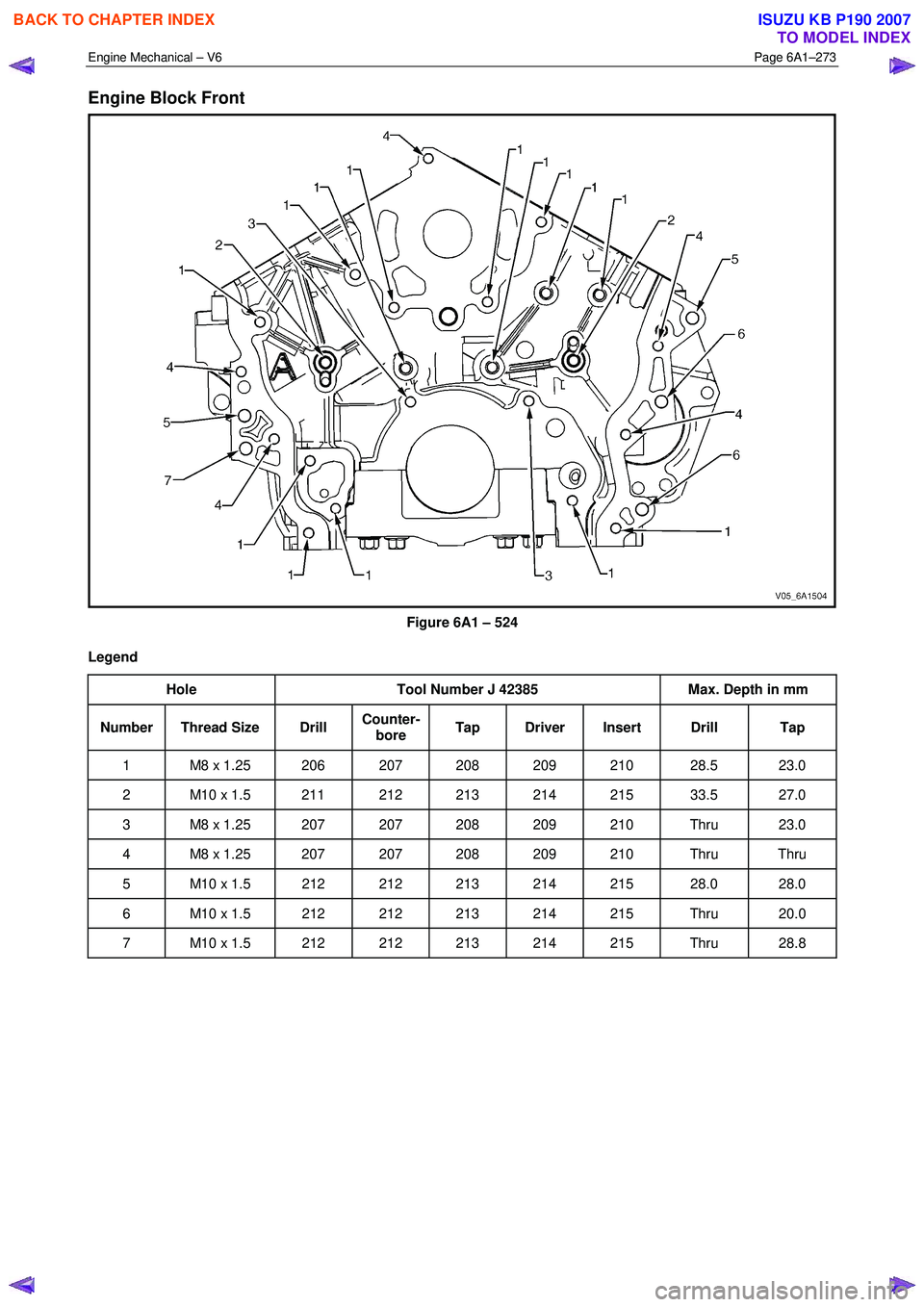

Engine Block Front

Figure 6A1 – 524
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M10 x 1.5 211 212 213 214 215 33.5 27.0
3 M8 x 1.25 207 207 208 209 210 Thru 23.0
4 M8 x 1.25 207 207 208 209 210 Thru Thru
5 M10 x 1.5 212 212 213 214 215 28.0 28.0
6 M10 x 1.5 212 212 213 214 215 Thru 20.0
7 M10 x 1.5 212 212 213 214 215 Thru 28.8

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–274

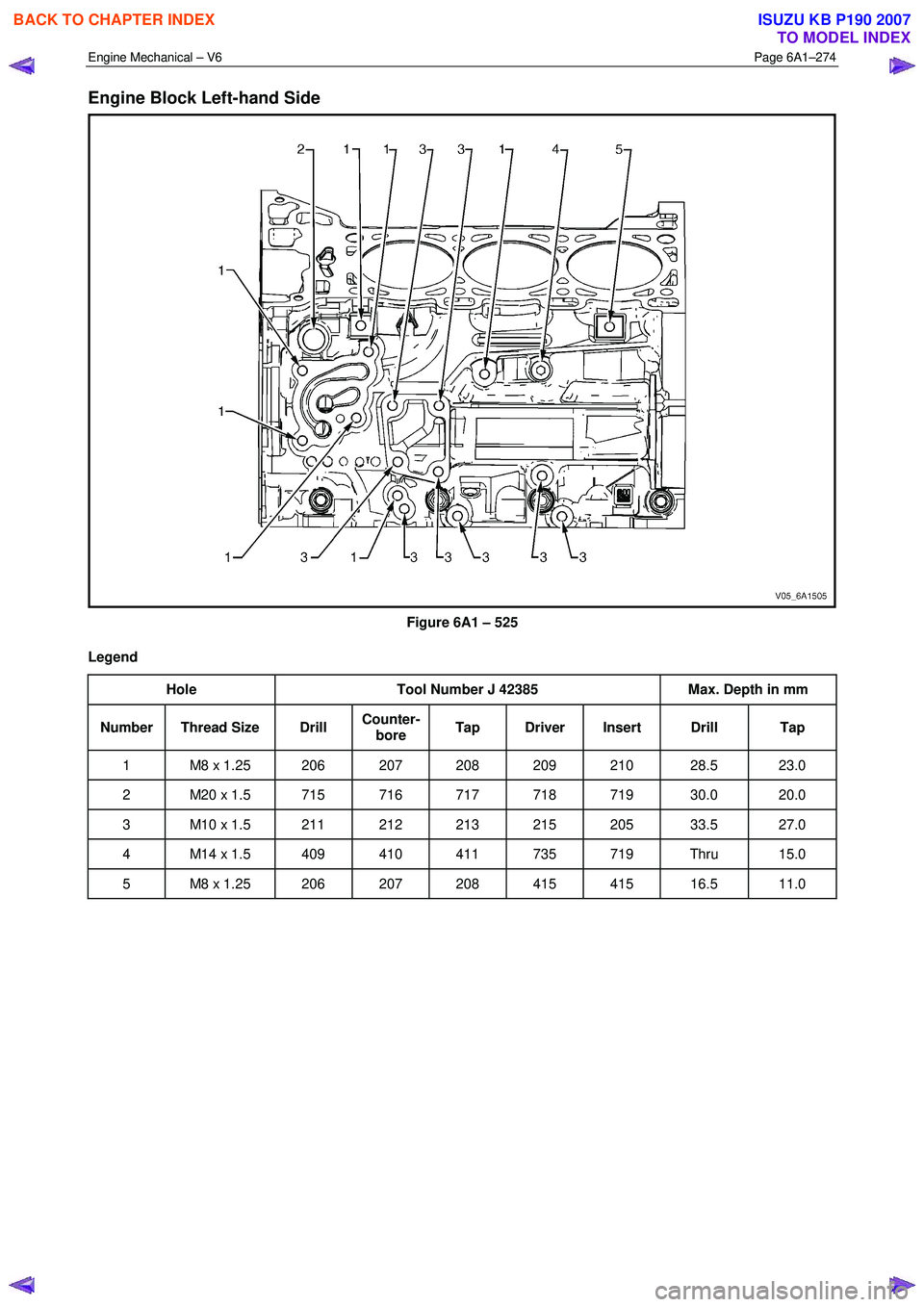

Engine Block Left-hand Side

Figure 6A1 – 525
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M20 x 1.5 715 716 717 718 719 30.0 20.0
3 M10 x 1.5 211 212 213 215 205 33.5 27.0
4 M14 x 1.5 409 410 411 735 719 Thru 15.0
5 M8 x 1.25 206 207 208 415 415 16.5 11.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–275

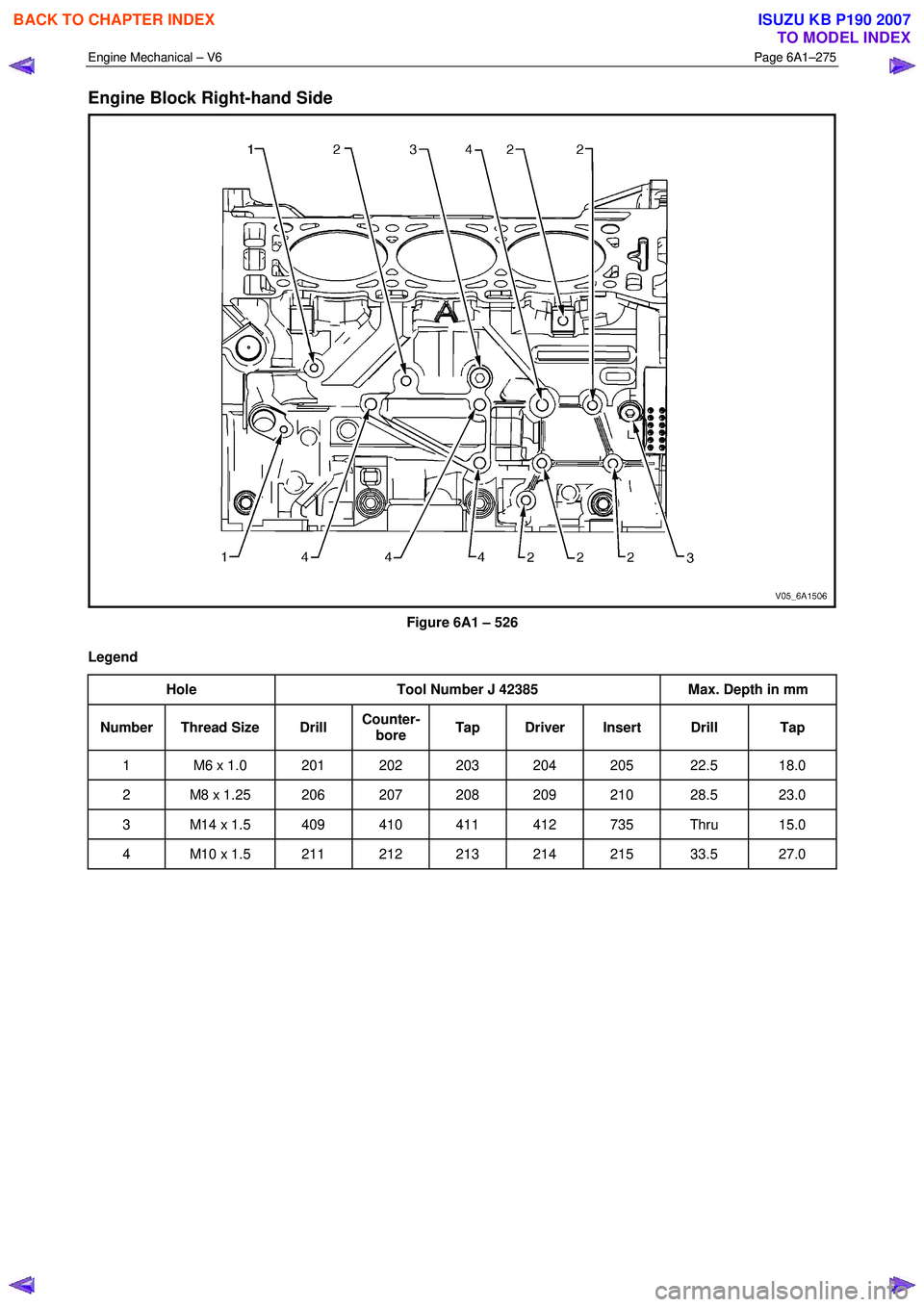

Engine Block Right-hand Side

Figure 6A1 – 526
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M8 x 1.25 206 207 208 209 210 28.5 23.0
3 M14 x 1.5 409 410 411 412 735 Thru 15.0
4 M10 x 1.5 211 212 213 214 215 33.5 27.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–276

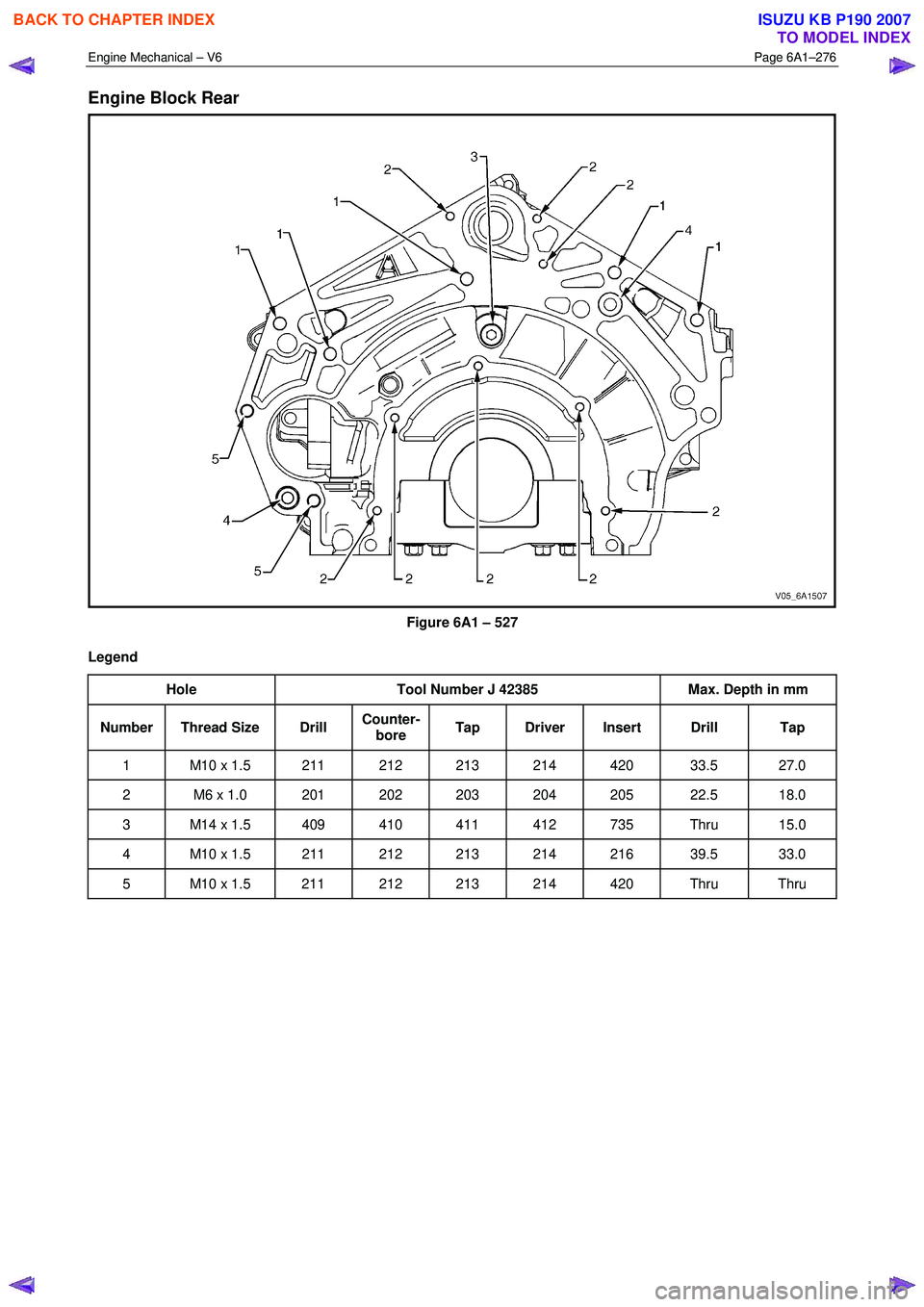

Engine Block Rear

Figure 6A1 – 527
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 420 33.5 27.0
2 M6 x 1.0 201 202 203 204 205 22.5 18.0
3 M14 x 1.5 409 410 411 412 735 Thru 15.0
4 M10 x 1.5 211 212 213 214 216 39.5 33.0
5 M10 x 1.5 211 212 213 214 420 Thru Thru


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–277

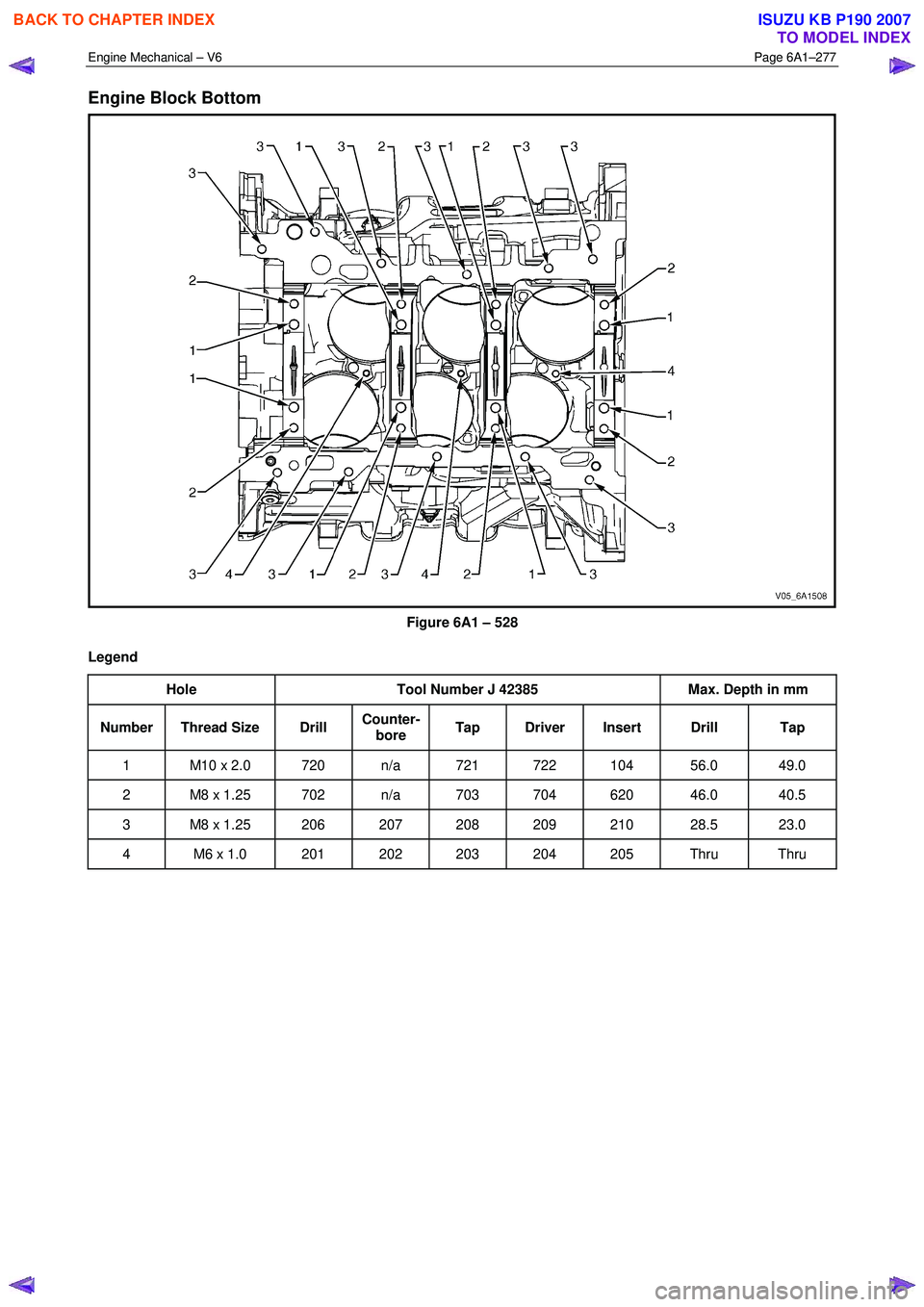

Engine Block Bottom

Figure 6A1 – 528
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 2.0 720 n/a 721 722 104 56.0 49.0
2 M8 x 1.25 702 n/a 703 704 620 46.0 40.5
3 M8 x 1.25 206 207 208 209 210 28.5 23.0
4 M6 x 1.0 201 202 203 204 205 Thru Thru


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–278

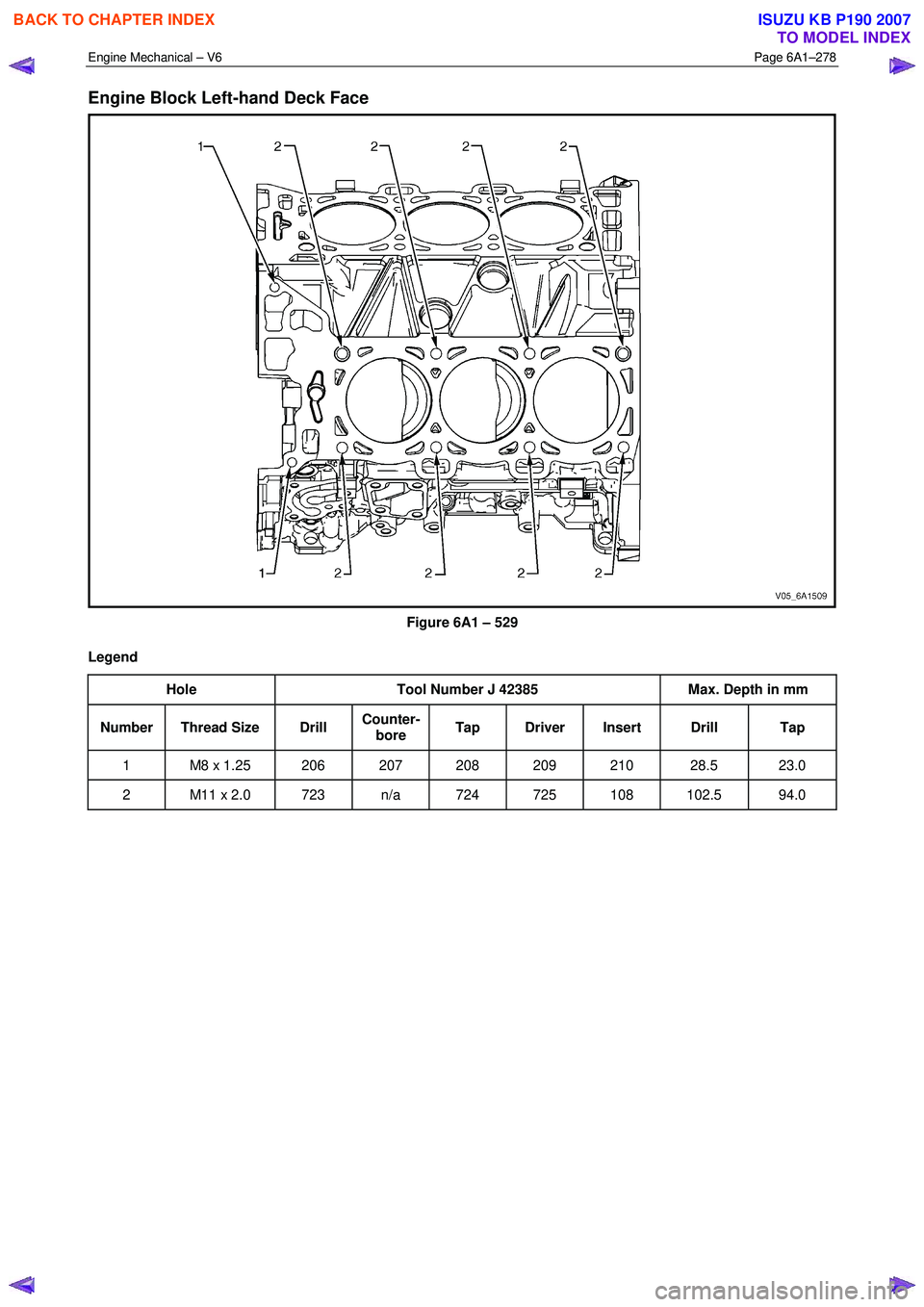

Engine Block Left-hand Deck Face

Figure 6A1 – 529
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M11 x 2.0 723 n/a 724 725 108 102.5 94.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–279

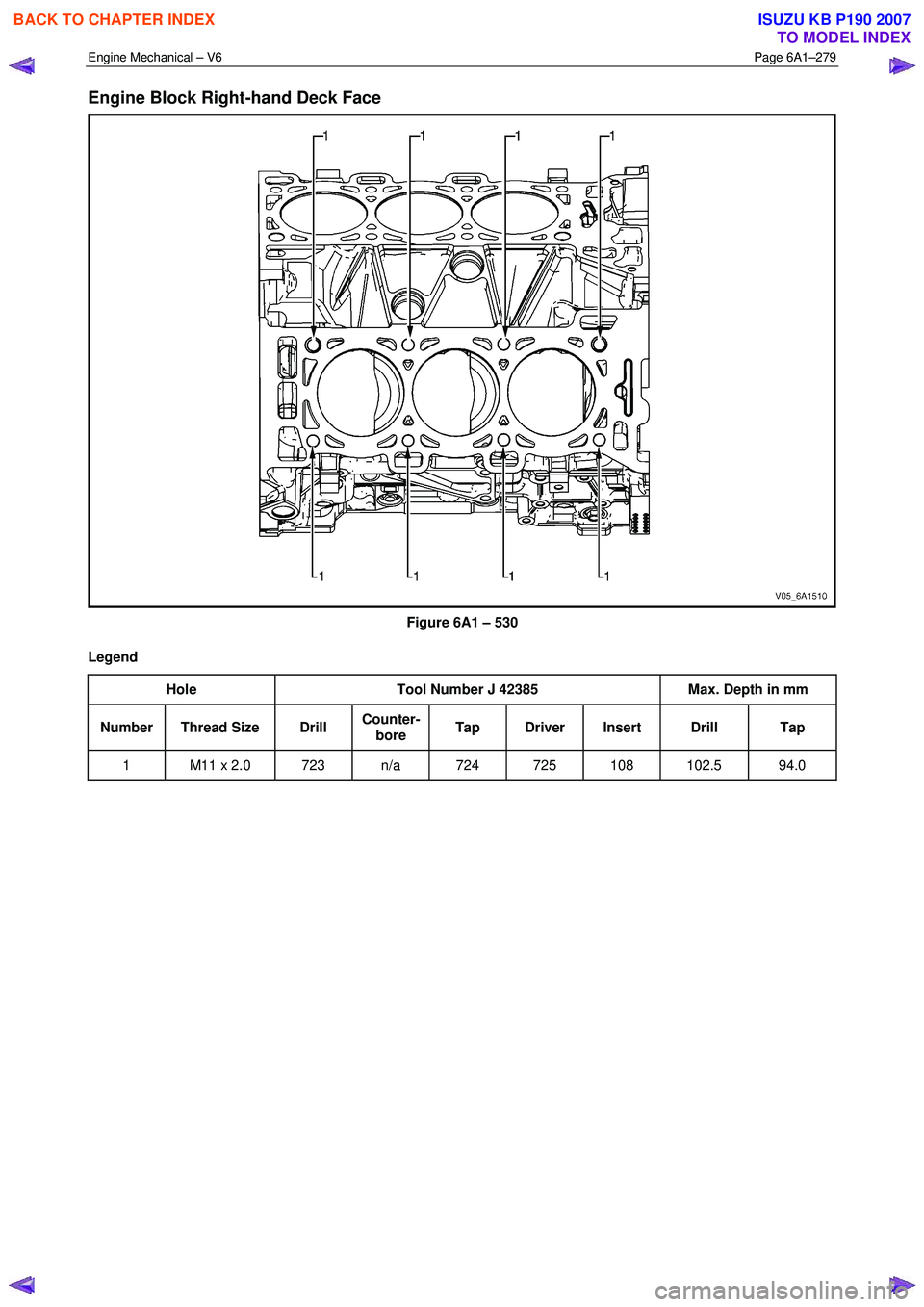

Engine Block Right-hand Deck Face

Figure 6A1 – 530
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M11 x 2.0 723 n/a 724 725 108 102.5 94.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–280

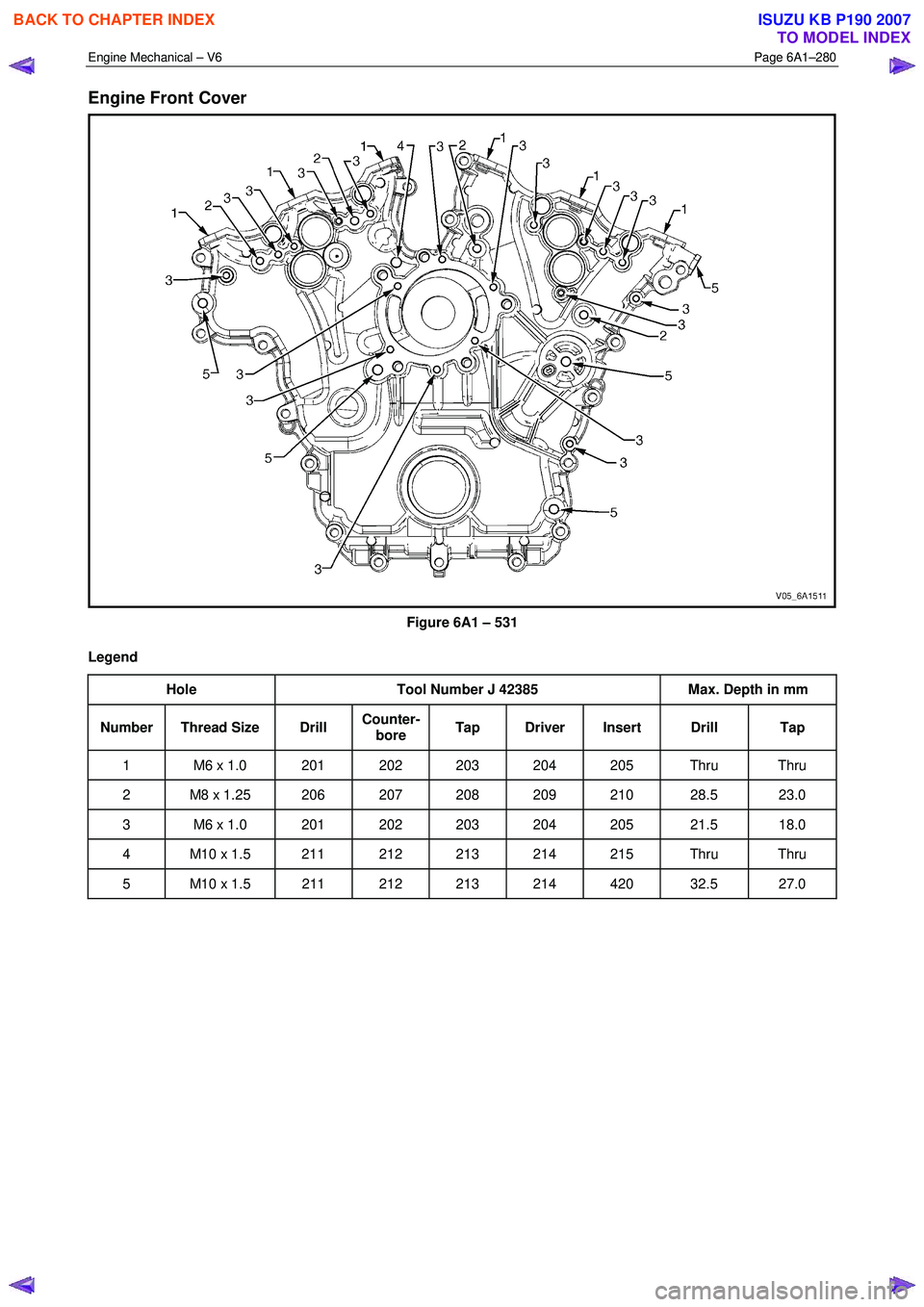

Engine Front Cover

Figure 6A1 – 531
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru
2 M8 x 1.25 206 207 208 209 210 28.5 23.0
3 M6 x 1.0 201 202 203 204 205 21.5 18.0
4 M10 x 1.5 211 212 213 214 215 Thru Thru
5 M10 x 1.5 211 212 213 214 420 32.5 27.0


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

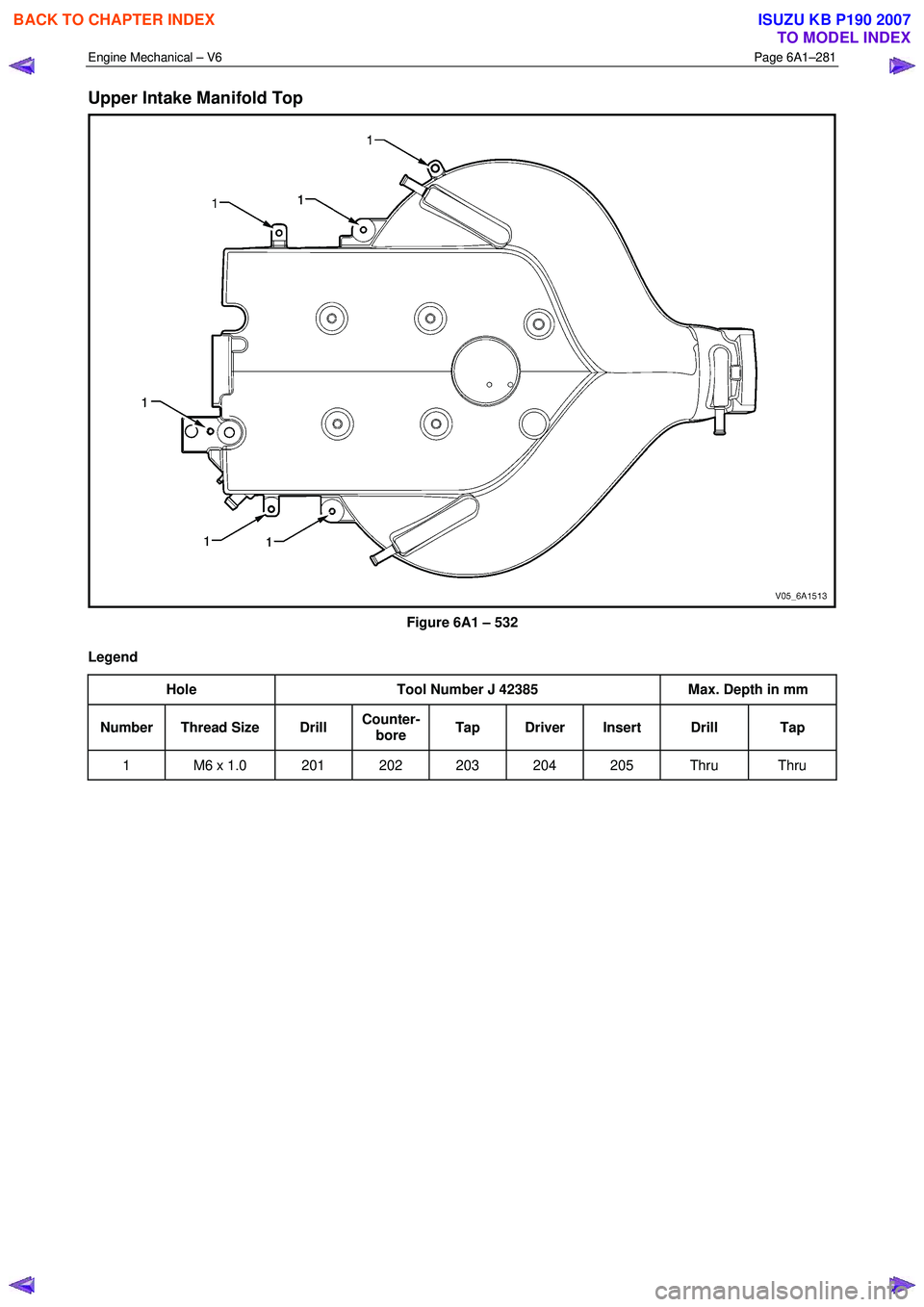

Engine Mechanical – V6 Page 6A1–281

Upper Intake Manifold Top

Figure 6A1 – 532
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 Thru Thru


BACK TO CHAPTER INDEX
